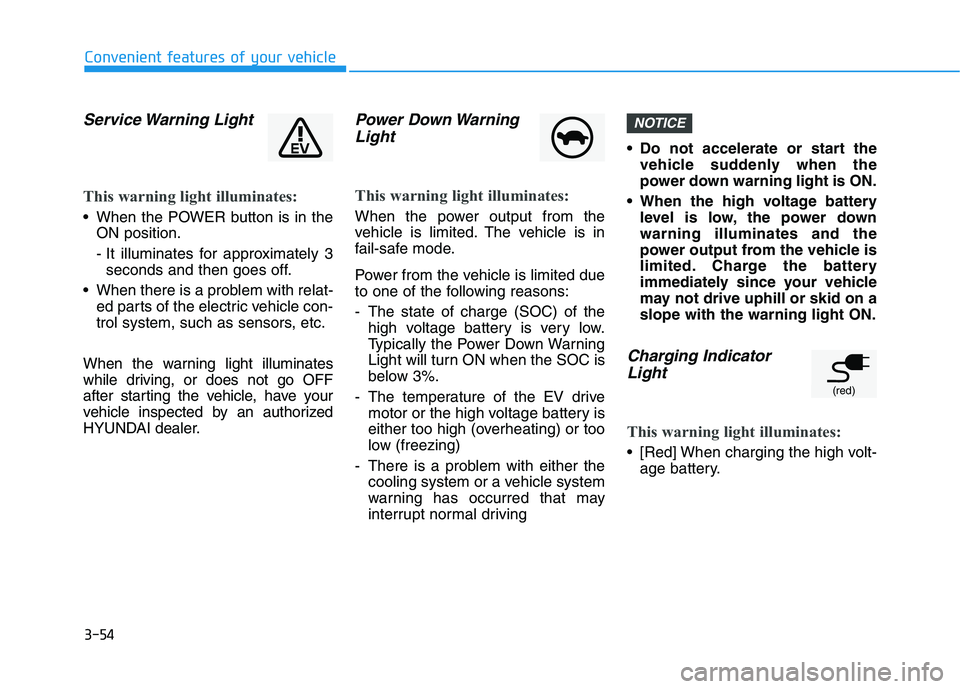

service indicator HYUNDAI KONA EV 2021 Owners Manual

3-54
Convenient features of your vehicle
Service Warning Light
This warning light illuminates:
When the POWER button is in the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
When there is a problem with relat-
ed parts of the electric vehicle con-
trol system, such as sensors, etc.
When the warning light illuminates
while driving, or does not go OFF
after starting the vehicle, have your
vehicle inspected by an authorized
HYUNDAI dealer.
Power Down Warning
Light
This warning light illuminates:
When the power output from the
vehicle is limited. The vehicle is in
fail-safe mode.
Power from the vehicle is limited due
to one of the following reasons:
- The state of charge (SOC) of the
high voltage battery is very low.
Typically the Power Down Warning
Light will turn ON when the SOC is
below 3%.
- The temperature of the EV drive
motor or the high voltage battery is
either too high (overheating) or too
low (freezing)
- There is a problem with either the
cooling system or a vehicle system
warning has occurred that may
interrupt normal driving Do not accelerate or start the
vehicle suddenly when the
power down warning light is ON.
When the high voltage battery
level is low, the power down
warning illuminates and the
power output from the vehicle is
limited. Charge the battery
immediately since your vehicle
may not drive uphill or skid on a
slope with the warning light ON.
Charging Indicator
Light
This warning light illuminates:
[Red] When charging the high volt-
age battery.
NOTICE
(red)

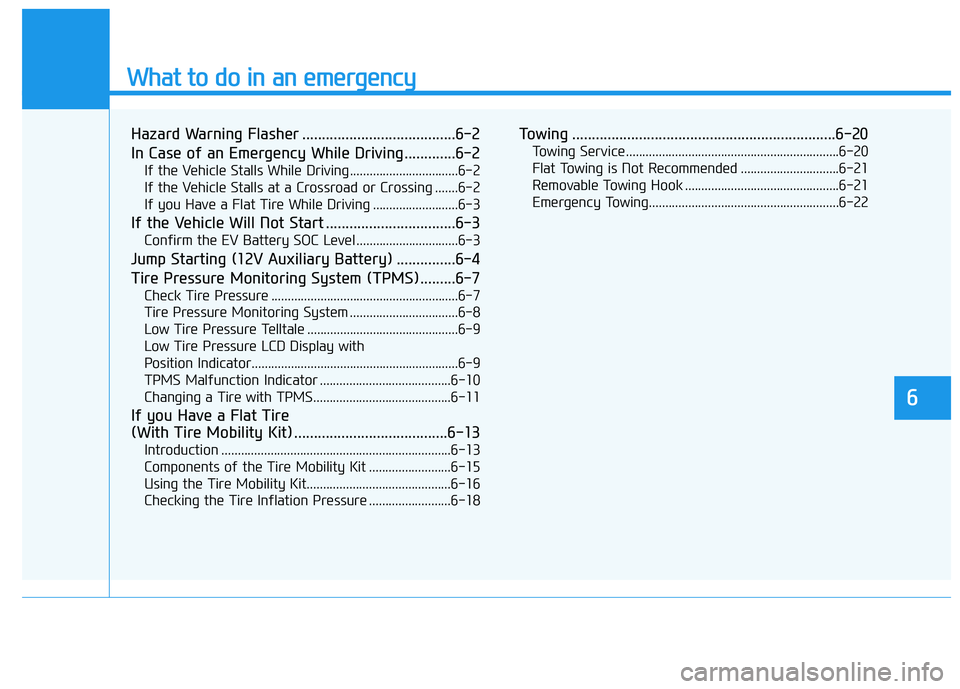

What to do in an emergency
6
Hazard Warning Flasher .......................................6-2
In Case of an Emergency While Driving.............6-2
If the Vehicle Stalls While Driving .................................6-2
If the Vehicle Stalls at a Crossroad or Crossing .......6-2
If you Have a Flat Tire While Driving ..........................6-3
If the Vehicle Will Not Start .................................6-3
Confirm the EV Battery SOC Level ...............................6-3
Jump Starting (12V Auxiliary Battery) ...............6-4
Tire Pressure Monitoring System (TPMS).........6-7
Check Tire Pressure .........................................................6-7
Tire Pressure Monitoring System .................................6-8
Low Tire Pressure Telltale ..............................................6-9
Low Tire Pressure LCD Display with
Position Indicator...............................................................6-9
TPMS Malfunction Indicator ........................................6-10
Changing a Tire with TPMS..........................................6-11
If you Have a Flat Tire
(With Tire Mobility Kit) .......................................6-13
Introduction ......................................................................6-13
Components of the Tire Mobility Kit .........................6-15
Using the Tire Mobility Kit............................................6-16
Checking the Tire Inflation Pressure .........................6-18
Towing ...................................................................6-20
Towing Service .................................................................6-20
Flat Towing is Not Recommended ..............................6-21
Removable Towing Hook ...............................................6-21
Emergency Towing..........................................................6-22

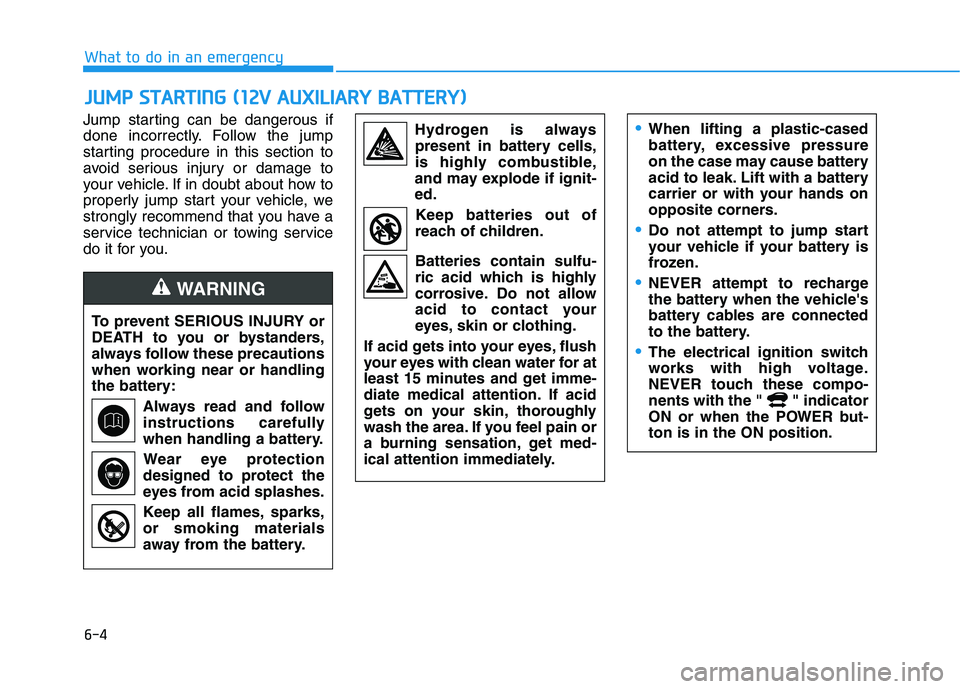

6-4
What to do in an emergency
Jump starting can be dangerous if
done incorrectly. Follow the jump
starting procedure in this section to
avoid serious injury or damage to
your vehicle. If in doubt about how to
properly jump start your vehicle, we
strongly recommend that you have a
service technician or towing service
do it for you.
J JU
UM
MP
P
S
ST
TA
AR
RT
TI
IN
NG
G
(
(1
12
2V
V
A
AU
UX
XI
IL
LI
IA
AR
RY
Y
B
BA
AT
TT
TE
ER
RY
Y)
)
To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working near or handling
the battery:
Always read and follow
instructions carefully
when handling a battery.
Wear eye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks,
or smoking materials
away from the battery.
WARNING
Hydrogen is always
present in battery cells,
is highly combustible,
and may explode if ignit-
ed.
Keep batteries out of
reach of children.
Batteries contain sulfu-
ric acid which is highly
corrosive. Do not allow
acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get imme-
diate medical attention. If acid
gets on your skin, thoroughly
wash the area. If you feel pain or
a burning sensation, get med-
ical attention immediately.•When lifting a plastic-cased
battery, excessive pressure
on the case may cause battery
acid to leak. Lift with a battery
carrier or with your hands on
opposite corners.
Do not attempt to jump start
your vehicle if your battery is
frozen.
NEVER attempt to recharge
the battery when the vehicle's
battery cables are connected
to the battery.
The electrical ignition switch
works with high voltage.
NEVER touch these compo-
nents with the " " indicator
ON or when the POWER but-
ton is in the ON position.

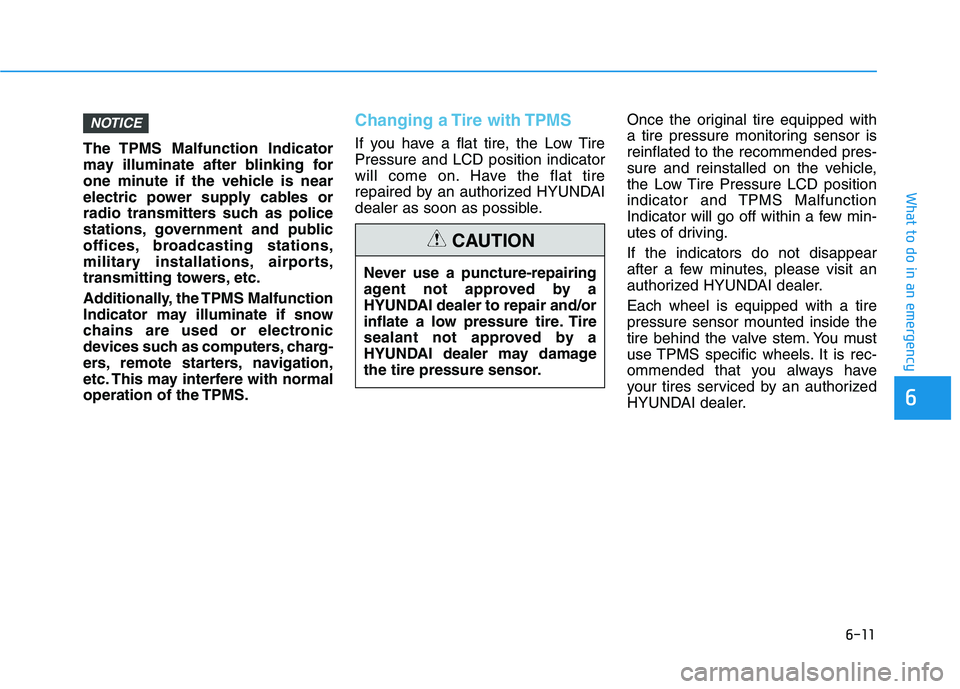

6-11
What to do in an emergency
6
The TPMS Malfunction Indicator
may illuminate after blinking for
one minute if the vehicle is near
electric power supply cables or
radio transmitters such as police
stations, government and public
offices, broadcasting stations,
military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow
chains are used or electronic
devices such as computers, charg-
ers, remote starters, navigation,
etc. This may interfere with normal
operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and LCD position indicator
will come on. Have the flat tire
repaired by an authorized HYUNDAI
dealer as soon as possible.Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pres-
sure and reinstalled on the vehicle,
the Low Tire Pressure LCD position
indicator and TPMS Malfunction
Indicator will go off within a few min-
utes of driving.
If the indicators do not disappear
after a few minutes, please visit an
authorized HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec-
ommended that you always have
your tires serviced by an authorized
HYUNDAI dealer.
NOTICE
Never use a puncture-repairing
agent not approved by a
HYUNDAI dealer to repair and/or
inflate a low pressure tire. Tire
sealant not approved by a
HYUNDAI dealer may damage
the tire pressure sensor.
CAUTION

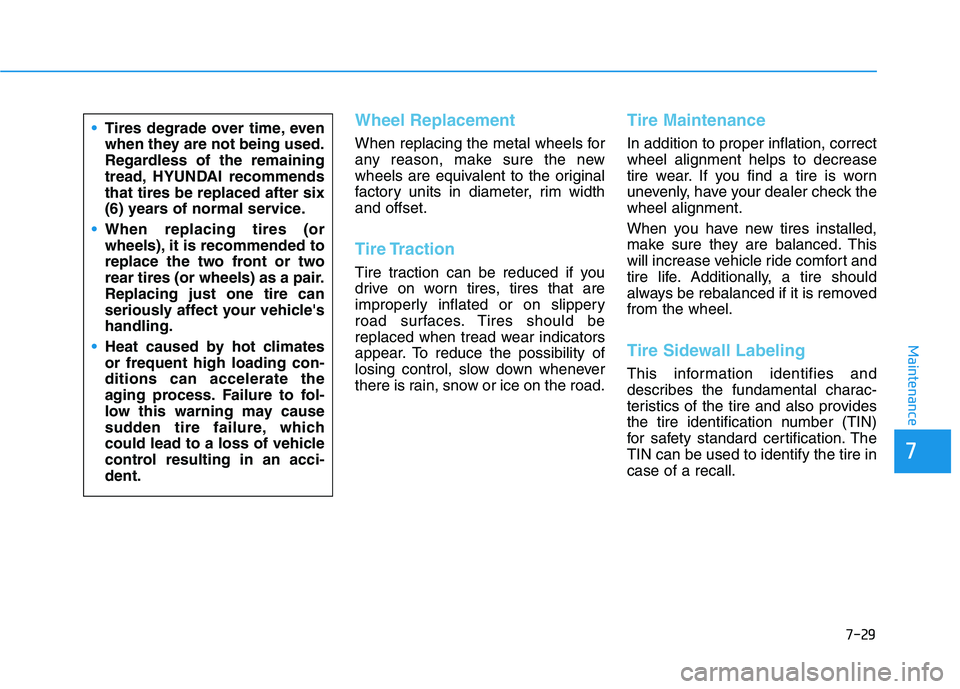

7-29
7
Maintenance
Wheel Replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
Tire Traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. To reduce the possibility of
losing control, slow down whenever
there is rain, snow or ice on the road.
Tire Maintenance
In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removed
from the wheel.
Tire Sidewall Labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. The
TIN can be used to identify the tire in
case of a recall. Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tires be replaced after six
(6) years of normal service.
When replacing tires (or
wheels), it is recommended to
replace the two front or two
rear tires (or wheels) as a pair.
Replacing just one tire can
seriously affect your vehicle's
handling.
Heat caused by hot climates
or frequent high loading con-
ditions can accelerate the
aging process. Failure to fol-
low this warning may cause
sudden tire failure, which
could lead to a loss of vehicle
control resulting in an acci-
dent.

I-8
Key not in vehicle ......................................................3-65
Lights mode ................................................................3-68
Low battery ................................................................3-74
Low EV battery temperature. Power limited .............3-75
Low key battery..........................................................3-66
Low outside temperature may limit power output.
Charge EV battery ....................................................3-75
Low pressure ..............................................................3-67
Low washer fluid........................................................3-68
Power limited .............................................................3-76
Press brake pedal to start vehicle ...............................3-65
Press POWER button again .......................................3-66
Press POWER button with key ..................................3-66
Remaining time ..........................................................3-71
Shift to P.....................................................................3-66
Shift to P to charge .....................................................3-71
Shift to P to start vehicle ............................................3-66
Stop vehicle and check power supply ........................3-76
Sunroof open indicator ...............................................3-67
Unplug vehicle to start ...............................................3-71
Wiper mode ................................................................3-68
LCD display modes ........................................................3-79
Liftgate ............................................................................3-43
Light bulbs ......................................................................7-53
Lighting ...........................................................................3-99Lighting
Auto light position......................................................3-99
Battery saver function ..............................................3-105
Daytime Running Light (DRL) ..................................3-99
Headlamp delay function .........................................3-105
Headlamp position....................................................3-100
High Beam Assist (HBA) system ............................3-101
High beam operation ................................................3-101
Lane change signals .................................................3-104
Parking lamp position ..............................................3-100
Smart cornering lamp ...............................................3-106
Turn signals ..............................................................3-104
Lubricants and capacities..................................................8-6
Luggage compartment lamp .........................................3-108
Luggage net (holder).....................................................3-146
Luggage volume ...............................................................8-5
Maintenance
Explanation of scheduled maintenance items ............7-11
Maintenance services ...................................................7-4
Maintenance under severe usage conditions ..............7-10
Normal maintenance service ........................................7-8
Owner maintenance ......................................................7-5
Scheduled maintenance services ..................................7-7
Tire maintenance ........................................................7-29
Index
M

I-9
Maintenance services ........................................................7-4
Mirrors ............................................................................3-19
Adjusting the side view mirror...................................3-30
Blue Link
®center .......................................................3-19
Electrochromic mirror (ECM) with HomeLink®system,
compass and Blue Link®............................................3-20
Folding the side view mirrors ....................................3-31
Inside rearview mirror ................................................3-19
Side view mirrors .......................................................3-29
Moonroof, see sunroof ....................................................3-36
Motor compartment panel fuse replacement ..................7-41
Motor number ...................................................................8-8
Multi fuse ........................................................................7-42
Multimedia system............................................................4-2
Antenna ........................................................................4-3
Audio / Video / Navigation system ..............................4-4
USB and iPod ...............................................................4-2
Bluetooth
®Wireless Technology ................................4-4
Steering wheel audio controls ......................................4-3
Occupant Classification System (OCS)..........................2-57
Odometer.........................................................................3-51
Outside temperature indicator.........................................3-50
Owner maintenance ..........................................................7-5Paddle shifter ..................................................................5-19
Parking lamp position ...................................................3-100
Passenger's front air bag .................................................2-49
Power brakes ...................................................................5-29
Power button .....................................................................5-6
Starting the vehicle .......................................................5-9
Turing off the vehicle .................................................5-10
Power outlet ..................................................................3-141
Power steering.................................................................3-16
Power window lock switch .............................................3-35
Power/Charge gauge .......................................................3-49
Pre-tensioner seat belt .....................................................2-29
Push button gear shift selector ........................................5-11
Gear position ..............................................................5-11
Good driving practices ...............................................5-17
LCD display messages ...............................................5-14
Shift-lock system ........................................................5-13
When the battery (12 V) is discharged ......................5-13
I
Index
O
P

I-10

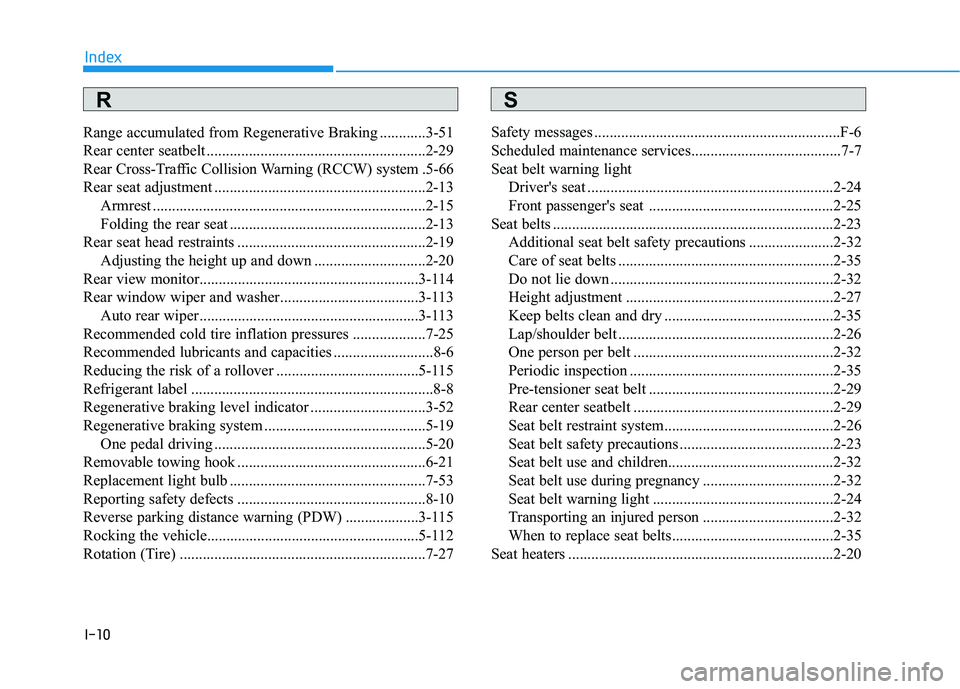

Range accumulated from Regenerative Braking ............3-51
Rear center seatbelt .........................................................2-29
Rear Cross-Traffic Collision Warning (RCCW) system .5-66
Rear seat adjustment .......................................................2-13
Armrest .......................................................................2-15
Folding the rear seat ...................................................2-13
Rear seat head restraints .................................................2-19
Adjusting the height up and down .............................2-20
Rear view monitor.........................................................3-114
Rear window wiper and washer....................................3-113
Auto rear wiper.........................................................3-113
Recommended cold tire inflation pressures ...................7-25
Recommended lubricants and capacities ..........................8-6
Reducing the risk of a rollover .....................................5-115
Refrigerant label ...............................................................8-8
Regenerative braking level indicator ..............................3-52
Regenerative braking system ..........................................5-19
One pedal driving .......................................................5-20
Removable towing hook .................................................6-21
Replacement light bulb ...................................................7-53
Reporting safety defects .................................................8-10
Reverse parking distance warning (PDW) ...................3-115
Rocking the vehicle.......................................................5-112
Rotation (Tire) ................................................................7-27Safety messages ................................................................F-6
Scheduled maintenance services.......................................7-7
Seat belt warning light
Driver's seat ................................................................2-24
Front passenger's seat ................................................2-25
Seat belts .........................................................................2-23
Additional seat belt safety precautions ......................2-32
Care of seat belts ........................................................2-35
Do not lie down ..........................................................2-32
Height adjustment ......................................................2-27
Keep belts clean and dry ............................................2-35
Lap/shoulder belt ........................................................2-26
One person per belt ....................................................2-32
Periodic inspection .....................................................2-35
Pre-tensioner seat belt ................................................2-29
Rear center seatbelt ....................................................2-29
Seat belt restraint system............................................2-26
Seat belt safety precautions ........................................2-23
Seat belt use and children...........................................2-32
Seat belt use during pregnancy ..................................2-32
Seat belt warning light ...............................................2-24
Transporting an injured person ..................................2-32
When to replace seat belts..........................................2-35
Seat heaters .....................................................................2-20
Index
RS

I-13

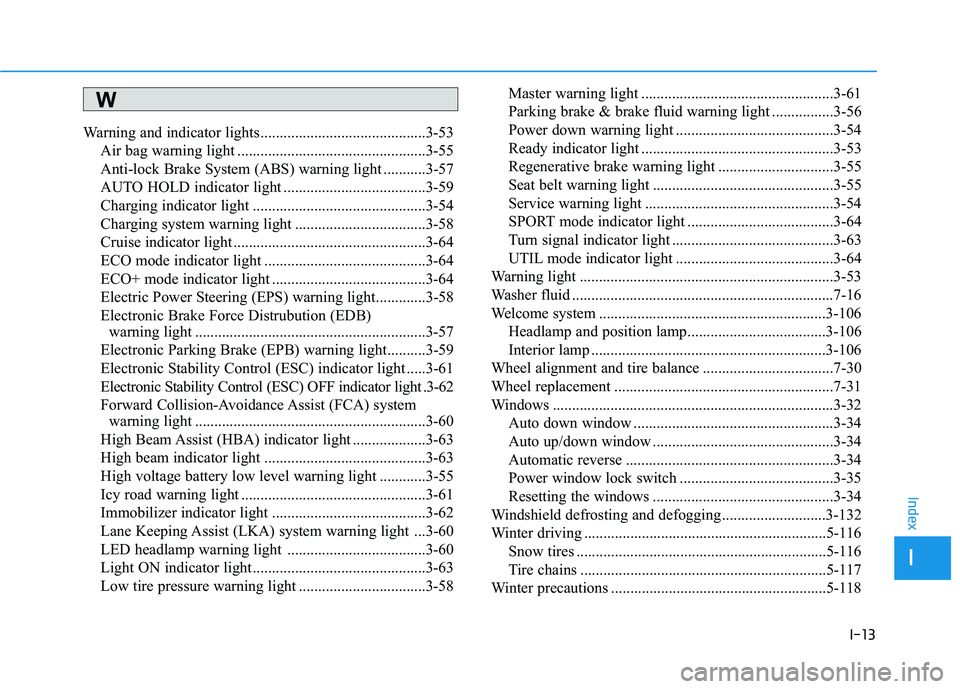

Warning and indicator lights...........................................3-53
Air bag warning light .................................................3-55
Anti-lock Brake System (ABS) warning light ...........3-57
AUTO HOLD indicator light .....................................3-59
Charging indicator light .............................................3-54
Charging system warning light ..................................3-58
Cruise indicator light ..................................................3-64
ECO mode indicator light ..........................................3-64
ECO+ mode indicator light ........................................3-64
Electric Power Steering (EPS) warning light.............3-58
Electronic Brake Force Distrubution (EDB)
warning light ............................................................3-57
Electronic Parking Brake (EPB) warning light..........3-59
Electronic Stability Control (ESC) indicator light .....3-61
Electronic Stability Control (ESC) OFF indicator light .3-62
Forward Collision-Avoidance Assist (FCA) system
warning light ............................................................3-60
High Beam Assist (HBA) indicator light ...................3-63
High beam indicator light ..........................................3-63
High voltage battery low level warning light ............3-55
Icy road warning light ................................................3-61
Immobilizer indicator light ........................................3-62
Lane Keeping Assist (LKA) system warning light ...3-60
LED headlamp warning light ....................................3-60
Light ON indicator light .............................................3-63
Low tire pressure warning light .................................3-58Master warning light ..................................................3-61
Parking brake & brake fluid warning light ................3-56
Power down warning light .........................................3-54
Ready indicator light ..................................................3-53
Regenerative brake warning light ..............................3-55
Seat belt warning light ...............................................3-55
Service warning light .................................................3-54
SPORT mode indicator light ......................................3-64
Turn signal indicator light ..........................................3-63
UTIL mode indicator light .........................................3-64
Warning light ..................................................................3-53
Washer fluid ....................................................................7-16
Welcome system ...........................................................3-106
Headlamp and position lamp....................................3-106
Interior lamp .............................................................3-106
Wheel alignment and tire balance ..................................7-30
Wheel replacement .........................................................7-31
Windows .........................................................................3-32
Auto down window ....................................................3-34
Auto up/down window ...............................................3-34
Automatic reverse ......................................................3-34
Power window lock switch ........................................3-35
Resetting the windows ...............................................3-34
Windshield defrosting and defogging ...........................3-132
Winter driving ...............................................................5-116
Snow tires .................................................................5-116
Tire chains ................................................................5-117
Winter precautions ........................................................5-118
I
Index
W
