Page 4 of 317
A050A05A-AATHYUNDAI MOTOR COMPANY
Note: Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave
the manual in the vehicle for their use. Thank you. CAUTION: Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-3 in the Vehicle Specifications section of the Owner's Manual. Copyright 2004 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai MotorCompany.
A040A01A-AAT
FOREWORD
Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundai. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud. Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car. The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may berequired.
Page 8 of 317
A100A01L-GAT GUIDE TO HYUNDAI GENUINE PARTS
1. What are Hyundai Genuine Parts?Hyundai Genuine Parts are the same parts used by Hyundai Motor Compa-ny to manufacture vehicles. They aredesigned and tested for the optimumsafety, performance, and reliability toour customers.
2. Why should you use genuine parts? Hyundai Genuine Parts are engineeredand built to meet rigid original manu-facturing requirements. Using imita-tion, counterfeit or used salvage partsis not covered under the Hyundai New Vehicle Limited Warranty or any otherHyundai warranty. In addition, any dam-age to or failure of Genuine HyundaiParts caused by the installation or fail-ure of an imitation, counterfeit or usedsalvage part is not covered by HyundaiMotor Company.
3. How can you tell if you are purchas- ing Hyundai Genuine Parts?Look for the Hyundai Genuine PartsLogo on the package (see below). The export specifications are written in English only. Hyundai Genuine Parts are only soldthrough authorized HyundaiDealerships.
A100A01LA100A02LA100A04L
A100A03L
Page 9 of 317
FEATURES OF YOUR HYUNDAI 1- 1
1. FEATURES OF
YOUR HYUNDAI
B010A01FC-1
B010A01O-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or highermust be used in Hyundai vehicle. If leadedgasoline is used, it will cause the catalyticconverter to become ineffective and the emis-sion control system to malfunction. This canalso result in increased maintenance expense.To avoid accidental use of leaded fuel, the largenozzle used with leaded gasoline at servicestations can not be inserted into fuel tankopening of Hyundai vehicle. NOTE:
o For some countries, Hyundai vehicles
are designed to use leaded gasoline.When you are going to use leaded gaso-line, ask to Hyundai dealer whether leadedgasoline in your vehicle is available ornot.
o Octane Rating of leaded gasoline is same with unleaded one.
Use Diesel Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of diesel fuel are available,
use summer or winter fuel properly according tothe following temperature conditions.
o Above -5°C (23°F) ... Summer type diesel fuel.
o Below -5°C (23°F) ... Winter type diesel fuel.Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, thecircuits must be completely purged to permitrestarting. CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary todrain it out and to bleed the lines to avoidjamming the injection pump and damag-ing the engine.
o In winter, in order to cut down incidents due to freezing, paraffin oil may be addedto the fuel if the temperature drops tobelow -10°C. Never use more than 20%paraffin oil. B010B01A-AAT What About Gasohol?Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be usedin your Hyundai. However, if your engine devel-ops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels withunspecified quantities of alcohol, or alcoholsother than ethanol, should not be used. B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai rec- ommends that you use gasolines treated withdetergent additives, which help prevent depositformation in the engine. These gasolines willhelp the engine run cleaner and enhance per-formance of the Emission Control System.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This typeof fuel can reduce vehicle performance anddamage components of the fuel system. CAUTION: Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuelsystem and performance problems that are
caused by the use of methanol or fuelscontaining methanol.
1
Page 10 of 317
FEATURES OF YOUR HYUNDAI
1- 2
B030A01E
B030A01A-AAT KEYS For greater convenience, the same key oper- ates all the locks in your Hyundai. However,because the doors can be locked without a key,carrying a spare key is recommended in caseyou accidentally lock one key inside the car.
o Don't let the engine idle longer than 3 min-
utes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
B010F01A-AAT Operation in Foreign CountriesIf you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registra-tion and insurance.
o Determine that acceptable fuel is available. B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles)(Gasoline Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 2,000 km(1,200 miles).
o Don't drive faster than 88 km/h (55 mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh a gear that theengine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time. B020B01FC-GAT BREAKING IN YOUR NEW HYUNDAI During the First 1,000 Km (600 Miles)(Diesel Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 1,000 km(600 miles).
o While driving, keep your engine speed (rpm,
or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quarters of maximum speed.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too-high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 min- utes at one time.
o Don't tow a trailer during the first 1,000 km (600 miles) of operation.
Page 11 of 317
FEATURES OF YOUR HYUNDAI 1- 3
B030B01A-AAT Record Your Key Number
B030B01E
A code number is stamped on the number plate that came with the keys to your Hyundai. Thiskey number plate should not be left with thekeys but kept in a safe place, not in the vehicle.The key number should also be recorded in aplace where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer canmake new keys if you can supply the keynumber. B880A01A-GAT IMMOBILIZER SYSTEM (If Installed) The immobilizer system is an anti-theft device,
designed to deter automobile theft. B880B03A-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possibleto lock the doors without the use of the key, careshould be exercised to ensure that the key doesnot become locked inside the vehicle by mis-take. NOTE: If you make your own duplicate key, you willnot be able to cancel the system or start theengine.
AX10020A-1B880C02A-GAT Key Numbers
AX10030A-1
The vehicle key number is recorded upon a metal tag attached to the keys when the vehicleis first delivered to you.The key number should be recorded and keptin a safe place in case the need to order furtherkeys arises. New keys are available from anyHyundai dealer by quoting the relevant keynumber.In the interest of security, the metal tag at-tached to the keys which bears the key numbershould be removed from the key ring after youreceive your new vehicle. In addition, key num-bers cannot be provided by Hyundai for secu-rity reasons.If you need additional keys or if you should loseyour keys, your authorized Hyundai dealer canmake new keys.
Page 12 of 317
FEATURES OF YOUR HYUNDAI
1- 4
HFC2004
UNLOCK
LOCK
B040A02Y-AAT DOOR LOCKS WARNING:
o Unlocked doors can be dangerous. Be-
fore you drive away (especially if thereare children in the car), be sure that allthe doors are securely closed and lockedso that the doors cannot be inadvertentlyopened from the inside. This helps en-sure that the doors will not be openedaccidentally. Also, when combined withthe proper use of seat belts, locking thedoors helps keep occupants from beingejected from the car in case of an acci-dent.
o Before opening the door, always look for and avoid oncoming traffic.
o In case of accident the door is unlocked automatically (If installed)
B040B01A-AAT Locking and Unlocking Front Doors With a Key
operation of the ignition key. For example, turn the ignition key once for digit number"1", and twice for "2", and so on. However,for the digit number "0", you must turn theignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same procedures 1 and 2.
4. If all of four digits have been tried success- fully, turn the ignition key "ON" and checkthat the immobilizer indicator illuminates.From this time, you have to start your enginewithin 30 seconds. If you start your engineafter 30 seconds, your engine will not start.
NOTE:If the engine dies while driving after limphome procedure, you can start your enginewithin 8 seconds without limp home proce-dure again.
5. If the immobilizer indicator blinks for five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure, you haveto consult with your authorized Hyundai dealeras soon as possible. CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, youhave to wait for about one hour to do thelimp home procedure again.
o If you cannot start your engine in spite of limp home procedure, have your vehicletowed by an authorized Hyundai dealer.
B880D02A-GAT Limp home procedures In case the immobilizer warning indicator blinks for five seconds when the ignition key isturned to "ON" position, this indicates that theimmobilizer system is out of order. And youcannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limp home. (0,1, 2, 3 as a sample password). NOTE: You can get the limp home password whenthe vehicle is first delivered to you. If you donot have the password, consult your autho-rized Hyundai dealer.
1. To set the password you may turn theignition key "ON" and then turn it "OFF" according to the digit numbers, then theimmobilizer indicator will blink along with the
B880D01FC

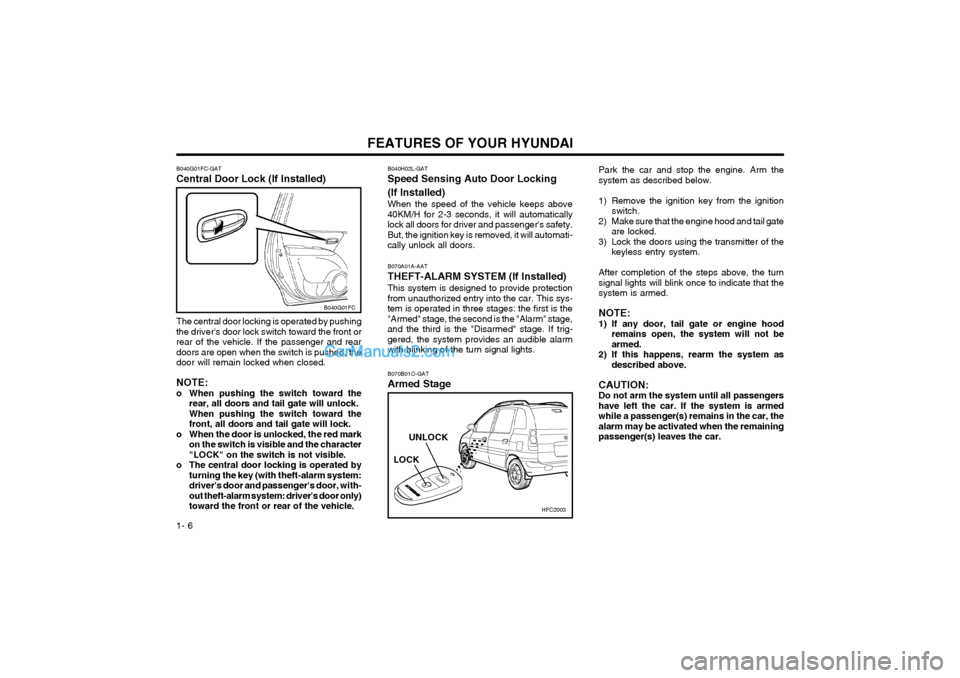

Page 14 of 317
FEATURES OF YOUR HYUNDAI
1- 6 B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry into the car. This sys-tem is operated in three stages: the first is the"Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If trig-gered, the system provides an audible alarmwith blinking of the turn signal lights. B070B01O-GAT Armed Stage
HFC2003
LOCK
UNLOCK
B040H02L-GAT
Speed Sensing Auto Door Locking (If Installed) When the speed of the vehicle keeps above 40KM/H for 2-3 seconds, it will automaticallylock all doors for driver and passenger's safety.But, the ignition key is removed, it will automati-cally unlock all doors.
Park the car and stop the engine. Arm thesystem as described below.
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and tail gate are locked.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that thesystem is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not bearmed.
2) If this happens, rearm the system as described above.
CAUTION:Do not arm the system until all passengershave left the car. If the system is armedwhile a passenger(s) remains in the car, thealarm may be activated when the remainingpassenger(s) leaves the car.
B040G01FC
B040G01FC-GAT
Central Door Lock (If Installed) The central door locking is operated by pushing the driver's door lock switch toward the front or
rear of the vehicle. If the passenger and reardoors are open when the switch is pushed, the
door will remain locked when closed. NOTE:
o When pushing the switch toward the
rear, all doors and tail gate will unlock.When pushing the switch toward thefront, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character"LOCK" on the switch is not visible.
o The central door locking is operated by turning the key (with theft-alarm system:driver's door and passenger's door, with-out theft-alarm system: driver's door only)toward the front or rear of the vehicle.
Page 15 of 317
FEATURES OF YOUR HYUNDAI 1- 7
After completion of the step above, the turn signal lights will blink twice to indicate that thesystem is disarmed. NOTE: Once the system has been disarmed, it can not be rearmed except by repeating thearming procedures. CAUTION: Only the transmitter can disarm the armedstage. If the transmitter does not disarmthe system, it is necessary to take thefollowing steps;
1. Unlock the door with the key, which willcause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" posi- tion.
3. Wait for 30 seconds. After completing the steps above, the sys- tem will be disarmed.
B070D02O-AAT Disarmed Stage
B070C01FC-GAT Alarm StageThe alarm will be activated if any of the following occurs while the car is parked and thesystem is armed.
1) A front or rear door is opened without using
the transmitter.
2) The tail gate is opened without using the transmitter.
3) The engine hood is opened. The alarming horn will sound and the turn signal light will blink continuously for 27 seconds (E.Conly/ Except E.C 3 times). To turn off thesystem, unlock the door or tail gate with thetransmitter.
3A9BA21
B070F01A-GAT Keyless Entry System (If Installed) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turnsignal lights will blink once to indicate thatthe system is armed. B070E02HP-GAT Replacing the batteryWhen the transmitter's battery begins to get weak, it may take several pushes on the buttonto lock or unlock the doors, and the LED will notlight. Replace the battery as soon as possible. Battery type : CR2032
Replacement instructions:
1. Separate the case with a blade screwdriver as shown in the illustration.
MSO-0048-1
Screwdriver
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed.
The system will be disarmed when the driver'sor passenger's door is unlocked by depressingthe "UNLOCK" button on the transmitter.
Page 21 of 317
FEATURES OF YOUR HYUNDAI 1- 13
B140A01B-GAT REAR SEAT WARNING
B140A01FC
For the safety of all passengers, luggage or other cargo should not be piled higher than thetop of the seatback.
B100A01FC-GAT SEAT WARMER (If Installed)
The seat warmer is provided to warm the front seats during cold weather. When the engine isrunning, push either of the switches to warm thedriver's seat or the passenger's seat.During mild weather or under conditions wherethe operation of the seat warmer is not needed,keep the switches in the "OFF" position.
B100A01FC
o When you return the folded down
seatback to its upright position, always be sure to install the headrests in theirproper positions. Headrests are impor-tant to the safety of occupants in a rearcollision. If the headrests are not in-stalled in their proper position, seriousinjury or death could result if a rear endcollision occurs.
B150A02A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. Indeed, your province's
laws may require that some or all occupants ofthe vehicle use seat belts.The possibility of injury or the severity of injuryin an accident will be decreased if this elemen-tary safety precaution is observed. In addition,the following recommendations are made: B150B01Y-GAT Infant or Small ChildSome countries require the use of child re- straint systems for infants and small children.Whether this is required by law or not, it isstrongly recommended that a child restraintseat or infant restraint system be used forinfants or small children weighing less than 18kilograms (40 pounds). NOTE: Small children are best protected in an acci-dent when properly restrained by a childrestraint system.
B150C03A-AAT
Larger Children
Children who are too large for child restraintsystems should always occupy the rear seatand use the available lap/shoulder belts. Thelap portion should be fastened snug on thehips and as low as possible. Check belt fitperiodically. A child's squirming could put thebelt out of position. Children are afforded themost safety in the event of an accident whenthey are restrained by a proper restraint sys-tem in the rear seat. If a larger child (over age13) must be seated in the front seat, the childshould be securely restrained by the availablelap/shoulder belt and the seat should be placedin the rearmost position. Children under theage of 13 should be restrained securely in therear seat. Never place a child under the age
Page 34 of 317
FEATURES OF YOUR HYUNDAI
1- 26
SSA1110D
The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 sec-onds after the ignition key is turned to the "ON"position or after the engine is started, afterwhich the SRI should go out.
SSA1110C
The SRS consists of the following components: - Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors all elementswhile the ignition is "ON" to determine if a frontalor near-frontal impact is severe enough torequire airbag deployment. B240B01FC-GAT SRS Components and Functions
SSA1110B
o Do not tamper with or disconnect SRS
wiring, or other components of the SRS system. Doing so could result in injury,due to accidental firing of the airbags orby rendering the SRS inoperative.
o Do not install a child restraint system in the front passenger seat position. Achild restraint system must never beplaced in the front seat. The infant orchild could be severely injured or killedby an airbag deployment in case of anaccident.
o Do not allow children to ride in the front passenger seat. If older children (teenag-ers and older) must ride in the front seat,make sure they are always properly beltedand that the seat is moved back as far aspossible.
o For maximum safety protection in all types of crashes, all occupants includ-ing the driver should always wear theirseat belts whether or not an airbag isalso provided at their seating position tominimize the risk of severe injury ordeath in the event of a crash. Do not sit orlean unnecessarily close to the airbagwhile the vehicle is in motion.
o The SRS airbag system must deploy very rapidly to provide protection in a crash.If an occupant is out of position becauseof not wearing a seat belt, the airbag mayforcefully contact the occupant causingserious or fatal injuries.
