FEATURES OF YOUR HYUNDAI 1- 9
B080D02A-AAT Adjustable Headrests
HFC2028
Lock knob
B080A01FC-GAT ADJUSTABLE SEATSWARNING: Never attempt to adjust the seat while thevehicle is moving. This could result in lossof control, or an accident which may causedeath, serious injury, or property damage.
HFC2024
B080B02FC-GAT FRONT SEATS Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever upward. This will releasethe seat on its track so you can move it forwardor rearward to the desired position. When you B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the reclinercontrol lever at the outside edge of the seat.Now lean back until the desired seatback angleis achieved. To lock the seatback into position,release the recliner control lever.
HFC2025
find the position you want, release the lever and slide the seat forward or rearward on its trackuntil it locks into the desired position and cannotbe moved further. WARNING: To ensure the seat is locked securely, at-tempt to move the seat forward or rearwardwithout using the lock release lever.
WARNING:To minimize risk of severe injury in theevent of a collision or a sudden stop, boththe driver and passenger seatbacks shouldalways be in an upright position while thevehicle is in motion. The protection provid-ed by the seat belts and airbags in a frontalcollision may be reduced significantly whenthe seatbacks are reclined. There is greaterrisk that the driver and passenger will slideunder the seat belt which may result inserious injury if a crash occurs when theseatbacks are reclined. The seat belt cannotprovide full protection to an occupant if theseat back is reclined.
3) Do not leave children alone in the car.
Always remove the ignition key for theirsafety.
Headrests are designed to help reduce the risk of neck injuries.

FEATURES OF YOUR HYUNDAI
1- 10 B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed) To raise or lower the front part of the seat cushion, turn the front knob forward or rear-ward. To raise or lower the rear part of the seatcushion, turn the rear knob forward or rearward.
HFC2026
B080G01FC-GAT
UNDER TRAY (If Installed) The tray is located under the front passenger seat. It is opened by up and pulling forward. WARNING: To avoid the possibility of injury in case ofan accident or a sudden stop, the tray shouldbe kept closed when the car is in motion.
HFC2059
B080E01O-AAT Lumbar Support Control (Driver's Seat Only) (If Installed)
HFC2027To adjust the lumbar support, turn the handle on the outboard or left side of the seat. Toincrease the amount of lumbar support, pull thelever forward. To decrease it, push the levertoward the rear.
To raise the headrest, pull it up. To lower it, pushit down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of an
accident, the headrest should be adjust-ed so the top of the headrest is at thesame height as the top of the occupant'sears. The use of a cushion that holds thebody away from the seatback is not rec-ommended.
o Do not operate the vehicle with the headrests removed as severe injury toan occupant may occur in the event ofan accident. Headrests may provide pro-tection against severe neck injurieswhen properly adjusted.

FEATURES OF YOUR HYUNDAI 1- 11
B090A01FC
Lock Knob
B090A01FC-GAT
Adjustable Headrests (If Installed) Headrests are designed to help reduce the risk of neck injuries.To raise the headrest, pull it up. To lower it,push it down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of an
accident, the headrest should be adjustedso the top of the headrest is at the sameheight as the top of the occupant's ears.The use of a cushion that holds the bodyaway from the seatback is not recom-mended.
o Do not operate vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of anaccident. Headrests may provide protec-tion against severe neck injuries whenproperly adjusted.
B080I01FC-BAT Adjusting Seatback Angle
HFC2061
To move the seat toward the front or rear, pull the lock release lever upward. This will releasethe seat on its track so you can move it forwardor rearward to the desired position. When youfind the position you want, release the lever andslide the seat forward or rearward on its trackuntil it locks into the desired position and can-not be moved further.
B080H01FC-GAT REAR SEAT Adjusting Seat Forward and Rearward
HFC2060To recline the seatback, push the seatback folding lever toward the headrest, and releaseit after the desired seatback angle is achieved.When you recline the seatback to desired posi-tion, always be sure it has locked into position. CAUTION: When reclining the seatback angle, youshould be adjust the seatback folding leverwith standing.
Seatbackfolding lever

FEATURES OF YOUR HYUNDAI
1- 12 5. To secure the seat, hook the securing strap
under the seat cushion to the headrest stay of front driver and passenger seat.
6. Insert the removed headrests between the seatback and seat cushion, so that they willnot be thrown forward in the case of asudden stop or an accident.
7. To return the seatback and seat cushion to its normal position, reverse the above pro-cedure.
o When you return the seatback to its upright position, always be sure it is locked intoposition by pulling and pushing on the top ofseatback.
WARNING:
o When you return the folded down seat back to its upright position, make surethe seat belts are in position to be acces-sible and to function properly.
o The purpose of the fold down rear seat back and the fold forward rear seat cush-ion is to increase cargo space. Do notallow passengers to sit in the cargo areawhile the car is moving. This is not aproper seating position and no seat beltsare available for use when the seat backis folded down. Passengers who are notproperly seated and wearing seat beltscould sustain serious injuries or death incase of an accident or a sudden stop.
o Objects should not extend higher than the top of the front seatbacks. This couldallow cargo to slide forward and causeinjury or damage during sudden stops.
4. Pull the seat cushion release lever upward,
then fold up the seat cushion.
CAUTION:To prevent damage, ensure that the reardrinkholder, located in the rear console, isclosed before folding the rear seatback andseat cushion.
HFC2075
HFC2076
Seat cushion release lever
Securing strap
B090B01FC-GAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may be folded down and up.
HFC2074
1. Move the rear seat to the rearmost position.
2. Remove the headrests.
3. To fold down the seatback , push and hold the seatback folding lever toward the head-rest, then push down the seatback.
Seatback folding lever

FEATURES OF YOUR HYUNDAI 1- 13
B140A01B-GAT REAR SEAT WARNING
B140A01FC
For the safety of all passengers, luggage or other cargo should not be piled higher than thetop of the seatback.
B100A01FC-GAT SEAT WARMER (If Installed)
The seat warmer is provided to warm the front seats during cold weather. When the engine isrunning, push either of the switches to warm thedriver's seat or the passenger's seat.During mild weather or under conditions wherethe operation of the seat warmer is not needed,keep the switches in the "OFF" position.
B100A01FC
o When you return the folded down
seatback to its upright position, always be sure to install the headrests in theirproper positions. Headrests are impor-tant to the safety of occupants in a rearcollision. If the headrests are not in-stalled in their proper position, seriousinjury or death could result if a rear endcollision occurs.
B150A02A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. Indeed, your province's
laws may require that some or all occupants ofthe vehicle use seat belts.The possibility of injury or the severity of injuryin an accident will be decreased if this elemen-tary safety precaution is observed. In addition,the following recommendations are made: B150B01Y-GAT Infant or Small ChildSome countries require the use of child re- straint systems for infants and small children.Whether this is required by law or not, it isstrongly recommended that a child restraintseat or infant restraint system be used forinfants or small children weighing less than 18kilograms (40 pounds). NOTE: Small children are best protected in an acci-dent when properly restrained by a childrestraint system.
B150C03A-AAT
Larger Children
Children who are too large for child restraintsystems should always occupy the rear seatand use the available lap/shoulder belts. Thelap portion should be fastened snug on thehips and as low as possible. Check belt fitperiodically. A child's squirming could put thebelt out of position. Children are afforded themost safety in the event of an accident whenthey are restrained by a proper restraint sys-tem in the rear seat. If a larger child (over age13) must be seated in the front seat, the childshould be securely restrained by the availablelap/shoulder belt and the seat should be placedin the rearmost position. Children under theage of 13 should be restrained securely in therear seat. Never place a child under the age

FEATURES OF YOUR HYUNDAI 1- 21
B230E01FC
Back panel
Front of Vehicle
Attaching clip
B230E02FC-GAT
Securing a Child Restraint System with "Tether Anchorage" System
Three child restraint hook holders are located on the vertical back panel (behind rear bumperbar).
1. Route the child restraint seat strap over the seatback. For vehicles with adjustable headrest, route the tether strap under the headrest andbetween the headrest posts, otherwiseroute the tether strap over the top of theseatback.
2. Connect the tether strap hook to the childrestraint hook holder and tighten to securethe seat.
WARNING:
To install the Child Restraint Seat, for safetyreasons the Seat should be positionedrearmost with the seatback in a verticalposition, not reclined.
Covering shelf B230D02FC-GAT
Securing a Child Restraint System with "ISOFIX" System and "Tether Anchor-age" System
B230F01FC
ISOFIX is a standardised method of fitting child seats that eliminates the need to use thestandard adult seat belt to secure the seat inthe vehicle. This enables a much more se-cure and positive location with the addedbenefit of easier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in accordance withthe requirements of ECE-R44. For yourHyundai, the Hyundai ISOFIX GR1 / HyundaiDuo / Römer ISOFIX GR1 and the RömerDuo ISOFIX / Britax Duo ISOFIX is approvedaccording to the requirement ECE-R44. Thisseat has been tested extensively by Hyundaiand is recommended for your Hyundai.

DRIVING YOUR HYUNDAI
2- 2
C040A01A-AAT KEY POSITIONSWARNING: The engine should not be turned off or the key removed from the ignition key cylinder while the vehicle is in motion. The steering wheel is locked by removing the key.
C040A01E
LOCK
ACC
ON
START
o "START" The engine is started in this position. It will crank until you release the key. NOTE: Do not hold the key in the "START" position for more than 15 seconds.
o "ON" When the key is in the "ON position, the ignition is on and all accessories may be turned on. If the engine is not running, the key should not be left in the "ON" position. This will discharge the battery and may also damage the ignition sys- tem.
o "ACC" With the key in the "ACC" position, the some electrical accessories (radio, etc.) may be oper- ated.
C020A01O-GAT BEFORE STARTING THE ENGINE Before you start the engine, you should always:
1. Look around the vehicle to be sure there are
no flat tires, puddles of oil, water or other indications of possible trouble.
2. After entering the car, check to be sure the parking brake is engaged.
3. Check that all windows, and lights are clean.
4. Check that the interior and exterior mirrors are clean and in position.
5. Check your seat, seatback and headrest to
be sure they are in their proper positions.
6. Lock all the doors.
7. Fasten your seat belt and be sure that all other occupants have fastened theirs.
8. Turn off all lights and accessories that are not needed.
9. When you turn the ignition switch to “ON”, check that all appropriate warning lights areoperating and that you have sufficient fuel.
10. Check the operation of warning lights and all
bulbs when key is in the “ON” position.
WARNING: (DIESEL ENGINE) To ensure that sufficient vacuum exists with- in the brake system during cold weather start- up conditions, it is necessary to run the engine at idle for several seconds after start- ing the engine.
C030A01A-GAT COMBINATION IGNITION SWITCH To Start the Engine Before starting the engine:
o If your Hyundai is equipped with a manual transaxle, place the shift lever in neutral and depress the clutch pedal fully.
o If your Hyundai has an automatic transaxle,
place the shift lever in "P" (park).
o To start the engine, insert the ignition key and
turn it to the "START" position. Release it as soon as the engine starts. Do not hold the key in the "START" position for more than 15 seconds.
NOTE: For safety, the engine will not start if the shift lever is not in "P" or "N" Position (automatic transaxle).

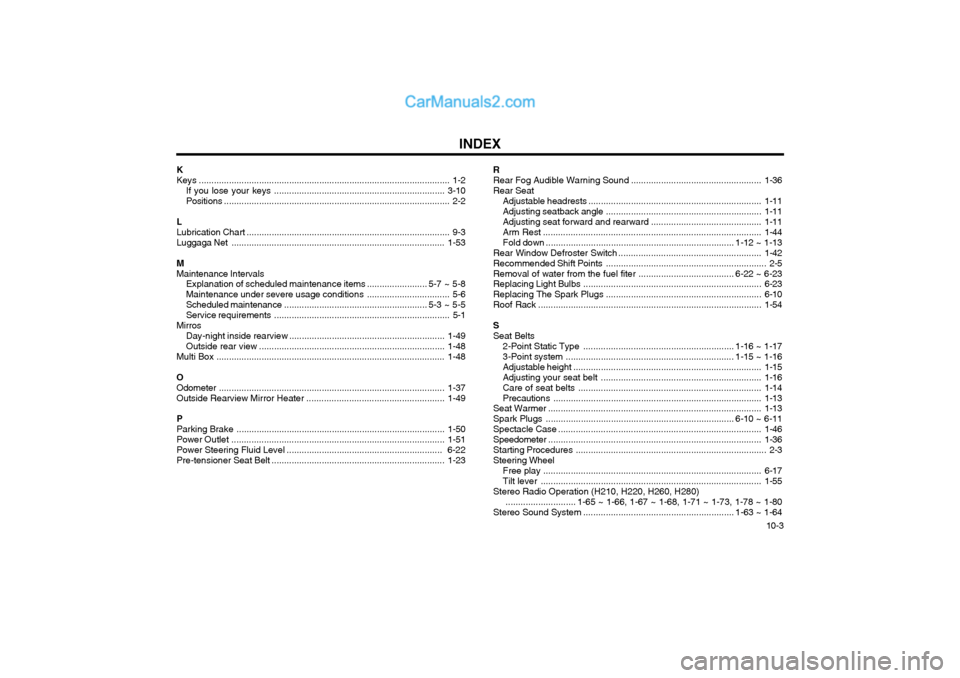

INDEX10-3
R
Rear Fog Audible Warning Sound
....................................................1-36
Rear Seat Adjustable headrests ..................................................................... 1-11
Adjusting seatback angle .............................................................. 1-11
Adjusting seat forward and rearward ............................................ 1-11
Arm Rest ....................................................................................... 1-44
Fold down ........................................................................... 1-12 ~ 1-13
Rear Window Defroster Switch ......................................................... 1-42
Recommended Shift Poi nts ................................................................ 2-5
Removal of water from the fuel fiter ...................................... 6-22 ~ 6-23
Replacing Light Bulbs ....................................................................... 6-23
Replacing The Spark Plugs .............................................................. 6-10
Roof R ack ......................................................................................... 1-54
SSeat Belts 2-Point Static Type ............................................................ 1-16 ~ 1-173-Point system ................................................................... 1-15 ~ 1-16
Adjustable height ........................................................................... 1-15
Adjusting your seat belt ................................................................ 1-16
Care of seat belts ......................................................................... 1-14
Precautions ................................................................................... 1-13
Seat Warmer ..................................................................................... 1-13
Spark Plugs ........................................................................... 6-10 ~ 6-11
Spectacle Case ................................................................................. 1-46
Speedometer ..................................................................................... 1-36
Starting Procedures ............................................................................ 2-3Steering Wheel Free play ....................................................................................... 6-17
Tilt lever ........................................................................................ 1-55
Stereo Radio Operation (H210, H220, H260, H280) ............................ 1-65 ~ 1-66, 1-67 ~ 1-68, 1-71 ~ 1-73, 1-78 ~ 1-80
Stereo Sound System ............................................................ 1-63 ~ 1-64
K
Keys .................................................................................................... 1-2
If you lose your keys .................................................................... 3-10
Positions .......................................................................................... 2-2
L
Lubrication Chart ................................................................................. 9-3
Luggaga Net ..................................................................................... 1-53
MMaintenance Intervals Explanation of scheduled maintenance items ........................ 5-7 ~ 5-8
Maintenance under severe usage conditions ................................. 5-6
Scheduled maintenance ......................................................... 5-3 ~ 5-5
Service requirements ...................................................................... 5-1
Mirros Day-night inside rearview .............................................................. 1-49
Outside rear view .......................................................................... 1-48
Multi Box ........................................................................................... 1-48
OOdometer .......................................................................................... 1-37
Outside Rearview Mirror Heater ....................................................... 1-49
PParking Brake ................................................................................... 1-50
Power Outlet ..................................................................................... 1-51
Power Steering Fluid Level .............................................................. 6-22
Pre-tensioner Seat Belt ..................................................................... 1-23

1- 11

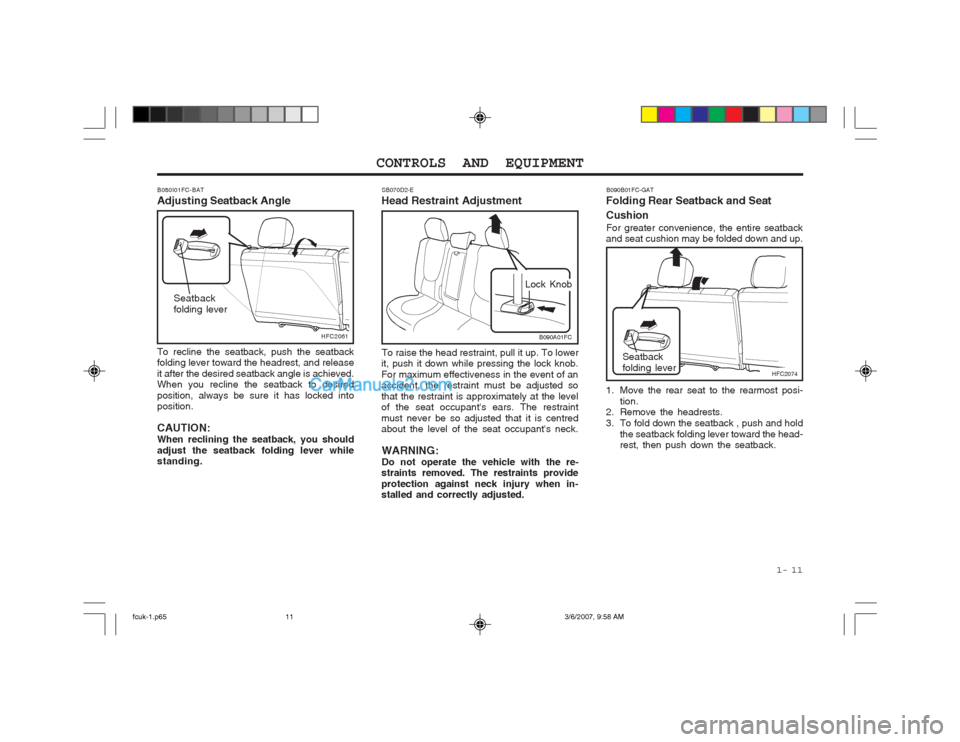

CONTROLS AND EQUIPMENT
