heater Hyundai Matrix 2004 Owner's Manual

FEATURES OF YOUR HYUNDAI
1- 40 B350A01A-AAT WINDSHIELD WIPER AND WASHER SWITCH
B350A01O
The windshield wiper switch has three posi- tions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, donot attempt to wipe away heavy accumula-tions of snow or ice. Accumulated snow andice should be removed manually. If there isonly a light layer of snow or ice, operate theheater in the defrost mode to melt the snowor ice before using the wiper.
B340E01A-AAT Headlight Flasher
B340E01FC
To flash the headlights, pull the switch lever toward you, then release it. The headlights canbe flashed even though the headlight switch isin the "OFF" position.
To use the windshield washer, pull the wiper/ washer lever toward the steering wheel. Whenthe washer lever is operated, the wipers auto-matically make two passes across the wind-shield. The washer continues to operate untilthe lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reser-voir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to the glassprior to operating the wipers.
o In areas where water freezes in winter, use windshield washer antifreeze.
B350B01O-GAT Windshield Washer Operation
B350B01O
B340D01A-AAT High-beam SwitchTo turn on the headlight high beams, push the lever forward (away from you). The high beamindicator light will come on at the same time.For low beams, pull the lever back toward you.

FEATURES OF YOUR HYUNDAI 1- 49
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS
B510C01FC
To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be foldedrearward for parking in narrow areas. WARNING: Do not adjust or fold the outside rearviewmirrors while the vehicle is moving. Thiscould result in loss of control, and an acci-dent which could cause death, serious in-jury or property damage.
B510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If Installed)
The outside rearview mirror heater is actuated in connection with the rear window defroster.To heat the outside rearview mirror glass, pushin the switch for the rear window defroster. Therearview mirror glass will be heated for defrost-ing or defogging and will give you improved rearvision in inclement weather conditions. Pushthe switch again to turn the heater off. Theoutside rearview mirror heater automaticallyturns itself off after 20 minutes.
HFC2080
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01E
Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position isselected by flipping the tab at the bottom of themirror toward you. In the "night" position, theglare of headlights of cars behind you is re-duced.

FEATURES OF YOUR HYUNDAI
1- 62
B760A01E
The air conditioner filter is located in front of the blower unit behind the glove box.It operates to decrease pollutants from enteringthe car and to filter the air. Replacement instructions:
1. Remove the adjusting pins on both sides of the glove box.
2. Remove the filter cover and replace the filler.
3. Installation is the reverse order of disas- sembly.
Evaporator coreBlower fan
Heater core
B760A01FC-GAT AIR CONDITIONER FILTER (IN FRONT OF BLOWER UNIT) (If Installed)
Outside air
Filter
Inside air
Inside air CAUTION:
o Replace the filter every 20,000 km (12,000
miles) or once a year. If the car is beingdriven in severe conditions such as dusty,rough roads, more frequent air condi-tioner filter inspections and changesare required.
o When the air flow rate is suddenly de- creased, it must be checked at an autho-rized dealer.
B740D01A-AAT Operation Tips
o If the interior of the car is hot when you firstget in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning system, keep all windows closed to keep hotair out.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases enginespeed, which in turn increases the speed ofthe air conditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engine over-heating.
o During winter months or in periods when the air conditioning is not used regularly, run theair conditioning once every month for a fewminutes. This will help circulate the lubri-cants and keep your system in peak operat-ing condition.

INDEX10-3
R
Rear Fog Audible Warning Sound
....................................................1-36
Rear Seat Adjustable headrests ..................................................................... 1-11
Adjusting seatback angle .............................................................. 1-11
Adjusting seat forward and rearward ............................................ 1-11
Arm Rest ....................................................................................... 1-44
Fold down ........................................................................... 1-12 ~ 1-13
Rear Window Defroster Switch ......................................................... 1-42
Recommended Shift Poi nts ................................................................ 2-5
Removal of water from the fuel fiter ...................................... 6-22 ~ 6-23
Replacing Light Bulbs ....................................................................... 6-23
Replacing The Spark Plugs .............................................................. 6-10
Roof R ack ......................................................................................... 1-54
SSeat Belts 2-Point Static Type ............................................................ 1-16 ~ 1-173-Point system ................................................................... 1-15 ~ 1-16
Adjustable height ........................................................................... 1-15
Adjusting your seat belt ................................................................ 1-16
Care of seat belts ......................................................................... 1-14
Precautions ................................................................................... 1-13
Seat Warmer ..................................................................................... 1-13
Spark Plugs ........................................................................... 6-10 ~ 6-11
Spectacle Case ................................................................................. 1-46
Speedometer ..................................................................................... 1-36
Starting Procedures ............................................................................ 2-3Steering Wheel Free play ....................................................................................... 6-17
Tilt lever ........................................................................................ 1-55
Stereo Radio Operation (H210, H220, H260, H280) ............................ 1-65 ~ 1-66, 1-67 ~ 1-68, 1-71 ~ 1-73, 1-78 ~ 1-80
Stereo Sound System ............................................................ 1-63 ~ 1-64
K
Keys .................................................................................................... 1-2
If you lose your keys .................................................................... 3-10
Positions .......................................................................................... 2-2
L
Lubrication Chart ................................................................................. 9-3
Luggaga Net ..................................................................................... 1-53
MMaintenance Intervals Explanation of scheduled maintenance items ........................ 5-7 ~ 5-8
Maintenance under severe usage conditions ................................. 5-6
Scheduled maintenance ......................................................... 5-3 ~ 5-5
Service requirements ...................................................................... 5-1
Mirros Day-night inside rearview .............................................................. 1-49
Outside rear view .......................................................................... 1-48
Multi Box ........................................................................................... 1-48
OOdometer .......................................................................................... 1-37
Outside Rearview Mirror Heater ....................................................... 1-49
PParking Brake ................................................................................... 1-50
Power Outlet ..................................................................................... 1-51
Power Steering Fluid Level .............................................................. 6-22
Pre-tensioner Seat Belt ..................................................................... 1-23

1- 37
CONTROLS AND EQUIPMENT
The windscreen wiper switch, dependent upon model, has three operating positions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation. NOTE: To prevent damage to the wiper system,do not attempt to wipe away heavy accu- mulations of snow or ice. Accumulated snow and ice should beremoved manually. If there is only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
SB230A1-E WINDSCREEN WIPER/WASHER SWITCH
SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pulling the turn signal switch lever towards the steering wheel. The headlights will be extinguished when the switch is released.
SB220D1-E HIGH AND LOW BEAMTo turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back (toward you). The appropri- ate headlight beam indicator light will come on at the same time.
B340E01FC-D
B350A01O-D
(1)
(2)
(3)
B350B01O-EAT Windscreen Washer Operation To use the windscreen washer, pull the wiper/ washer lever toward the steering wheel. When the washer lever is operated, the wipers auto- matically make two passes across the windscreen. The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to the glass prior to operating the wipers.
o In areas where water freezes in winter, use windscreen washer antifreeze. B350B01O.DAG
fcuk-1.p65
3/6/2007, 9:58 AM
37

CONTROLS AND EQUIPMENT
1- 46
SB360C1-F
FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can be foldedrearward for parking in restricted areas. WARNING: Do not adjust or fold the outside rear viewmirrors while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury or property damage.
B510D01E
CAUTION:
o Do not leave the switch on for an unneces-sary length of time.
o Scraping ice from the mirror face could cause permanent damage. To removeany ice, use a sponge, soft cloth or approved deicer.
o Be careful when judging the size or dis- tance of any object seen in the passen-ger side rear view mirror. It is a convex mirror with a curved surface, any ob- jects seen in this mirror are closer than they appear.
B510C01FC-D
B510D01HP-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models)
The outside rearview mirror heater is actuated in connection with the rear window defroster.To heat the outside rearview mirror glass, push in the switch for the rear window de- froster. The rearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes. HFC2080-D
fcuk-1.p65
3/6/2007, 9:58 AM
46

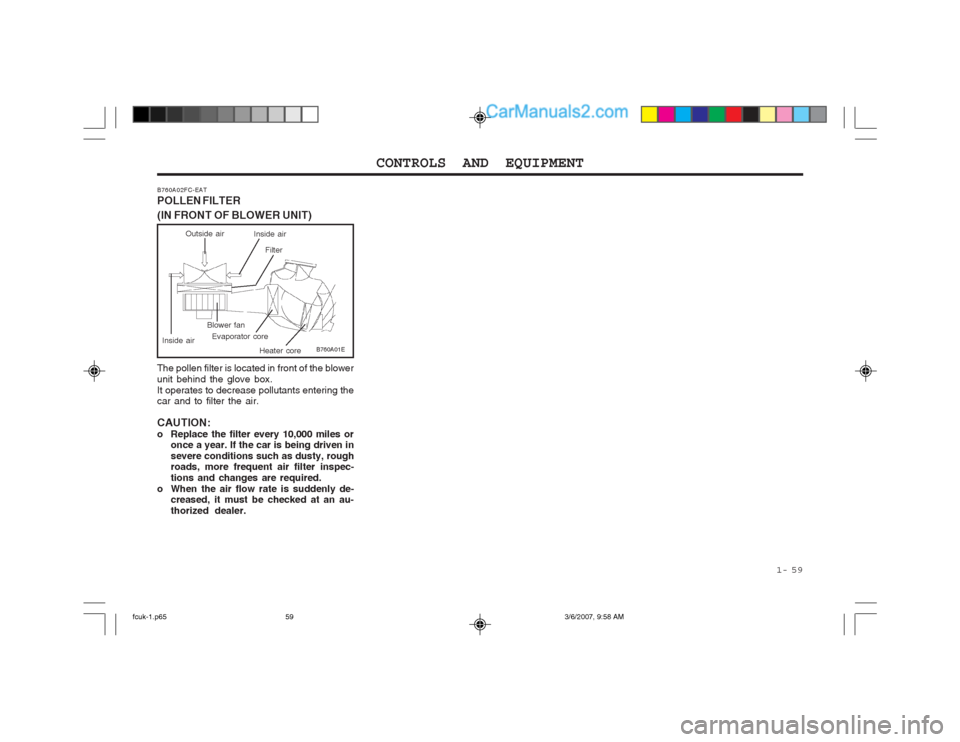

1- 59
CONTROLS AND EQUIPMENT
B760A01E
The pollen filter is located in front of the blower unit behind the glove box.It operates to decrease pollutants entering the car and to filter the air. CAUTION:
o Replace the filter every 10,000 miles or
once a year. If the car is being driven insevere conditions such as dusty, rough roads, more frequent air filter inspec- tions and changes are required.
o When the air flow rate is suddenly de- creased, it must be checked at an au-thorized dealer.
Evaporator coreBlower fan
Heater core
B760A02FC-EAT POLLEN FILTER (IN FRONT OF BLOWER UNIT)
Outside air
Filter
Inside air
Inside air
fcuk-1.p65 3/6/2007, 9:58 AM
59

DRIVING YOUR HYUNDAI 2- 1
SC000A1-E 2
. DRIVING YOUR HYUNDAI
SC020A1-E
WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust gases are potentially lethal. If at any time engine exhaust gas is detected within the passenger
compartment, move the vehicle to an open area and open all windows.
o Never inhale exhaust gas.
Exhaust gases contain Carbon Monoxide which is colourless and odourless. Carbon Monoxide is poisonous and can
cause unconsciousness and death by asphyxiation. o Exhaust System Maintenance.
Ensure that the exhaust system is maintained in good condition and is free from excessive corrosion and damage
which may result in leakage. If the vehicle is driven over an object which strikes the exhaust system, ensure that theexhaust system is inspected at the first available opportunity to ensure that no leakage exists.
o Confined Areas.
Do not run the engine in confined spaces, allowing the engine to idle in a garage, even when the doors are open is dangerous practice. Only start the engine immediately prior to moving the vehicle out of the garage.
o Prolonged Idling.
If it is necessary to allow the vehicle to idle for prolonged periods, ensure that the heating system air intake control is set to the "Fresh" position, the blower is set to high speed operation and that the vehicle is standing in an open area.
o Load Carrying.
If it is necessary to carry long objects which do not permit the boot lid to be fully closed, the side windows must remain
closed and the heating air intake control set to the "Fresh" position with the blower running at the highest speed setting. To ensure correct operation of the heater system, the air intake grilles at the base of the windscreen must not beobstructed by snow leaves etc..
2
fcuk-2.p65 3/6/2007, 9:59 AM
1

DRIVING YOUR HYUNDAI
2- 12 NOTE: Never allow undiluted screen washer fluidadditive to spill upon the paintwork or use engine coolant anti-freeze since damage to the paintwork may result.
o When driving in extreme conditions, the
windscreen wiper blades may fail to clear the screen properly due to the formation of ice upon the blade edge. It will therefore be necessary to periodically remove such ice to restore their efficiency.
o If the power operated door mirrors become frozen, attempts to adjust these may dam-age the mechanism.
o The formation of snow or ice built up inside the wheel arches may interfere with theroad wheels or steering mechanism. In such instances, unusual noises or an in- crease in steering effort may result. There- fore, ensure that the wheel arches are checked periodically and any accumulated snow or ice removed.
o It is advisable to carry emergency equip- ment including, torch, shovel, tow rope,blankets etc., if a journey is to be under- taken into areas of severe road conditions.
ZC170D1-E Door LocksShould the door lock mechanism become frozen, a proprietary lock de-icer should be used. Alternatively, warming the door key may thaw the door lock. However, the key should be handled carefully to avoid burning the fingers. Never attempt to thaw a frozen door lock using hot water, since the water will eventu- ally freeze and compound the problem. NOTE: The proper temperature for using the immobiliser key is from -40°F to 176°F (- 40°C to 80°C). If you heat the immobiliser key over 176°F (80°C) to open the frozen lock, it may cause damage to the tran- sponder in its head.
SC170E1-E Windscreen Washers and Wipers The windscreen washer bottle should be filled with a solution of water and a proprietary winter screen wash additive. The windscreen wipers should not be used if the blades are frozen to the windscreen or if they are cov- ered with snow, before this is removed.
ZC170B1-E Electrical SystemWinter conditions impose severe demands upon vehicle electrical systems, particularly the charging circuit. The battery condition and performance along with the alternator perfor- mance and drive belt condition should be checked prior to the onset of winter. ZC170C1-E Anti-freeze/Corrosion inhibitorThe cooling system must always contain an Ethylene-Glycol based anti-freeze solution. The system is filled during manufacture with solution of the correct strength which should be checked before the onset of winter and adjusted or changed as required. NOTE: The anti-freeze solution contains a corro- sion inhibitor to prevent degradation of the aluminum castings contained within the engine. Therefore, never, drain the system and refill with water only. In addition, anti-freeze solution must ALWAYS be used in vehicles fitted with air conditioning, to prevent the heater matrix from freezing and subsequently bursting with the refrigeration system in use.
fcuk-2.p65
3/6/2007, 9:59 AM
12

OWNER MAINTENANCE
6-8 SG050C1-E
Engine Coolant Level
The engine coolant level may be observed
through the side of the plastic coolant reservoir (expansion tank) when the engine is cold. If thelevel is below the "L" mark, add coolant of thecorrect concentration until the level is be-tween the "L" and "F" marks. If the level fallsbelow the "L" mark on a regular basis despitebeing topped up, consult a Hyundai dealer.
G050C01FC
G050C02FC
Diesel engine
Gasoline engine
NOTE: It is imperative that vehicles fitted with an
air conditioning system have a coolant concentration of the recommended strengthat all times. The use of the air conditioningsystem when the cooling system is filledwith water only will result in the heatermatrix freezing and subsequently bursting. SG050D1-E
To Change the Coolant
The coolant should be changed at thoseintervals specified in the vehicle maintenanceschedule in Section 5. NOTE: Care should be taken to ensure that cool- ant is not allowed to spill onto thepaintwork since the finish may becomedamaged. If coolant spillage occurs, theaffected area should be rinsed thoroughlywith water.
1. Park the vehicle on level ground and en- sure that the parking brake is firmly ap-plied, and the engine allowed to cool. Do not attempt this operation whilst the engine is hot since burning or scaldingmay result.
2. Prepare a suitable receptacle to collect the displaced coolant and position this underthe radiator drain tap.
3. With the heater temperature control set to the "HOT" position, remove the radiatorcap and open the radiator drain tap.
fcuk-6.p65 3/6/2007, 10:01 AM
8
