Page 63 of 317

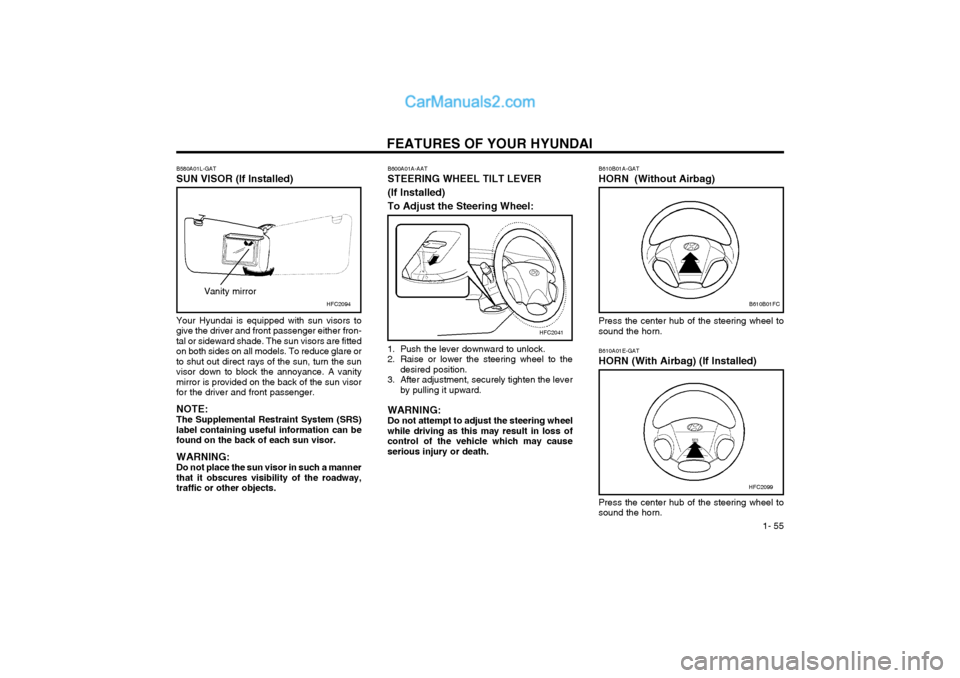

FEATURES OF YOUR HYUNDAI 1- 55
B610B01A-GAT HORN (Without Airbag)B610B01FC
Press the center hub of the steering wheel to sound the horn.
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
WARNING:Do not attempt to adjust the steering wheelwhile driving as this may result in loss ofcontrol of the vehicle which may causeserious injury or death.
B600A01A-AAT STEERING WHEEL TILT LEVER (If Installed)To Adjust the Steering Wheel:
HFC2041
B610A01E-GAT HORN (With Airbag) (If Installed)
HFC2099
Press the center hub of the steering wheel to sound the horn.
B580A01L-GAT SUN VISOR (If Installed)
HFC2094
Your Hyundai is equipped with sun visors to give the driver and front passenger either fron-tal or sideward shade. The sun visors are fittedon both sides on all models. To reduce glare orto shut out direct rays of the sun, turn the sunvisor down to block the annoyance. A vanitymirror is provided on the back of the sun visorfor the driver and front passenger. NOTE: The Supplemental Restraint System (SRS)label containing useful information can befound on the back of each sun visor. WARNING: Do not place the sun visor in such a mannerthat it obscures visibility of the roadway,traffic or other objects.
Vanity mirror
Page 234 of 317
CONTROLS AND EQUIPMENT
1- 52 B610A01S-DAT
HORN (With Airbag) Press the pad of the steering wheel to sound
the horn.
B580A01E-EAT SUN-VISOR Sun visors are fitted to both the driver and passenger side of the vehicle. Certain deriva- tives are equipped with a vanity mirror which is located on the back of the driver and passenger visor. The visor may be lowered to reduce the amount of glare from directly ahead, or may be moved towards the side window to reduce glare from the side of the vehicle, once the inner pivot has been unclipped from the bracket. NOTE: The Supplemental Restraint System (SRS) label containing useful information can be found on the back of each sun visor. WARNING: Do not place the sun-visor in such a man-ner that it obscures visibility of the road- way, traffic or other objects. SB520A1-F STEERING WHEEL TILT LEVER
HFC2099HFC2041HFC2094-D
Vanity mirror
To adjust the steering wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, securely tighten the lever
by pulling it upward
WARNING:Do not attempt to adjust the steering wheel while driving as this may result in loss of control of the vehicle and result in death or serious injury.
fcuk-1.p65 3/6/2007, 9:58 AM
52
Page 294 of 317
OWNER MAINTENANCE
6-16 SG140C1-E
Checking the Refrigerant
1. Start the engine and run at idle for several minutes with the refrigeration system run- ning at the coldest setting.
2. Open the bonnet and inspect the sight glass on the top of the receiver dryer.
3. If the refrigerant charge is insufficient, a flow of bubbles will be observed through the sightglass.
4. If the refrigerant charge is satisfactory, no bubbles will be observed through the sightglass.
CAUTION: Running the air conditioning system with a low refrigerant level may damage the com-pressor. SG140D1-E
Off Season Maintenance The air conditioning must be run for ten minutes or so weekly during periods when the systemwould not normally be used to ensure that thecompressor and seals are lubricated. If thisprecaution is not observed the compressor sealsmay become stuck to the compressor shaft anddamaged when the system is next used result-ing in a loss of refrigerant and damage to thecompressor. SG150A1-E STEERING WHEEL FREEPLAY
Steering wheel freeplay should be checked to
ensure that the specified value is not exceeded.
SG140B1-E
Compressor Drive Belt
The air conditioning compressor drive belt
should be checked to ensure freedom from damage or excessive wear and correct ten-sion. The belt tension is correct when the beltdeflects by about 0.3 inches (8 mm) when aforce of 98 N is applied to the belt halfwaybetween the compressor and crankshaft SG140A1-E
AIR CONDITIONING SYSTEM
MAINTENANCE
Condenser Ensure that the condenser is periodicallyinspected and that accumulations of dirt, deadinsects and leaves etc, are removed to ensurethat the efficiency of the system is not impaired.Care must be exercised to ensure that thecondenser fins are not damaged during clean-ing.
G150A01FC
G140D01A
A/C
CRANK PULLEY
TENSION PULLEY
1.18 in. (30 mm)
0.315 in. (8mm) pulleys. Adjustment of the belt should be entrusted to a Hyundai dealer.
fcuk-6.p65
3/6/2007, 10:01 AM
16
Page 317 of 317

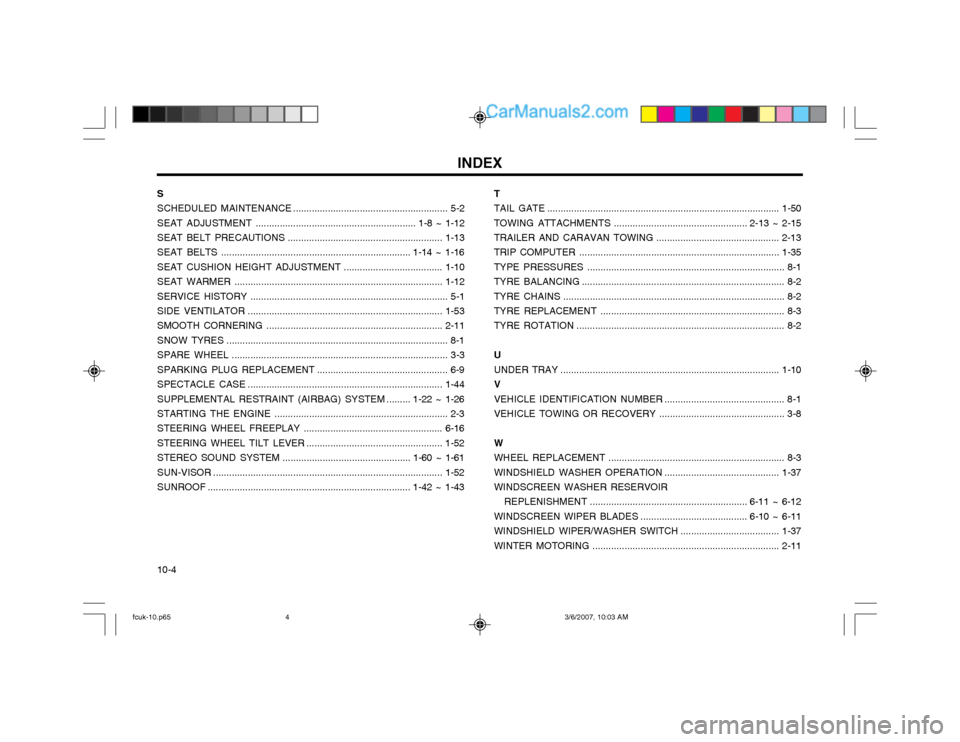

INDEX
10-4 S SCHEDULED MAINTENANCE
.......................................................... 5-2
SEAT ADJUSTMENT ... ......................................................... 1-8 ~ 1-12
SEAT BELT PRECAUTIONS .......................................................... 1-13
SEAT BELTS ....................................................................... 1-14 ~ 1-16
SEAT CUSHION HEIGHT ADJUSTMENT ..................................... 1-10
SEAT WARMER .............................................................................. 1-12
SERVICE HIS TORY .......................................................................... 5-1
SIDE VENTILATOR ......................................................................... 1-53
SMOOTH CORNERING .......... ........................................................ 2-11
SNOW TYRES ................................................................................... 8-1
SPARE WHEEL ................................................................................. 3-3
SPARKING PLUG REPLACEMENT ................................................. 6-9
SPECTACLE CASE ......................................................................... 1-44
SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM ......... 1-22 ~ 1-26
STARTING THE ENGINE ................................................................. 2-3
STEERING WHEEL FREEPLAY .................................................... 6-16
STEERING WHEEL TILT LEVER ................................................... 1-52
STEREO SOUND SYSTEM ................................................ 1-60 ~ 1-61
SUN-VISOR ...................................................................................... 1-52
SUNROOF ............................................................................ 1-42 ~ 1-43TTAIL GATE
....................................................................................... 1-50
TOWING ATTACHMENTS .................................................. 2-13 ~ 2-15
TRAILER AND CARAVAN TOWING .............................................. 2-13
TRIP COMPUTER ........................................................................... 1-35
TYPE PRESSURES .......................................................................... 8-1
TYRE BALANCING ............................................................................ 8-2
TYRE CHAI NS ................................................................................... 8-2
TYRE REPLACEMENT ..................................................................... 8-3
TYRE ROTATION .............................................................................. 8-2
UUNDER TRAY .................................................................................. 1-10
VVEHICLE IDENTIFICATION NUMBER ............................................. 8-1
VEHICLE TOWING OR RECOVERY ............................................... 3-8
WWHEEL REPLACEMENT .................................................................. 8-3
WINDSHIELD WASHER OPERATION........................................... 1-37
WINDSCREEN WASHER RESERVOIR REPLENISHMENT ........................................................... 6-11 ~ 6-12
WINDSCREEN WIPER BLADES ........................................ 6-10 ~ 6-11
WINDSHIELD WIPER/WASHER SWITCH ..................................... 1-37
WINTER MOTORING ...................................................................... 2-11
fcuk-10.p65 3/6/2007, 10:03 AM
4
