6
OWNER MAINTENANCE
35
G290A01FC

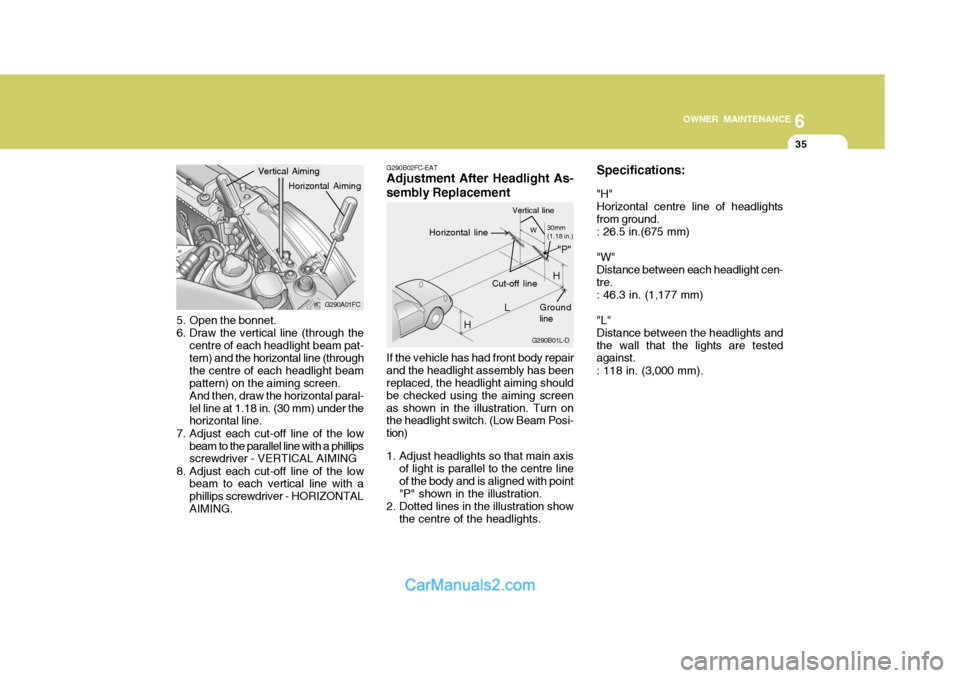

5. Open the bonnet.
6. Draw the vertical line (through the centre of each headlight beam pat- tern) and the horizontal line (through the centre of each headlight beampattern) on the aiming screen.And then, draw the horizontal paral-lel line at 1.18 in. (30 mm) under the horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with a phillipsscrewdriver - VERTICAL AIMING
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screwdriver - HORIZONTALAIMING.
Horizontal Aiming
Vertical Aiming
Specifications: "H" Horizontal centre line of headlights from ground. : 26.5 in.(675 mm) "W" Distance between each headlight cen-tre. : 46.3 in. (1,177 mm) "L" Distance between the headlights andthe wall that the lights are tested against. : 118 in. (3,000 mm).
G290B02FC-EAT
Adjustment After Headlight As- sembly Replacement
If the vehicle has had front body repair
and the headlight assembly has been replaced, the headlight aiming should be checked using the aiming screenas shown in the illustration. Turn on the headlight switch. (Low Beam Posi- tion)
1. Adjust headlights so that main axis of light is parallel to the centre line of the body and is aligned with point "P" shown in the illustration.
2. Dotted lines in the illustration show the centre of the headlights. G290B01L-D
L
W
H
H Cut-off line
"P"
30mm (1.18 in.)
Vertical lineHorizontal line
Ground line
