1

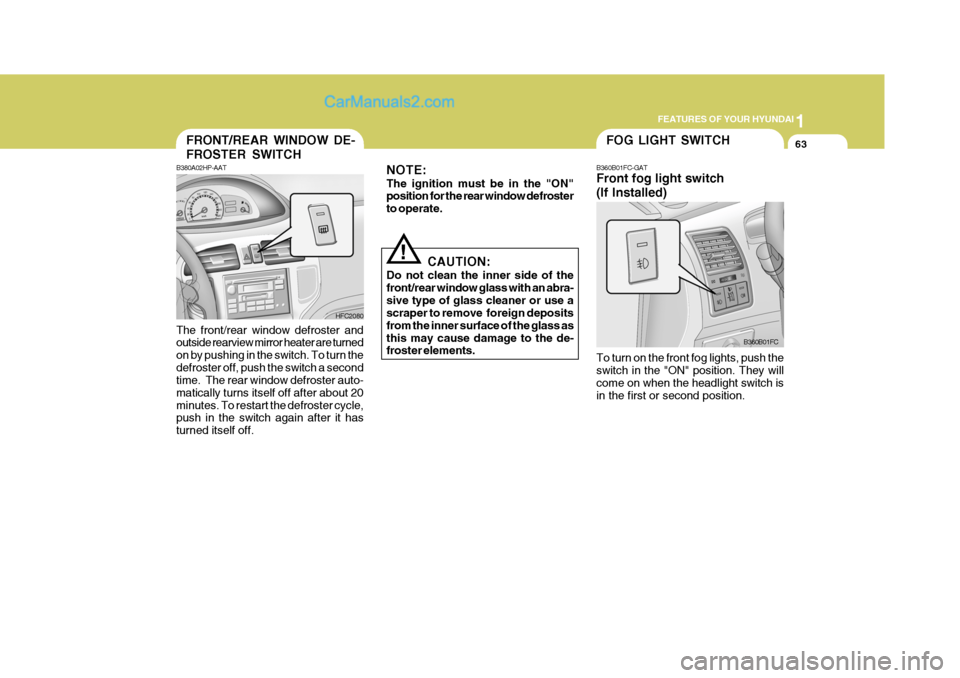

FEATURES OF YOUR HYUNDAI
63FOG LIGHT SWITCH
NOTE: The ignition must be in the "ON" position for the rear window defroster to operate.
CAUTION:
Do not clean the inner side of thefront/rear window glass with an abra-sive type of glass cleaner or use a scraper to remove foreign deposits from the inner surface of the glass asthis may cause damage to the de- froster elements.
! B360B01FC-GAT Front fog light switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.
B360B01FC
B380A02HP-AAT
HFC2080
FRONT/REAR WINDOW DE- FROSTER SWITCH
The front/rear window defroster and outside rearview mirror heater are turned on by pushing in the switch. To turn thedefroster off, push the switch a second time. The rear window defroster auto- matically turns itself off after about 20minutes. To restart the defroster cycle, push in the switch again after it has turned itself off.

1FEATURES OF YOUR HYUNDAI
72ACCESSORY TRAY
B820A01FC-GAT The accessory tray may be opened by pushing the knob sidewards and re- leasing slowly it.It is used for storing small items. HFC2071
MULTI BOX
B500B02E-GAT The multi box may be opened by pulling it out by its grip. It is used for storing small articles. If the multi box is removed, the fusebox for the lights and other electrical accessories will be exposed. HFC2058
!
SPECTACLE CASE
B491A02FC-GAT (If Installed) The spectacle case is located on the front overhead console. Push the end of the cover to open thespectacle case.
WARNING:
Do not open the spectacle casewhile the vehicle is moving. Therear view mirror of the vehicle may be blocked by an open spectacle case. HXDOM241

1
FEATURES OF YOUR HYUNDAI
73
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Adjust mirror angle by depressing
the appropriate directional switchas illustrated.
B510D01EB510B01FC-GAT OUTSIDE REARVIEW MIRROR Electric Type The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors. HFC2011
MIRROR
!
GLOVE BOX
B500A01A-AAT
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should bekept closed when the car is in mo- tion.
o To open the glove box, pull on the glove box release lever. HFC2095

1FEATURES OF YOUR HYUNDAI
74
!
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can befolded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident whichcould cause death, serious injury or property damage. B510C01FCB510D02HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the front/ rear window defroster. To heat the out- side rearview mirror glass, pushin the switch for the front/rear window defroster. The rearview mirror glass will be heated for defrosting or defoggingand will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off.The outside rearview mirror heater automatically turns itself off after 20 minutes.
HFC2080
!
!
CAUTION:
o Do not operate the switch con- tinuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in thepassenger side rear view mirror. It is a convex mirror with a curved surface, and objects seen in thismirror are closer than they appear.

1
FEATURES OF YOUR HYUNDAI
75
!WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other ob- jects. NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on theback of each sun visor.
B580A01L-GAT (If Installed) Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. The sun visors are fitted on both sideson all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoy-ance. A vanity mirror is provided on the back of the sun visor for the driver and front passenger. Vanity mirror
HFC2094
SUN VISORB520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRRORManual Type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced.
HXDFL2112

10INDEX
4
Heating and VentilationAir flow control ........................................................ 1-85
Air intake control .................................................... 1-87
Bi-level heating ....................................................... 1-88
Fan speed control ................................................... 1-84
Heating controls ...................................................... 1-87
Temperature control ................................................ 1-84
High-mounted Rear Stoplight .....................................1-76
Hood Release ............................................................ 1-76
Horn ........................................................................... 1-82
I Ignition Sw itch ............................................................. 2-3
Immobilizer S ystem ..................................................... 1-5
Instrument Cluster and Indicator .................. 1-44 ~ 1-47
Interior Light Interior light ............................................................. 1-71
Map light ................................................................. 1-71
Intermittent Wiper ...................................................... 1-62
J Jump Starting .............................................................. 3-3
K
Keys ............................................................................ 1-4 If you lose your keys ............................................. 3-15
Positions ................................................................... 2-4 L Lubrication Chart
.......................................................... 9-4
Luggage Net .............................................................. 1-80
MMaintenance Intervals Explanation of scheduled maintenance items .......... 5-8Maintenance under severe usage conditions ............ 5-7
Scheduled maintenance .................................. 5-4 ~ 5-6
Service requirements ................................................ 5-2
Mirror
Day-night inside rearview ....... .................................1-75
Outside rearvi ew ..................................................... 1-73
Multi Box ................................................................... 1-72
O
Odometer ................................................................... 1-56
Outside Rearview Mirror Heater................................. 1-74
PParking Brake ............................................................ 1-68
Power Outlet .............................................................. 1-66
Power Steering Fluid Level ....................................... 6-34
Pre-tensioner Seat Belt ............................................. 1-35

1CONTROLS AND EQUIPMENT
66
CAUTION:
Do not leave the switch in this posi- tion for an extended period time when the vehicle is not running.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
!
!
SPECTACLE CASE
B491A02FC-EAT (Not all models)
The spectacle case is located on the front overhead console. Push the end of the cover to open the spectacle case.
HXDOM241
WARNING:
Do not open the spectacle case whilst the vehicle is moving. The rear viewmirror of the vehicle can be blocked by an open spectacle case.
MULTI BOX
B500B02E-GAT
The multi box may be opened by pulling it out by its grip. It is used for storing small commodi-ties. If the multi box is removed, the fuse box for the lights and other electrical acces-sories will be exposed.
HFC2058-D

1
CONTROLS AND EQUIPMENT
67
HFC2071-D
B820A01FC-GAT The accessory tray may be opened by pushing the knob sidewards and releas- ing slowly it.It is used for storing small commodi- ties. ACCESSORY TRAY
GLOVE BOX
B500A01A-EAT
WARNING:
To avoid the possibility of injury, the glove box lid must be kept closedwhilst the vehicle is in motion.
!
o To open the glove box, pull the glove box release lever.
MIRROR
B510B01FC-EAT EXTERIOR REAR VIEW MIRROR Electric Type
The outside rear view mirror can be adjusted in any direction to give the maximum rear view vision. The remote control outside rear view mirror switch controls the adjustments for passenger side door mirror. To adjust the position of either mirror:
1. Move the selecting switch to the "L" (or "R") position to activate the ad- justable mechanism for the adjust-ing door mirror.
2. Adjust mirror angle by depressing
the appropriate directional switch asillustrated.
HFC2011-D
HFC2095-D

1CONTROLS AND EQUIPMENT
68
CAUTION:
o Do not leave the switch on for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To remove any ice, use a sponge,soft cloth or approved deicer.
!
B510D01E
!WARNING:
Be careful when judging the size or distance of any object seen in the passenger side rear view mirror. It isa convex mirror with a curved sur- face, any objects seen in this mirrorare closer than they appear. B510D01HP-EATOUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, push in the switchfor the rear window defroster. The rear- view mirror glass will be heated for defrosting or defogging and will giveyou improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The outsiderearview mirror heater automatically turns itself off after 20 minutes.
!
SB360C1-F FOLDING THE OUTSIDE REAR VIEW MIRRORS
B510C01FC-D
To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can be folded rearward for parking in restrictedareas.
WARNING:
Do not adjust or fold the outside rearview mirrors whilst the vehicle ismoving. This could result in loss of control, and an accident causing death, serious injury or propertydamage.HFC2080-D

1
CONTROLS AND EQUIPMENT
69SUN VISOR
SB370A1-E INTERIOR REAR VIEW MIRROR The interior mirror is of the day/night type to enable the glare of headlights from following vehicles to be eliminated during night time driving.The tab located at the bottom of the mirror should be set to the position nearest the windscreen for normal daytime driving, and flipped towards the rear of the vehicle to eliminate glare during night time driving. To adjust thefield of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle in motion. HXDFL2112
!
NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the back ofeach sun visor.
WARNING:
Do not place the sun visor in such amanner that it obscures visibility of the roadway, traffic or other objects.
B580A01E-EAT
Sun visors are fitted to both the driverand passenger side of the vehicle. Cer- tain derivatives are equipped with avanity mirror which is located on the back of the driver and passenger visor. The visor may be lowered to reduce theamount of glare from directly ahead, or may be moved towards the side window to reduce glare from the side of thevehicle, once the inner pivot has been unclipped from the bracket.
HFC2094-D
Vanity mirror
