Hyundai Matrix 2007 Owner's Manual

6
OWNER MAINTENANCE
33
!WARNING:
o Do not smoke or have any other open flame near the vehicle whilst bleeding the fuel system.
o Be sure to carefully wipe away
any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
G300A02FC
G300A02B-EAT
(Diesel engine)
If the fuel filter warning lamp illumi- nates during driving, it indicates thatwater has accumulated in the fuel filter. If this occurs, remove the water as described. REMOVAL OF WATER FROM THE FUEL FILTER1. Loosen the drain plug at the bottom
of the fuel filter.
2. Tighten the drain plug when water no longer comes out.
3. Check to be sure that the warning lamp illuminates when the ignition key is turned to "ON", and that it goes off when the engine is started. If in doubt, consult your nearest Hyundai authorised repairer.
NOTE: It is recommended that water accu-
mulated in the fuel filter should be removed by an authorised Hyundaiauthorised repairer. G300B02FC
fcuk-6.p65
12/27/2006, 10:16 AM
33

6 OWNER MAINTENANCE
34
G290A01FC
5. Open the bonnet.
6. Draw the vertical line (through the centre of each headlight beam pat- tern) and the horizontal line (through the centre of each headlight beampattern) on the aiming screen.And then, draw the horizontal paral-lel line at 1.18 in. (30 mm) under the horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with a phillipsscrewdriver - VERTICAL AIMING
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screwdriver - HORIZONTALAIMING.
Horizontal Aiming
Vertical Aiming
HEADLIGHT AIMING ADJUSTMENT
G290A01FC-EAT Before performing aiming adjustment,
make sure of the following.
1. Keep all tyres inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper & rear bumper down several times. Place the vehicle at a distance of 118 in. (3,000 mm) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant,engine oil and fuel, and spare tyre,jack, and tools).
4. Clean the head lights lens and turn on the headlight (Low beam).
!WARNING:
o Do not smoke or have any other open flame near the vehicle whilst bleeding the fuel system.
o Be sure to carefully wipe away any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
Extracting air in the fuel filter If you drove until you have no fuel left
or if you replaced the fuel filter, be sureto extract air in the fuel system as it makes you difficult to start the engine.
1) Remove the air extract nozzle cap
on the fuel filter.
2) Pump up and down until the fuel flows out of the plug opening.
NOTE: Use cloths when you extract air so
that the fuel is not sprayed around. Clean the fuel around the fuel filteror the injection pump before start- ing the engine to prevent fire. Fi- nally, check each part if the fuel isleaking.
fcuk-6.p65 12/27/2006, 10:16 AM
34

6
OWNER MAINTENANCE
35

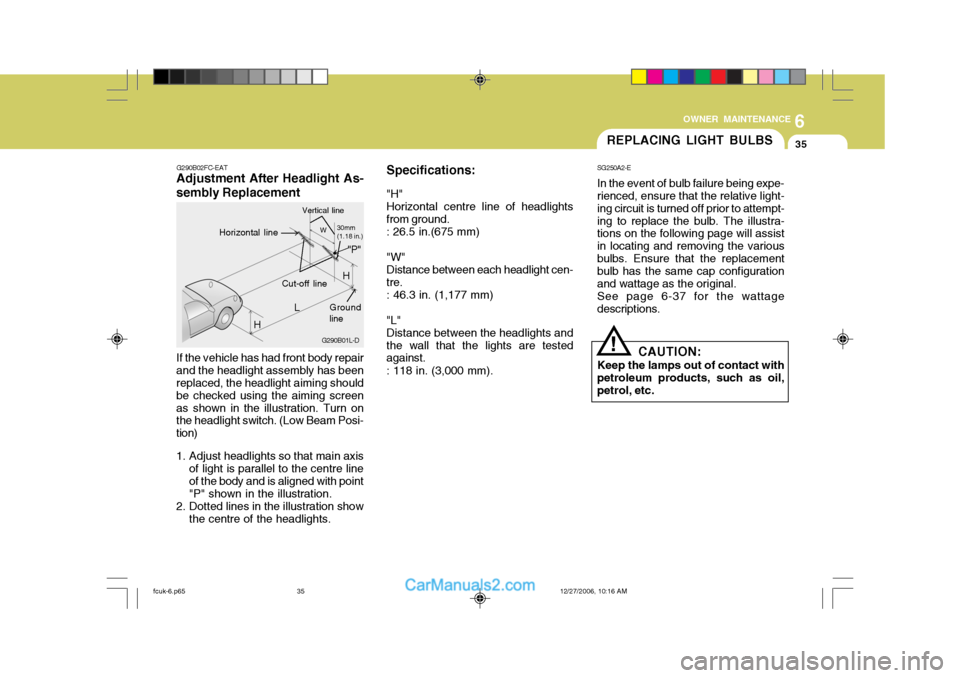

Specifications: "H" Horizontal centre line of headlights from ground. : 26.5 in.(675 mm) "W" Distance between each headlight cen-tre. : 46.3 in. (1,177 mm) "L" Distance between the headlights andthe wall that the lights are tested against. : 118 in. (3,000 mm).
G290B02FC-EAT
Adjustment After Headlight As- sembly Replacement If the vehicle has had front body repair and the headlight assembly has been replaced, the headlight aiming should be checked using the aiming screenas shown in the illustration. Turn on the headlight switch. (Low Beam Posi- tion)
1. Adjust headlights so that main axis of light is parallel to the centre lineof the body and is aligned with point "P" shown in the illustration.
2. Dotted lines in the illustration show the centre of the headlights. G290B01L-D
L
W
H
H Cut-off line
"P"
30mm (1.18 in.)
Vertical lineHorizontal line
Ground line
REPLACING LIGHT BULBS
SG250A2-E In the event of bulb failure being expe- rienced, ensure that the relative light- ing circuit is turned off prior to attempt-ing to replace the bulb. The illustra- tions on the following page will assist in locating and removing the variousbulbs. Ensure that the replacement bulb has the same cap configuration and wattage as the original. See page 6-37 for the wattage descriptions.
! CAUTION:
Keep the lamps out of contact with
petroleum products, such as oil, petrol, etc.
fcuk-6.p65 12/27/2006, 10:16 AM
35

6 OWNER MAINTENANCE
36
!WARNING
The halogen bulb contains gas un-
der pressure and if impacted could shatter, resulting in flying fragments. Always wear eye protection whenservicing the bulb. Protect the bulb against abrasions or scratches and against liquids when lighted. Turnon the bulb only when installed in a headlight. Replace the headlight if damaged or cracked. Keep the bulbout of the reach of children and dispose of the used bulb with care.
G270A02A-GAT
HEADLIGHT BULB Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic
base, avoid touching the glass.
3. Disconnect the power cord from the bulb base in the back of the head- light.
4. Remove the dust cover. G270A01FC
5. Push the bulb spring for removing
the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plastic base with the headlight hole. Installthe dust cover after retightening the bulb spring and reconnect the power cord.
7. Use the protective cap and carton
to dispose of the old bulb.
8. Check for proper headlight aim. G270A02FC
fcuk-6.p65
12/27/2006, 10:16 AM
36

6
OWNER MAINTENANCE
37
Socket type
W2.1×9.5D P43t-38
PK22s
BA 15s
W2.1×9.5D S8.5/8.5
W2.1×9.5D W2.1×4.6D Part Name
High Mounted Rear Stop Light Rear Fog Light License Plate Light Luggage Compartment Light Rear Combination Light
No.
1 2 3 4 5 6 7
BULB WATTAGE
G280A02FC-EAT
G280A02FC-D
Part Name
Front Position Light Head Light (High/Low) Front Fog Light (Not all models) Front Turn Signal Light Interior Light Side Repeater Front Door Edge Warning Light (Not all models) No.
89
1011 12
Wattage
5
60/55 55 215
10 10 5
Socket type BA 15s BA 15s
W2.1×9.5D S8.5/8.5
BA 15s
BAY 15d
BA 15s
Map LightRoom Light
Turn Signal Light Stop/Tail Light Back -up Light
Wattage
21 2155
21
21/5 21
fcuk-6.p65 12/27/2006, 10:16 AM
37

6 OWNER MAINTENANCE
38FUSE PANEL DESCRIPTION
G200C03FC-EAT Engine Compartment (Petrol Engine)
G200C03FC
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
PROTECTED COMPONENTS Generator (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse Generator, Engine control relay, ECM Radiator fan relay Start relay, Ignition switch Blower relay Power window relay Condenser fan relay #1 ABS control module, ABS bleeding connector, ESP ABS control module, ABS bleeding connector, ESP Fuel pump relay Injector, lgnition coil MAP sensor, Oxygen sensor, CP sensor, Knock sensor, Throttle position sensor Audio, Room lamp, Overhead console lamp, lnstrument cluster DRL control module Horn relay A/C relay Front fog lamp relay ECM, TCM Tail lamp relay Left rear combi lamp, Left position lamp, Left License lamp Right rear combi lamp, Right position lamp, Right License lamp Left head lamp Right head lamp, (H/LP IND) Fuse
FUSE RATING
120A40A30A 20A 40A 40A 30A 20A 40A 40A 10A 15A 10A 10A 15A 10A 10A 15A 10A 20A 10A 10A 15A 15A
DESCRIPTION
ALT
B+
ECURAD IGN
BLR
P/WINCOND ABSABS
F/PUMP
INJ
SNSR
ROOM LP DRL
HORN
A/CON
FR FOG ECU
LP
TAIL LH
TAIL RH H/LP LH
H/LP RH
fcuk-6.p65 12/27/2006, 10:16 AM
38

6
OWNER MAINTENANCE
39

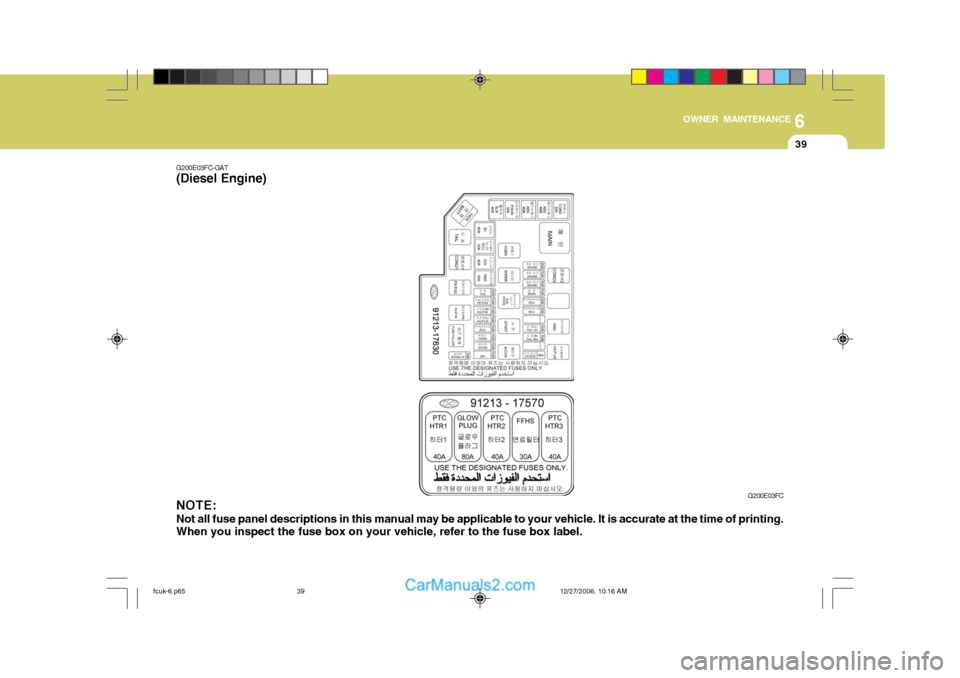

G200E03FC
G200E03FC-GAT
(Diesel Engine)
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
fcuk-6.p65 12/27/2006, 10:16 AM
39

6 OWNER MAINTENANCE
40
ALTB+
ECU RAD IGN
BLR
P/WIN
COND
ABSABS
F/PUMP ECUECU
SNSR
ROOM LP DRL
HORN
A/CON
FR FOG
ECULP
TAIL LH
TAIL RH H/LP LH
H/LP RH
PTC HTR 1 GLOW
PTC HTR 2 FFHS
PTC HTR 3 PROTECTED COMPONENTS
Generator(A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse, DeicerGenerator, Engine control relay, ECMRadiator fan relayStart relay, Ignition switchBlower relay Power window relay Condenser fan relay #1ABS control module, ABS bleeding connector, ESPABS control module, ABS bleeding connector, ESPFuel pump relayECM No.5 (Batt+) ECM No.4 (Batt+), Stop lamp switch, PTC heater relay #1 Glow plug relay, Assistor heater relay 1/2, Stop lamp switch,TDC sensor, EGR act, Throttle plate act, VGT vacuumAudio, Room lamp, Overhead console lamp, lnstrument cluster, ETACM, Luggage lampDRL control moduleHorn relayA/C relay Front fog lamp relay ECM, TCMTail lamp relayLeft rear combi lamp, Left position lamp, Left License lampRight rear combi lamp, Right position lamp, Right License lampLeft head lamp Right head lamp, (H/LP IND) Fuse PTC heater relay #1GLOW relayPTC heater relay #2FFHS relayPTC heater relay #3
FUSE RATING
140A40A 30A 30A40A40A30A30A 40A 40A10A30A10A 15A 10A 15A 10A10A15A10A20A 10A 10A15A15A40A80A 40A 30A40A
FUSE
FUSIBLE DESCRIPTION
fcuk-6.p65
12/27/2006, 10:16 AM
40

6
OWNER MAINTENANCE
41
G200D01FC-GAT
Inner Panel
G200D01FCDESCRIPTION
H/LP IND
HTD IND
A/CON
RR HTD STOP
D/LOCK
HAZARD AUDIO
C/LIGHT A/B
A/B IND
T/SIG
ECU
ETACS
RR WPR
START
FRT WPR S/HTD
P/OUTLET
IG2
O/S MRR
PROTECTED COMPONENTS Head lamp indicator Defogger relay, Left(Right) outside mirror motor,Rear window motorA/C SwitchDefogger relayStop lamp switch, Power window relay Door lock(unlock) relay, ETACM, Sunroof relay Burglar alarm relay, Hazard relayAudioCigarette lighterSRS control moduleSRS IND. Hazard switch, Seat belt timer, Instrument cluster, ABS control module, Pre-excitation resistor, Washer motorECM, Vehicle speed sensor, TCM, Ignition coilETACM, A/T Shift leverRear wiper motor, Rear wiper relayStart relay Wiper relay, Washer motor, Wiper & Defogger timer Left (Right) front seat warmer switchFront (Rear) power outletETACM, Power window relay, Defogger relay, Sunroof relayHead lamp relay, Blower relayOutside mirror switch, Rear fog lamp relay
FUSE RATING
10A 10A 10A 30A10A15A 10A 10A15A10A10A 10A 15A 10A10A 10A 20A15A25A 10A 10A
fcuk-6.p65 12/27/2006, 10:16 AM
41
