HYUNDAI NEXO 2023 Owners Manual

3-114
Convenient features of your vehicle

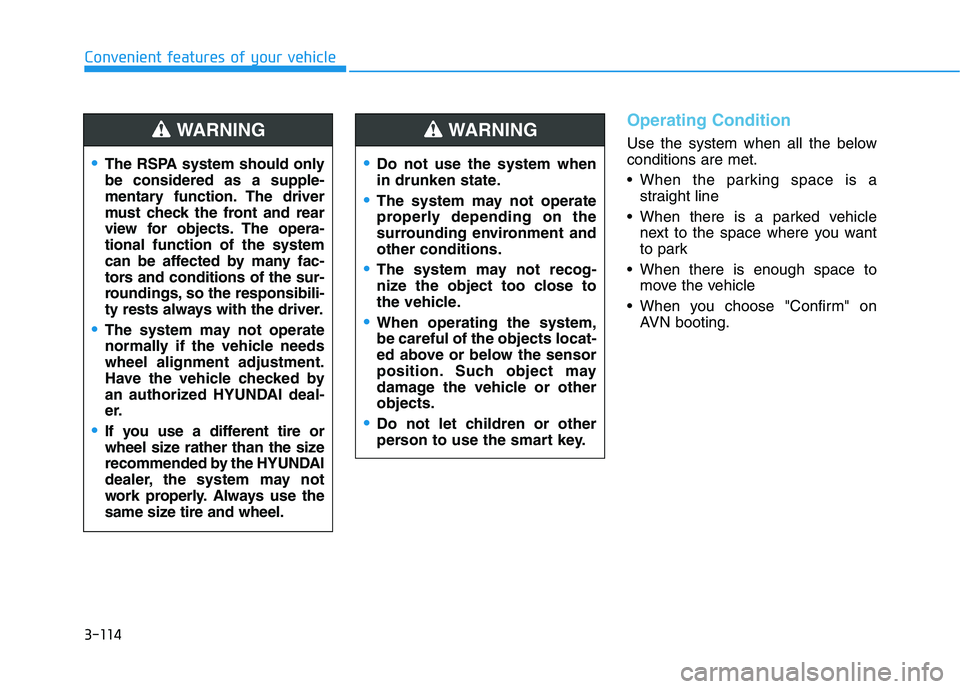

Operating Condition
Use the system when all the below conditions are met.
When the parking space is astraight line
When there is a parked vehicle next to the space where you want
to park
When there is enough space to move the vehicle
When you choose "Confirm" on AVN booting.
The RSPA system should only be considered as a supple-
mentary function. The driver
must check the front and rear
view for objects. The opera-tional function of the system
can be affected by many fac-
tors and conditions of the sur-
roundings, so the responsibili-
ty rests always with the driver.
The system may not operate
normally if the vehicle needswheel alignment adjustment.
Have the vehicle checked by
an authorized HYUNDAI deal-
er.
If you use a different tire or
wheel size rather than the size
recommended by the HYUNDAI
dealer, the system may not
work properly. Always use the
same size tire and wheel.
WARNING
Do not use the system when
in drunken state.
The system may not operate
properly depending on the
surrounding environment andother conditions.
The system may not recog-
nize the object too close to
the vehicle.
When operating the system, be careful of the objects locat-
ed above or below the sensor
position. Such object may
damage the vehicle or otherobjects.
Do not let children or other
person to use the smart key.
WARNING

3-115
Convenient features of your vehicle
3

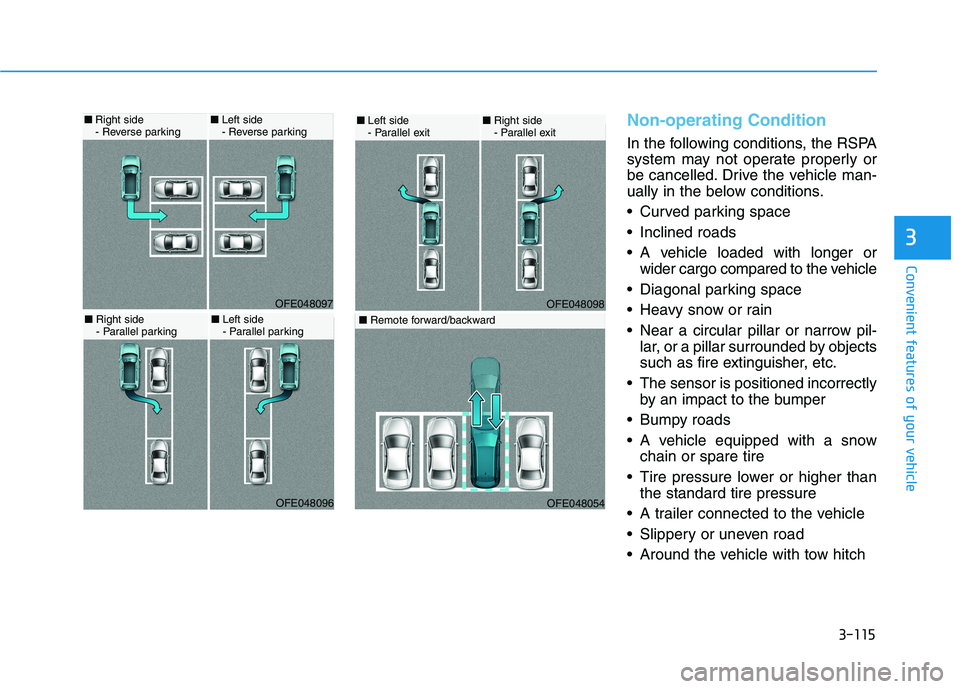

Non-operating Condition
In the following conditions, the RSPA
system may not operate properly or
be cancelled. Drive the vehicle man-
ually in the below conditions.
Curved parking space
Inclined roads
A vehicle loaded with longer orwider cargo compared to the vehicle
Diagonal parking space
Heavy snow or rain
Near a circular pillar or narrow pil- lar, or a pillar surrounded by objects
such as fire extinguisher, etc.
The sensor is positioned incorrectly by an impact to the bumper
Bumpy roads
A vehicle equipped with a snow chain or spare tire
Tire pressure lower or higher than the standard tire pressure
A trailer connected to the vehicle
Slippery or uneven road
Around the vehicle with tow hitch
OFE048098
■ Left side
- Parallel exit■Right side
- Parallel exit
OFE048054
■ Remote forward/backward
OFE048097
■Right side
- Reverse parking■Left side
- Reverse parking
OFE048096
■Right side
- Parallel parking■ Left side
- Parallel parking

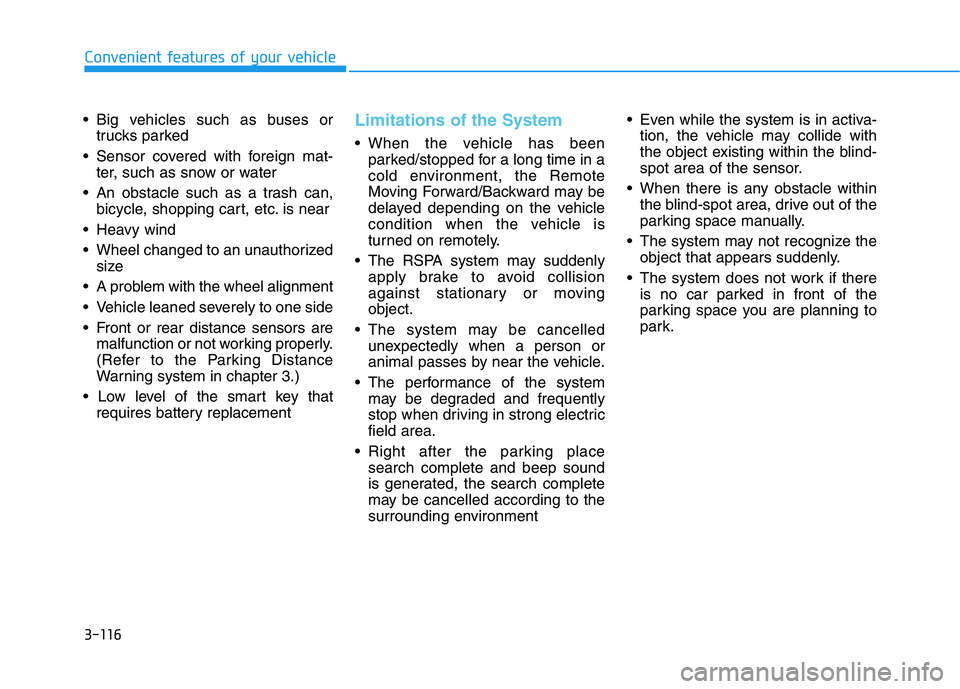

3-116
Convenient features of your vehicle
Big vehicles such as buses ortrucks parked
Sensor covered with foreign mat- ter, such as snow or water
An obstacle such as a trash can, bicycle, shopping cart, etc. is near
Heavy wind
Wheel changed to an unauthorized size
A problem with the wheel alignment
Vehicle leaned severely to one side
Front or rear distance sensors are malfunction or not working properly.
(Refer to the Parking Distance
Warning system in chapter 3.)
requires battery replacementLimitations of the System
When the vehicle has beenparked/stopped for a long time in a
cold environment, the Remote
Moving Forward/Backward may be
delayed depending on the vehicle
condition when the vehicle is
turned on remotely.
The RSPA system may suddenly apply brake to avoid collision
against stationary or movingobject.
The system may be cancelled unexpectedly when a person or
animal passes by near the vehicle.
The performance of the system may be degraded and frequently
stop when driving in strong electricfield area.
Right after the parking place search complete and beep sound
is generated, the search complete
may be cancelled according to the
surrounding environment Even while the system is in activa-
tion, the vehicle may collide with
the object existing within the blind-
spot area of the sensor.
When there is any obstacle within the blind-spot area, drive out of the
parking space manually.
The system may not recognize the object that appears suddenly.
The system does not work if there is no car parked in front of the
parking space you are planning to
park.

3-117
Convenient features of your vehicle
3
2. Parking in snow
Snow may interfere with sensor
operation or the system may
cancel if the road is slipperywhile parking.3. Parking in narrow space
The system may not search for parking spaces if the space is
too narrow. Even if the system
is operating, always be careful.
OFE048401OTM048062
Do not use the RSPA system in
the following conditions for
unexpected results may occurand cause a serious accident.
1. Parking on inclines
Park and exit manually when
you park on inclines.
WARNING
OFE048400

3-118
Convenient features of your vehicle

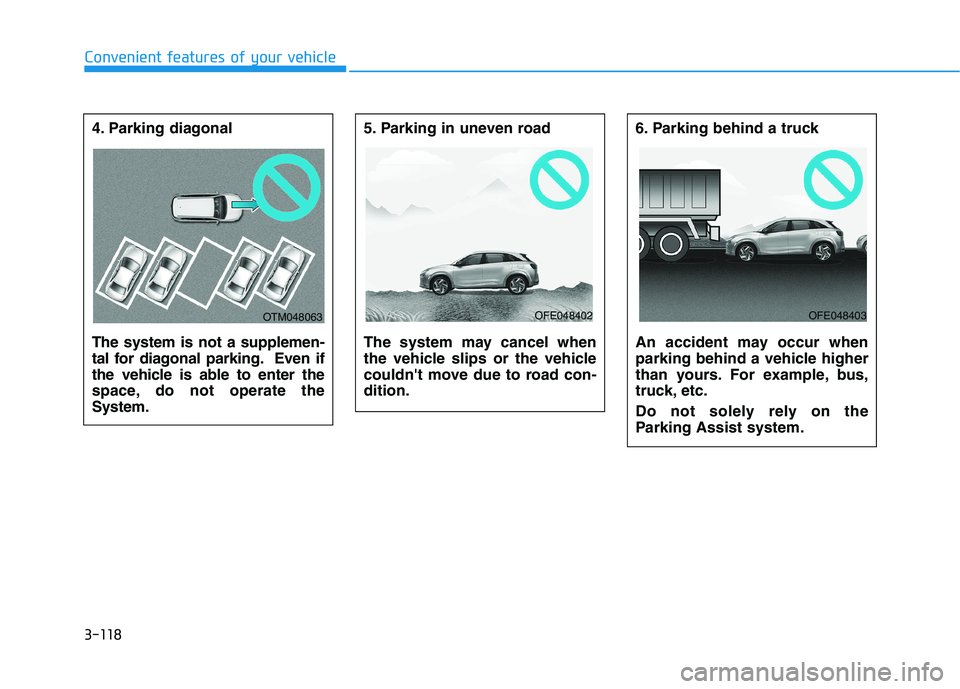

4. Parking diagonal The system is not a supplemen-
tal for diagonal parking. Even if
the vehicle is able to enter the
space, do not operate theSystem.5. Parking in uneven road
The system may cancel when
the vehicle slips or the vehicle
couldn't move due to road con-dition.6. Parking behind a truck
An accident may occur when
parking behind a vehicle higher
than yours. For example, bus,
truck, etc.
Do not solely rely on the
Parking Assist system.
OTM048063OFE048402OFE048403

3-119
Convenient features of your vehicle
3

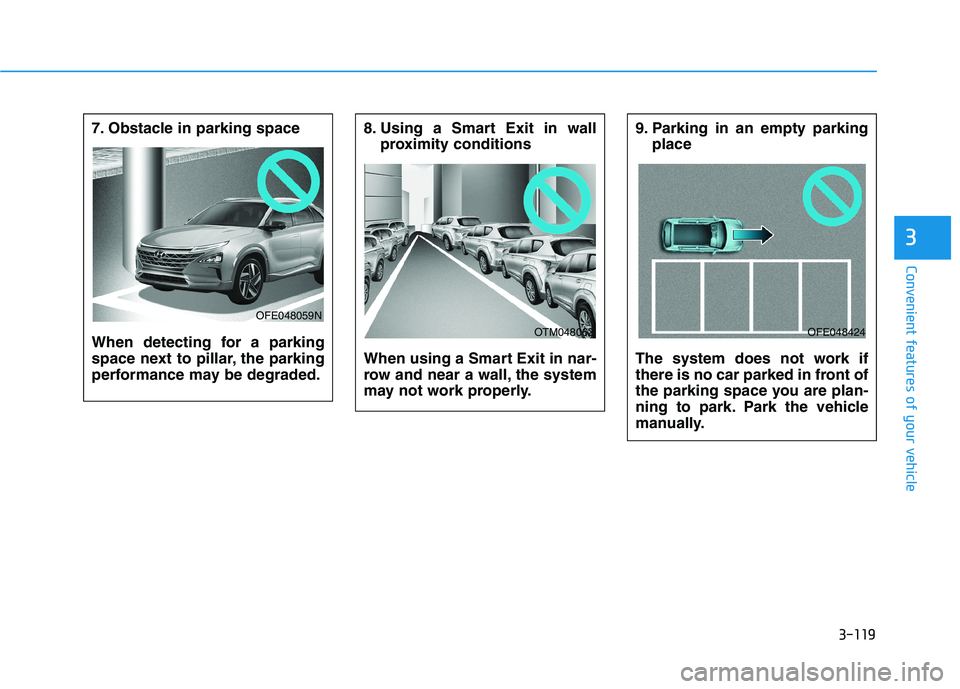

8. Using a Smart Exit in wallproximity conditions
When using a Smart Exit in nar-
row and near a wall, the system
may not work properly.
OTM048062 9. Parking in an empty parking
place
The system does not work if
there is no car parked in front of
the parking space you are plan-
ning to park. Park the vehicle
manually.OFE048424
7. Obstacle in parking space
When detecting for a parking
space next to pillar, the parking
performance may be degraded.
OFE048059N

3-120
Convenient features of your vehicle

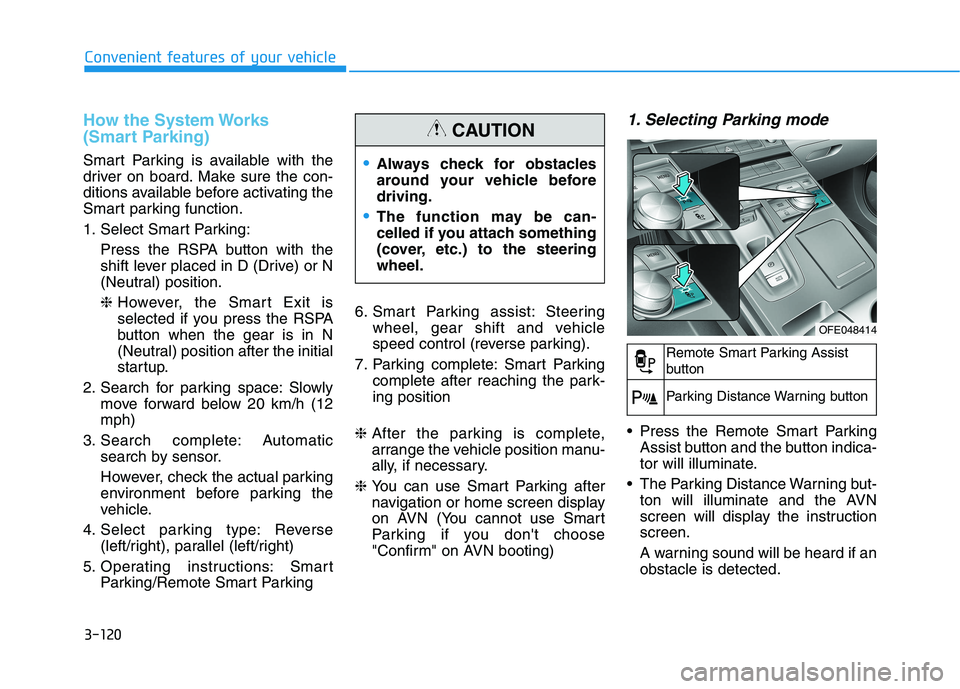

How the System Works
(Smart Parking)
Smart Parking is available with the
driver on board. Make sure the con-
ditions available before activating the
Smart parking function.
1. Select Smart Parking:Press the RSPA button with the
shift lever placed in D (Drive) or N
(Neutral) position. ❈However, the Smart Exit is
selected if you press the RSPA
button when the gear is in N
(Neutral) position after the initial
startup.
2. Search for parking space: Slowly move forward below 20 km/h (12mph)
3. Search complete: Automatic search by sensor.
However, check the actual parking
environment before parking the
vehicle.
4. Select parking type: Reverse (left/right), parallel (left/right)
5. Operating instructions: Smart Parking/Remote Smart Parking 6. Smart Parking assist: Steering
wheel, gear shift and vehicle
speed control (reverse parking).
7. Parking complete: Smart Parking complete after reaching the park-ing position
❈ After the parking is complete,
arrange the vehicle position manu-
ally, if necessary.
❈ You can use Smart Parking after
navigation or home screen display
on AVN (You cannot use Smart
Parking if you don't choose
"Confirm" on AVN booting)
1. Selecting Parking mode
Press the Remote Smart Parking
Assist button and the button indica-
tor will illuminate.
The Parking Distance Warning but- ton will illuminate and the AVN
screen will display the instructionscreen.
A warning sound will be heard if an obstacle is detected.
Always check for obstacles
around your vehicle beforedriving.
The function may be can-
celled if you attach something
(cover, etc.) to the steeringwheel.
CAUTION
OFE048414
Remote Smart Parking Assist
button
Parking Distance Warning button

3-121
Convenient features of your vehicle
3

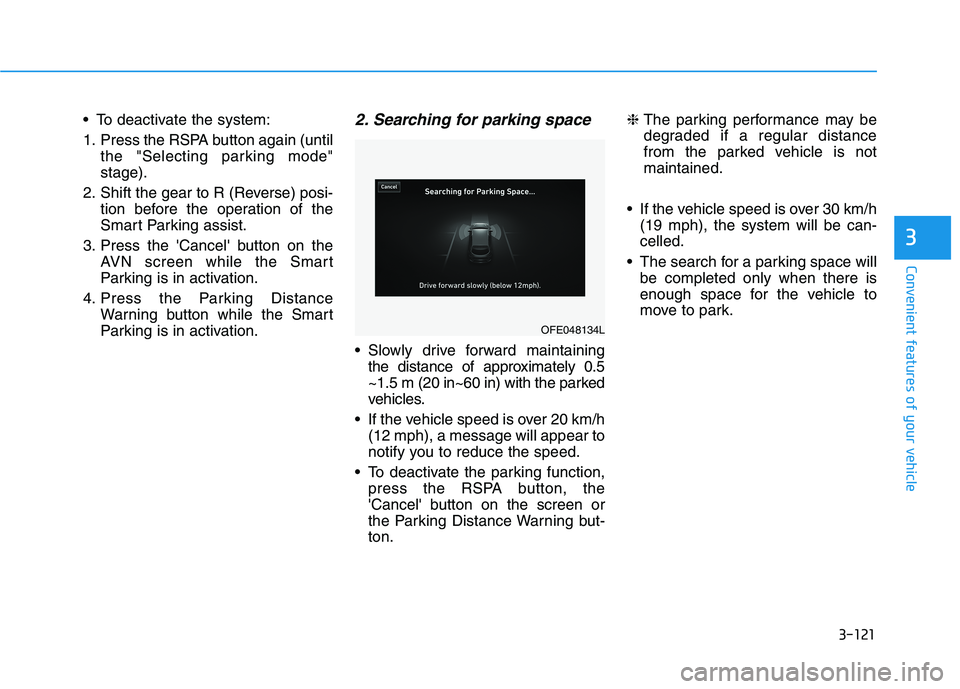

To deactivate the system:
1. Press the RSPA button again (untilthe "Selecting parking mode" stage).
2. Shift the gear to R (Reverse) posi- tion before the operation of the
Smart Parking assist.
3. Press the 'Cancel' button on the AVN screen while the Smart
Parking is in activation.
4. Press the Parking Distance Warning button while the Smart
Parking is in activation.2. Searching for parking space
Slowly drive forward maintainingthe distance of approximately 0.5
~1.5 m (20 in~60 in) with the parked
vehicles.
If the vehicle speed is over 20 km/h (12 mph), a message will appear to
notify you to reduce the speed.
To deactivate the parking function, press the RSPA button, the
'Cancel' button on the screen or
the Parking Distance Warning but-ton. ❈
The parking performance may be
degraded if a regular distance
from the parked vehicle is notmaintained.
If the vehicle speed is over 30 km/h (19 mph), the system will be can-celled.
The search for a parking space will be completed only when there is
enough space for the vehicle to
move to park.
OFE048134L

3-122
Convenient features of your vehicle

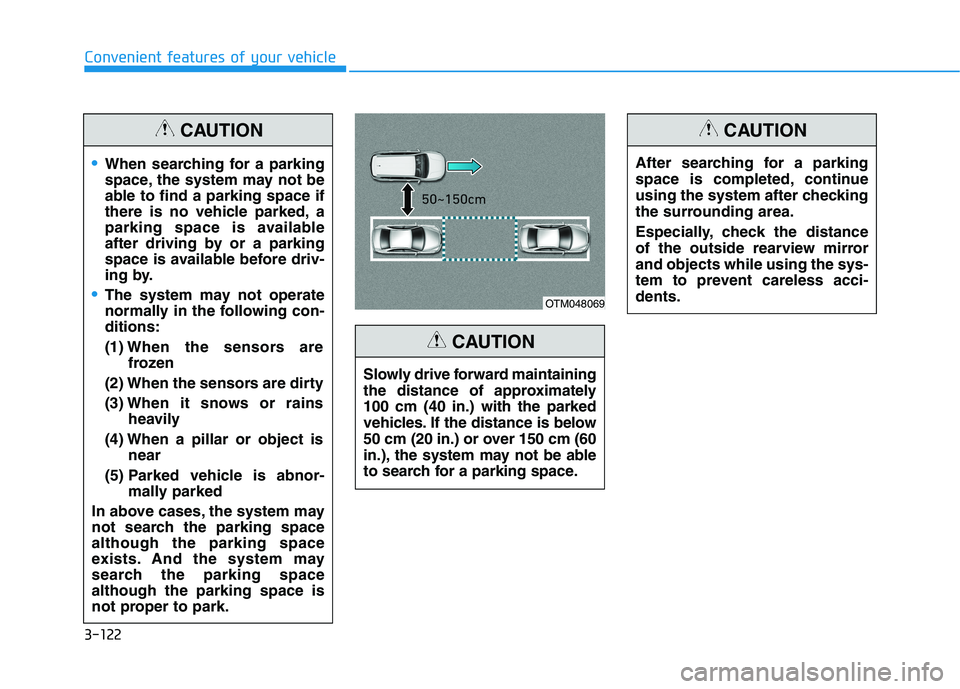

When searching for a parking
space, the system may not be
able to find a parking space if
there is no vehicle parked, a
parking space is available
after driving by or a parking
space is available before driv-
ing by.
The system may not operate
normally in the following con-ditions: (1) When the sensors are
frozen
(2) When the sensors are dirty(3) When it snows or rains
heavily
(4) When a pillar or object is near
(5) Parked vehicle is abnor- mally parked
In above cases, the system may
not search the parking spacealthough the parking space
exists. And the system may
search the parking spacealthough the parking space is
not proper to park.
CAUTION
Slowly drive forward maintaining
the distance of approximately100 cm (40 in.) with the parked
vehicles. If the distance is below
50 cm (20 in.) or over 150 cm (60
in.), the system may not be able
to search for a parking space.
CAUTION
After searching for a parking
space is completed, continue
using the system after checking
the surrounding area.
Especially, check the distance
of the outside rearview mirrorand objects while using the sys-
tem to prevent careless acci-dents.
CAUTION
OTM048069

3-123
Convenient features of your vehicle
3

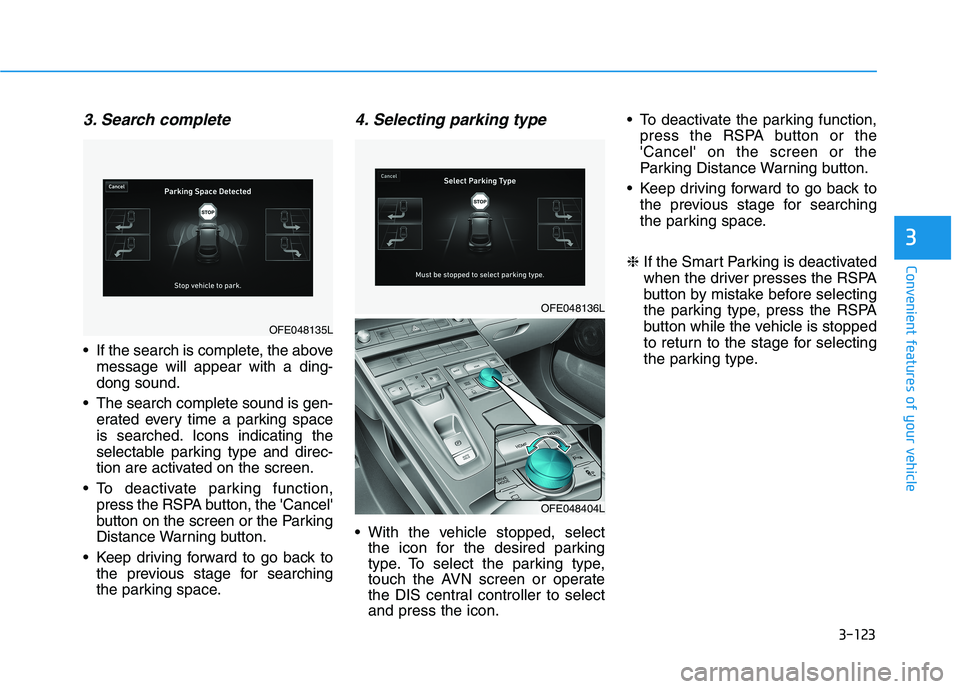

3. Search complete
If the search is complete, the abovemessage will appear with a ding- dong sound.
The search complete sound is gen- erated every time a parking space
is searched. Icons indicating the
selectable parking type and direc-
tion are activated on the screen.
To deactivate parking function, press the RSPA button, the 'Cancel'
button on the screen or the Parking
Distance Warning button.
Keep driving forward to go back to the previous stage for searching
the parking space.
4. Selecting parking type
With the vehicle stopped, selectthe icon for the desired parking
type. To select the parking type,
touch the AVN screen or operate
the DIS central controller to selectand press the icon. To deactivate the parking function,
press the RSPA button or the 'Cancel' on the screen or the
Parking Distance Warning button.
Keep driving forward to go back to the previous stage for searching
the parking space.
❈ If the Smart Parking is deactivated
when the driver presses the RSPA
button by mistake before selecting
the parking type, press the RSPA
button while the vehicle is stopped
to return to the stage for selecting
the parking type.
OFE048135L
OFE048136L
OFE048404L
