The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
1
OLX2019004N

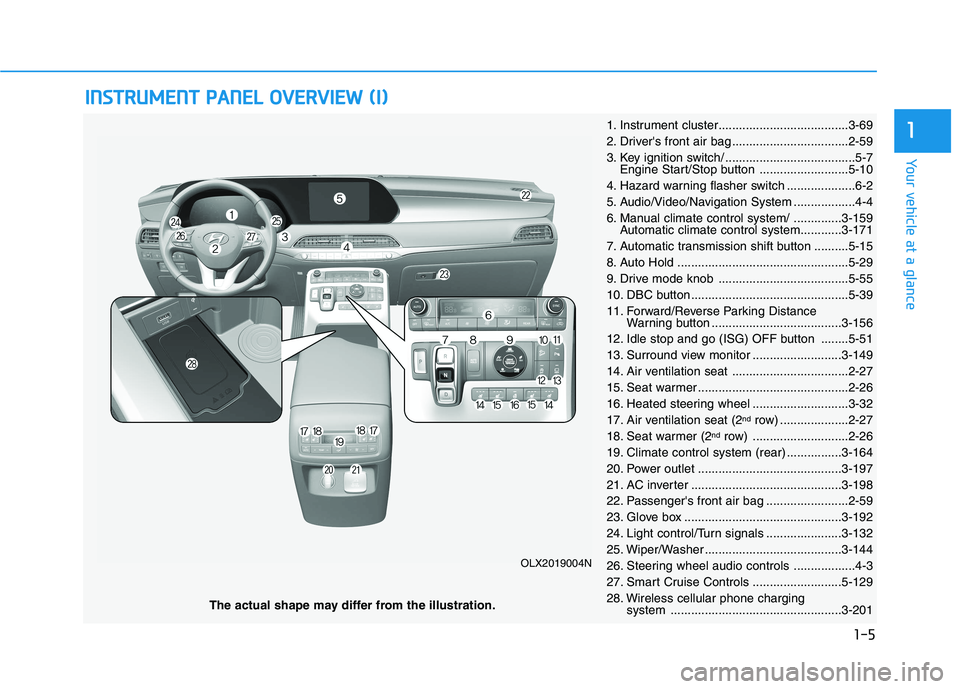

1. Instrument cluster......................................3-69
2. Driver's front air bag ..................................2-59
3. Key ignition switch/ ......................................5-7
Engine Start/Stop button ..........................5-10
4. Hazard warning flasher switch ....................6-2
5. Audio/Video/Navigation System ..................4-4
6. Manual climate control system/ ..............3-159
Automatic climate control system............3-171
7. Automatic transmission shift button ..........5-15
8. Auto Hold ..................................................5-29
9. Drive mode knob ......................................5-55
10. DBC button ..............................................5-39
11. Forward/Reverse Parking Distance
Warning button ......................................3-156
12. Idle stop and go (ISG) OFF button ........5-51
13. Surround view monitor ..........................3-149
14. Air ventilation seat ..................................2-27
15. Seat warmer ............................................2-26
16. Heated steering wheel ............................3-32
17. Air ventilation seat (2
ndrow) ....................2-27
18. Seat warmer (2ndrow) ............................2-26
19. Climate control system (rear) ................3-164
20. Power outlet ..........................................3-197
21. AC inverter ............................................3-198
22. Passenger's front air bag ........................2-59
23. Glove box ..............................................3-192
24. Light control/Turn signals ......................3-132
25. Wiper/Washer ........................................3-144
26. Steering wheel audio controls ..................4-3
27. Smart Cruise Controls ..........................5-129
28. Wireless cellular phone charging
system ..................................................3-201

2-28
Safety system of your vehicle

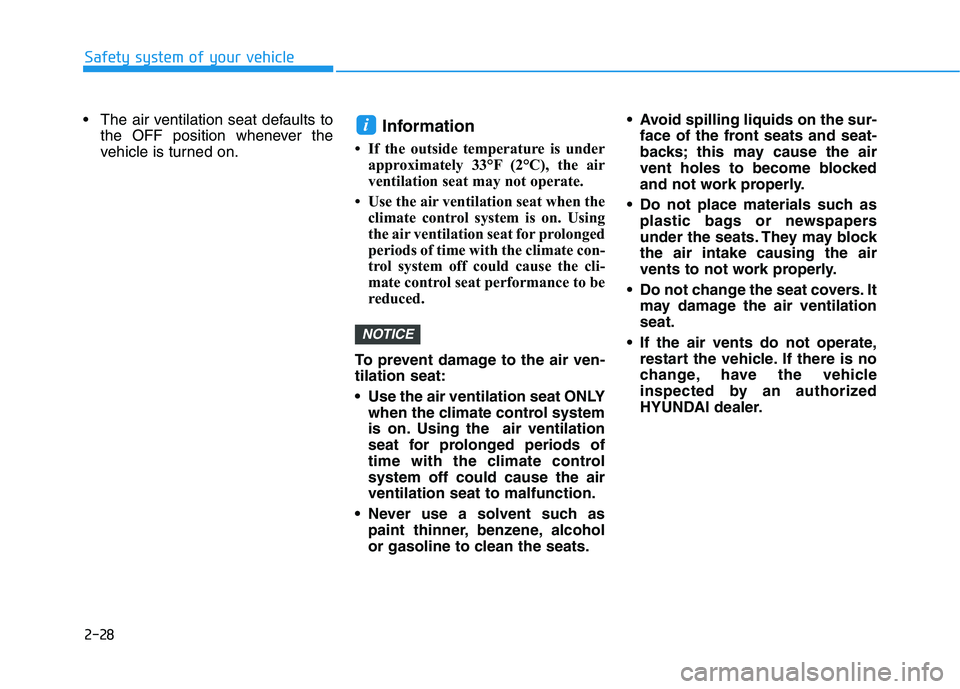

The air ventilation seat defaults to
the OFF position whenever the
vehicle is turned on.
Information
• If the outside temperature is under
approximately 33°F (2°C), the air
ventilation seat may not operate.
• Use the air ventilation seat when the
climate control system is on. Using
the air ventilation seat for prolonged
periods of time with the climate con-
trol system off could cause the cli-
mate control seat performance to be
reduced.
To prevent damage to the air ven-
tilation seat:
Use the air ventilation seat ONLY
when the climate control system
is on. Using the air ventilation
seat for prolonged periods of
time with the climate control
system off could cause the air
ventilation seat to malfunction.
Never use a solvent such as
paint thinner, benzene, alcohol
or gasoline to clean the seats. Avoid spilling liquids on the sur-
face of the front seats and seat-
backs; this may cause the air
vent holes to become blocked
and not work properly.
Do not place materials such as
plastic bags or newspapers
under the seats. They may block
the air intake causing the air
vents to not work properly.
Do not change the seat covers. It
may damage the air ventilation
seat.
If the air vents do not operate,
restart the vehicle. If there is no
change, have the vehicle
inspected by an authorized
HYUNDAI dealer.
NOTICE
i

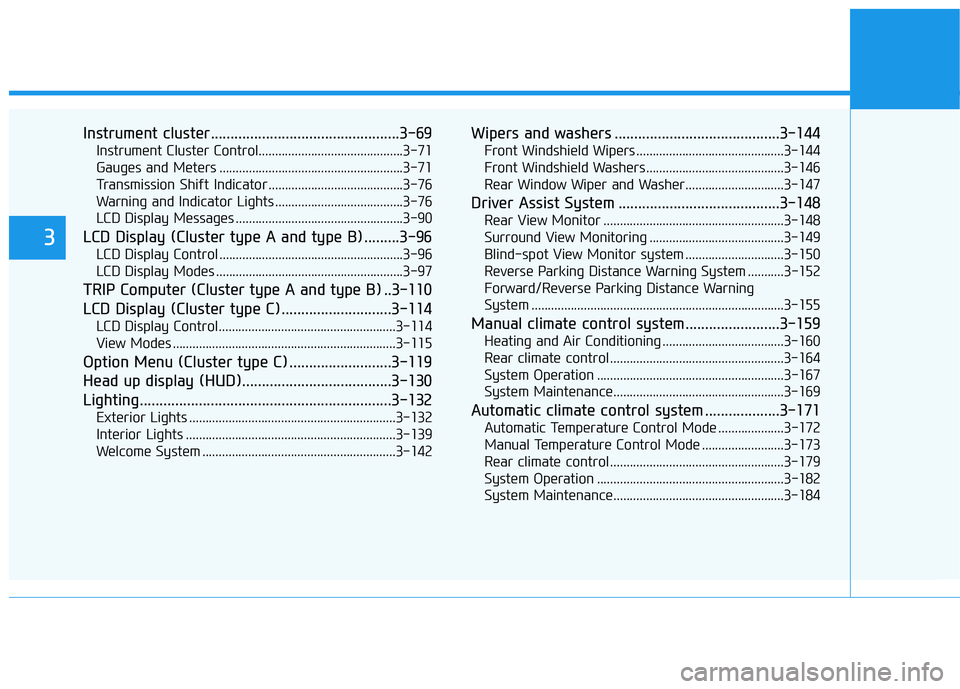

Instrument cluster................................................3-69
Instrument Cluster Control............................................3-71
Gauges and Meters ........................................................3-71
Transmission Shift Indicator .........................................3-76
Warning and Indicator Lights .......................................3-76
LCD Display Messages ...................................................3-90
LCD Display (Cluster type A and type B) .........3-96
LCD Display Control ........................................................3-96
LCD Display Modes .........................................................3-97
TRIP Computer (Cluster type A and type B) ..3-110
LCD Display (Cluster type C)............................3-114
LCD Display Control......................................................3-114
View Modes ....................................................................3-115
Option Menu (Cluster type C) ..........................3-119
Head up display (HUD)......................................3-130
Lighting................................................................3-132
Exterior Lights ...............................................................3-132
Interior Lights ................................................................3-139
Welcome System ...........................................................3-142
Wipers and washers ..........................................3-144
Front Windshield Wipers .............................................3-144
Front Windshield Washers ..........................................3-146
Rear Window Wiper and Washer..............................3-147
Driver Assist System .........................................3-148
Rear View Monitor .......................................................3-148
Surround View Monitoring .........................................3-149
Blind-spot View Monitor system ..............................3-150
Reverse Parking Distance Warning System ...........3-152
Forward/Reverse Parking Distance Warning
System .............................................................................3-155
Manual climate control system........................3-159
Heating and Air Conditioning .....................................3-160
Rear climate control .....................................................3-164
System Operation .........................................................3-167
System Maintenance....................................................3-169
Automatic climate control system ...................3-171
Automatic Temperature Control Mode ....................3-172
Manual Temperature Control Mode .........................3-173
Rear climate control .....................................................3-179
System Operation .........................................................3-182
System Maintenance....................................................3-184
3

Convenient features of your vehicle

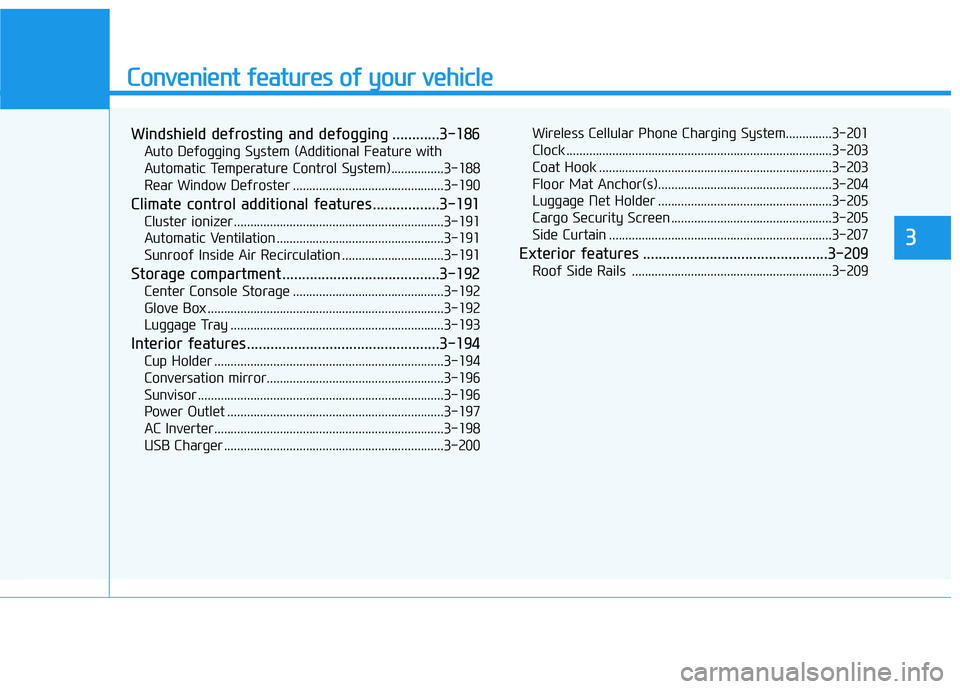

Windshield defrosting and defogging ............3-186
Auto Defogging System (Additional Feature with
Automatic Temperature Control System)................3-188
Rear Window Defroster ..............................................3-190
Climate control additional features.................3-191
Cluster ionizer ................................................................3-191
Automatic Ventilation ...................................................3-191
Sunroof Inside Air Recirculation ...............................3-191
Storage compartment ........................................3-192
Center Console Storage ..............................................3-192
Glove Box ........................................................................3-192
Luggage Tray .................................................................3-193
Interior features.................................................3-194
Cup Holder ......................................................................3-194
Conversation mirror......................................................3-196
Sunvisor ...........................................................................3-196
Power Outlet ..................................................................3-197
AC Inverter......................................................................3-198
USB Charger ...................................................................3-200Wireless Cellular Phone Charging System..............3-201
Clock .................................................................................3-203
Coat Hook .......................................................................3-203
Floor Mat Anchor(s).....................................................3-204
Luggage Net Holder .....................................................3-205
Cargo Security Screen .................................................3-205
Side Curtain ....................................................................3-207
Exterior features ...............................................3-209
Roof Side Rails .............................................................3-209
3

3-43
Convenient features of your vehicle
3

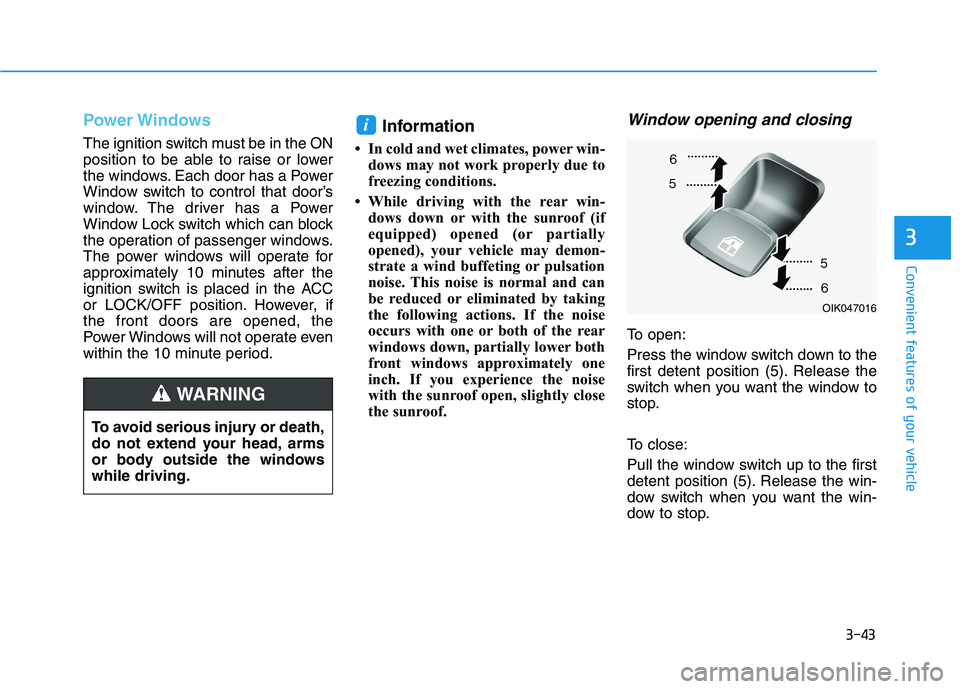

Power Windows
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 10 minutes after the
ignition switch is placed in the ACC
or LOCK/OFF position. However, if
the front doors are opened, the
Power Windows will not operate even
within the 10 minute period.
Information
• In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
• While driving with the rear win-
dows down or with the sunroof (if
equipped) opened (or partially
opened), your vehicle may demon-
strate a wind buffeting or pulsation
noise. This noise is normal and can
be reduced or eliminated by taking
the following actions. If the noise
occurs with one or both of the rear
windows down, partially lower both
front windows approximately one
inch. If you experience the noise
with the sunroof open, slightly close
the sunroof.
Window opening and closing
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the win-
dow switch when you want the win-
dow to stop.
i
To avoid serious injury or death,
do not extend your head, arms
or body outside the windows
while driving.
WARNING
OIK047016

3-46

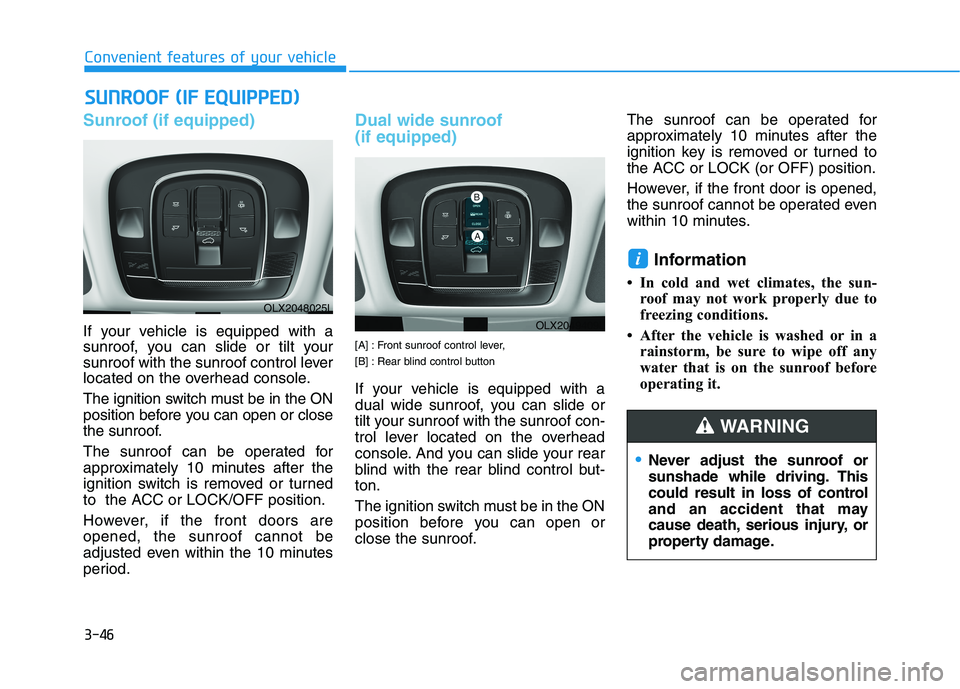

Sunroof (if equipped)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The ignition switch must be in the ON
position before you can open or close
the sunroof.
The sunroof can be operated for
approximately 10 minutes after the
ignition switch is removed or turned
to the ACC or LOCK/OFF position.
However, if the front doors are
opened, the sunroof cannot be
adjusted even within the 10 minutes
period.
Dual wide sunroof
(if equipped)
[A] : Front sunroof control lever,
[B] : Rear blind control button
If your vehicle is equipped with a
dual wide sunroof, you can slide or
tilt your sunroof with the sunroof con-
trol lever located on the overhead
console. And you can slide your rear
blind with the rear blind control but-
ton.
The ignition switch must be in the ON
position before you can open or
close the sunroof.The sunroof can be operated for
approximately 10 minutes after the
ignition key is removed or turned to
the ACC or LOCK (or OFF) position.
However, if the front door is opened,
the sunroof cannot be operated even
within 10 minutes.
Information
• In cold and wet climates, the sun-
roof may not work properly due to
freezing conditions.
• After the vehicle is washed or in a
rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
i
S SU
UN
NR
RO
OO
OF
F
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)
Convenient features of your vehicle
Never adjust the sunroof or
sunshade while driving. This
could result in loss of control
and an accident that may
cause death, serious injury, or
property damage.
WARNING
OLX2048025L
OLX2049409L

3-50
Convenient features of your vehicle
Periodically remove any dirt that
may accumulate on the sunroof
guide rail or between the sun-
roof and roof panel which can
make a noise.
Do not try to open the sunroof
when the temperature is below
freezing or when the sunroof is
covered with snow or ice, other-
wise the motor could be dam-
aged. In cold and wet climates, the
sunroof may not work properly.

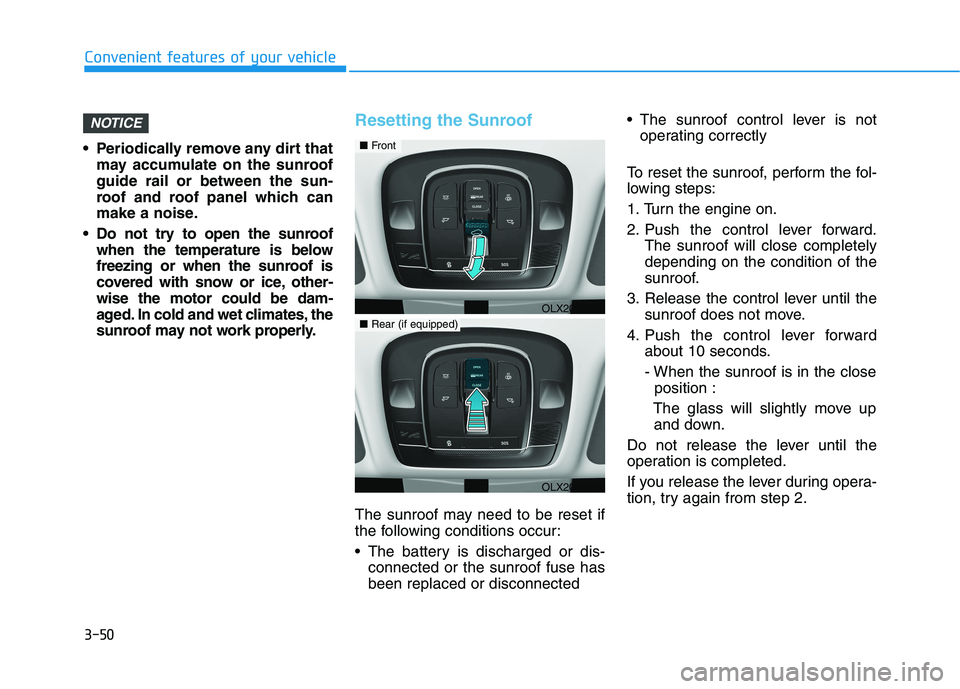

Resetting the Sunroof
The sunroof may need to be reset if
the following conditions occur:
The battery is discharged or dis-
connected or the sunroof fuse has
been replaced or disconnected The sunroof control lever is not
operating correctly
To reset the sunroof, perform the fol-
lowing steps:
1. Turn the engine on.
2. Push the control lever forward.
The sunroof will close completely
depending on the condition of the
sunroof.
3. Release the control lever until the
sunroof does not move.
4. Push the control lever forward
about 10 seconds.
- When the sunroof is in the close
position :
The glass will slightly move up
and down.
Do not release the lever until the
operation is completed.
If you release the lever during opera-
tion, try again from step 2.
NOTICE
OLX2048032
■Front
■Rear (if equipped)
OLX2048098

3-74
Convenient features of your vehicle
Avoid driving with an extremely
low fuel level. Running out of fuel
could cause the engine to misfire
damaging the catalytic converter.

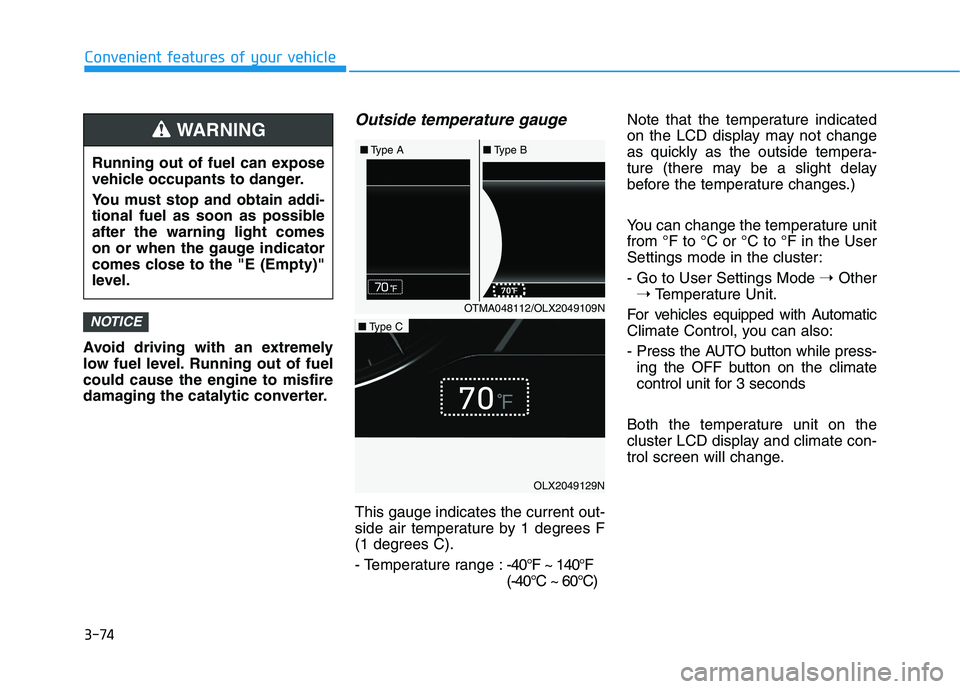

Outside temperature gauge
This gauge indicates the current out-
side air temperature by 1 degrees F
(1 degrees C).
- Temperature range :-40°F ~ 140°F
(-40°C ~ 60°C)Note that the temperature indicated
on the LCD display may not change
as quickly as the outside tempera-
ture (there may be a slight delay
before the temperature changes.)
You can change the temperature unit
from °F to °C or °C to °F in the User
Settings mode in the cluster:
- Go to User Settings Mode ➝Other
➝Temperature Unit.
For vehicles equipped with Automatic
Climate Control, you can also:
- Press the AUTO button while press-
ing the OFF button on the climate
control unit for 3 seconds
Both the temperature unit on the
cluster LCD display and climate con-
trol screen will change.
NOTICE
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi-
tional fuel as soon as possible
after the warning light comes
on or when the gauge indicator
comes close to the "E (Empty)"
level.
WARNING
OTMA048112/OLX2049109N ■Type A■Type B
OLX2049129N
■Type C

3-159
Convenient features of your vehicle
3
M MA
AN
NU
UA
AL
L
C
CL
LI
IM
MA
AT
TE
E
C
CO
ON
NT
TR
RO
OL
L
S
SY
YS
ST
TE
EM
M
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)

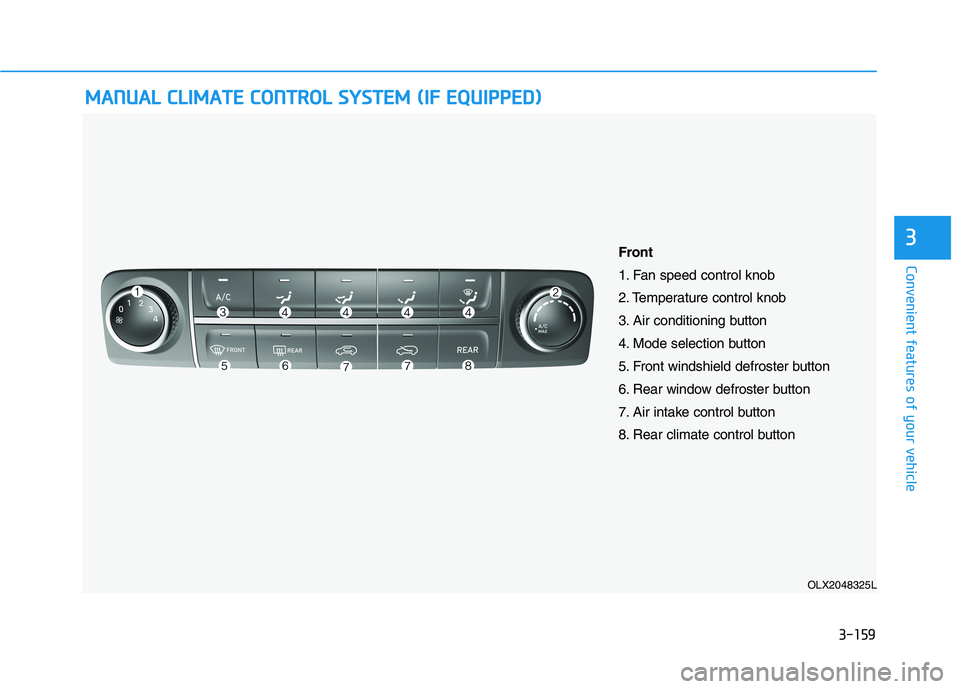

OLX2048325L
Front
1. Fan speed control knob
2. Temperature control knob
3. Air conditioning button
4. Mode selection button
5. Front windshield defroster button
6. Rear window defroster button
7. Air intake control button
8. Rear climate control button

3-163
Convenient features of your vehicle
3

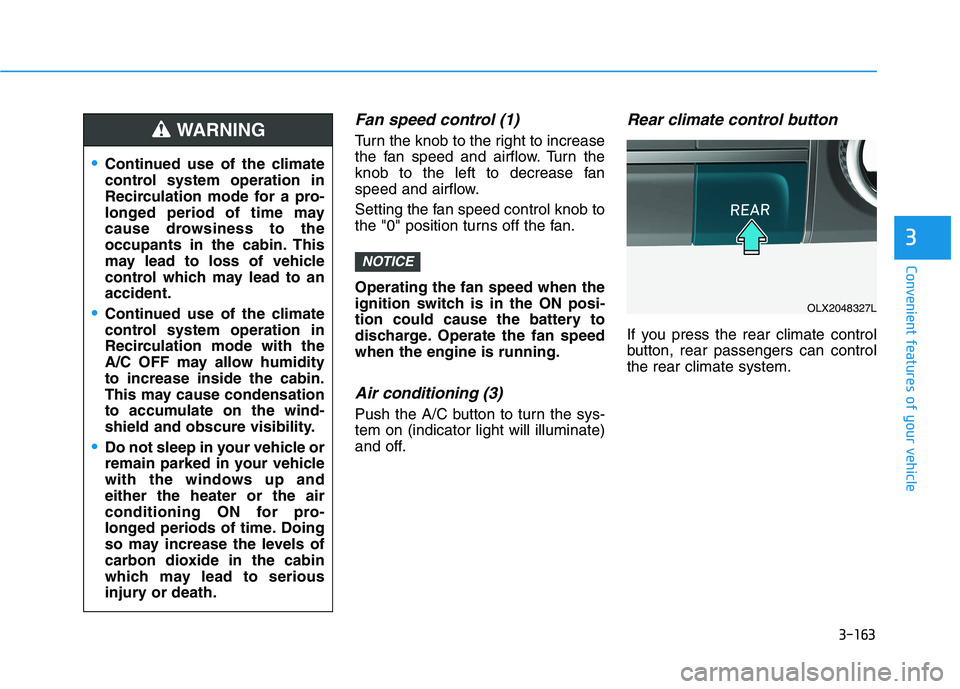

Fan speed control (1)
Turn the knob to the right to increase
the fan speed and airflow. Turn the
knob to the left to decrease fan
speed and airflow.
Setting the fan speed control knob to
the "0" position turns off the fan.
Operating the fan speed when the
ignition switch is in the ON posi-
tion could cause the battery to
discharge. Operate the fan speed
when the engine is running.
Air conditioning (3)
Push the A/C button to turn the sys-
tem on (indicator light will illuminate)
and off.
Rear climate control button
If you press the rear climate control
button, rear passengers can control
the rear climate system.
NOTICE
Continued use of the climate
control system operation in
Recirculation mode for a pro-
longed period of time may
cause drowsiness to the
occupants in the cabin. This
may lead to loss of vehicle
control which may lead to an
accident.
Continued use of the climate
control system operation in
Recirculation mode with the
A/C OFF may allow humidity
to increase inside the cabin.
This may cause condensation
to accumulate on the wind-
shield and obscure visibility.
Do not sleep in your vehicle or
remain parked in your vehicle
with the windows up and
either the heater or the air
conditioning ON for pro-
longed periods of time. Doing
so may increase the levels of
carbon dioxide in the cabin
which may lead to serious
injury or death.
WARNING
OLX2048327L
