HYUNDAI PALISADE 2022 Owners Manual

3-55
Convenience Features
3

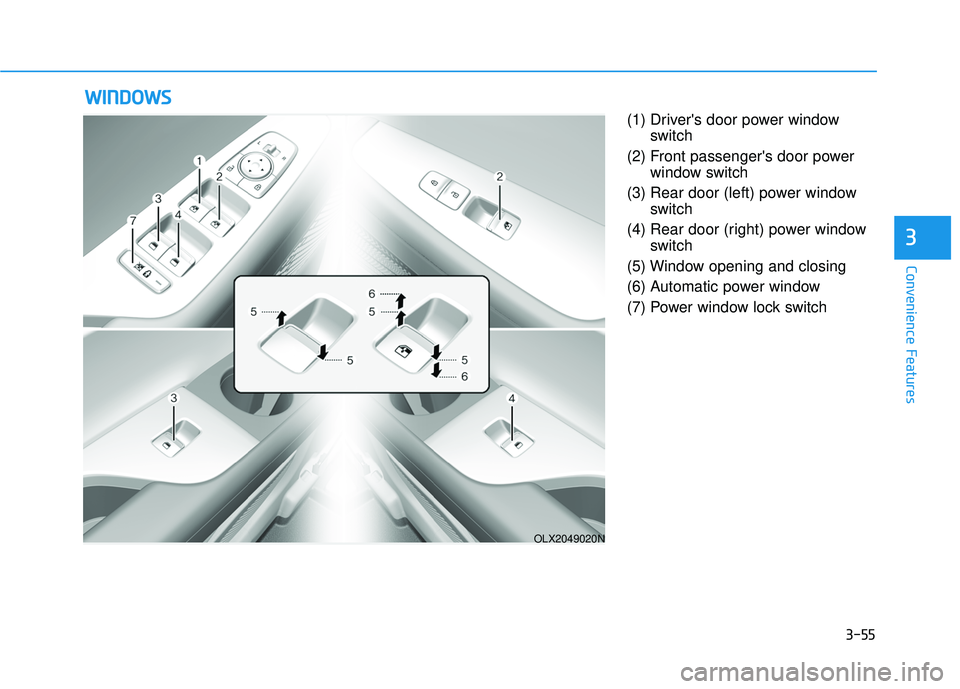

(1) Driver's door power windowswitch
(2) Front passenger's door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
W W I IN N D DO O W W S S
OLX2049020N

3-56
Convenience Features

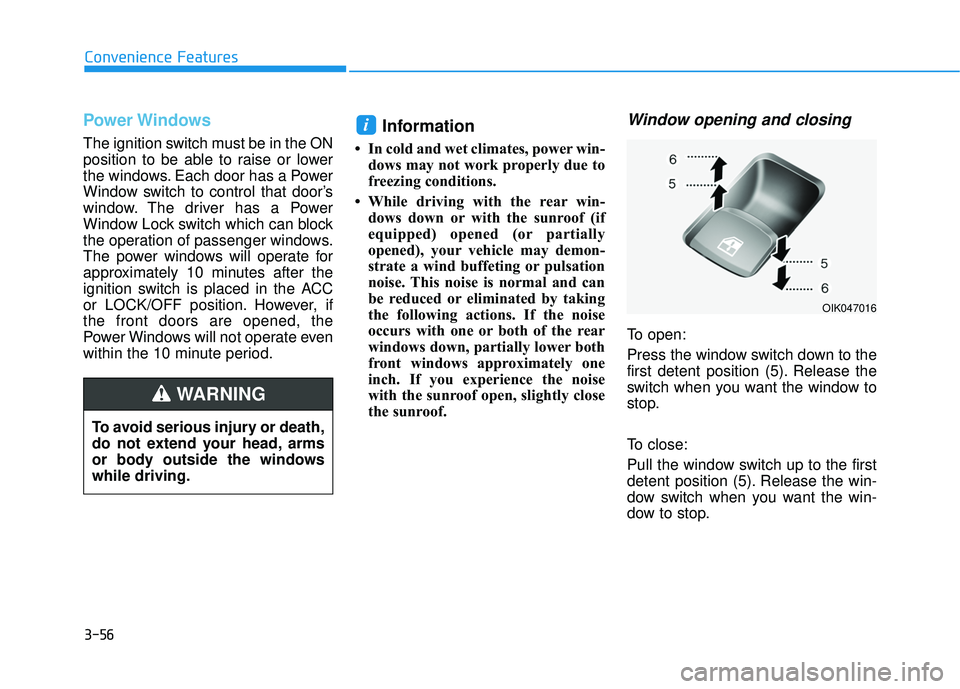

Power Windows
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 10 minutes after the
ignition switch is placed in the ACC
or LOCK/OFF position. However, if
the front doors are opened, the
Power Windows will not operate even
within the 10 minute period.
Information
• In cold and wet climates, power win-dows may not work properly due to
freezing conditions.
• While driving with the rear win- dows down or with the sunroof (if
equipped) opened (or partially
opened), your vehicle may demon-
strate a wind buffeting or pulsation
noise. This noise is normal and can
be reduced or eliminated by taking
the following actions. If the noise
occurs with one or both of the rear
windows down, partially lower both
front windows approximately one
inch. If you experience the noise
with the sunroof open, slightly close
the sunroof.
Window opening and closing
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the win-
dow switch when you want the win-
dow to stop.
i
To avoid serious injury or death,
do not extend your head, arms
or body outside the windows
while driving.
WARNING
OIK047016

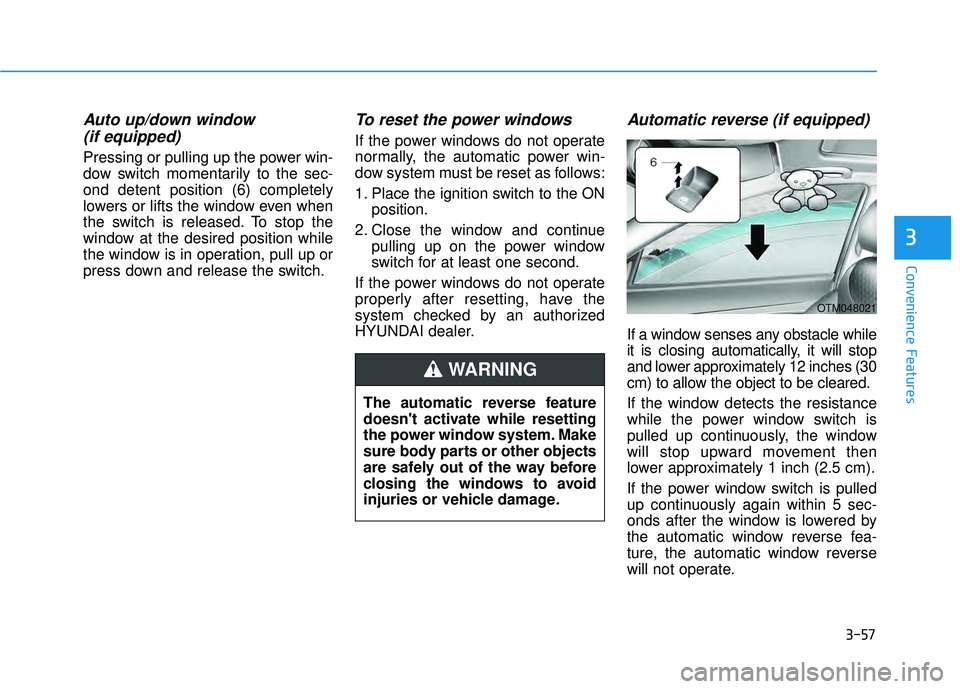

3-57
Convenience Features
3
Auto up/down window (if equipped)
Pressing or pulling up the power win-
dow switch momentarily to the sec-
ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press down and release the switch.
To reset the power windows
If the power windows do not operate
normally, the automatic power win-
dow system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the
system checked by an authorized
HYUNDAI dealer.
Automatic reverse (if equipped)
If a window senses any obstacle while
it is closing automatically, it will stop
and lower approximately 12 inches (30
cm) to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reverse fea-
ture, the automatic window reverse
will not operate.
The automatic reverse feature
doesn't activate while resetting
the power window system. Make
sure body parts or other objects
are safely out of the way before
closing the windows to avoid
injuries or vehicle damage.
WARNING
OTM048021

3-58
Convenience Features
Information
The automatic reverse feature is only
active when the "Auto Up" feature is
used by fully pulling up the switch to
the second detent.
Do not install any accessories on
the windows. The automatic reverse
feature may not operate.
Power window lock switch
The driver can disable the power
window switches on the rear passen-
ger doors by pressing the power win-
dow lock switch.
When the power window lock switch
is pressed:
The rear passenger control will notbe able to operate the rear passen-
ger power window
Note that the front passenger con- trol is still able to operate the front
passenger window, and that the
driver master control can still oper-
ate all the power windows. To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
Never try to operate the main switch on the driver's door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
NOTICE
NOTICE
i
Do not allow children to play
with the power windows. Keep
the driver's door power window
lock switch in the LOCK posi-
tion. Serious injury or death can
result from unintentional win-
dow operation by a child.
WARNING
Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
Objects less than 0.16 inch
(4 mm) in diameter caught
between the window glass and
the upper window channel may
not be detected by the automatic
reverse window and the window
will not stop and reverse direc-
tion.
WARNING
OLX2049023N

3-59
Convenience Features
3

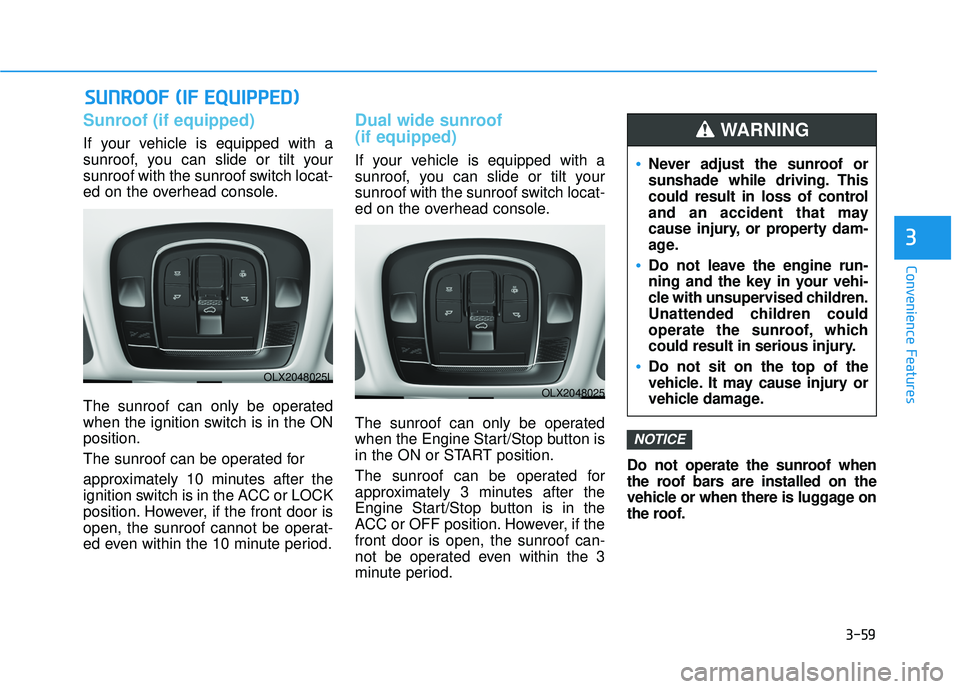

Sunroof (if equipped)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof switch locat-
ed on the overhead console.
The sunroof can only be operated
when the ignition switch is in the ON
position.
The sunroof can be operated for
approximately 10 minutes after the
ignition switch is in the ACC or LOCK
position. However, if the front door is
open, the sunroof cannot be operat-
ed even within the 10 minute period.
Dual wide sunroof
(if equipped)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof switch locat-
ed on the overhead console.
The sunroof can only be operated
when the Engine Start/Stop button is
in the ON or START position.
The sunroof can be operated for
approximately 3 minutes after the
Engine Start/Stop button is in the
ACC or OFF position. However, if the
front door is open, the sunroof can-
not be operated even within the 3
minute period.Do not operate the sunroof when
the roof bars are installed on the
vehicle or when there is luggage on
the roof.
NOTICE
S S
U U N NR RO O O OF F ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
Never adjust the sunroof or
sunshade while driving. This
could result in loss of control
and an accident that may
cause injury, or property dam-
age.
Do not leave the engine run-
ning and the key in your vehi-
cle with unsupervised children.
Unattended children could
operate the sunroof, which
could result in serious injury.
Do not sit on the top of the
vehicle. It may cause injury or
vehicle damage.
WARNING
OLX2048025L
OLX2048025

3-60
Convenience Features

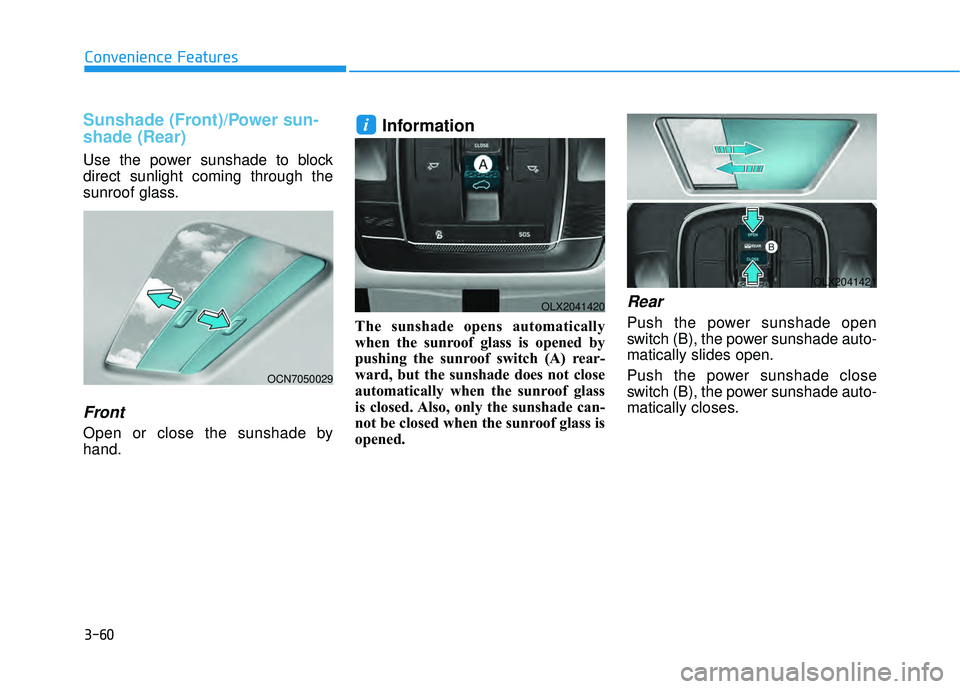

Sunshade (Front)/Power sun-
shade (Rear)
Use the power sunshade to block
direct sunlight coming through the
sunroof glass.
Front
Open or close the sunshade by
hand.
Information
The sunshade opens automatically
when the sunroof glass is opened by
pushing the sunroof switch (A) rear-
ward, but the sunshade does not close
automatically when the sunroof glass
is closed. Also, only the sunshade can-
not be closed when the sunroof glass is
opened.
Rear
Push the power sunshade open
switch (B), the power sunshade auto-
matically slides open.
Push the power sunshade close
switch (B), the power sunshade auto-
matically closes.
i
OCN7050029
OLX2041420
OLX2041421

3-61
Convenience Features
3

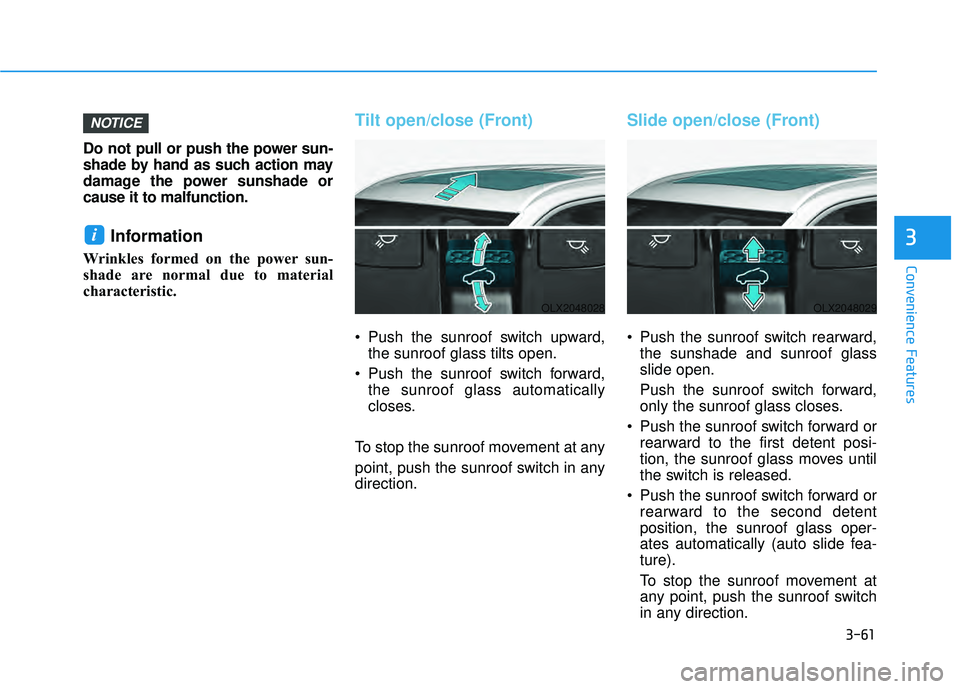

Do not pull or push the power sun-
shade by hand as such action may
damage the power sunshade or
cause it to malfunction.
Information
Wrinkles formed on the power sun-
shade are normal due to material
characteristic.
Tilt open/close (Front)
Push the sunroof switch upward,the sunroof glass tilts open.
Push the sunroof switch forward, the sunroof glass automatically
closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide open/close (Front)
Push the sunroof switch rearward, the sunshade and sunroof glass
slide open.
Push the sunroof switch forward,
only the sunroof glass closes.
Push the sunroof switch forward or rearward to the first detent posi-
tion, the sunroof glass moves until
the switch is released.
Push the sunroof switch forward or rearward to the second detent
position, the sunroof glass oper-
ates automatically (auto slide fea-
ture).
To stop the sunroof movement at
any point, push the sunroof switch
in any direction.
i
NOTICE
OLX2048029OLX2048028

3-62
Convenience Features

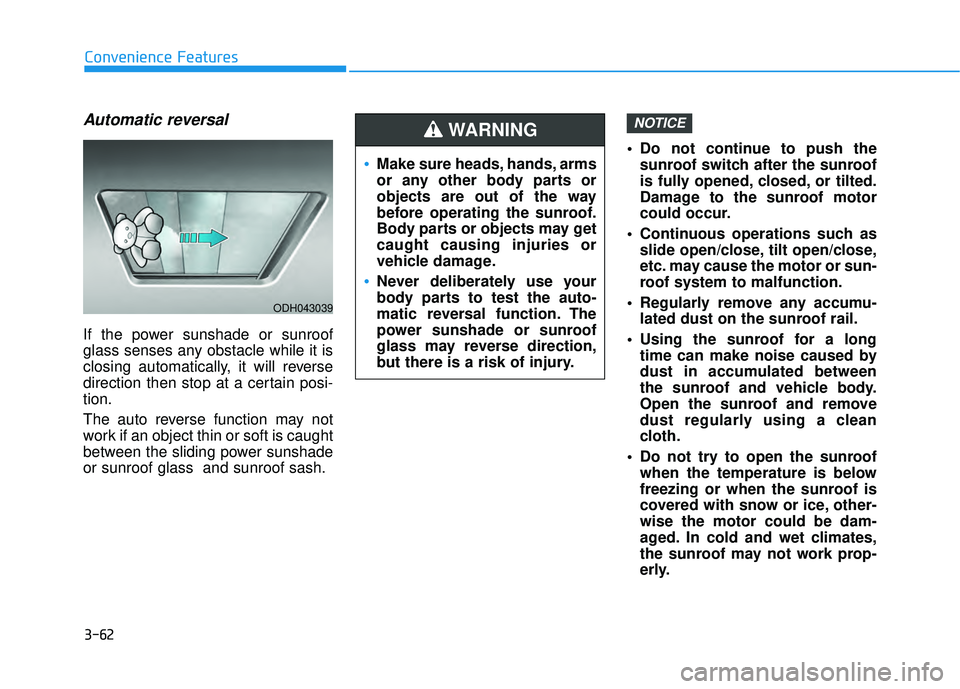

Automatic reversal
If the power sunshade or sunroof
glass senses any obstacle while it is
closing automatically, it will reverse
direction then stop at a certain posi-
tion.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding power sunshade
or sunroof glass and sunroof sash. Do not continue to push the
sunroof switch after the sunroof
is fully opened, closed, or tilted.
Damage to the sunroof motor
could occur.
Continuous operations such as slide open/close, tilt open/close,
etc. may cause the motor or sun-
roof system to malfunction.
Regularly remove any accumu- lated dust on the sunroof rail.
Using the sunroof for a long time can make noise caused by
dust in accumulated between
the sunroof and vehicle body.
Open the sunroof and remove
dust regularly using a clean
cloth.
Do not try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, other-
wise the motor could be dam-
aged. In cold and wet climates,
the sunroof may not work prop-
erly.
NOTICE
Make sure heads, hands, arms
or any other body parts or
objects are out of the way
before operating the sunroof.
Body parts or objects may get
caught causing injuries or
vehicle damage.
Never deliberately use your
body parts to test the auto-
matic reversal function. The
power sunshade or sunroof
glass may reverse direction,
but there is a risk of injury.
WARNING
ODH043039

3-63
Convenience Features
3

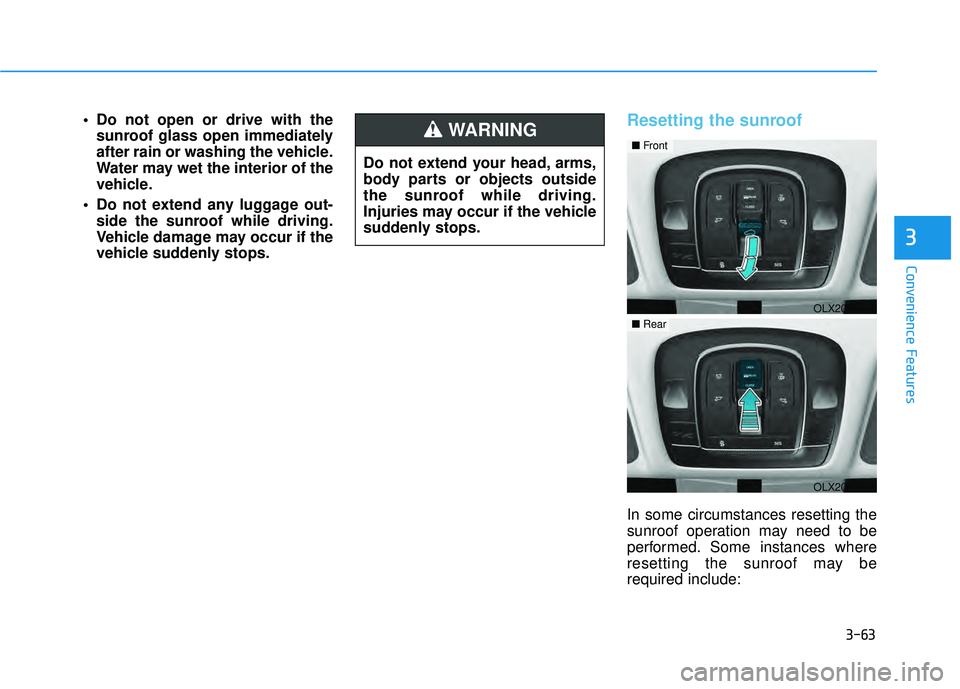

Do not open or drive with thesunroof glass open immediately
after rain or washing the vehicle.
Water may wet the interior of the
vehicle.
Do not extend any luggage out- side the sunroof while driving.
Vehicle damage may occur if the
vehicle suddenly stops.Resetting the sunroof
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be
required include:
OLX2048032
■ Front
■Rear
OLX2048098
Do not extend your head, arms,
body parts or objects outside
the sunroof while driving.
Injuries may occur if the vehicle
suddenly stops.
WARNING

3-64
Convenience Features

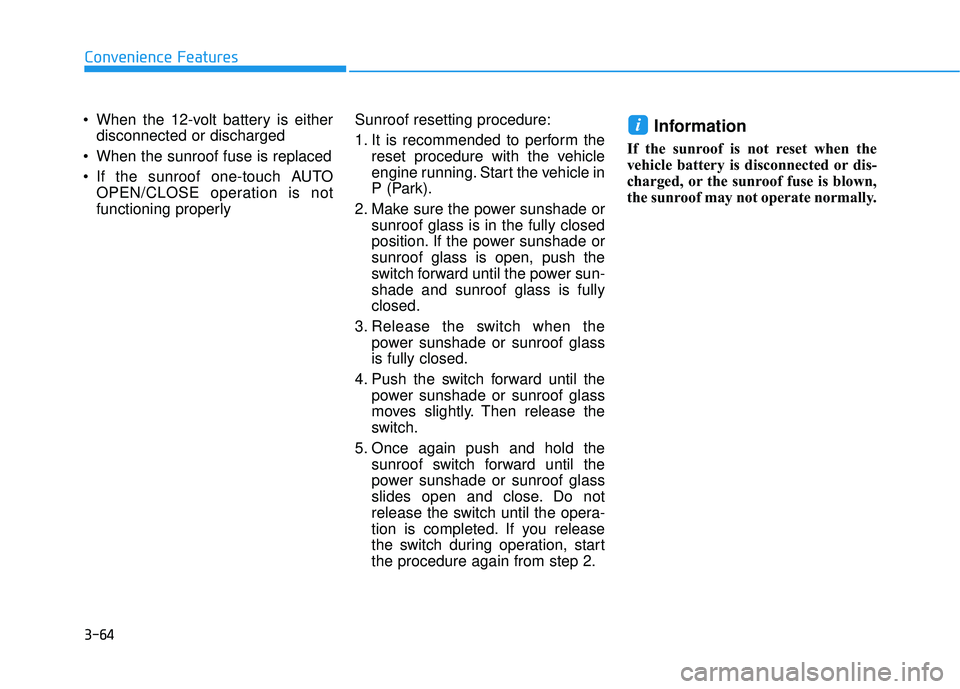

When the 12-volt battery is either disconnected or discharged
When the sunroof fuse is replaced
If the sunroof one-touch AUTO OPEN/CLOSE operation is not
functioning properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in
P (Park).
2. Make sure the power sunshade or sunroof glass is in the fully closed
position. If the power sunshade or
sunroof glass is open, push the
switch forward until the power sun-
shade and sunroof glass is fully
closed.
3. Release the switch when the power sunshade or sunroof glass
is fully closed.
4. Push the switch forward until the power sunshade or sunroof glass
moves slightly. Then release the
switch.
5. Once again push and hold the sunroof switch forward until the
power sunshade or sunroof glass
slides open and close. Do not
release the switch until the opera-
tion is completed. If you release
the switch during operation, start
the procedure again from step 2.
Information
If the sunroof is not reset when the
vehicle battery is disconnected or dis-
charged, or the sunroof fuse is blown,
the sunroof may not operate normally.
i
