HYUNDAI PALISADE 2022 Owners Manual

3-45
Convenience Features

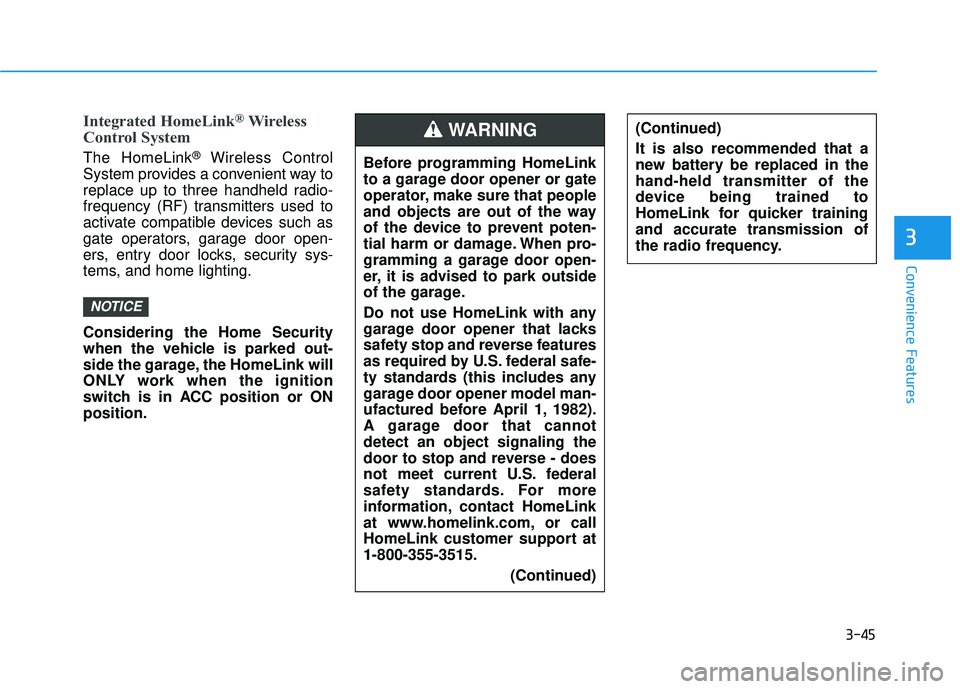

Integrated HomeLink®Wireless
Control System
The HomeLink®Wireless Control
System provides a convenient way to
replace up to three handheld radio-
frequency (RF) transmitters used to
activate compatible devices such as
gate operators, garage door open-
ers, entry door locks, security sys-
tems, and home lighting.
Considering the Home Security
when the vehicle is parked out-
side the garage, the HomeLink will
ONLY work when the ignition
switch is in ACC position or ON
position.
NOTICE
3
Before programming HomeLink
to a garage door opener or gate
operator, make sure that people
and objects are out of the way
of the device to prevent poten-
tial harm or damage. When pro-
gramming a garage door open-
er, it is advised to park outside
of the garage.
Do not use HomeLink with any
garage door opener that lacks
safety stop and reverse features
as required by U.S. federal safe-
ty standards (this includes any
garage door opener model man-
ufactured before April 1, 1982).
A garage door that cannot
detect an object signaling the
door to stop and reverse - does
not meet current U.S. federal
safety standards. For more
information, contact HomeLink
at www.homelink.com, or call
HomeLink customer support at
1-800-355-3515.
(Continued)
(Continued)
It is also recommended that a
new battery be replaced in the
hand-held transmitter of the
device being trained to
HomeLink for quicker training
and accurate transmission of
the radio frequency.WARNING

3-46

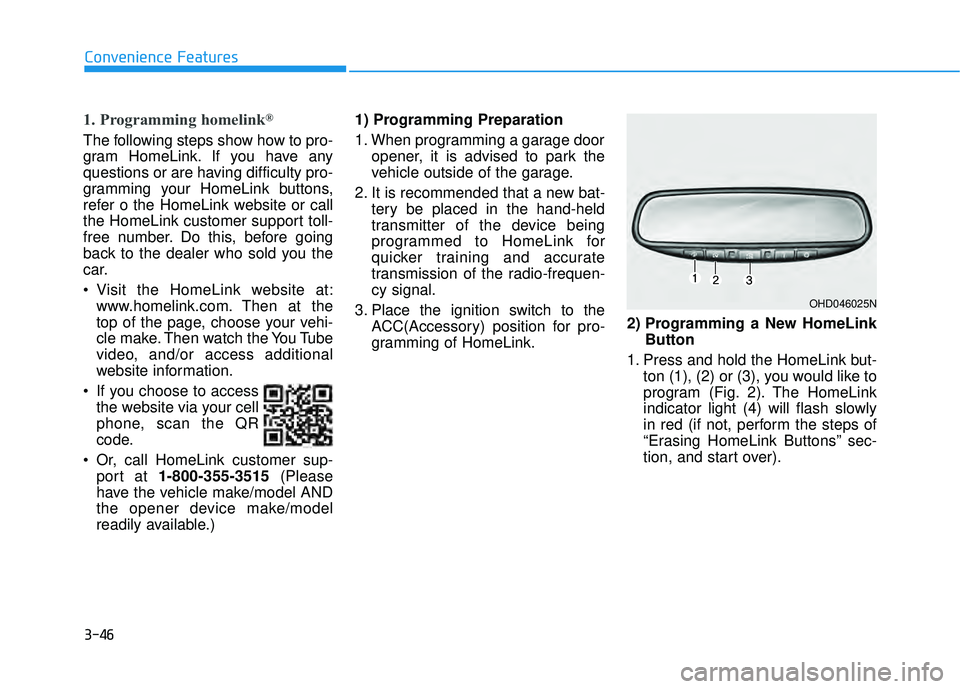

1. Programming homelink®
The following steps show how to pro-
gram HomeLink. If you have any
questions or are having difficulty pro-
gramming your HomeLink buttons,
refer o the HomeLink website or call
the HomeLink customer support toll-
free number. Do this, before going
back to the dealer who sold you the
car.
Visit the HomeLink website at:www.homelink.com. Then at the
top of the page, choose your vehi-
cle make. Then watch the You Tube
video, and/or access additional
website information.
If you choose to access the website via your cell
phone, scan the QR
code.
Or, call HomeLink customer sup- port at 1-800-355-3515 (Please
have the vehicle make/model AND
the opener device make/model
readily available.) 1) Programming Preparation
1. When programming a garage door
opener, it is advised to park the
vehicle outside of the garage.
2. It is recommended that a new bat- tery be placed in the hand-held
transmitter of the device being
programmed to HomeLink for
quicker training and accurate
transmission of the radio-frequen-
cy signal.
3. Place the ignition switch to the ACC(Accessory) position for pro-
gramming of HomeLink. 2) Programming a New HomeLink
Button
1. Press and hold the HomeLink but- ton (1), (2) or (3), you would like to
program (Fig. 2). The HomeLink
indicator light (4) will flash slowly
in red (if not, perform the steps of
“Erasing HomeLink Buttons” sec-
tion, and start over).
Convenience Features
OHD046025N

3-47
Convenience Features

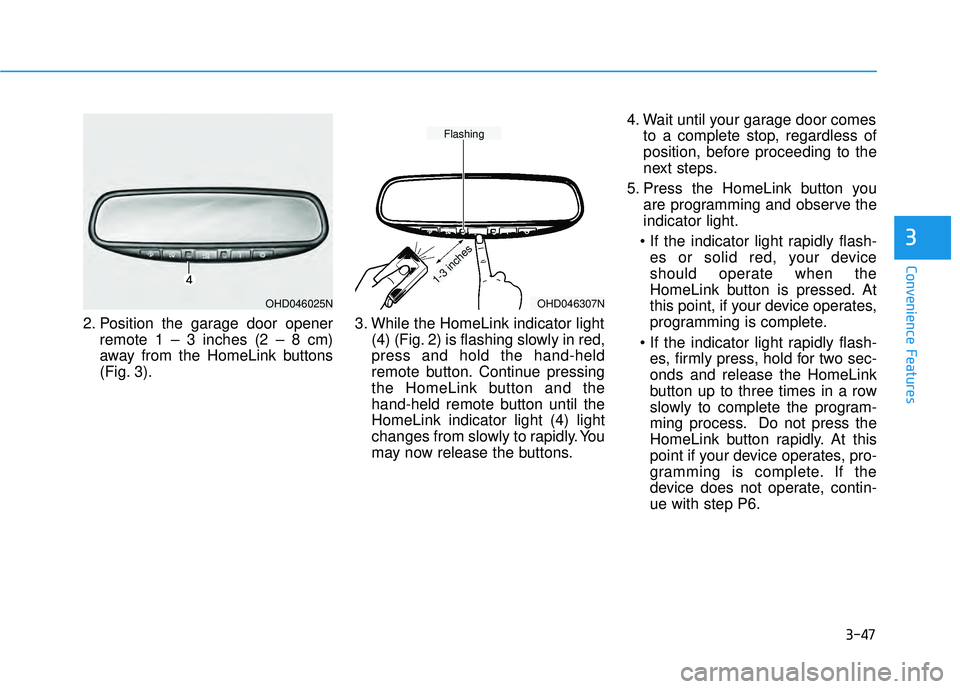

2. Position the garage door openerremote 1 – 3 inches (2 – 8 cm)
away from the HomeLink buttons
(Fig. 3). 3. While the HomeLink indicator light
(4) (Fig. 2) is flashing slowly in red,
press and hold the hand-held
remote button. Continue pressing
the HomeLink button and the
hand-held remote button until the
HomeLink indicator light (4) light
changes from slowly to rapidly. You
may now release the buttons. 4. Wait until your garage door comes
to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press the HomeLink button you are programming and observe the
indicator light.
es or solid red, your device
should operate when the
HomeLink button is pressed. At
this point, if your device operates,
programming is complete.
es, firmly press, hold for two sec-
onds and release the HomeLink
button up to three times in a row
slowly to complete the program-
ming process. Do not press the
HomeLink button rapidly. At this
point if your device operates, pro-
gramming is complete. If the
device does not operate, contin-
ue with step P6.
3
OHD046025NOHD046307N
Flashing
1-3 inches

3-48
6. At the garage door opener motor,(security gate motor, etc.) locate
the “Learn,”,”Smart”, “Set” or
“Program” button (Fig. 4). This can
usually be found where the hang-
ing antenna wire is attached to the
motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may
vary by manufacturer.
[A] : LEARN BUTTON
A ladder and/or second person
may simplify the following steps. 7. Firmly press and release the
“Learn”, “Smart”, “Set” or
“Program” button. You now have
up to 30 seconds in which to com-
plete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and
release, the HomeLink button up
to three times in a row slowly. Do
not press the HomeLink button
rapidly. As soon as you see the
garage door start to move, stop
pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regard-
less of position. At this point pro-
gramming is complete and your
device should operate when the
HomeLink button is pressed and
released.
NOTICE
Convenience Features
ODL3A040504

3-49
Convenience Features
2. Operating homelink®
1) Operating HomeLink
1. Press the desired programmedHomeLink button (1, 2 or 3). The HomeLink indicator (4)
should flashing in red or solid red,
and your programmed device
should operate.
If your device does not operate,
the HomeLink programming was
not successful, and you’ll need to
reprogram the button.
3. Erasing homelink®buttons
If you recently purchased your vehi-
cle and are programming HomeLink
for the first time, we recommend that
you follow the instructions below to
erase ALL HomeLink programming.
For new vehicles, there should not
be any programming associated with
any of the buttons. But clear them all
out anyway, if you are having any
programming issues. If you pur-
chased your vehicle “used”, then
you’ll need to erase ALL HomeLink
programming so the unit is clear to
accept new programming for your
devices. If you have owned your vehicle for
some time, and already have pro-
grammed one or more of the buttons,
there may be situations where you
only want to erase and reprogram a
single button. For example, you
move to a new home, and need to
erase and reprogram only button 1
for your personal garage door, and
you want to KEEP the programming
of buttons 2 and 3. The same would
be true if you had to purchase a
replacement garage door opener for
your current home. Therefore, if you
want to erase and reprogram a sin-
gle button, while keeping the pro-
gramming of one or more of the other
buttons, follow the instructions for
erasing and reprogramming a single
button.
NOTICE
3
OHD046025N
OHD046025N

3-50
1) Erasing and Reprogramming aSingle HomeLink Button:
1. Press and hold the desired HomeLink button you want to re-
program. DO NOT release the but-
ton.
2. The HomeLink indicator light (4) will illuminate solid red and contin-
ue to press the button until the
HomeLink indicator light (4)
begins to flash slow in red, usually
about 20 seconds.
3. While keep pressing the HomeLink button, proceed with
the steps in the “Programming a
New HomeLink Button” section.
If you do not complete the re-pro-
gramming of a new device to the
button, it will revert to the previ-
ously stored programming 2) The following instructions will
erase ALL HomeLink program-
ming from ALL buttons:
1. Press and hold the buttons (1) and (3) simultaneously until the
HomeLink indicator light (4)
begins to flash slowly in red
(Approximately 20 seconds but do
not hold for longer than 30 sec-
onds)
2. Release the buttons and now all three HomeLink buttons (1), (2)
and (3) are cleared of any pro-
grammingInformation
HomeLink®and the HomeLink
House®logo are registered trade-
marks of Gentex Corporation.
The myQ
®logo is a registered trade-
mark of The Chamberlain Group, Inc
i
NOTICE
Convenience Features
OHD046306N
Flashing

3-51
Convenience Features

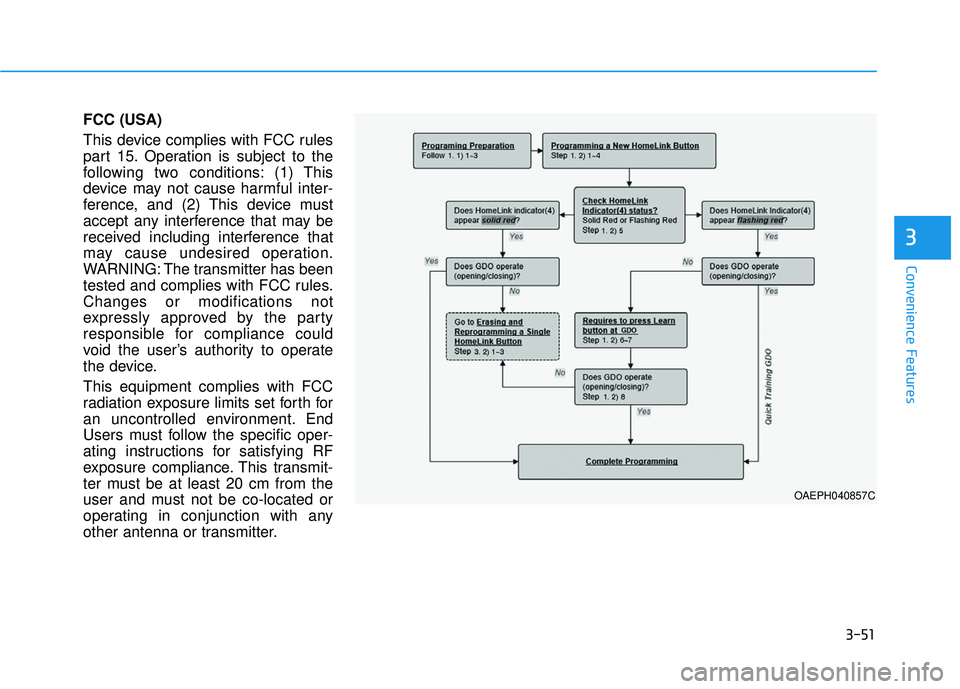

FCC (USA)
This device complies with FCC rules
part 15. Operation is subject to the
following two conditions: (1) This
device may not cause harmful inter-
ference, and (2) This device must
accept any interference that may be
received including interference that
may cause undesired operation.
WARNING: The transmitter has been
tested and complies with FCC rules.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the device.
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment. End
Users must follow the specific oper-
ating instructions for satisfying RF
exposure compliance. This transmit-
ter must be at least 20 cm from the
user and must not be co-located or
operating in conjunction with any
other antenna or transmitter.
3
OAEPH040857C

3-52
Side View Mirrors
Make sure to adjust the side view
mirrors to your desired position
before you begin driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to
help prevent damage when going
through an automatic car wash or
when passing through a narrow
street.
The right side view mirror is convex.
Objects seen in the mirror are closer
than they appear.Use the inside rear view mirror or
look back directly to determine the
actual distance of other vehicles
prior to changing lanes.
Do not scrape ice off the mirror
face; this may damage the sur-
face of the glass.
If the mirror is jammed with ice, do not adjust the mirror by
force. Use an approved spray
de-icer (not radiator antifreeze)
spray, or a sponge or soft cloth
with very warm water, or move
the vehicle to a warm place and
allow the ice to melt. Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.
NOTICE
NOTICE
Convenience Features
OLX2048016
Do not adjust or fold the side
view mirrors while driving. This
may cause loss of vehicle con-
trol resulting in an accident.
WARNING

3-53
Convenience Features
3

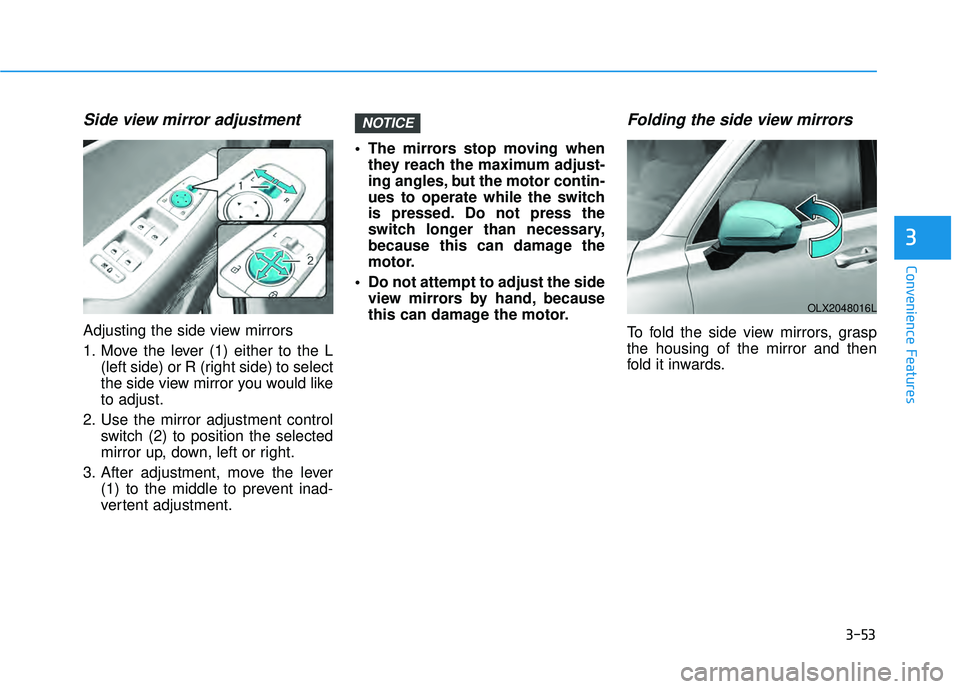

Side view mirror adjustment
Adjusting the side view mirrors
1. Move the lever (1) either to the L(left side) or R (right side) to select
the side view mirror you would like
to adjust.
2. Use the mirror adjustment control switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent inad-
vertent adjustment. The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch
is pressed. Do not press the
switch longer than necessary,
because this can damage the
motor.
Do not attempt to adjust the side view mirrors by hand, because
this can damage the motor.
Folding the side view mirrors
To fold the side view mirrors, grasp
the housing of the mirror and then
fold it inwards.
NOTICE
OLX2048016L

3-54
Convenience Features

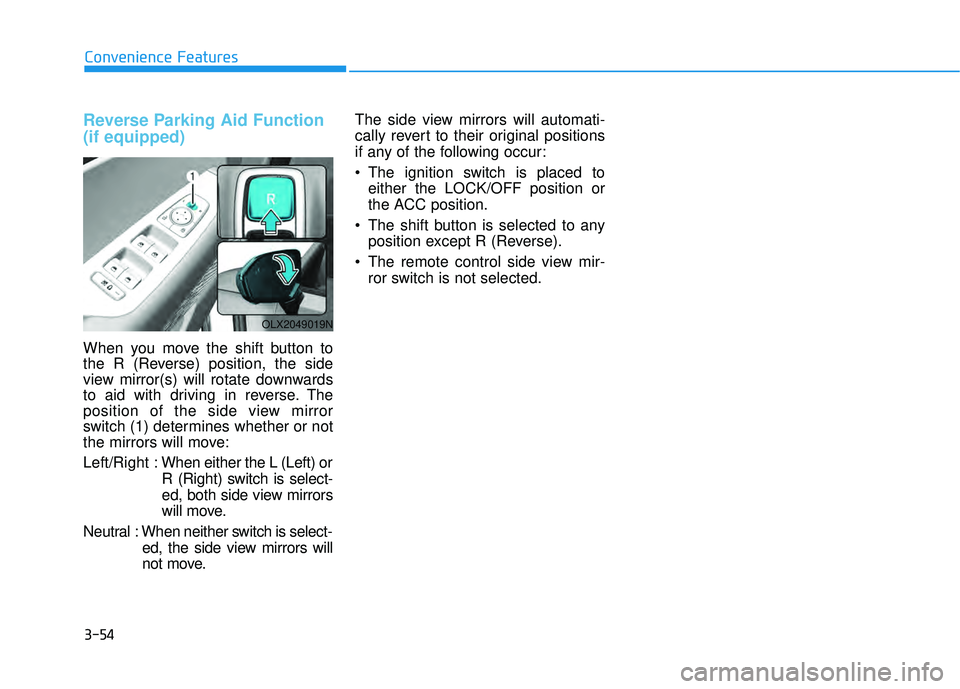

Reverse Parking Aid Function
(if equipped)
When you move the shift button to
the R (Reverse) position, the side
view mirror(s) will rotate downwards
to aid with driving in reverse. The
position of the side view mirror
switch (1) determines whether or not
the mirrors will move:
Left/Right :When either the L (Left) or
R (Right) switch is select-
ed, both side view mirrors
will move.
Neutral : When neither switch is select- ed, the side view mirrors will
not move. The side view mirrors will automati-
cally revert to their original positions
if any of the following occur:
The ignition switch is placed to
either the LOCK/OFF position or
the ACC position.
The shift button is selected to any position except R (Reverse).
The remote control side view mir- ror switch is not selected.
OLX2049019N
