HYUNDAI PALISADE 2023 Repair Manual

03
3-31
Wing-out headrest adjustment (if
equipped)
B0706EU01
While driving, the wing-out headrest
supports the passenger’s head from
shaking. Hold both ends of the wing-out
headrest with your hands, and pull out or
push in to adjust its position.
Information
When the wing-out headrest is not in use,
hold both ends of the headrest and pull out
to return it to its original position.
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.

Seats & Safety System3-32

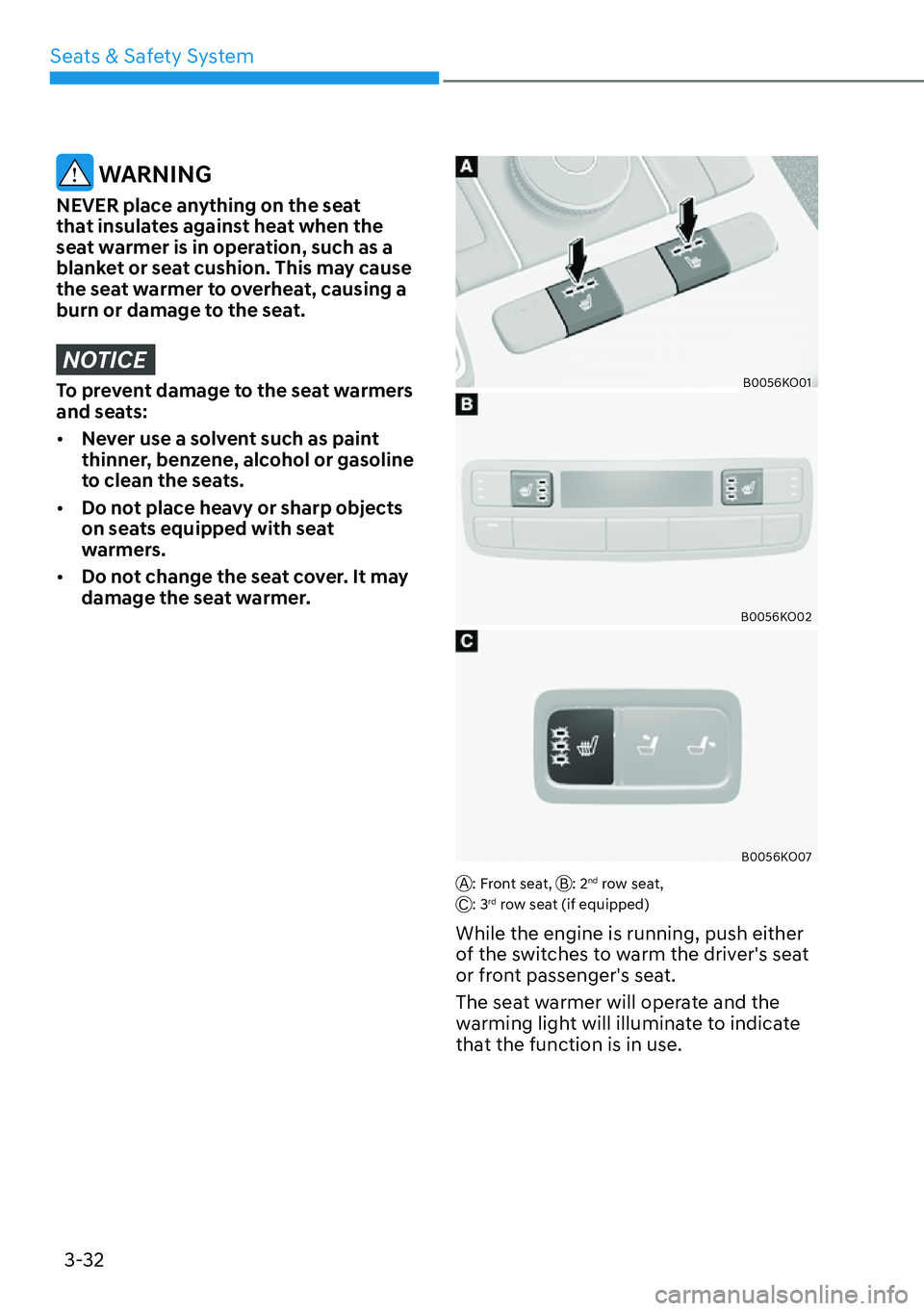

WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.B0056KO01
B0056KO02
B0056KO07
A: Front seat,
B: 2nd row seat,
C: 3rd row seat (if equipped)
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
The seat warmer will operate and the
warming light will illuminate to indicate
that the function is in use.

03
3-33

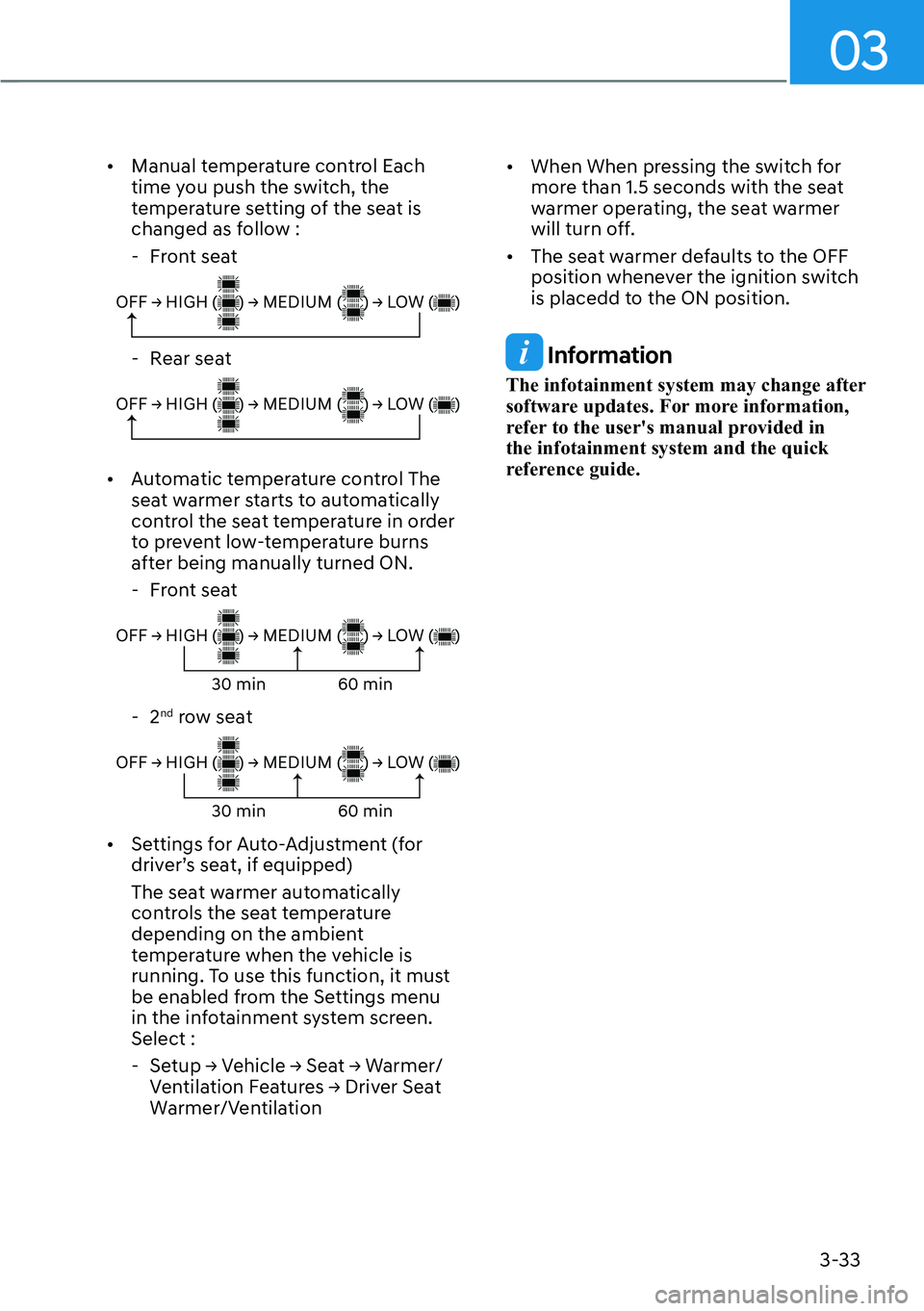

[Manual temperature control Each
time you push the switch, the
temperature setting of the seat is
changed as follow :

- Front seat
2))

Seats & Safety System3-34

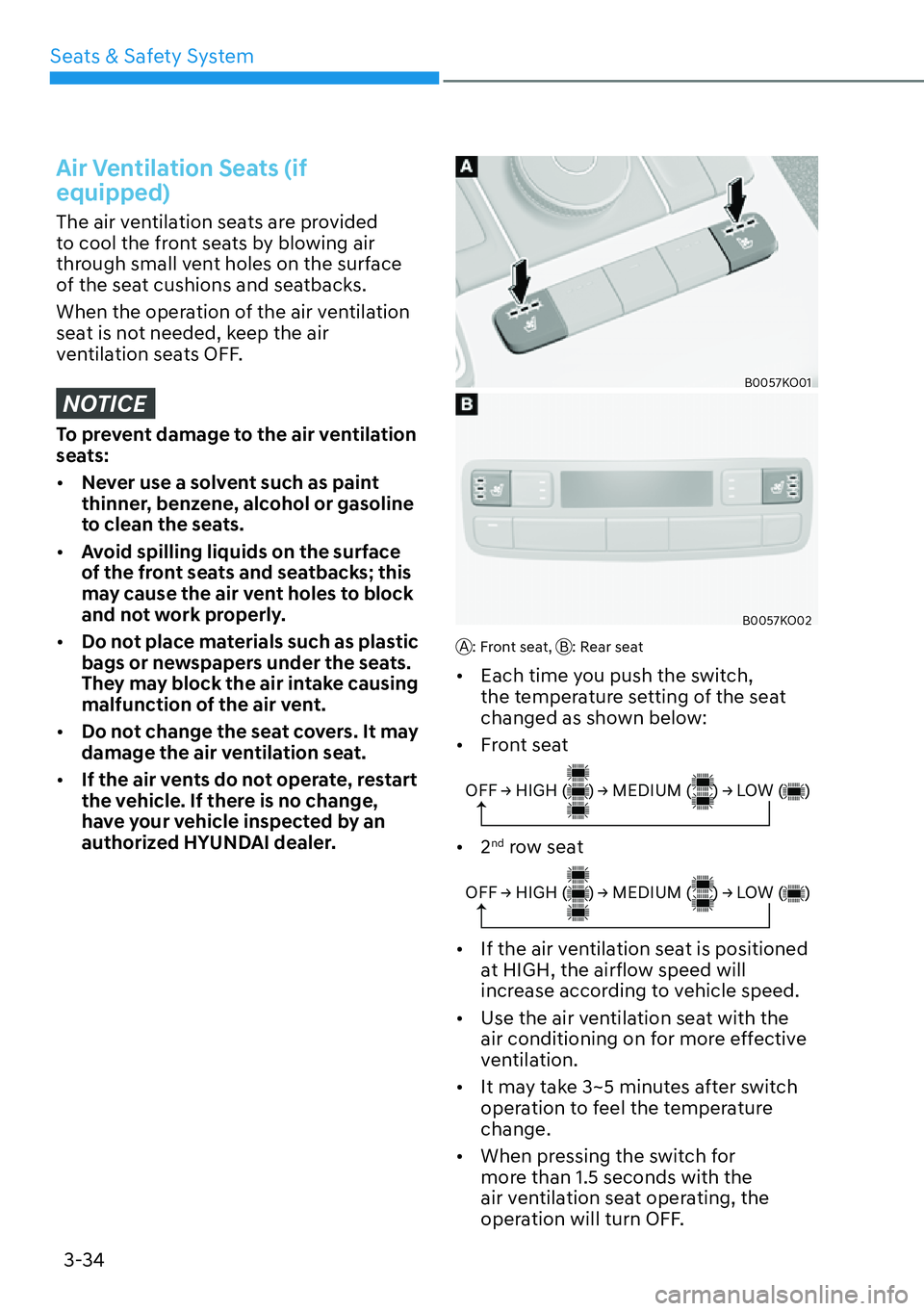

Air Ventilation Seats (if
equipped)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats OFF.
NOTICE
To prevent damage to the air ventilation
seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by an
authorized HYUNDAI dealer.
B0057KO01
B0057KO02
A: Front seat,
B: Rear seat

[Each time you push the switch,
the temperature setting of the seat
changed as shown below:

[ Front seat
2))

03
3-35

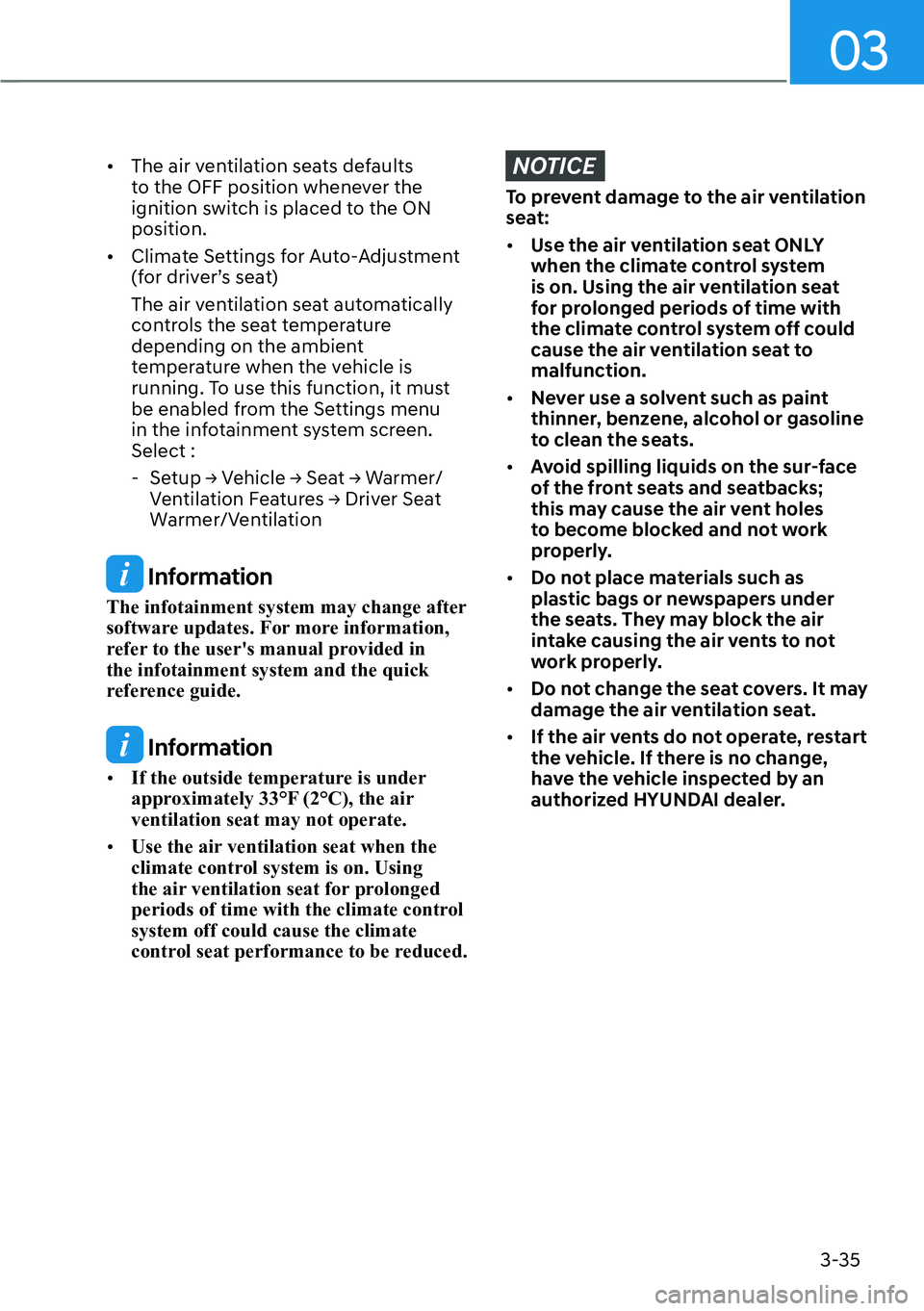

[The air ventilation seats defaults
to the OFF position whenever the
ignition switch is placed to the ON
position.

[ Climate Settings for Auto-Adjustment
(for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient
temperature when the vehicle is
running. To use this function, it must
be enabled from the Settings menu
in the infotainment system screen.
Select :

- 6HWXS

Seats & Safety System3-36

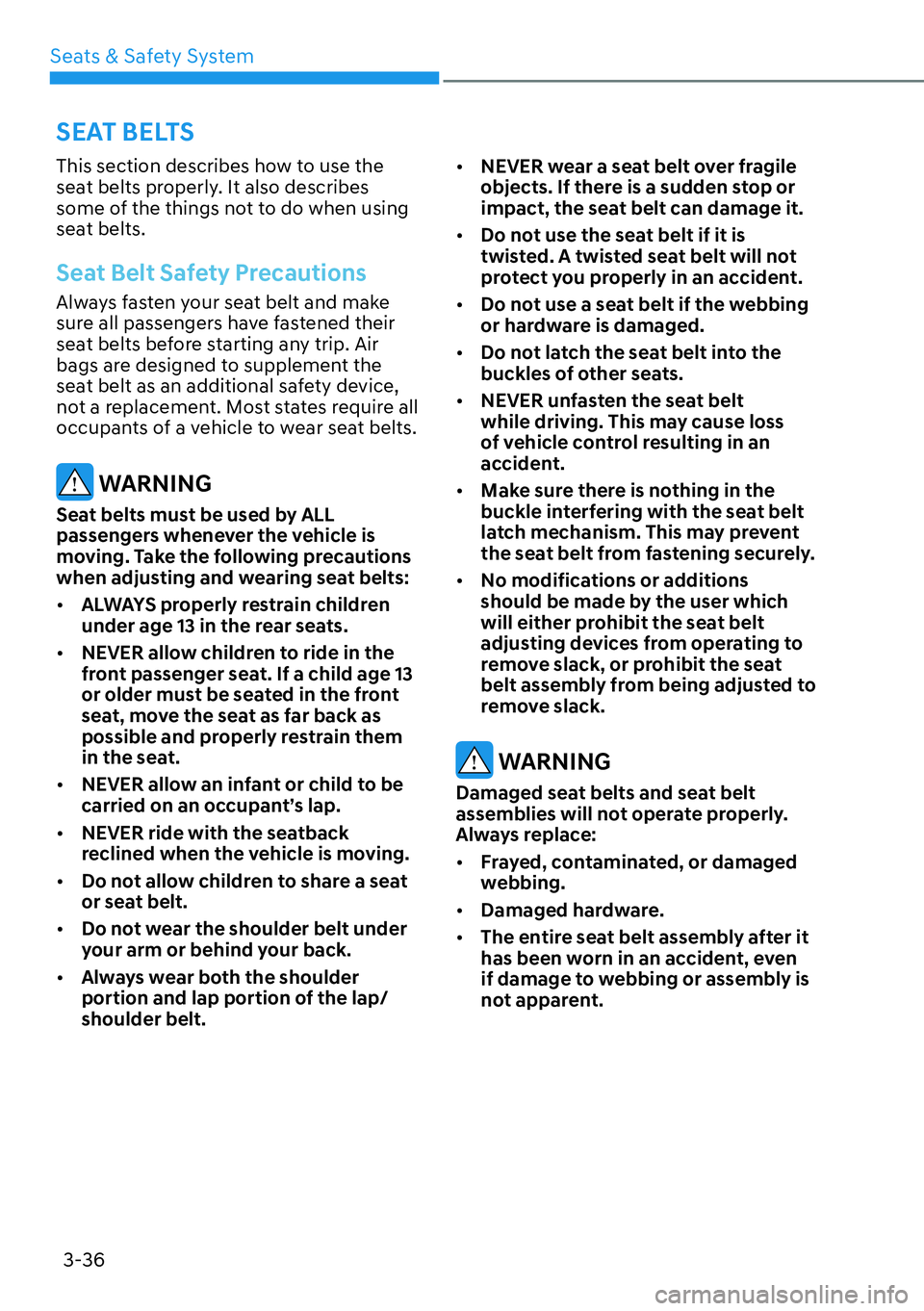

SEAT BELTS
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
not a replacement. Most states require all
occupants of a vehicle to wear seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[ ALWAYS properly restrain children
under age 13 in the rear seats.

[ NEVER allow children to ride in the
front passenger seat. If a child age 13
or older must be seated in the front
seat, move the seat as far back as
possible and properly restrain them
in the seat.

[ NEVER allow an infant or child to be
carried on an occupant’s lap.

[ NEVER ride with the seatback
reclined when the vehicle is moving.

[ Do not allow children to share a seat
or seat belt.

[ Do not wear the shoulder belt under
your arm or behind your back.

[ Always wear both the shoulder
portion and lap portion of the lap/
shoulder belt.
[
NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[ Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[ Do not use a seat belt if the webbing
or hardware is damaged.

[ Do not latch the seat belt into the
buckles of other seats.

[ NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[ Make sure there is nothing in the
buckle interfering with the seat belt
latch mechanism. This may prevent
the seat belt from fastening securely.

[ No modifications or additions
should be made by the user which
will either prohibit the seat belt
adjusting devices from operating to
remove slack, or prohibit the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing.

[ Damaged hardware.

[ The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.

03
3-37

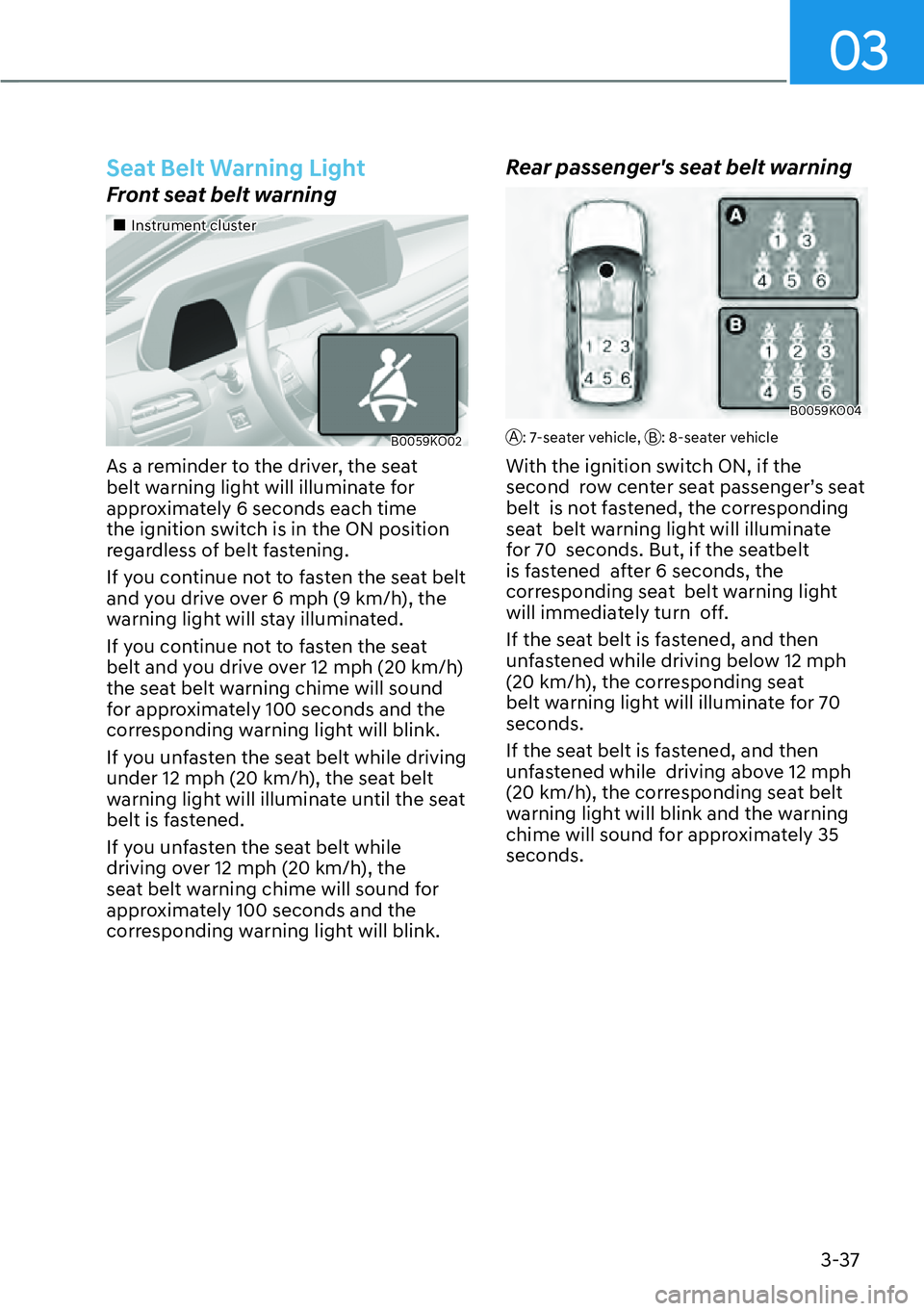

Seat Belt Warning Light
Front seat belt warning
„Instrument cluster
B0059KO02
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time
the ignition switch is in the ON position
regardless of belt fastening.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
Rear passenger's seat belt warning
B0059KO04
A: 7-seater vehicle, B: 8-seater vehicle
With the ignition switch ON, if the
second row center seat passenger’s seat
belt is not fastened, the corresponding
seat belt warning light will illuminate
for 70 seconds. But, if the seatbelt
is fastened after 6 seconds, the
corresponding seat belt warning light
will immediately turn off.
If the seat belt is fastened, and then
unfastened while driving below 12 mph
(20 km/h), the corresponding seat
belt warning light will illuminate for 70
seconds.
If the seat belt is fastened, and then
unfastened while driving above 12 mph
(20 km/h), the corresponding seat belt
warning light will blink and the warning
chime will sound for approximately 35
seconds.

Seats & Safety System3-38

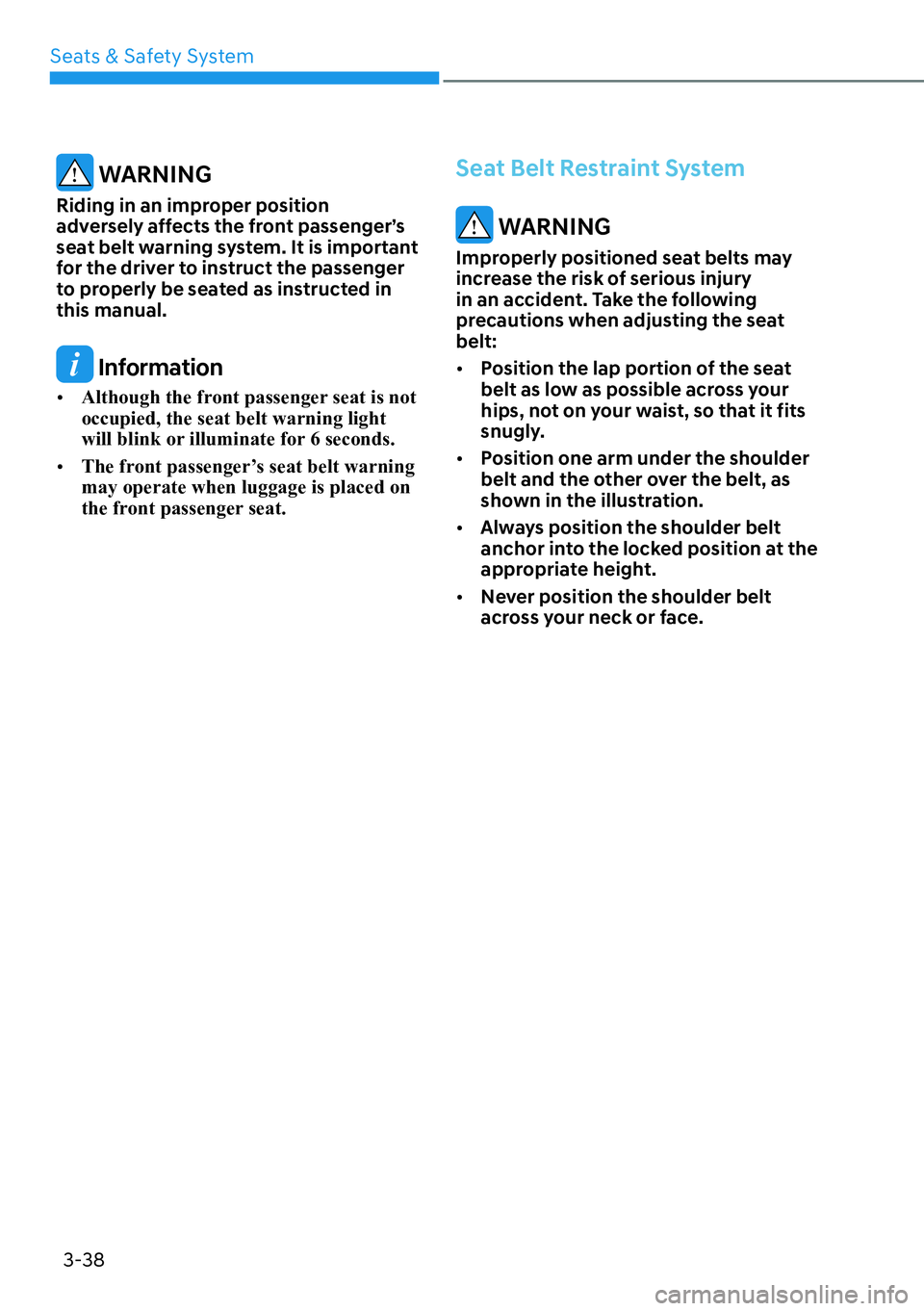

WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
to properly be seated as instructed in
this manual.
Information

[ Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

[ The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.
Seat Belt Restraint System
WARNING
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it fits
snugly.

[ Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[ Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[ Never position the shoulder belt
across your neck or face.

03
3-39

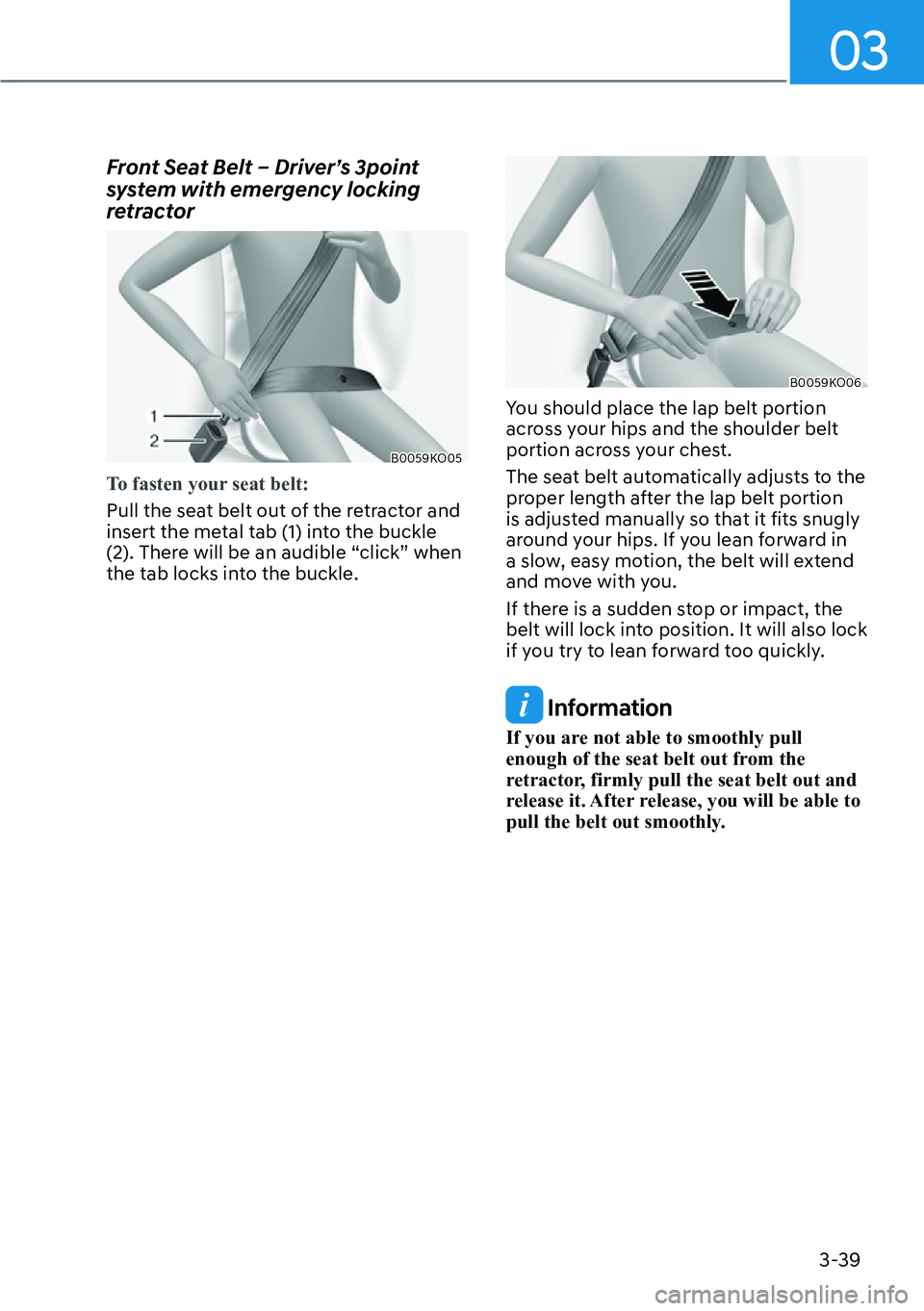

Front Seat Belt – Driver’s 3point
system with emergency locking
retractor
B0059KO05
To fasten your seat belt:
Pull the seat belt out of the retractor and
insert the me
tal tab (1) into the buckle
(2). There will be an audible “click” when
the tab locks into the buckle.
B0059KO06
You should place the lap belt portion
across your hips and the shoulder belt
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
Information
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out and
release it. After release, you will be able to
pull the belt out smoothly.

Seats & Safety System3-40

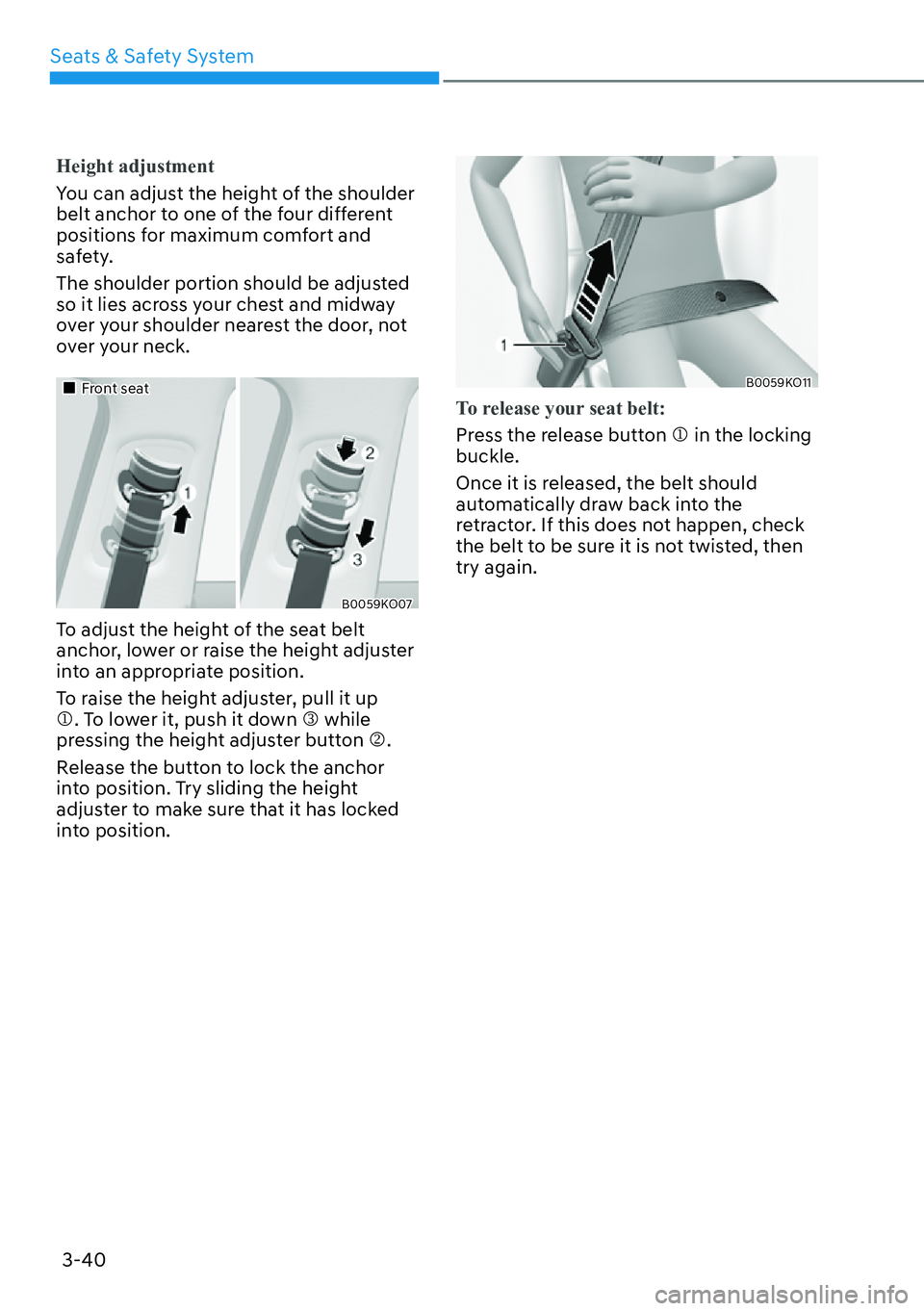

Height adjustment
You can adjust the height of the shoulder
belt anchor t
o one of the four different
positions for maximum comfort and
safety.
The shoulder portion should be adjusted
so it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
„Front seat
B0059KO07
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up
M. To lower it, push it down O while
pressing the height adjuster button N.
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
B0059KO11
To release your seat belt:
Press the release button M in the locking
buckle.
Once it is r

eleased, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.
