Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Items in (mm)
Overall length 196.65 (4,995)
O
verall width 77.75 (1,975)
Overall height 68.89 (1,750)
Front tread 245/60 R18
67.24 (1,708)
245/50 R20 67.24 (1,708)
Rear tread 245/60 R18
67.56 (1,716)
245/50 R20 67.56 (1,716)
Wheelbase 114.17 (2,900)
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) No. of
cylinders Firing order
3.8 GDI 230.55 (3,778) 3.
78 x 3.43
(96 x 87) 6 1-2-3-4-5-6

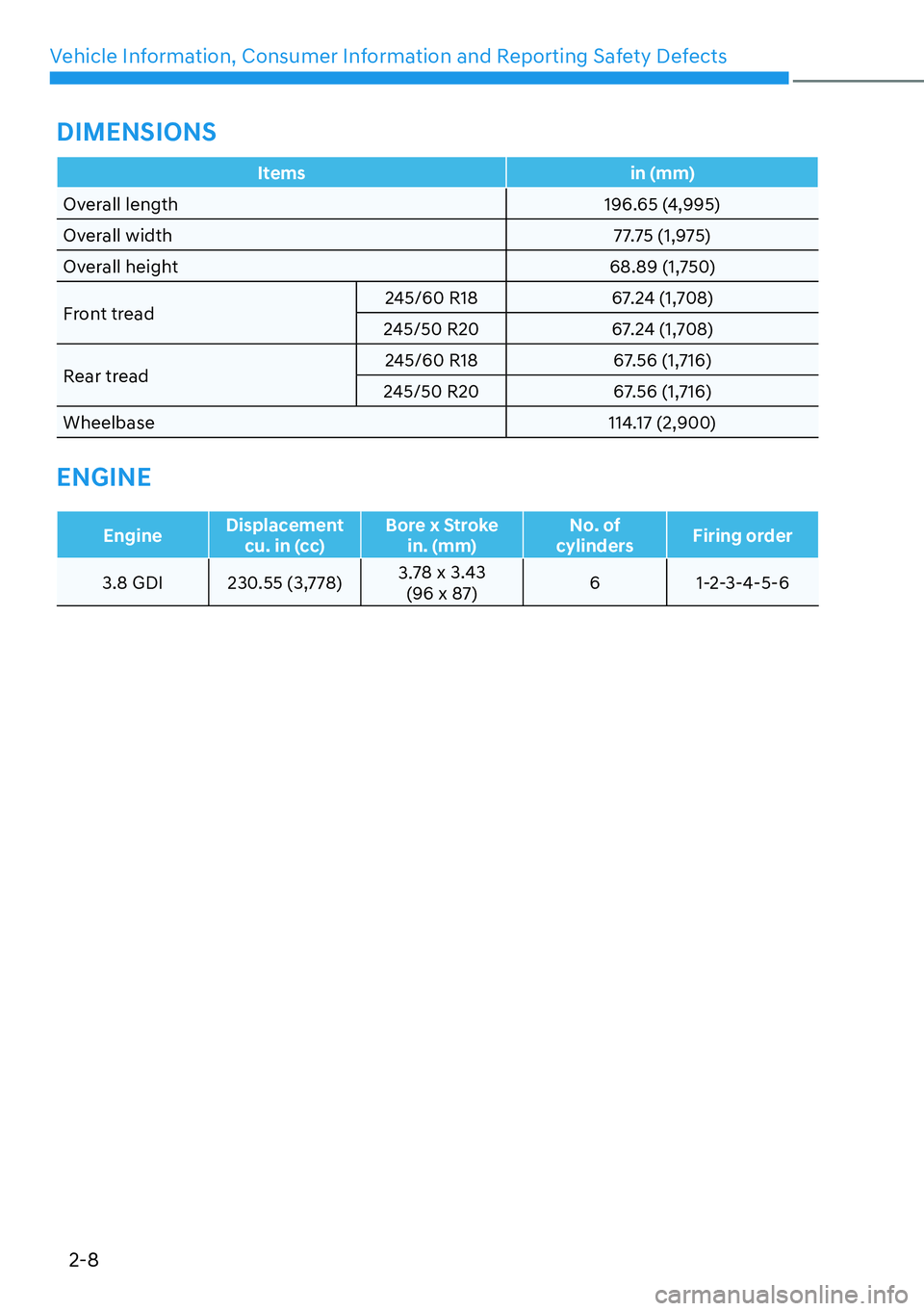

DIMENSIONS

02
2-9
Light bulbBulb type Wattage
Front H
eadlight
Low
LED LED
High, Low beam assist LED LED
Daytime running light/Position lamp LED LED
Turn signal lamp LED LED
Side repeater lamp LED LED
Side marker lamp LED LED
Rear Tail lamp
Type A
P28/8W 28/8
Type B LED LED
Tail/Stop lamp Type AP28/8W 28/8
Stop lamp Type BLED LED
Turn signal lamp Type A
P28/8W 28/8
Type B LED LED
Side marker lamp LED LED
Revers lamp W16W 16
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp
Type A
W8W 8
Type B LED LED
Room lamp Type A
W8W 8
Type B LED LED
Luggage compartment lamp Type A
FESTOON 8
Type B LED LED
Vanity mirror lamp Type A
5W5
Type B LED LED
Glove box lamp LED LED

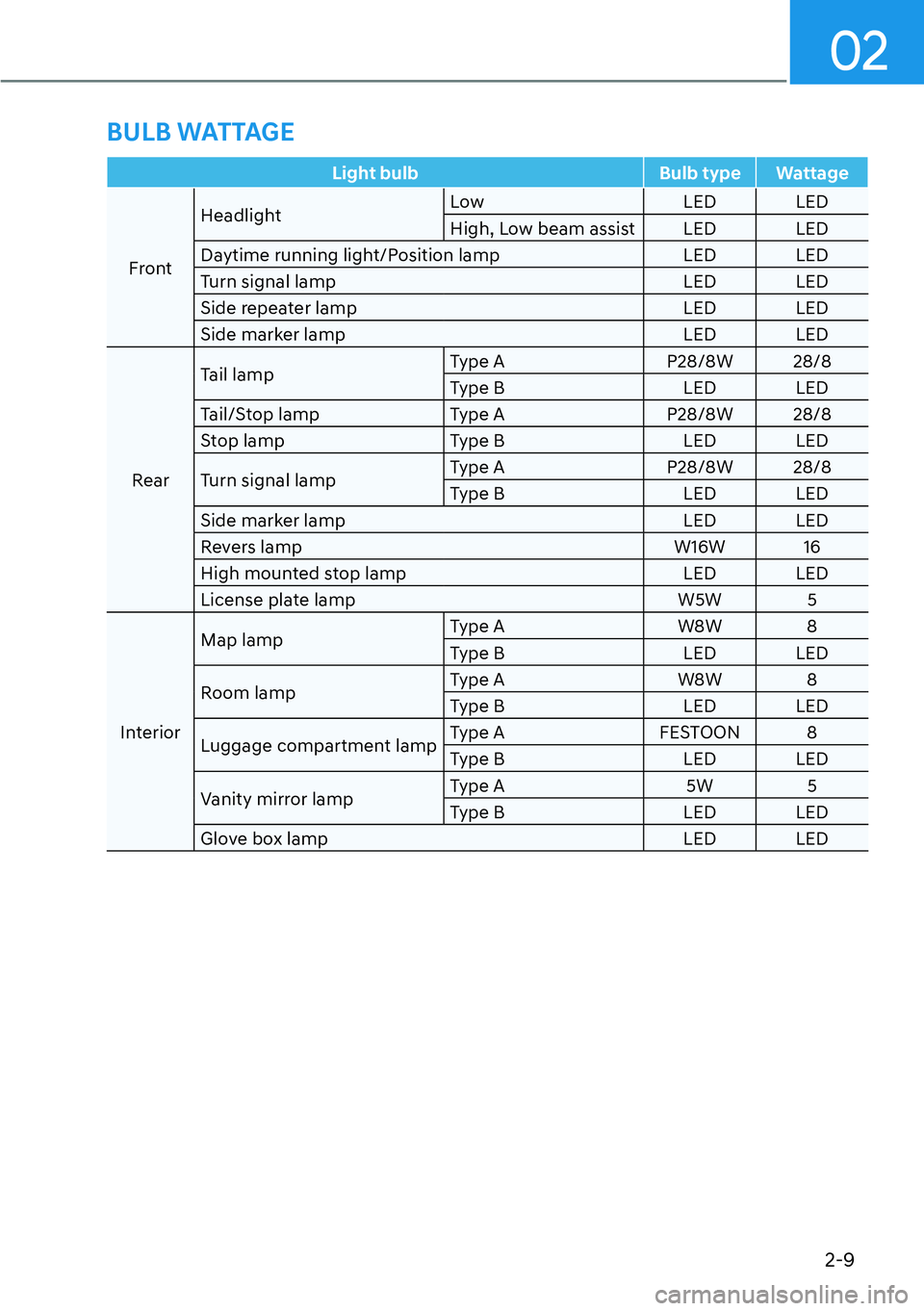

BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects2-10
Items Tire size Wheel size Inflation pressure kPa (psi)
Wheel nut
torque Kgf·ft (lbf·ft, N ·m)
Normal load
Maximum
load
Front Rear Front Rear
Full size tire
245/60 R18 7.5J X 18240 (35) 240 (35)11~13
(79~94,
107~127)245/50 R20 7.5J X 20
Compact
spare tireT155/90 R18 4.0B X 18420 (60)
NOTICE

[ Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
change). If colder temperatures are anticipated, it is permissible to increase cold
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
temperature changes are expected, be sure to check and adjust tire pressure
accordingly.

[ Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[ Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.

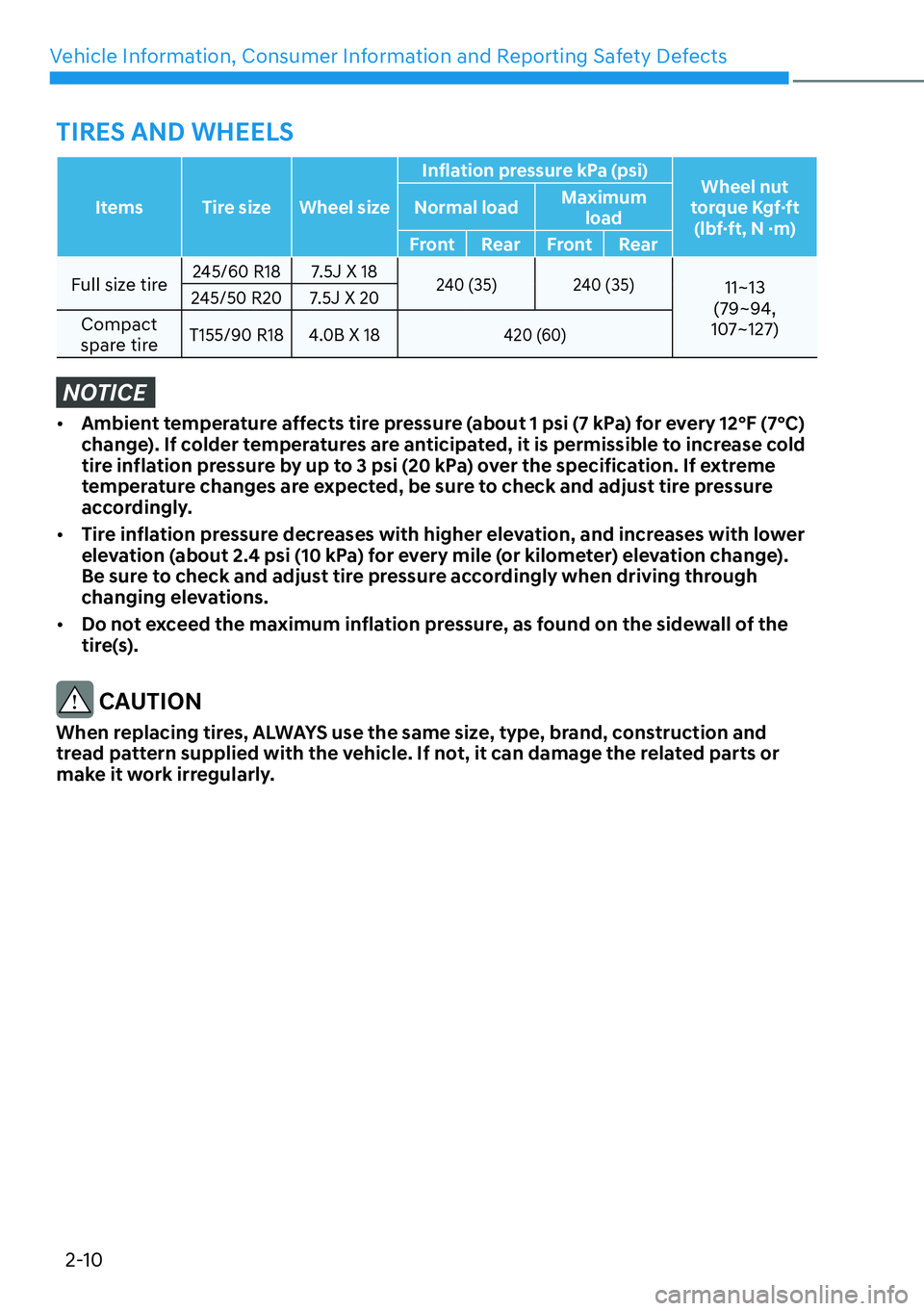

TIRES AND WHEELS

02
2-11
ItemWeight of volume Classification
Refrigerant o
z. (g)29.98 (850) ± 0.88 (25) R1234yf
Compressor lubricant oz. (cc) 6.35 (180) PAG
Contact an authorized HYUNDAI dealer for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Item 3.8 GDI
2WD AWD
Gross vehicle weight 7 Sea
ter
lbs. (kg) 5,732 (2,570) 5,871 (2,660)
8 Seater lbs. (kg) 5,732 (2,630) 5,871 (2,660)
Luggage volume (SAE) FXIW
bBehind 1st row : 86.4 (2,447)
Behind 2st row : 45.8 (1,297) Behind 3st row : 18 (509)

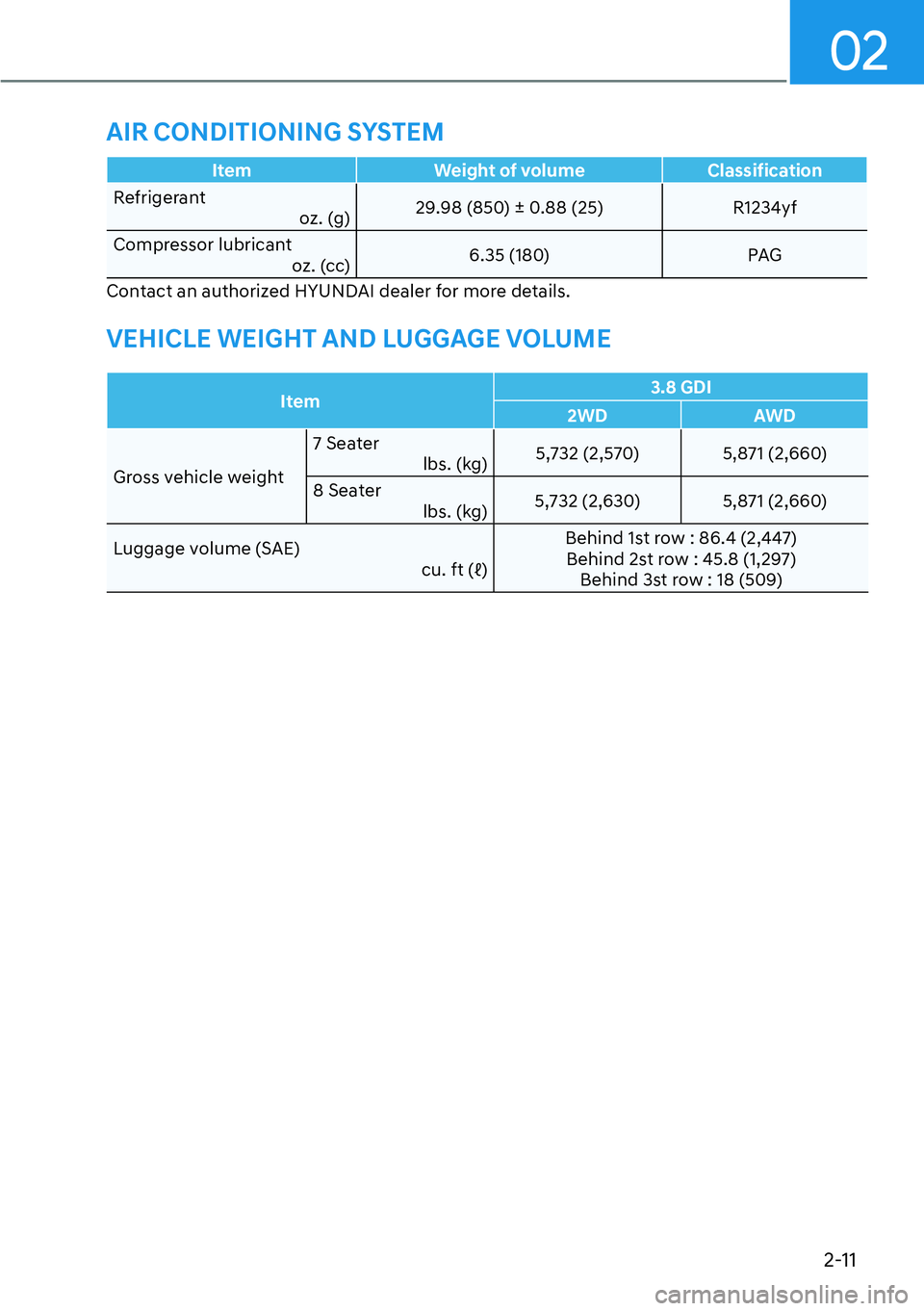

AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2 Recommends
86TW
bACEA A5 or above* 3 / 5W-30 / (SAE
Viscosity Number)
Automatic transmission fluid 86TW
bMICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine
ATF SP-IV or other brands meeting
the above specification approved
by HYUNDAI Motor Co.
Engine coolant Without trailer
86TW
b
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
With trailer 86TW
b
Brake fluid
*4As required SAE J1704 DOT0-4LV, FMVSS116
DOT-4, ISO4925 CLASS-6
Rear differential oil
*586TW
b HYPIO GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD)
*586TW
b
Fuel 86JDO
bRefer to “Fuel requirements” in
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional
benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Requires grade engine oil. If a
lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine oil
and engine oil filter must be replaced as indicated for severe maintenance conditions.
*4 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications.
*5 : If the rear differential is submerged, have you visit an authorized retailer of HYUNDAI
genuine products to replace the differential oil.
RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Gasoline Engine Oil
5W-30
An engine oil displaying this American Petroleum Institute (API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended
to only use engine oils that uphold this API Certification Mark.

Vehicle Information, Consumer Information and Reporting Safety Defects2-14

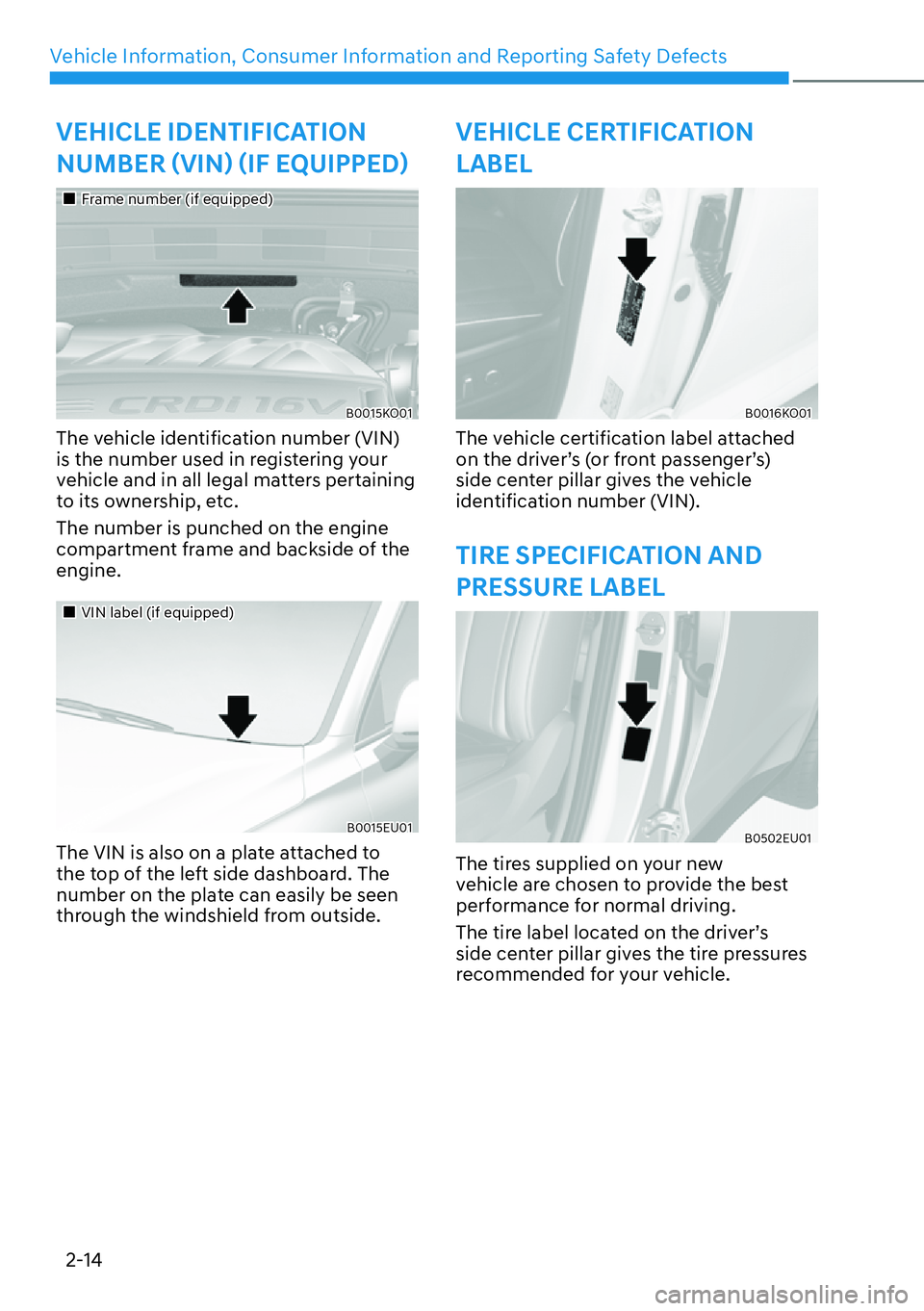

VEHICLE IDENTIFICATION
180%(5
í9,1
î
í,)(48,33('
î
„Frame number (if equipped)
B0015KO01
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the engine
compartment frame and backside of the
engine.
„VIN label (if equipped)
B0015EU01
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
B0016KO01
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
B0502EU01
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

02
2-15

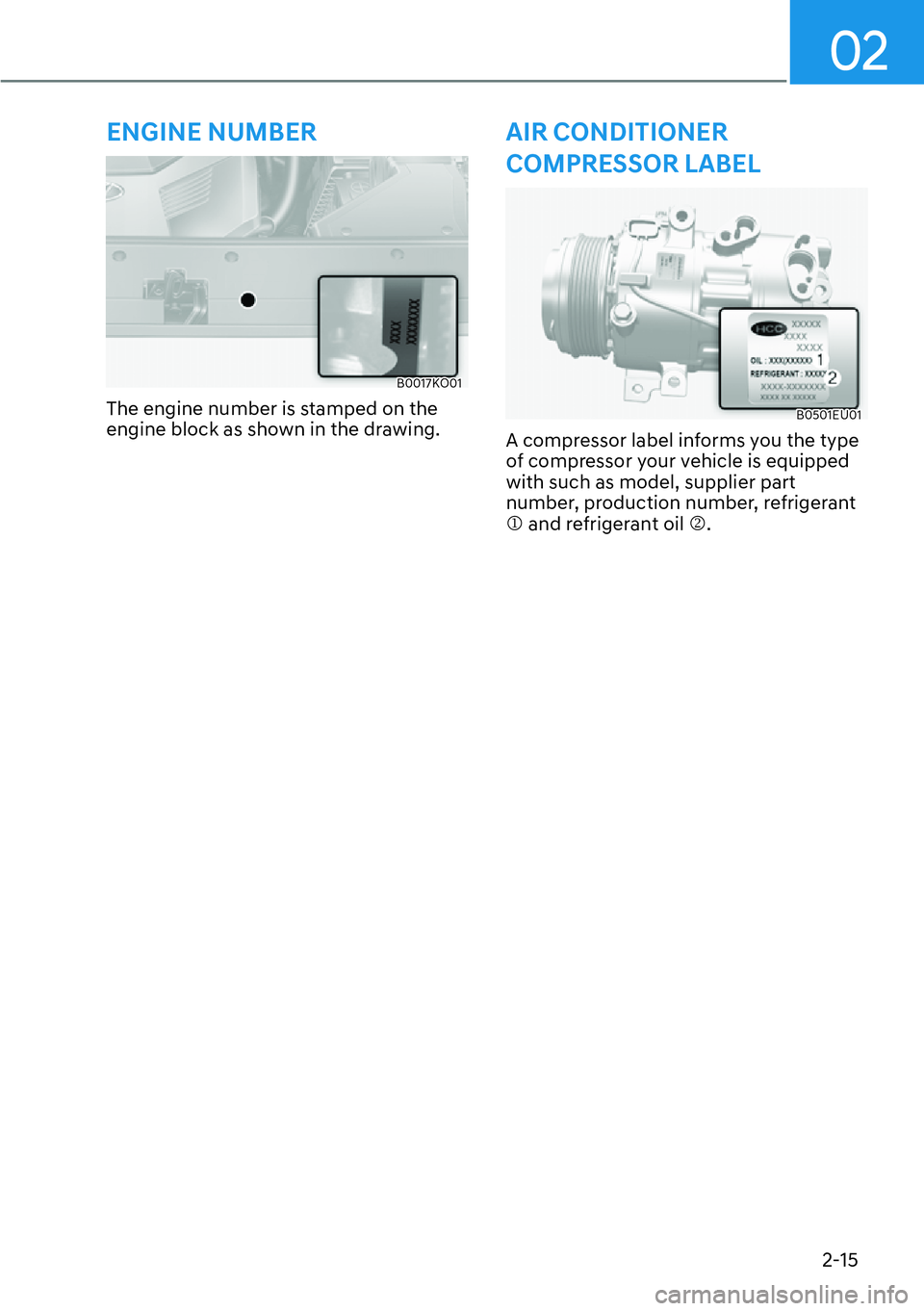

ENGINE NUMBER
B0017KO01
The engine number is stamped on the
engine block as shown in the drawing.
AIR CONDITIONER
COMPRESSOR LABEL
B0501EU01
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
M and refrigerant oil N.

Vehicle Information, Consumer Information and Reporting Safety Defects2-16

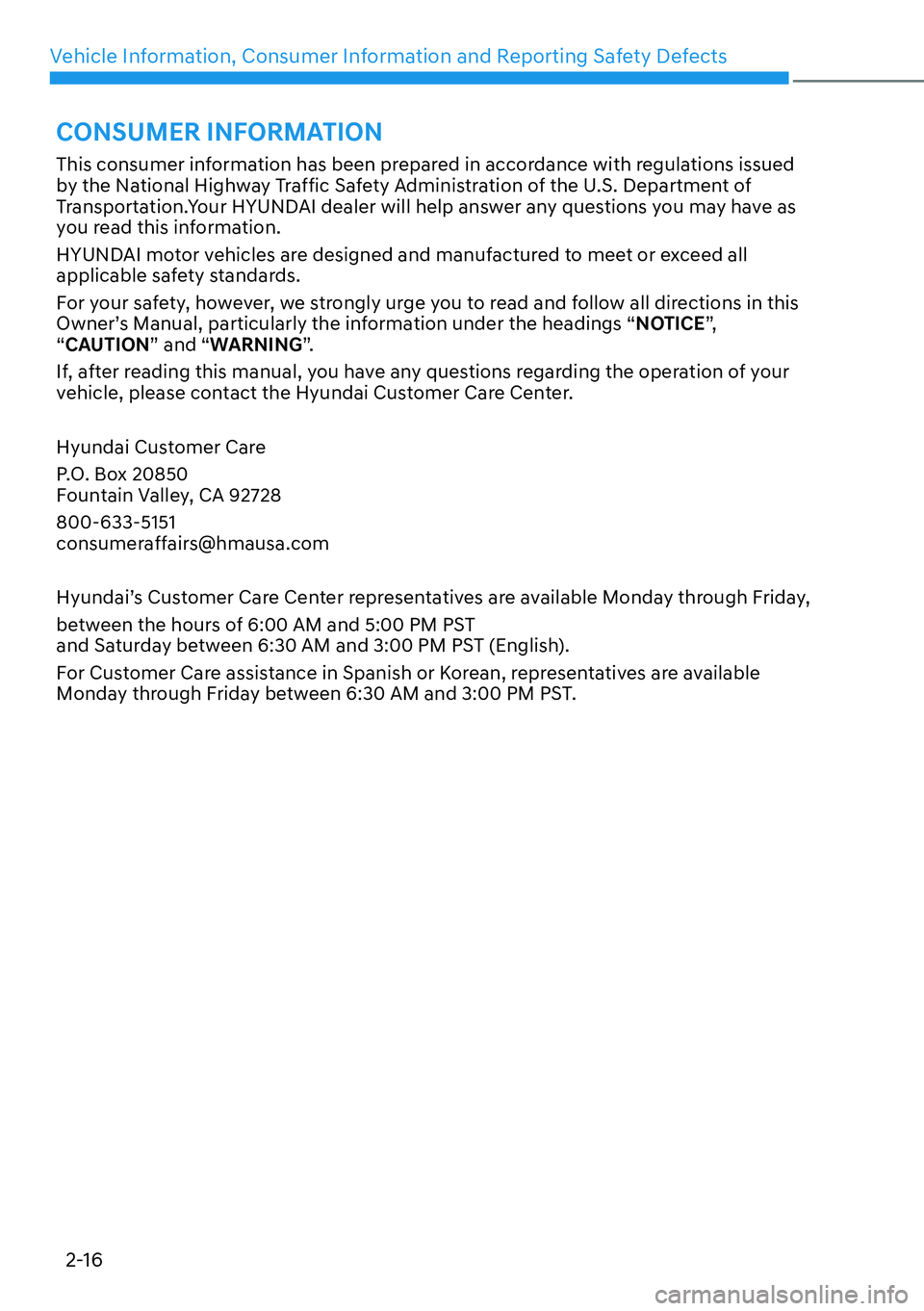

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this
Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.

02
2-17

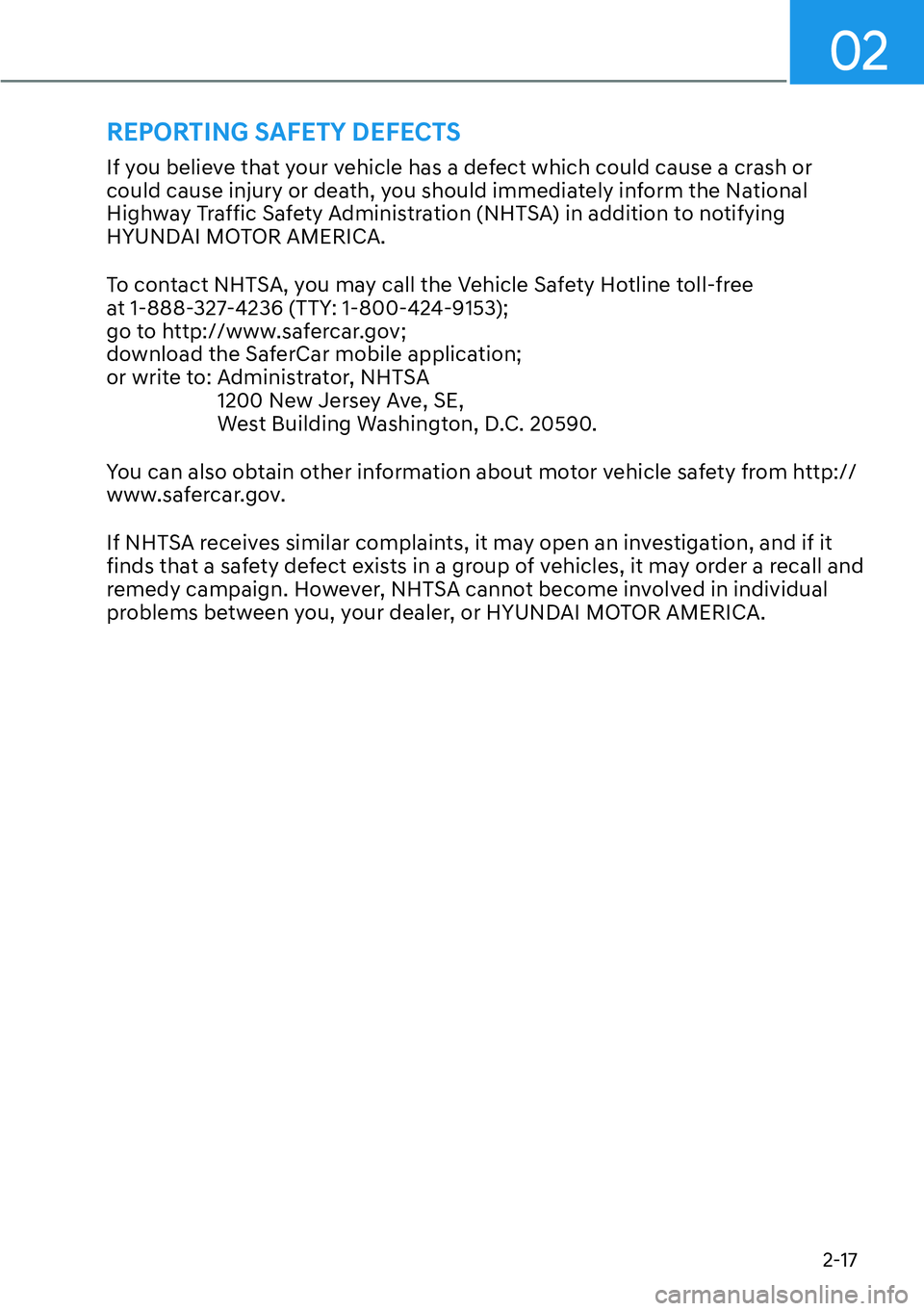

REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA 1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.
