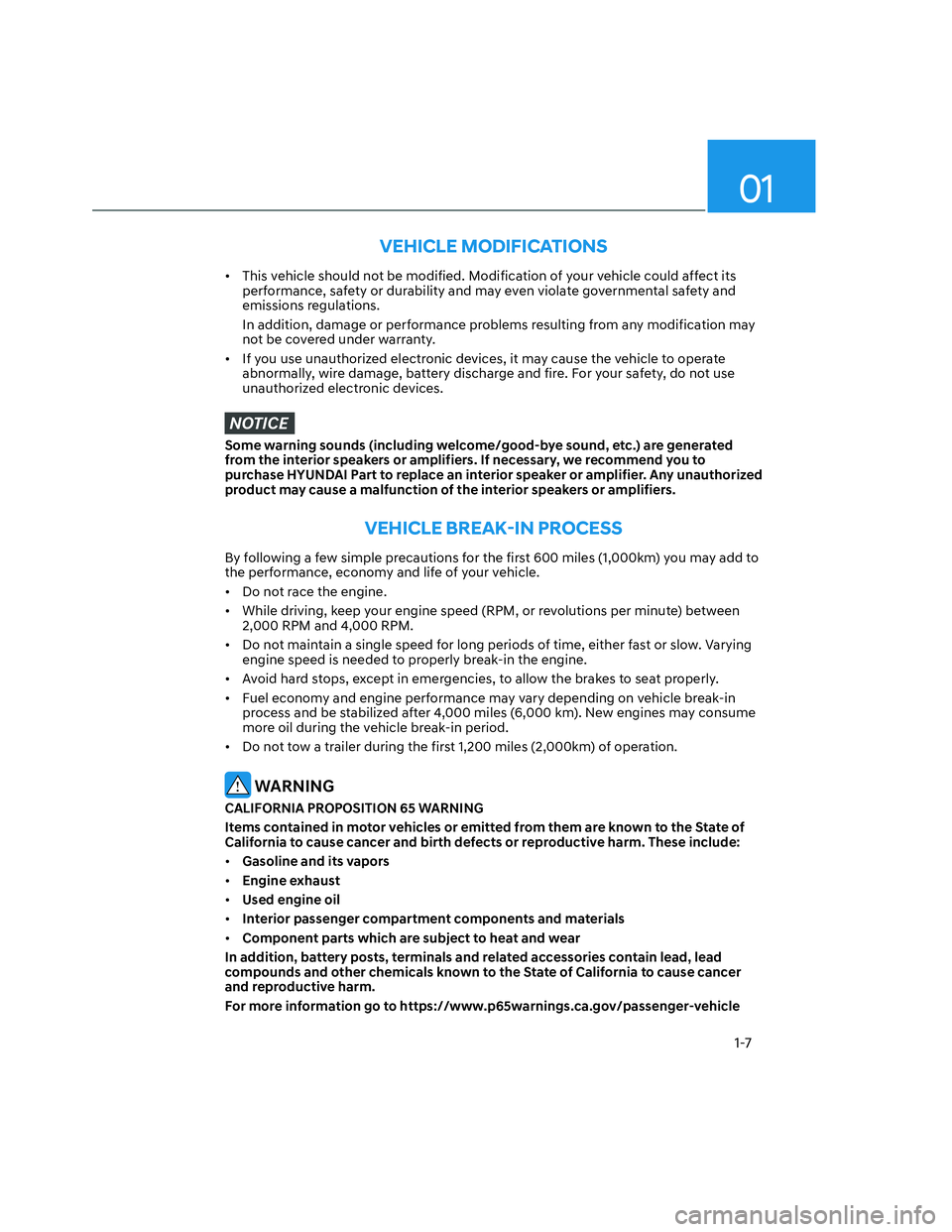

VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some warning sounds (including welcome/good-bye sound, etc.) are generated
from the interior speakers or amplifiers. If necessary, we recommend you to
purchase HYUNDAI Part to replace an interior speaker or amplifier. Any unauthorized
product may cause a malfunction of the interior speakers or amplifiers.
9(+,&/(%5($.

Introduction
1-8
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.

2
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Engine Compartment ........................................................................................ 2-7
Dimensions ........................................................................................................ 2-8
Engine ................................................................................................................ 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Gross Vehicle Weight ........................................................................................ 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Recommended SAE Viscosity Number .....................................................................2-13
Vehicle Identification Number (VIN) .............................................................. 2-14
Vehicle Certification Label .............................................................................. 2-14
Tire Specification and Pressure Label ............................................................ 2-14
Engine Number ................................................................................................ 2-15
Refrigerant Label ............................................................................................. 2-15
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects

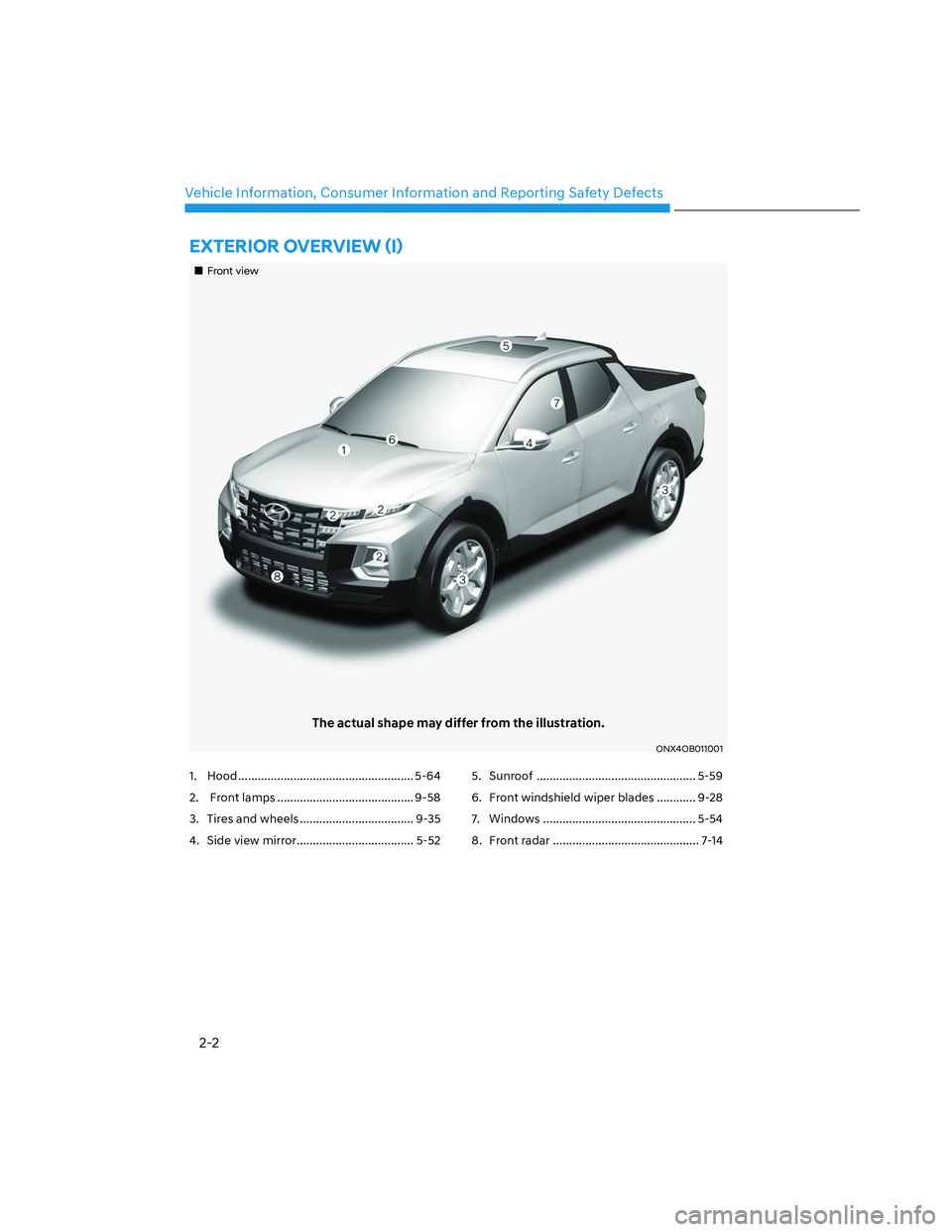

(;7(5,2529(59,(:

2-3
02

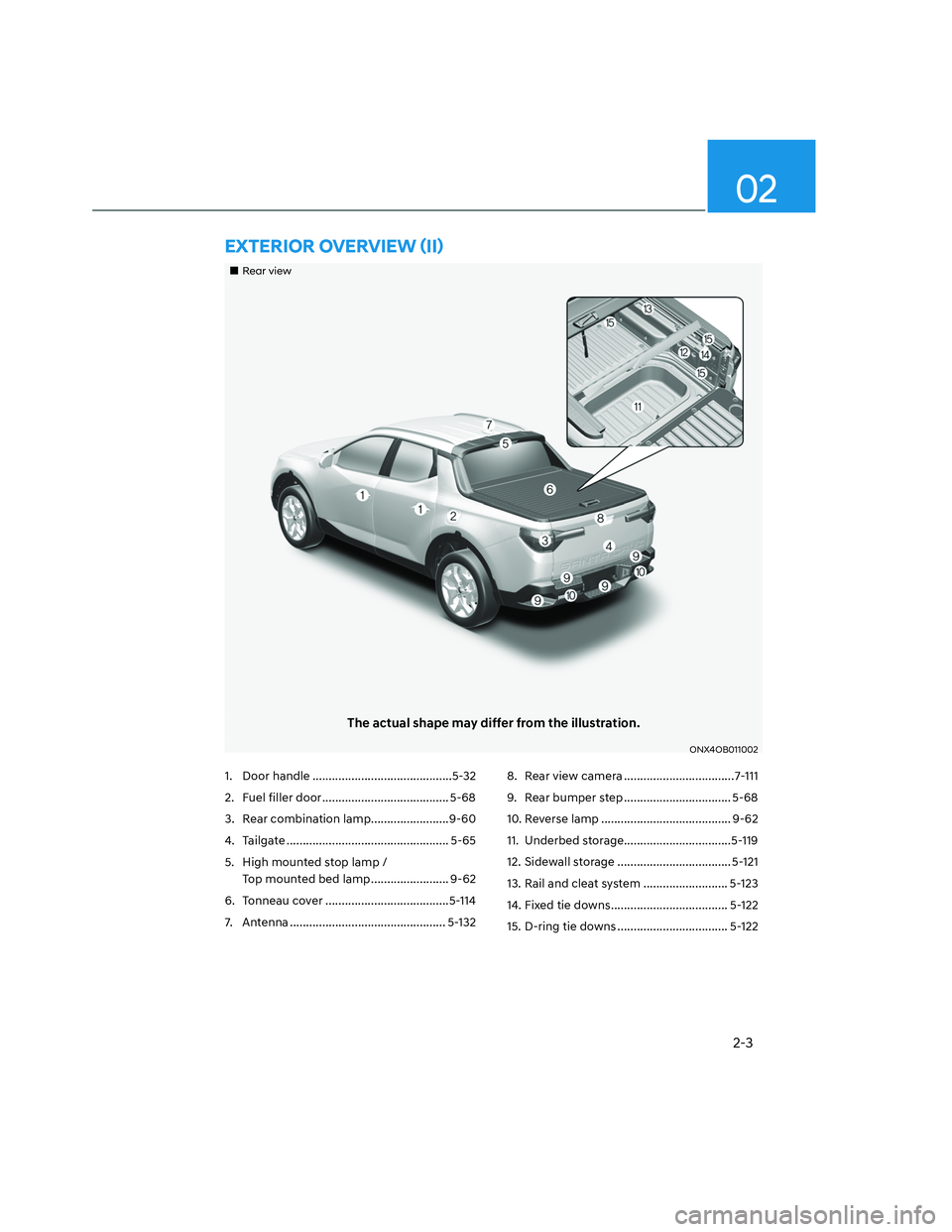

„„Rear viewRear view
The actual shape may differ from the illustration.
ONX4OB011002ONX4OB011002
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle ................................ 5-34
2. Power window switches ...................... 5-54
3. Power window lock button ...................5-57
4. Outside rearview mirror control
switch .................................................... 5-53
5. Driver door lock switch ........................ 5-35
6. Instrument panel illumination control
switch ...................................................... 4-57. Bed lamp ON/OFF Switch ..................... 5-81
8. ESC OFF Switch .................................... 6-39
9. Steering wheel ...................................... 5-39
10. Steering wheel tilt/telescopic lever .... 5-40
11. Fuse box ................................................ 9-48
12. Hood release lever ................................ 5-64
13. Seat .......................................................... 3-3
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
ONX4OB011003ONX4OB011003

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-42
3. Key ignition switch/ ................................ 6-5
Engine Start/Stop button ....................... 6-8
4. Infotainment system ........................... 5-132
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ............... 5-85/5-93
7. Air ventilation seat ................................. 3-18
8. Seat warmer ........................................... 3-16
9. Heated steering wheel ......................... 5-40
10. Transmission shift lever ................ 6-14/6-21
11. DBC button .......................................... 6-4412. Parking/View button ............................ 7-112
13. EPB (Electronic Parking Brake)
switch .................................................... 6-30
14. Auto Hold switch .................................. 6-34
15. AWD lock button ................................... 6-51
16. Drive mode switch ............................... 6-48
17. Passenger’s front air bag ..................... 3-42
18. Glove box .............................................. 5-113
19. USB port ............................................... 5-132
20. Power outlet ......................................... 5-125
21. USB charger ......................................... 5-126
22. Wireless charging system pad ............ 5-127
The actual shape may differ from the illustration.
ONX4OB011004ONX4OB011004
,167580(173$1(/29(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONX4OB011005ONX4OB011005
1. Lighting control lever ............................ 5-71
2. Wiper and washer control lever........... 5-82
3. Paddle shifter ......................................... 6-19
4. Voice recognition button .................... 5-134
5. Audio remote control buttons ............ 5-1346. Bluetooth® hands-free phone button .. 5-134
7. LCD display control ..............................4-27
8. Lane Driving Assist button .................... 7-31
9. Driving Assist button ............................ 7-56
10. Vehicle Distance button ........................ 7-77
,167580(173$1(/29(59,(:

2-7
02
„„Smartstream G2.5 GDISmartstream G2.5 GDI
„„Smartstream G2.5 TGDISmartstream G2.5 TGDI
The actual engine compartment in the vehicle may differ from the illustration.
ONX4OB091016/ONX4OB091001ONX4OB091016/ONX4OB091001
1. Engine coolant reservoir ...................... 9-20
2. Brake fluid reservoir ............................. 9-23
3. Air cleaner ............................................. 9-25
4. Engine oil dipstick ................................. 9-17
5. Engine oil filler cap (2.5 T-GDI’s filler
cap is under the engine cover) ............. 9-176. Windshield washer fluid reservoir ....... 9-24
7. Fuse box ................................................ 9-49
8. Battery .................................................... 9-31
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8

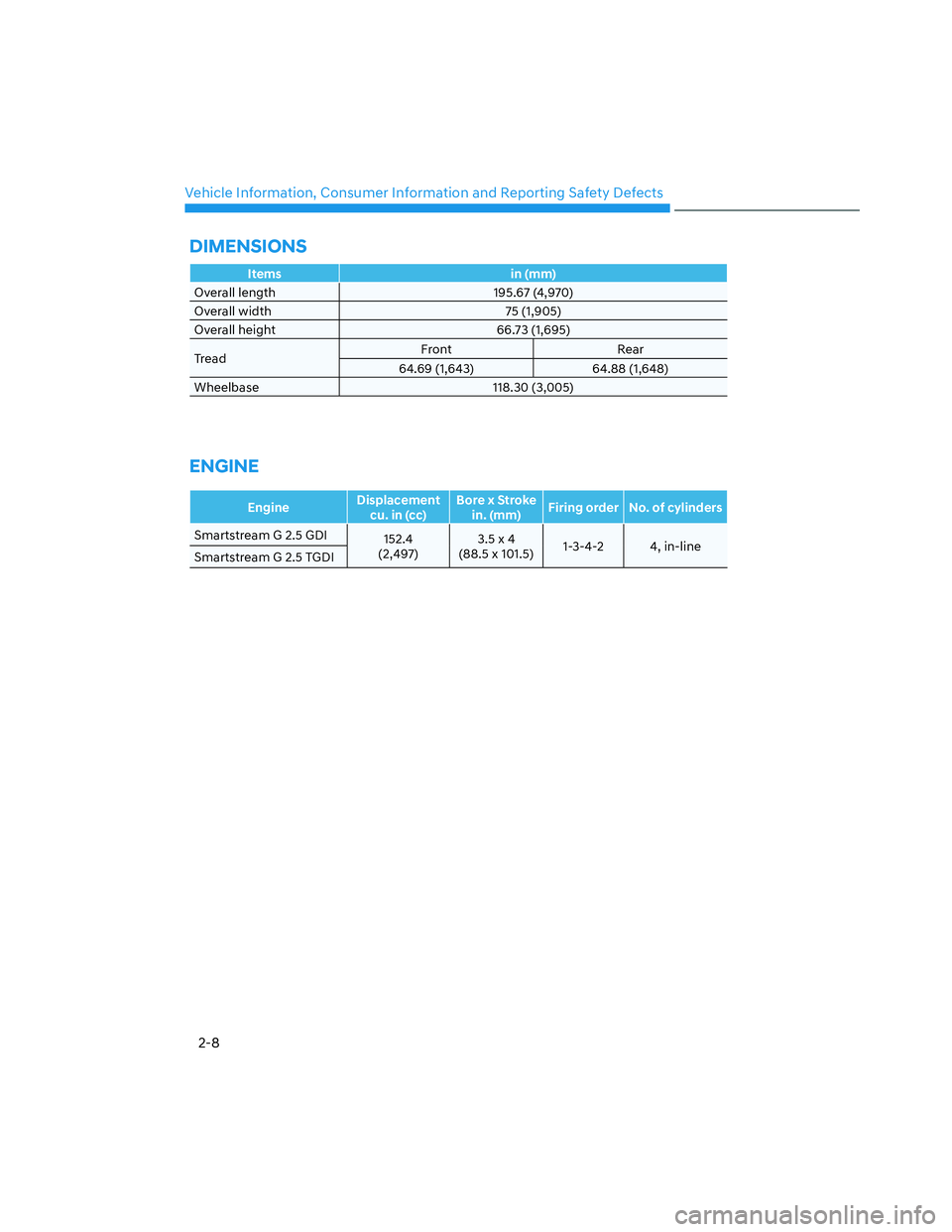

Items in (mm)
Overall length 195.67 (4,970)
Overall width 75 (1,905)
Overall height 66.73 (1,695)
TreadFront Rear
64.69 (1,643) 64.88 (1,648)
Wheelbase 118.30 (3,005)
ENGINE
EngineDisplacement
cu. in (cc)Bore x Stroke
in. (mm)Firing order No. of cylinders
Smartstream G 2.5 GDI
152.4
(2,497)3.5 x 4
(88.5 x 101.5)1-3-4-2 4, in-line
Smartstream G 2.5 TGDI
DIMENSIONS
