Fuse Name Fuse Rating Circuit Protected
MODULE47.5AMultifunction Front View Camera, Crash Pad Switch, WD
ECM, Intergrated Parking Assist Unit
AIR BAG115ASRS Control Module, Passenger Occupant Detection
Sensor
MODULE910AHazard Switch, Key Solenoid, Crash Pad Switch, Data
Link Connector, Rain Sensor, Driver/Passenger Smart
Key Outside Handle, Sport Mode Switch, E/R Junction
Block (E-CVVT Relay)
MODULE110AIBU, IAU, Audio, A/V & Navigation Head Unit, Keyboard,
Intergrated Parking Assist Unit
MODULE87.5AFront Air Ventilation Seat Control Module, AC Inverter
Module, Front Seat Warmer Control Module, AC Inverter
Outlet
BED
STORAGE10A Bed Storage Relay
P/WINDOW
RH25APower Window Main Switch, Passenger Power Window
Switch
AMP25A AMP
MEMORY10AInstrument Cluster, Driver/Passenger Door Mood Lamp,
Mood Lamp Unit, Crash Pad Mood Lamp, A/C Control
Module, A/C Control Switch
MULTIMEDIA25A Audio, A/V & Navigation Head Unit
DOOR
LOCK20ACenter Door Lock Relay, Center Door Unlock Relay, Two
Turn Unlock Relay
BRAKE
SWITCH10A Stop Lamp Switch, IBU
MODULE215A Front USB Charger, Rear USB Charger
MODULE77.5A IBU, IAU
MDPS7.5A MDPS Unit
P/SEAT
DRV30A Driver Power Seat Switch, Driver Power Seat Module
MODULE37.5A Stop Lamp Switch, IAU, Sport Mode Switch (DCT)

Maintenance
9-54

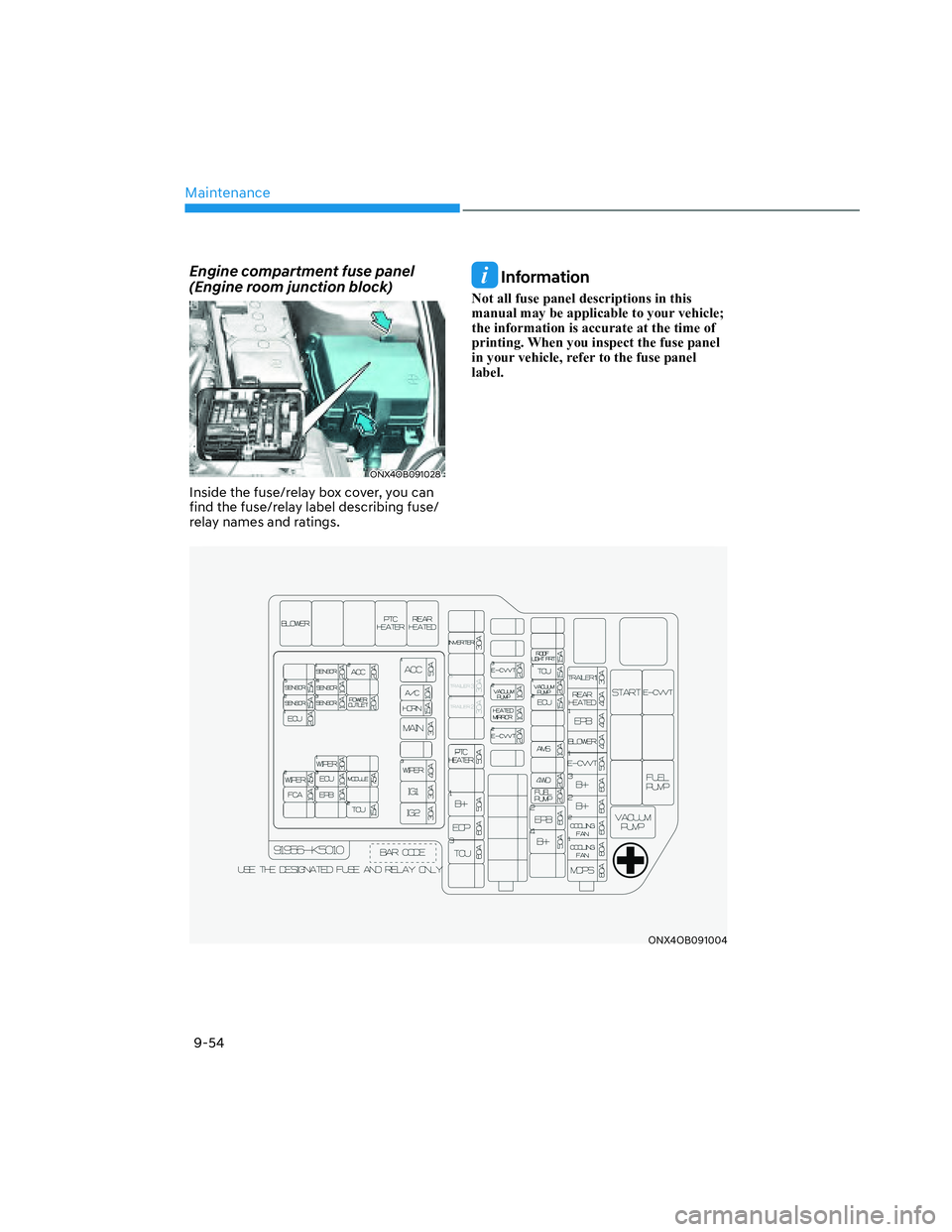

Engine compartment fuse panel
(Engine room junction block)
ONX4OB091028ONX4OB091028
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
ONX4OB091004

09
9-55

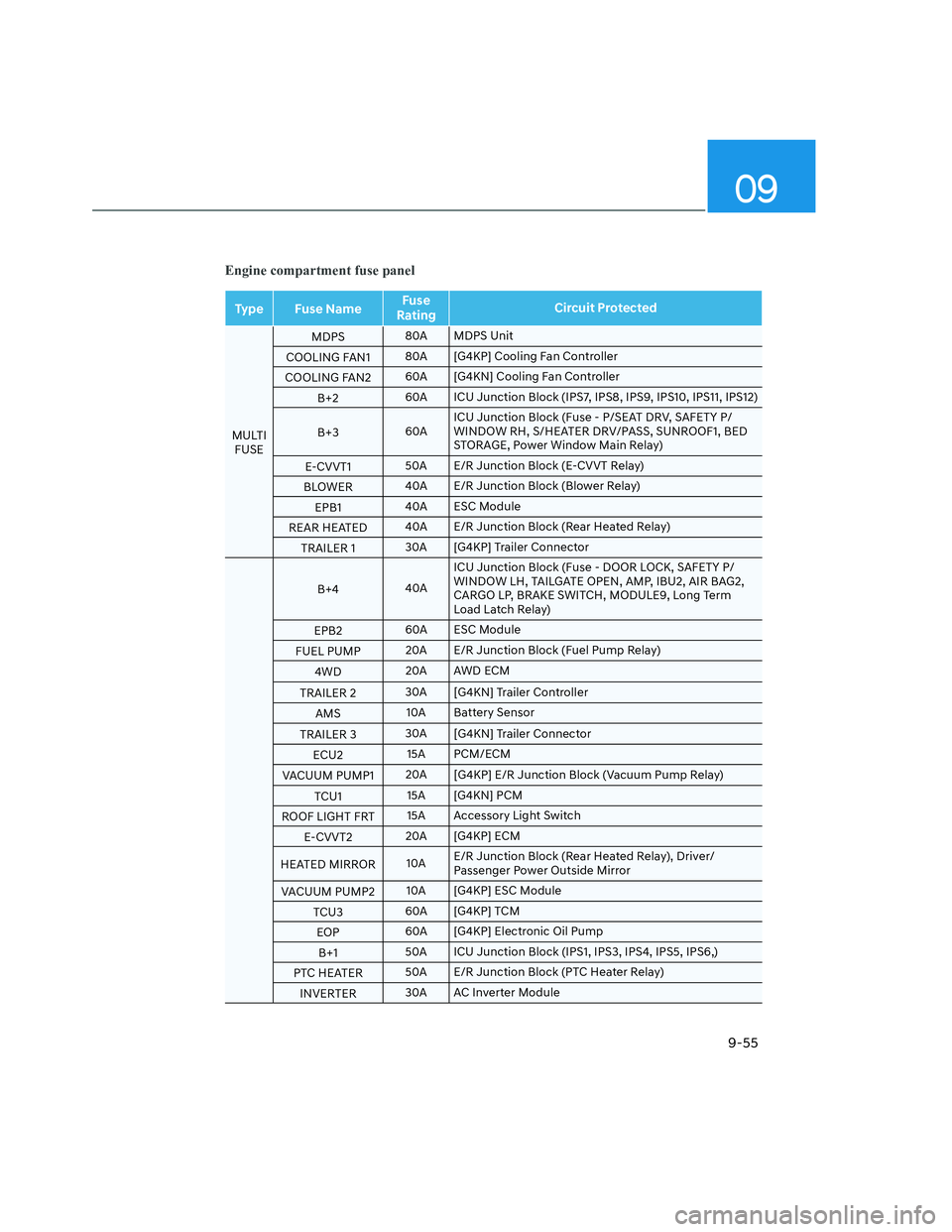

Engine compartment fuse panel
Type Fuse NameFuse
RatingCircuit Protected
MULTI
FUSEMDPS80A MDPS Unit
COOLING FAN180A [G4KP] Cooling Fan Controller
COOLING FAN260A [G4KN] Cooling Fan Controller
B+260A ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12)
B+360AICU Junction Block (Fuse - P/SEAT DRV, SAFETY P/
WINDOW RH, S/HEATER DRV/PASS, SUNROOF1, BED
STORAGE, Power Window Main Relay)
E-CVVT150A E/R Junction Block (E-CVVT Relay)
BLOWER40A E/R Junction Block (Blower Relay)
EPB140A ESC Module
REAR HEATED40A E/R Junction Block (Rear Heated Relay)
TRAILER 130A [G4KP] Trailer Connector
B+440AICU Junction Block (Fuse - DOOR LOCK, SAFETY P/
WINDOW LH, TAILGATE OPEN, AMP, IBU2, AIR BAG2,
CARGO LP, BRAKE SWITCH, MODULE9, Long Term
Load Latch Relay)
EPB260A ESC Module
FUEL PUMP20A E/R Junction Block (Fuel Pump Relay)
4WD20A AWD ECM
TRAILER 230A
[G4KN] Trailer Controller
AMS10A Battery Sensor
TRAILER 330A
[G4KN] Trailer Connector
ECU215A PCM/ECM
VACUUM PUMP120A
[G4KP] E/R Junction Block (Vacuum Pump Relay)
TCU115A [G4KN] PCM
ROOF LIGHT FRT15A Accessory Light Switch
E-CVVT220A [G4KP] ECM
HEATED MIRROR10AE/R Junction Block (Rear Heated Relay), Driver/
Passenger Power Outside Mirror
VACUUM PUMP210A [G4KP] ESC Module
TCU360A [G4KP] TCM
EOP60A [G4KP] Electronic Oil Pump
B+150A ICU Junction Block (IPS1, IPS3, IPS4, IPS5, IPS6,)
PTC HEATER50A E/R Junction Block (PTC Heater Relay)
INVERTER30A AC Inverter Module

Maintenance
9-56

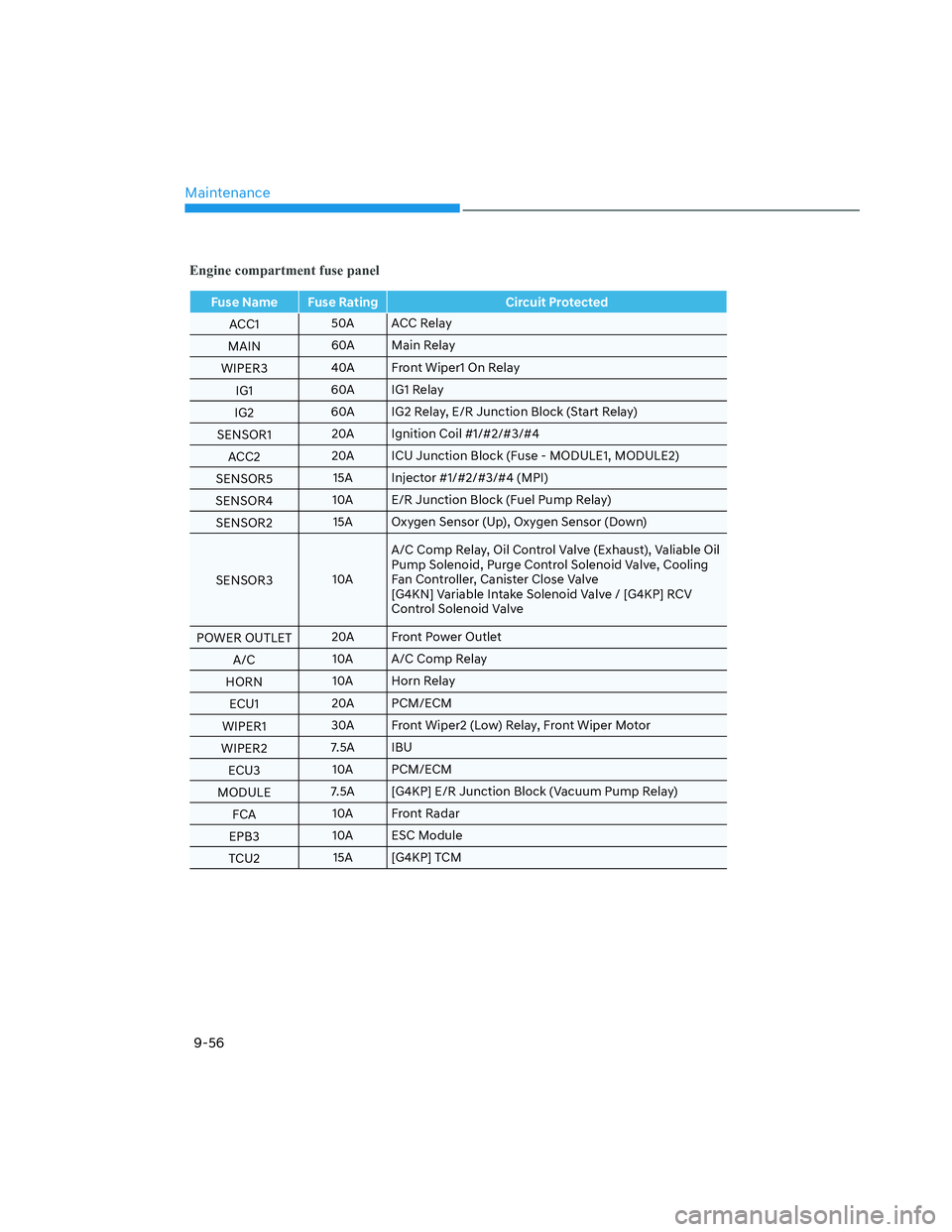

Engine compartment fuse panel
Fuse Name Fuse Rating Circuit Protected
ACC150A ACC Relay
MAIN60A Main Relay
WIPER340A Front Wiper1 On Relay
IG160A IG1 Relay
IG260A IG2 Relay, E/R Junction Block (Start Relay)
SENSOR120A Ignition Coil #1/#2/#3/#4
ACC220A ICU Junction Block (Fuse - MODULE1, MODULE2)
SENSOR515A Injector #1/#2/#3/#4 (MPI)
SENSOR410A E/R Junction Block (Fuel Pump Relay)
SENSOR215A Oxygen Sensor (Up), Oxygen Sensor (Down)
SENSOR310AA/C Comp Relay, Oil Control Valve (Exhaust), Valiable Oil
Pump Solenoid, Purge Control Solenoid Valve, Cooling
Fan Controller, Canister Close Valve
[G4KN] Variable Intake Solenoid Valve / [G4KP] RCV
Control Solenoid Valve
POWER OUTLET20A Front Power Outlet
A/C10A A/C Comp Relay
HORN10A Horn Relay
ECU120A PCM/ECM
WIPER130A Front Wiper2 (Low) Relay, Front Wiper Motor
WIPER27.5A IBU
ECU310A PCM/ECM
MODULE7.5A [G4KP] E/R Junction Block (Vacuum Pump Relay)
FCA10A Front Radar
EPB310A ESC Module
TCU215A [G4KP] TCM

09
9-57
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
and rear combination lamp
desiccant (if equipped)
This vehicle is equipped with desiccant
packs to reduce fogging inside the
headlamp and rear combination lamp due
to moisture. The desiccant pack is made
of moisture absorbing materials and its
performance may change based on the
used period or environment. If fogging
inside the headlamp or rear combination
lamp due to moisture continues for a long
time, consult an authorized HYUNDAI
dealer.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
is inspected by an authorized HYUNDAI
dealer.

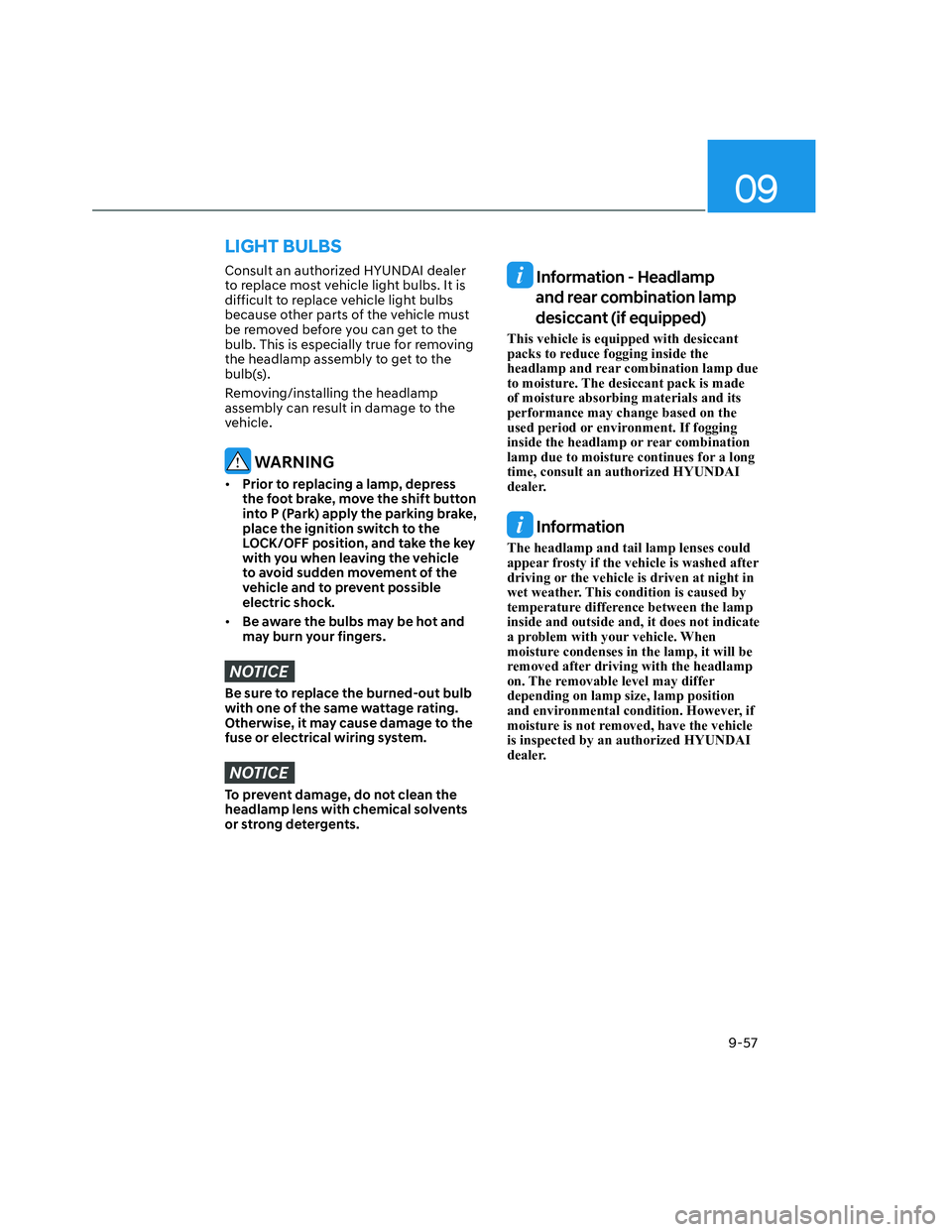

LIGHT BULBS

Maintenance
9-58
Information
• A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized HYUNDAI dealer.
• The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized HYUNDAI dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled.

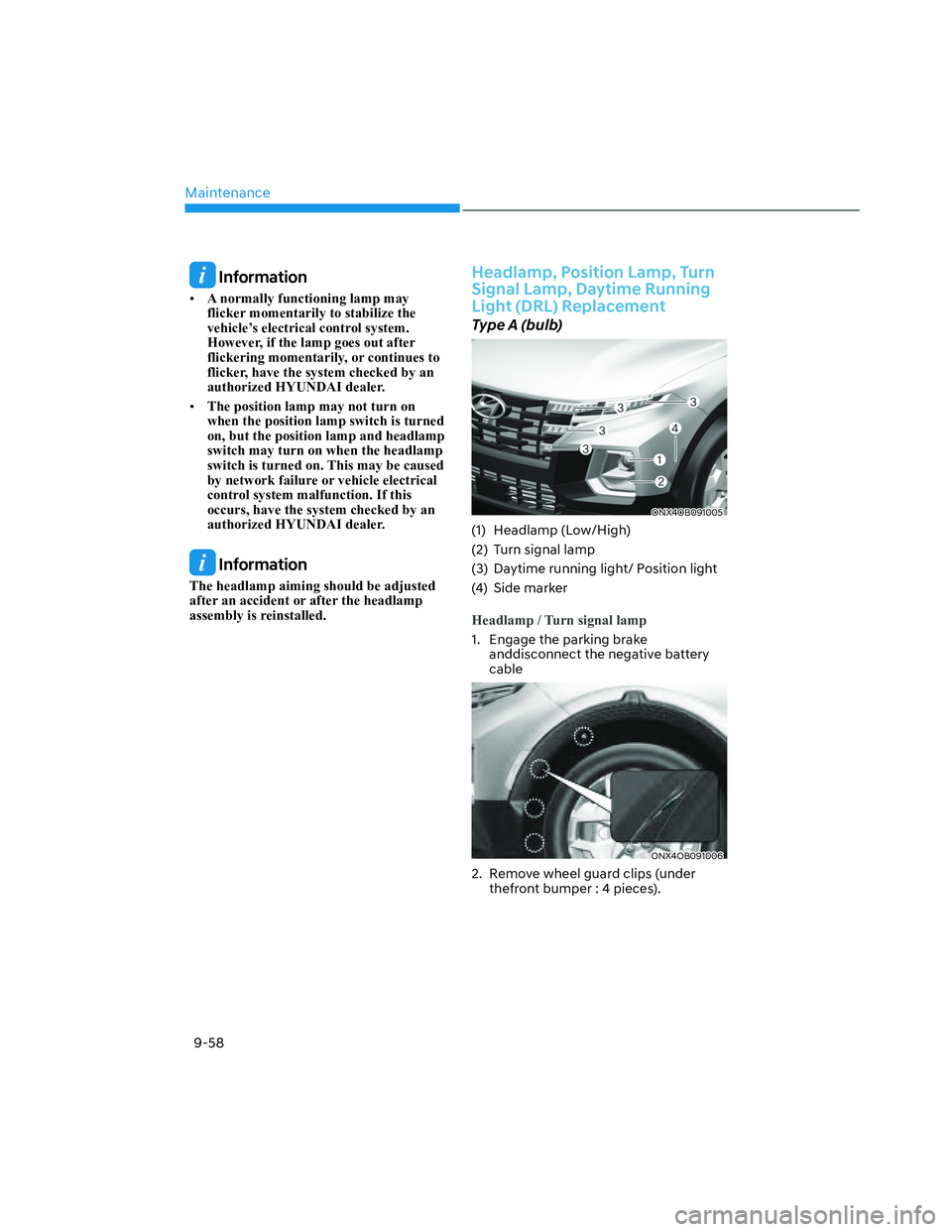

Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
Type A (bulb)
ONX4OB091005 ONX4OB091005
(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Daytime running light/ Position light
(4) Side marker
Headlamp / Turn signal lamp
1. Engage the parking brake
anddisconnect the negative battery
cable
ONX4OB091006ONX4OB091006
2. Remove wheel guard clips (under
thefront bumper : 4 pieces).

09
9-59
ONX4OB091014ONX4OB091014
3. Push the wheel guard aside and
remove the bulb socket by turning it
counterclockwise.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Install a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Push the socket into the assembly and
turn the socket clockwise.
7. Install the wheel guard in the reverse
order.
Daytime running light, position light, Side
Marker (LED)
If the LED lamp does not operate,
have the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single
unit because it is an integrated unit. The
LED lamps have to be replaced with the
unit. A skilled technici an should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

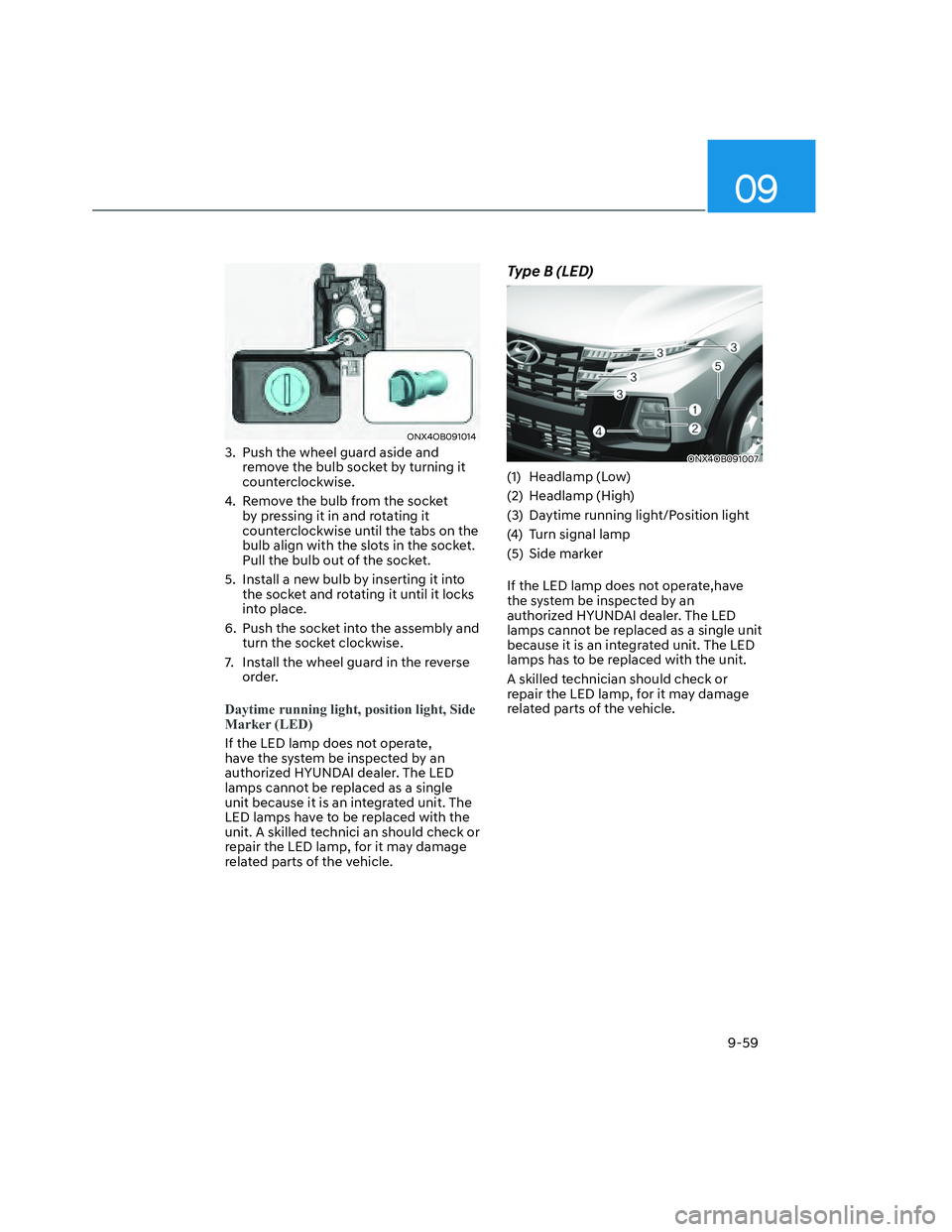

Type B (LED)
ONX4OB091007ONX4OB091007
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker
If the LED lamp does not operate,have
the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single unit
because it is an integrated unit. The LED
lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

Maintenance
9-60
Side Repeater Lamp
Replacement
ONX4090024ONX4090024
If the LED lamp (1) does not operate,
have the system be inspected by an
authorized HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
ONX4OB091008ONX4OB091008
(1) Tail lamp
(2) Turn signal lamp/ Stop Lamp
(3) Tail lamp
(4) Rear side marker

09
9-61
ONX4OB091009ONX4OB091009

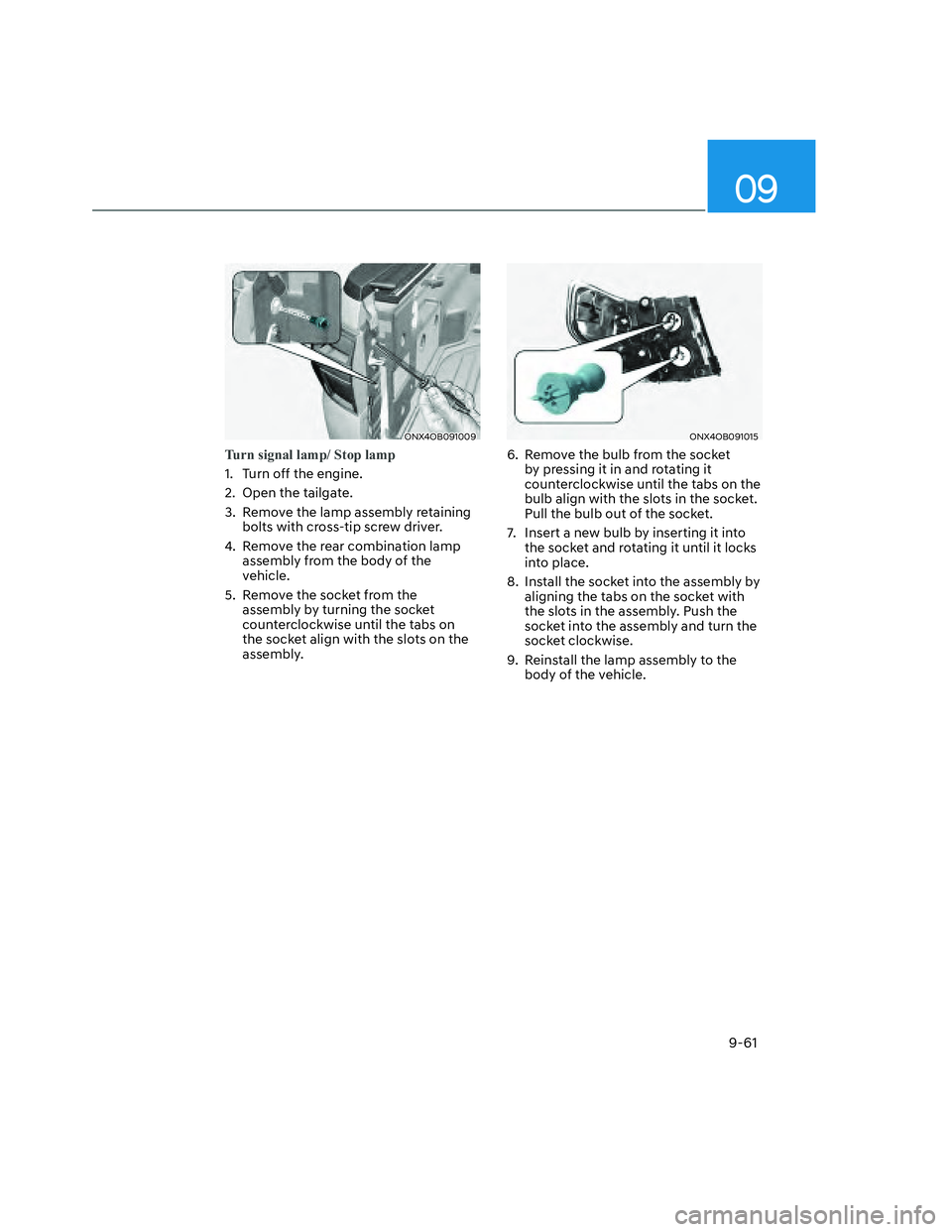

Turn signal lamp/ Stop lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the lamp assembly retaining
bolts with cross-tip screw driver.
4. Remove the rear combination lamp
assembly from the body of the
vehicle.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
ONX4OB091015ONX4OB091015
6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
8. Install the socket into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.

Maintenance
9-62

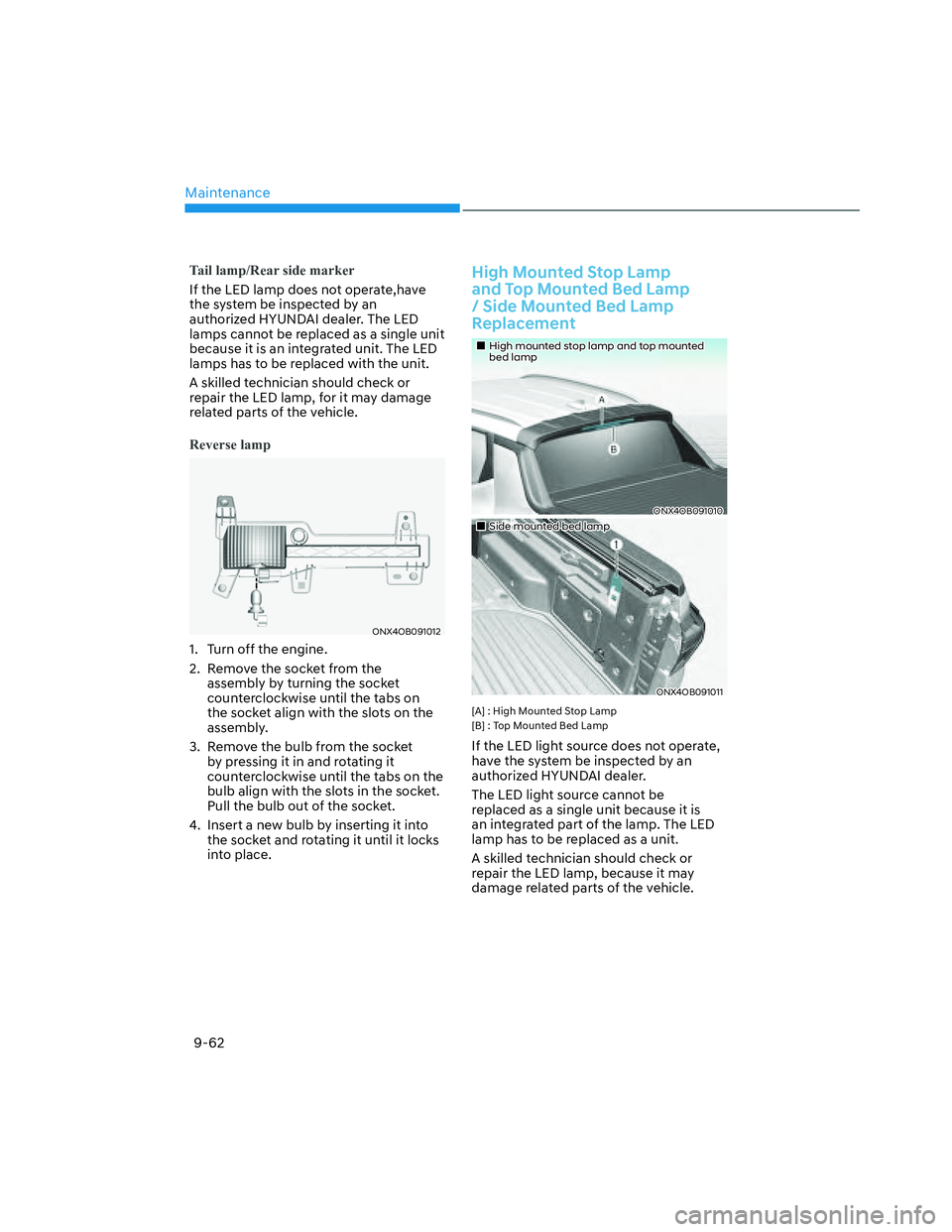

Tail lamp/Rear side marker
If the LED lamp does not operate,have
the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single unit
because it is an integrated unit. The LED
lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Reverse lamp
ONX4OB091012ONX4OB091012
1. Turn off the engine.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
High Mounted Stop Lamp
and Top Mounted Bed Lamp
/ Side Mounted Bed Lamp
Replacement
„„High mounted stop lamp and top mounted High mounted stop lamp and top mounted bed lampbed lamp
ONX4OB091010ONX4OB091010
„„Side mounted bed lamp Side mounted bed lamp
ONX4OB091011ONX4OB091011
[A] : High Mounted Stop Lamp
[B] : Top Mounted Bed Lamp
If the LED light source does not operate,
have the system be inspected by an
authorized HYUNDAI dealer.
The LED light source cannot be
replaced as a single unit because it is
an integrated part of the lamp. The LED
lamp has to be replaced as a unit.
A skilled technician should check or
repair the LED lamp, because it may
damage related parts of the vehicle.
