Page 111 of 598

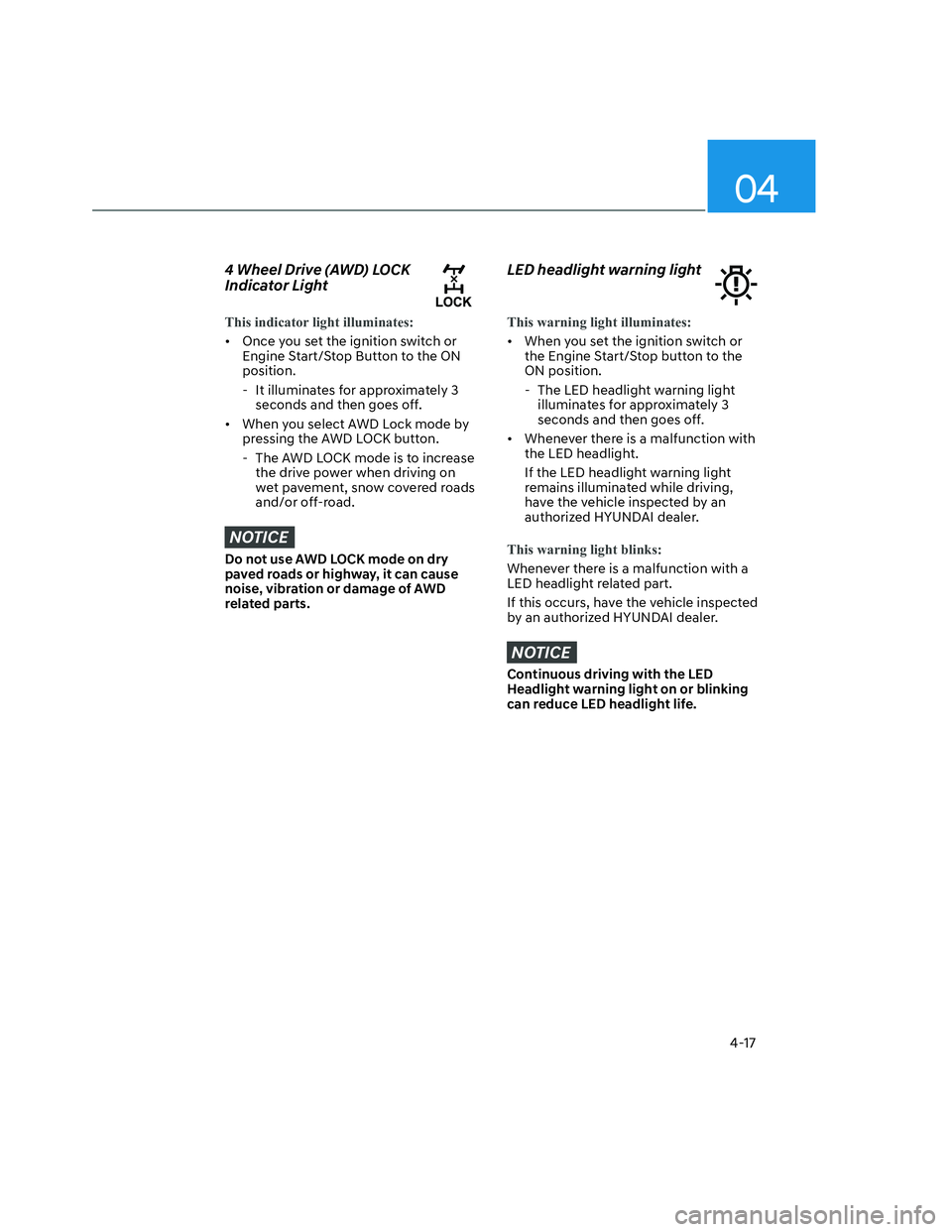

HYUNDAI SANTA CRUZ 2023  Owners Manual 04
4-17
4 Wheel Drive (AWD) LOCK
Indicator Light
This indicator light illuminates:
•  Once you set the ignition switch or
Engine Start/Stop Button to the ON
position.
  - It illuminates for appro

Page 112 of 598

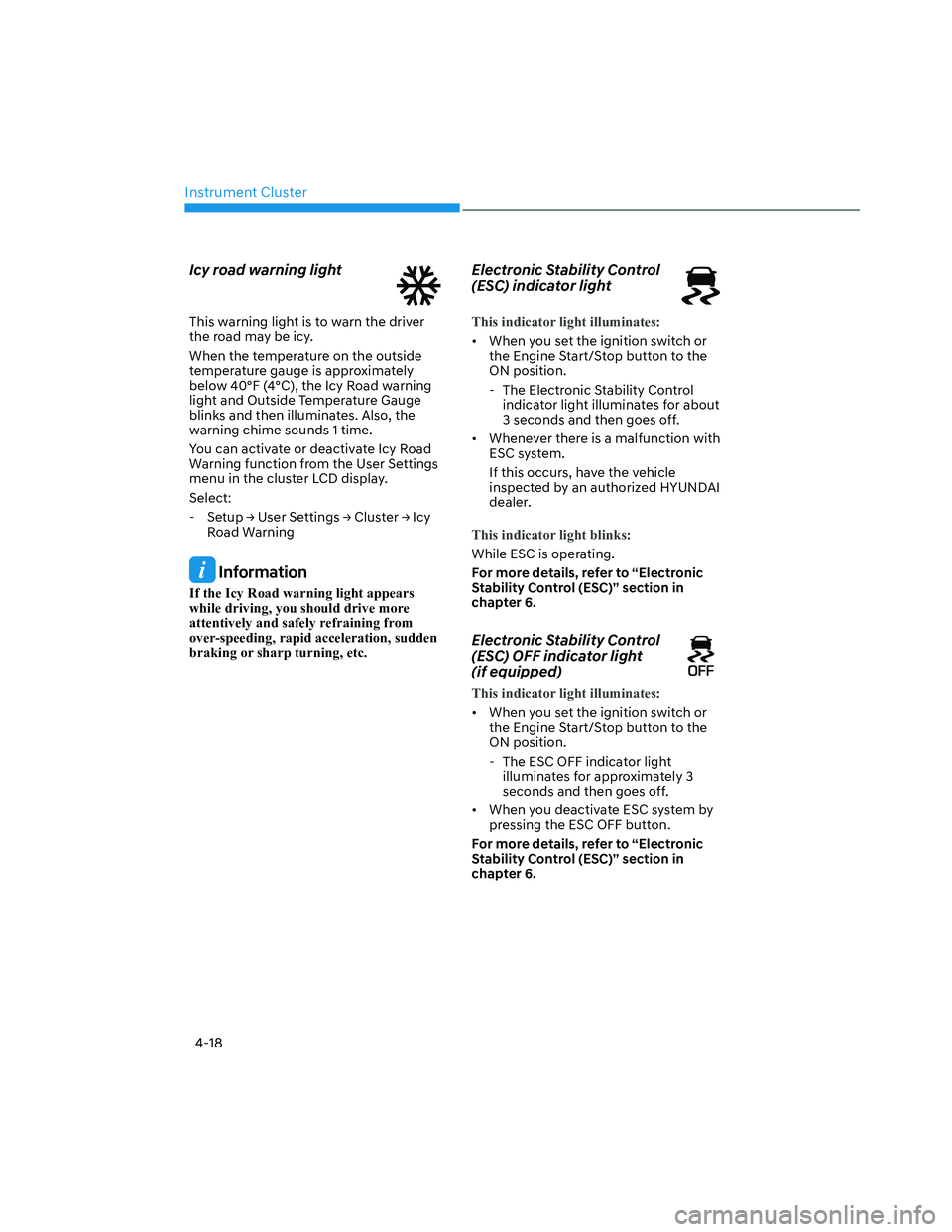

HYUNDAI SANTA CRUZ 2023  Owners Manual Instrument Cluster
4-18
Icy road warning light
This warning light is to warn the driver
the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°

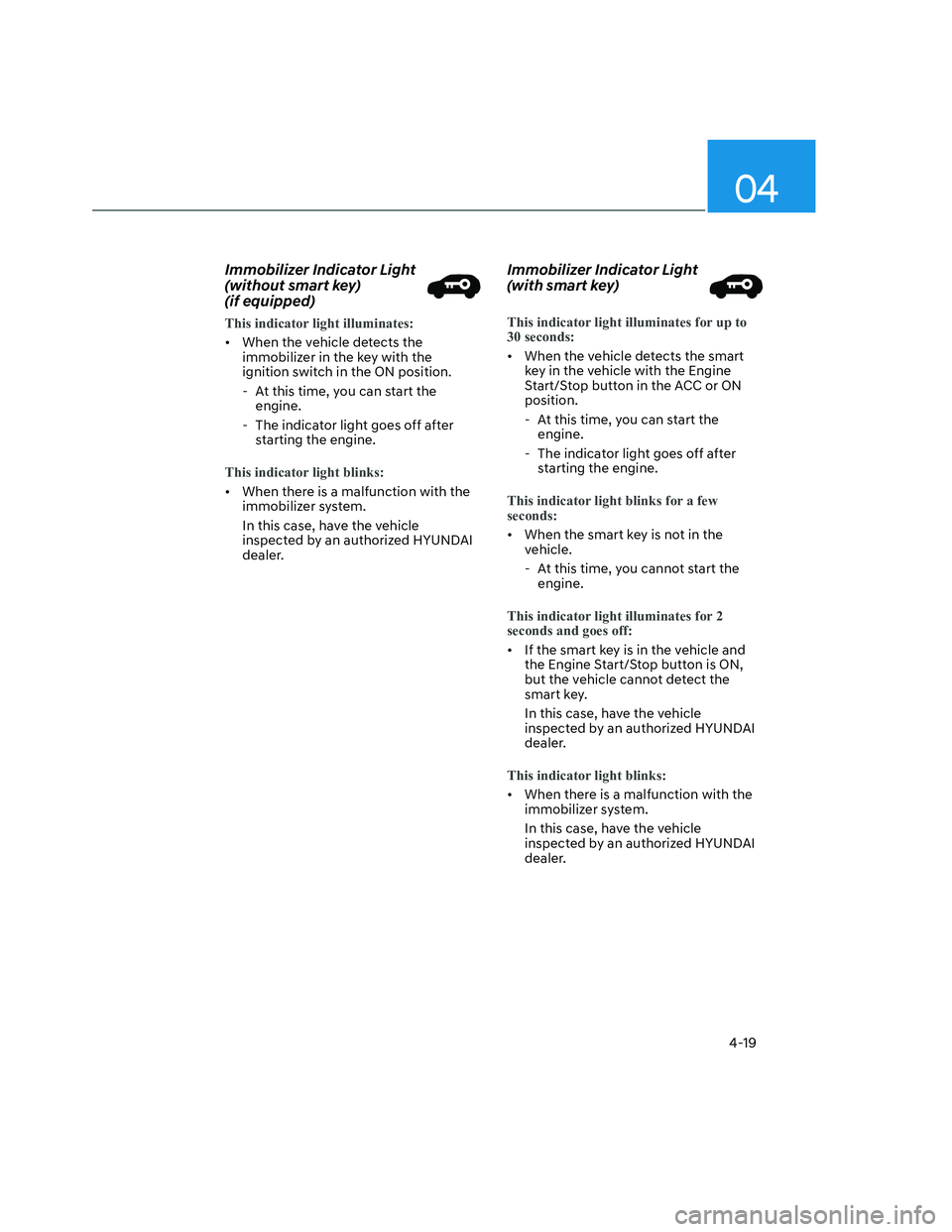

Page 113 of 598

HYUNDAI SANTA CRUZ 2023  Owners Manual 04
4-19
Immobilizer Indicator Light
(without smart key)
(if equipped)
This indicator light illuminates:
•  When the vehicle detects the
immobilizer in the key with the
ignition switch in the O

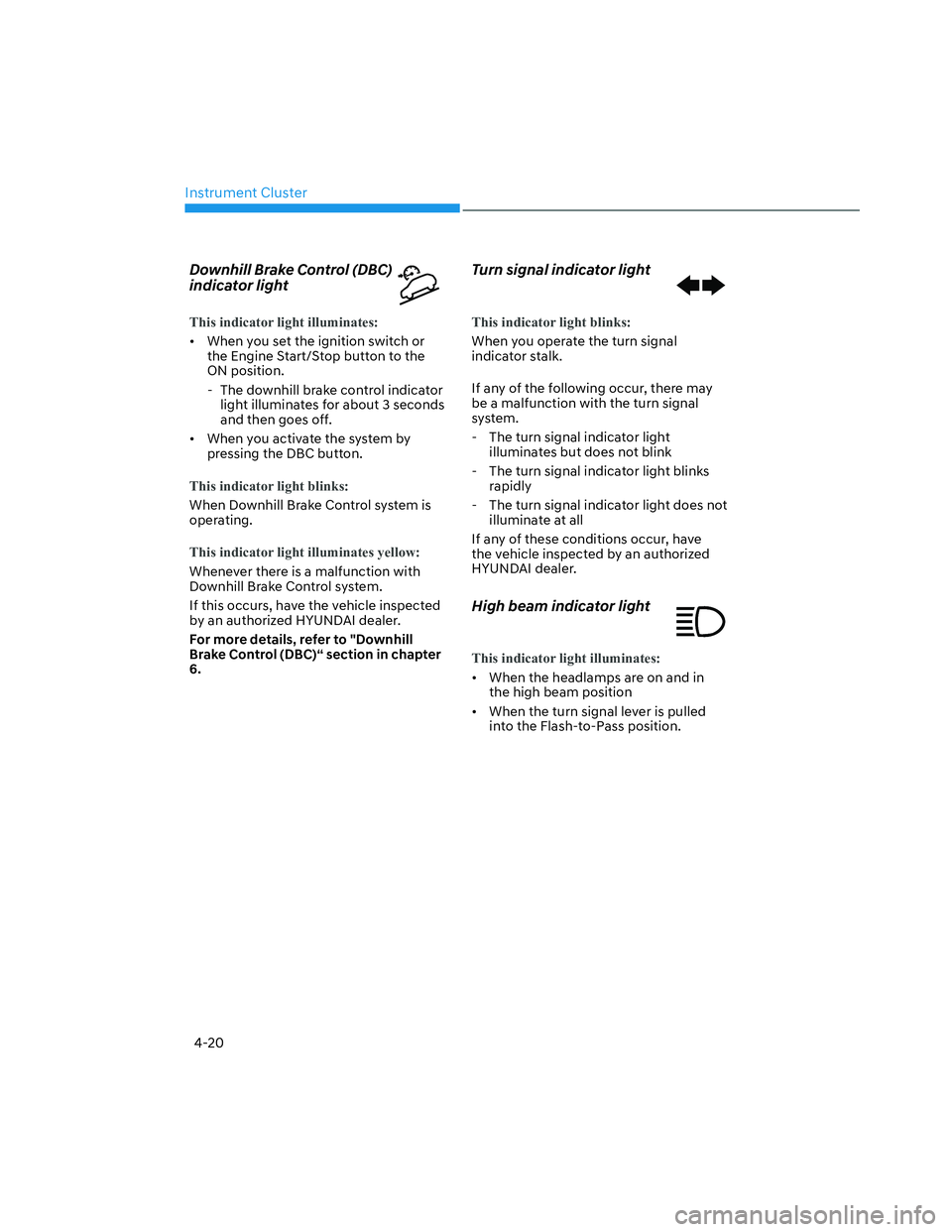

Page 114 of 598

HYUNDAI SANTA CRUZ 2023  Owners Manual Instrument Cluster
4-20
Downhill Brake Control (DBC)
indicator light
This indicator light illuminates:
•  When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
  -

Page 115 of 598

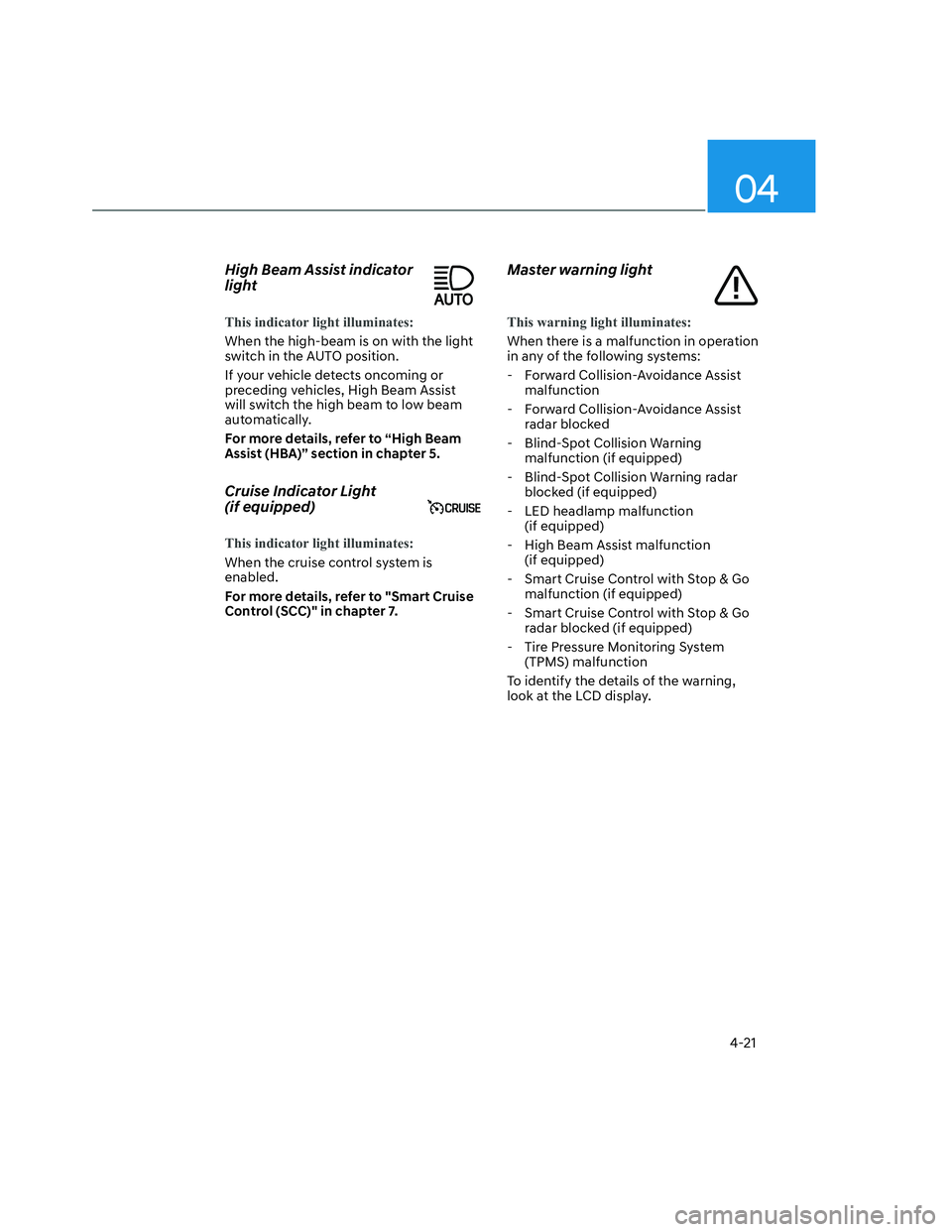

HYUNDAI SANTA CRUZ 2023  Owners Manual 04
4-21
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicle

Page 116 of 598

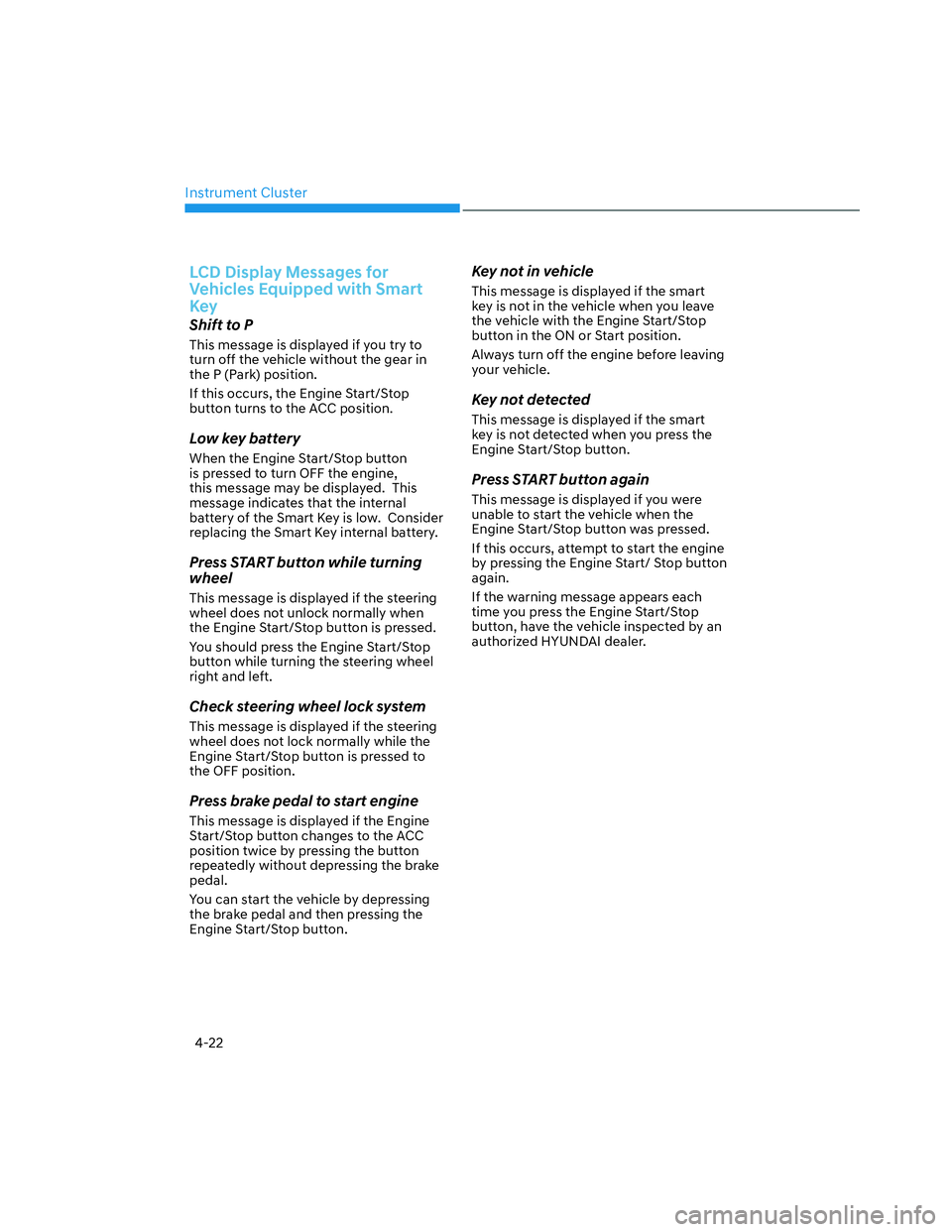

HYUNDAI SANTA CRUZ 2023  Owners Manual Instrument Cluster
4-22
LCD Display Messages for
Vehicles Equipped with Smart
Key
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.

Page 117 of 598

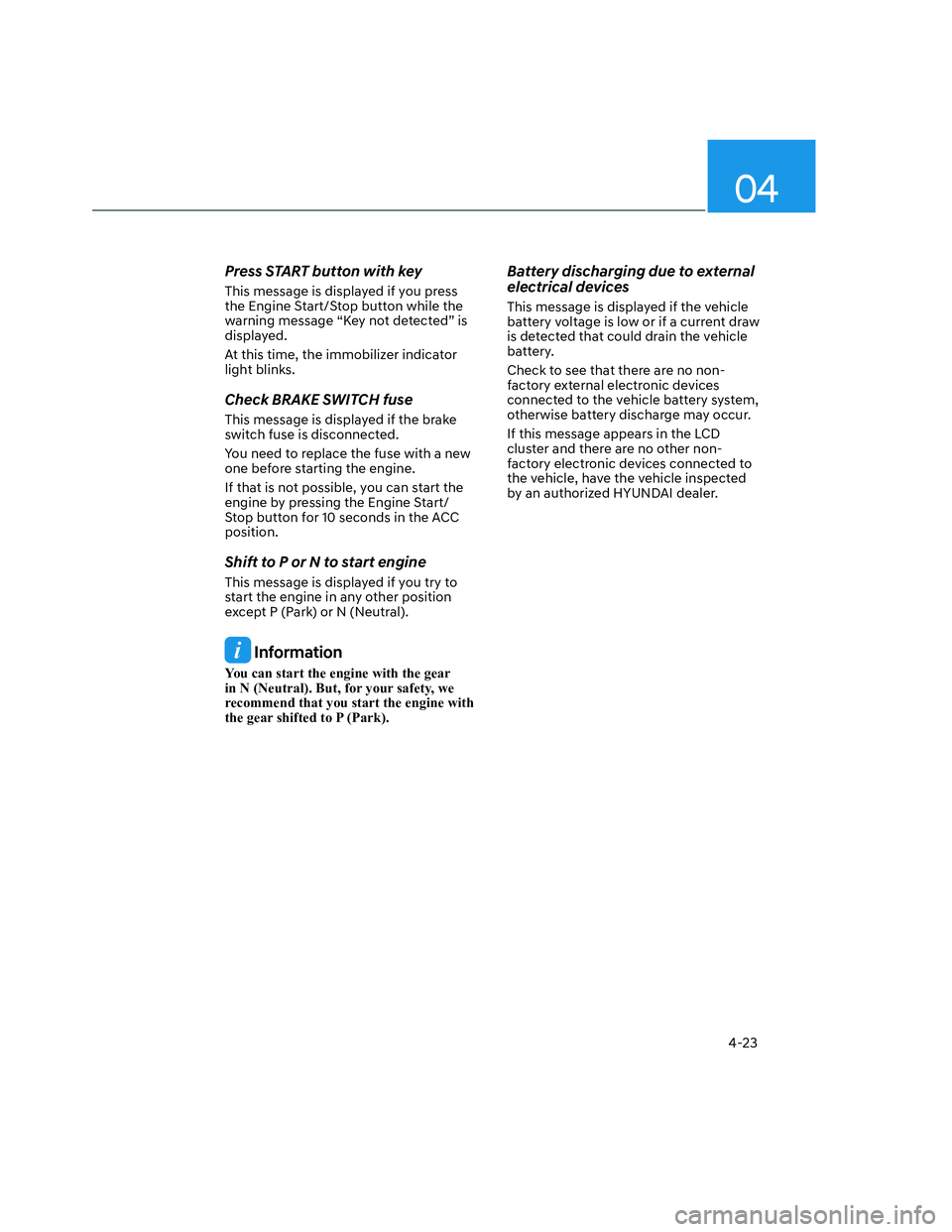

HYUNDAI SANTA CRUZ 2023  Owners Manual 04
4-23
Press START button with key
This message is displayed if you press
the Engine Start/Stop button while the
warning message “Key not detected” is
displayed.
At this time, the immobilizer

Page 118 of 598

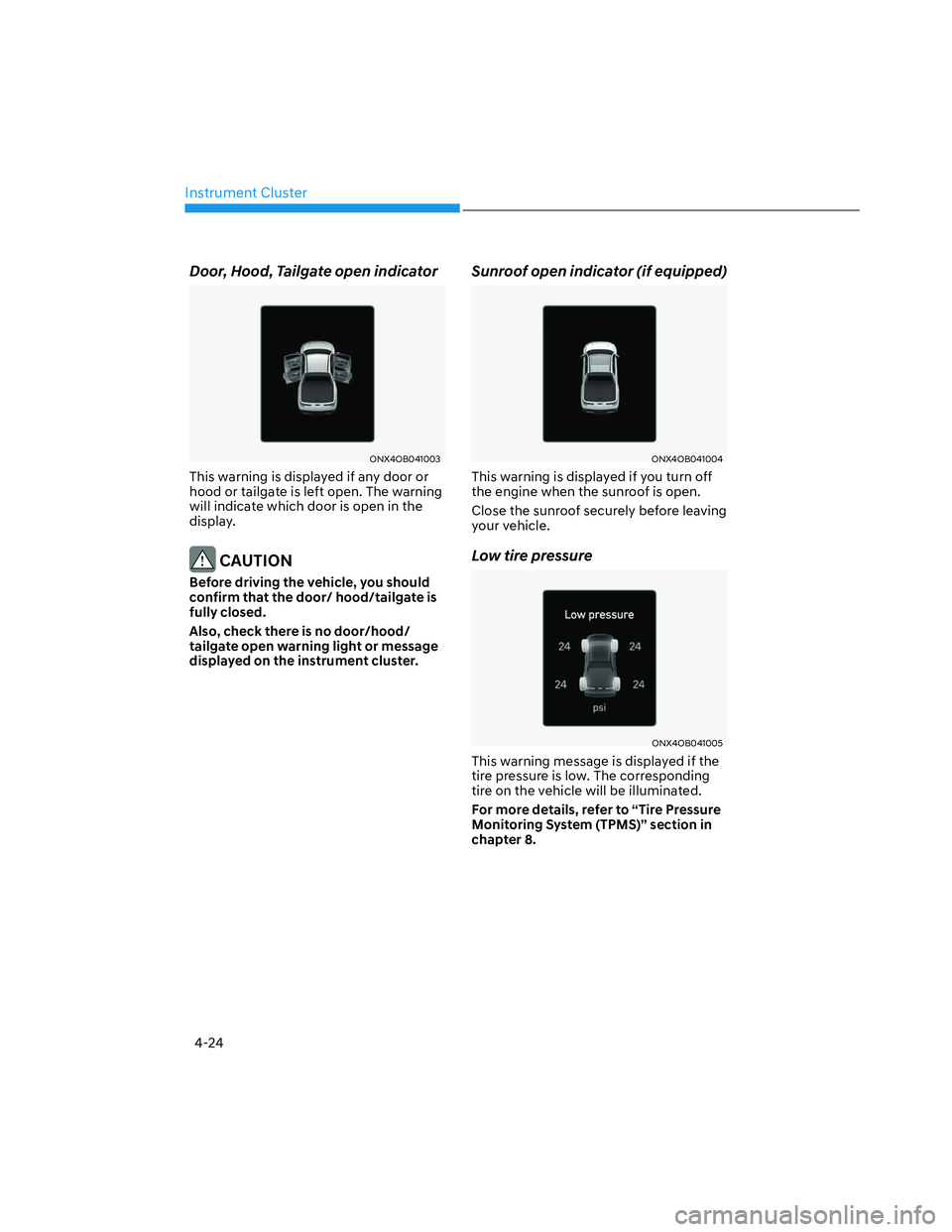

HYUNDAI SANTA CRUZ 2023  Owners Manual Instrument Cluster
4-24
Door, Hood, Tailgate open indicator
ONX4OB041003ONX4OB041003
This warning is displayed if any door or
hood or tailgate is left open. The warning
will indicate which door is o

Page 119 of 598

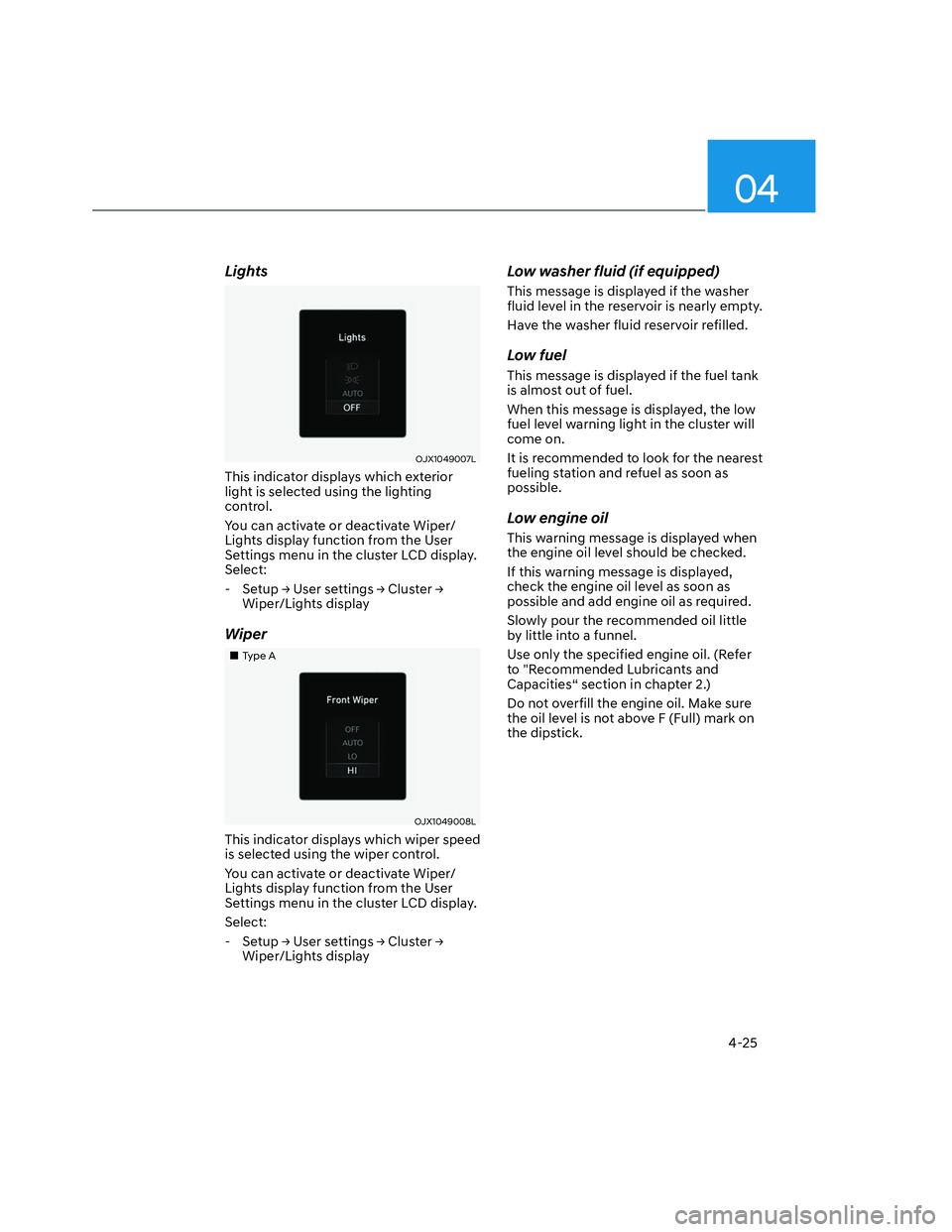

HYUNDAI SANTA CRUZ 2023  Owners Manual 04
4-25
Lights
OJX1049007LOJX1049007L
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the User

Page 120 of 598

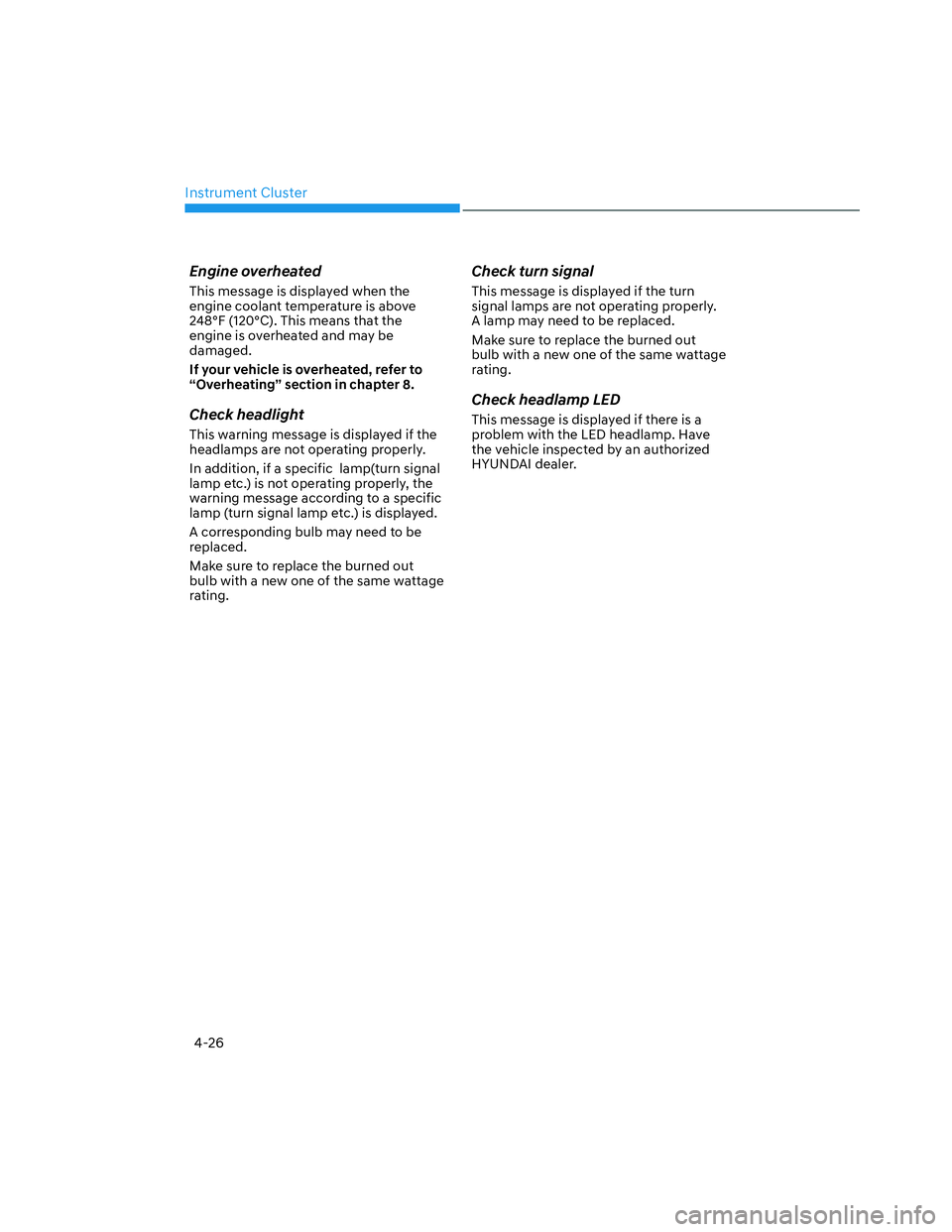

HYUNDAI SANTA CRUZ 2023  Owners Manual Instrument Cluster
4-26
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If y
