HYUNDAI SANTA CRUZ 2023 Owners Manual

04
4-37

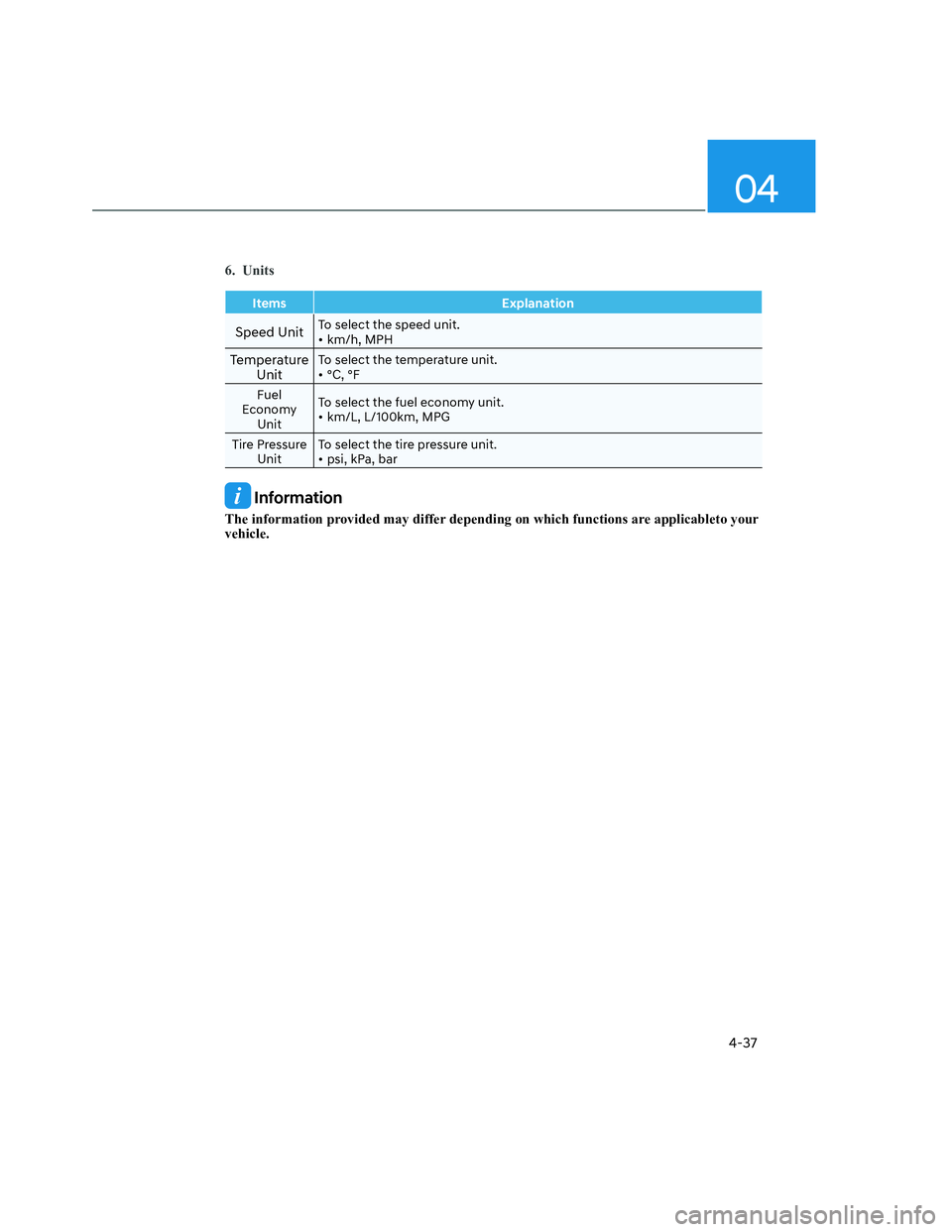

6. Units
Items Explanation
Speed UnitTo select the speed unit.
• km/h, MPH
Temperature
UnitTo select the temperature unit.
• °C, °F
Fuel
Economy
UnitTo select the fuel economy unit.
• km/L, L/100km, MPG
Tire Pressure
UnitTo select the tire pressure unit.
• psi, kPa, bar
Information
The information provided may differ depending on which functions are applicableto your
vehicle.

Instrument Cluster
4-38
Trip Computer (Type A : 4.2” LCD)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info
Since refueling
Accumulated Info • Trip distance
• Average Fuel Economy
• Instant Fuel Economy
• Trip distance
• Average Fuel Economy
• Instant Fuel Economy
Digital speedometer
• Trip distance
• Average Fuel Economy
• Instant Fuel Economy
ONX4OB041006ONX4OB041006
To change the trip mode, toggle the
", " switch on the steering wheel
• Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
• Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel
economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

04
4-39
ONX4OB041014ONX4OB041014
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
ONX4OB041015ONX4OB041015
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
ONX4OB041016ONX4OB041016
Accumulated Info
Accumulated trip distance (1), average
fuel economy (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OIK047151NOIK047151N
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

Instrument Cluster
4-40
Trip Computer (Type B : 10.25”
LCD)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info
• Trip distance
• Average Fuel Economy
• Timer

Since refueling
• Trip distance
• Average Fuel Economy
• Timer

Accumulated Info
• Trip distance
• Average Fuel Economy
• Timer

Digital speedometer
ONX4OB041006ONX4OB041006
To change the trip mode, toggle the
", " switch on the steering wheel
• Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
• Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel
economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
ÃFor 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

04
4-41
OTMA040012OTMA040012
Drive info
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
OTMA040014OTMA040014
Since refueling
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
OTMA040016OTMA040016
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMA040018OTMA040018
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

Instrument Cluster
4-42
ONX4E040028ONX4E040028

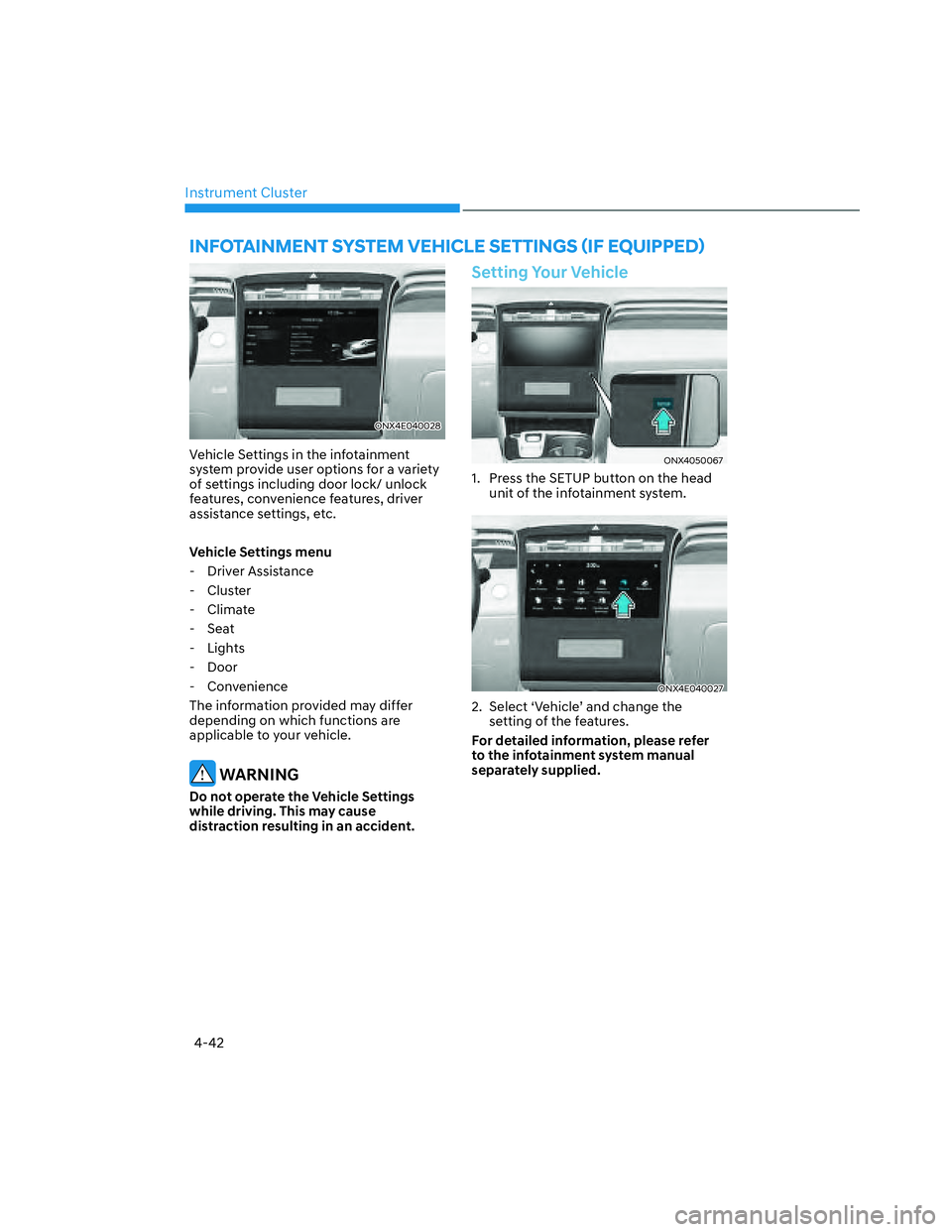

Vehicle Settings in the infotainment
system provide user options for a variety
of settings including door lock/ unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
- Driver Assistance
- Cluster
- Climate
- Seat
- Lights
- Door
- Convenience
The information provided may differ
depending on which functions are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
ONX4050067ONX4050067
1. Press the SETUP button on the head
unit of the infotainment system.
ONX4E040027ONX4E040027
2. Select ‘Vehicle’ and change the
setting of the features.
For detailed information, please refer
to the infotainment system manual
separately supplied.
,1)27$,10(176<67(09(+,&/(6(77,1*6

5

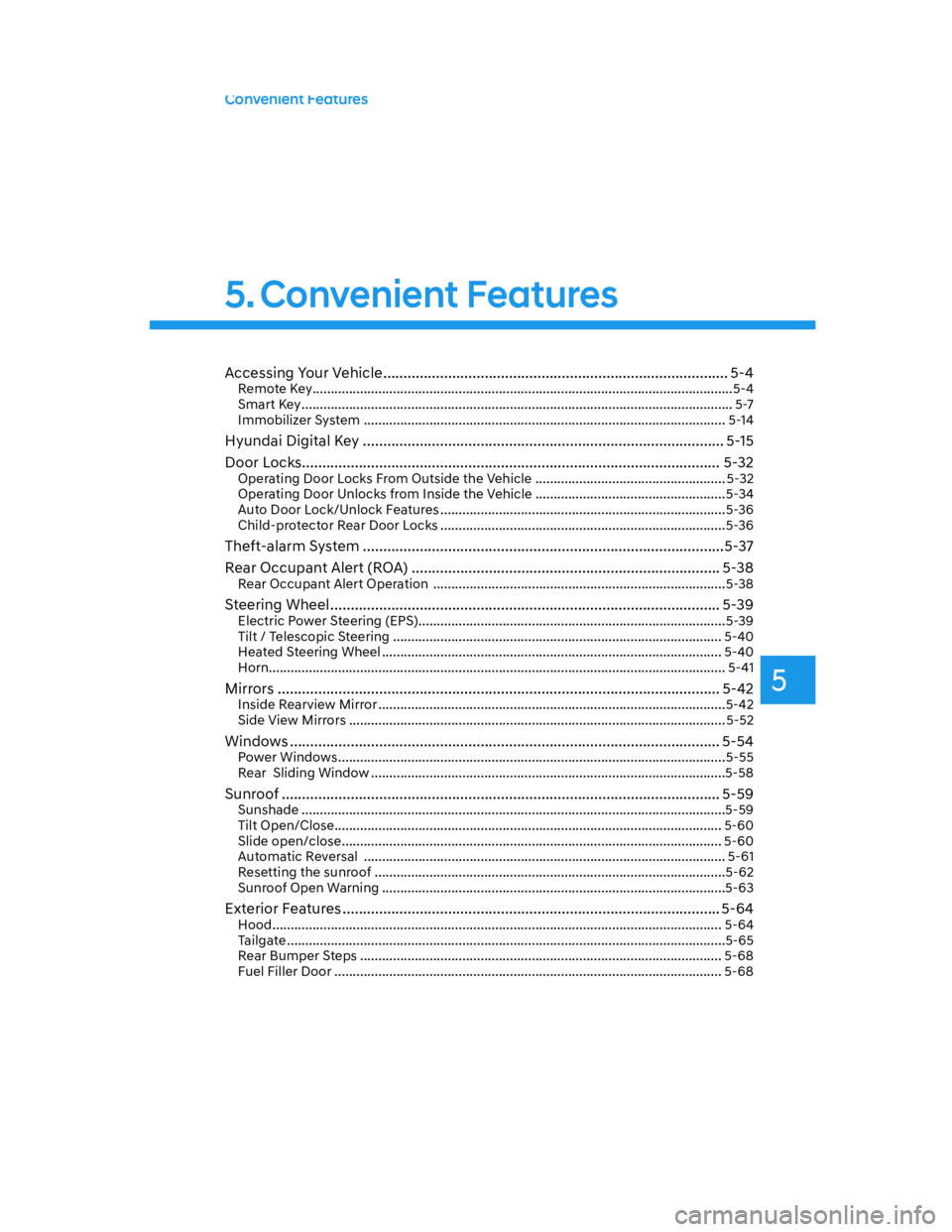

Convenient Features
Accessing Your Vehicle ..................................................................................... 5-4Remote Key ...................................................................................................................5-4
Smart Key ......................................................................................................................5-7
Immobilizer System ................................................................................................... 5-14
Hyundai Digital Key ......................................................................................... 5-15
Door Locks ....................................................................................................... 5-32
Operating Door Locks From Outside the Vehicle .................................................... 5-32
Operating Door Unlocks from Inside the Vehicle .................................................... 5-34
Auto Door Lock/Unlock Features ..............................................................................5-36
Child-protector Rear Door Locks ..............................................................................5-36
Theft-alarm System .........................................................................................5-37
Rear Occupant Alert (ROA) ............................................................................ 5-38
Rear Occupant Alert Operation ................................................................................5-38
Steering Wheel ................................................................................................ 5-39
Electric Power Steering (EPS) ....................................................................................5-39
Tilt / Telescopic Steering .......................................................................................... 5-40
Heated Steering Wheel ............................................................................................. 5-40
Horn............................................................................................................................. 5-41
Mirrors ............................................................................................................. 5-42Inside Rearview Mirror ...............................................................................................5-42
Side View Mirrors ....................................................................................................... 5-52
Windows .......................................................................................................... 5-54
Power Windows .......................................................................................................... 5-55
Rear Sliding Window .................................................................................................5-58
Sunroof ............................................................................................................ 5-59Sunshade ....................................................................................................................5-59
Tilt Open/Close.......................................................................................................... 5-60
Slide open/close ........................................................................................................ 5-60
Automatic Reversal ................................................................................................... 5-61
Resetting the sunroof ................................................................................................5-62
Sunroof Open Warning ..............................................................................................5-63
Exterior Features ............................................................................................. 5-64Hood ........................................................................................................................... 5-64
Tailgate ........................................................................................................................5-65
Rear Bumper Steps ................................................................................................... 5-68
Fuel Filler Door .......................................................................................................... 5-68
5. Convenient Features

5

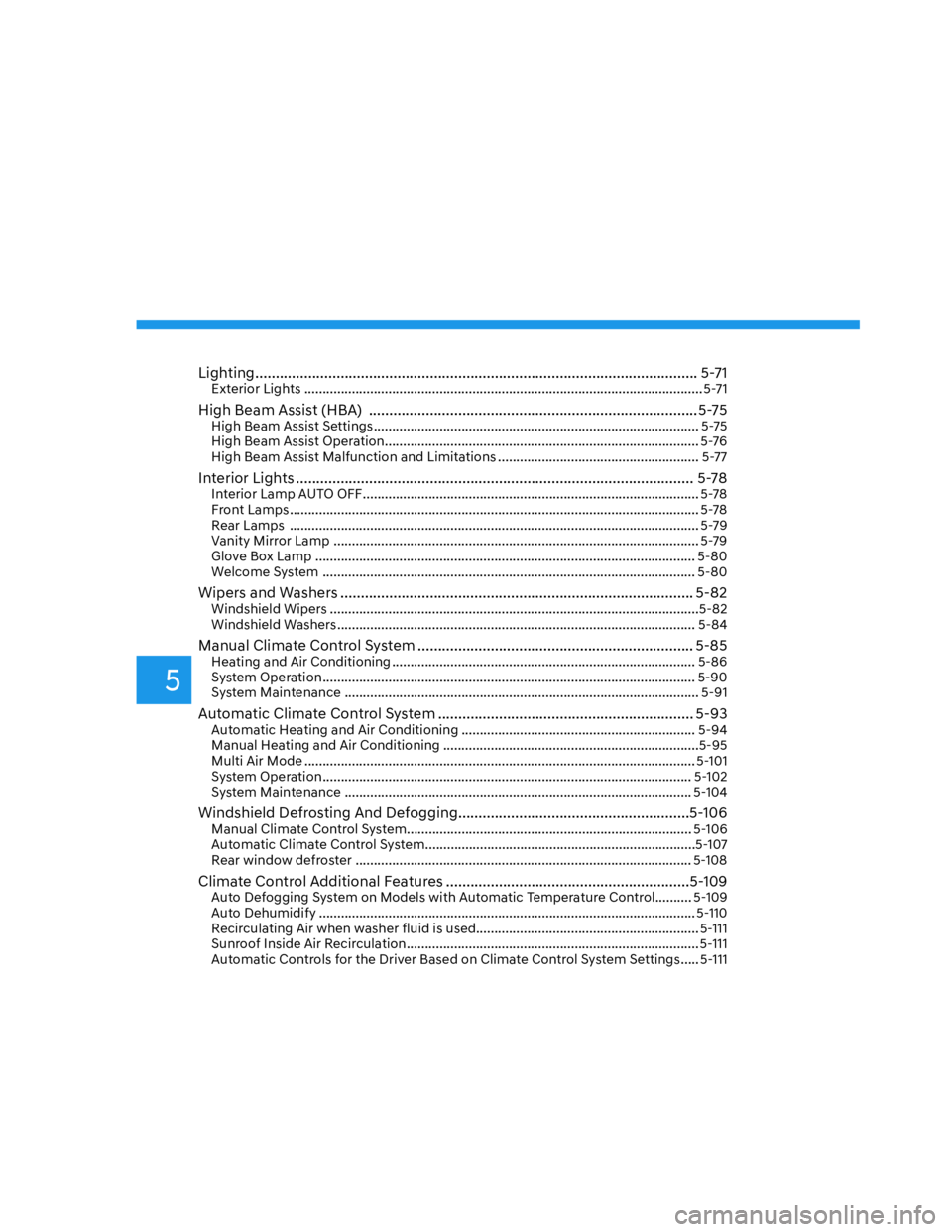

Lighting ............................................................................................................. 5-71Exterior Lights ............................................................................................................. 5-71
High Beam Assist (HBA) .................................................................................5-75High Beam Assist Settings ......................................................................................... 5-75
High Beam Assist Operation ...................................................................................... 5-76
High Beam Assist Malfunction and Limitations ....................................................... 5-77
Interior Lights .................................................................................................. 5-78Interior Lamp AUTO OFF ............................................................................................ 5-78
Front Lamps ................................................................................................................ 5-78
Rear Lamps ................................................................................................................ 5-79
Vanity Mirror Lamp .................................................................................................... 5-79
Glove Box Lamp ........................................................................................................ 5-80
Welcome System ...................................................................................................... 5-80
Wipers and Washers ....................................................................................... 5-82Windshield Wipers .....................................................................................................5-82
Windshield Washers .................................................................................................. 5-84
Manual Climate Control System .................................................................... 5-85Heating and Air Conditioning ................................................................................... 5-86
System Operation ...................................................................................................... 5-90
System Maintenance ................................................................................................. 5-91
Automatic Climate Control System ............................................................... 5-93Automatic Heating and Air Conditioning ................................................................ 5-94
Manual Heating and Air Conditioning ......................................................................5-95
Multi Air Mode ........................................................................................................... 5-101
System Operation ..................................................................................................... 5-102
System Maintenance ............................................................................................... 5-104
Windshield Defrosting And Defogging .........................................................5-106
Manual Climate Control System.............................................................................. 5-106
Automatic Climate Control System..........................................................................5-107
Rear window defroster ............................................................................................ 5-108
Climate Control Additional Features ............................................................5-109Auto Defogging System on Models with Automatic Temperature Control .......... 5-109
Auto Dehumidify ....................................................................................................... 5-110
Recirculating Air when washer fluid is used ............................................................. 5-111
Sunroof Inside Air Recirculation ................................................................................ 5-111
Automatic Controls for the Driver Based on Climate Control System Settings ..... 5-111

5

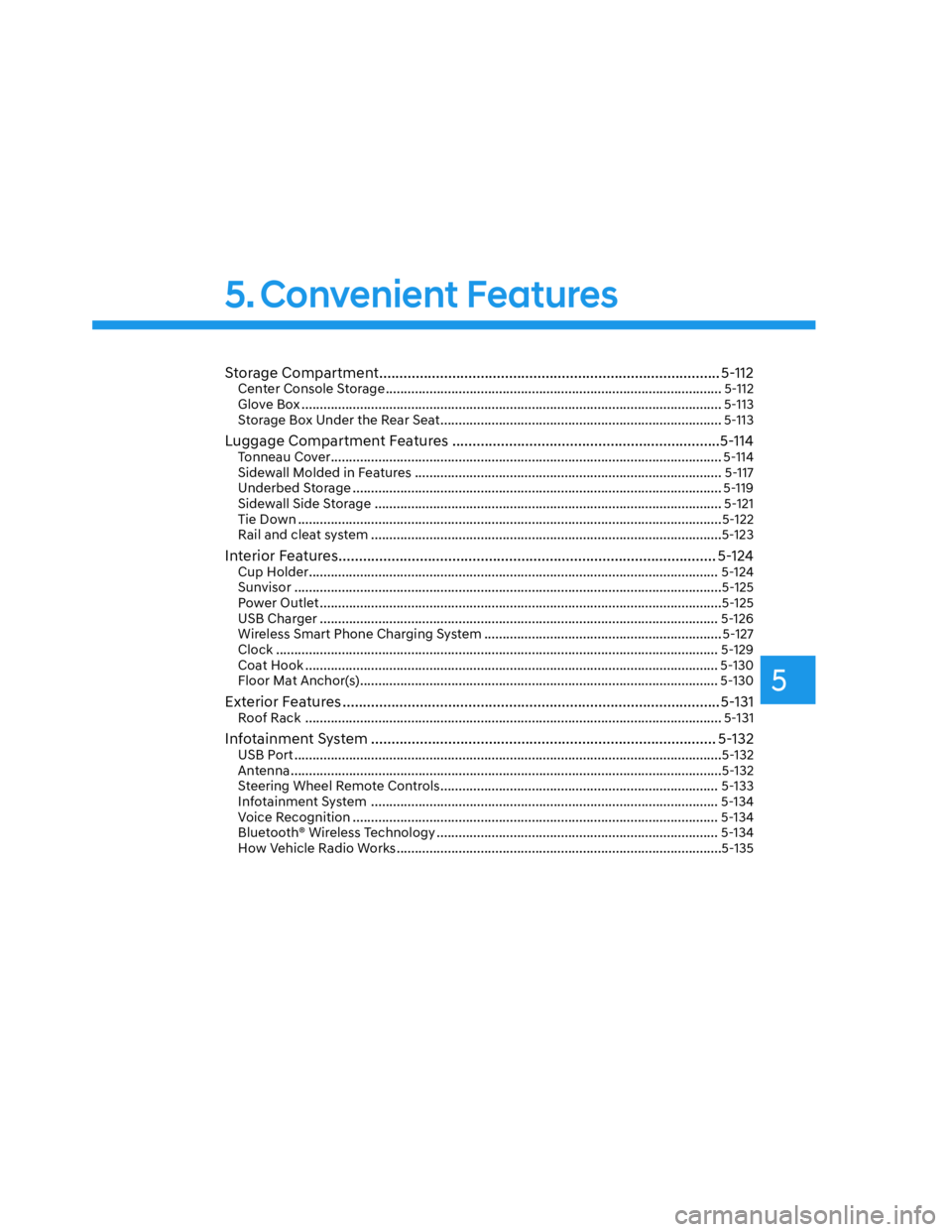

Storage Compartment .................................................................................... 5-112Center Console Storage ............................................................................................ 5-112
Glove Box ................................................................................................................... 5-113
Storage Box Under the Rear Seat ............................................................................. 5-113
Luggage Compartment Features ..................................................................5-114Tonneau Cover ........................................................................................................... 5-114
Sidewall Molded in Features .................................................................................... 5-117
Underbed Storage ..................................................................................................... 5-119
Sidewall Side Storage ............................................................................................... 5-121
Tie Down ....................................................................................................................5-122
Rail and cleat system ................................................................................................5-123
Interior Features ............................................................................................. 5-124Cup Holder ................................................................................................................ 5-124
Sunvisor .....................................................................................................................5-125
Power Outlet ..............................................................................................................5-125
USB Charger ............................................................................................................. 5-126
Wireless Smart Phone Charging System ................................................................. 5-127
Clock .........................................................................................................................5-129
Coat Hook ................................................................................................................. 5-130
Floor Mat Anchor(s) .................................................................................................. 5-130
Exterior Features .............................................................................................5-131Roof Rack .................................................................................................................. 5-131
Infotainment System ..................................................................................... 5-132USB Port .....................................................................................................................5-132
Antenna ......................................................................................................................5-132
Steering Wheel Remote Controls ............................................................................ 5-133
Infotainment System ............................................................................................... 5-134
Voice Recognition .................................................................................................... 5-134
Bluetooth® Wireless Technology ............................................................................. 5-134
How Vehicle Radio Works .........................................................................................5-135
5. Convenient Features

Convenient Features
5-4
Remote Key (if equipped)
ONX4OB051001ONX4OB051001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the tailgate.
1. Door Lock
2. Door Unlock
3. Tailgate Open (if equipped)
4. Panic
Locking
To lock :
1. Close all doors, engine hood and
tailgate.
2. Press the Door Lock button (1) on the
remote key.
3. The doors will lock. The hazard
warning lights will blink.
4. Make sure the doors are locked by
pulling the outside door handle.
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could place the key in the
ignition switch or could operate the
power windows or other vehicle
controls or even cause the vehicle to
move. This could result in serious injury
or death.
Unlocking
To unlock:
1. Press the Door Unlock button (2) on
the remote key.
2. The doors will unlock. The hazard
warning lights will blink two times.
• Two press unlock setting :
If you press the door unlock button
on the remote key again within
four seconds, then all the doors will
unlock. Two press unlock setting can
be changed according to owner’s
preference in the cluster User Settings
mode.
• User settings mode method :
Select or deselect the ‘Two Press
Unlock’ feature in the User Settings
mode on the cluster LCD display (User
6HWWLQJV
