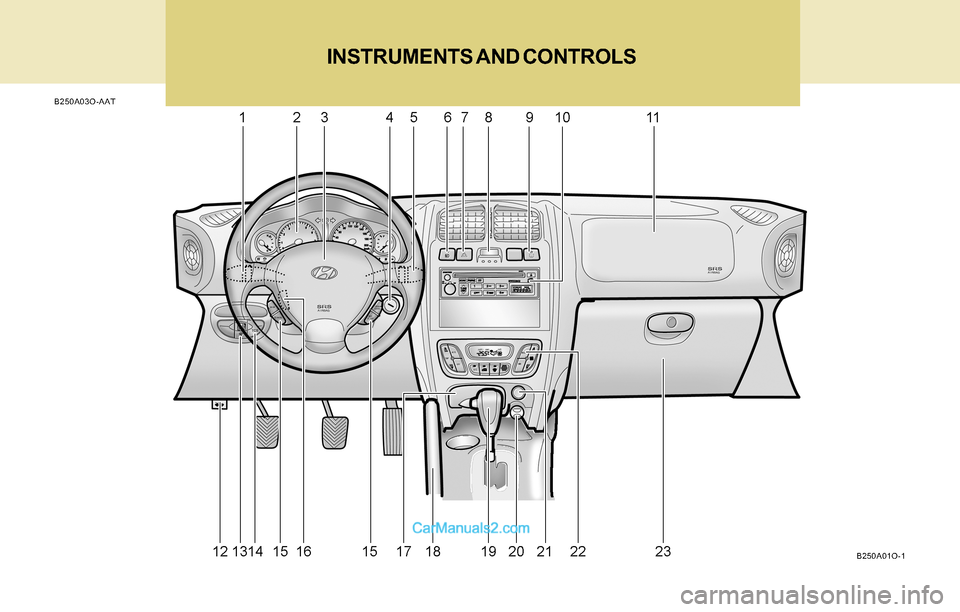

INSTRUMENTS AND CONTROLS
B250A03O-AAT
B250A01O-1

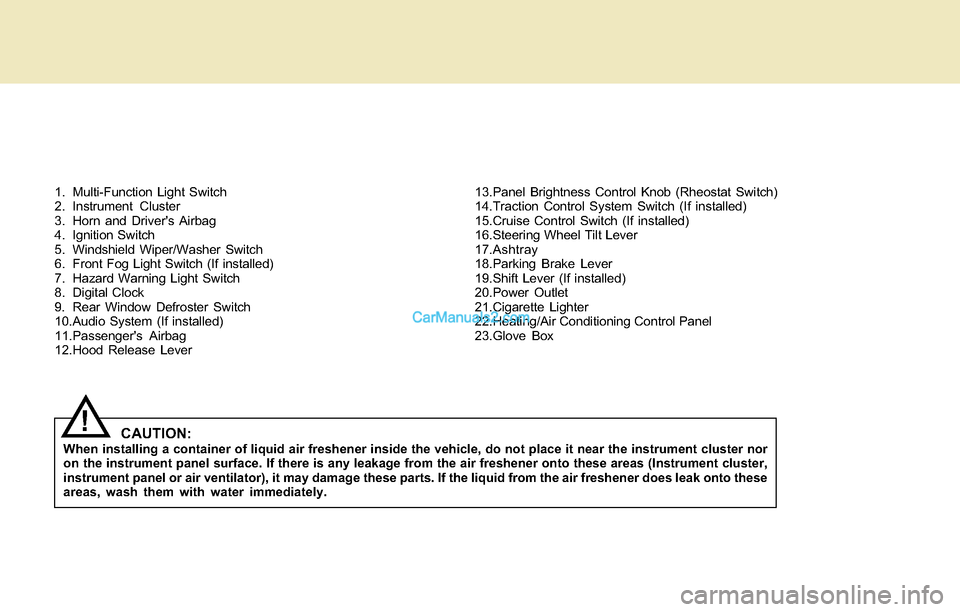

1. Multi-Function Light Switch
2. Instrument Cluster
3. Horn and Driver's Airbag
4. Ignition Switch
5. Windshield Wiper/Washer Switch
6. Front Fog Light Switch (If installed)
7. Hazard Warning Light Switch
8. Digital Clock
9. Rear Window Defroster Switch
10.Audio System (If installed)
11.Passenger's Airbag
12.Hood Release Lever13.Panel Brightness Control Knob (Rheostat Switch)
14.Traction Control System Switch (If installed)
15.Cruise Control Switch (If installed)
16.Steering Wheel Tilt Lever
17.Ashtray
18.Parking Brake Lever
19.Shift Lever (If installed)
20.Power Outlet
21.Cigarette Lighter
22.Heating/Air Conditioning Control Panel
23.Glove Box
CAUTION:When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor
on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster,
instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these
areas, wash them with water immediately.
!

YOUR VEHICLE AT A GLANCE
B255A03O-AAT

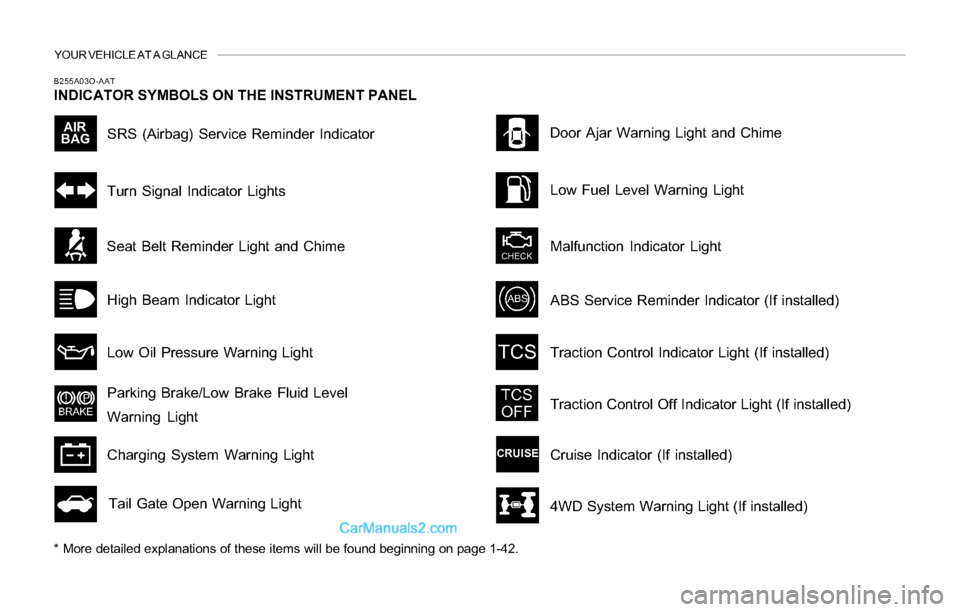

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* More detailed explanations of these items will be found beginning on page 1-42.
SRS (Airbag) Service Reminder Indicator
Turn Signal Indicator Lights
High Beam Indicator Light
Low Oil Pressure Warning Light
Parking Brake/Low Brake Fluid Level
Warning Light
Charging System Warning Light
Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light
Malfunction Indicator Light Seat Belt Reminder Light and Chime
Traction Control Indicator Light (If installed)
Cruise Indicator (If installed)
ABS Service Reminder Indicator (If installed)
4WD System Warning Light (If installed)
Traction Control Off Indicator Light (If installed)

1

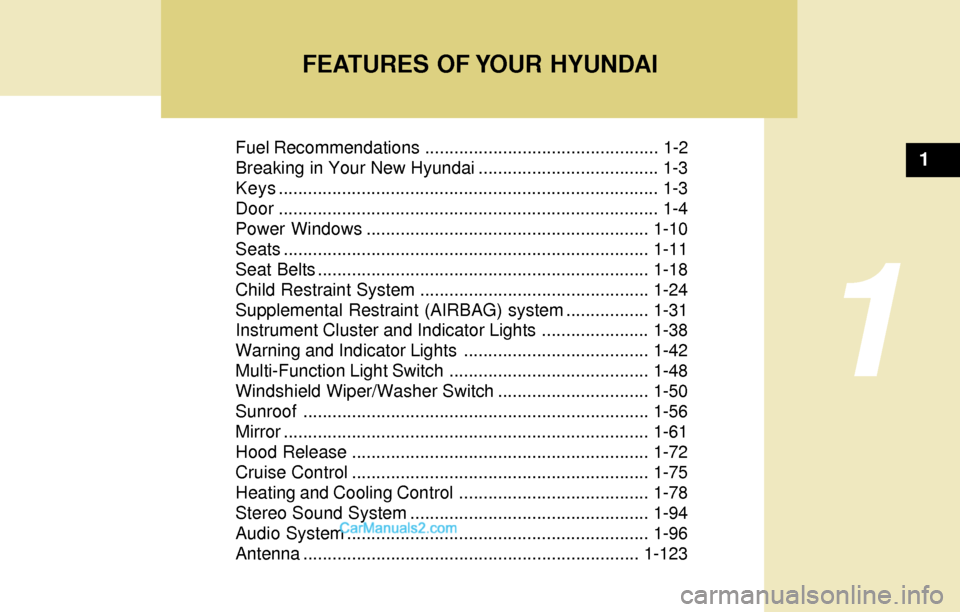

Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys.............................................................................. 1-3
Door.............................................................................. 1-4
Power Windows..........................................................1-10
Seats...........................................................................1-11
Seat Belts....................................................................1-18
Child Restraint System...............................................1-24
Supplemental Restraint (AIRBAG) system .................1-31
Instrument Cluster and Indicator Lights ...................... 1-38
Warning and Indicator Lights ......................................1-42
Multi-Function Light Switch.........................................1-48
Windshield Wiper/Washer Switch...............................1-50
Sunroof.......................................................................1-56
Mirror...........................................................................1-61
Hood Release.............................................................1-72
Cruise Control.............................................................1-75
Heating and Cooling Control .......................................1-78
Stereo Sound System.................................................1-94
Audio System..............................................................1-96
Antenna.....................................................................1-1231
FEATURES OF YOUR HYUNDAI

1FEATURES OF YOUR HYUNDAI

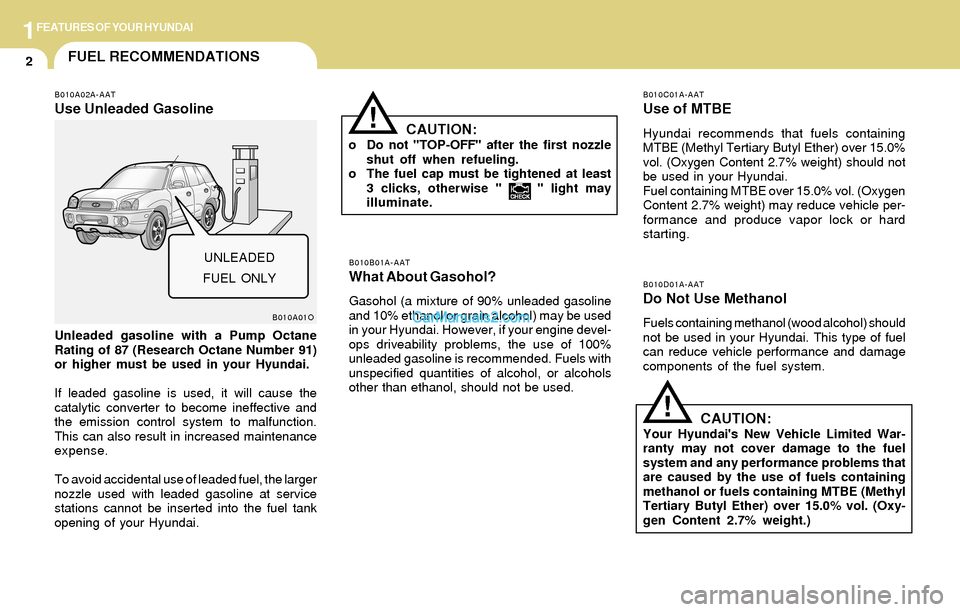

2FUEL RECOMMENDATIONS
CAUTION:Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems that
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol. (Oxy-
gen Content 2.7% weight.)
B010B01A-AATWhat About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100%
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010A02A-AAT
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number 91)
or higher must be used in your Hyundai.
If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction.
This can also result in increased maintenance
expense.
To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.
CAUTION:o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least
3 clicks, otherwise " " light may
illuminate.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard
starting.
B010D01A-AATDo Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.
!
B010A01O
UNLEADED
FUEL ONLY
!

1FEATURES OF YOUR HYUNDAI
3KEYSBREAKING IN YOUR NEW HYUNDAI
B010F01A-AAT
Operation in Foreign Countries
If you are going to drive your Hyundai in another
country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
B010E01A-AAT

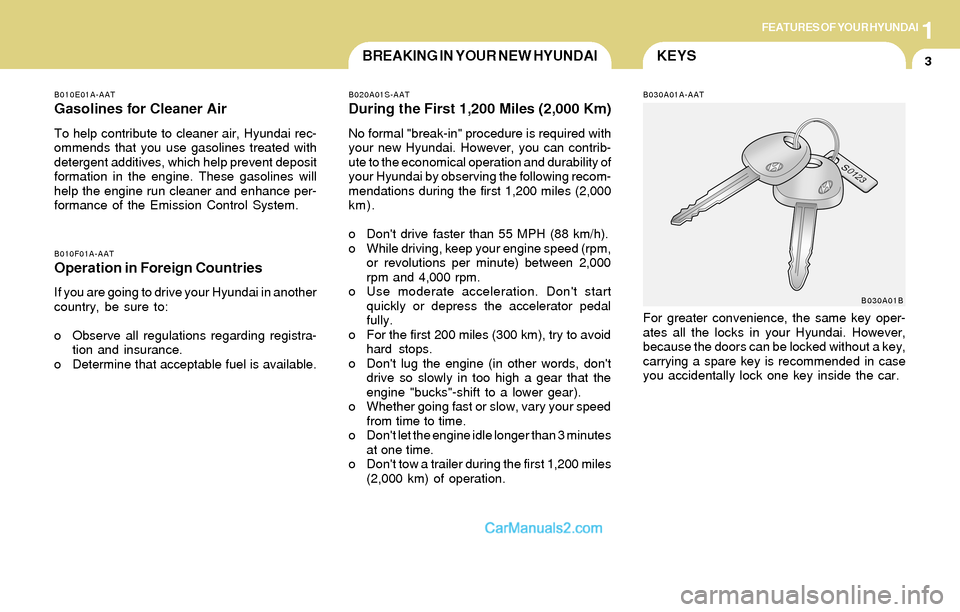

Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance per-
formance of the Emission Control System.
B020A01S-AAT
During the First 1,200 Miles (2,000 Km)
No formal "break-in" procedure is required with
your new Hyundai. However, you can contrib-
ute to the economical operation and durability of
your Hyundai by observing the following recom-
mendations during the first 1,200 miles (2,000
km).
o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000
rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator pedal
fully.
o For the first 200 miles (300 km), try to avoid
hard stops.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 minutes
at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
B030A01A-AAT
B030A01B
For greater convenience, the same key oper-
ates all the locks in your Hyundai. However,
because the doors can be locked without a key,
carrying a spare key is recommended in case
you accidentally lock one key inside the car.

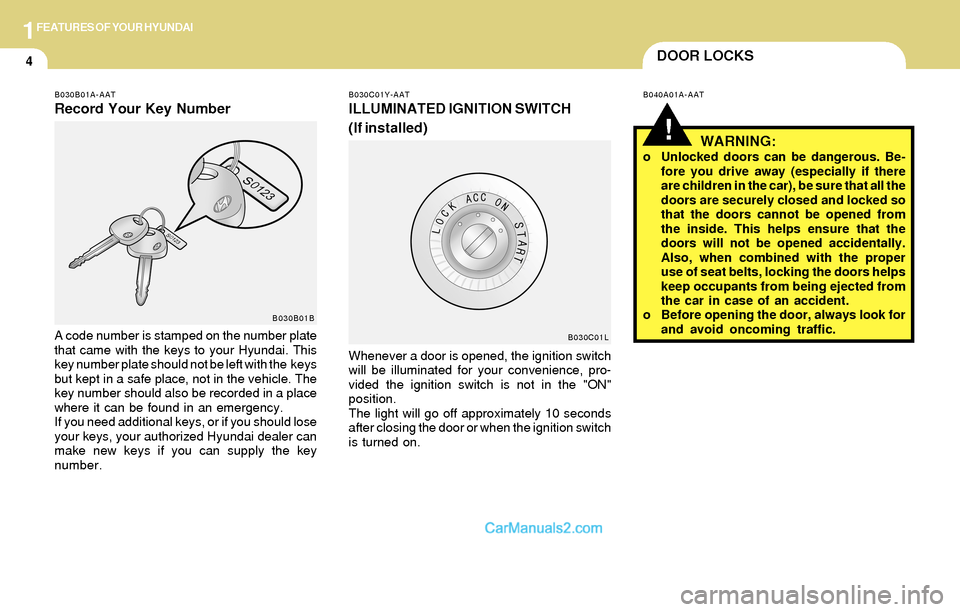

1FEATURES OF YOUR HYUNDAI
4DOOR LOCKS
!
B040A01A-AATB030C01Y-AAT
ILLUMINATED IGNITION SWITCH
(If installed)
Whenever a door is opened, the ignition switch
will be illuminated for your convenience, pro-
vided the ignition switch is not in the "ON"
position.
The light will go off approximately 10 seconds
after closing the door or when the ignition switch
is turned on.
B030C01L
WARNING:o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from
the inside. This helps ensure that the
doors will not be opened accidentally.
Also, when combined with the proper
use of seat belts, locking the doors helps
keep occupants from being ejected from
the car in case of an accident.
o Before opening the door, always look for
and avoid oncoming traffic.
B030B01A-AAT
Record Your Key Number
A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the keys
but kept in a safe place, not in the vehicle. The
key number should also be recorded in a place
where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.
B030B01B

1FEATURES OF YOUR HYUNDAI
5

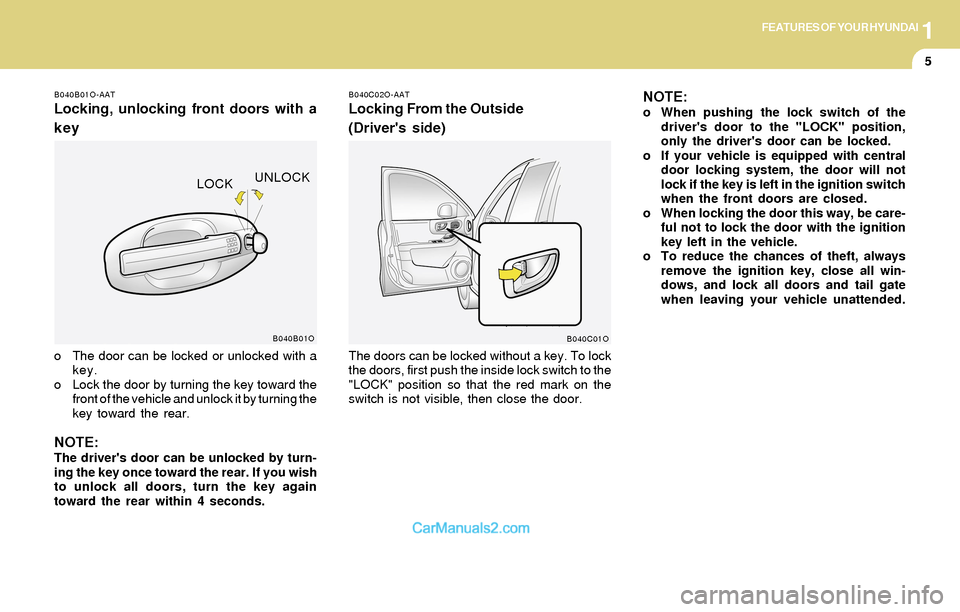

B040B01O-AAT
Locking, unlocking front doors with a
key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the
key toward the rear.
NOTE:The driver's door can be unlocked by turn-
ing the key once toward the rear. If you wish
to unlock all doors, turn the key again
toward the rear within 4 seconds.
B040B01O
LOCKUNLOCK
B040C02O-AAT
Locking From the Outside
(Driver's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.
NOTE:o When pushing the lock switch of the
driver's door to the "LOCK" position,
only the driver's door can be locked.
o If your vehicle is equipped with central
door locking system, the door will not
lock if the key is left in the ignition switch
when the front doors are closed.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To reduce the chances of theft, always
remove the ignition key, close all win-
dows, and lock all doors and tail gate
when leaving your vehicle unattended.
B040C01O

1FEATURES OF YOUR HYUNDAI
6

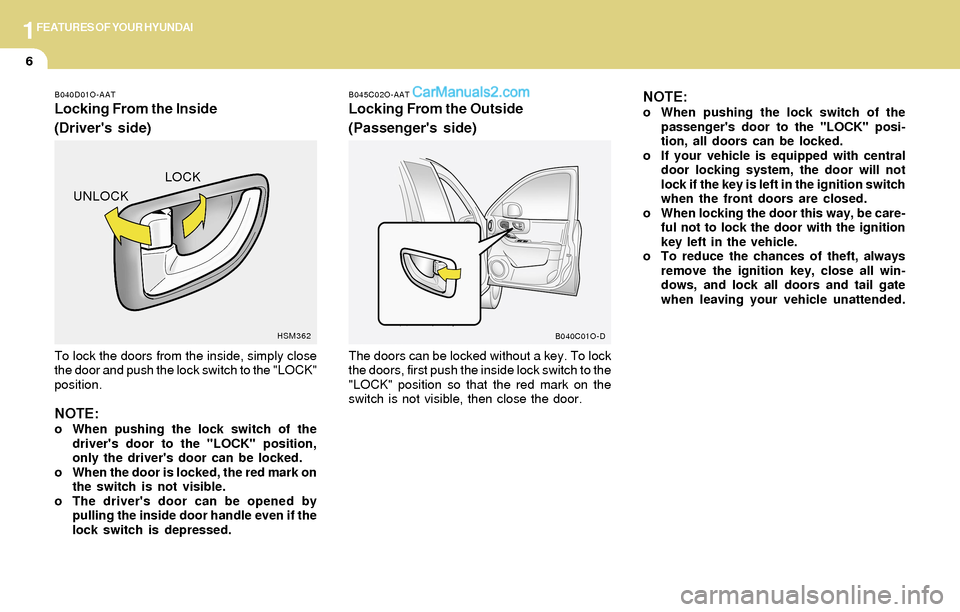

The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.
B045C02O-AAT
Locking From the Outside
(Passenger's side)
B040C01O-D
B040D01O-AAT
Locking From the Inside
(Driver's side)
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position.
NOTE:o When pushing the lock switch of the
driver's door to the "LOCK" position,
only the driver's door can be locked.
o When the door is locked, the red mark on
the switch is not visible.
o The driver's door can be opened by
pulling the inside door handle even if the
lock switch is depressed.
HSM362
UNLOCKLOCK
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" posi-
tion, all doors can be locked.
o If your vehicle is equipped with central
door locking system, the door will not
lock if the key is left in the ignition switch
when the front doors are closed.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To reduce the chances of theft, always
remove the ignition key, close all win-
dows, and lock all doors and tail gate
when leaving your vehicle unattended.

1FEATURES OF YOUR HYUNDAI
7

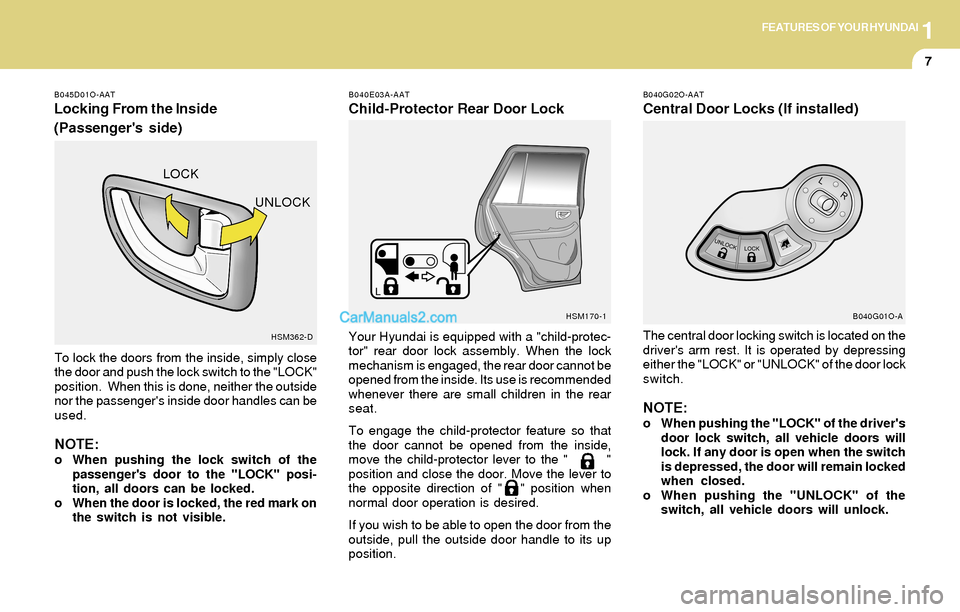

B040E03A-AAT
Child-Protector Rear Door Lock
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recommended
whenever there are small children in the rear
seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " "
position and close the door. Move the lever to
the opposite direction of " " position when
normal door operation is desired.
If you wish to be able to open the door from the
outside, pull the outside door handle to its up
position.
B045D01O-AAT
Locking From the Inside
(Passenger's side)
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the passenger's inside door handles can be
used.
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" posi-
tion, all doors can be locked.
o When the door is locked, the red mark on
the switch is not visible.
HSM362-DHSM170-1
LOCK
UNLOCK
B040G02O-AAT
Central Door Locks (If installed)
The central door locking switch is located on the
driver's arm rest. It is operated by depressing
either the "LOCK" or "UNLOCK" of the door lock
switch.
NOTE:o When pushing the "LOCK" of the driver's
door lock switch, all vehicle doors will
lock. If any door is open when the switch
is depressed, the door will remain locked
when closed.
o When pushing the "UNLOCK" of the
switch, all vehicle doors will unlock.
B040G01O-A
