Hyundai Santa Fe 2004 Owner's Manual

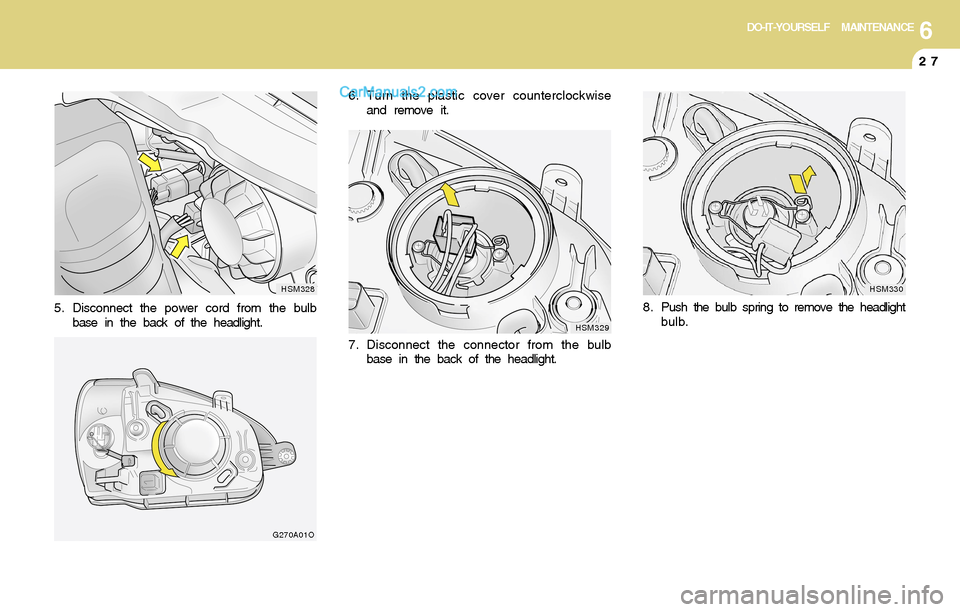

6DO-IT-YOURSELF MAINTENANCE
27
G270A01O
6. Turn the plastic cover counterclockwise
and remove it.
5. Disconnect the power cord from the bulb
base in the back of the headlight.
HSM328
HSM329
7. Disconnect the connector from the bulb
base in the back of the headlight.
HSM330
8 . Push the bulb spring to remove the headlight
bulb.

6DO-IT-YOURSELF MAINTENANCE
28

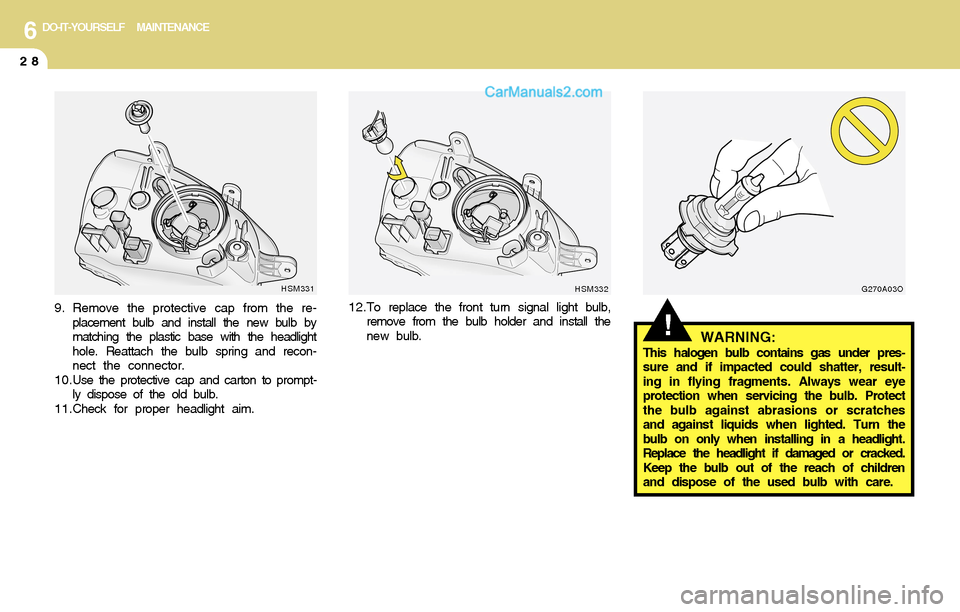

!WARNING:This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
G270A03O
12.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb.
HSM332
9. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
1 0 .Use the protective cap and carton to prompt-
ly dispose of the old bulb.
11.Check for proper headlight aim.
HSM331

6DO-IT-YOURSELF MAINTENANCE
29

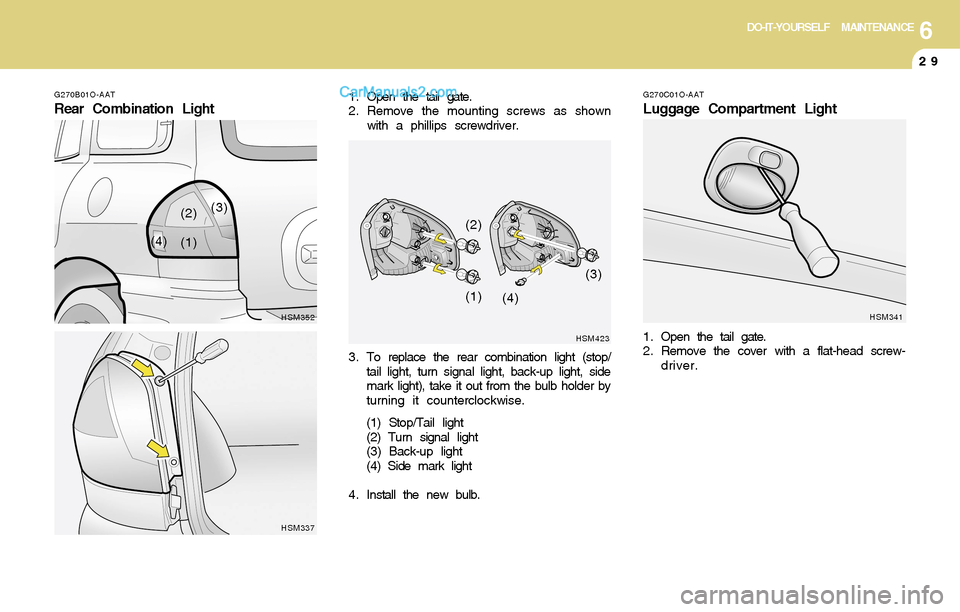

HSM337 G270B01O-AAT
Rear Combination Light1 . Open the tail gate.
2. Remove the mounting screws as shown
with a phillips screwdriver.
HSM352
(1) (2)(3)
(4)
HSM423
3 . To replace the rear combination light (stop/
tail light, turn signal light, back-up light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Turn signal light
(3) Back-up light
(4) Side mark light
4 . Install the new bulb.
G270C01O-AAT
Luggage Compartment Light
1 . Open the tail gate.
2. Remove the cover with a flat-head screw-
driver.
HSM341
(1) (2)
(3)
(4)

6DO-IT-YOURSELF MAINTENANCE
30

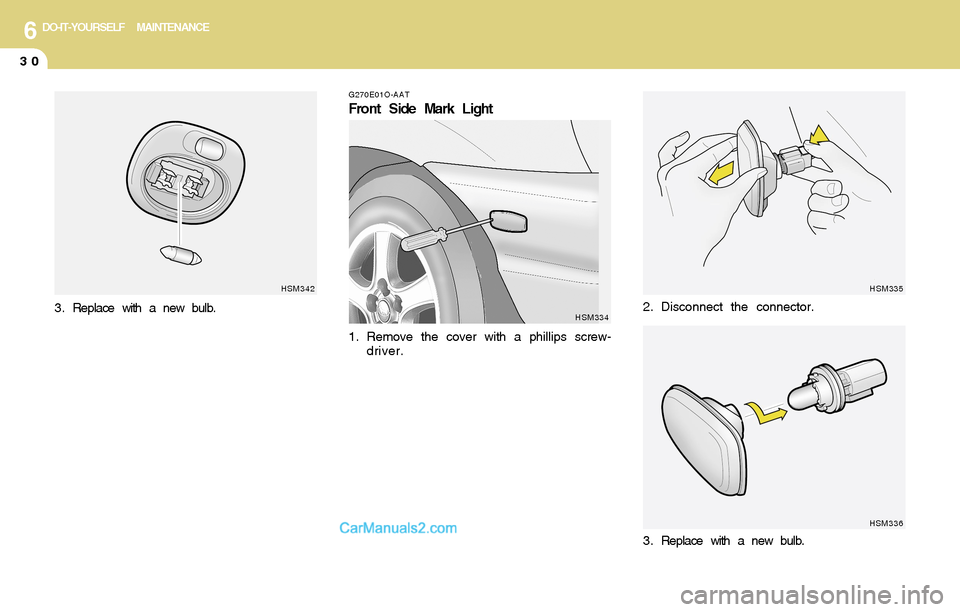

G270E01O-AAT
Front Side Mark Light
1. Remove the cover with a phillips screw-
driver.
HSM334HSM335
HSM3362. Disconnect the connector.
3 . Replace with a new bulb.
HSM342
3 . Replace with a new bulb.

6DO-IT-YOURSELF MAINTENANCE
31

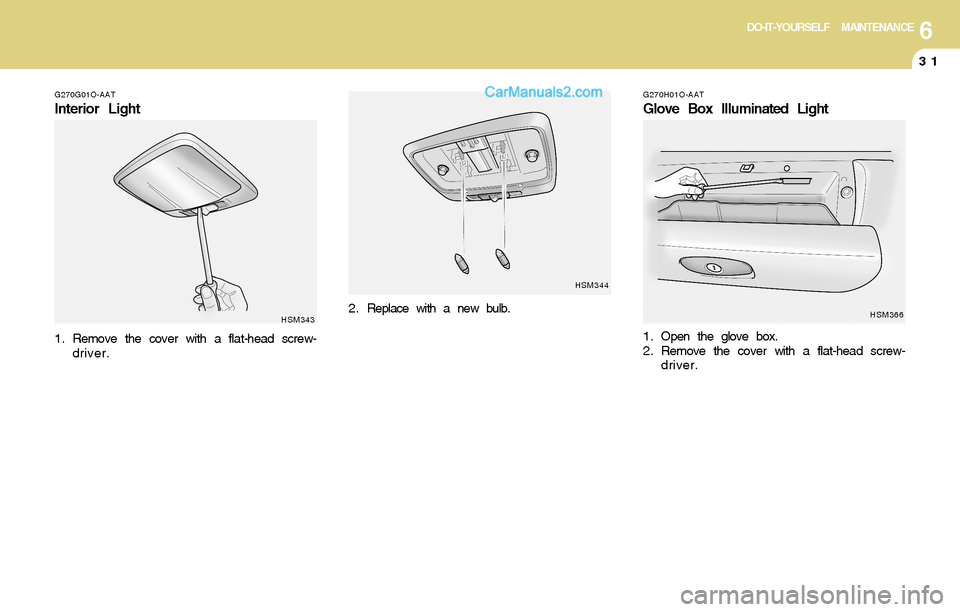

G270G01O-AAT
Interior Light
HSM343
1. Remove the cover with a flat-head screw-
driver.
HSM344
2 . Replace with a new bulb.
G270H01O-AAT
Glove Box Illuminated Light
1 . Open the glove box.
2. Remove the cover with a flat-head screw-
driver.
HSM366

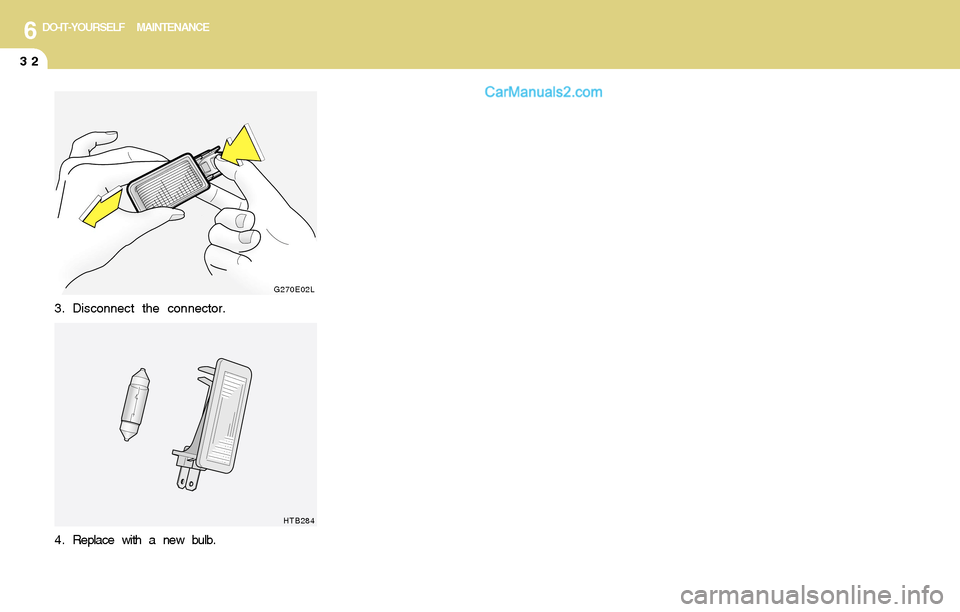

6DO-IT-YOURSELF MAINTENANCE
32
G270E02L
HTB284
3. Disconnect the connector.
4 . Replace with a new bulb.

6DO-IT-YOURSELF MAINTENANCE

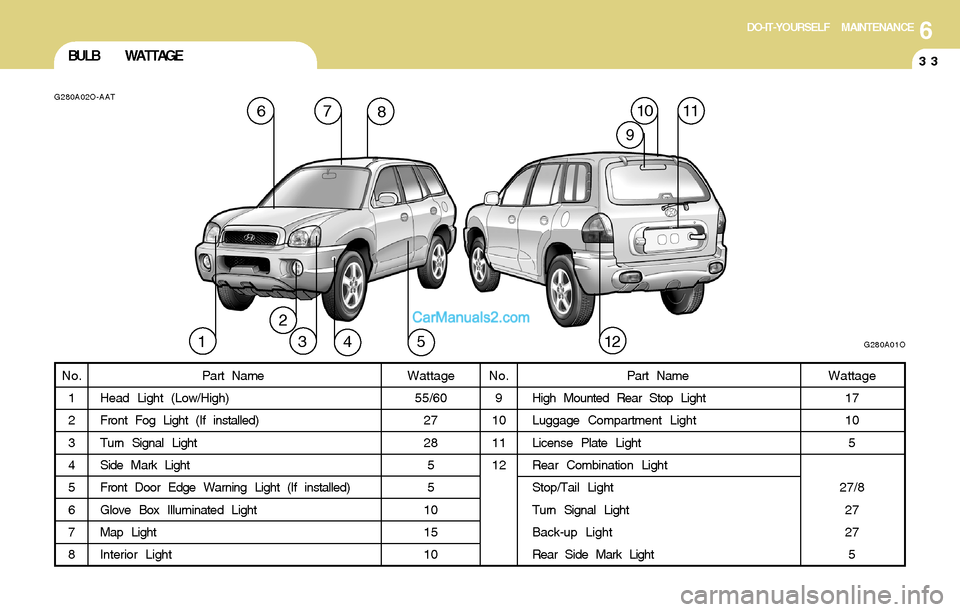

33BULB WATTAGE
G280A02O-AAT
No.
1
2
3
4
5
6
7
8Part Name
Head Light (Low/High)
Front Fog Light (If installed)
Turn Signal Light
Side Mark Light
Front Door Edge Warning Light (If installed)
Glove Box Illuminated Light
Map Light
Interior LightWattage
55/60
27
28
5
5
10
15
10No.
9
10
11
12Wattage
17
10
5
27/8
27
27
5 Part Name
High Mounted Rear Stop Light
Luggage Compartment Light
License Plate Light
Rear Combination Light
Stop/Tail Light
Turn Signal Light
Back-up Light
Rear Side Mark Light
12
34 67
8
910
12G280A01O
11
5

6DO-IT-YOURSELF MAINTENANCE

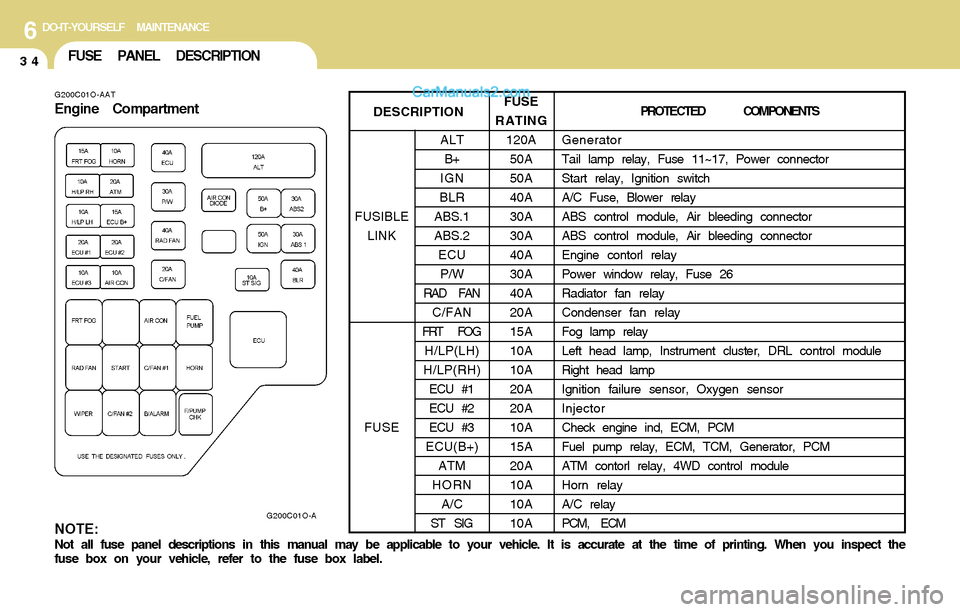

34FUSE PANEL DESCRIPTION
G200C01O-AAT
Engine Compartment
G200C01O-ANOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.FUSE
RATING
120A
50A
50A
40A
30A
30A
40A
30A
40A
20A
15A
10A
10A
20A
20A
10A
15A
20A
10A
10A
10APROTECTED COMPONENTS
Generator
Tail lamp relay, Fuse 11~17, Power connector
Start relay, Ignition switch
A/C Fuse, Blower relay
ABS control module, Air bleeding connector
ABS control module, Air bleeding connector
Engine contorl relay
Power window relay, Fuse 26
Radiator fan relay
Condenser fan relay
Fog lamp relay
Left head lamp, Instrument cluster, DRL control module
Right head lamp
Ignition failure sensor, Oxygen sensor
Injector
Check engine ind, ECM, PCM
Fuel pump relay, ECM, TCM, Generator, PCM
ATM contorl relay, 4WD control module
Horn relay
A/C relay
PCM, ECM
ALT
B+
IGN
BLR
ABS.1
ABS.2
ECU
P/W
RAD FAN
C/FAN
FRT FOG
H/LP(LH)
H/LP(RH)
ECU #1
ECU #2
ECU #3
ECU(B+)
ATM
HORN
A/C
ST SIG FUSIBLE
LINK
FUSE
DESCRIPTION

6DO-IT-YOURSELF MAINTENANCE
35

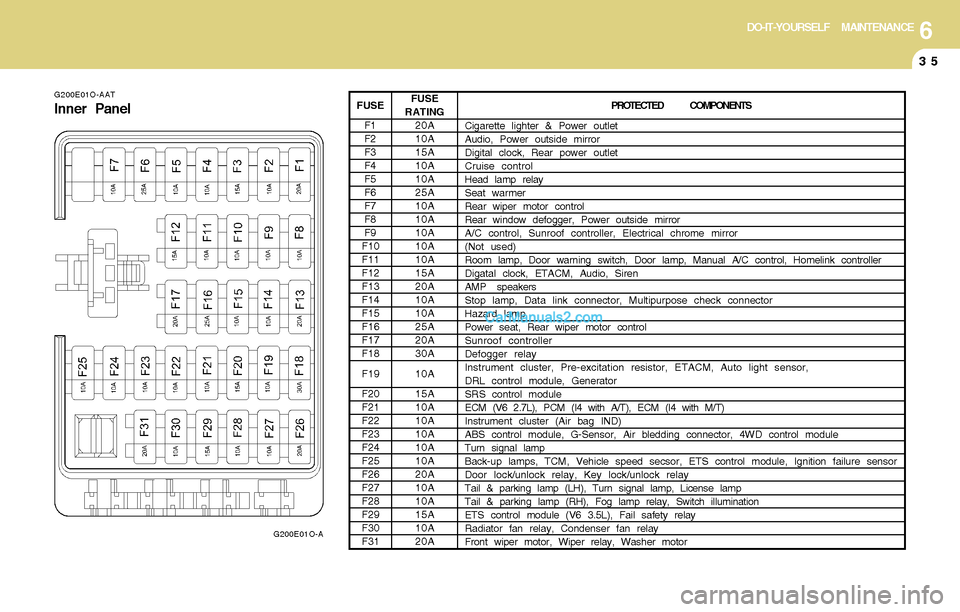

G200E01O-AAT
Inner Panel
G200E01O-A
PROTECTED COMPONENTS
Cigarette lighter & Power outlet
Audio, Power outside mirror
Digital clock, Rear power outlet
Cruise control
Head lamp relay
Seat warmer
Rear wiper motor control
Rear window defogger, Power outside mirror
A/C control, Sunroof controller, Electrical chrome mirror
(Not used)
Room lamp, Door warning switch, Door lamp, Manual A/C control, Homelink controller
Digatal clock, ETACM, Audio, Siren
AMP speakers
Stop lamp, Data link connector, Multipurpose check connector
Hazard lamp
Power seat, Rear wiper motor control
Sunroof controller
Defogger relay
Instrument cluster, Pre-excitation resistor, ETACM, Auto light sensor,
DRL control module, Generator
SRS control module
ECM (V6 2.7L), PCM (I4 with A/T), ECM (I4 with M/T)
Instrument cluster (Air bag IND)
ABS control module, G-Sensor, Air bledding connector, 4WD control module
Turn signal lamp
Back-up lamps, TCM, Vehicle speed secsor, ETS control module, Ignition failure sensor
Door lock/unlock relay, Key lock/unlock relay
Tail & parking lamp (LH), Turn signal lamp, License lamp
Tail & parking lamp (RH), Fog lamp relay, Switch illumination
ETS control module (V6 3.5L), Fail safety relay
Radiator fan relay, Condenser fan relay
Front wiper motor, Wiper relay, Washer motorFUSE
RATING
20A
10A
15A
10A
10A
25A
10A
10A
10A
10A
10A
15A
20A
10A
10A
25A
20A
30A
10A
15A
10A
10A
10A
10A
10A
20A
10A
10A
15A
10A
20A FUSE
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
F31

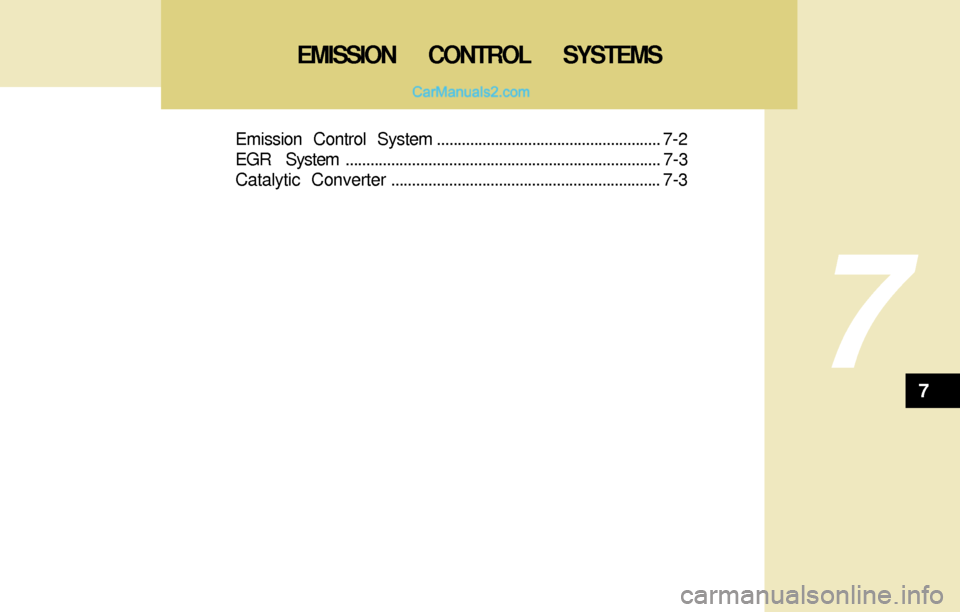

7
