Page 121 of 277

Hyundai Santa Fe 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
110
!

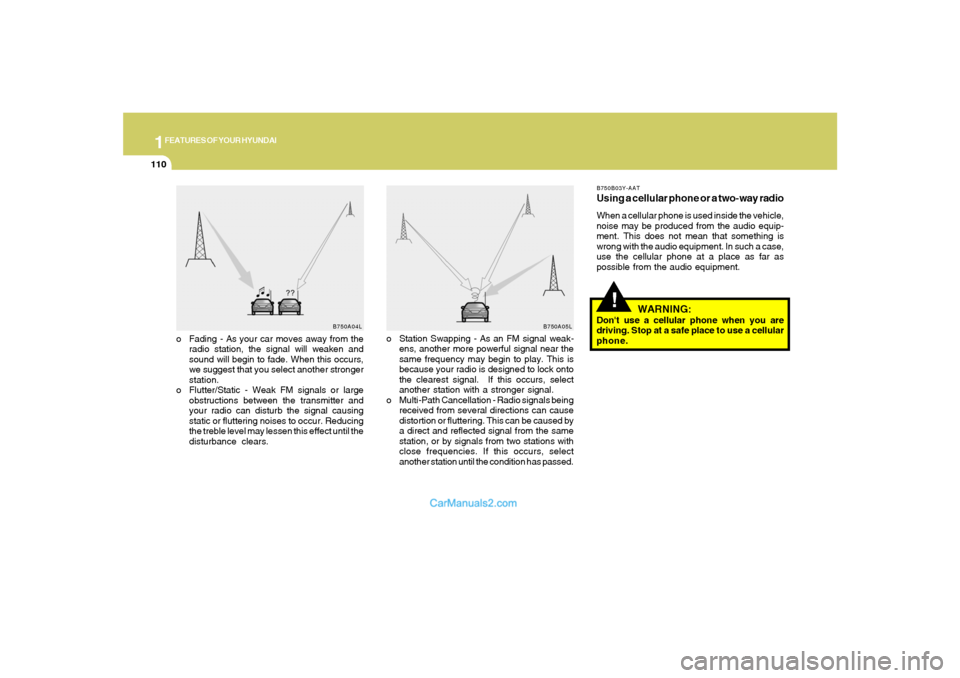

o Fading - As your car moves away from the
radio station, the signal will weaken and
sound will begin to fade. When this occurs,
we suggest that you select another stro

Page 122 of 277

Hyundai Santa Fe 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
111

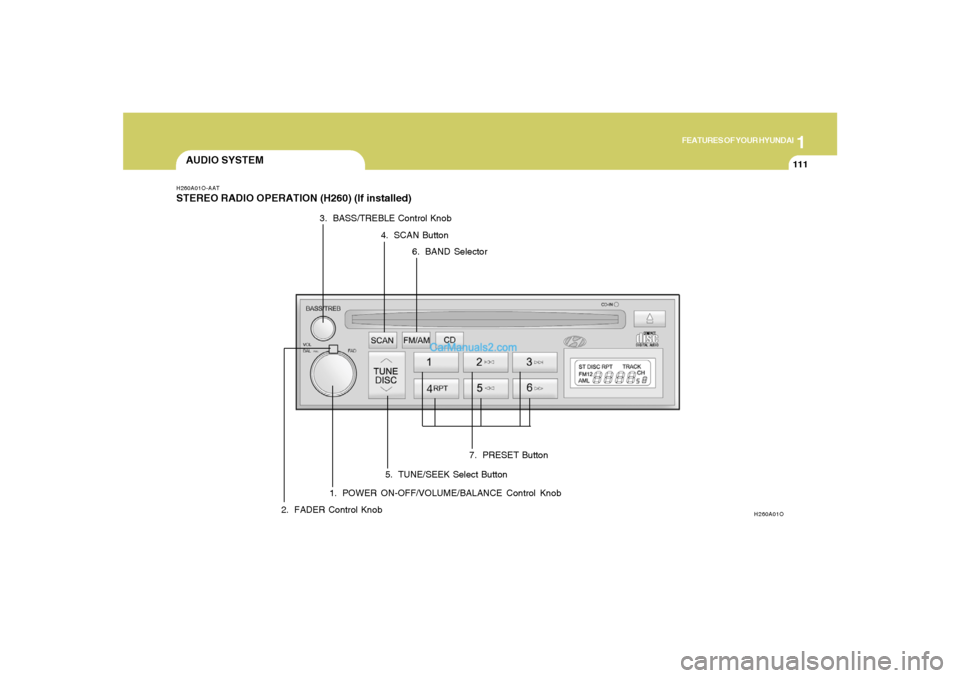

AUDIO SYSTEMH260A01O-AATSTEREO RADIO OPERATION (H260) (If installed)
1. POWER ON-OFF/VOLUME/BALANCE Control Knob
H260A01O
2. FADER Control Knob3. BASS/TREBLE Control Kno

Page 123 of 277

Hyundai Santa Fe 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
112

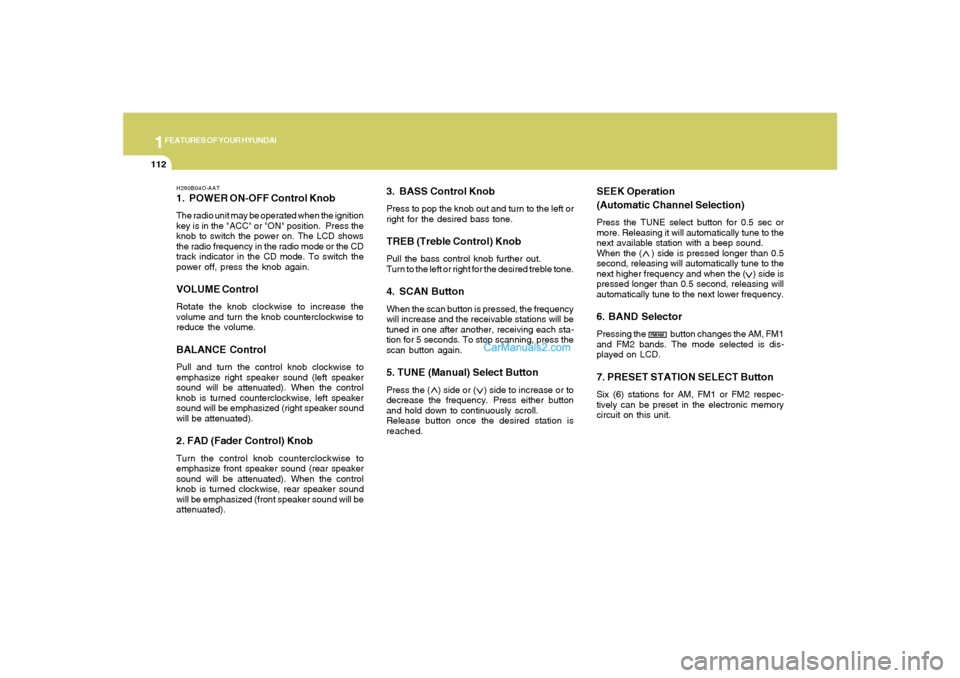

H260B04O-AAT1. POWER ON-OFF Control KnobThe radio unit may be operated when the ignition
key is in the "ACC" or "ON" position.  Press the
knob to switch the power on. The

Page 124 of 277

Hyundai Santa Fe 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
113

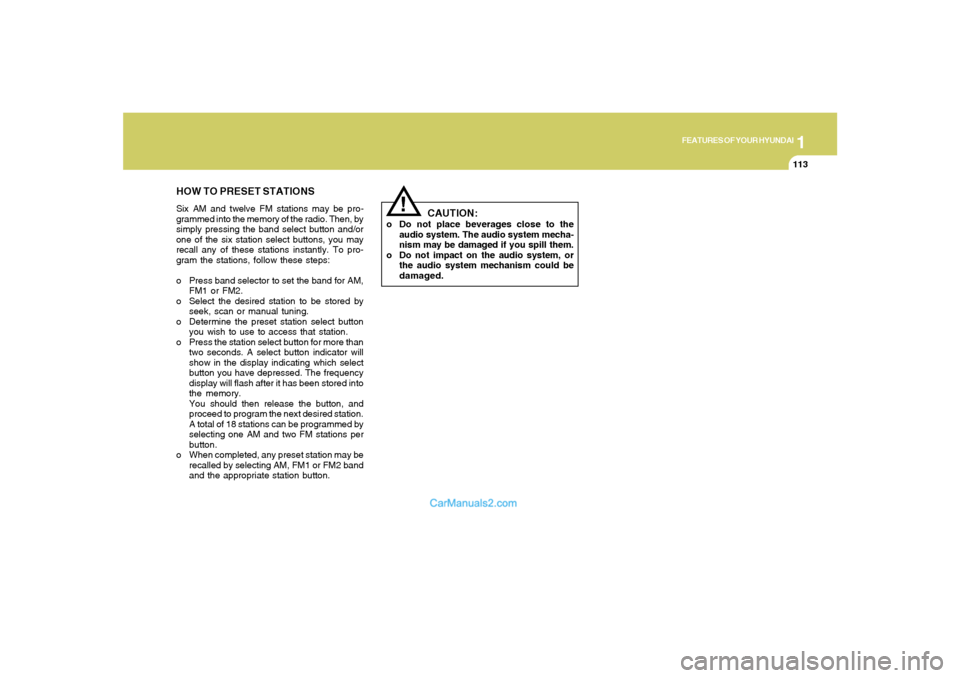

HOW TO PRESET STATIONSSix AM and twelve FM stations may be pro-
grammed into the memory of the radio. Then, by
simply pressing the band select button and/or
one of the s

Page 125 of 277

Hyundai Santa Fe 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
114

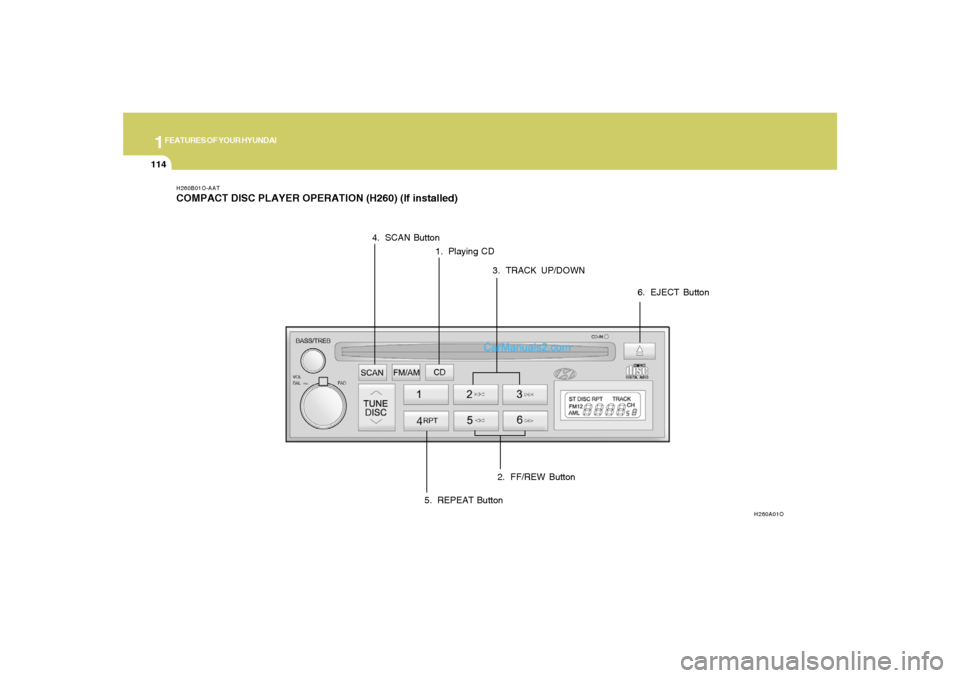

H260B01O-AATCOMPACT DISC PLAYER OPERATION (H260) (If installed)
1. Playing CD
H260A01O
2. FF/REW Button 3. TRACK UP/DOWN 4. SCAN Button
5. REPEAT Button6. EJECT Button

Page 126 of 277

Hyundai Santa Fe 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
115

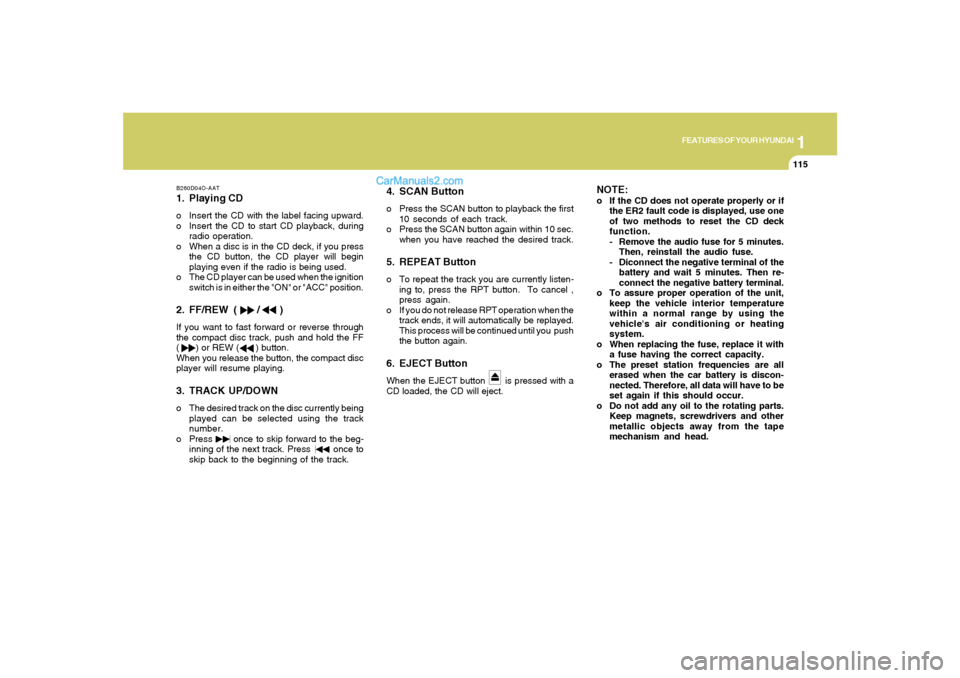

B260D04O-AAT1. Playing CDo Insert the CD with the label facing upward.
o Insert the CD to start CD playback, during
radio operation.
o When a disc is in the CD deck, if

Page 127 of 277

Hyundai Santa Fe 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
116

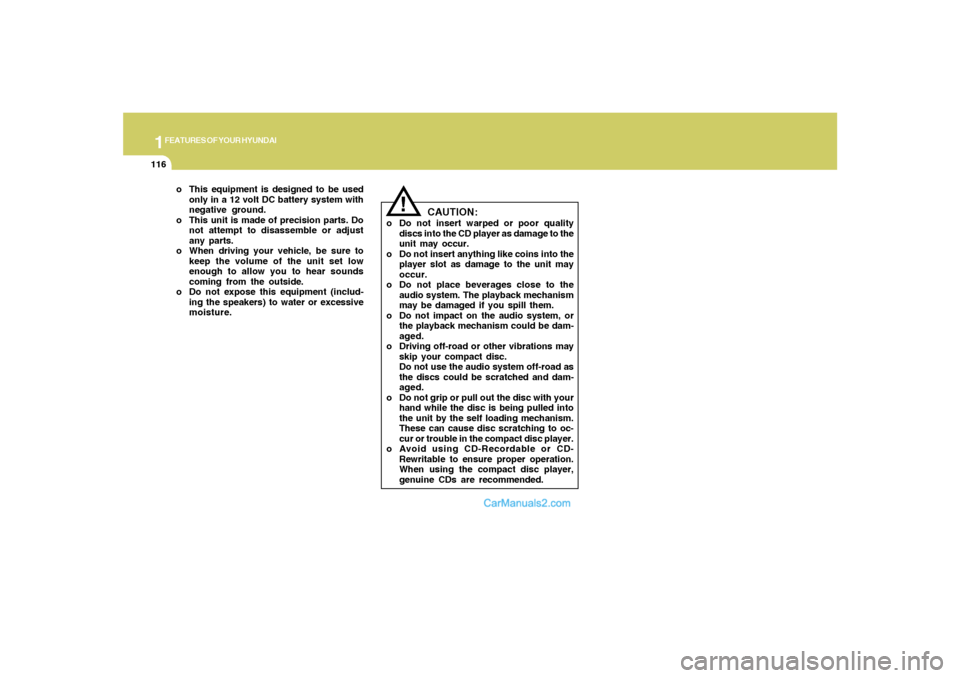

o This equipment is designed to be used
only in a 12 volt DC battery system with
negative ground.
o This unit is made of precision parts. Do
not attempt to disassemble or

Page 128 of 277

Hyundai Santa Fe 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
117

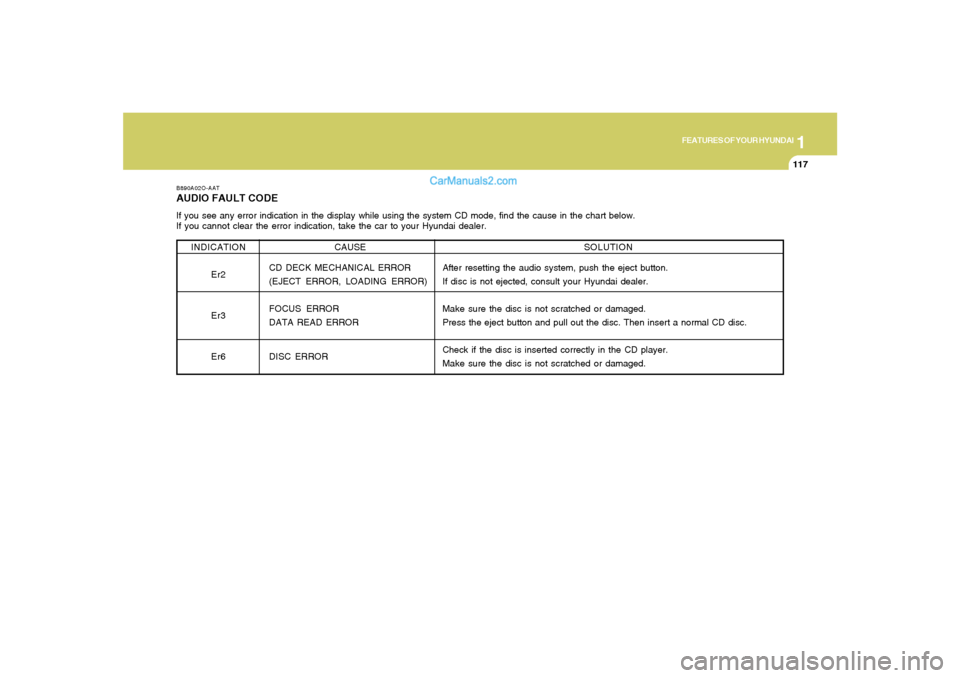

B890A02O-AATAUDIO FAULT CODEIf you see any error indication in the display while using the system CD mode, find the cause in the chart below.
If you cannot clear the err

Page 129 of 277

Hyundai Santa Fe 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI
118

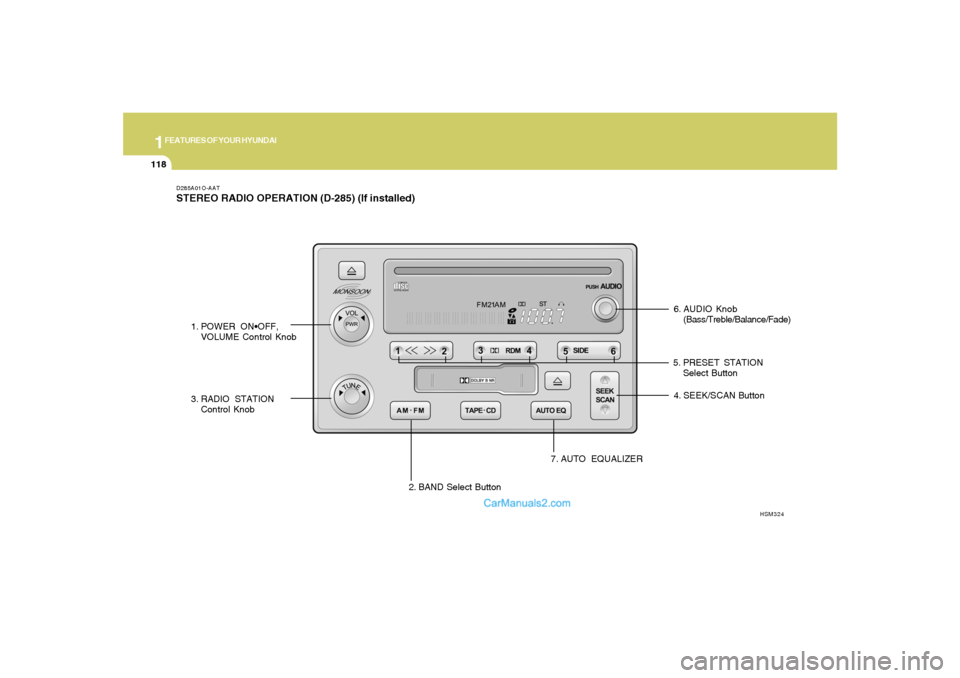

D285A01O-AATSTEREO RADIO OPERATION (D-285) (If installed)
6. AUDIO Knob
(Bass/Treble/Balance/Fade)
1. POWER ON
VOLUME Control Knob
2. BAND Select Button 3. RADIO STATION

Page 130 of 277

Hyundai Santa Fe 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
119

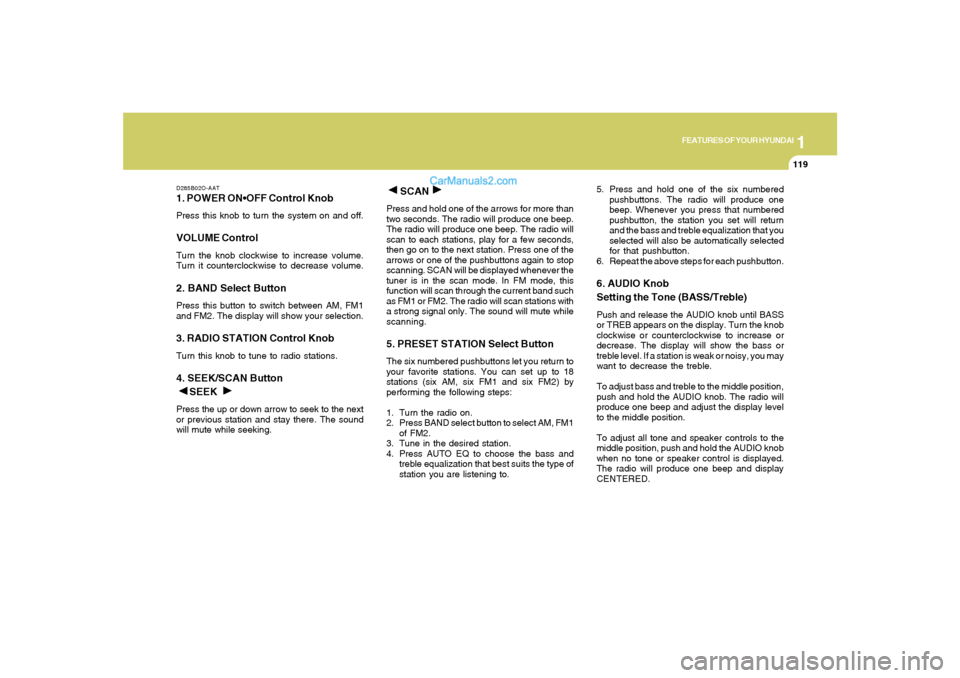

D285B02O-AAT1. POWER ONPress this knob to turn the system on and off.VOLUME ControlTurn the knob clockwise to increase volume.
Turn it counterclockwise to decrease volum
