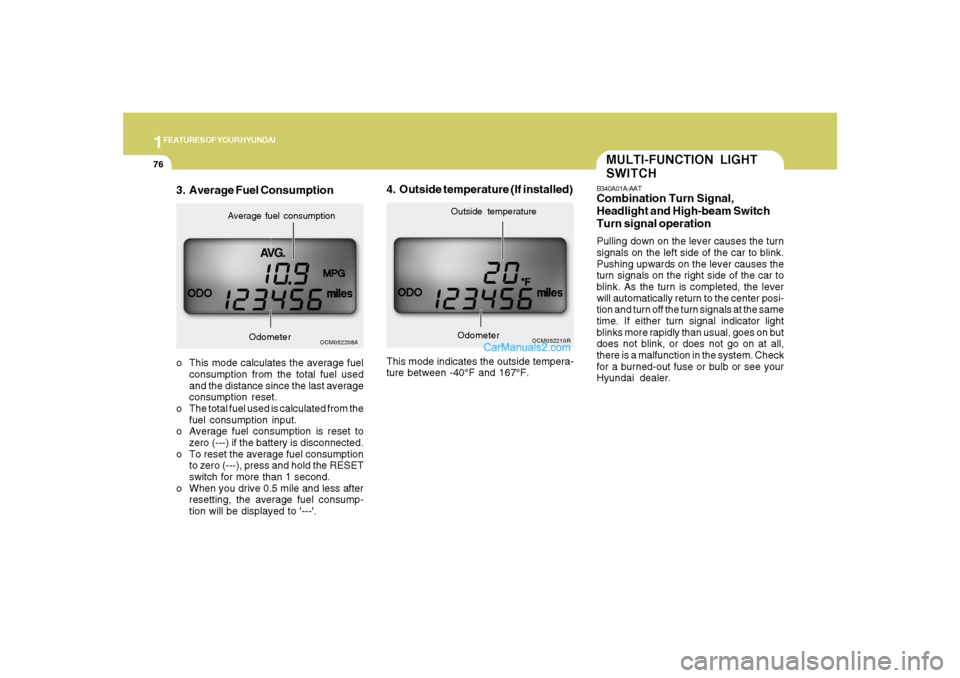

1FEATURES OF YOUR HYUNDAI76
o This mode calculates the average fuel
consumption from the total fuel used
and the distance since the last average
consumption reset.
o The total fuel used is calculated from the
fuel consumption input.
o Average fuel consumption is reset to
zero (---) if the battery is disconnected.
o To reset the average fuel consumption
to zero (---), press and hold the RESET
switch for more than 1 second.
o When you drive 0.5 mile and less after
resetting, the average fuel consump-
tion will be displayed to '---'.
4. Outside temperature (If installed)This mode indicates the outside tempera-
ture between -40°F and 167°F.
OCM052210R
Outside temperature
Odometer
3. Average Fuel Consumption
OCM052208A
Average fuel consumption
Odometer
MULTI-FUNCTION LIGHT
SWITCHB340A01A-AATCombination Turn Signal,
Headlight and High-beam Switch
Turn signal operationPulling down on the lever causes the turn
signals on the left side of the car to blink.
Pushing upwards on the lever causes the
turn signals on the right side of the car to
blink. As the turn is completed, the lever
will automatically return to the center posi-
tion and turn off the turn signals at the same
time. If either turn signal indicator light
blinks more rapidly than usual, goes on but
does not blink, or does not go on at all,
there is a malfunction in the system. Check
for a burned-out fuse or bulb or see your
Hyundai dealer.

6
DO-IT-YOURSELF MAINTENANCE
24
REPLACEMENT OF LIGHT
BULBSG260A01CM-AATBefore attempting to replace a light bulb,
be sure the switch is turned to the "OFF"
position.
The next paragraph shows how to reach
the light bulbs so they may be changed. Be
sure to replace the burned-out bulb with
one of the same number and wattage
rating.
CAUTION:
o Keep the lamps out of contact with
petroleum products, such as oil, gaso-
line, etc.
o After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle
during the rain and doesn’t indicate a
problem with your vehicle. If the water
leaks into the lamp bulb circuitry, have
the vehicle checked by an Authorized
Hyundai Dealer.
!
G270A01CM-GATHeadlight, Front Turn Signal Light
and Front Position Light(1) Turn signal light/Side marker
(2) Front position light
(3) Headlight (Low Beam)
(4) Headlight (High Beam)
(5) Front fog light
1. Allow the bulb to cool. Wear eye pro-
tection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic
base, avoid touching the glass.
OCM055020
(1)
(2) (3) (4)
(5)
OCM055008L
4. Using a wrench, remove the headlight
assembly mounting bolts and nut.
OCM055021L

6
DO-IT-YOURSELF MAINTENANCE
25
8. Push the bulb spring to remove the
headlight bulb. 7. Disconnect the connector from the bulb
base in the back of the headlight.
OCM055011LOCM055012L
5. Disconnect the wire harness from the
bulb base in the back of the headlight.
6. Turn the plastic cover counterclock-
wise and remove it.
OCM055010L OCM055009L
9. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base with
the headlight hole. Reattach the bulb
spring and reconnect the connector.
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
OCM055014L
12. To replace the front turn signal light
bulb or the front position light bulb, take
it out from the bulb holder and install
the new bulb.

6
DO-IT-YOURSELF MAINTENANCE
26
!
WARNING:
This halogen bulb contains gas under
pressure and if impacted could shatter,
resulting in flying fragments. Always
wear eye protection when servicing the
bulb. Protect the bulb against abrasions
or scratches and against liquids when
lighted. Turn the bulb on only when in-
stalling in a headlight. Replace the head-
light if damaged or cracked. Keep the
bulb out of the reach of children and
dispose of the used bulb with care.
G270A03OG270K01CM-GAT
Front Fog Light (If Installed)
NOTE:It is recommended that the front fog light
bulb be replaced by an authorized
Hyundai dealer.
G270B01CM-AATRear Combination Light
OCM055022
(3)
(1)(2)
(1)Stop/Tail light
(2)Back-up light
(3)Turn signal light/Side marker
1. Open the tail gate.

6
DO-IT-YOURSELF MAINTENANCE
27
2. Remove the cover with a flat-head
screwdriver.
3. Remove the mounting screws of the
rear combination light as shown in the
photo.
OCM055026
OCM055028
OCM055030
(1)
(1) (2)(3)
G270I01CM-GATHigh Mounted Rear Stop Light
(If Installed)
NOTE:It is recommended that the High-Mounted
Rear Stop Light be replaced by an autho-
rized Hyundai Dealer.
OCM055027
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light/Side marker4. To replace the rear combination light,
take it out from the bulb holder by
turning it counterclockwise.
5. Install the new bulb.
OCM052016

6
DO-IT-YOURSELF MAINTENANCE
31

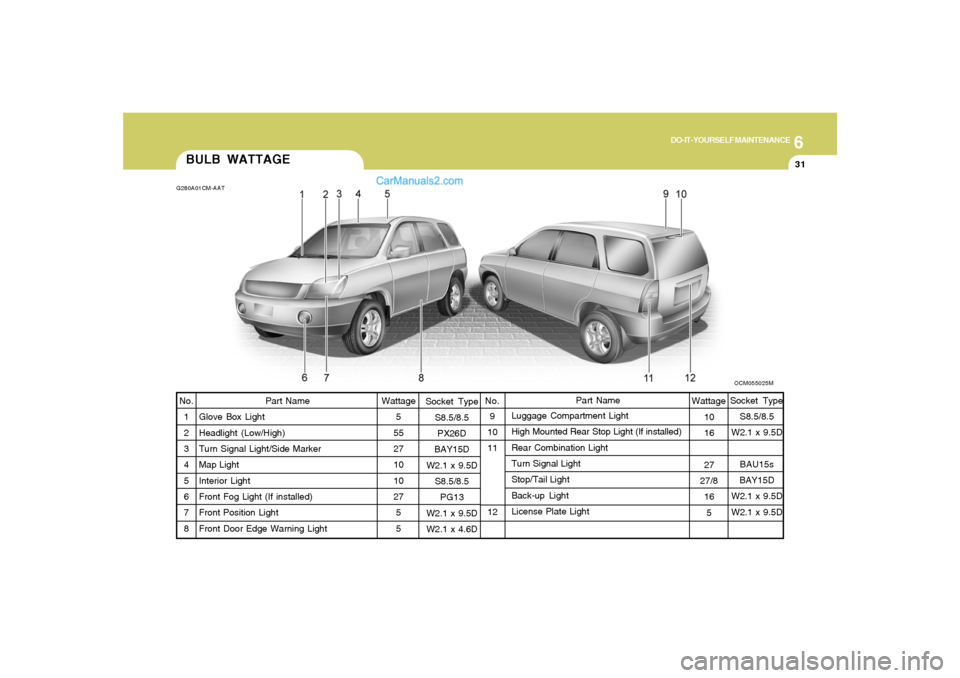

BULB WATTAGE
Socket Type
S8.5/8.5
PX26D
BAY15D
W2.1 x 9.5D
S8.5/8.5
PG13
W2.1 x 9.5D
W2.1 x 4.6D9
10
11
12Luggage Compartment Light
High Mounted Rear Stop Light (If installed)
Rear Combination Light
Turn Signal Light
Stop/Tail Light
Back-up Light
License Plate Light No.
1
2
3
4
5
6
7
8
Part Name
Glove Box Light
Headlight (Low/High)
Turn Signal Light/Side Marker
Map Light
Interior Light
Front Fog Light (If installed)
Front Position Light
Front Door Edge Warning LightWattage
5
55
27
10
10
27
5
5
G280A01CM-AAT
Wattage No.
OCM055025M
10
16
27
27/8
16
5
Socket Type
Part Name
S8.5/8.5
W2.1 x 9.5D
BAU15s
BAY15D
W2.1 x 9.5D
W2.1 x 9.5D

10
