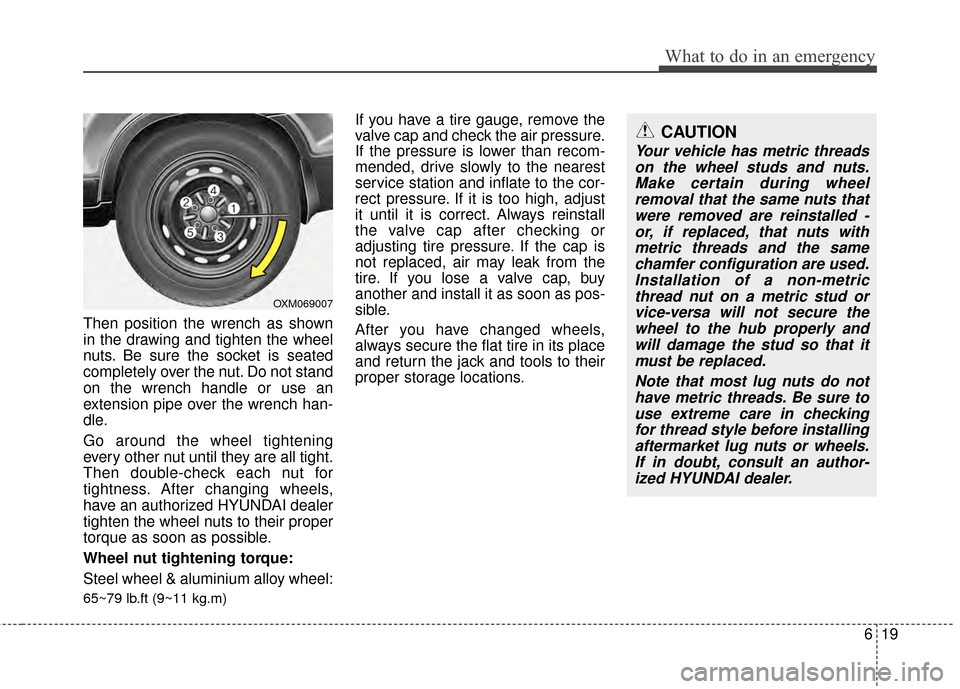

Page 321 of 419

Hyundai Santa Fe 2012  Owners Manual 619
What to do in an emergency
Then position the wrench as shown
in the drawing and tighten the wheel
nuts. Be sure the socket is seated
completely over the nut. Do not stand
on the wrench handle or u

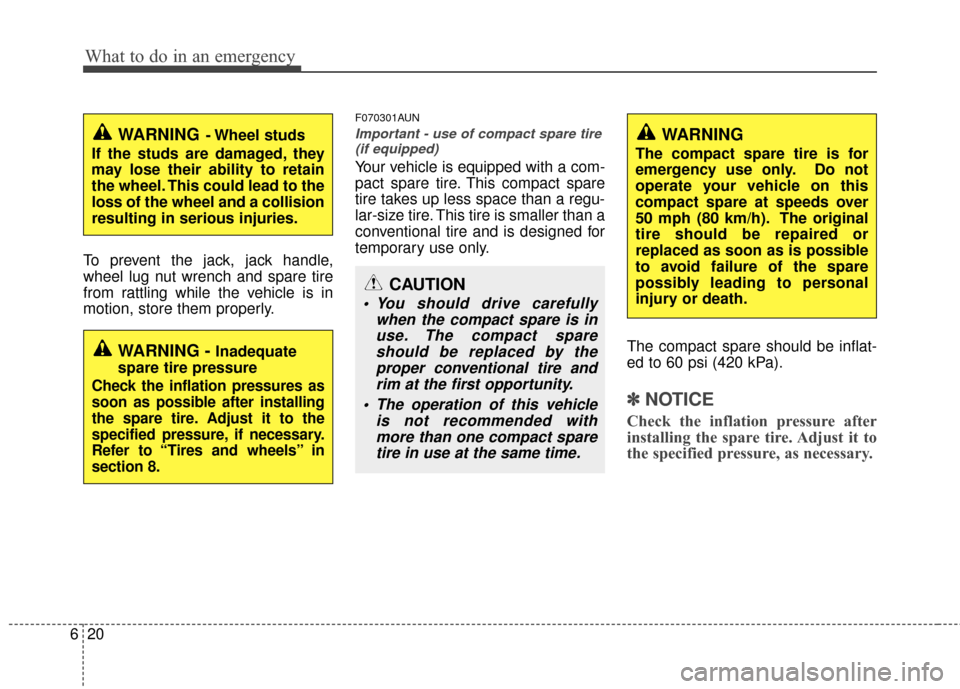

Page 322 of 419

Hyundai Santa Fe 2012  Owners Manual What to do in an emergency
20
6
To prevent the jack, jack handle,
wheel lug nut wrench and spare tire
from rattling while the vehicle is in
motion, store them properly.
F070301AUN
Important - use of c

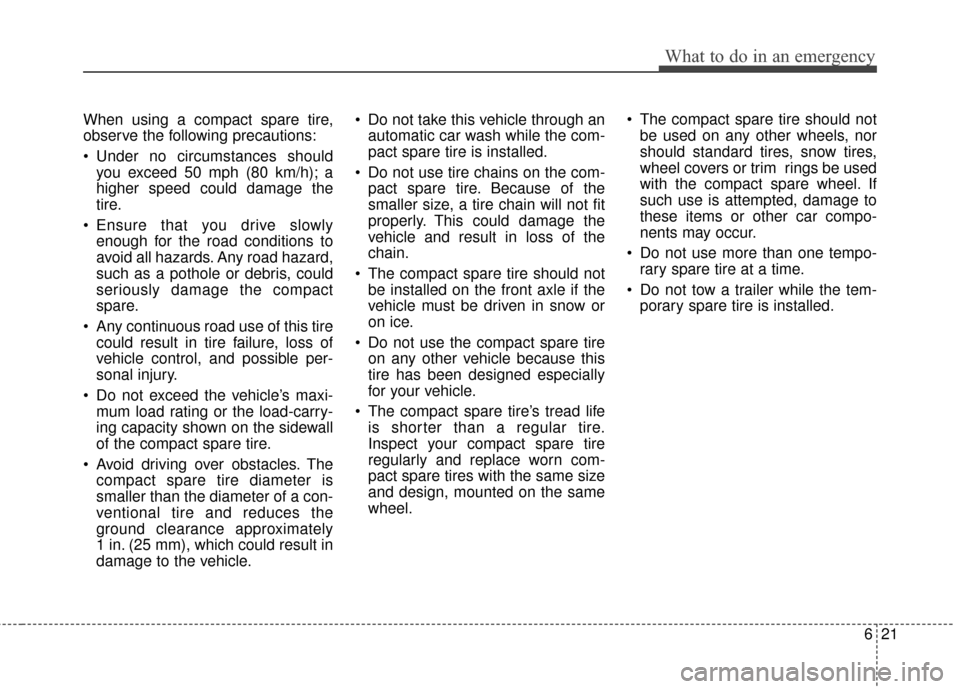

Page 323 of 419

Hyundai Santa Fe 2012  Owners Manual 621
What to do in an emergency
When using a compact spare tire,
observe the following precautions:
 Under no circumstances shouldyou exceed 50 mph (80 km/h); a
higher speed could damage the
tire.
 Ens

Page 324 of 419

Hyundai Santa Fe 2012  Owners Manual What to do in an emergency
22
6
TOWING
Towing service
If emergency towing is necessary, we
recommend having it done by an author-
ized HYUNDAI dealer or a commercial
tow-truck service. Proper lifting

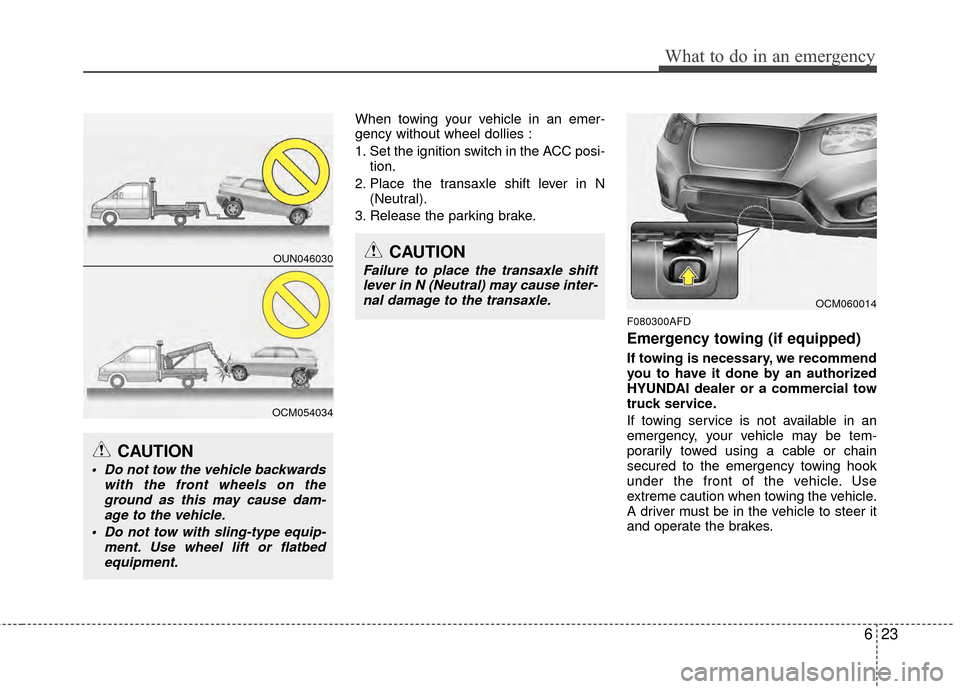

Page 325 of 419

Hyundai Santa Fe 2012  Owners Manual 623
What to do in an emergency
When towing your vehicle in an emer-
gency without wheel dollies :
1. Set the ignition switch in the ACC posi-tion.
2. Place the transaxle shift lever in N (Neutral).
3.

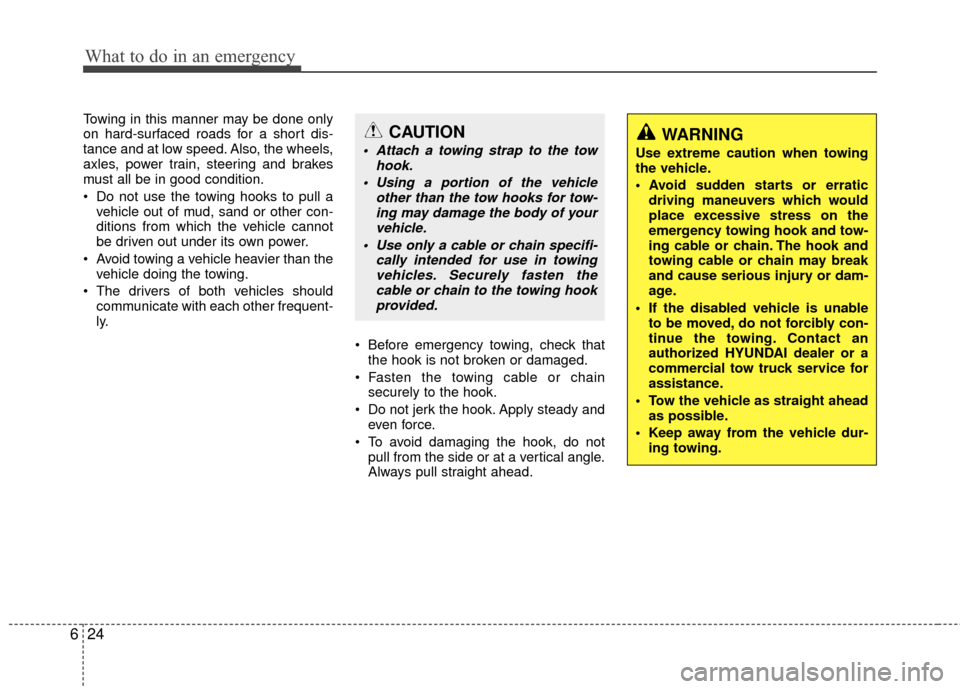

Page 326 of 419

Hyundai Santa Fe 2012  Owners Manual What to do in an emergency
24
6
Towing in this manner may be done only
on hard-surfaced roads for a short dis-
tance and at low speed. Also, the wheels,
axles, power train, steering and brakes
must al

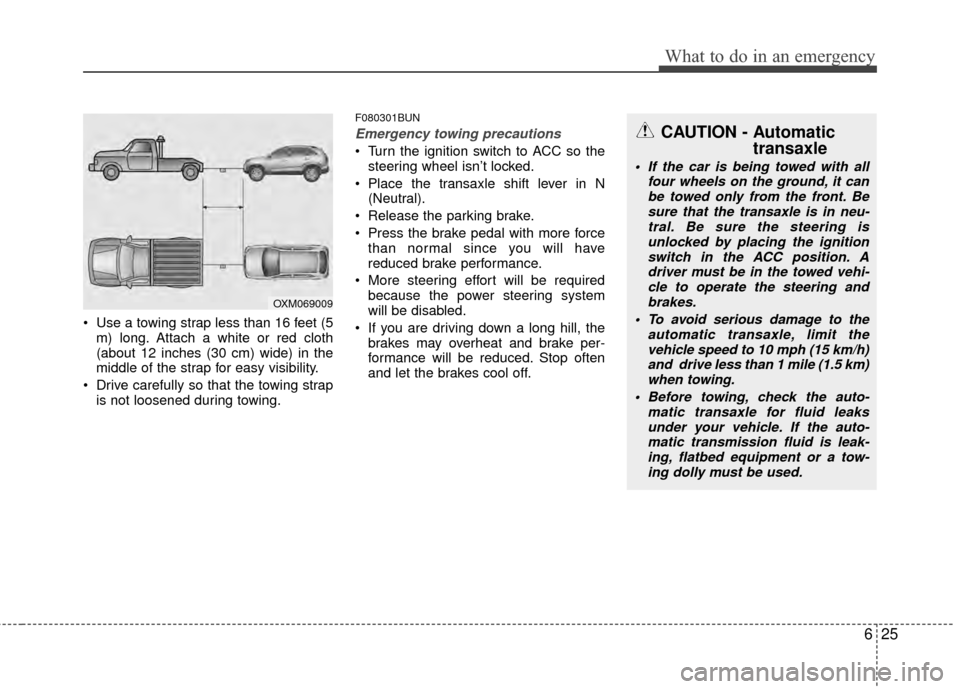

Page 327 of 419

Hyundai Santa Fe 2012  Owners Manual 625
What to do in an emergency
 Use a towing strap less than 16 feet (5m) long. Attach a white or red cloth
(about 12 inches (30 cm) wide) in the
middle of the strap for easy visibility.
 Drive carefu

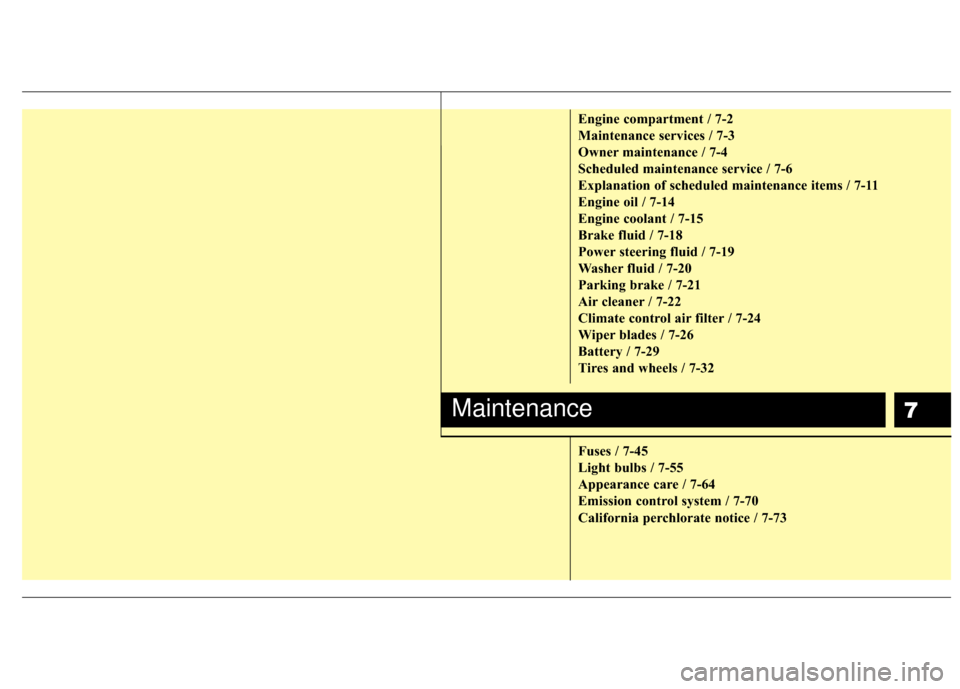

Page 328 of 419

Hyundai Santa Fe 2012  Owners Manual 7
Engine compartment / 7-2
Maintenance services / 7-3
Owner maintenance / 7-4
Scheduled maintenance service / 7-6
Explanation of scheduled maintenance items / 7-11
Engine oil / 7-14
Engine coolant / 7

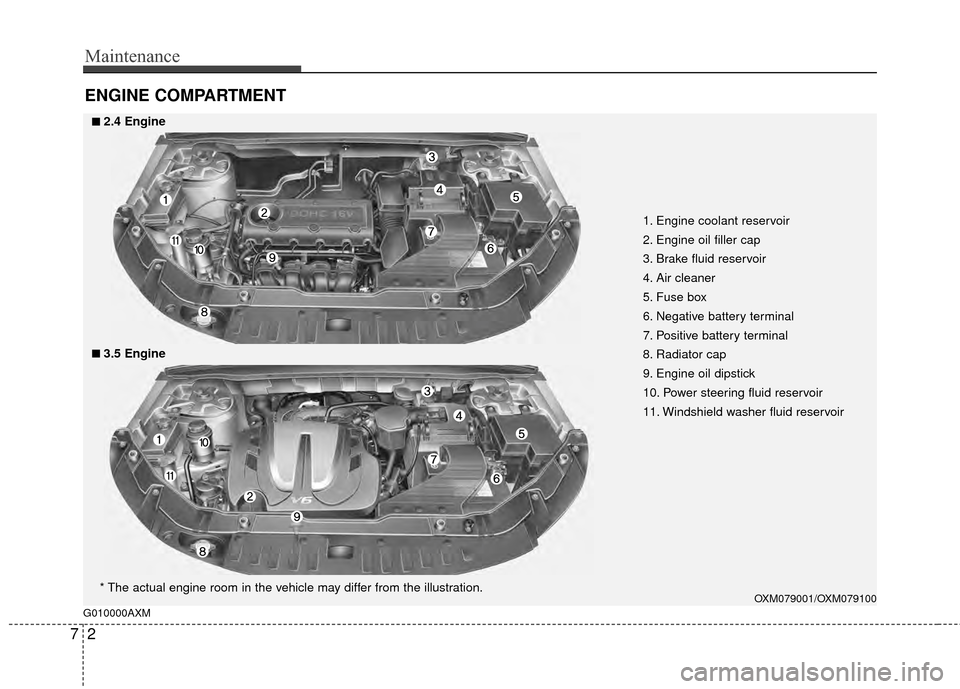

Page 329 of 419

Hyundai Santa Fe 2012  Owners Manual Maintenance
27
ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8.

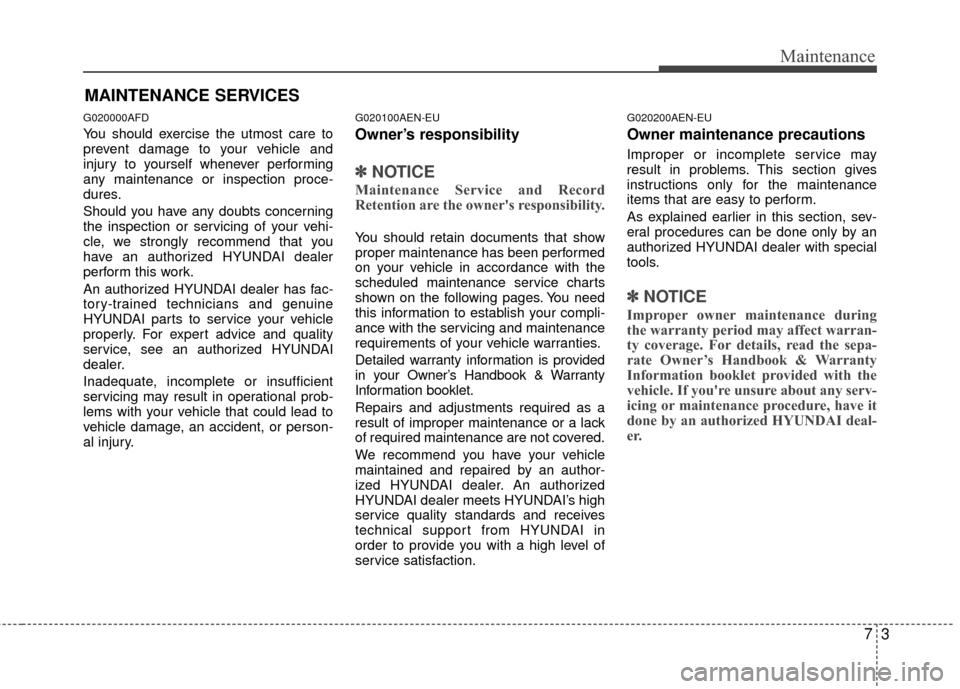

Page 330 of 419

Hyundai Santa Fe 2012  Owners Manual 73
Maintenance
MAINTENANCE SERVICES
G020000AFD
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce-
dur
