Maintenance
16 7

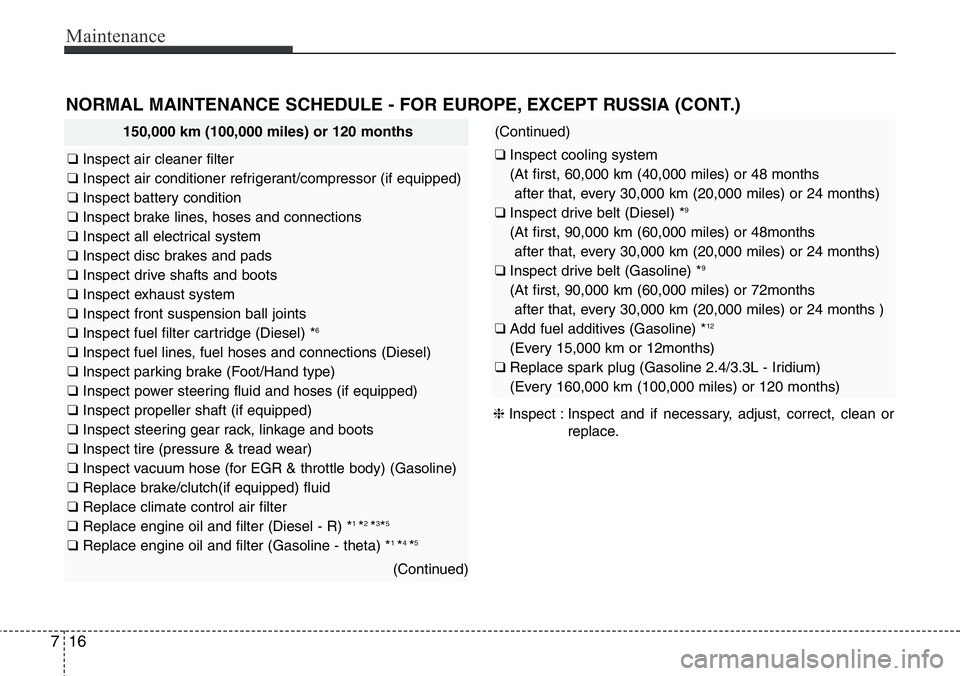

NORMAL MAINTENANCE SCHEDULE - FOR EUROPE, EXCEPT RUSSIA (CONT.)
150,000 km (100,000 miles) or 120 months
❑ Inspect air cleaner filter
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect all electrical system
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge (Diesel) *
6
❑ Inspect fuel lines, fuel hoses and connections (Diesel)
❑ Inspect parking brake (Foot/Hand type)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect propeller shaft (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Replace brake/clutch(if equipped) fluid
❑ Replace climate control air filter
❑ Replace engine oil and filter (Diesel - R) *
1 *2 *3*5
❑ Replace engine oil and filter (Gasoline - theta) *1 *4 *5
(Continued)
(Continued)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48 months
after that, every 30,000 km (20,000 miles) or 24 months)
❑ Inspect drive belt (Diesel) *
9
(At first, 90,000 km (60,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24 months)
❑ Inspect drive belt (Gasoline) *
9
(At first, 90,000 km (60,000 miles) or 72months
after that, every 30,000 km (20,000 miles) or 24 months )
❑ Add fuel additives (Gasoline) *
12
(Every 15,000 km or 12months)
❑ Replace spark plug (Gasoline 2.4/3.3L - Iridium)
(Every 160,000 km (100,000 miles) or 120 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

717

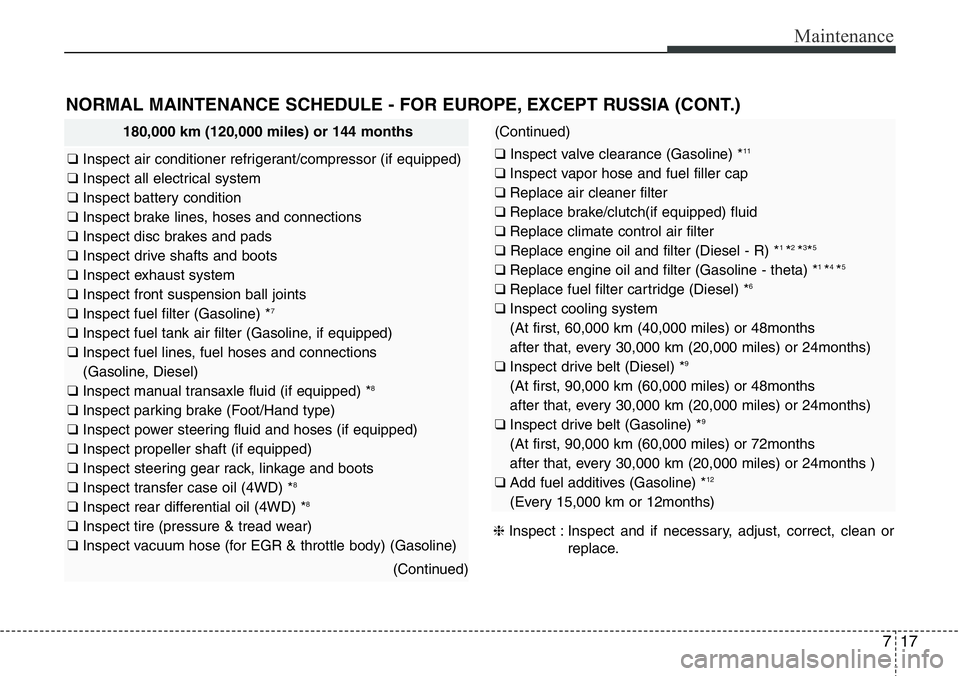

Maintenance
NORMAL MAINTENANCE SCHEDULE - FOR EUROPE, EXCEPT RUSSIA (CONT.)
180,000 km (120,000 miles) or 144 months
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect all electrical system
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter (Gasoline) *
7
❑ Inspect fuel tank air filter (Gasoline, if equipped)
❑ Inspect fuel lines, fuel hoses and connections
(Gasoline, Diesel)
❑ Inspect manual transaxle fluid (if equipped) *
8
❑ Inspect parking brake (Foot/Hand type)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect propeller shaft (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect transfer case oil (4WD) *
8
❑ Inspect rear differential oil (4WD) *8
❑ Inspect tire (pressure & tread wear)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
(Continued)
(Continued)
❑ Inspect valve clearance (Gasoline) *11
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace brake/clutch(if equipped) fluid
❑ Replace climate control air filter
❑ Replace engine oil and filter (Diesel - R) *
1 *2 *3*5
❑ Replace engine oil and filter (Gasoline - theta) *1 *4 *5
❑ Replace fuel filter cartridge (Diesel) *6
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Inspect drive belt (Diesel) *
9
(At first, 90,000 km (60,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Inspect drive belt (Gasoline) *
9
(At first, 90,000 km (60,000 miles) or 72months
after that, every 30,000 km (20,000 miles) or 24months )
❑ Add fuel additives (Gasoline) *
12
(Every 15,000 km or 12months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

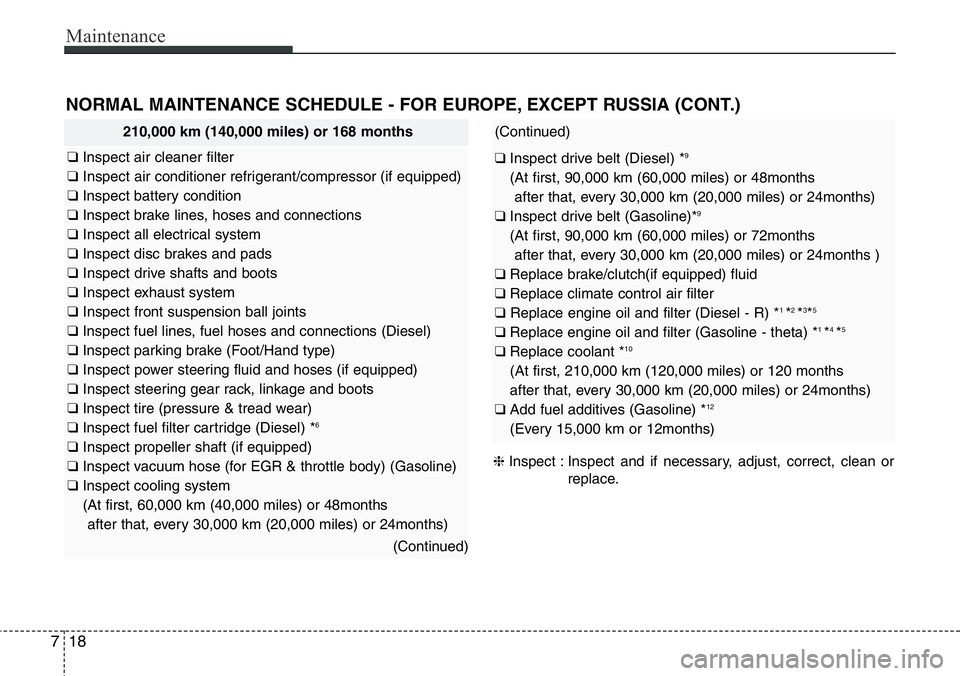

Maintenance
18 7
NORMAL MAINTENANCE SCHEDULE - FOR EUROPE, EXCEPT RUSSIA (CONT.)
210,000 km (140,000 miles) or 168 months
❑ Inspect air cleaner filter
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect all electrical system
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel lines, fuel hoses and connections (Diesel)
❑ Inspect parking brake (Foot/Hand type)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect fuel filter cartridge (Diesel) *
6
❑ Inspect propeller shaft (if equipped)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
(Continued)
(Continued)
❑ Inspect drive belt (Diesel) *9
(At first, 90,000 km (60,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Inspect drive belt (Gasoline)*
9
(At first, 90,000 km (60,000 miles) or 72months
after that, every 30,000 km (20,000 miles) or 24months )
❑ Replace brake/clutch(if equipped) fluid
❑ Replace climate control air filter
❑ Replace engine oil and filter (Diesel - R) *
1 *2 *3*5
❑ Replace engine oil and filter (Gasoline - theta) *1 *4 *5
❑ Replace coolant *10
(At first, 210,000 km (120,000 miles) or 120 months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Add fuel additives (Gasoline) *
12
(Every 15,000 km or 12months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

719
Maintenance

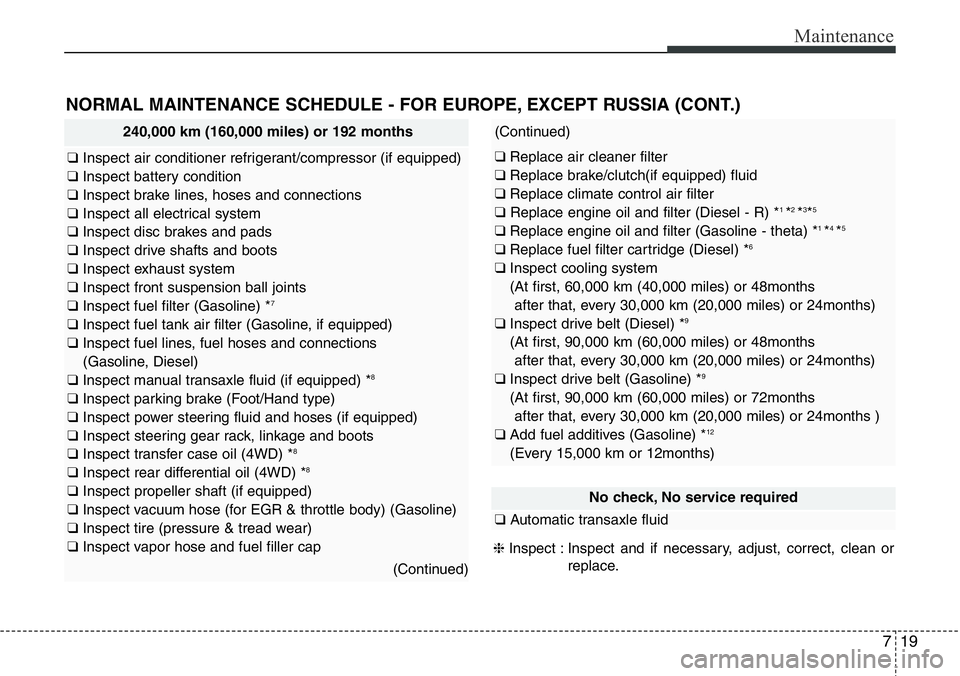

NORMAL MAINTENANCE SCHEDULE - FOR EUROPE, EXCEPT RUSSIA (CONT.)
240,000 km (160,000 miles) or 192 months
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect all electrical system
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter (Gasoline) *
7
❑ Inspect fuel tank air filter (Gasoline, if equipped)
❑ Inspect fuel lines, fuel hoses and connections
(Gasoline, Diesel)
❑ Inspect manual transaxle fluid (if equipped) *
8
❑ Inspect parking brake (Foot/Hand type)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect transfer case oil (4WD) *
8
❑ Inspect rear differential oil (4WD) *8
❑ Inspect propeller shaft (if equipped)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Inspect tire (pressure & tread wear)
❑ Inspect vapor hose and fuel filler cap
(Continued)
(Continued)
❑ Replace air cleaner filter
❑ Replace brake/clutch(if equipped) fluid
❑ Replace climate control air filter
❑ Replace engine oil and filter (Diesel - R) *
1 *2 *3*5
❑ Replace engine oil and filter (Gasoline - theta) *1 *4 *5
❑ Replace fuel filter cartridge (Diesel) *6
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Inspect drive belt (Diesel) *
9
(At first, 90,000 km (60,000 miles) or 48months
after that, every 30,000 km (20,000 miles) or 24months)
❑ Inspect drive belt (Gasoline) *
9
(At first, 90,000 km (60,000 miles) or 72months
after that, every 30,000 km (20,000 miles) or 24months )
❑ Add fuel additives (Gasoline) *
12
(Every 15,000 km or 12months)
No check, No service required
❑Automatic transaxle fluid
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

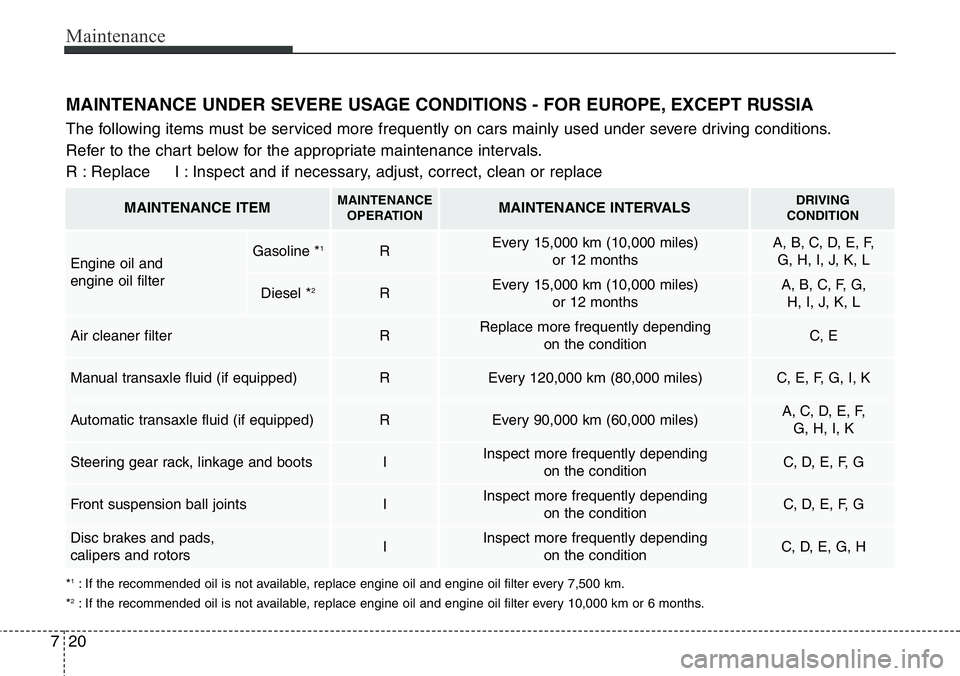

Maintenance
20 7
MAINTENANCE UNDER SEVERE USAGE CONDITIONS - FOR EUROPE, EXCEPT RUSSIA
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
*1: If the recommended oil is not available, replace engine oil and engine oil filter every 7,500 km.
*2: If the recommended oil is not available, replace engine oil and engine oil filter every 10,000 km or 6 months.
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Engine oil and
engine oil filterREvery 15,000 km (10,000 miles)
or 12 monthsA, B, C, D, E, F,
G, H, I, J, K, L
REvery 15,000 km (10,000 miles)
or 12 monthsA, B, C, F, G,
H, I, J, K, L
Air cleaner filterRReplace more frequently depending
on the conditionC, E
Manual transaxle fluid (if equipped)REvery 120,000 km (80,000 miles)C, E, F, G, I, K
Automatic transaxle fluid (if equipped)REvery 90,000 km (60,000 miles)A, C, D, E, F,
G, H, I, K
Steering gear rack, linkage and bootsIInspect more frequently depending
on the conditionC, D, E, F, G
Front suspension ball jointsIInspect more frequently depending
on the conditionC, D, E, F, G
Disc brakes and pads,
calipers and rotorsIInspect more frequently depending
on the conditionC, D, E, G, H
Gasoline *1
Diesel *2

721

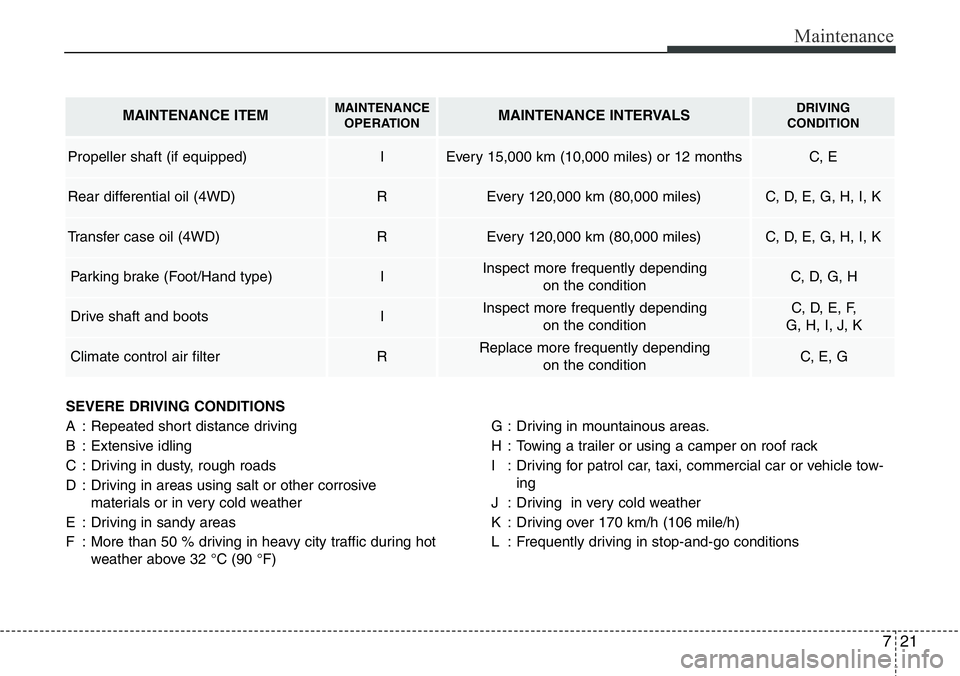

Maintenance
SEVERE DRIVING CONDITIONS
A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive
materials or in very cold weather
E : Driving in sandy areas
F : More than 50 % driving in heavy city traffic during hot
weather above 32 °C (90 °F)G : Driving in mountainous areas.
H : Towing a trailer or using a camper on roof rack
I : Driving for patrol car, taxi, commercial car or vehicle tow-
ing
J : Driving in very cold weather
K : Driving over 170 km/h (106 mile/h)
L : Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Propeller shaft (if equipped)IEvery 15,000 km (10,000 miles) or 12 monthsC, E
Rear differential oil (4WD) REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Transfer case oil (4WD)REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Parking brake (Foot/Hand type)IInspect more frequently depending
on the conditionC, D, G, H
Drive shaft and bootsIInspect more frequently depending
on the conditionC, D, E, F,
G, H, I, J, K
Climate control air filter RReplace more frequently depending
on the conditionC, E, G

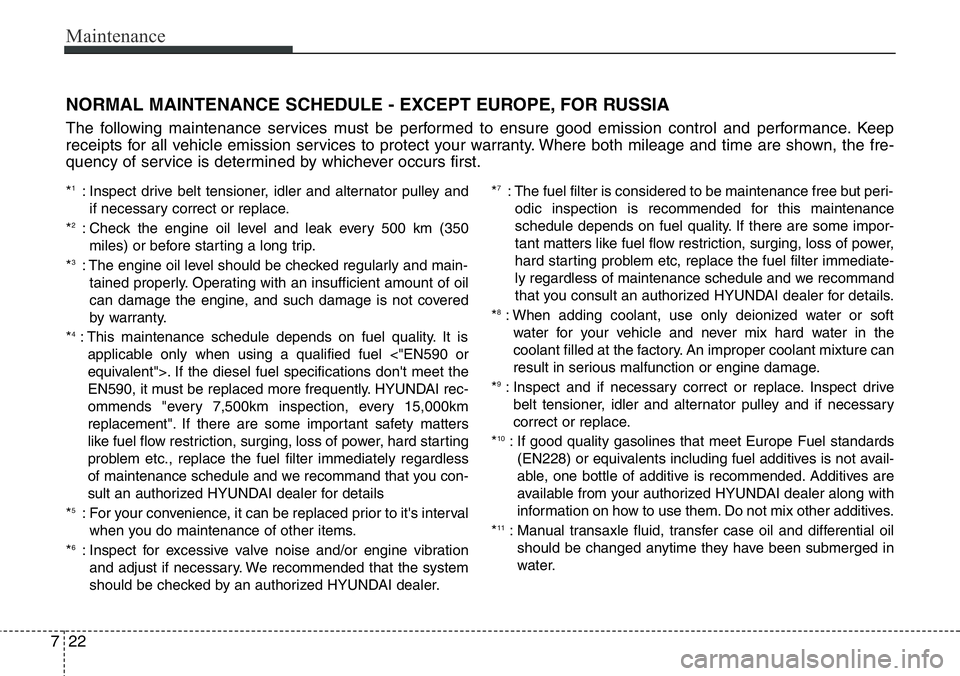

Maintenance
22 7
NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE, FOR RUSSIA
The following maintenance services must be performed to ensure good emission control and performance. Keep
receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the fre-
quency of service is determined by whichever occurs first.
*1: Inspect drive belt tensioner, idler and alternator pulley and
if necessary correct or replace.
*
2: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
*
3: The engine oil level should be checked regularly and main-
tained properly. Operating with an insufficient amount of oil
can damage the engine, and such damage is not covered
by warranty.
*
4: This maintenance schedule depends on fuel quality. It is
applicable only when using a qualified fuel <"EN590 or
equivalent">. If the diesel fuel specifications don't meet the
EN590, it must be replaced more frequently. HYUNDAI rec-
ommends "every 7,500km inspection, every 15,000km
replacement". If there are some important safety matters
like fuel flow restriction, surging, loss of power, hard starting
problem etc., replace the fuel filter immediately regardless
of maintenance schedule and we recommand that you con-
sult an authorized HYUNDAI dealer for details
*
5: For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items.
*
6: Inspect for excessive valve noise and/or engine vibration
and adjust if necessary. We recommended that the system
should be checked by an authorized HYUNDAI dealer.*
7: The fuel filter is considered to be maintenance free but peri-
odic inspection is recommended for this maintenance
schedule depends on fuel quality. If there are some impor-
tant matters like fuel flow restriction, surging, loss of power,
hard starting problem etc, replace the fuel filter immediate-
ly regardless of maintenance schedule and we recommand
that you consult an authorized HYUNDAI dealer for details.
*
8: When adding coolant, use only deionized water or soft
water for your vehicle and never mix hard water in the
coolant filled at the factory. An improper coolant mixture can
result in serious malfunction or engine damage.
*
9: Inspect and if necessary correct or replace. Inspect drive
belt tensioner, idler and alternator pulley and if necessary
correct or replace.
*
10: If good quality gasolines that meet Europe Fuel standards
(EN228) or equivalents including fuel additives is not avail-
able, one bottle of additive is recommended. Additives are
available from your authorized HYUNDAI dealer along with
information on how to use them. Do not mix other additives.
*
11: Manual transaxle fluid, transfer case oil and differential oil
should be changed anytime they have been submerged in
water.

723
Maintenance

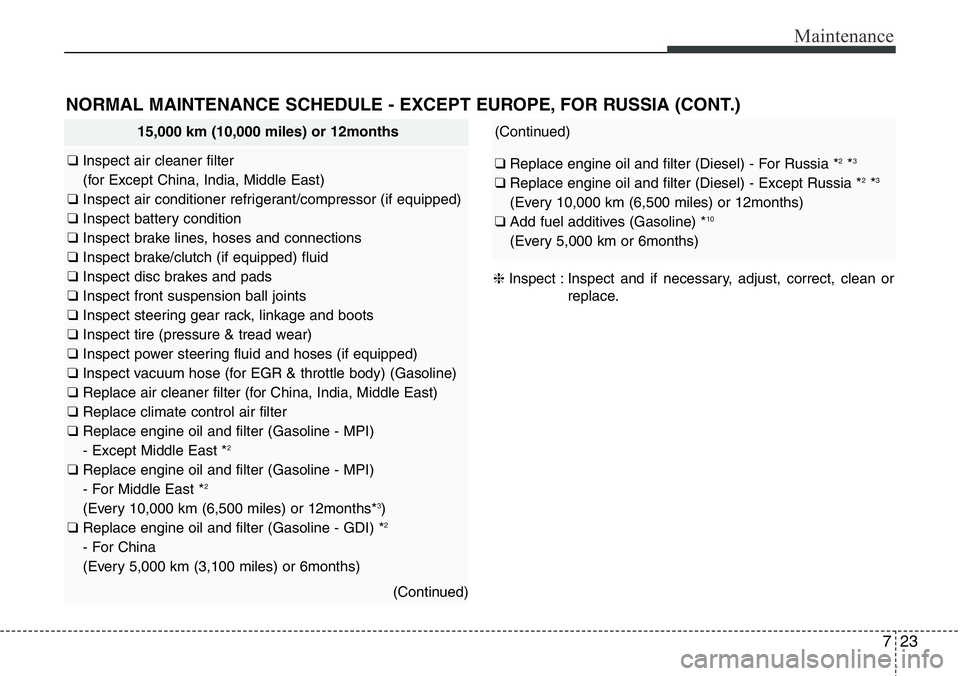

NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE, FOR RUSSIA (CONT.)
15,000 km (10,000 miles) or 12months
❑ Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect front suspension ball joints
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter
❑ Replace engine oil and filter (Gasoline - MPI)
- Except Middle East *
2
❑ Replace engine oil and filter (Gasoline - MPI)
- For Middle East *2
(Every 10,000 km (6,500 miles) or 12months*3)
❑ Replace engine oil and filter (Gasoline - GDI) *2
- For China
(Every 5,000 km (3,100 miles) or 6months)
(Continued)
(Continued)
❑ Replace engine oil and filter (Diesel) - For Russia *2*3
❑ Replace engine oil and filter (Diesel) - Except Russia *2*3
(Every 10,000 km (6,500 miles) or 12months)
❑ Add fuel additives (Gasoline) *10
(Every 5,000 km or 6months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
24 7

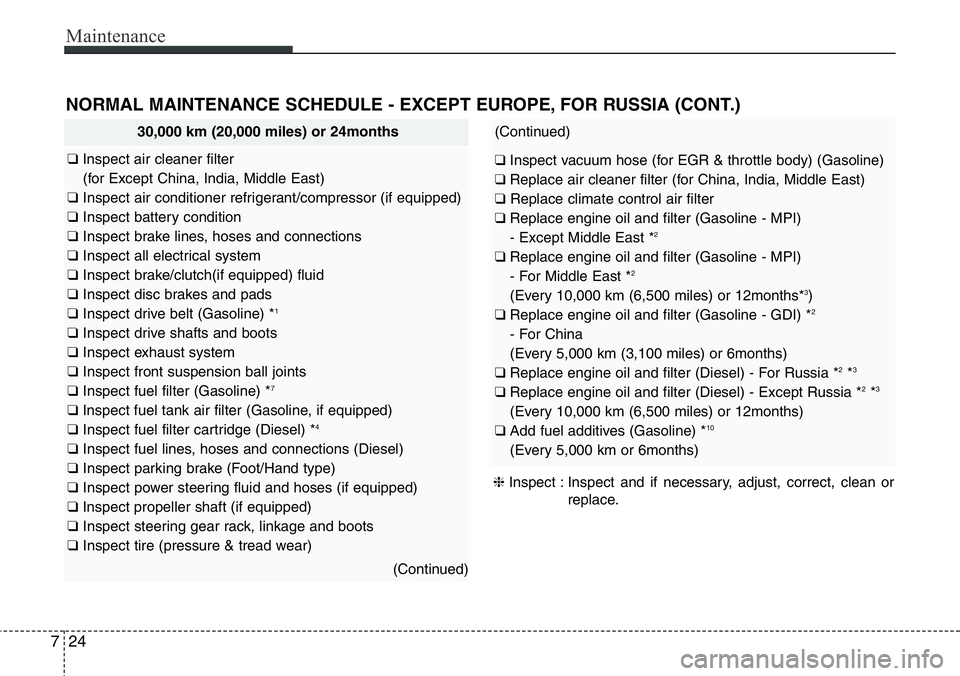

NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE, FOR RUSSIA (CONT.)
30,000 km (20,000 miles) or 24months
❑ Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect all electrical system
❑ Inspect brake/clutch(if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive belt (Gasoline) *
1
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter (Gasoline) *
7
❑ Inspect fuel tank air filter (Gasoline, if equipped)
❑ Inspect fuel filter cartridge (Diesel) *4
❑ Inspect fuel lines, hoses and connections (Diesel)
❑ Inspect parking brake (Foot/Hand type)
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect propeller shaft (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
(Continued)
(Continued)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Replace air cleaner filter (for China, India, Middle East)
❑ Replace climate control air filter
❑ Replace engine oil and filter (Gasoline - MPI)
- Except Middle East *
2
❑ Replace engine oil and filter (Gasoline - MPI)
- For Middle East *2
(Every 10,000 km (6,500 miles) or 12months*3)
❑ Replace engine oil and filter (Gasoline - GDI) *2
- For China
(Every 5,000 km (3,100 miles) or 6months)
❑ Replace engine oil and filter (Diesel) - For Russia *
2*3
❑ Replace engine oil and filter (Diesel) - Except Russia *2*3
(Every 10,000 km (6,500 miles) or 12months)
❑ Add fuel additives (Gasoline) *10
(Every 5,000 km or 6months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

725
Maintenance

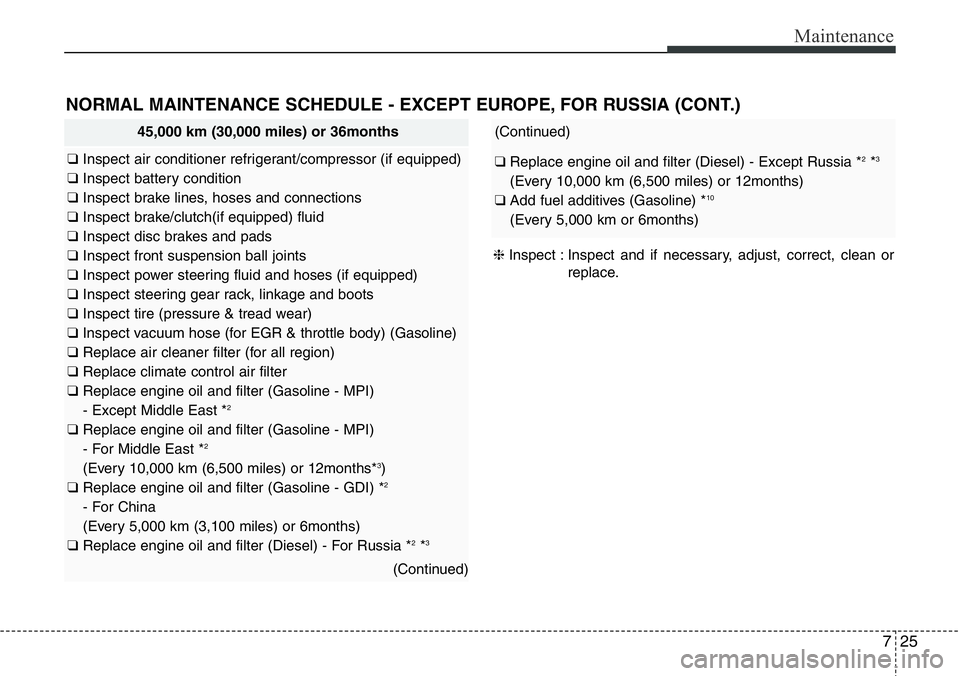

NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE, FOR RUSSIA (CONT.)
45,000 km (30,000 miles) or 36months
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect front suspension ball joints
❑ Inspect power steering fluid and hoses (if equipped)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect vacuum hose (for EGR & throttle body) (Gasoline)
❑ Replace air cleaner filter (for all region)
❑ Replace climate control air filter
❑ Replace engine oil and filter (Gasoline - MPI)
- Except Middle East *
2
❑ Replace engine oil and filter (Gasoline - MPI)
- For Middle East *2
(Every 10,000 km (6,500 miles) or 12months*3)
❑ Replace engine oil and filter (Gasoline - GDI) *2
- For China
(Every 5,000 km (3,100 miles) or 6months)
❑ Replace engine oil and filter (Diesel) - For Russia *
2*3
(Continued)
(Continued)
❑ Replace engine oil and filter (Diesel) - Except Russia *2*3
(Every 10,000 km (6,500 miles) or 12months)
❑ Add fuel additives (Gasoline) *10
(Every 5,000 km or 6months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
