Hyundai Santa Fe 2014 Owner's Manual

Specifications & Consumer information
2 8

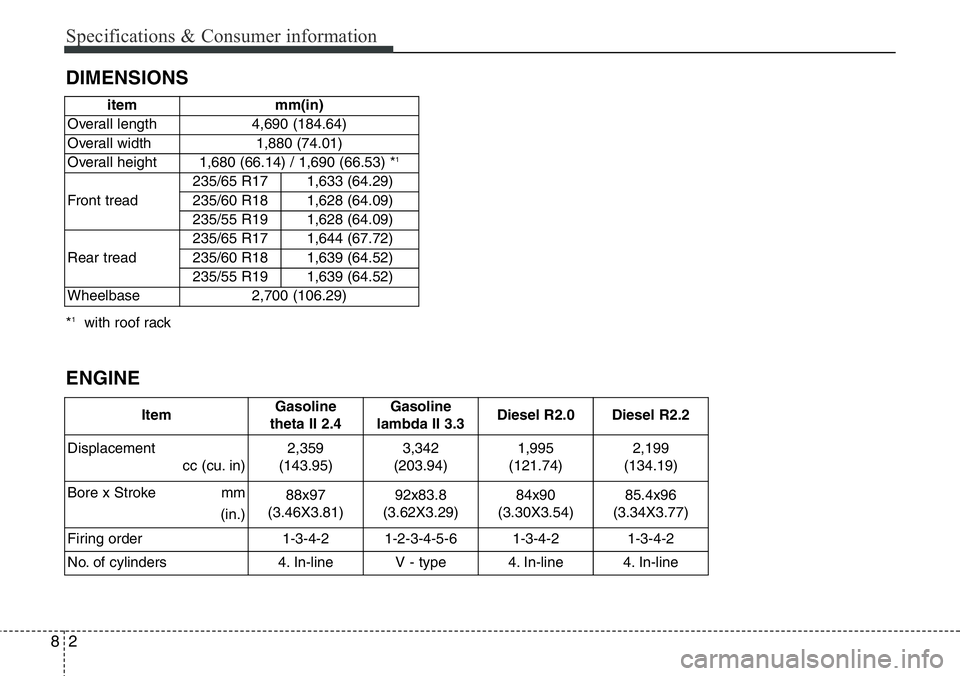

DIMENSIONS
*1with roof rack
ENGINE
ItemGasoline
theta II 2.4Gasoline
lambda II 3.3Diesel R2.0Diesel R2.2
Displacement
cc (cu. in)
2,359
(143.95)3,342
(203.94)1,995
(121.74)2,199
(134.19)
Bore x Stroke mm
(in.)
88x97
(3.46X3.81)92x83.8
(3.62X3.29)84x90
(3.30X3.54)85.4x96
(3.34X3.77)
Firing order
1-3-4-2 1-2-3-4-5-61-3-4-21-3-4-2
No. of cylinders
4. In-line V - type4. In-line4. In-line
item mm(in)
Overall length 4,690 (184.64)
Overall width 1,880 (74.01)
Overall height 1,680 (66.14) / 1,690 (66.53) *
1
Front tread235/65 R17 1,633 (64.29)
235/60 R18 1,628 (64.09)
235/55 R19 1,628 (64.09)
Rear tread235/65 R17 1,644 (67.72)
235/60 R18 1,639 (64.52)
235/55 R19 1,639 (64.52)
Wheelbase 2,700 (106.29)

83
Specifications & Consumer information

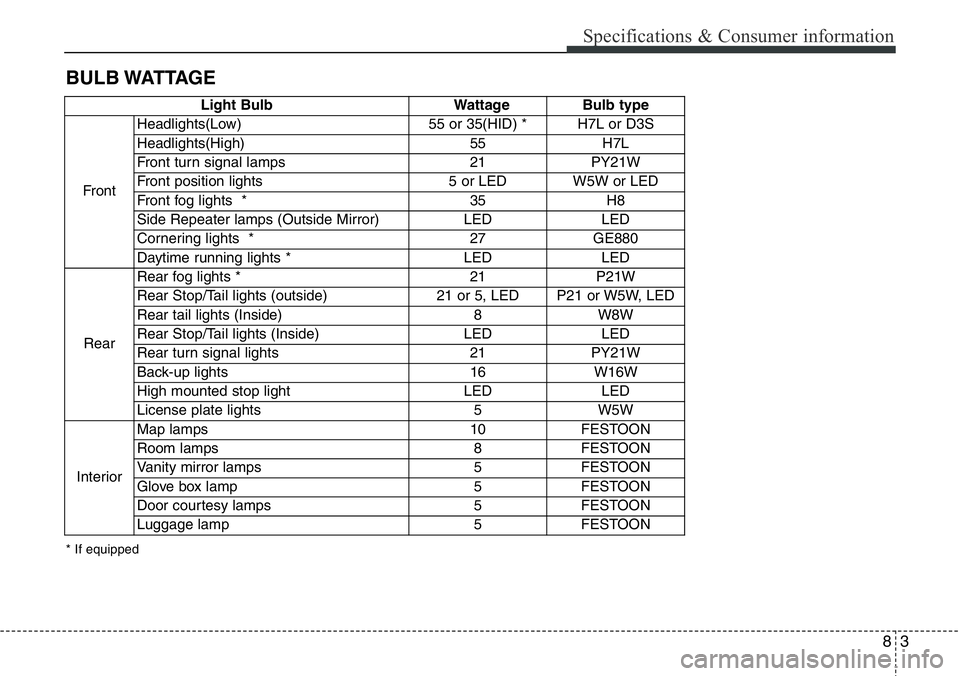

BULB WATTAGE
* If equipped
Light Bulb Wattage Bulb type
FrontHeadlights(Low) 55 or 35(HID) * H7L or D3S
Headlights(High) 55 H7L
Front turn signal lamps 21 PY21W
Front position lights 5 or LED W5W or LED
Front fog lights * 35 H8
Side Repeater lamps (Outside Mirror) LED LED
Cornering lights * 27 GE880
Daytime running lights * LED LED
RearRear fog lights * 21 P21W
Rear Stop/Tail lights (outside) 21 or 5, LED P21 or W5W, LED
Rear tail lights (Inside) 8 W8W
Rear Stop/Tail lights (Inside) LED LED
Rear turn signal lights 21 PY21W
Back-up lights 16 W16W
High mounted stop light LED LED
License plate lights 5 W5W
InteriorMap lamps 10 FESTOON
Room lamps 8 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 FESTOON
Door courtesy lamps 5 FESTOON
Luggage lamp 5 FESTOON

Specifications & Consumer information
4 8

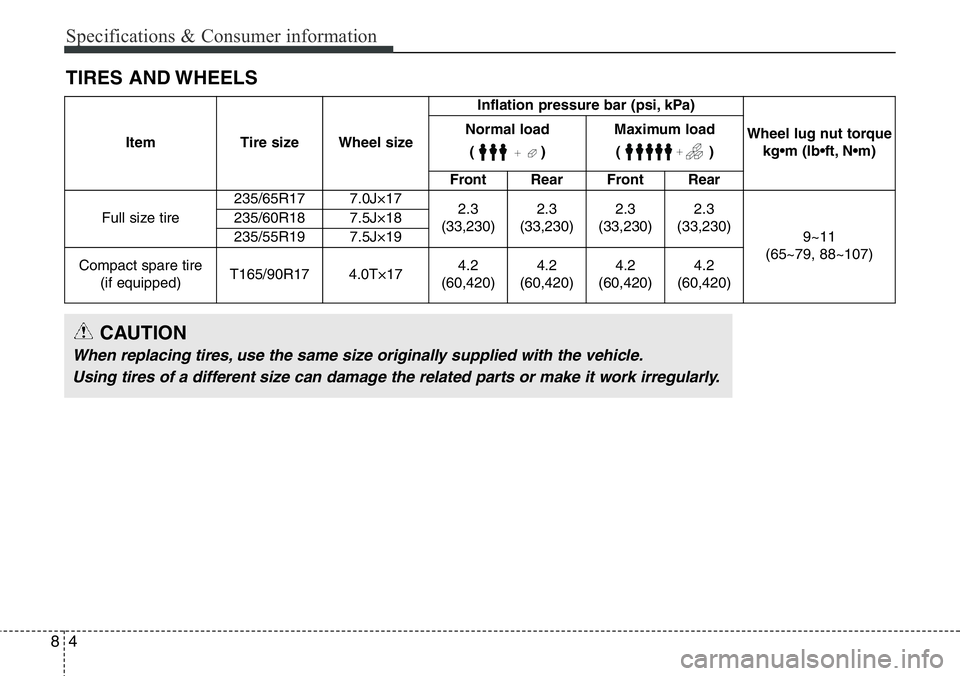

TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure bar (psi, kPa)
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load
()Maximum load
()
Front Rear Front Rear
Full size tire235/65R17 7.0J×17
2.3
(33,230)2.3
(33,230)2.3
(33,230)2.3
(33,230)
9~11
(65~79, 88~107) 235/60R18 7.5J×18
235/55R19 7.5J×19
Compact spare tire
(if equipped)T165/90R17 4.0T×174.2
(60,420)4.2
(60,420)4.2
(60,420)4.2
(60,420)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.

85
Specifications & Consumer information

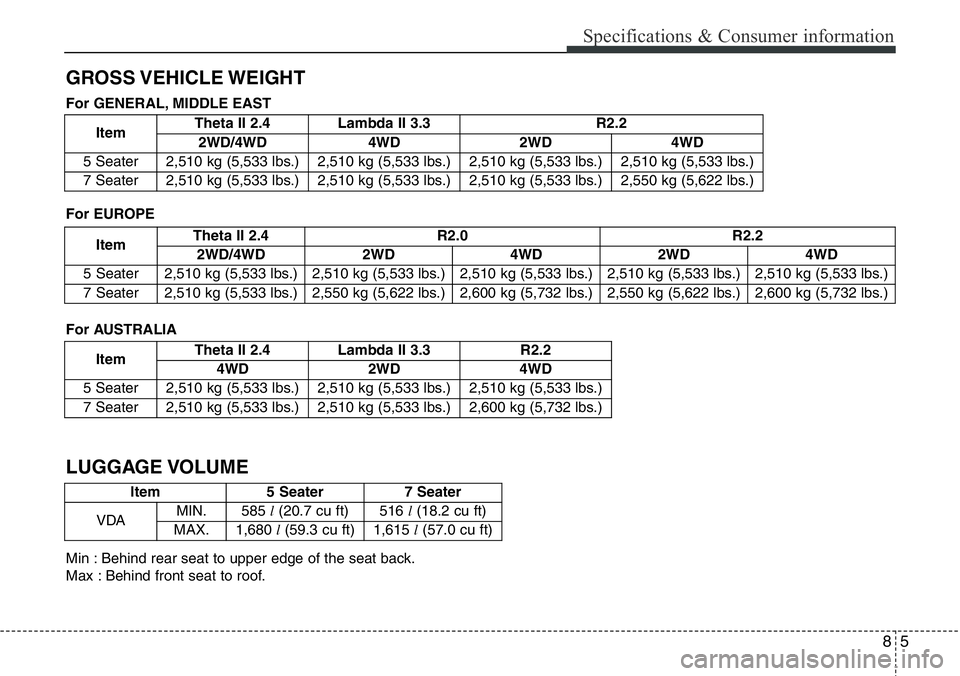

GROSS VEHICLE WEIGHT
ItemTheta II 2.4 R2.0 R2.2
2WD/4WD 2WD 4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.)
ItemTheta II 2.4 Lambda II 3.3 R2.2
4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,600 kg (5,732 lbs.)
ItemTheta II 2.4 Lambda II 3.3 R2.2
2WD/4WD 4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,550 kg (5,622 lbs.)
For GENERAL, MIDDLE EAST
For EUROPE
For AUSTRALIA
ltem 5 Seater 7 Seater
VDAMIN.585 l(20.7 cu ft) 516 l(18.2 cu ft)
MAX.1,680 l(59.3 cu ft) 1,615 l(57.0 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME

Specifications & Consumer information
6 8

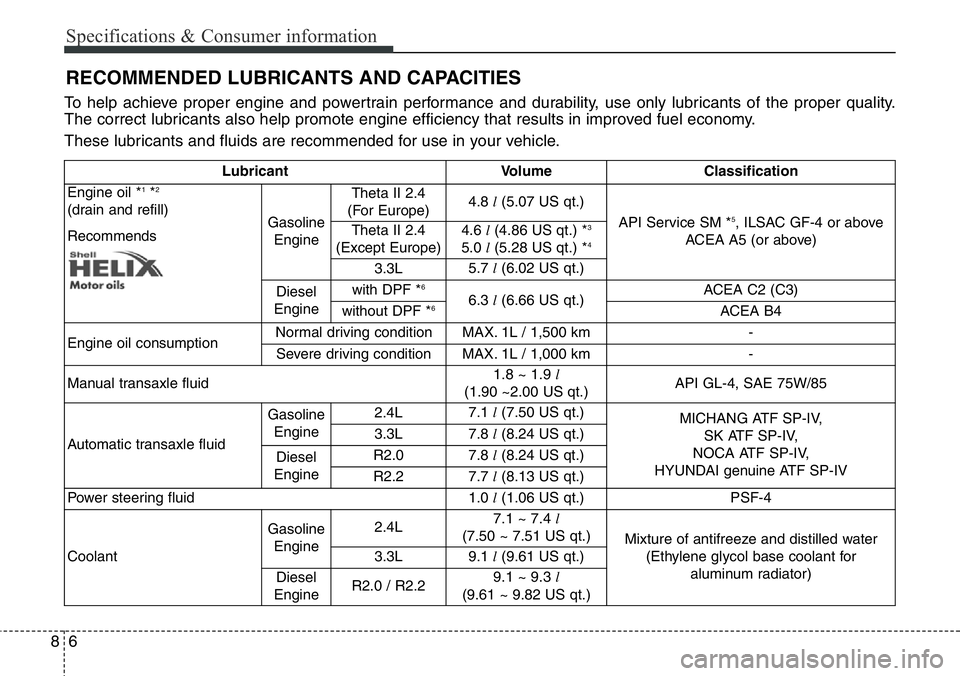

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsGasoline
EngineTheta II 2.4
(For Europe)4.8 l(5.07 US qt.)
API Service SM *5, ILSAC GF-4 or above
ACEA A5 (or above)Theta II 2.4
(Except Europe)4.6 l(4.86 US qt.) *3
5.0 l(5.28 US qt.) *4
3.3L5.7 l(6.02 US qt.)
Diesel
Enginewith DPF *
66.3 l(6.66 US qt.)ACEA C2 (C3)
without DPF *6ACEA B4
Engine oil consumption Normal driving condition MAX. 1L / 1,500 km -
Severe driving condition MAX. 1L / 1,000 km -
Manual transaxle fluid 1.8 ~ 1.9 l
(1.90 ~2.00 US qt.)API GL-4, SAE 75W/85
Automatic transaxle fluid Gasoline
Engine2.4L7.1 l(7.50 US qt.)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV 3.3L7.8 l(8.24 US qt.)
Diesel
EngineR2.07.8 l(8.24 US qt.)
R2.27.7 l(8.13 US qt.)
Power steering fluid 1.0 l(1.06 US qt.)PSF-4
Coolant
Gasoline
Engine2.4L7.1 ~ 7.4 l
(7.50 ~ 7.51 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for
aluminum radiator)
3.3L9.1 l(9.61 US qt.)
Diesel
EngineR2.0 / R2.29.1 ~ 9.3 l
(9.61 ~ 9.82 US qt.)

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel nec-
essary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.
*
3Yellow engine oil dipstick (if equipped)
*4Red engine oil dipstick (if equipped)
*5If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3.
*6Diesel Particulate Filter

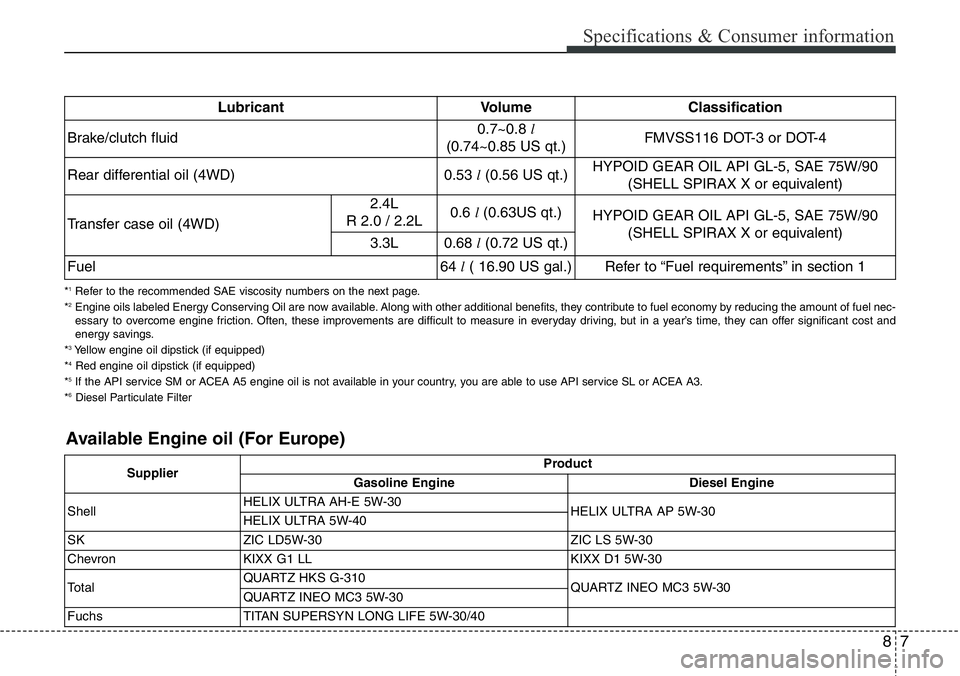

Lubricant Volume Classification
Brake/clutch fluid0.7~0.8 l
(0.74~0.85 US qt.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.53 l(0.56 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 2.4L
R 2.0 / 2.2L0.6 l(0.63US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
3.3L0.68 l(0.72 US qt.)
Fuel64 l( 16.90 US gal.)
Refer to “Fuel requirements” in section 1
Available Engine oil (For Europe)
SupplierProduct
Gasoline Engine Diesel Engine
ShellHELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
SK ZIC LD5W-30 ZIC LS 5W-30
Chevron KIXX G1 LL KIXX D1 5W-30
TotalQUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
QUARTZ INEO MC3 5W-30
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40

Specifications & Consumer information
8 8

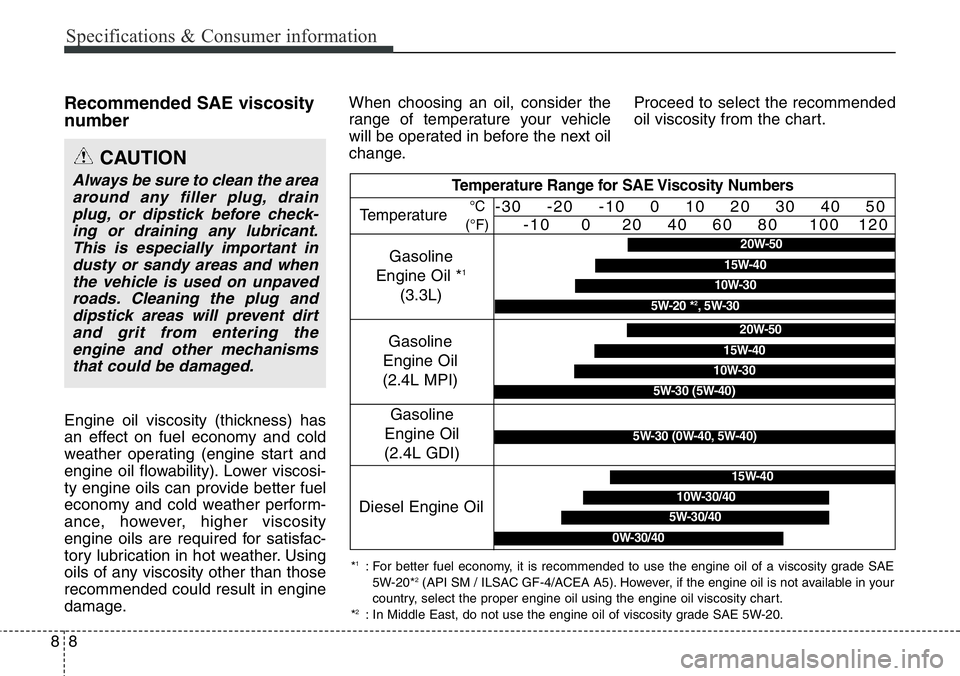

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change.Proceed to select the recommended
oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20*2(API SM / ILSAC GF-4/ACEA A5). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscosity chart.
*
2: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *1
(3.3L)
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel Engine Oil5W-30/40
15W-40
10W-30/40
0W-30/40
20W-50
10W-30
15W-40
5W-20 *2, 5W-30
Gasoline
Engine Oil
(2.4L MPI)20W-50
10W-30
15W-40
5W-30 (5W-40)
Gasoline
Engine Oil
(2.4L GDI)
5W-30 (0W-40, 5W-40)

89
Specifications & Consumer information

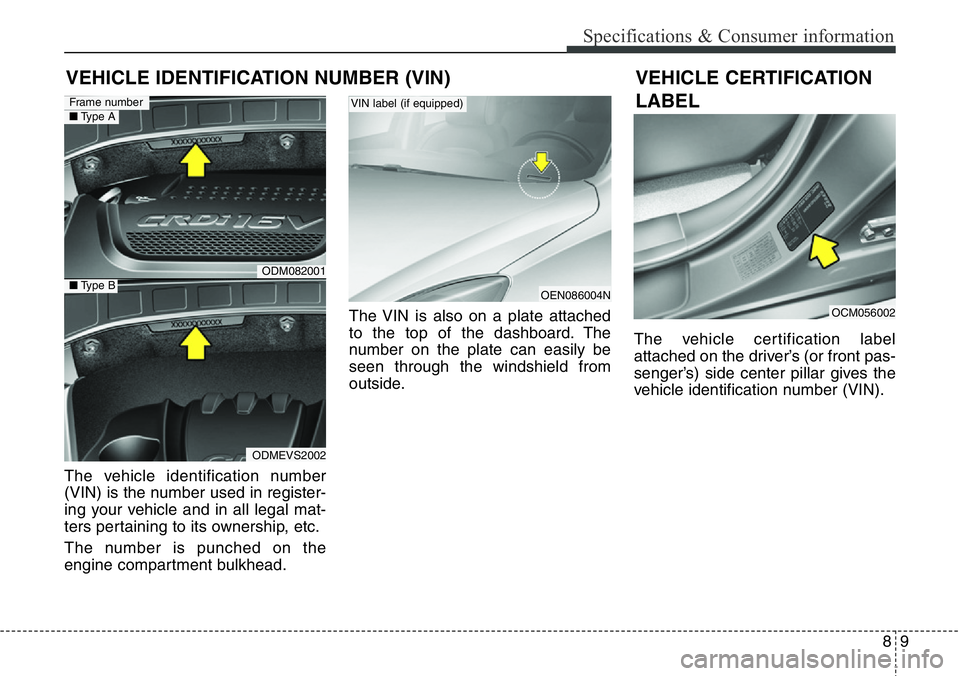

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label (if equipped)
OCM056002
ODM082001
ODMEVS2002
Frame number
■Type B
■Type A

Specifications & Consumer information
10 8

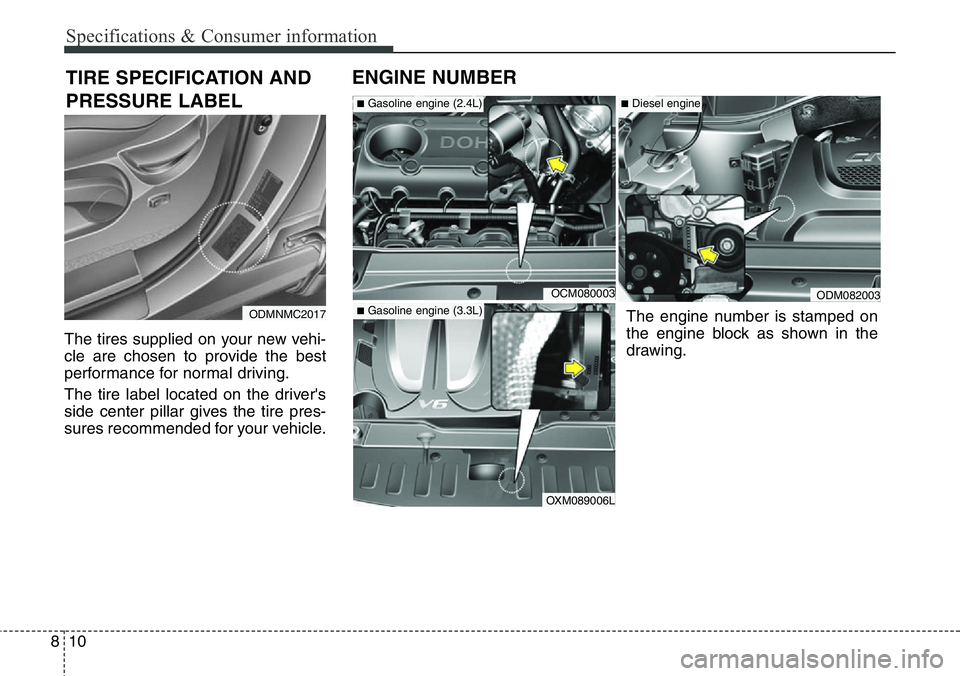

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
TIRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
OCM080003ODM082003
The engine number is stamped on
the engine block as shown in the
drawing.
■Gasoline engine (2.4L)
■Gasoline engine (3.3L)
■Diesel engine
OXM089006L
ODMNMC2017

811
Specifications & Consumer information

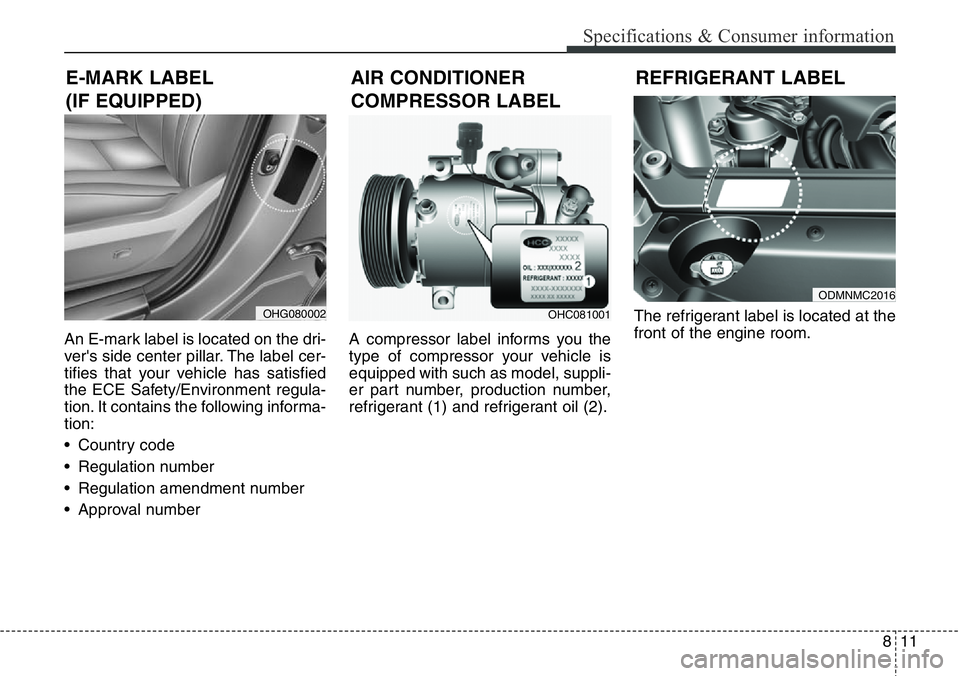

An E-mark label is located on the dri-
ver's side center pillar. The label cer-
tifies that your vehicle has satisfied
the ECE Safety/Environment regula-
tion. It contains the following informa-
tion:
• Country code
• Regulation number
• Regulation amendment number
• Approval numberA compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).The refrigerant label is located at the
front of the engine room.
OHC081001
AIR CONDITIONER
COMPRESSOR LABEL
OHG080002
REFRIGERANT LABEL
ODMNMC2016
E-MARK LABEL
(IF EQUIPPED)
