Hyundai Santa Fe 2016 Owner's Manual

Specifications, Consumer information and Reporting safety defects
48

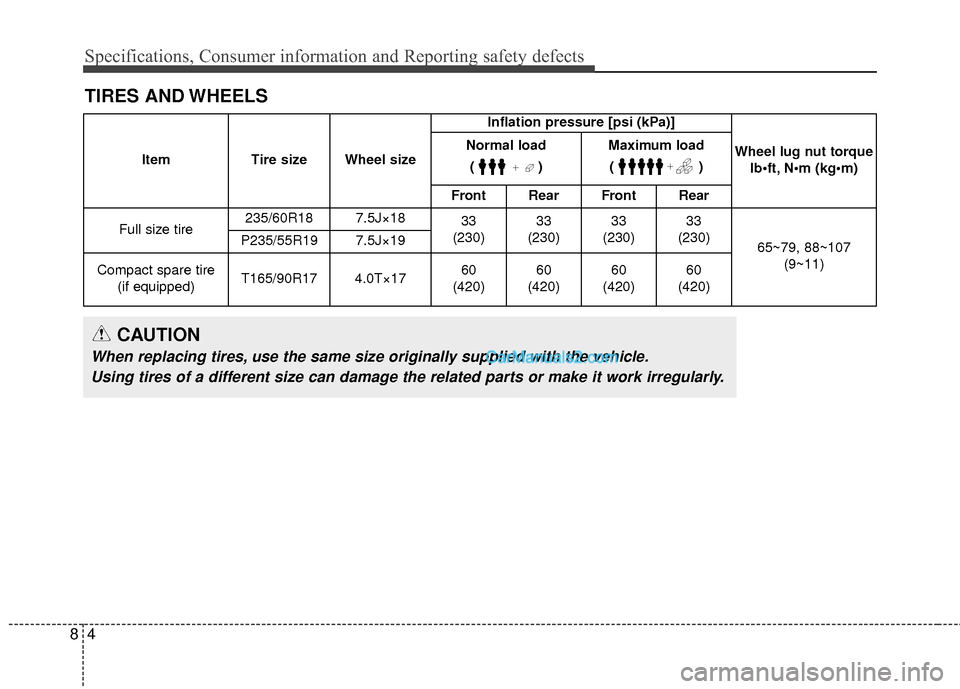

TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.
Item Tire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lb•ft, N
Normal load
()Maximum load()
Front Rear Front Rear
Full size tire 235/60R18 7.5J×18
33
(230) 33
(230) 33
(230) 33
(230) 65~79, 88~107
(9~11)
P235/55R19 7.5J×19
Compact spare tire (if equipped) T165/90R17 4.0T×17 60
(420) 60
(420) 60
(420) 60
(420)

85
Specifications, Consumer information and Reporting safety defects

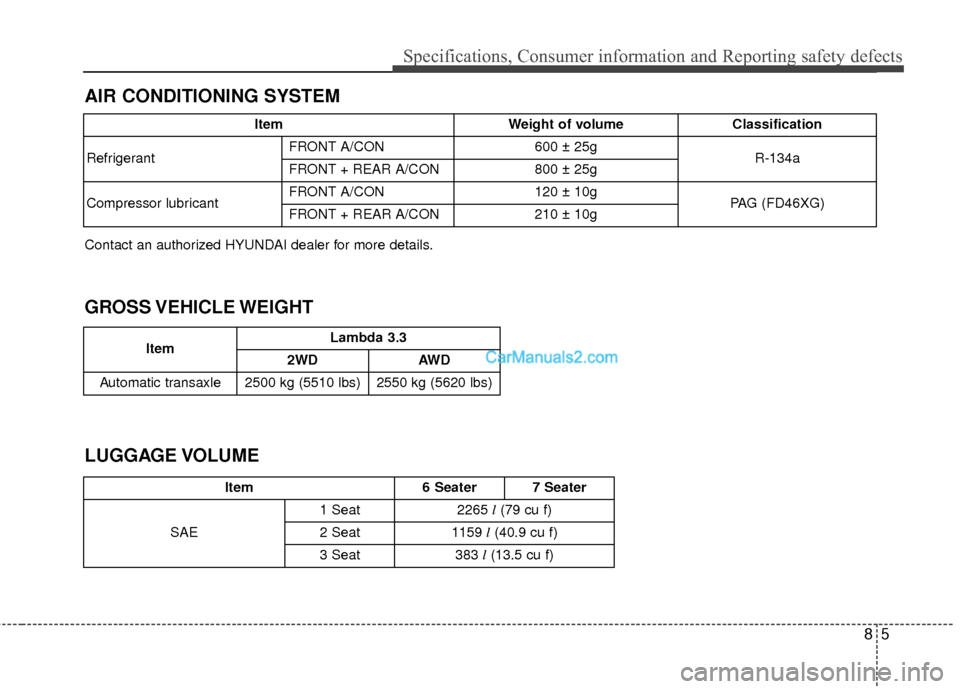

AIR CONDITIONING SYSTEM
LUGGAGE VOLUME
Item6 Seater7 Seater
SAE 1 Seat
2265
l(79 cu f)
2 Seat 1159
l(40.9 cu f)
3 Seat383 l(13.5 cu f)
ItemLambda 3.3
2WD AWD
Automatic transaxle
2500 kg (5510 lbs) 2550 kg (5620 lbs)
ItemWeight of volume Classification
Refrigerant FRONT A/CON
600 ± 25g
R-134a
FRONT + REAR A/CON
800 ± 25g
Compressor lubricant FRONT A/CON
120 ± 10g
PAG (FD46XG)
FRONT + REAR A/CON
210 ± 10g
Contact an authorized HYUNDAI dealer for more details.
GROSS VEHICLE WEIGHT

Specifications, Consumer information and Reporting safety defects
68
RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline
Engine Lambda 3.3
6.02 US qt. (5.7
l) API Service SM *3,
ILSAC GF-4 (or above), ACEA A5 (or above)
Automatic transaxle fluid Gasoline
Engine Lambda 3.3
8.24 US qt. (7.8
l)MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by HYUNDAI Motor Company
Coolant Gasoline
Engine Lambda 3.3
9.6 US qt. (9.1
l)Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid0.74 ~ 0.85 US qt. (0.7 ~ 0.8 l)FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD) 0.56 US qt. (0.53 l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) Lambda 3.30.72 US qt. (0.68
l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel18.95 US gal. (71 l)Refer to “Fuel requirements” in section 1

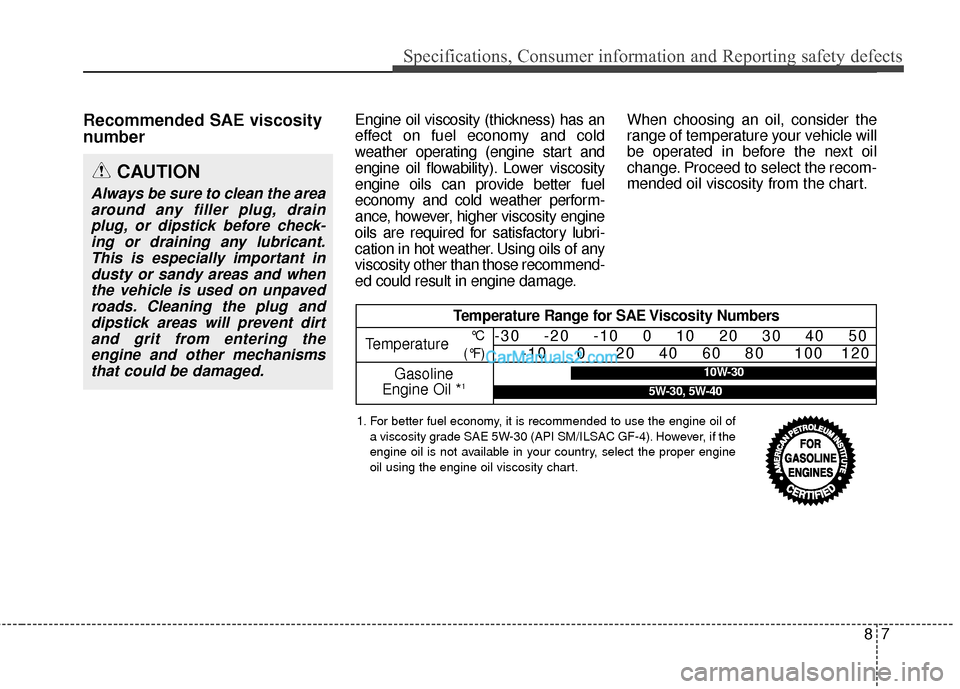

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-30, 5W-40
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (API SM/ILSAC GF-4). However, if the
engine oil is not available in your country, select the proper engine
oil using the engine oil viscosity chart.
87
Specifications, Consumer information and Reporting safety defects

Specifications, Consumer information and Reporting safety defects
88

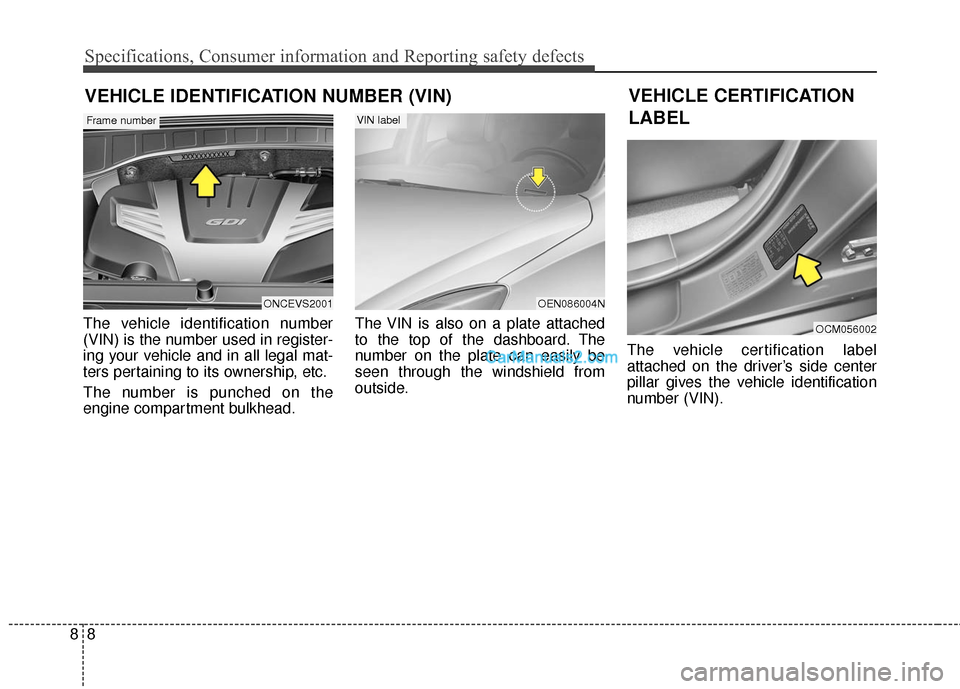

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
ONCEVS2001
Frame number
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label
OCM056002

89
Specifications, Consumer information and Reporting safety defects

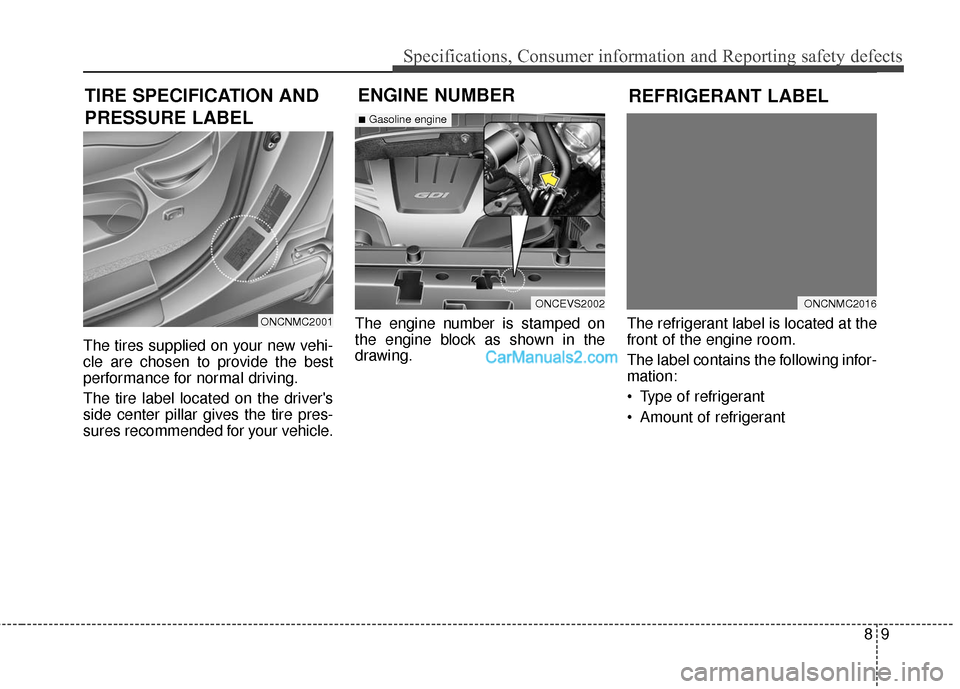

REFRIGERANT LABEL
TIRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle. The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located at the
front of the engine room.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
ONCNMC2016
ONCNMC2001
ONCEVS2002
■Gasoline engine

Specifications, Consumer information and Reporting safety defects
10
8

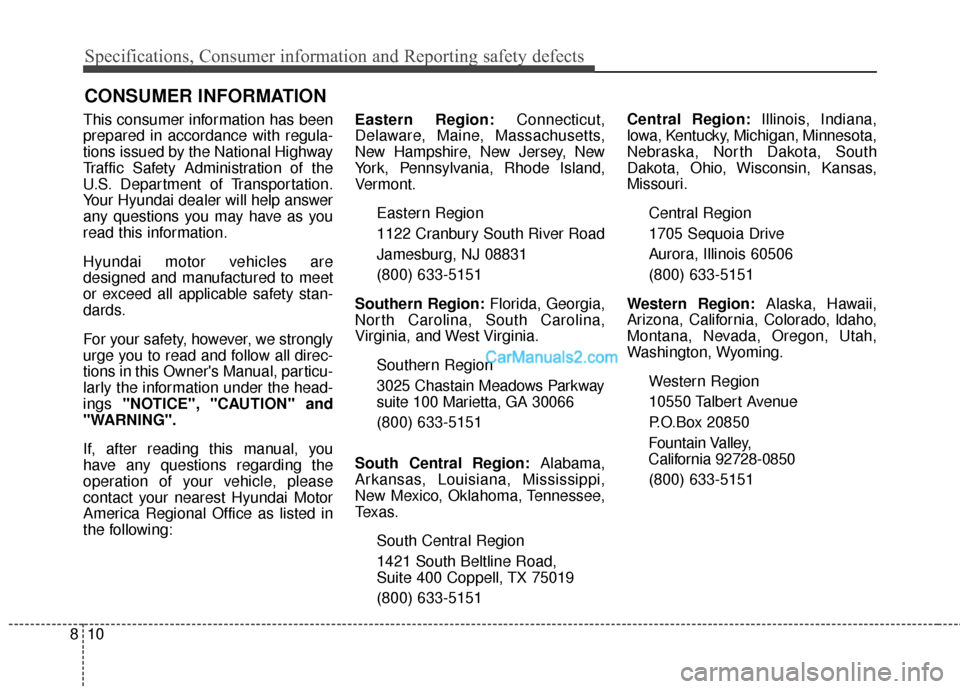

CONSUMER INFORMATION
This consumer information has been
prepared in accordance with regula-
tions issued by the National Highway
Traffic Safety Administration of the
U.S. Department of Transportation.
Your Hyundai dealer will help answer
any questions you may have as you
read this information.
Hyundai motor vehicles are
designed and manufactured to meet
or exceed all applicable safety stan-
dards.
For your safety, however, we strongly
urge you to read and follow all direc-
tions in this Owner's Manual, particu-
larly the information under the head-
ings "NOTICE", "CAUTION" and
"WARNING".
If, after reading this manual, you
have any questions regarding the
operation of your vehicle, please
contact your nearest Hyundai Motor
America Regional Office as listed in
the following: Eastern Region:
Connecticut,
Delaware, Maine, Massachusetts,
New Hampshire, New Jersey, New
York, Pennsylvania, Rhode Island,
Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region: Florida, Georgia,
North Carolina, South Carolina,
Virginia, and West Virginia.
Southern Region
3025 Chastain Meadows Parkway
suite 100 Marietta, GA 30066 (800) 633-5151
South Central Region: Alabama,
Arkansas, Louisiana, Mississippi,
New Mexico, Oklahoma, Tennessee,
Texas.
South Central Region
1421 South Beltline Road,
Suite 400 Coppell, TX 75019 (800) 633-5151 Central Region:
Illinois, Indiana,
lowa, Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South
Dakota, Ohio, Wisconsin, Kansas,
Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region: Alaska, Hawaii,
Arizona, California, Colorado, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley,
California 92728-0850
(800) 633-5151

811
Specifications, Consumer information and Reporting safety defects

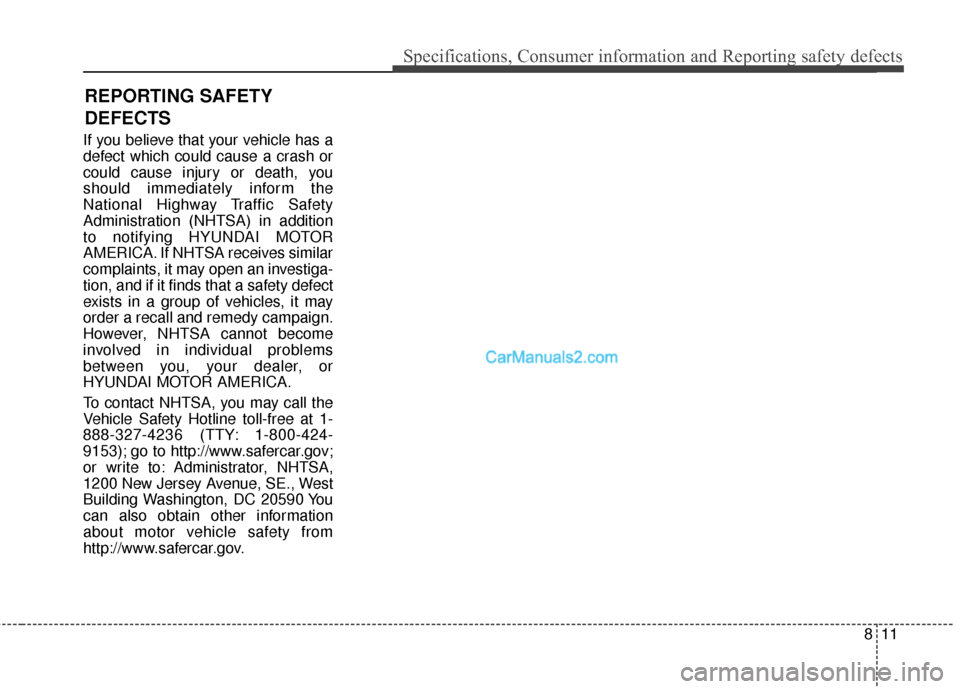

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investiga-
tion, and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., West
Building Washington, DC 20590 You
can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY
DEFECTS

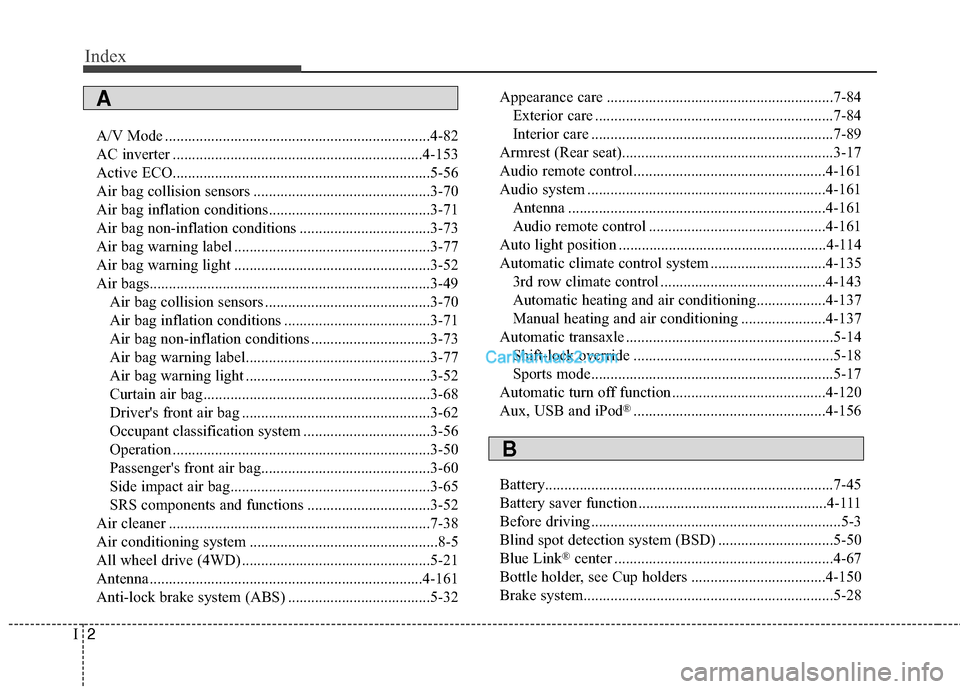

Index
I

Index
2I
A/V Mode .....................................................................4-8\
2
AC inverter .................................................................4-153
Active ECO..............................................................\
.....5-56
Air bag collision sensors ..............................................3-70
Air bag inflation conditions..........................................3-71
Air bag non-inflation conditions ..................................3-73
Air bag warning label ...................................................3-77
Air bag warning light ...................................................3-52
Air bags................................................................\
.........3-49Air bag collision sensors ...........................................3-70
Air bag inflation conditions ......................................3-71
Air bag non-inflation conditions ...............................3-73
Air bag warning label................................................3-77
Air bag warning light ................................................3-52
Curtain air bag...........................................................3-68
Driver's front air bag .................................................3-62
Occupant classification system .................................3-56
Operation ...................................................................3-50
Passenger's front air bag............................................3-60
Side impact air bag....................................................3-65
SRS components and functions ................................3-52
Air cleaner ....................................................................7-38\
Air conditioning system .................................................8-5
All wheel drive (4WD) .................................................5-21
Antenna .......................................................................4\
-161
Anti-lock brake system (ABS) .....................................5-32 Appearance care ...........................................................7-84
Exterior care ..............................................................7-84
Interior care ...............................................................7-89
Armrest (Rear seat).......................................................3-17
Audio remote control..................................................4-161
Audio system ..............................................................4-161 Antenna ...................................................................4-161\
Audio remote control ..............................................4-161
Auto light position ......................................................4-114
Automatic climate control system ..............................4-135 3rd row climate control ...........................................4-143
Automatic heating and air conditioning..................4-137
Manual heating and air conditioning ......................4-137
Automatic transaxle ......................................................5-14 Shift-lock override ....................................................5-18
Sports mode...............................................................5-17
Automatic turn off function ........................................4-120
Aux, USB and iPod
®..................................................4-156
Battery.................................................................\
..........7-45
Battery saver function .................................................4-111
Before driving .................................................................5-3
Blind spot detection system (BSD) ..............................5-50
Blue Link
®center .........................................................4-67
Bottle holder, see Cup holders ...................................4-150
Brake system............................................................\
.....5-28
A
B
