HYUNDAI SANTA FE 2023 Owners Manual

Instrument cluster4-44

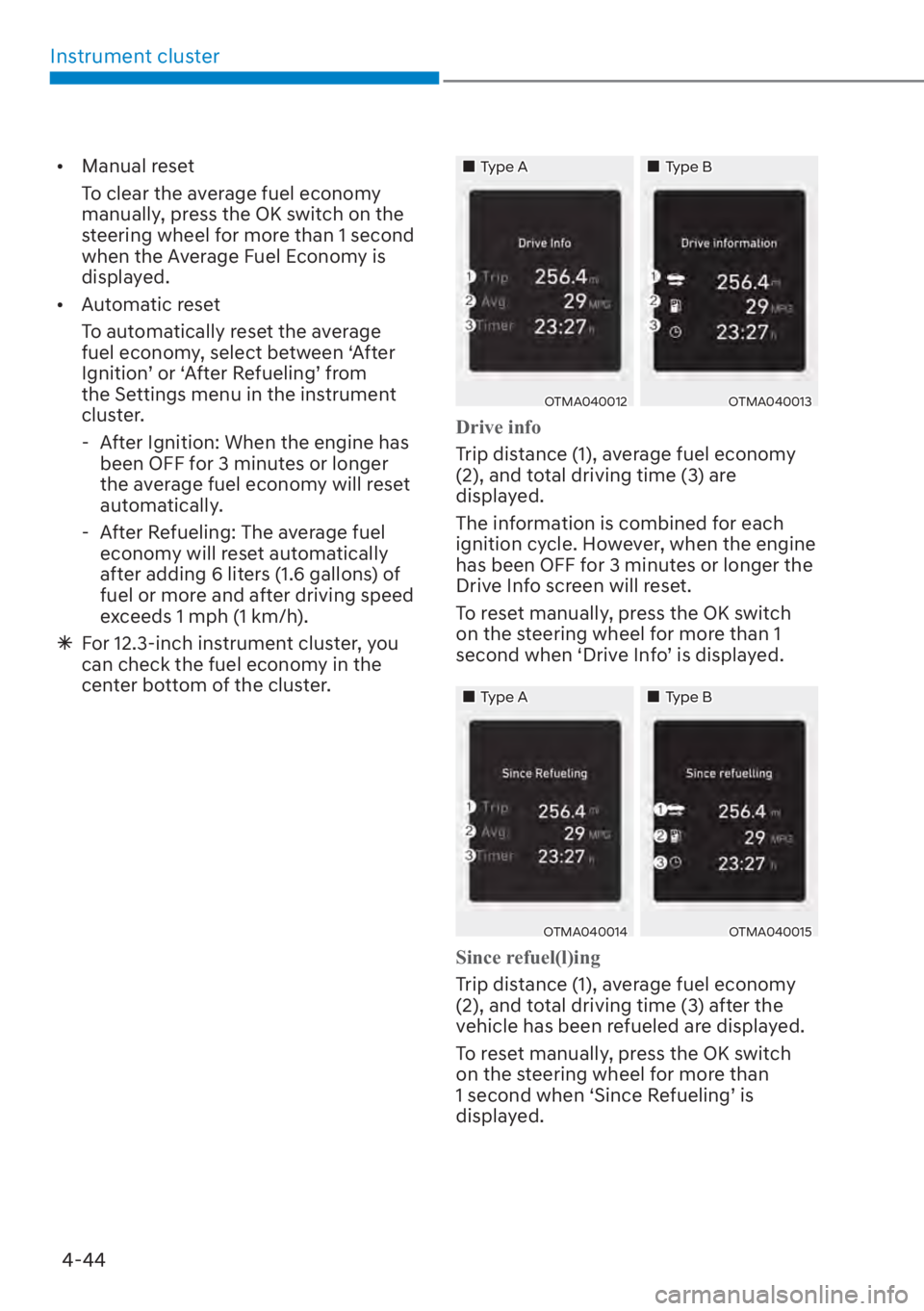

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.„Type A „Type B
OTMA040012OTMA040013
Drive info
Trip distance (1), average fuel economy
(2), and t

otal driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTMA040014OTMA040015
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t

otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

04
4-45
„Type A„Type B
OTMA040016OTMA040017

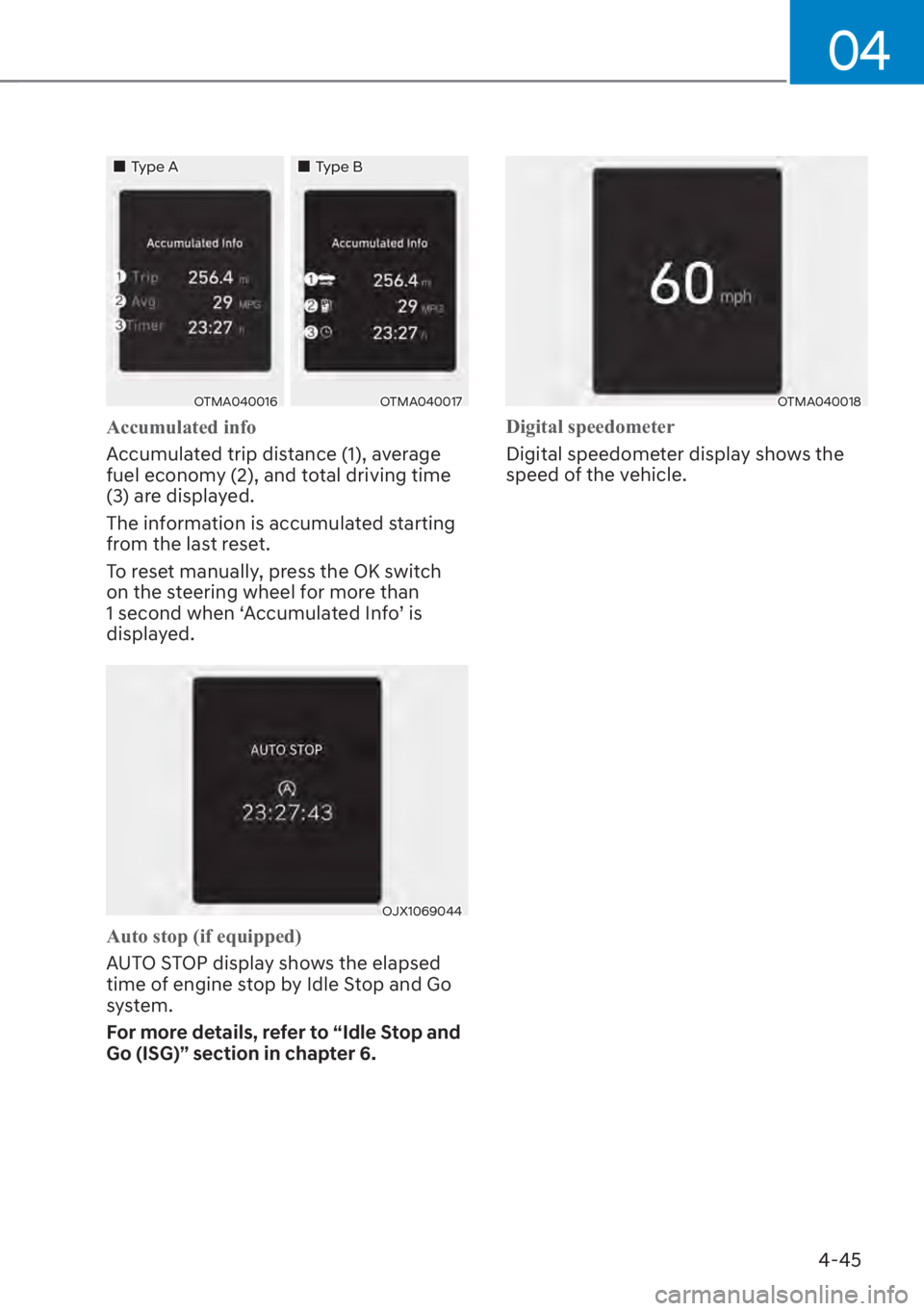

Accumulated info
Accumulated trip distance (1), average
fuel econom

y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OJX1069044
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time o
f engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
OTMA040018
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

5

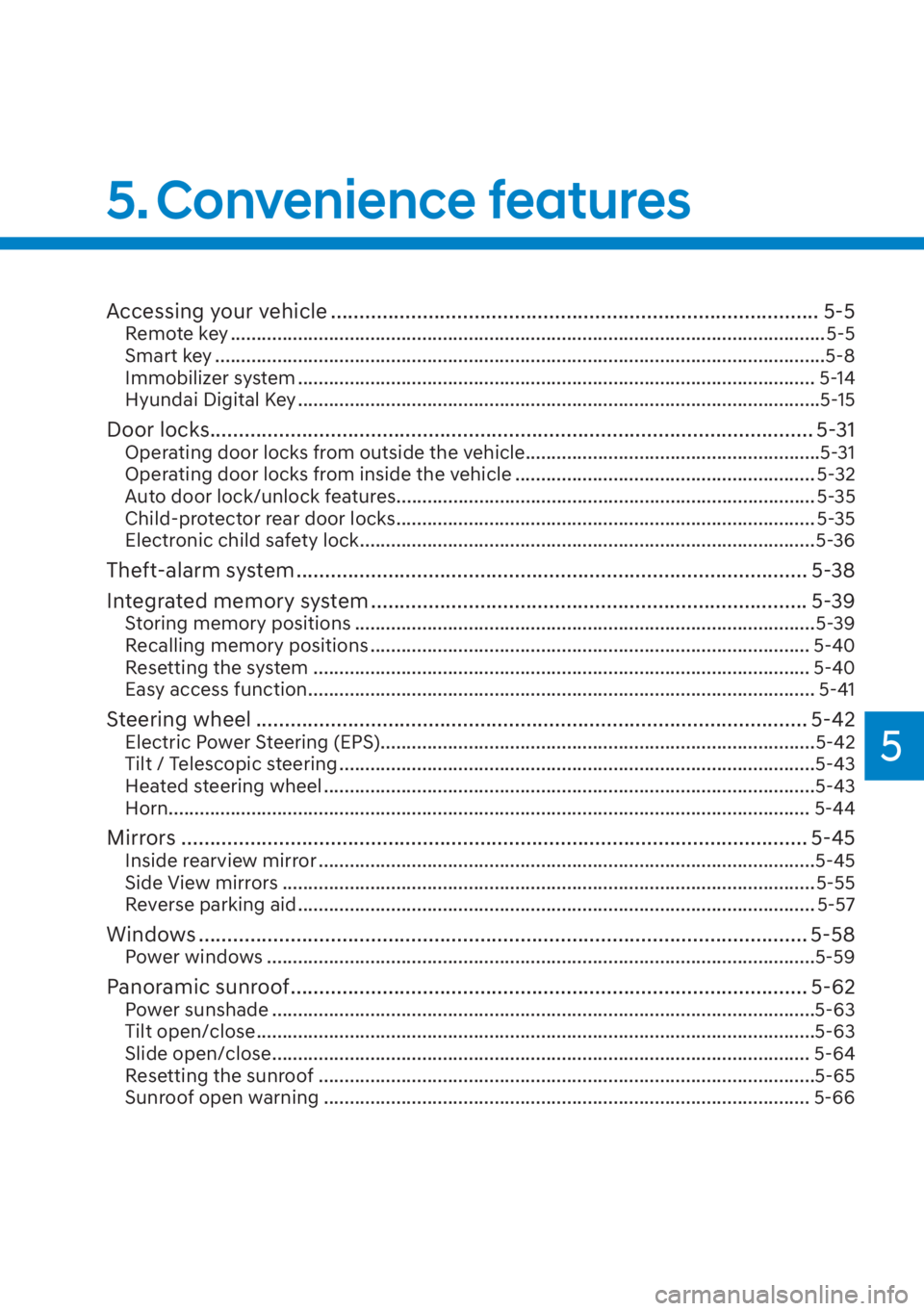

Accessing your vehicle ........................................................................\
............. 5-5Remote key ........................................................................\
........................................... 5-5
Smart key ........................................................................\
..............................................5-8
Immobilizer system ........................................................................\
............................ 5-14
Hyundai Digital Key ........................................................................\
.............................5-15
Door locks.......................................................................\
.................................. 5-31Operating door locks from outside the vehicle.........................................................5-31
Operating door locks from inside the vehicle .......................................................... 5-32
Auto door lock/unlock features......................................................................\
........... 5-35
Child-protector rear door locks ........................................................................\
......... 5-35
Electronic child safety lock ........................................................................\
................5-36
Theft-alarm system ........................................................................\
................. 5-38
Integrated memory system ........................................................................\
.... 5-39
Storing memory positions ........................................................................\
.................5-39
Recalling memory positions ........................................................................\
............. 5-40
Resetting the system .....................................................................\
........................... 5-40
Easy access function ........................................................................\
.......................... 5-41
Steering wheel ........................................................................\
........................ 5-42Electric Power Steering (EPS) ........................................................................\
............5-42
Tilt / Telescopic steering ........................................................................\
....................5-43
Heated steering wheel ........................................................................\
.......................5-43
Horn........................................................................\
.................................................... 5-44
Mirrors ......................................................................\
....................................... 5-45Inside rearview mirror ........................................................................\
........................5-45
Side View mirrors ........................................................................\
............................... 5-55
Reverse parking aid ........................................................................\
............................ 5-57
Windows ......................................................................\
.................................... 5-58Power windows ........................................................................\
..................................5-59
Panoramic sunroof ........................................................................\
.................. 5-62Power sunshade ........................................................................\
.................................5-63
Tilt open/close ........................................................................\
....................................5-63
Slide open/close ........................................................................\
................................ 5-64
Resetting the sunroof ......................................................................\
..........................5-65
Sunroof open warning ........................................................................\
...................... 5-66
5. Convenience features

5

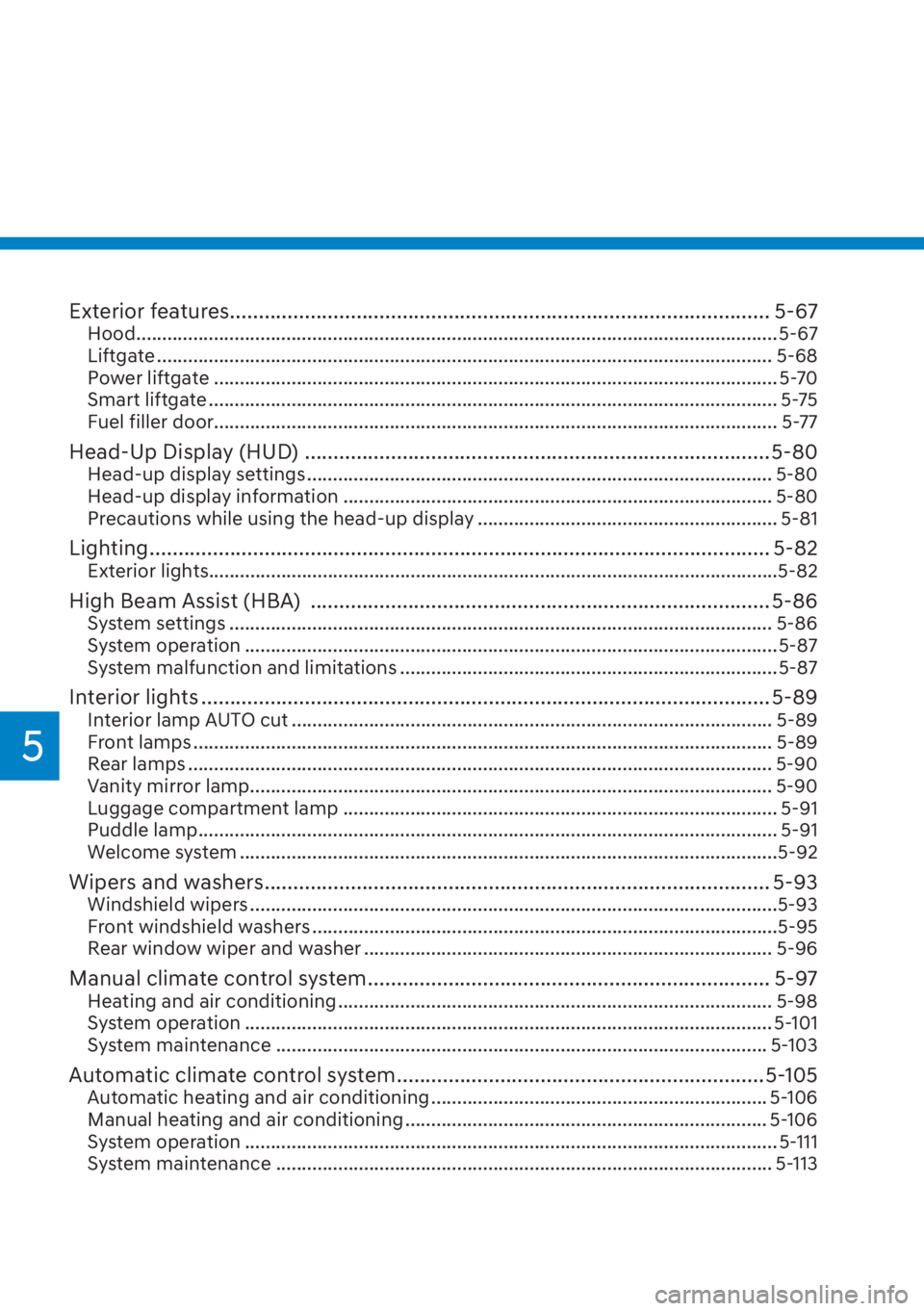

Exterior features ........................................................................\
...................... 5-67Hood ....................................................................\
........................................................ 5-67
Liftgate ......................................................................\
................................................ . 5-68
Power liftgate ........................................................................\
..................................... 5-70
Smart liftgate ........................................................................\
...................................... 5-75
Fuel filler door.........................................................\
.................................................... 5-77
Head-Up Display (HUD) ........................................................................\
......... 5-80Head-up display settings ........................................................................\
.................. 5-80
Head-up display information ...................................................................\
................ 5-80
Precautions while using the head-up display .......................................................... 5-81
Lighting ...............................................................\
............................................. 5-82Exterior lights............................................................\
..................................................5- 82
High Beam Assist (HBA) ........................................................................\
........ 5-86System settings ........................................................................\
................................. 5-86
System operation ........................................................................\
............................... 5-87
System malfunction and limitations ........................................................................\
. 5-87
Interior lights ........................................................................\
........................... 5-89Interior lamp AUTO cut ........................................................................\
..................... 5-89
Front lamps ........................................................................\
........................................ 5-89
Rear lamps ........................................................................\
......................................... 5-90
Vanity mirror lamp ........................................................................\
............................. 5-90
Luggage compartment lamp ........................................................................\
............ 5-91
Puddle lamp ........................................................................\
........................................ 5-91
Welcome system ........................................................................\
................................5-92
Wipers and washers ........................................................................\
................ 5-93Windshield wipers ........................................................................\
..............................5-93
Front windshield washers ........................................................................\
..................5-95
Rear window wiper and washer ........................................................................\
....... 5-96
Manual climate control system ...................................................................... 5-97Heating and air conditioning ........................................................................\
............ 5-98
System operation ........................................................................\
.............................. 5-101
System maintenance .................................................................\
.............................. 5-103
Automatic climate control system ................................................................ 5-105Automatic heating and air conditioning ................................................................. 5-106
Manual heating and air conditioning ...................................................................... 5-106
System operation ........................................................................\
............................... 5-111
System maintenance .................................................................\
............................... 5-113

5

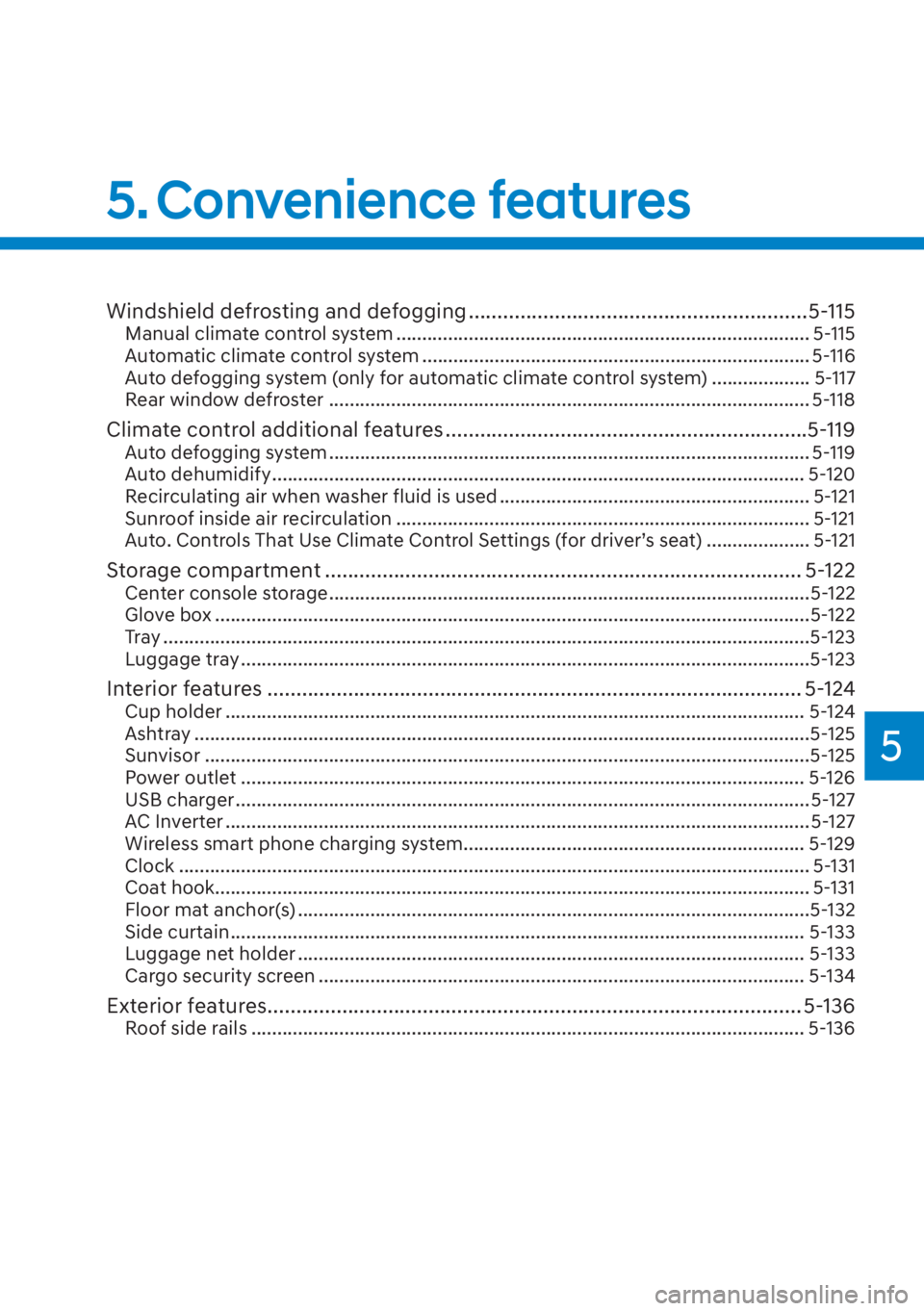

Windshield defrosting and defogging ...........................................................5-115Manual climate control system ........................................................................\
........ 5-115
Automatic climate control system ........................................................................\
... 5-116
Auto defogging system (only for automatic climate control system) ................... 5-117
Rear window defroster ........................................................................\
..................... 5-118
Climate control additional features ...............................................................5-119Auto defogging system ........................................................................\
..................... 5-119
Auto dehumidify ........................................................................\
............................... 5-120
Recirculating air when washer fluid is used ............................................................ 5-121
Sunroof inside air recirculation ........................................................................\
........ 5-121
Auto. Controls That Use Climate Control Settings (for driver’s seat) .................... 5-121
Storage compartment ........................................................................\
........... 5-122Center console storage ........................................................................\
.....................5-122
Glove box ........................................................................\
...........................................5-122
Tray ......................................................................\
.......................................................5-123
Luggage tray ........................................................................\
......................................5-123
Interior features ........................................................................\
..................... 5-124Cup holder ........................................................................\
........................................ 5-124
Ashtray ......................................................................\
................................................. 5-125
Sunvisor ..................................................................\
...................................................5 -125
Power outlet ........................................................................\
..................................... 5-126
USB charger ........................................................................\
....................................... 5-127
AC Inverter ........................................................................\
......................................... 5-127
Wireless smart phone charging system .................................................................. 5-129
Clock ..................................................................\
....................................................... . 5-131
Coat hook ........................................................................\
........................................... 5-131
Floor mat anchor(s) ........................................................................\
...........................5-132
Side curtain ........................................................................\
....................................... 5-133
Luggage net holder ........................................................................\
.......................... 5-133
Cargo security screen ........................................................................\
...................... 5-134
Exterior features ........................................................................\
..................... 5-136Roof side rails ........................................................................\
................................... 5-136
5. Convenience features

5

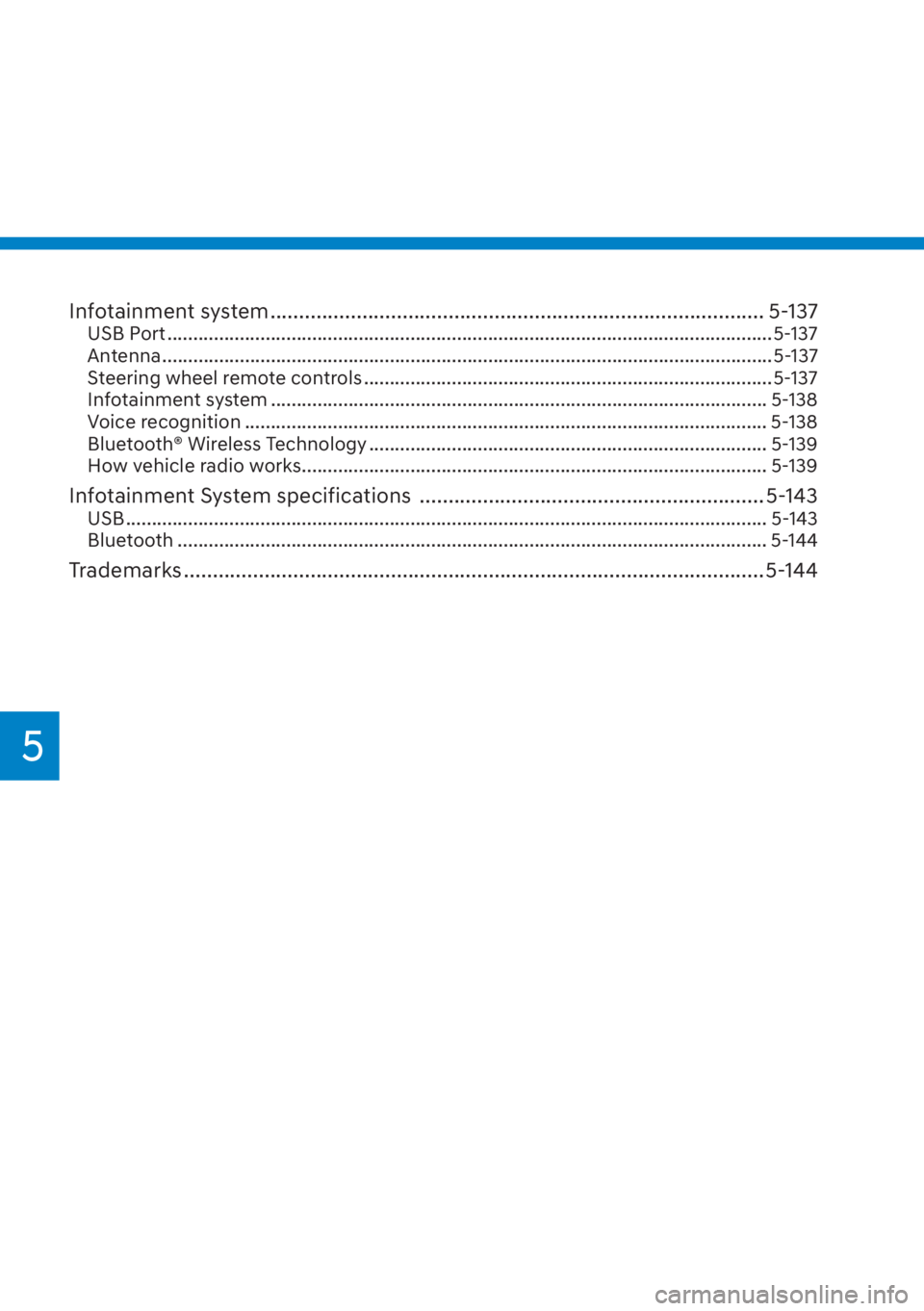

Infotainment system ........................................................................\
.............. 5-137USB Port ........................................................................\
.............................................5-137
Antenna ...................................................................\
...................................................5-137
Steering wheel remote controls ........................................................................\
.......5-137
Infotainment system ........................................................................\
........................ 5-138
Voice recognition ........................................................................\
............................. 5-138
Bluetooth® Wireless Technology ........................................................................\
..... 5-139
How vehicle radio works ........................................................................\
.................. 5-139
Infotainment System specifications ............................................................ 5-143USB ....................................................................\
....................................................... . 5-143
Bluetooth .....................................................................\
............................................. 5-1 44
Trademarks ......................................................................\
............................... 5-144

05
5-5
Remote key (if equipped)
OPD046001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the liftgate.
1. Door Lock
2. Door Unlock
3. Liftgate Open
4. Panic
Locking
To lock :
1. Close all doors, engine hood and liftgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink. Also, the side
view mirror will fold, if ‘Convenience

Convenience features5-6

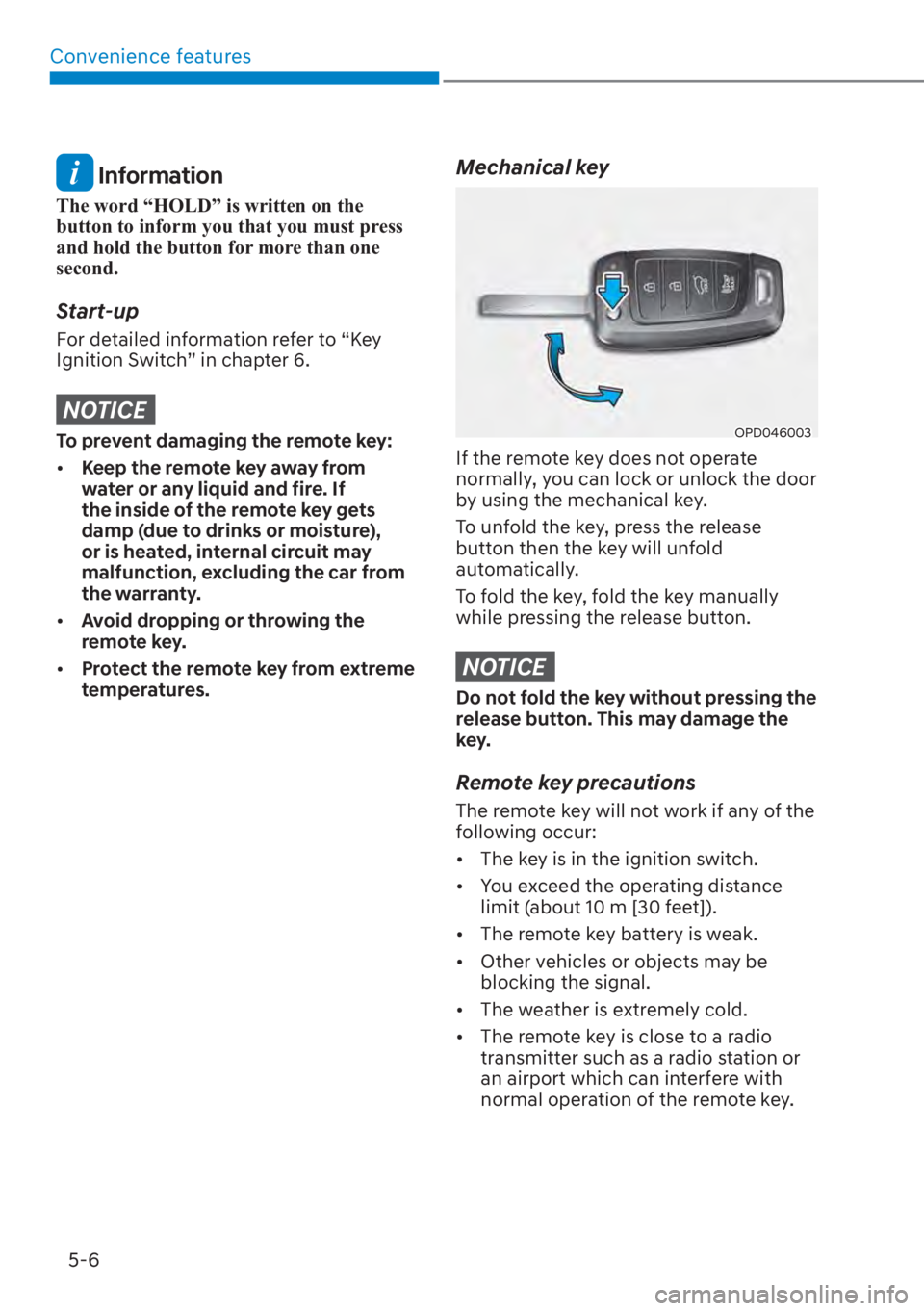

Information
The word “HOLD” is written on the
button to inform you that you must press
and hold the button for more than one
second.
Start-up
For detailed information refer to “Key
Ignition Switch” in chapter 6.
NOTICE
To prevent damaging the remote key:

[ Keep the remote key away from
water or any liquid and fire. If
the inside of the remote key gets
damp (due to drinks or moisture),
or is heated, internal circuit may
malfunction, excluding the car from
the warranty.

[ Avoid dropping or throwing the
remote key.

[ Protect the remote key from extreme
temperatures.
Mechanical key
OPD046003
If the remote key does not operate
normally, you can lock or unlock the door
by using the mechanical key.
To unfold the key, press the release
button then the key will unfold
automatically.
To fold the key, fold the key manually
while pressing the release button.
NOTICE
Do not fold the key without pressing the
release button. This may damage the
key.
Remote key precautions
The remote key will not work if any of the
following occur:

[The key is in the ignition switch.

[ You exceed the operating distance
limit (about 10 m [30 feet]).

[ The remote key battery is weak.

[ Other vehicles or objects may be
blocking the signal.

[ The weather is extremely cold.

[ The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.

05
5-7

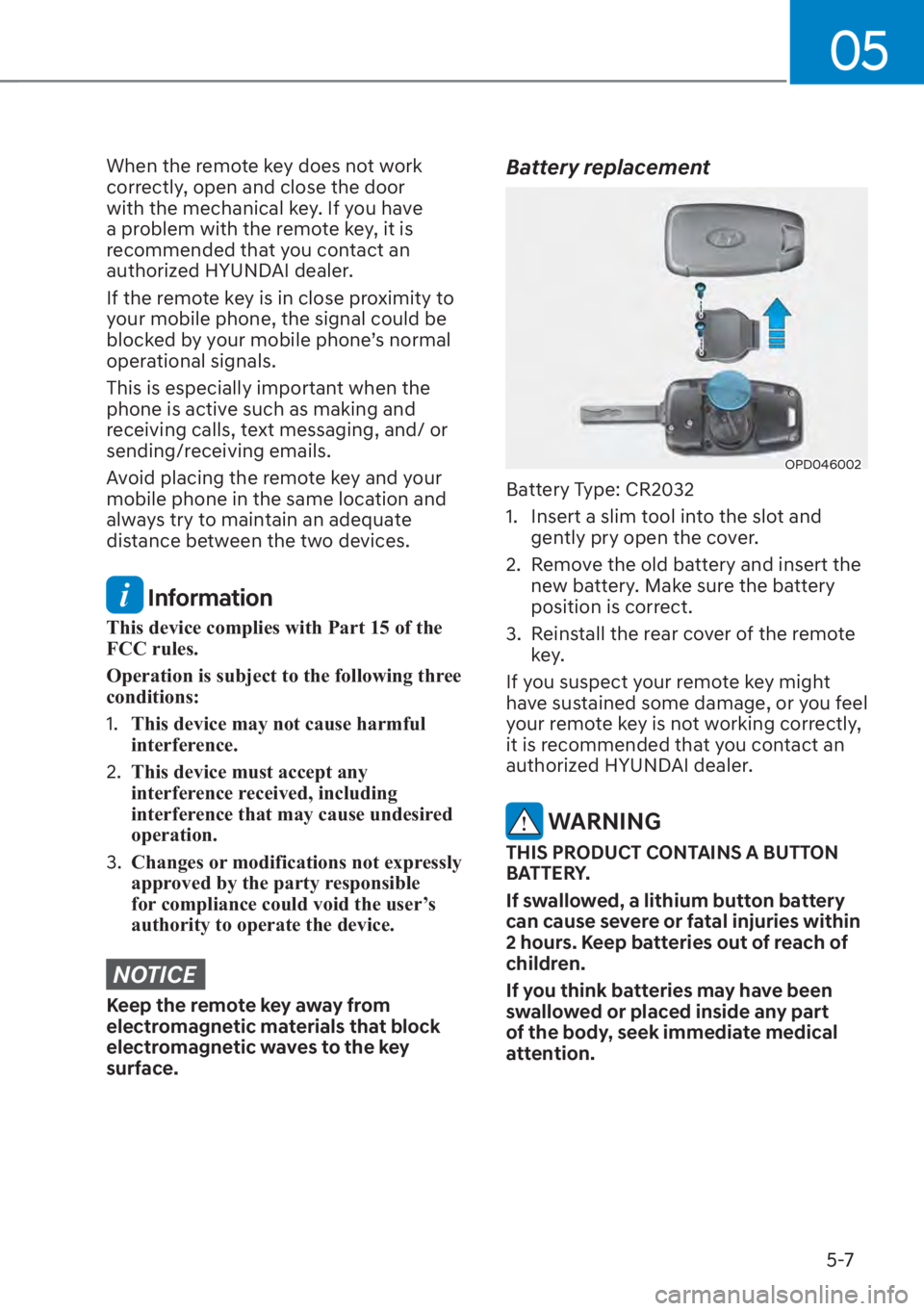

When the remote key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the remote key, it is
recommended that you contact an
authorized HYUNDAI dealer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging, and/ or
sending/receiving emails.
Avoid placing the remote key and your
mobile phone in the same location and
always try to maintain an adequate
distance between the two devices.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
NOTICE
Keep the remote key away from
electromagnetic materials that block
electromagnetic waves to the key
surface.
Battery replacement
OPD046002
Battery Type: CR2032
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
3. Reinstall the rear cover of the remote key.
If you suspect your remote key might
have sustained some damage, or you feel
your remote key is not working correctly,
it is recommended that you contact an
authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY.
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.

Convenience features5-8
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s)
and regulation.
Smart key (if equipped)
„Type A
OTM050003
„Type B
OTM050004
Your HYUNDAI uses a smart key, which
you can use to lock or unlock a door (and
liftgate) and even start the engine even
just carrying the key.
1. Door lock
2. Door unlock
3. Liftgate Open (Liftgate) Liftgate Open / Close (Power liftgate)
4. Panic Open / Close
5. Remote Smart parking Assist (Forward)
6. Remote Smart parking Assist (Rearward)
7. Remote start
„Type C
OTMA050022
„Type D
OTMA050021
1. Door lock
2. Door unlock
3. Panic
4. Remote Smart Parking Assist (Forward)
5. Remote Smart Parking Assist (Rearward)
6. Remote start
