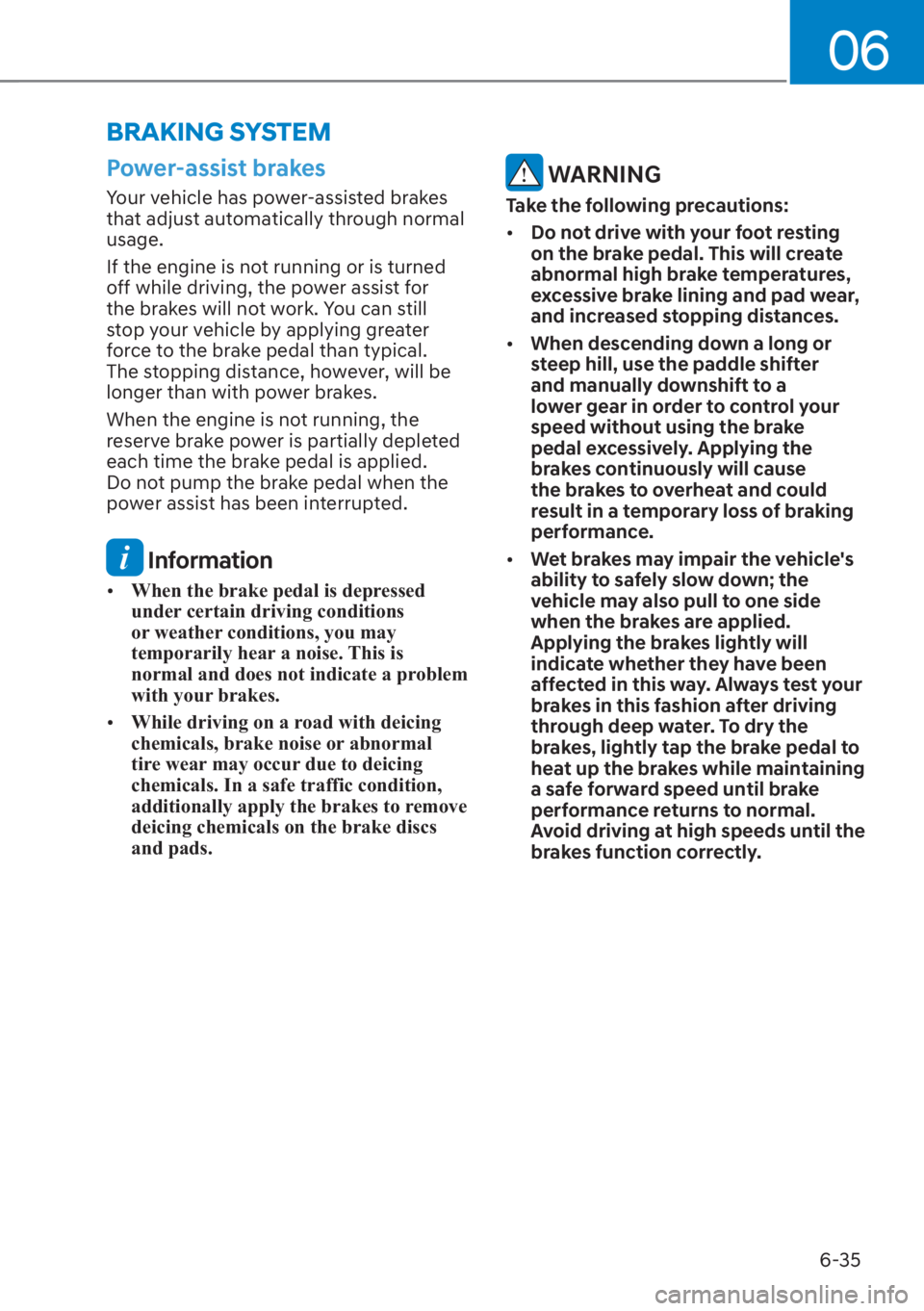

Page 321 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-35
Power-assist brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off while driving, the power assist for

Page 322 of 624

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-36

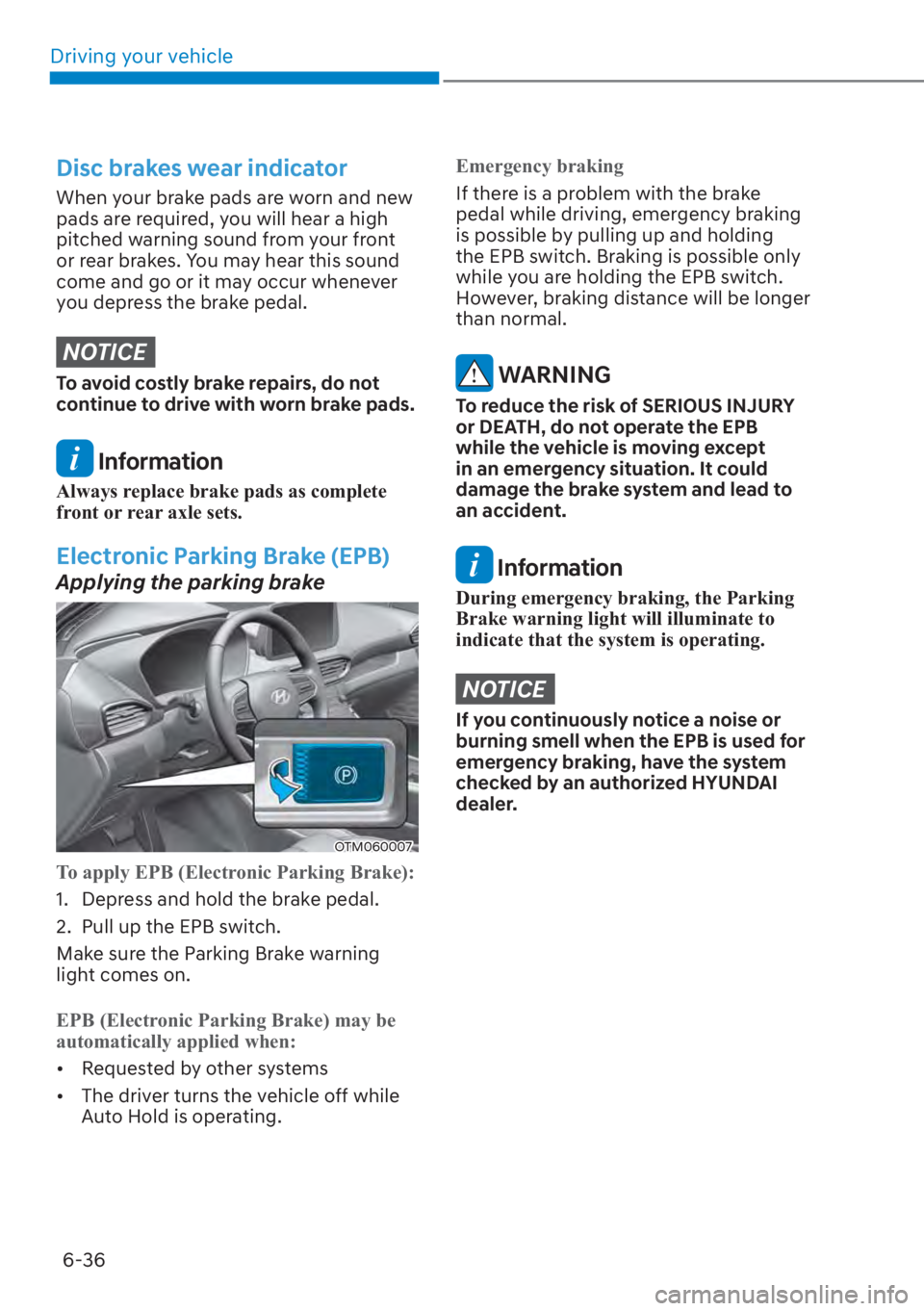

Disc brakes wear indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear

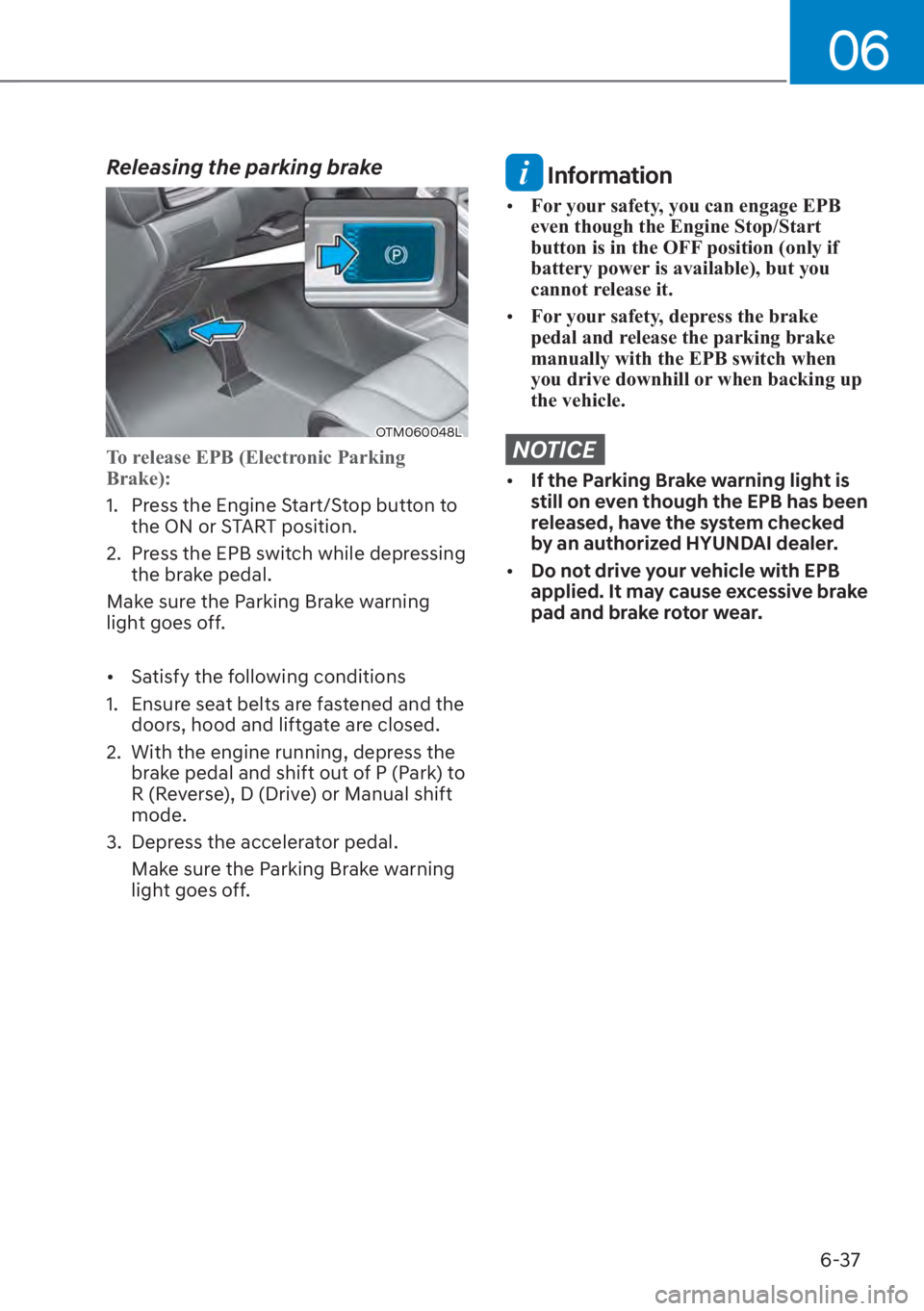

Page 323 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-37
Releasing the parking brake
OTM060048L
To release EPB (Electronic Parking
Brake):
1.  Press the Engine Start/Stop button to the ON or S
 TART position.
2.  Press the EPB switch while depressi

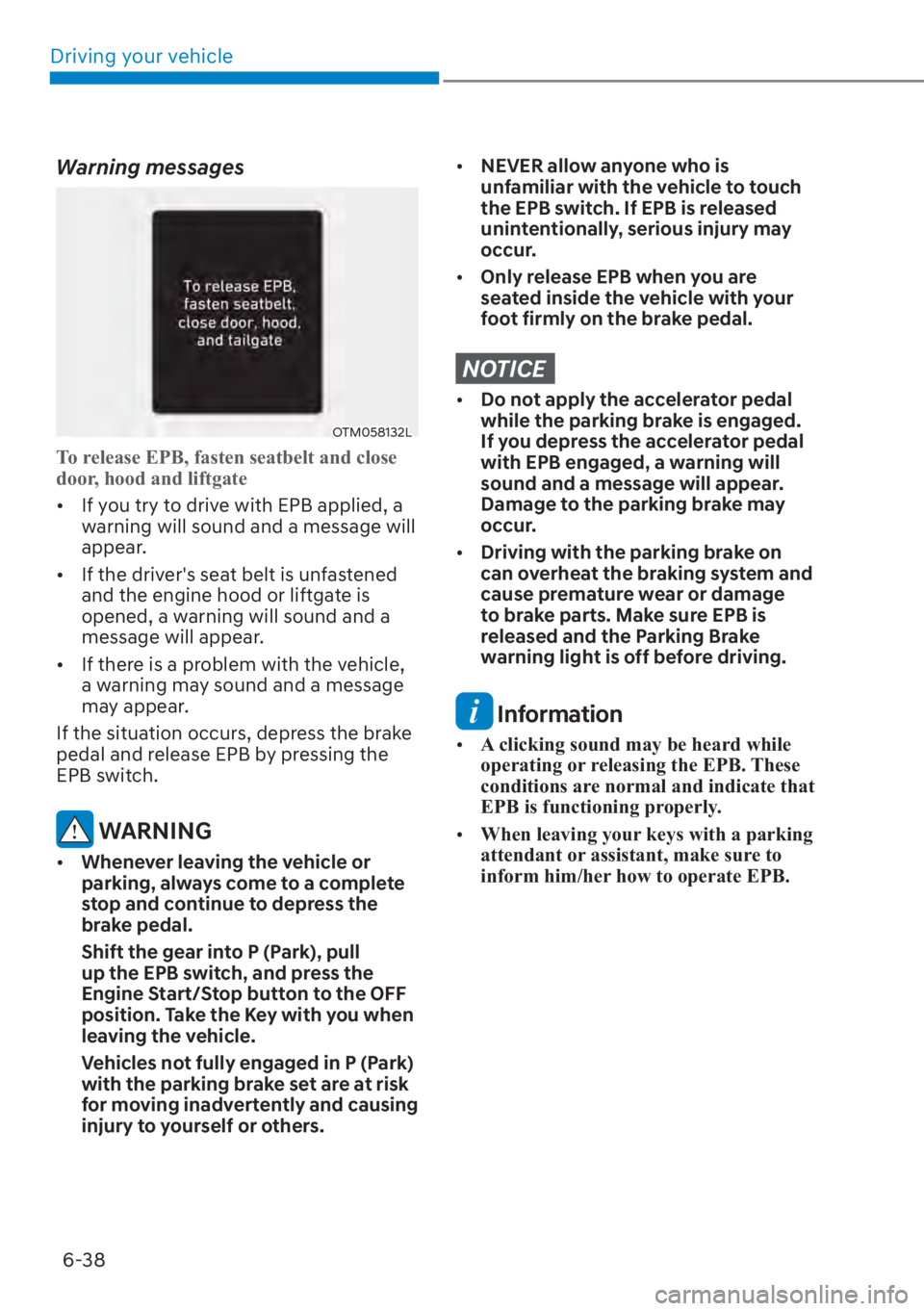

Page 324 of 624

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-38
Warning messages
OTM058132L
To release EPB, fasten seatbelt and close
door, hood and liftgate
[� If y
ou try to drive with EPB applied, a
warning will sound and a message

Page 325 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-39

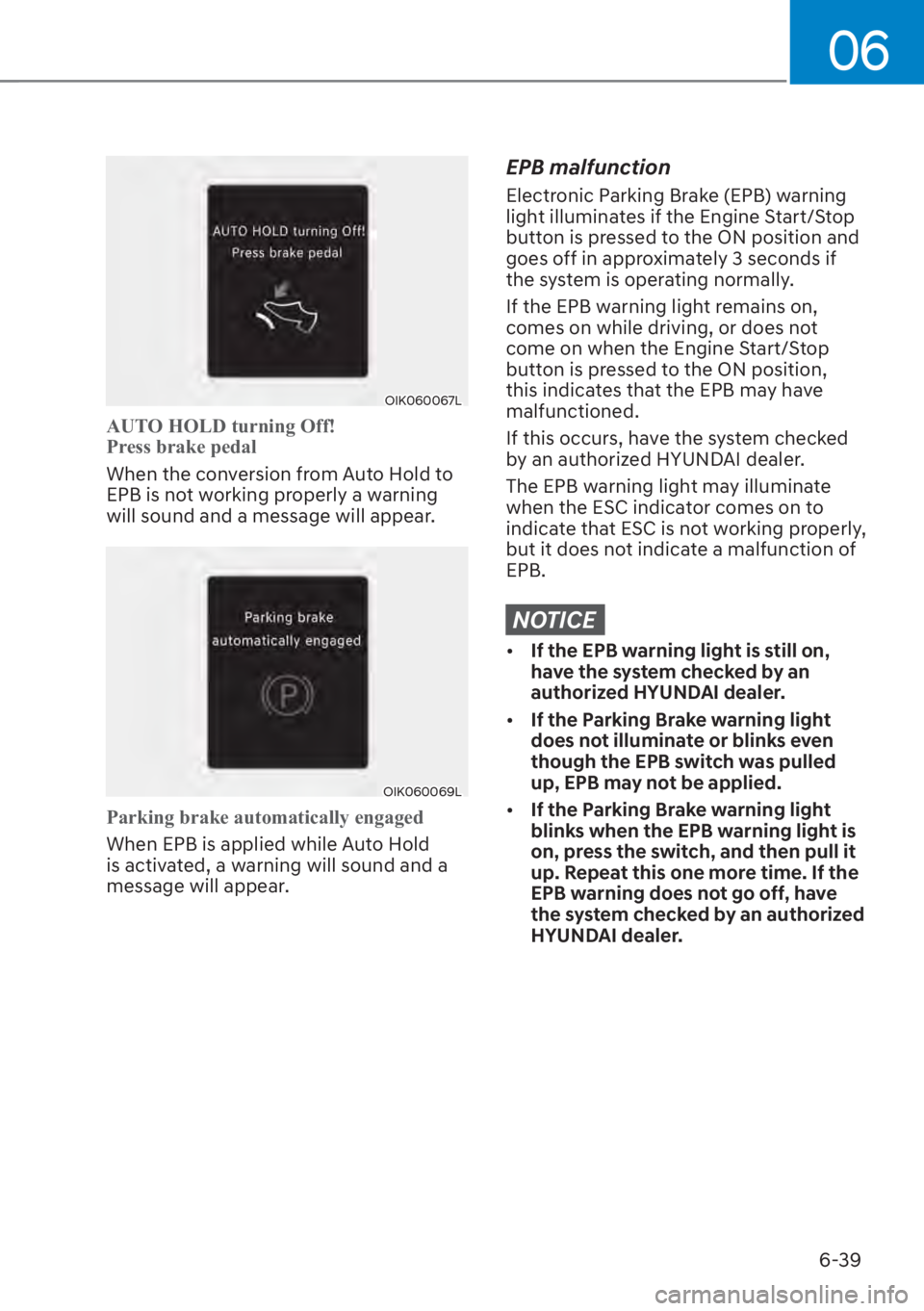

OIK060067L
AUTO HOLD turning Off!
Press brake pedal
When the conversion from Auto Hold to
EPB is no
t working properly a warning
will sound and a message will appear.
OIK060069L
Parking br

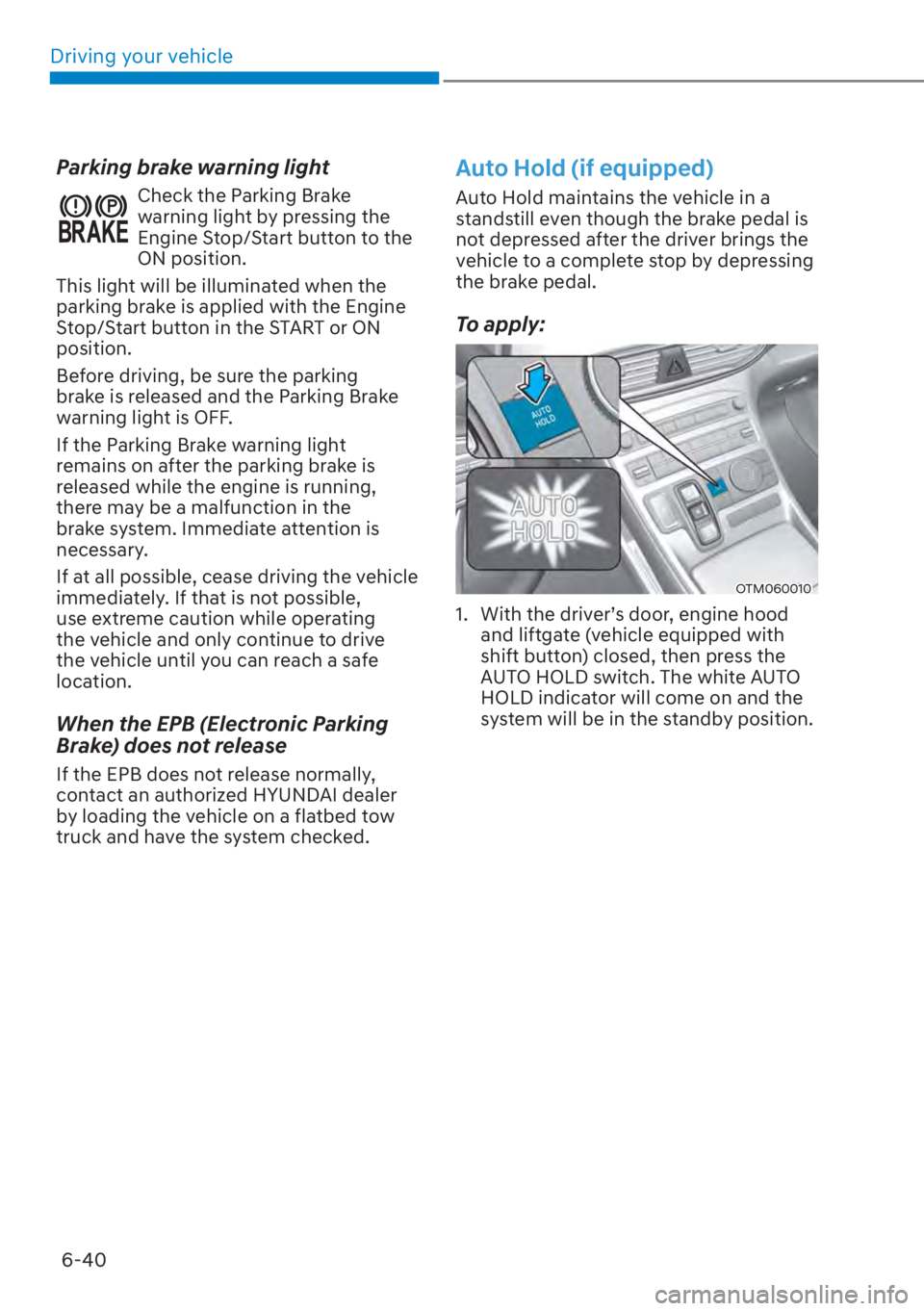

Page 326 of 624

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-40
Parking brake warning light
Check the Parking Brake
warning light by pressing the
Engine Stop/Start button to the
ON position.
This light will be illuminated when the
park

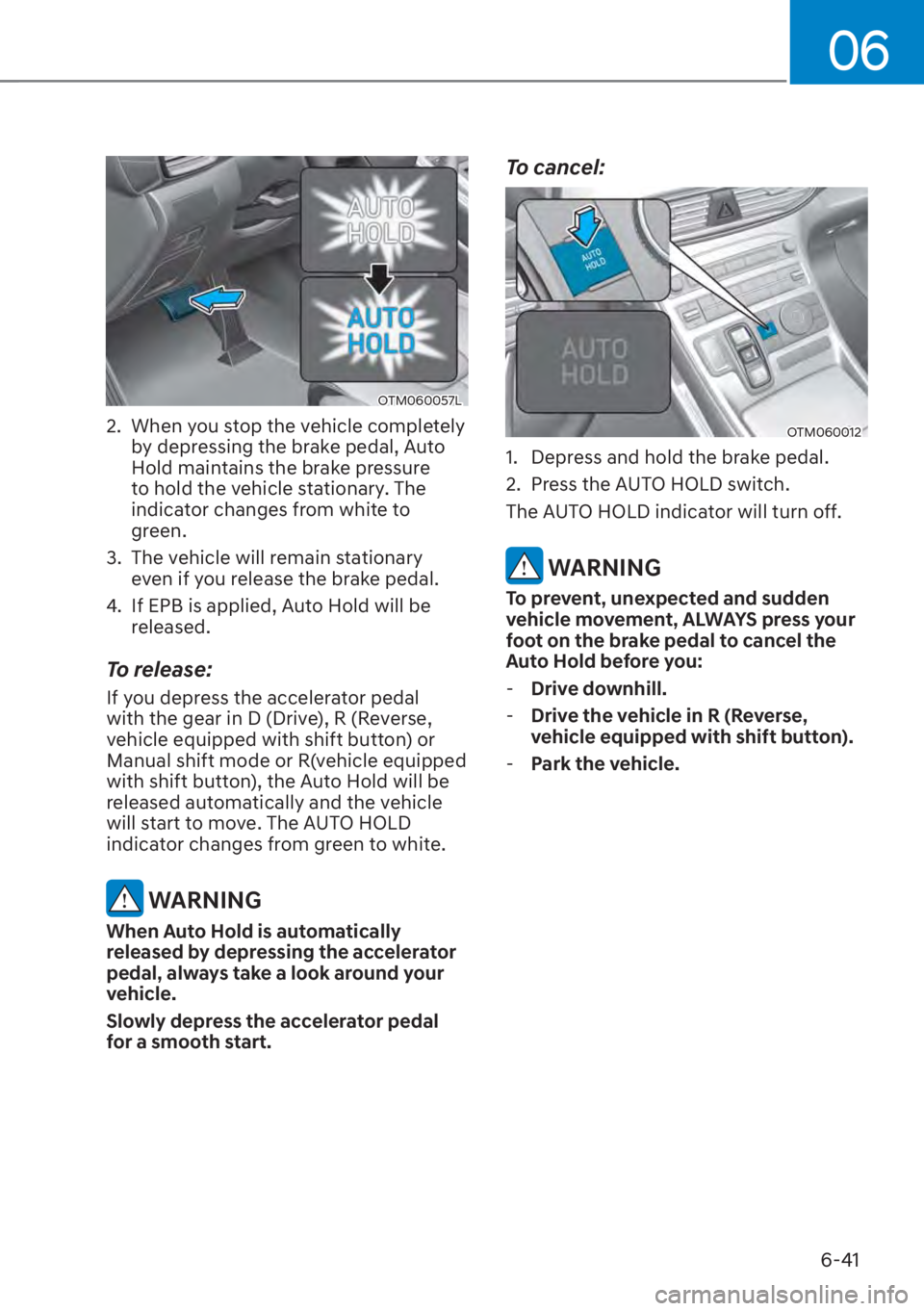

Page 327 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-41
OTM060057L
2.  When you stop the vehicle completely by depressing the brake pedal, Auto
Hold maintains the brake pressure
to hold the vehicle stationary. The
indicator changes from white to

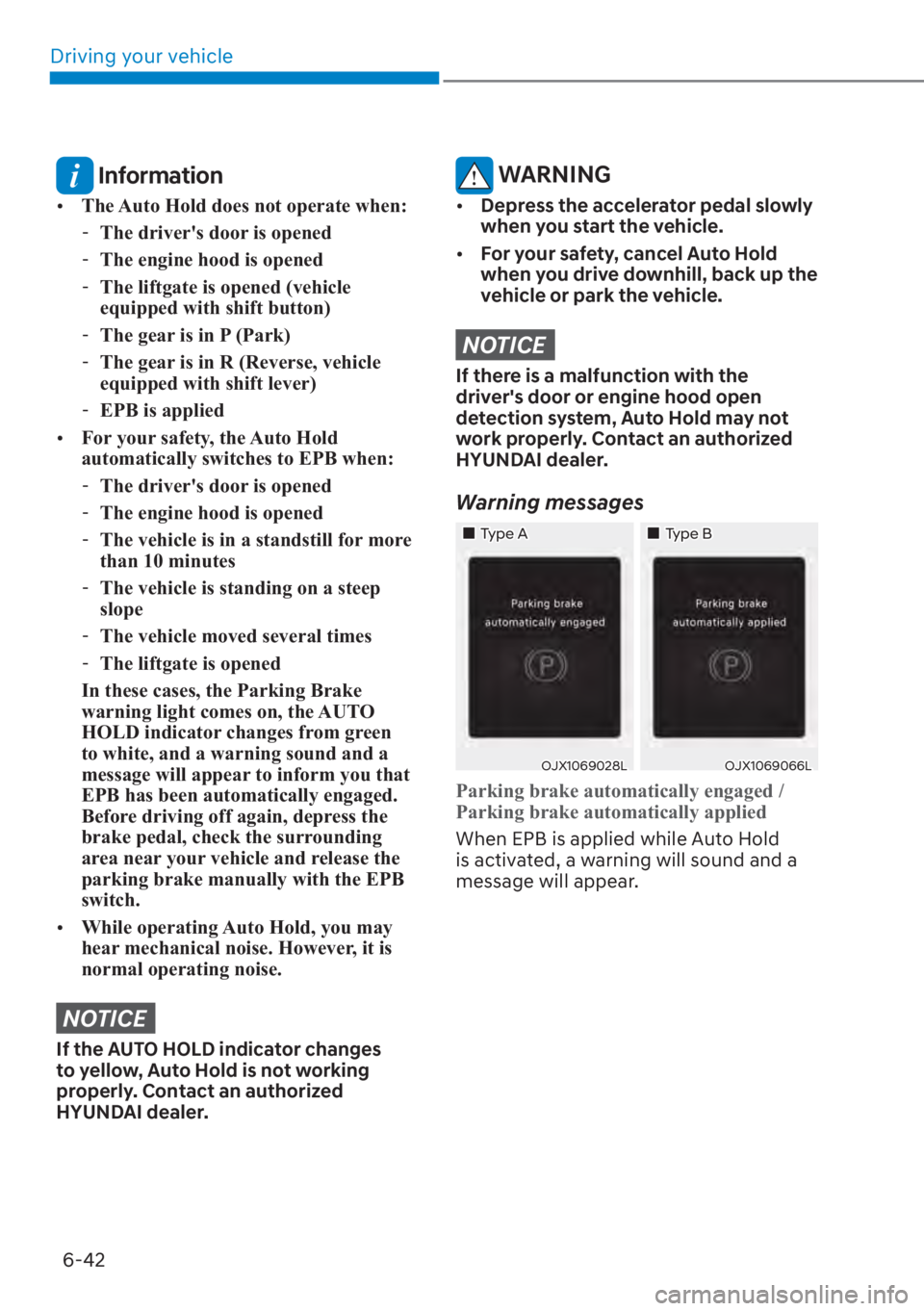

Page 328 of 624

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-42
 Information
[� The Auto Hold does not operate when:
 - The driver's door is opened
 - The engine hood is opened
 - The liftgate is opened (vehicle
equipped with shift

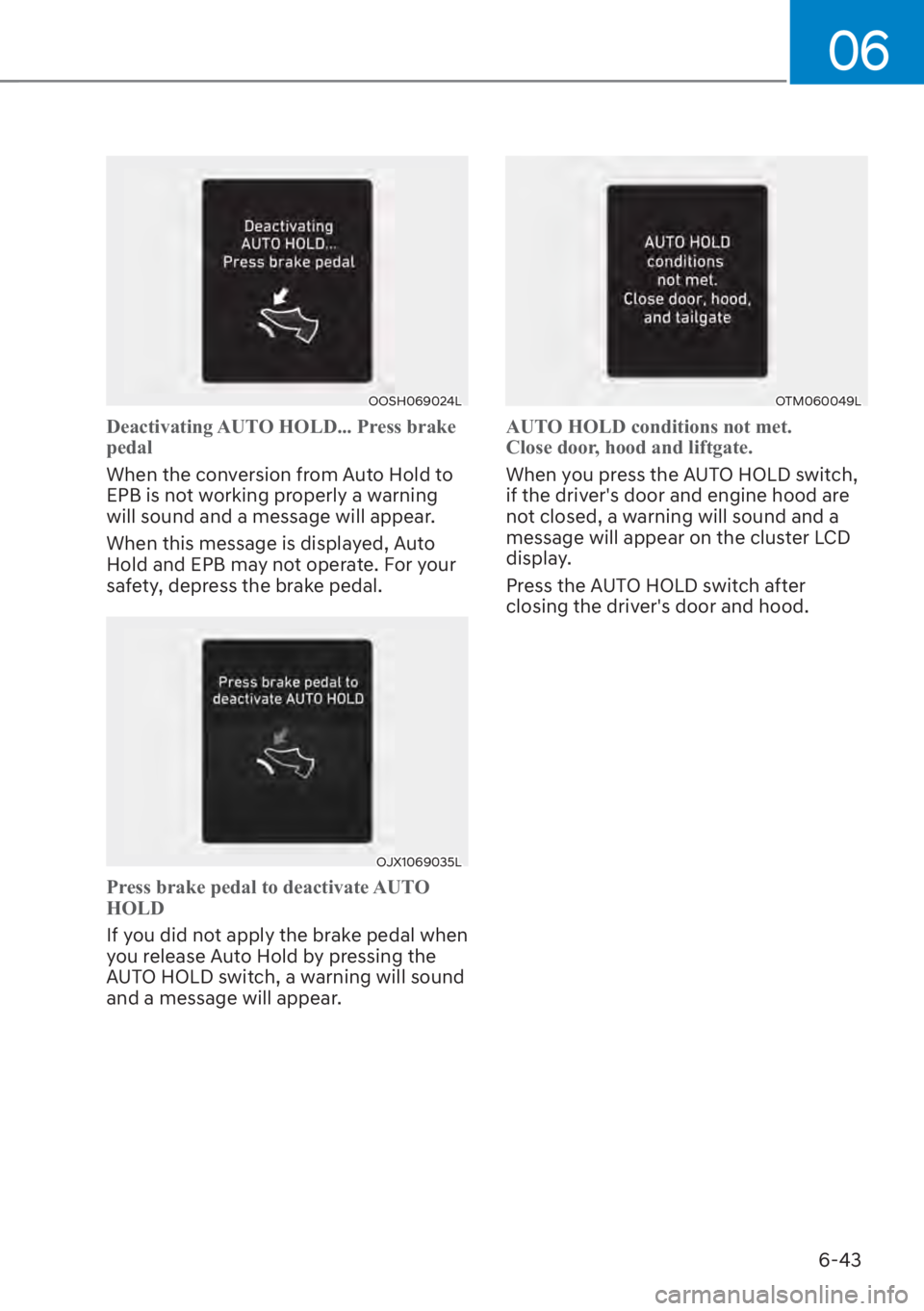

Page 329 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-43
OOSH069024L
Deactivating AUTO HOLD... Press brake
pedal
When the conversion from Auto Hold to
EPB is no
t working properly a warning
will sound and a message will appear.
When this message

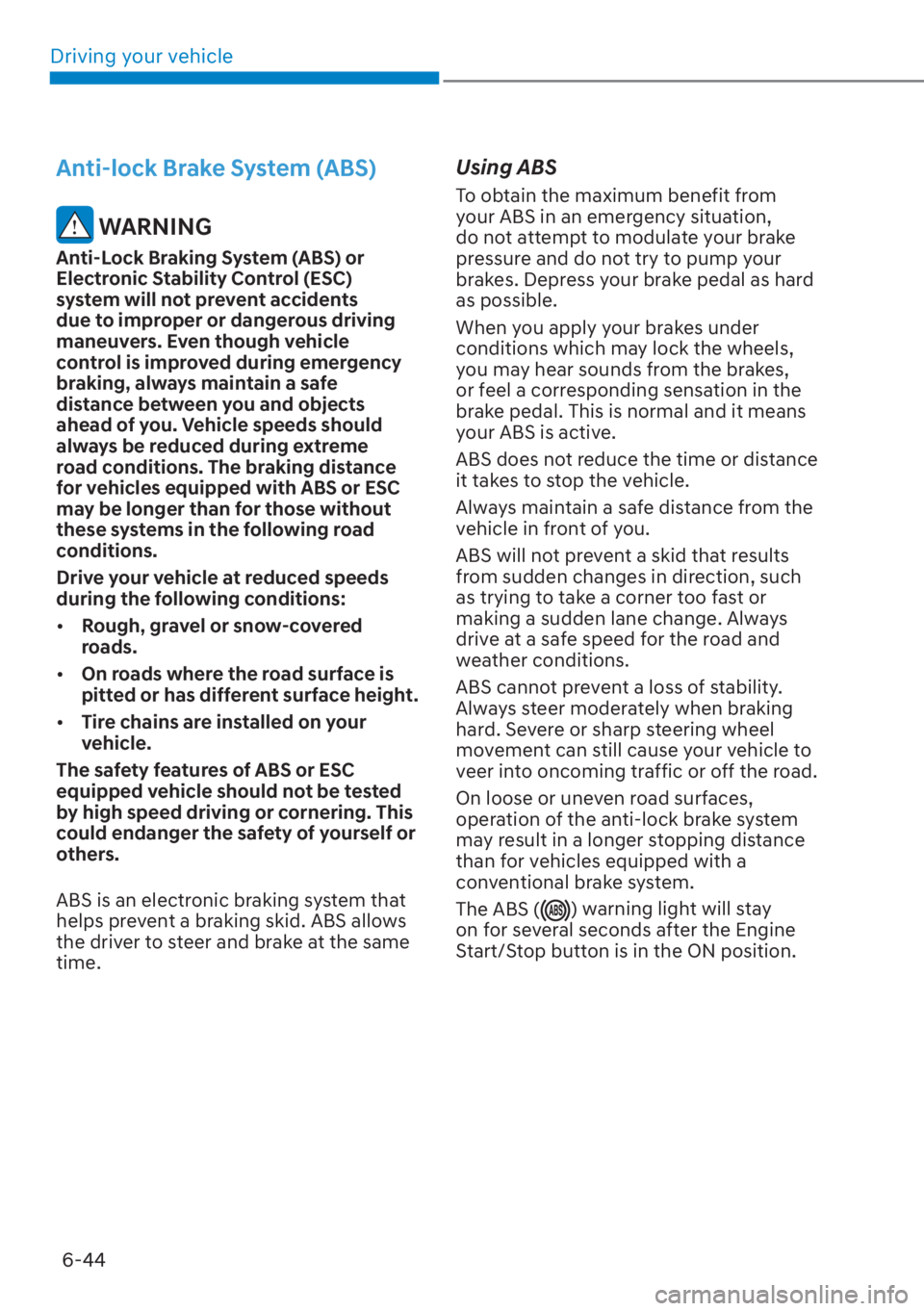

Page 330 of 624

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-44
Anti-lock Brake System (ABS)
 WARNING
Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous dr
