HYUNDAI SANTA FE 2023 Owners Manual

05
5-139

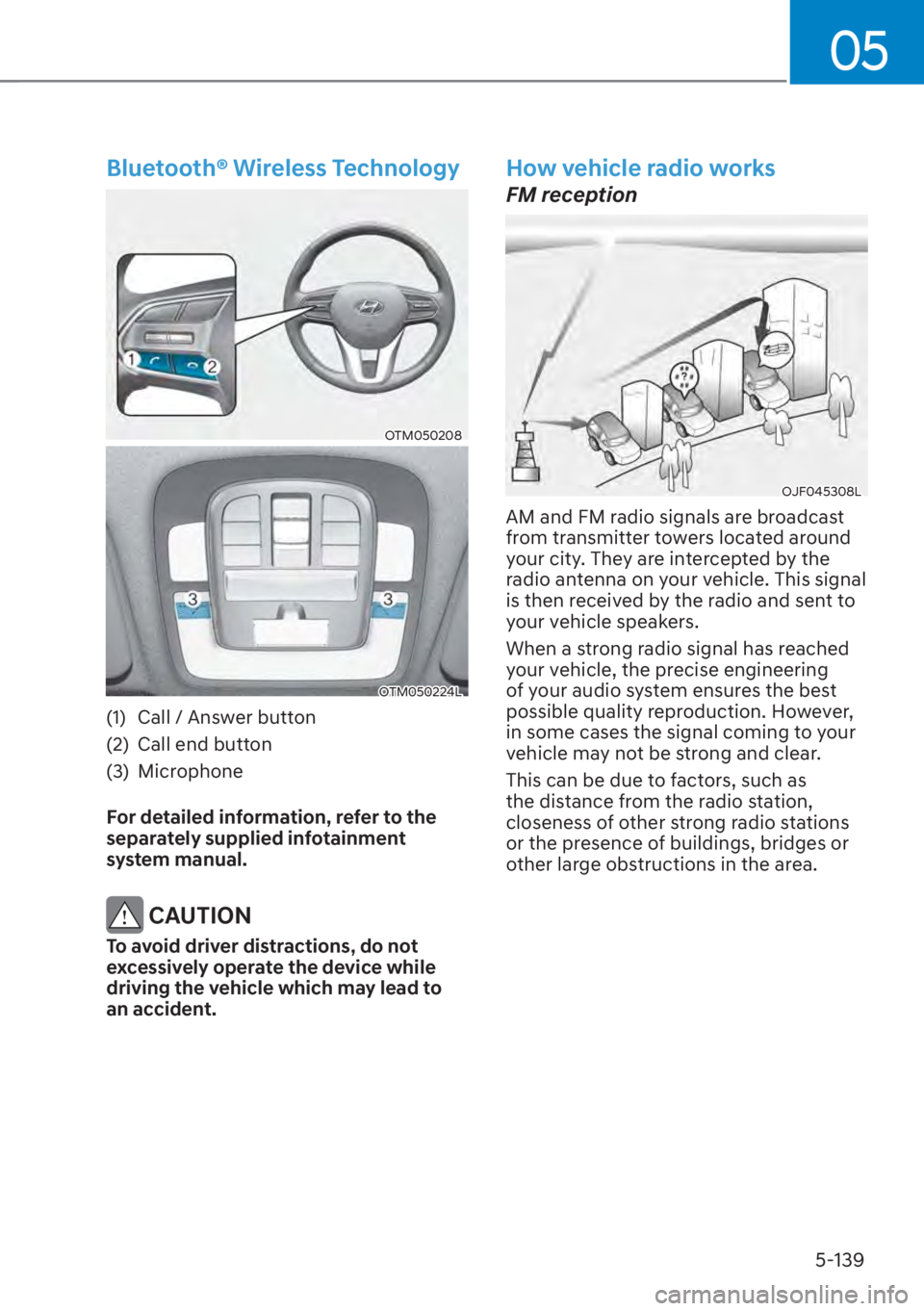

Bluetooth® Wireless Technology
OTM050208
OTM050224L
(1) Call / Answer button
(2) Call end button
(3) Microphone
For detailed information, refer to the
separately supplied infotainment
system manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.
How vehicle radio works
FM reception
OJF045308L
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This signal
is then received by the radio and sent to
your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.

Convenience features5-140

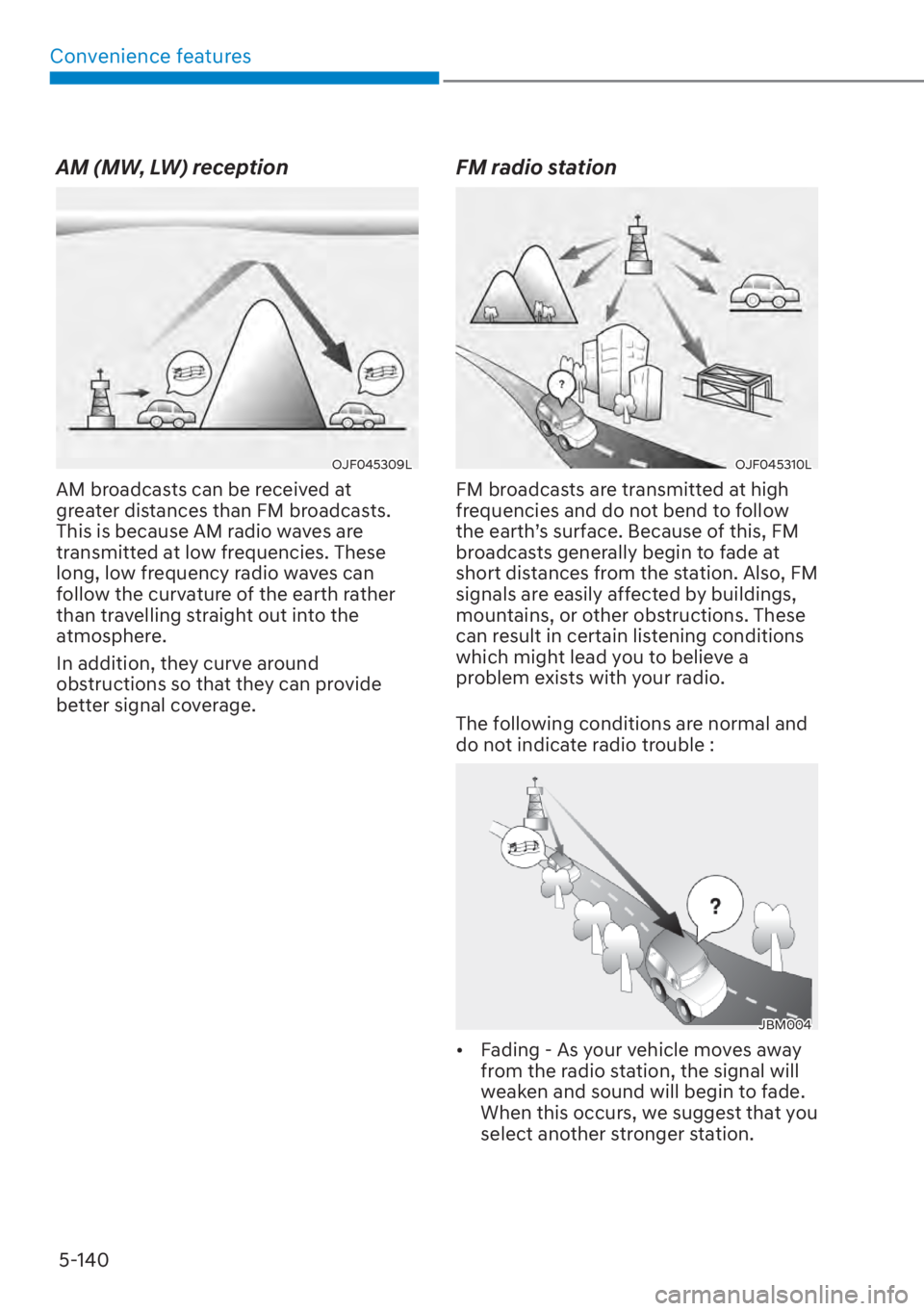

AM (MW, LW) reception
OJF045309L
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long, low frequency radio waves can
follow the curvature of the earth rather
than travelling straight out into the
atmosphere.
In addition, they curve around
obstructions so that they can provide
better signal coverage.
FM radio station
OJF045310L
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this, FM
broadcasts generally begin to fade at
short distances from the station. Also, FM
signals are easily affected by buildings,
mountains, or other obstructions. These
can result in certain listening conditions
which might lead you to believe a
problem exists with your radio.
The following conditions are normal and
do not indicate radio trouble :
JBM004

[ Fading - As your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.

05
5-141

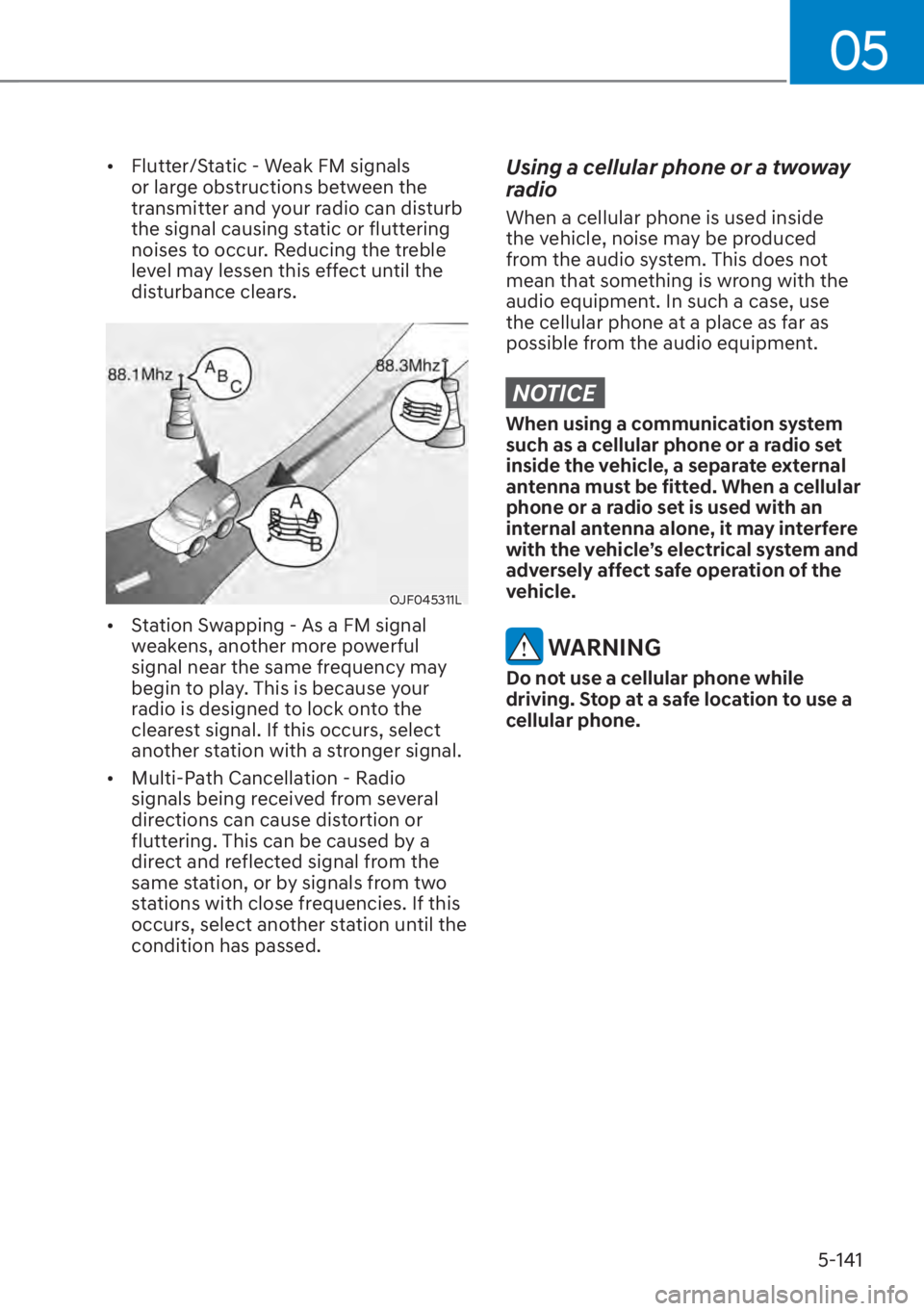

[Flutter/Static - Weak FM signals
or large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
OJF045311L

[Station Swapping - As a FM signal
weakens, another more powerful
signal near the same frequency may
begin to play. This is because your
radio is designed to lock onto the
clearest signal. If this occurs, select
another station with a stronger signal.

[ Multi-Path Cancellation - Radio
signals being received from several
directions can cause distortion or
fluttering. This can be caused by a
direct and reflected signal from the
same station, or by signals from two
stations with close frequencies. If this
occurs, select another station until the
condition has passed.
Using a cellular phone or a twoway
radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate external
antenna must be fitted. When a cellular
phone or a radio set is used with an
internal antenna alone, it may interfere
with the vehicle’s electrical system and
adversely affect safe operation of the
vehicle.
WARNING
Do not use a cellular phone while
driving. Stop at a safe location to use a
cellular phone.

Convenience features5-142

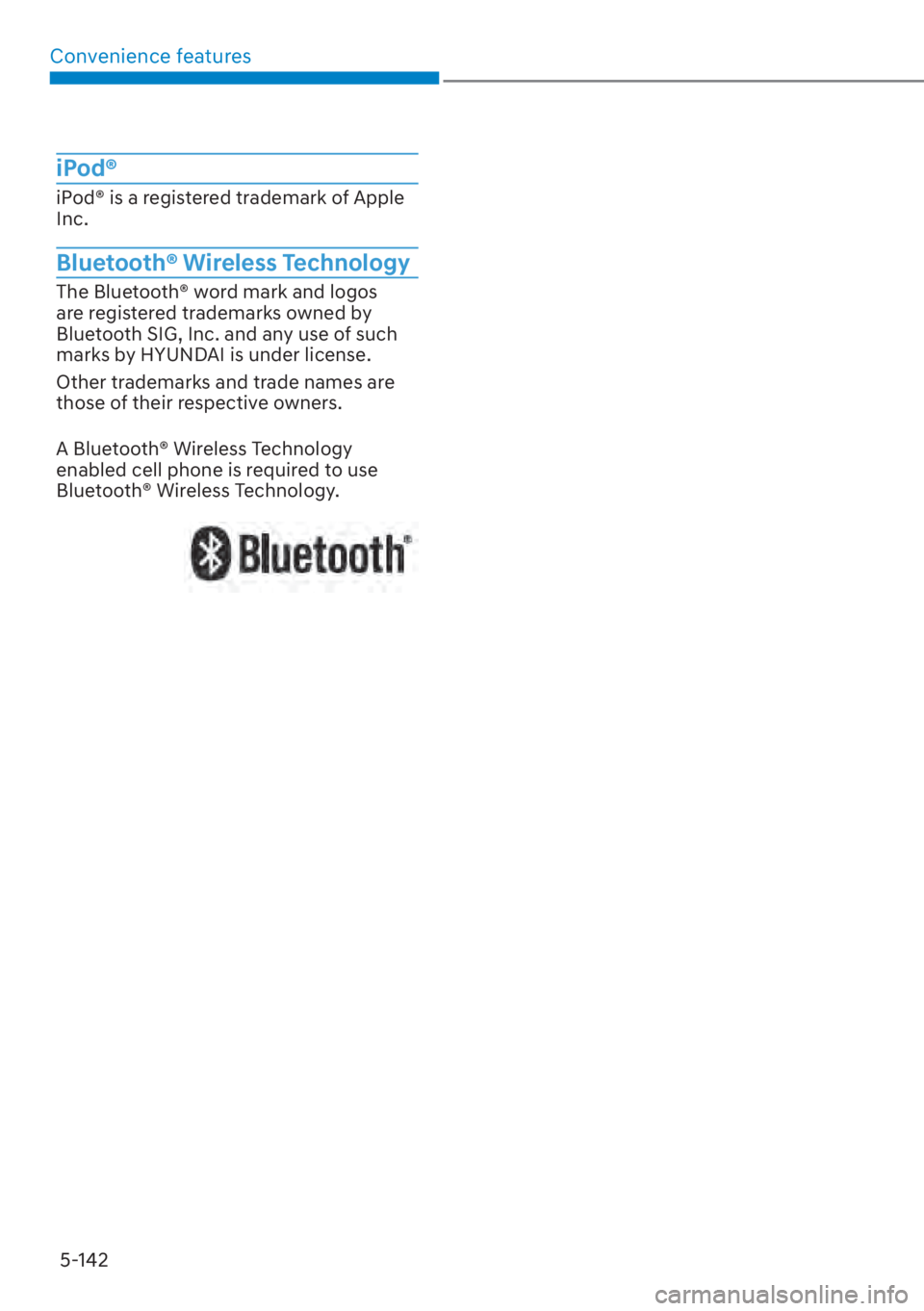

iPod®
iPod® is a registered trademark of Apple
Inc.
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by HYUNDAI is under license.
Other trademarks and trade names are
those of their respective owners.
A Bluetooth® Wireless Technology
enabled cell phone is required to use
Bluetooth® Wireless Technology.

05
5-143

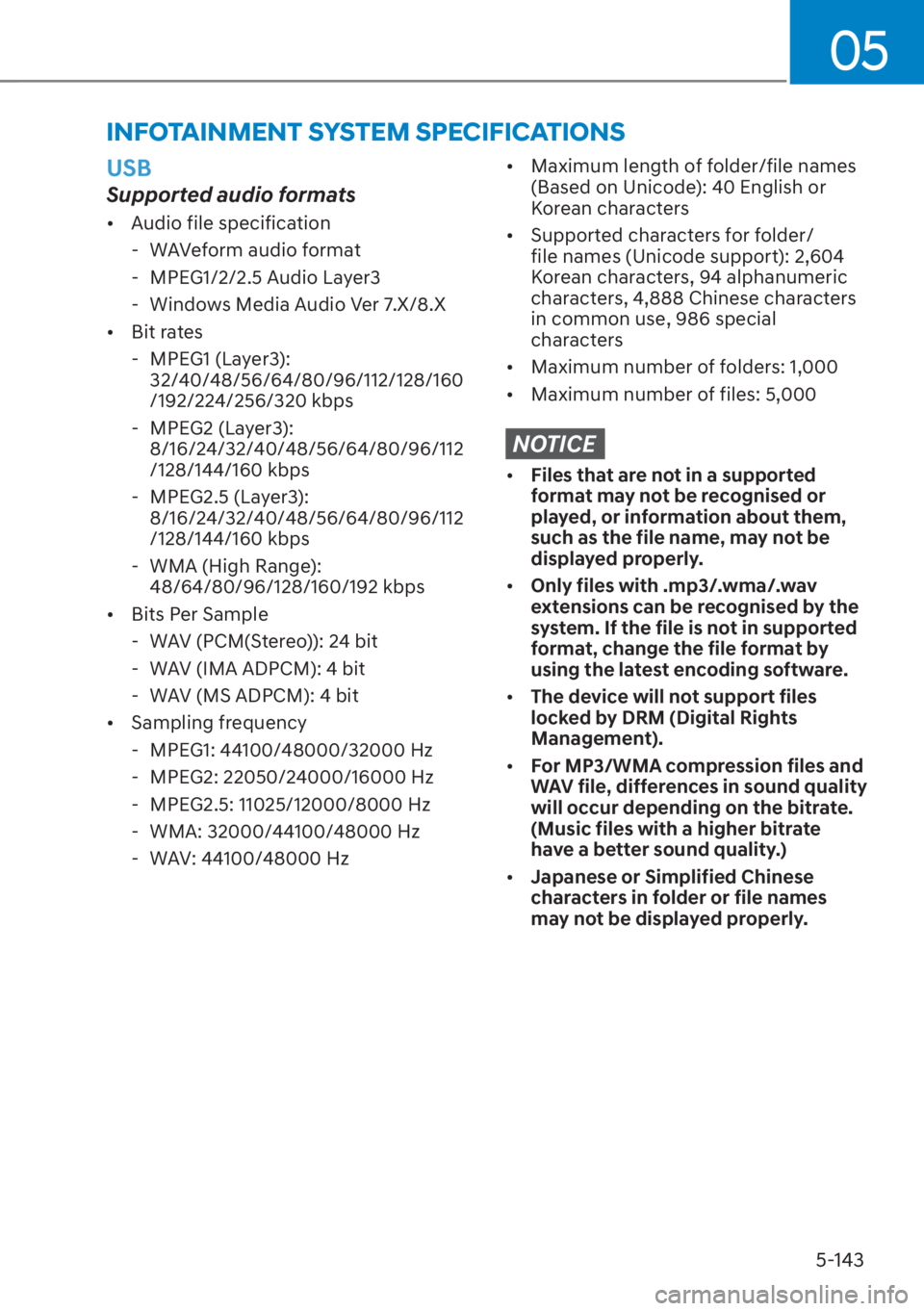

USB
Supported audio formats

[Audio file specification
- WAVeform audio format

- MPEG1/2/2.5 Audio Layer3

- Windows Media Audio Ver 7.X/8.X

[ Bit rates
- MPEG1 (Layer3): 32/40/48/56/64/80/96/112/128/160
/192/224/256/320 kbps
- MPEG2 (Layer3): 8/16/24/32/40/48/56/64/80/96/112
/128/144/160 kbps
- MPEG2.5 (Layer3): 8/16/24/32/40/48/56/64/80/96/112
/128/144/160 kbps
- WMA (High Range): 48/64/80/96/128/160/192 kbps

[ Bits Per Sample
- WAV (PCM(Stereo)): 24 bit
- WAV (IMA ADPCM): 4 bit
- WAV (MS ADPCM): 4 bit

[ Sampling frequency
- MPEG1: 44100/48000/32000 Hz
- MPEG2: 22050/24000/16000 Hz
- MPEG2.5: 11025/12000/8000 Hz
- WMA: 32000/44100/48000 Hz
- WAV: 44100/48000 Hz

[ Maximum length of folder/file names
(Based on Unicode): 40 English or
Korean characters

[ Supported characters for folder/
file names (Unicode support): 2,604
Korean characters, 94 alphanumeric
characters, 4,888 Chinese characters
in common use, 986 special
characters

[ Maximum number of folders: 1,000

[ Maximum number of files: 5,000
NOTICE

[Files that are not in a supported
format may not be recognised or
played, or information about them,
such as the file name, may not be
displayed properly.

[ Only files with .mp3/.wma/.wav
extensions can be recognised by the
system. If the file is not in supported
format, change the file format by
using the latest encoding software.

[ The device will not support files
locked by DRM (Digital Rights
Management).

[ For MP3/WMA compression files and
WAV file, differences in sound quality
will occur depending on the bitrate.
(Music files with a higher bitrate
have a better sound quality.)

[ Japanese or Simplified Chinese
characters in folder or file names
may not be displayed properly.
,1)27$,10(176<67(063(&,),&$7,216

Convenience features5-144
75$'(0$5.6

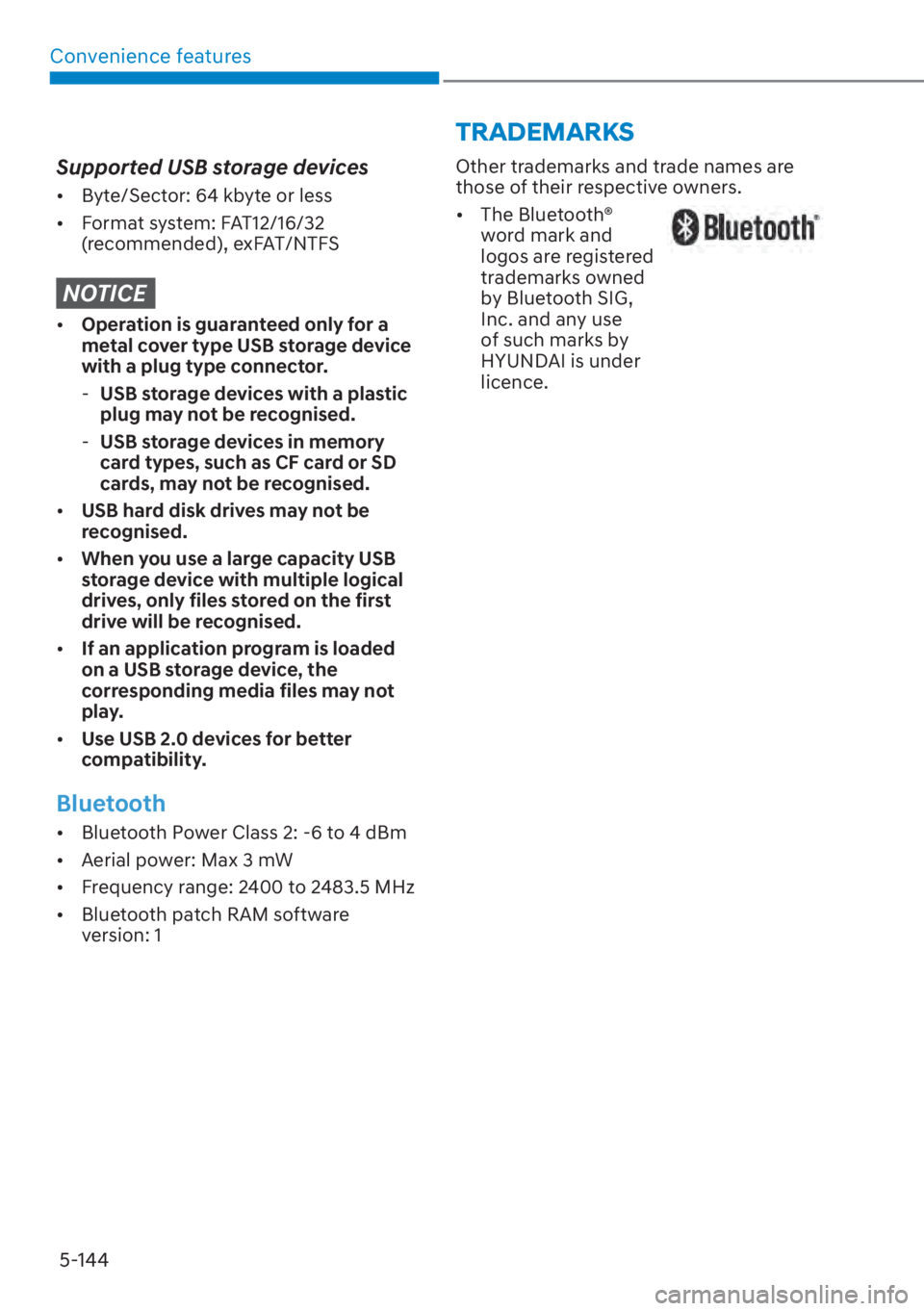

Supported USB storage devices

[ Byte/Sector: 64 kbyte or less

[ Format system: FAT12/16/32
(recommended), exFAT/NTFS
NOTICE

[Operation is guaranteed only for a
metal cover type USB storage device
with a plug type connector.
- USB storage devices with a plastic
plug may not be recognised.
- USB storage devices in memory
card types, such as CF card or SD
cards, may not be recognised.

[ USB hard disk drives may not be
recognised.

[ When you use a large capacity USB
storage device with multiple logical
drives, only files stored on the first
drive will be recognised.

[ If an application program is loaded
on a USB storage device, the
corresponding media files may not
play.

[ Use USB 2.0 devices for better
compatibility.
Bluetooth

[Bluetooth Power Class 2: -6 to 4 dBm

[ Aerial power: Max 3 mW

[ Frequency range: 2400 to 2483.5 MHz

[ Bluetooth patch RAM software
version: 1 Other trademarks and trade names are
those of their respective owners.

[
The Bluetooth®
word mark and
logos are registered
trademarks owned
by Bluetooth SIG,
Inc. and any use
of such marks by
HYUNDAI is under
licence.

6

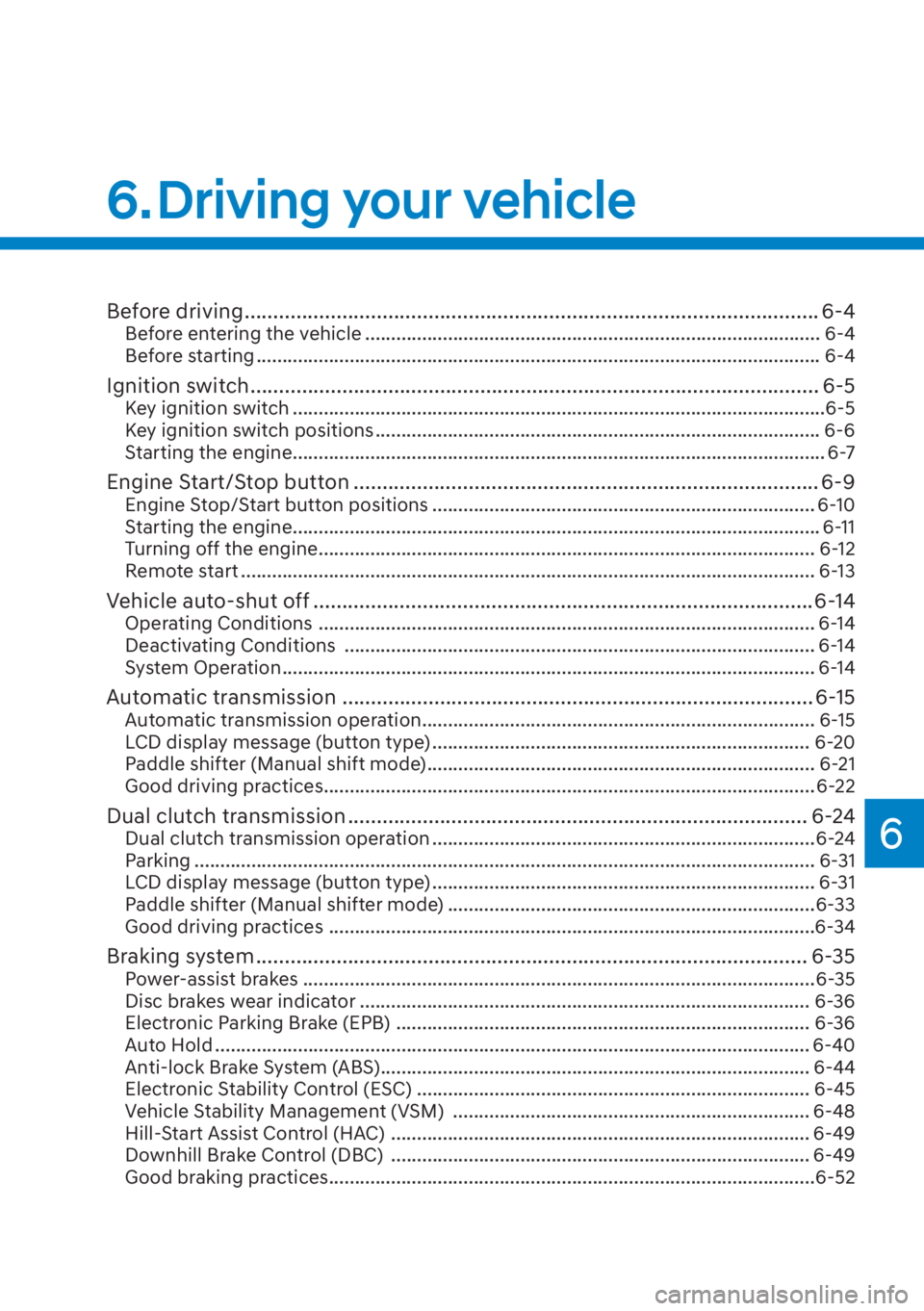

Before driving ........................................................................\
............................ 6-4Before entering the vehicle ........................................................................\
................ 6-4
Before starting ........................................................................\
..................................... 6-4
Ignition switch ........................................................................\
........................... 6-5Key ignition switch ........................................................................\
...............................6-5
Key ignition switch positions ........................................................................\
.............. 6-6
Starting the engine ........................................................................\
............................... 6-7
Engine Start/Stop button ........................................................................\
......... 6-9Engine Stop/Start button positions ........................................................................\
.. 6-10
Starting the engine ........................................................................\
.............................. 6-11
Turning off the engine ........................................................................\
........................ 6-12
Remote start ........................................................................\
....................................... 6-13
Vehicle auto-shut off ........................................................................\
............... 6-14Operating Conditions ........................................................................\
........................ 6-14
Deactivating Conditions ........................................................................\
................... 6-14
System Operation ........................................................................\
............................... 6-14
Automatic transmission ........................................................................\
.......... 6-15Automatic transmission operation ........................................................................\
.... 6-15
LCD display message (button type) ........................................................................\
. 6-20
Paddle shifter (Manual shift mode) ........................................................................\
... 6-21
Good driving practices ........................................................................\
....................... 6-22
Dual clutch transmission ........................................................................\
........ 6-24Dual clutch transmission operation ........................................................................\
..6-24
Parking .................................................................\
.......................................................6-31
LCD display message (button type) ........................................................................\
.. 6-31
Paddle shifter (Manual shifter mode) .......................................................................6-33
Good driving practices ........................................................................\
......................6-34
Braking system ........................................................................\
........................ 6-35Power-assist brakes .....................................................................\
..............................6-35
Disc brakes wear indicator ........................................................................\
............... 6-36
Electronic Parking Brake (EPB) ........................................................................\
........ 6-36
Auto Hold ........................................................................\
........................................... 6-40
Anti-lock Brake System (ABS) ........................................................................\
........... 6-44
Electronic Stability Control (ESC) ........................................................................\
.... 6-45
Vehicle Stability Management (VSM) ..................................................................... 6-48
Hill-Start Assist Control (HAC) ........................................................................\
......... 6-49
Downhill Brake Control (DBC) ........................................................................\
......... 6-49
Good braking practices ........................................................................\
......................6-52
6. Driving your vehicle

6

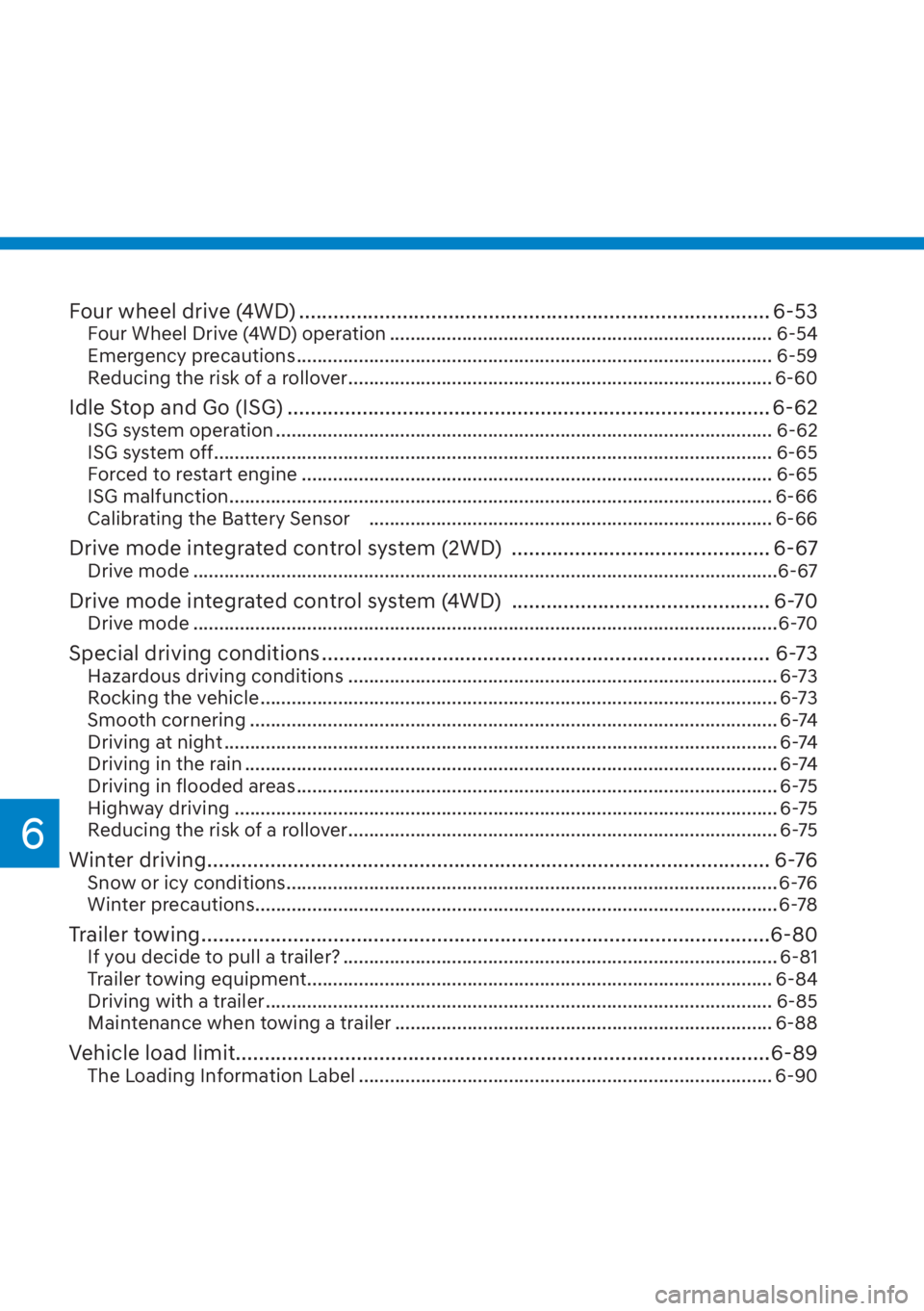

Four wheel drive (4WD) ........................................................................\
.......... 6-53Four Wheel Drive (4WD) operation ........................................................................\
.. 6-54
Emergency precautions ........................................................................\
.................... 6-59
Reducing the risk of a rollover ........................................................................\
.......... 6-60
Idle Stop and Go (ISG) ........................................................................\
............ 6-62ISG system operation ........................................................................\
........................ 6-62
ISG system off ........................................................................\
.................................... 6-65
Forced to restart engine ........................................................................\
................... 6-65
ISG malfunction ........................................................................\
................................. 6-66
Calibrating the Battery Sensor ..........................................................\
.................... 6-66
Drive mode integrated control system (2WD) ............................................. 6-67Drive mode ........................................................................\
.........................................6-67
Drive mode integrated control system (4WD) ............................................. 6-70Drive mode ........................................................................\
.........................................6-70
Special driving conditions ........................................................................\
...... 6-73Hazardous driving conditions ................................................\
................................... 6-73
Rocking the vehicle ........................................................................\
............................ 6-73
Smooth cornering ........................................................................\
.............................. 6-74
Driving at night ........................................................................\
................................... 6-74
Driving in the rain ........................................................................\
............................... 6-74
Driving in flooded areas ........................................................................\
..................... 6-75
Highway driving ........................................................................\
................................. 6-75
Reducing the risk of a rollover ........................................................................\
........... 6-75
Winter driving ........................................................................\
.......................... 6-76Snow or icy conditions ........................................................................\
....................... 6-76
Winter precautions ........................................................................\
............................. 6-78
Trailer towing ........................................................................\
...........................6-80If you decide to pull a trailer? ........................................................................\
............ 6-81
Trailer towing equipment.......................................................................\
................... 6-84
Driving with a trailer ........................................................................\
.......................... 6-85
Maintenance when towing a trailer ........................................................................\
. 6-88
Vehicle load limit.......................................................\
......................................6-89The Loading Information Label ........................................................................\
........ 6-90

06
6-3

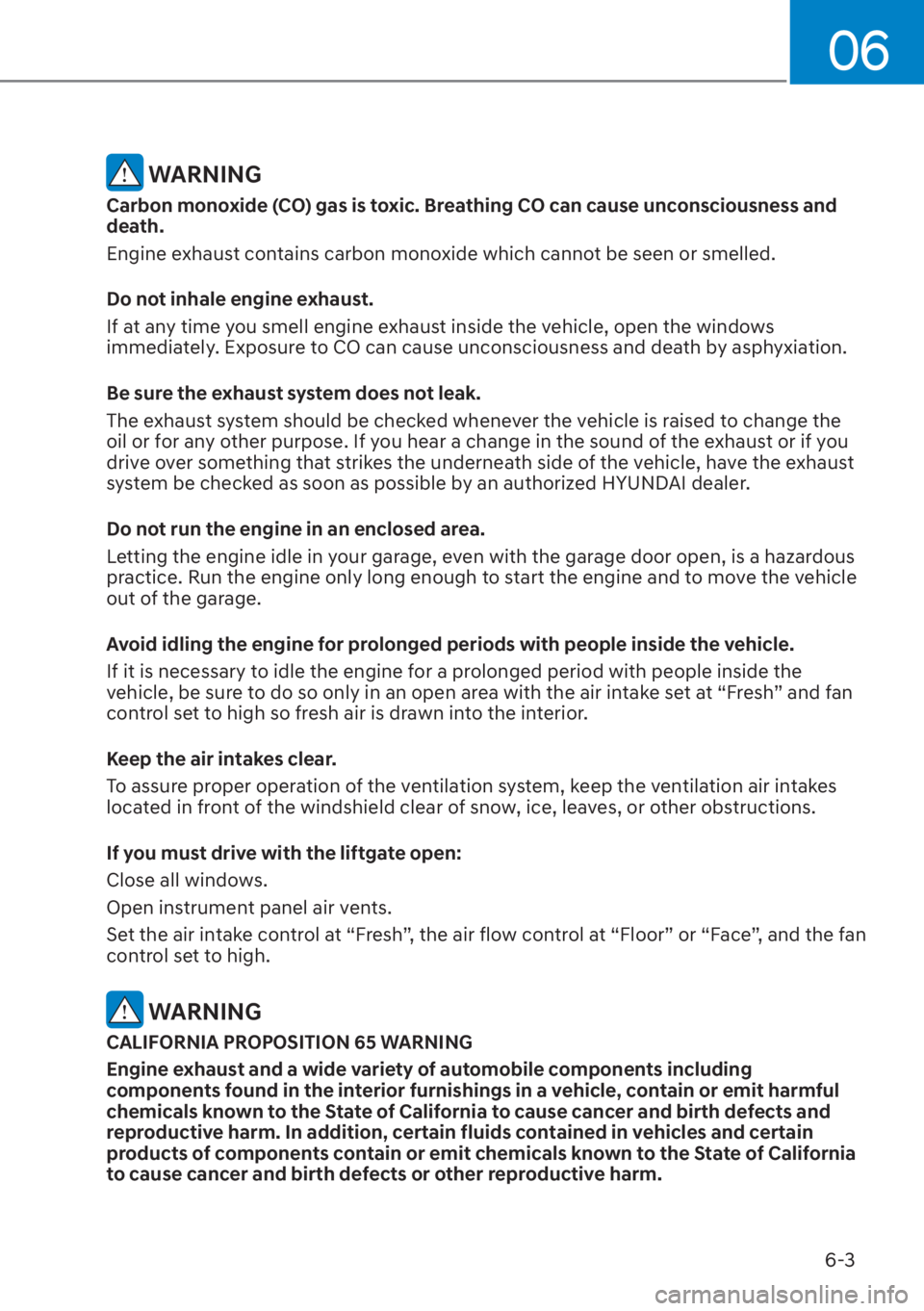

WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system be checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.

Driving your vehicle6-4
Before entering the vehicle

[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the ignition switch is in the ON
position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING
