Page 371 of 624

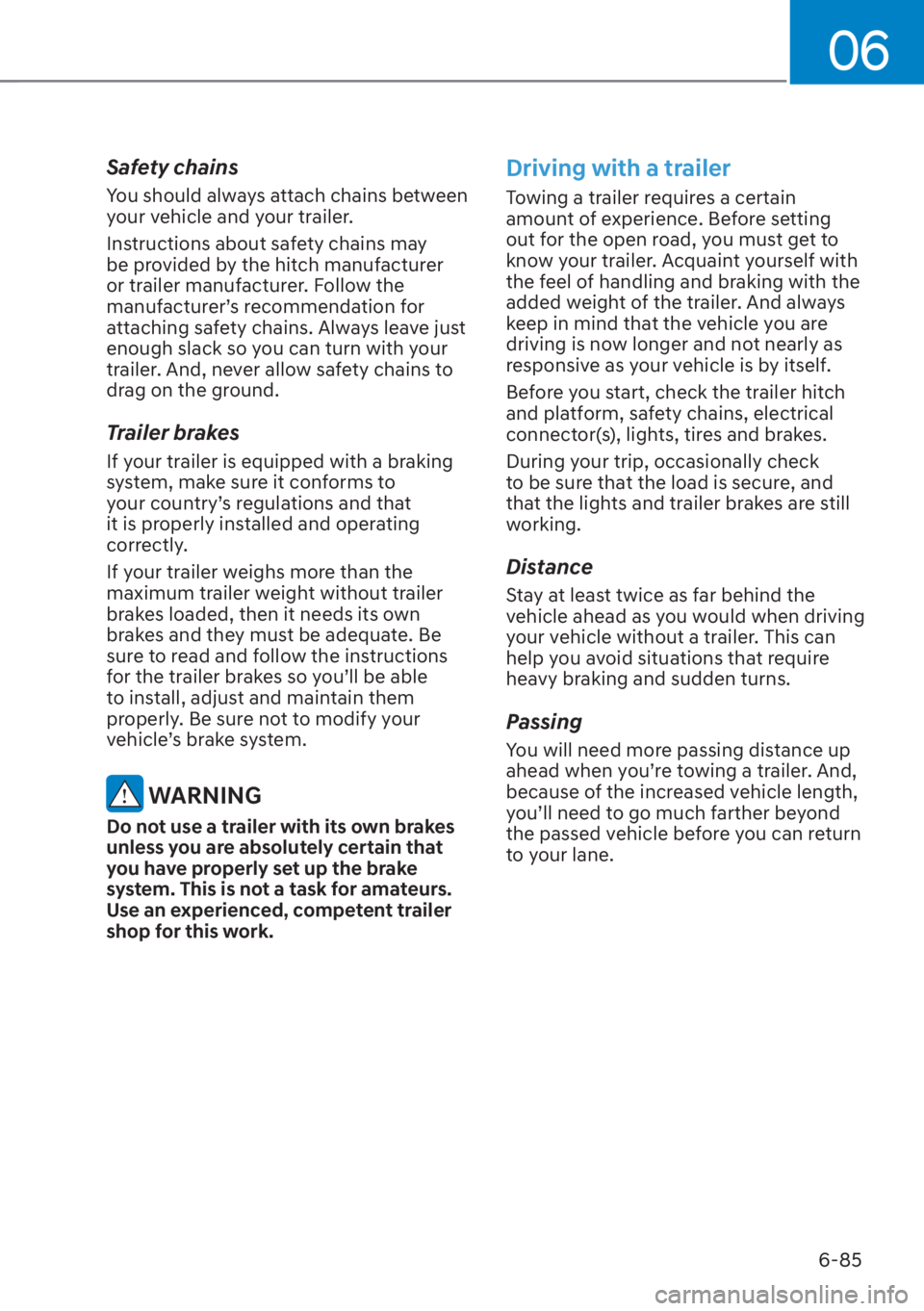

HYUNDAI SANTA FE 2023  Owners Manual 06
6-85
Safety chains
You should always attach chains between
your vehicle and your trailer.
Instructions about safety chains may
be provided by the hitch manufacturer
or trailer manufacturer. Foll

Page 372 of 624

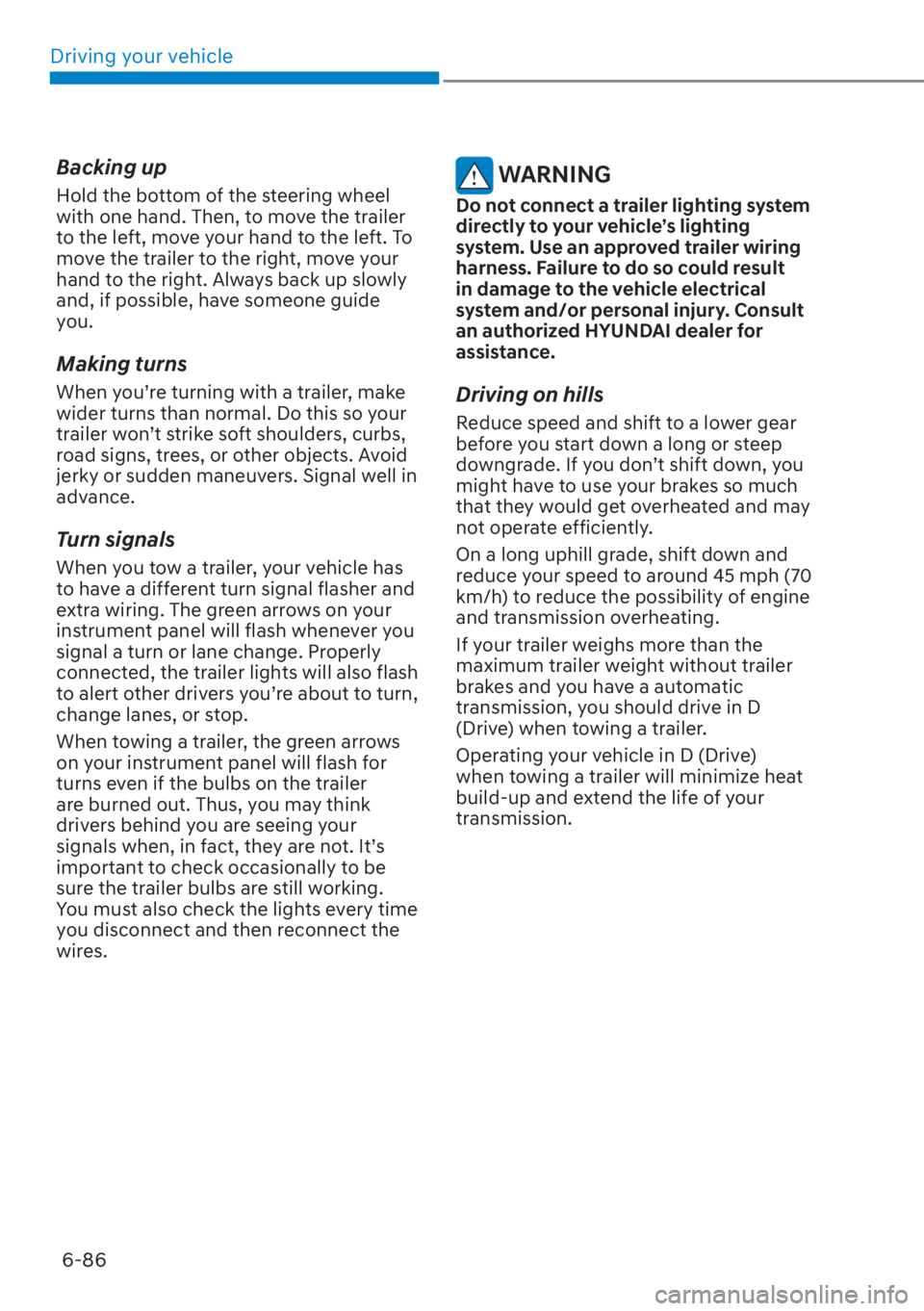

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-86
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left. To
move the trailer to the right, move yo

Page 373 of 624

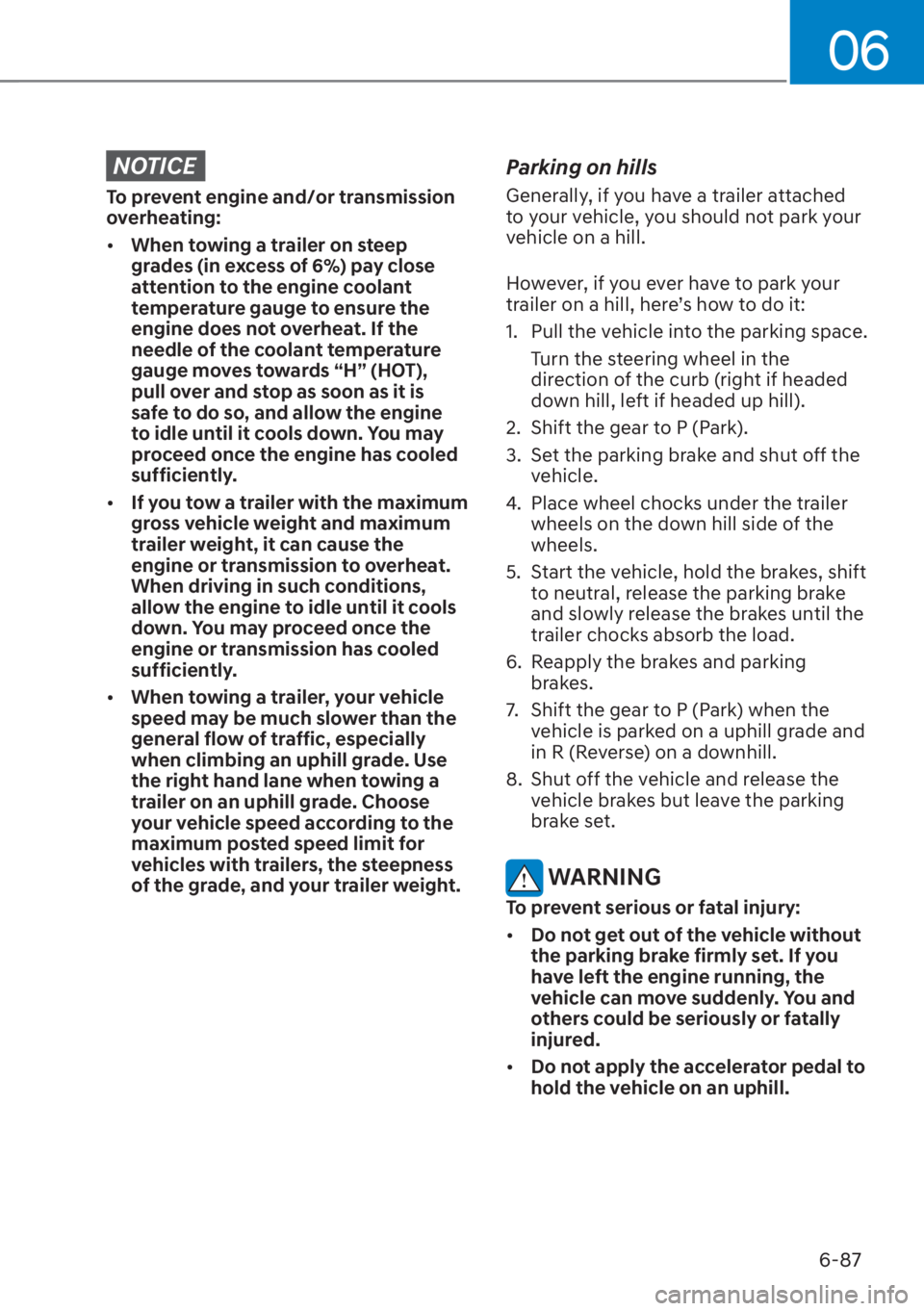

HYUNDAI SANTA FE 2023  Owners Manual 06
6-87
NOTICE
To prevent engine and/or transmission
overheating:
[�When towing a trailer on steep
grades (in excess of 6%) pay close
attention to the engine coolant
temperature gauge to ensure

Page 374 of 624

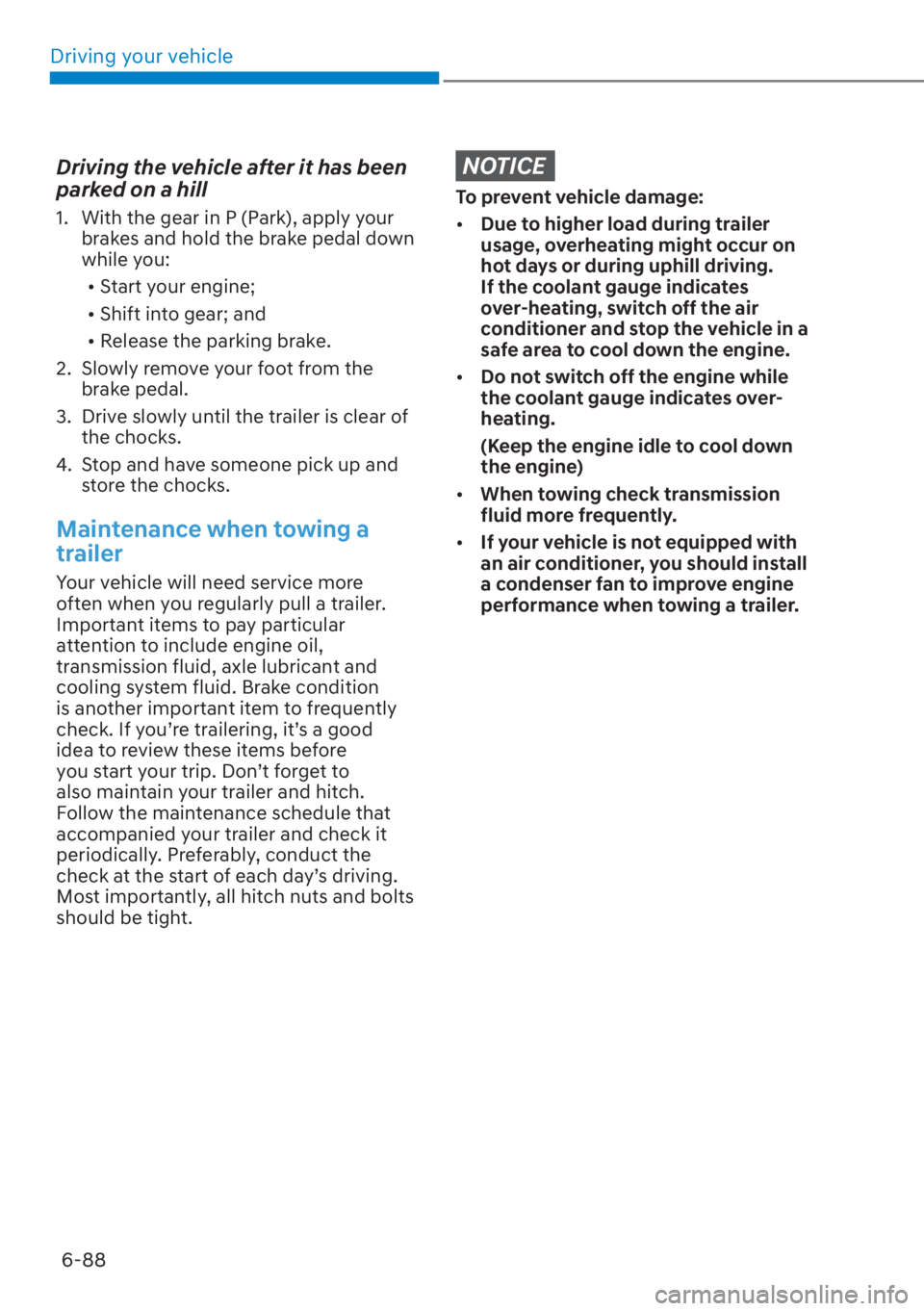

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-88
Driving the vehicle after it has been
parked on a hill
1.  With the gear in P (Park), apply your  brakes and hold the brake pedal down
while you:
[� Start your engine;
[�

Page 375 of 624

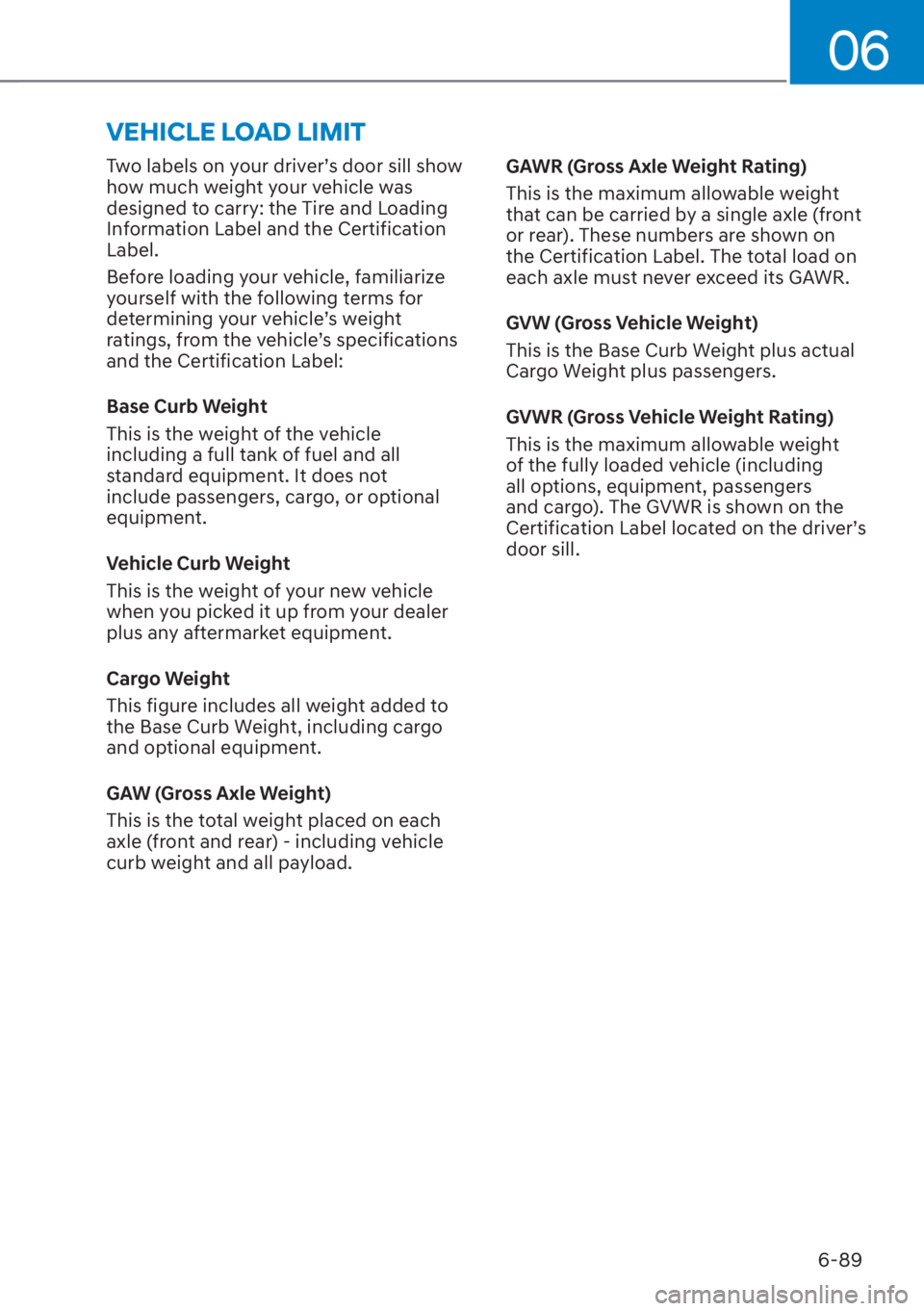

HYUNDAI SANTA FE 2023  Owners Manual 06
6-89
Two labels on your driver’s door sill show
how much weight your vehicle was
designed to carry: the Tire and Loading
Information Label and the Certification
Label.
Before loading your veh

Page 376 of 624

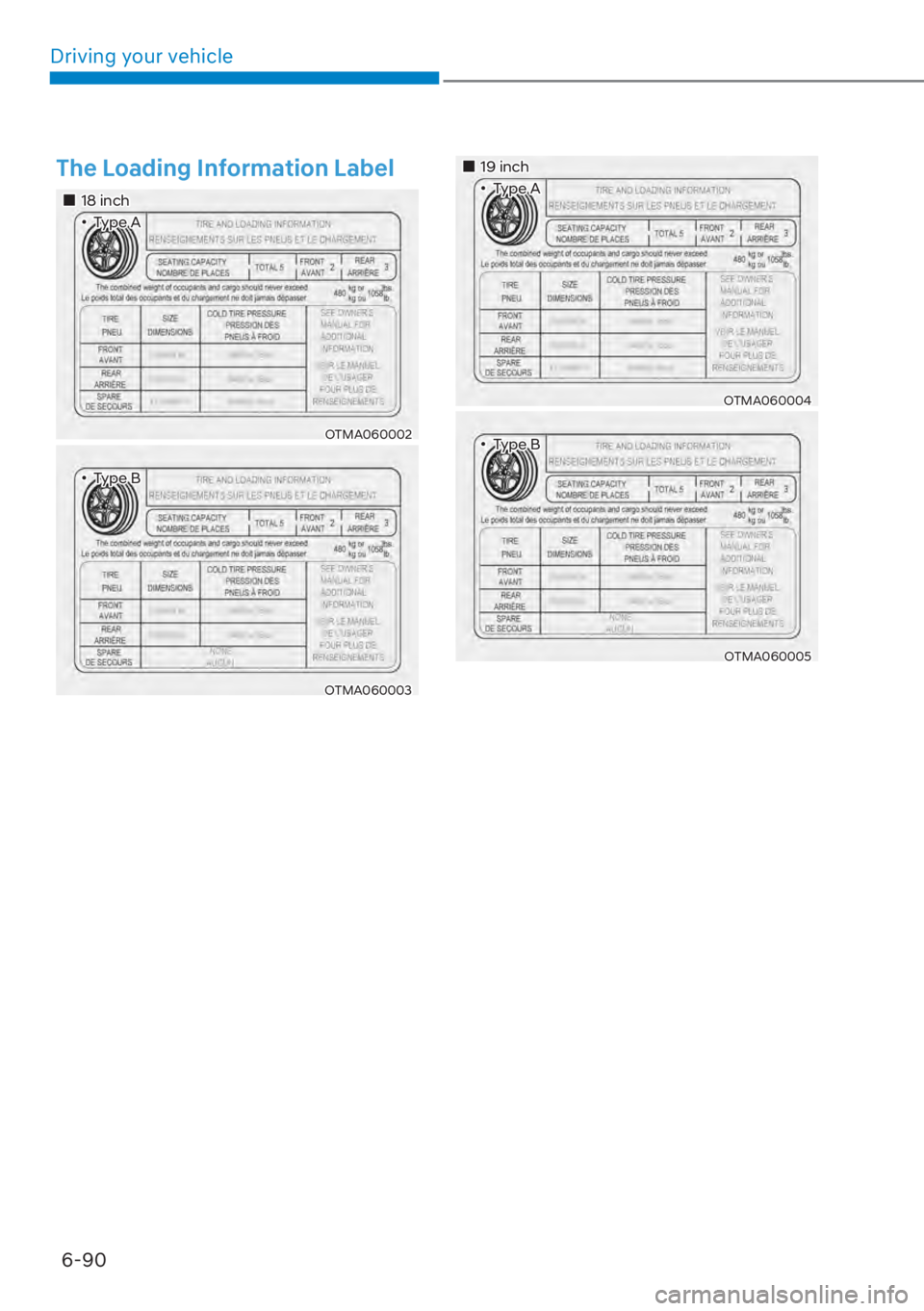

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-90
The Loading Information Label
��„18 inch��‡Type A
OTMA060002
��‡Type B
OTMA060003
��„19 inch��‡Type A
OTMA060004
��‡Type B
OTMA060005

Page 377 of 624

HYUNDAI SANTA FE 2023  Owners Manual 06
6-91
��„20 inch��‡Type A
OTMA060006
��‡Type B
OTMA060007
The label located on the driver’s door
sill gives the original tire size, cold
tire pressures recommended for your
vehicle, th

Page 378 of 624

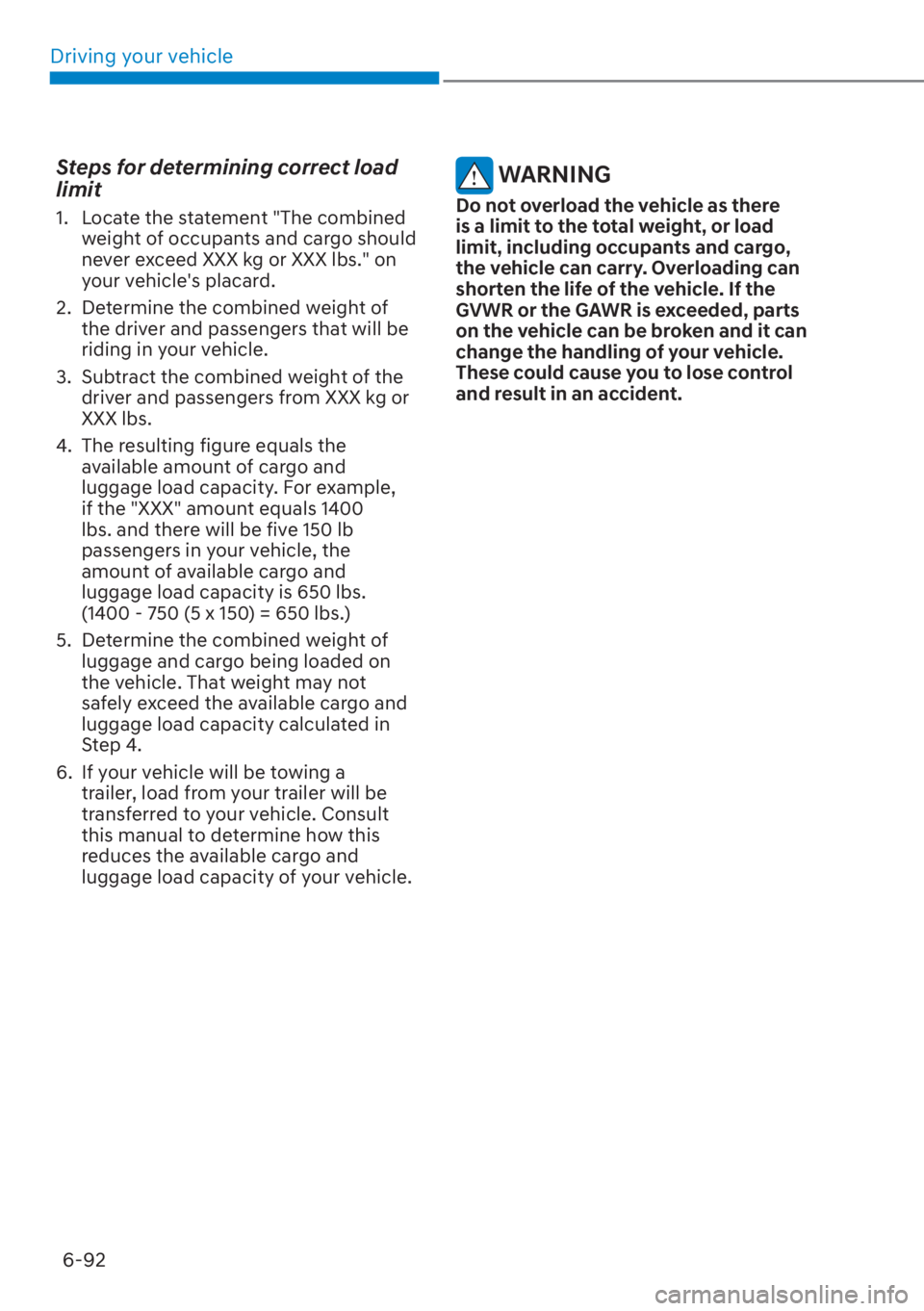

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-92
Steps for determining correct load
limit
1.  Locate the statement "The combined  weight of occupants and cargo should
never exceed XXX kg or XXX lbs." on
your vehic

Page 379 of 624

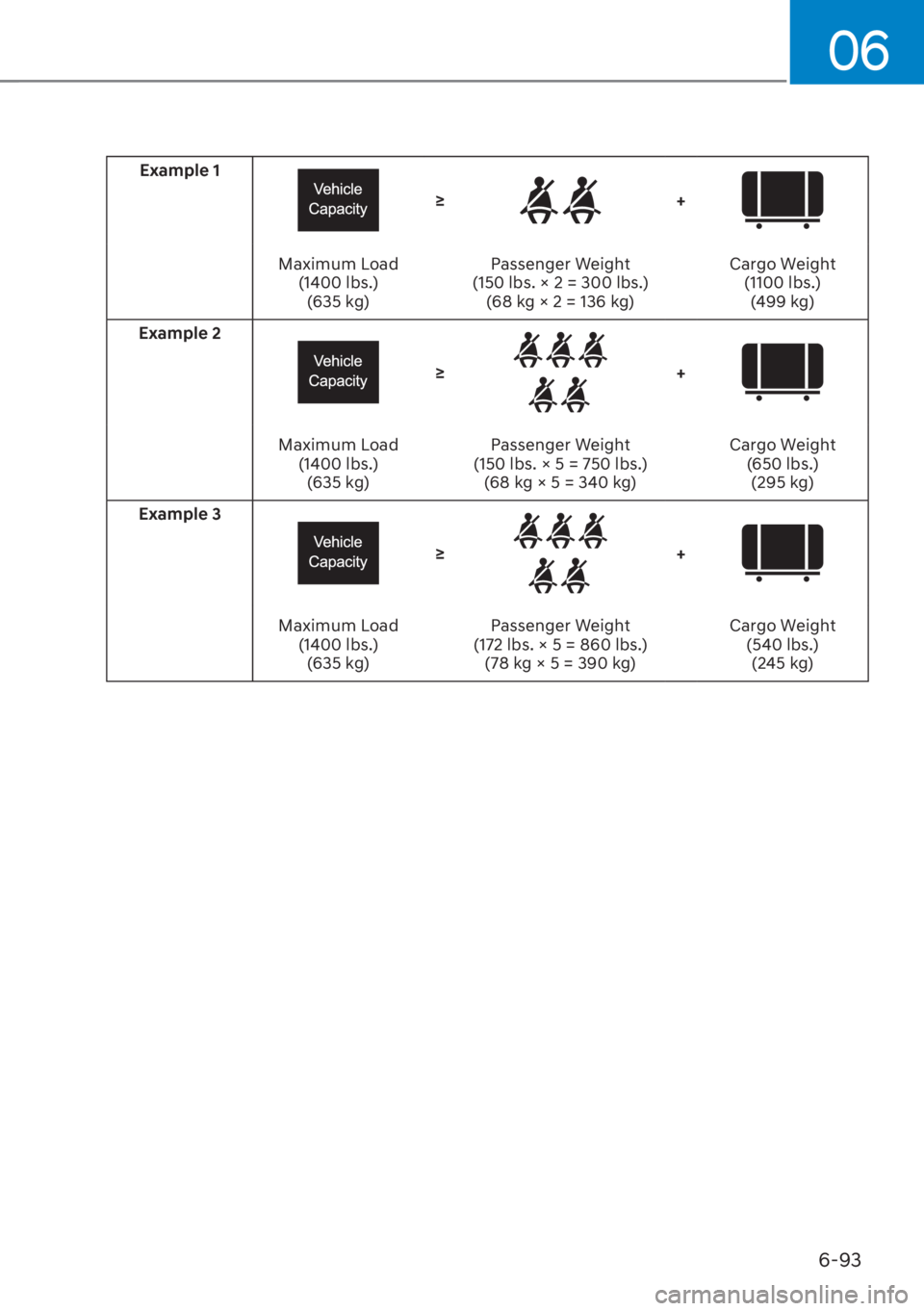

HYUNDAI SANTA FE 2023  Owners Manual 06
6-93
Example 1
g+
Maximum Load(1400 lbs.)(635 kg) Passenger Weight
(150 lbs. × 2 = 300 lbs.) (68 kg × 2 = 136 kg) Cargo Weight
(1100 lbs.)(499 kg)
Example 2
g+
Maximum Load (1400 lbs.)(635 kg)

Page 380 of 624

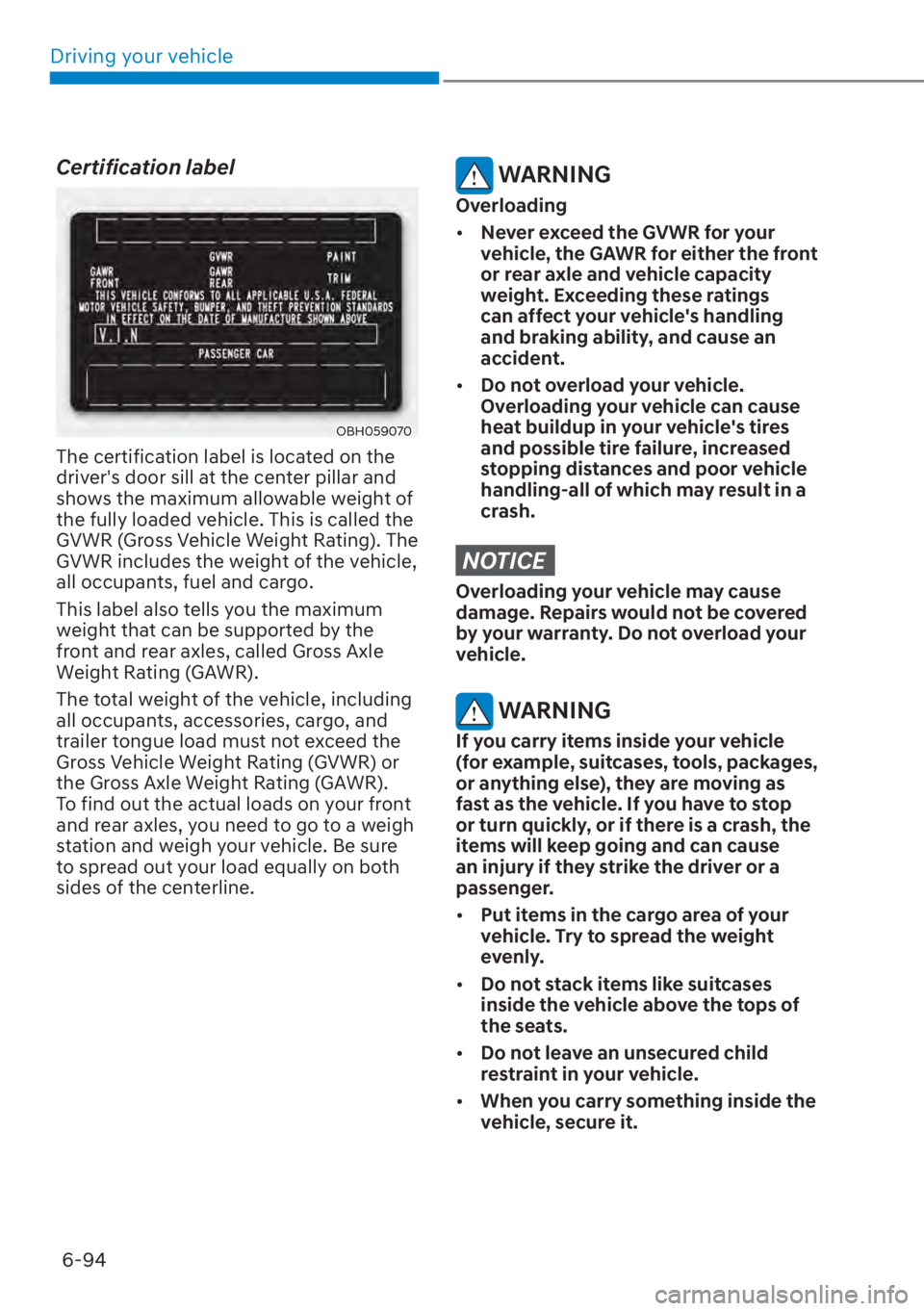

HYUNDAI SANTA FE 2023  Owners Manual Driving your vehicle6-94
Certification label
OBH059070
The certification label is located on the
driver's door sill at the center pillar and
shows the maximum allowable weight of
the fully load
