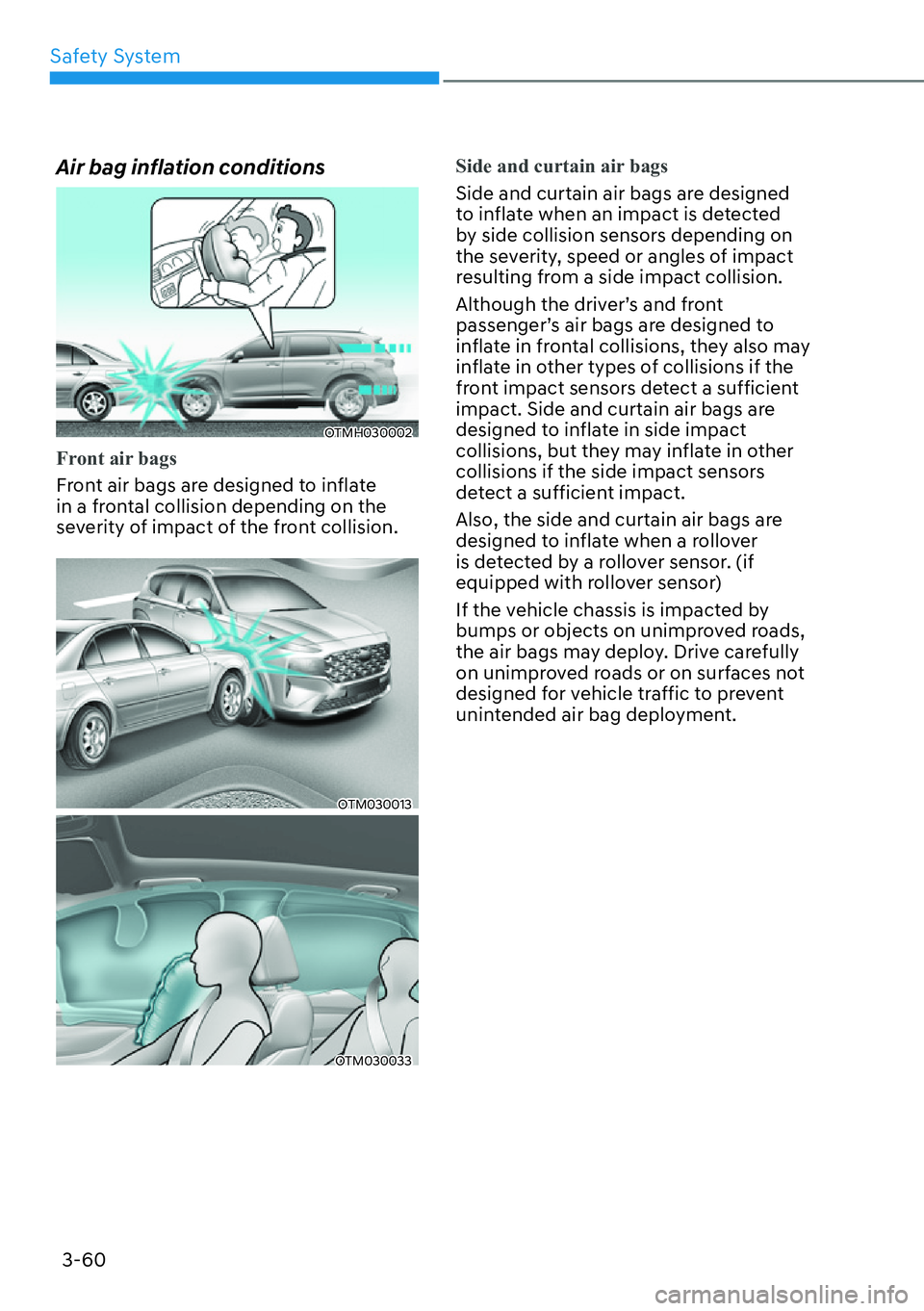

HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Safety System
3-60
Air bag inflation conditions
OTMH030002
Front air bags
Front air bags are designed to inflate
in a frontal collision depending on the
severity of impact of the front collision.
OTM030013
OTM030033
Side and curtain air bags
Side and curtain air bags are designed
to inflate when an impact is detected
by side collision sensors depending on
the severity, speed or angles of impact
resulting from a side impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain air bags are
designed to inflate in side impact
collisions, but they may inflate in other
collisions if the side impact sensors
detect a sufficient impact.
Also, the side and curtain air bags are
designed to inflate when a rollover
is detected by a rollover sensor. (if
equipped with rollover sensor)
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.

03
3-61

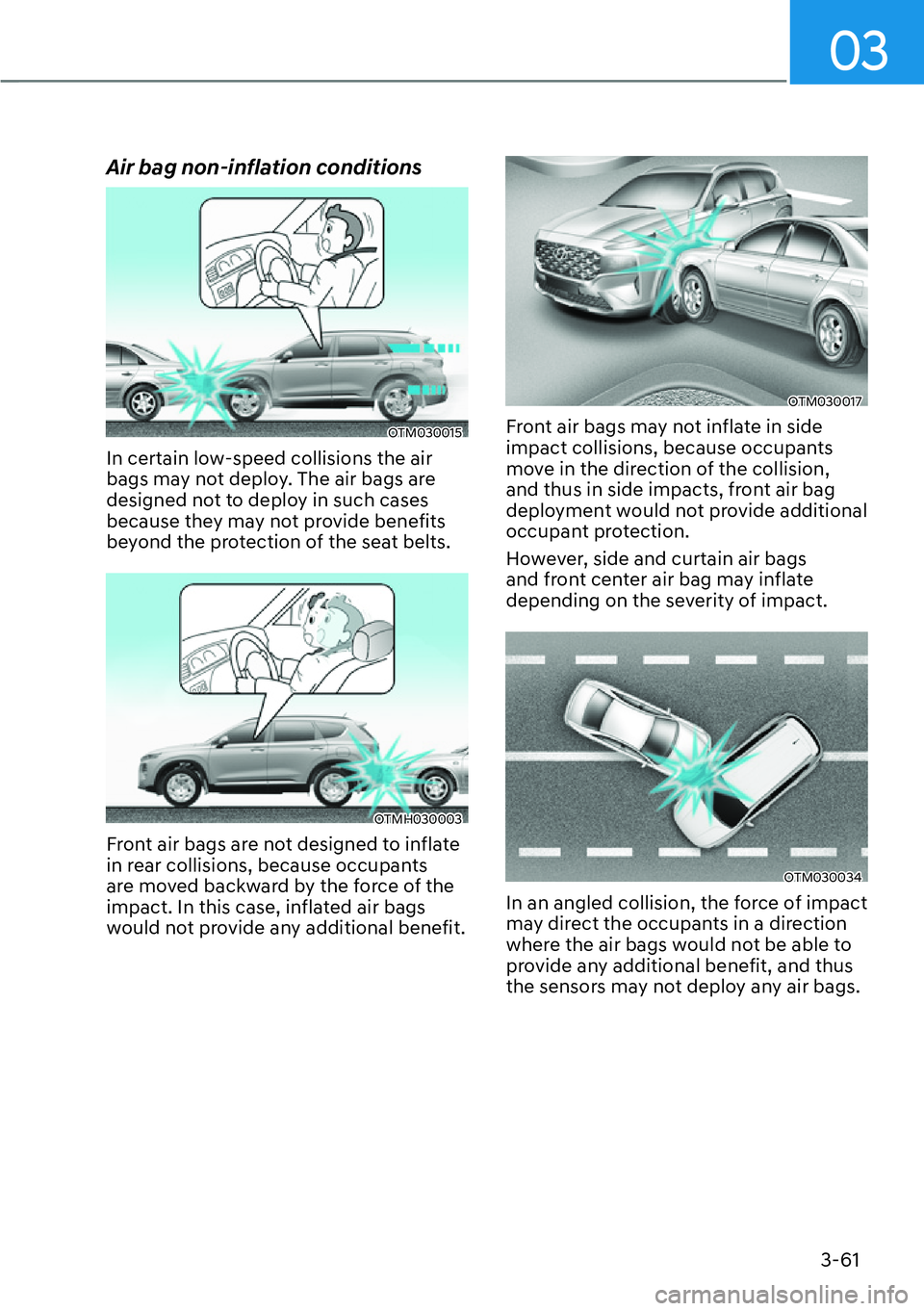

Air bag non-inflation conditions
OTM030015
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
OTMH030003
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
OTM030017
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags
and front center air bag may inflate
depending on the severity of impact.
OTM030034
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.

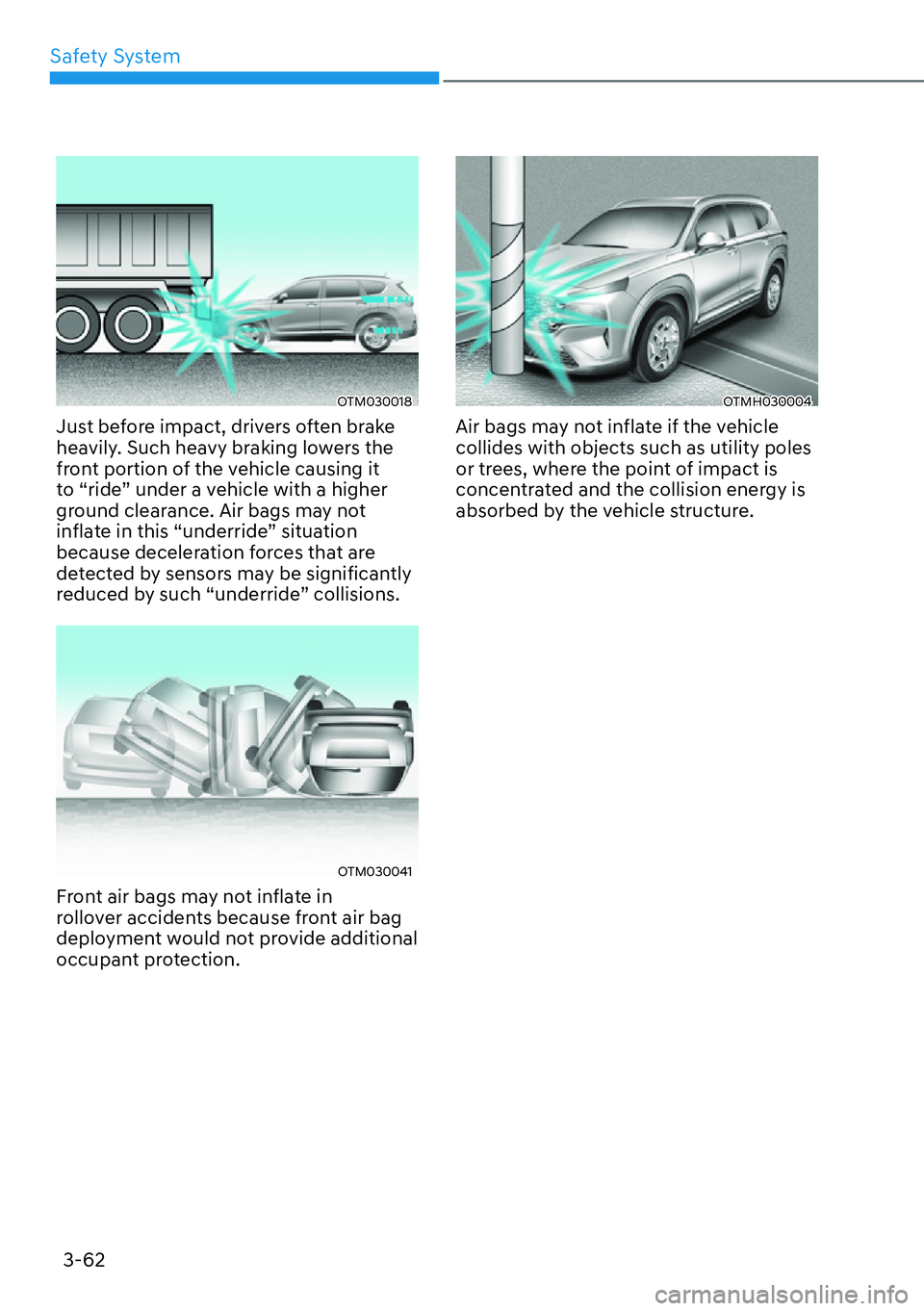

Safety System
3-62
OTM030018
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OTM030041
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
OTMH030004
Air bags may not inflate if the vehicle collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

03
3-63

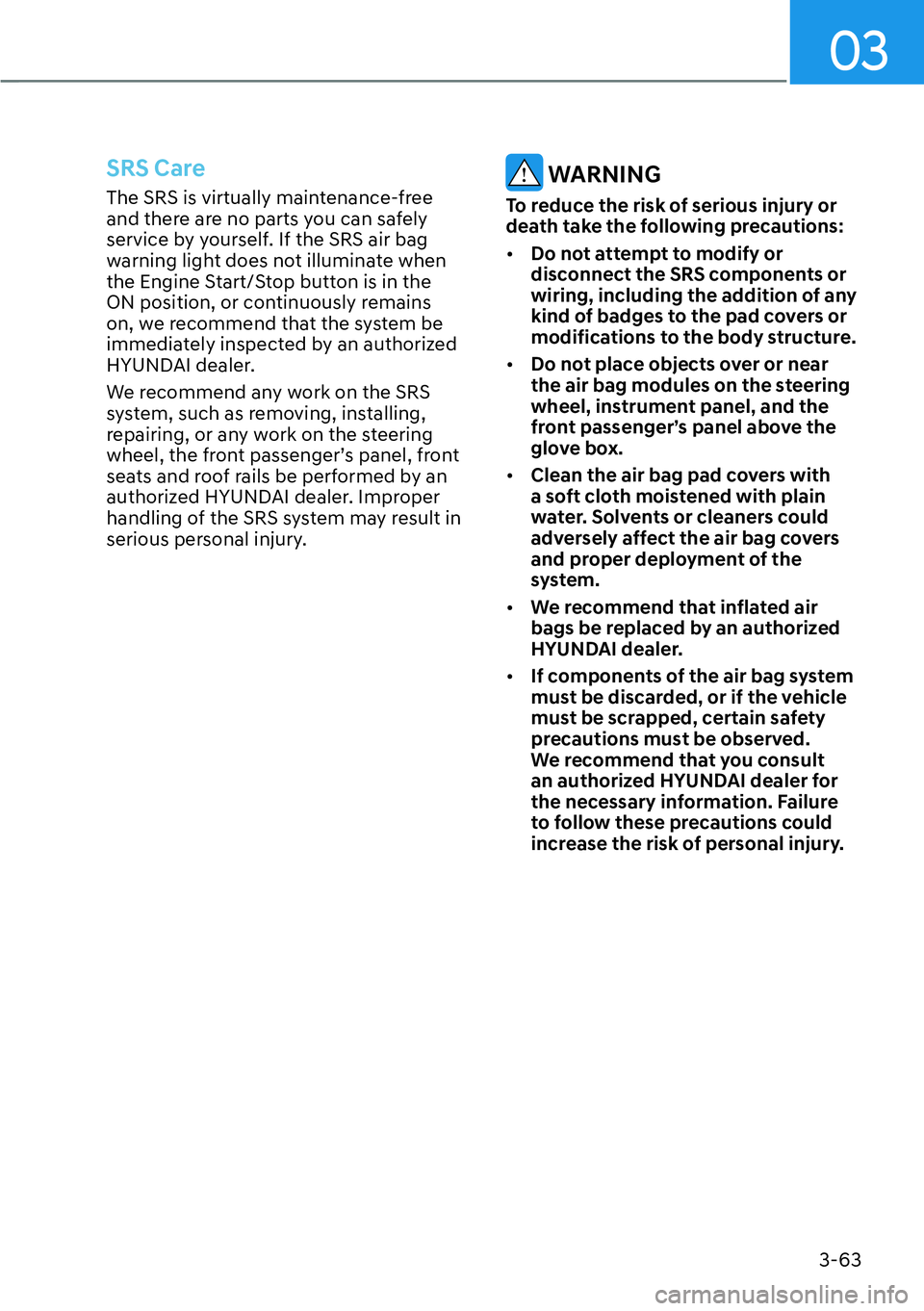

SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains
on, we recommend that the system be
immediately inspected by an authorized
HYUNDAI dealer.
We recommend any work on the SRS
system, such as removing, installing,
repairing, or any work on the steering
wheel, the front passenger’s panel, front
seats and roof rails be performed by an
authorized HYUNDAI dealer. Improper
handling of the SRS system may result in
serious personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:
[ Do not attempt to modify or disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ We recommend that inflated air
bags be replaced by an authorized
HYUNDAI dealer.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
We recommend that you consult
an authorized HYUNDAI dealer for
the necessary information. Failure
to follow these precautions could
increase the risk of personal injury.

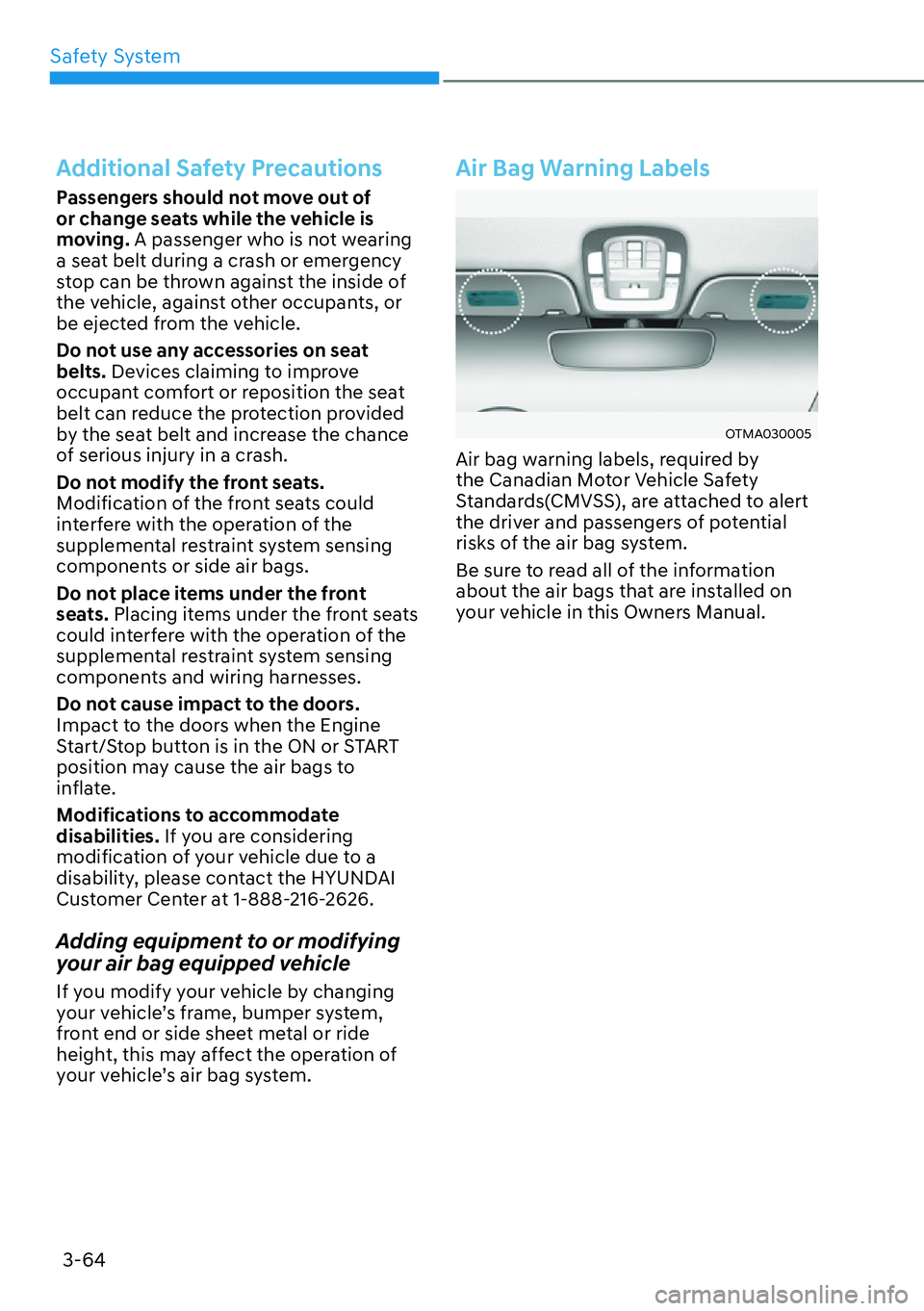

Safety System
3-64
Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate disabilities. If you are considering
modification of your vehicle due to a
disability, please contact the HYUNDAI
Customer Center at 1-888-216-2626.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OTMA030005
Air bag warning labels, required by
the Canadian Motor Vehicle Safety
Standards(CMVSS), are attached to alert
the driver and passengers of potential
risks of the air bag system.
Be sure to read all of the information
about the air bags that are installed on
your vehicle in this Owners Manual.

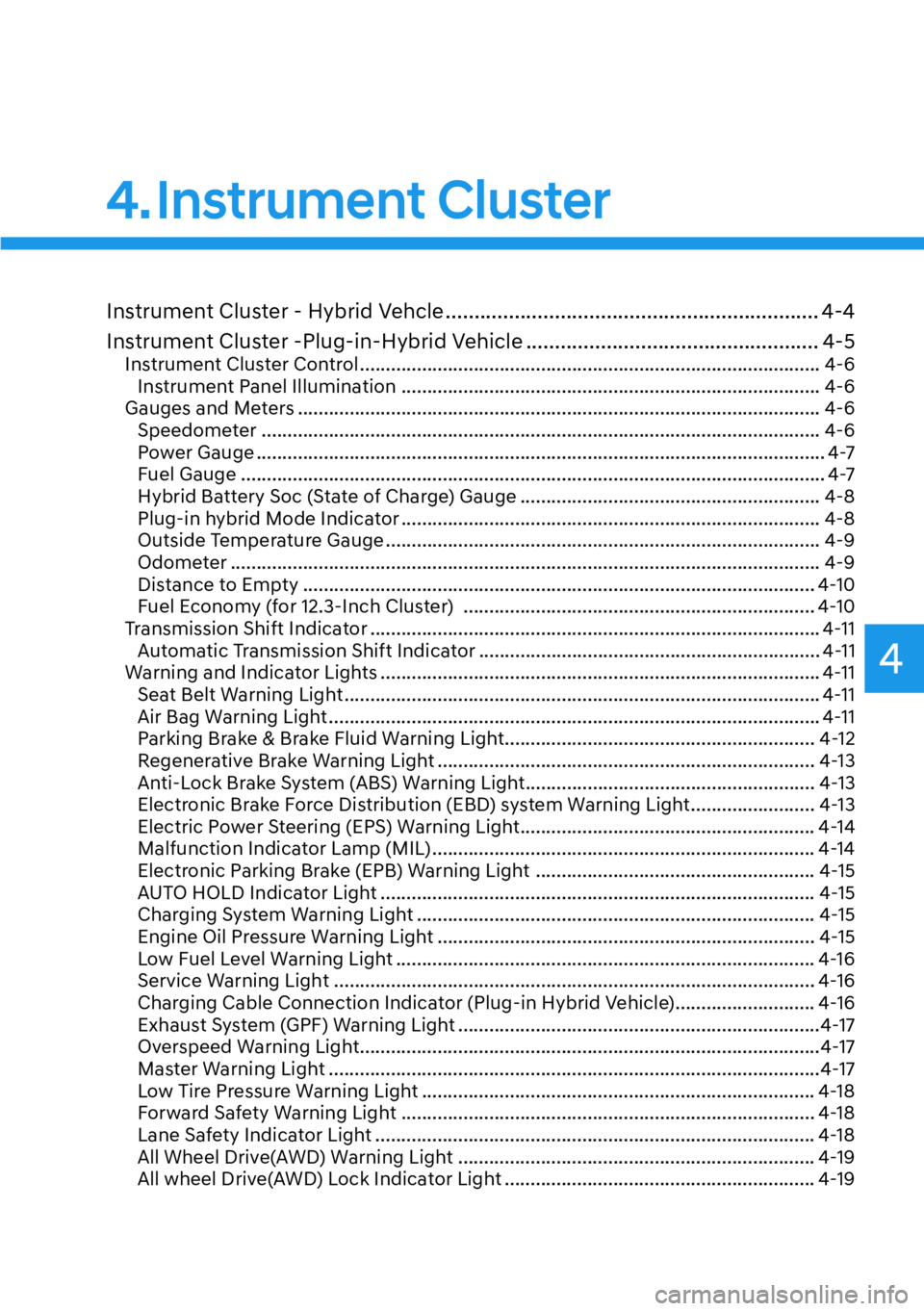

4
4. Instrument Cluster

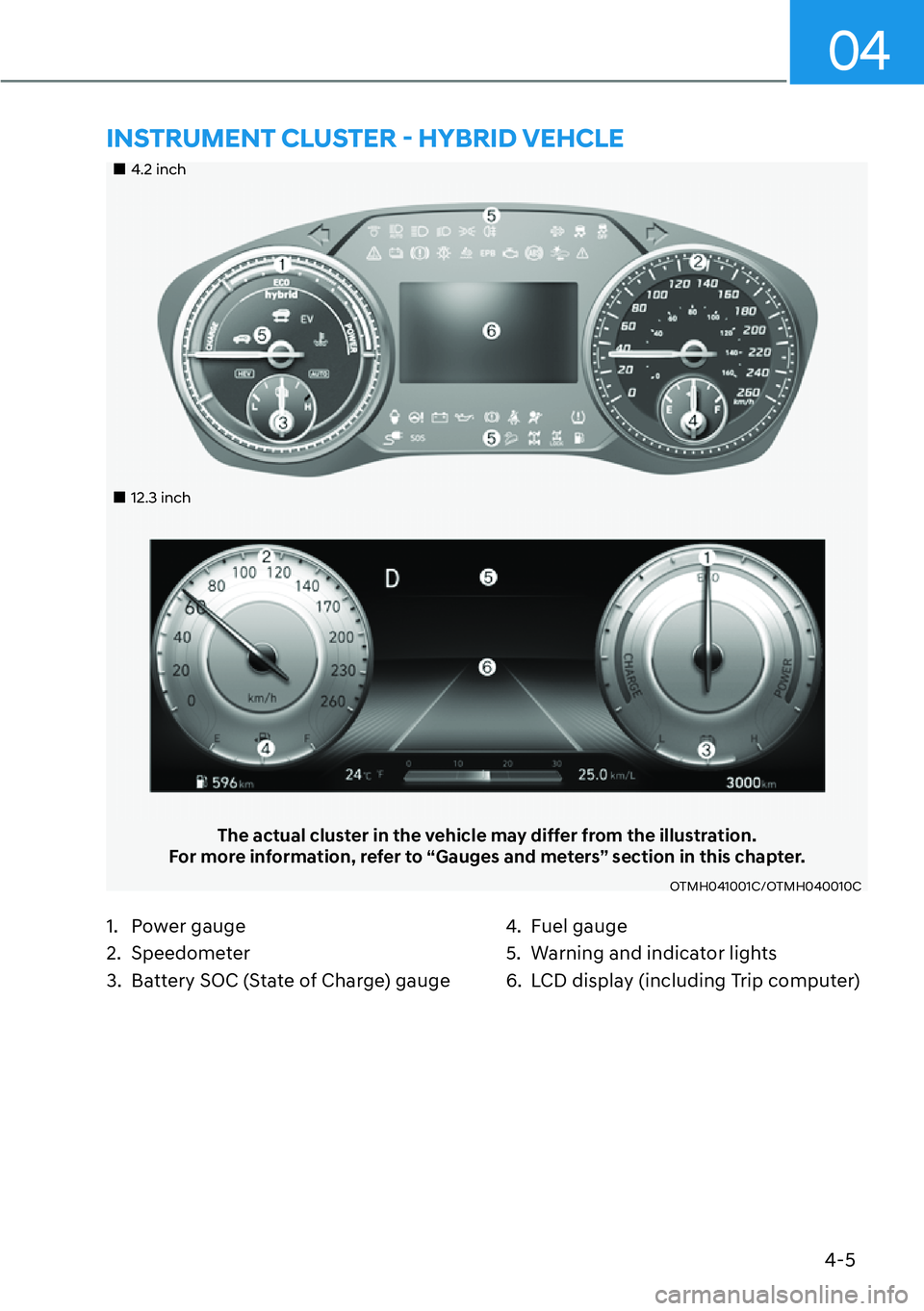

Instrument Cluster - Hybrid Vehcle ................................................................. 4-4
Instrument Cluster -Plug-in-Hybrid Vehicle ................................................... 4-5Instrument Cluster Control ......................................................................................... 4-6Instrument Panel Illumination ................................................................................. 4-6
Gauges and Meters ..................................................................................................... 4-6
Speedometer ............................................................................................................ 4-6
Power Gauge .............................................................................................................. 4-7
Fuel Gauge ................................................................................................................. 4-7
Hybrid Battery Soc (State of Charge) Gauge .......................................................... 4-8
Plug-in hybrid Mode Indicator ................................................................................. 4-8
Outside Temperature Gauge .................................................................................... 4-9
Odometer .................................................................................................................. 4-9
Distance to Empty ................................................................................................... 4-10
Fuel Economy (for 12.3-Inch Cluster) .................................................................... 4-10
Transmission Shift Indicator ....................................................................................... 4-11
Automatic Transmission Shift Indicator .................................................................. 4-11
Warning and Indicator Lights ..................................................................................... 4-11
Seat Belt Warning Light ............................................................................................ 4-11
Air Bag Warning Light ............................................................................................... 4-11
Parking Brake & Brake Fluid Warning Light ............................................................ 4-12
Regenerative Brake Warning Light ......................................................................... 4-13
Anti-Lock Brake System (ABS) Warning Light ........................................................ 4-13
Electronic Brake Force Distribution (EBD) system Warning Light ........................ 4-13
Electric Power Steering (EPS) Warning Light ......................................................... 4-14
Malfunction Indicator Lamp (MIL) .......................................................................... 4-14
Electronic Parking Brake (EPB) Warning Light ...................................................... 4-15
AUTO HOLD Indicator Light .................................................................................... 4-15
Charging System Warning Light ............................................................................. 4-15
Engine Oil Pressure Warning Light ......................................................................... 4-15
Low Fuel Level Warning Light ................................................................................. 4-16
Service Warning Light ............................................................................................. 4-16
Charging Cable Connection Indicator (Plug-in Hybrid Vehicle) ........................... 4-16
Exhaust System (GPF) Warning Light ......................................................................4-17
Overspeed Warning Light .........................................................................................4-17
Master Warning Light ...............................................................................................4-17
Low Tire Pressure Warning Light ............................................................................ 4-18
Forward Safety Warning Light ................................................................................ 4-18
Lane Safety Indicator Light ..................................................................................... 4-18
All Wheel Drive(AWD) Warning Light ..................................................................... 4-19
All wheel Drive(AWD) Lock Indicator Light ............................................................ 4-19

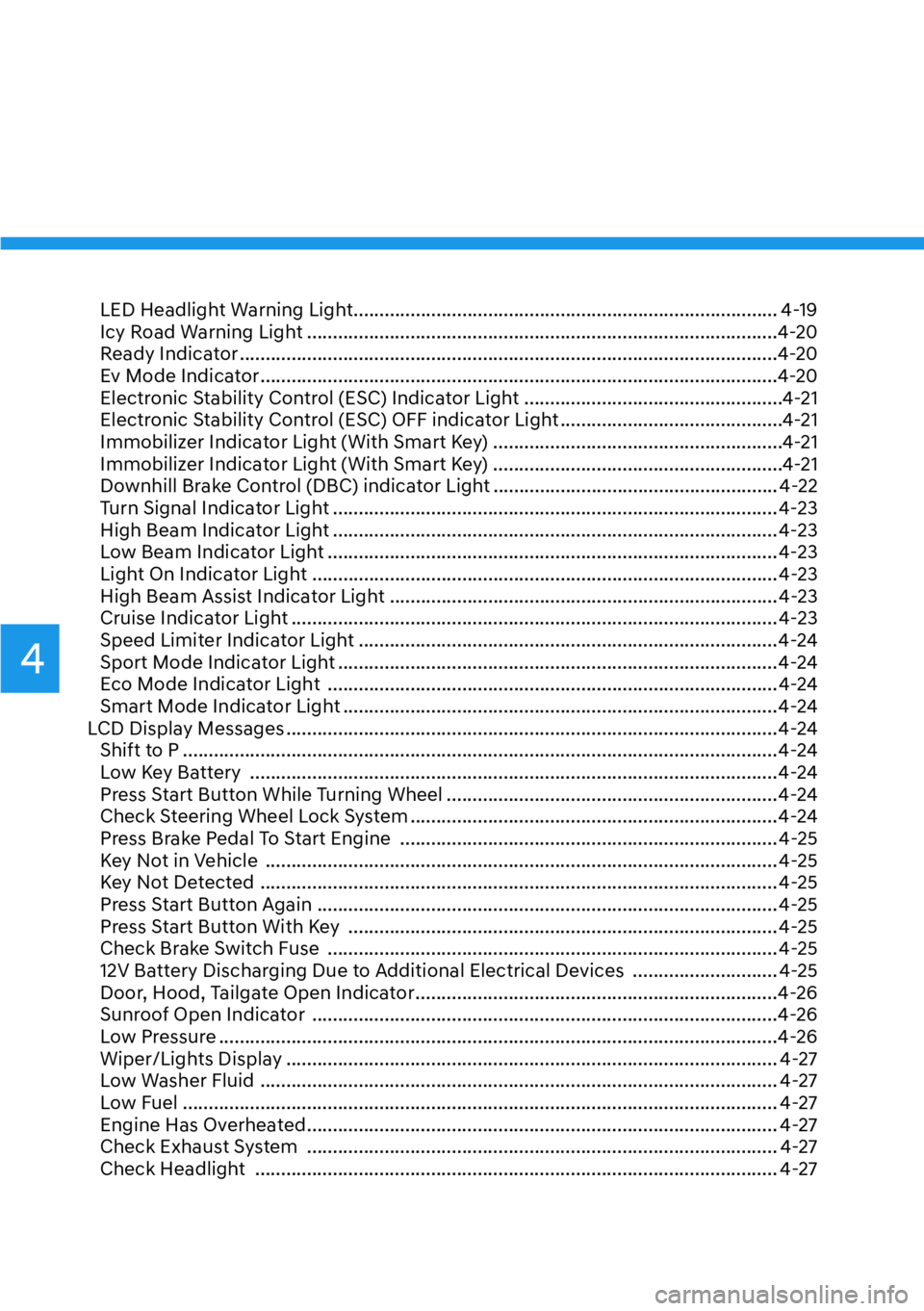

4
LED Headlight Warning Light .................................................................................. 4-19
Icy Road Warning Light ...........................................................................................4-20
Ready Indicator ........................................................................................................4-20
Ev Mode Indicator ....................................................................................................4-20
Electronic Stability Control (ESC) Indicator Light ..................................................4-21
Electronic Stability Control (ESC) OFF indicator Light ...........................................4-21
Immobilizer Indicator Light (With Smart Key) ........................................................4-21
Immobilizer Indicator Light (With Smart Key) ........................................................4-21
Downhill Brake Control (DBC) indicator Light ....................................................... 4-22
Turn Signal Indicator Light ...................................................................................... 4-23
High Beam Indicator Light ...................................................................................... 4-23
Low Beam Indicator Light ....................................................................................... 4-23
Light On Indicator Light .......................................................................................... 4-23
High Beam Assist Indicator Light ........................................................................... 4-23
Cruise Indicator Light .............................................................................................. 4-23
Speed Limiter Indicator Light ................................................................................. 4-24
Sport Mode Indicator Light ..................................................................................... 4-24
Eco Mode Indicator Light ....................................................................................... 4-24
Smart Mode Indicator Light .................................................................................... 4-24
LCD Display Messages ............................................................................................... 4-24
Shift to P ................................................................................................................... 4 -24
Low Key Battery ...................................................................................................... 4-24
Press Start Button While Turning Wheel ................................................................ 4-24
Check Steering Wheel Lock System ....................................................................... 4-24
Press Brake Pedal To Start Engine ......................................................................... 4-25
Key Not in Vehicle ................................................................................................... 4-25
Key Not Detected .................................................................................................... 4-25
Press Start Button Again ......................................................................................... 4-25
Press Start Button With Key ................................................................................... 4-25
Check Brake Switch Fuse ....................................................................................... 4-25
12V Battery Discharging Due to Additional Electrical Devices ............................ 4-25
Door, Hood, Tailgate Open Indicator ......................................................................4-26
Sunroof Open Indicator ..........................................................................................4-26
Low Pressure ............................................................................................................4-26
Wiper/Lights Display ............................................................................................... 4-27
Low Washer Fluid .................................................................................................... 4-27
Low Fuel ................................................................................................................... 4-27
Engine Has Overheated ........................................................................................... 4-27
Check Exhaust System ........................................................................................... 4-27
Check Headlight ..................................................................................................... 4-27

4

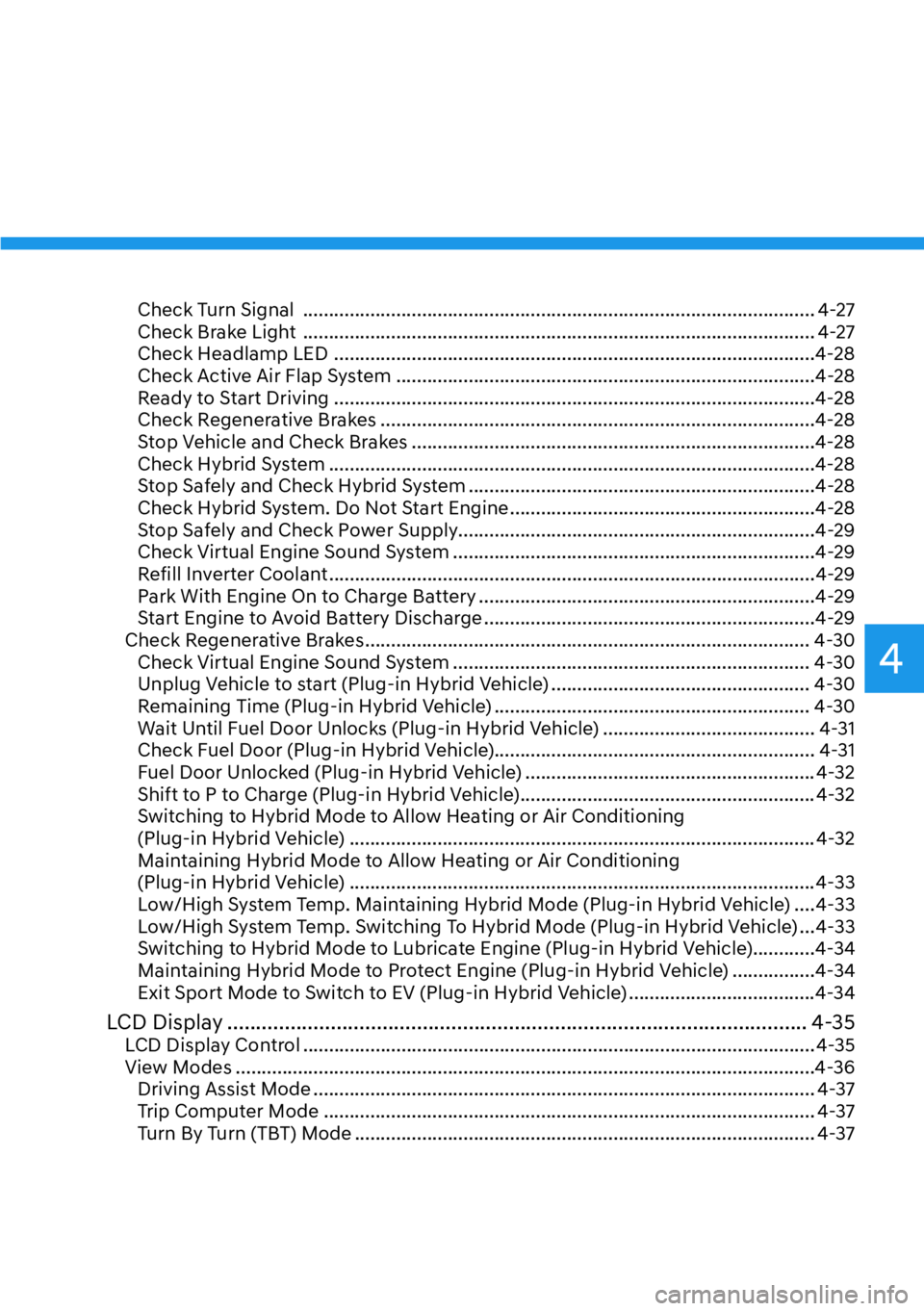

Check Turn Signal ................................................................................................... 4-27
Check Brake Light ................................................................................................... 4-27
Check Headlamp LED .............................................................................................4-28
Check Active Air Flap System .................................................................................4-28
Ready to Start Driving .............................................................................................4-28
Check Regenerative Brakes ....................................................................................4-28
Stop Vehicle and Check Brakes ..............................................................................4-28
Check Hybrid System ..............................................................................................4-28
Stop Safely and Check Hybrid System ...................................................................4-28
Check Hybrid System. Do Not Start Engine ...........................................................4-28
Stop Safely and Check Power Supply.....................................................................4-29
Check Virtual Engine Sound System ......................................................................4-29
Refill Inverter Coolant ..............................................................................................4-29
Park With Engine On to Charge Battery .................................................................4-29
Start Engine to Avoid Battery Discharge ................................................................4-29
Check Regenerative Brakes ...................................................................................... 4-30 Check Virtual Engine Sound System ..................................................................... 4-30
Unplug Vehicle to start (Plug-in Hybrid Vehicle) .................................................. 4-30
Remaining Time (Plug-in Hybrid Vehicle) ............................................................. 4-30
Wait Until Fuel Door Unlocks (Plug-in Hybrid Vehicle) ......................................... 4-31
Check Fuel Door (Plug-in Hybrid Vehicle).............................................................. 4-31
Fuel Door Unlocked (Plug-in Hybrid Vehicle) ........................................................ 4-32
Shift to P to Charge (Plug-in Hybrid Vehicle) ......................................................... 4-32
Switching to Hybrid Mode to Allow Heating or Air Conditioning
(Plug-in Hybrid Vehicle) .......................................................................................... 4-32
Maintaining Hybrid Mode to Allow Heating or Air Conditioning
(Plug-in Hybrid Vehicle) ..........................................................................................4-33
Low/High System Temp. Maintaining Hybrid Mode (Plug-in Hybrid Vehicle) ....4-33
Low/High System Temp. Switching To Hybrid Mode (Plug-in Hybrid Vehicle) ...4-33
Switching to Hybrid Mode to Lubricate Engine (Plug-in Hybrid Vehicle) ............4-34
Maintaining Hybrid Mode to Protect Engine (Plug-in Hybrid Vehicle) ................4-34
Exit Sport Mode to Switch to EV (Plug-in Hybrid Vehicle) ....................................4-34
LCD Display ..................................................................................................... 4-35 LCD Display Control ................................................................................................... 4-35
View Modes ................................................................................................................4-36Driving Assist Mode ................................................................................................. 4-37
Trip Computer Mode ............................................................................................... 4-37
Turn By Turn (TBT) Mode ......................................................................................... 4-37

4

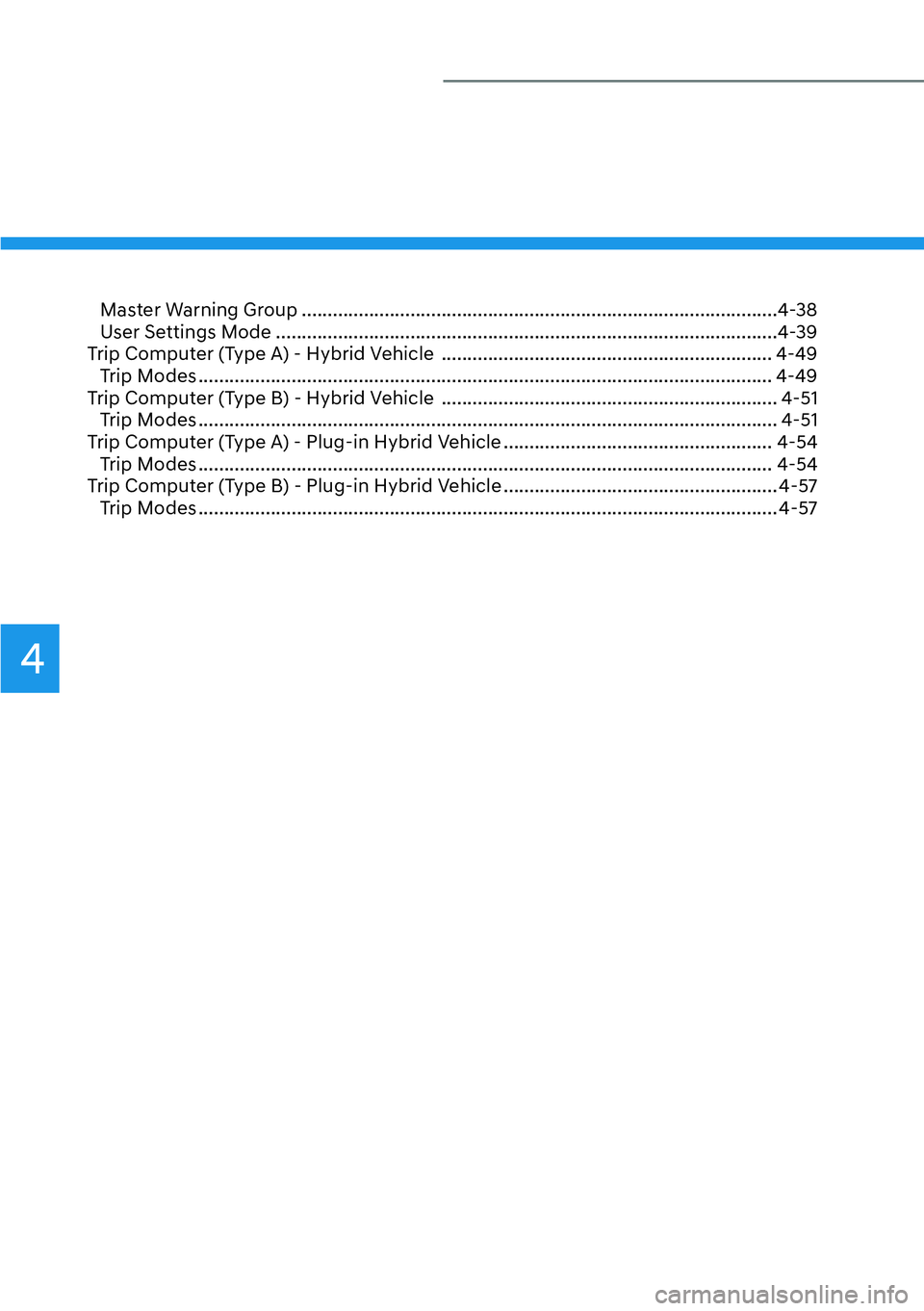

Master Warning Group ............................................................................................4-38
User Settings Mode .................................................................................................4-39
Trip Computer (Type A) - Hybrid Vehicle ................................................................ 4-49 Trip Modes ............................................................................................................... 4-49
Trip Computer (Type B) - Hybrid Vehicle ................................................................. 4-51 Trip Modes ................................................................................................................ 4-51
Trip Computer (Type A) - Plug-in Hybrid Vehicle .................................................... 4-54 Trip Modes ............................................................................................................... 4-54
Trip Computer (Type B) - Plug-in Hybrid Vehicle ..................................................... 4-57 Trip Modes ................................................................................................................ 4-57

4-5
04
„4.2 inch
„12.3 inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OTMH041001C/OTMH040010C
1. Power gauge
2. Speedometer
3. Battery SOC (State of Charge) gauge 4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
,167580(17&/867(5
Ø+<%5,'9(+&/(
