HYUNDAI SANTA FE HYBRID 2022 Owners Manual

4-36
Instrument Cluster/&'',63/$<

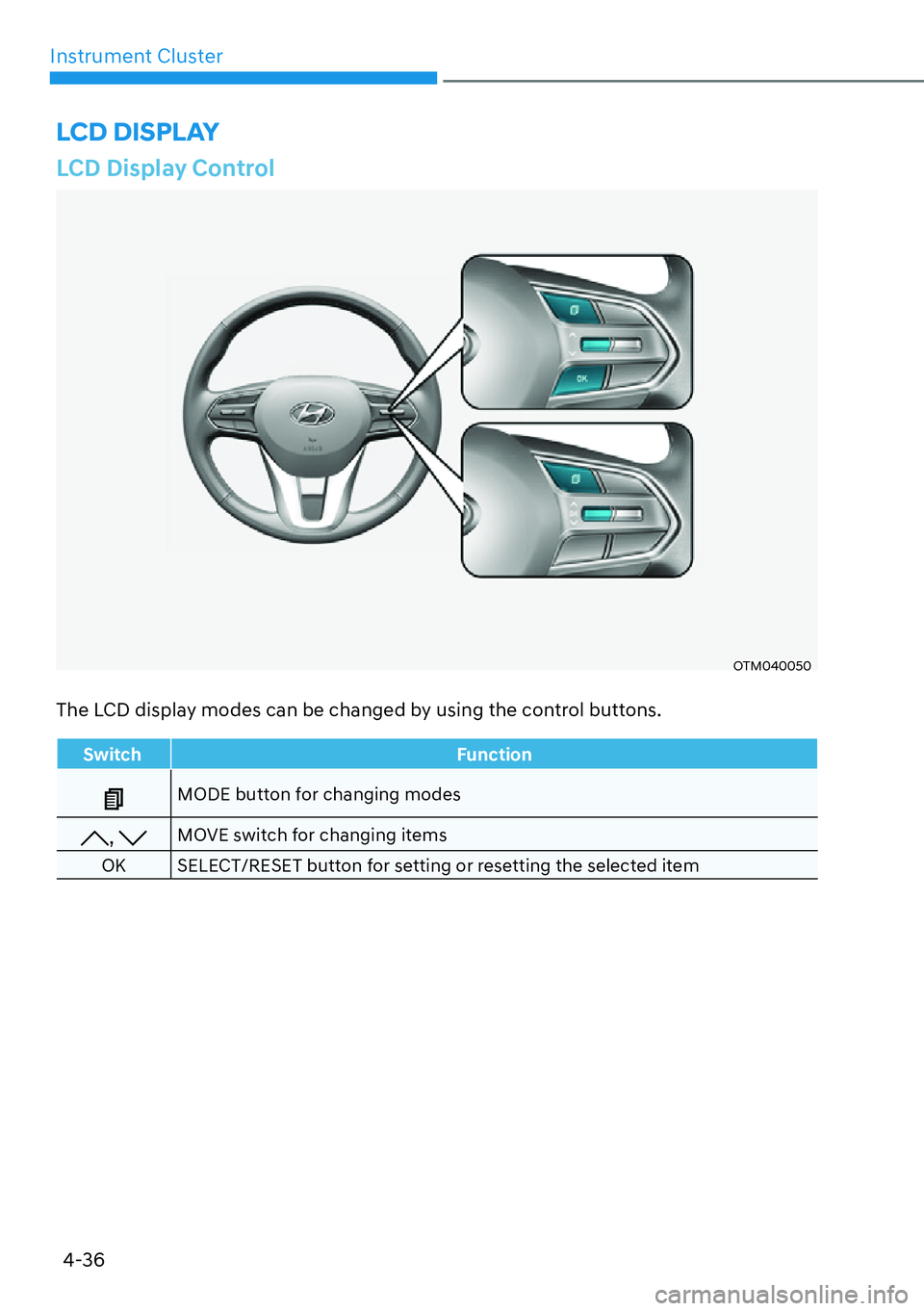

LCD Display Control
OTM040050
The LCD display modes can be changed by using the control buttons.
Switch Function
MODE button for changing modes
, MOVE switch for changing items
OK SELECT/RESET button for setting or resetting the selected item

04
4-37

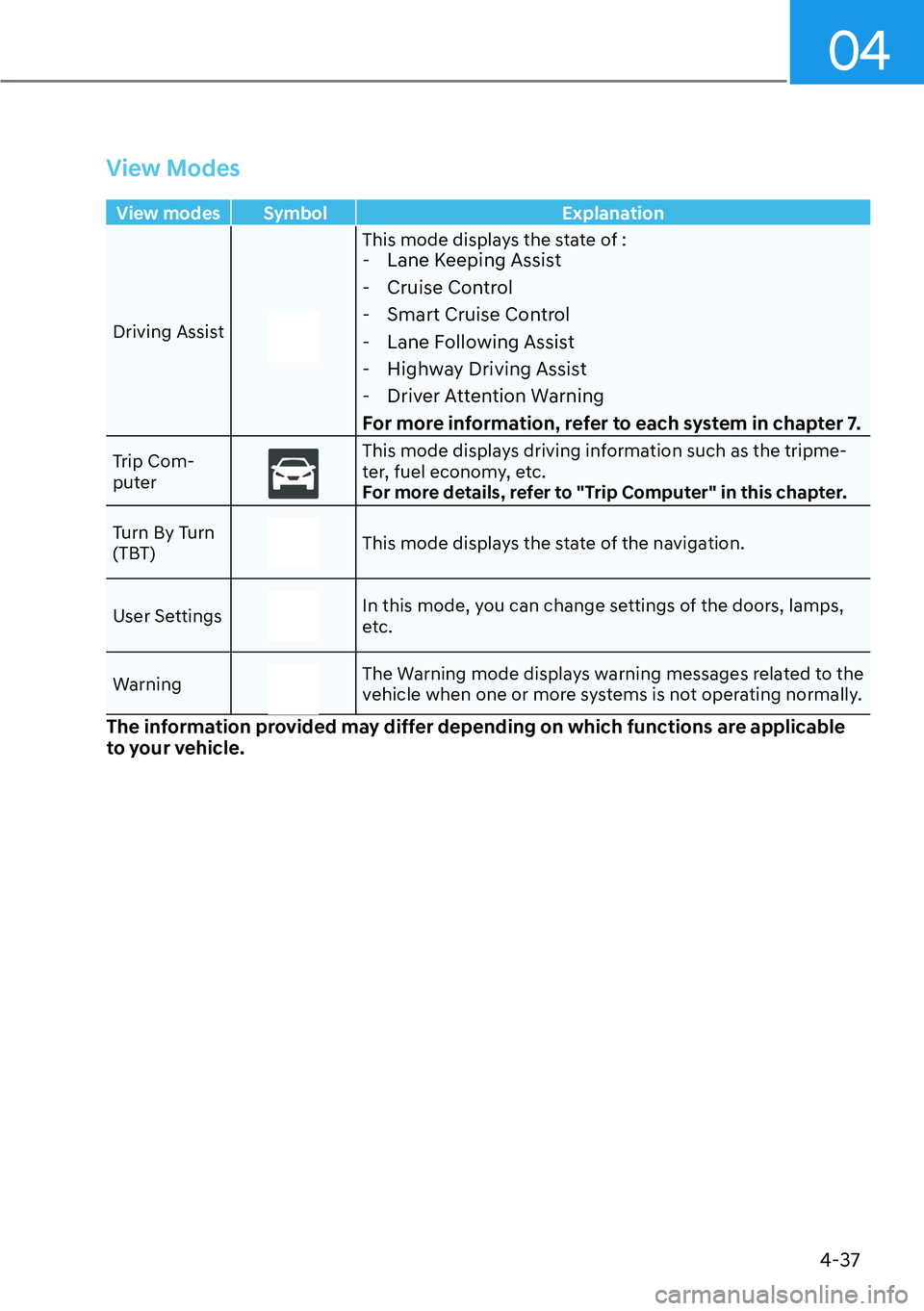

View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
- Cruise Control
- Smart Cruise Control
- Lane Following Assist
- Highway Driving Assist

- Driver Attention Warning
For more information, refer to each system in chapter 7.
Trip Com-
puter
This mode displays driving information such as the tripme-
ter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
The Warning mode displays warning messages related to the
vehicle when one or more systems is not operating normally.
The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster
4-38

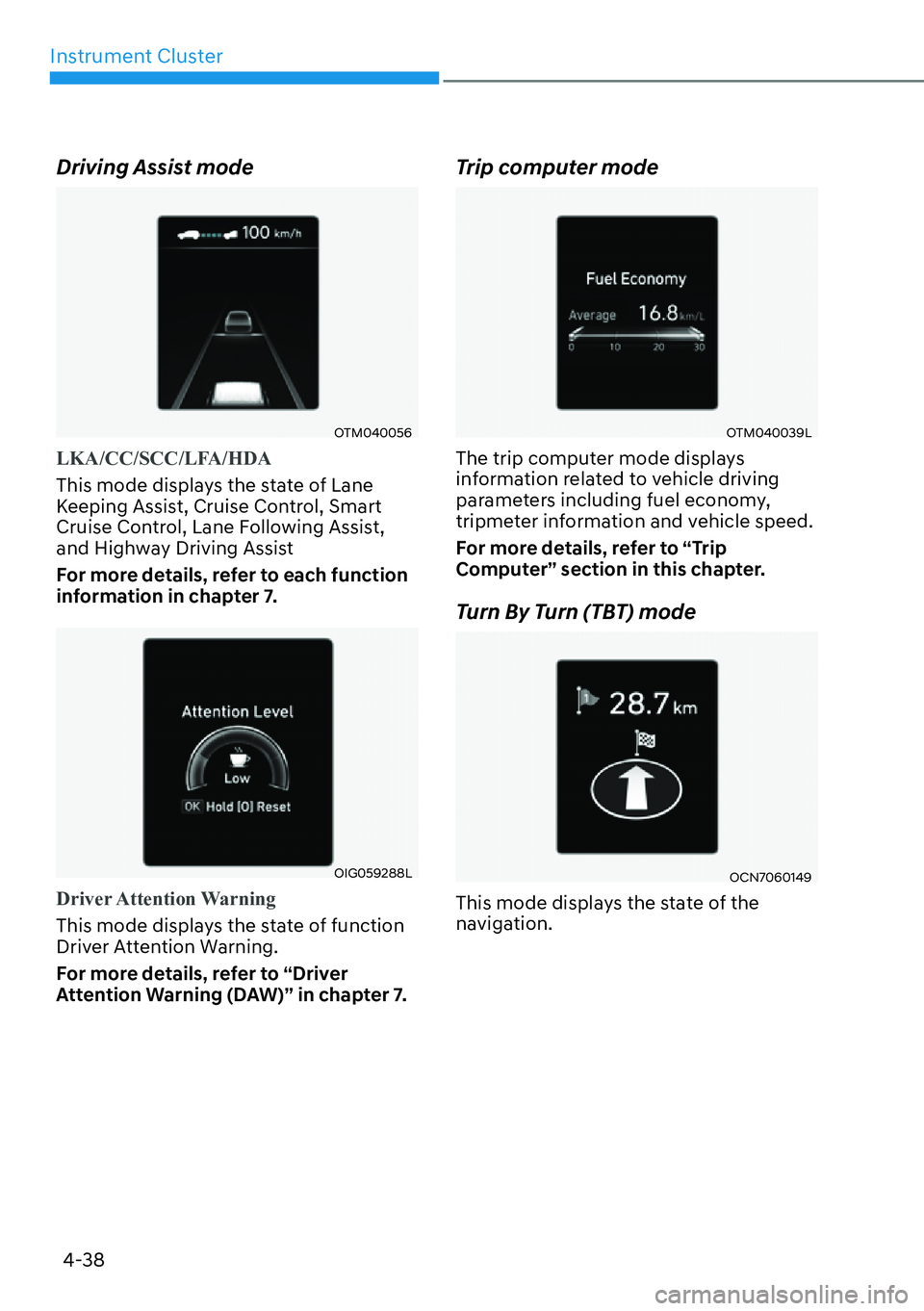

Driving Assist mode
OTM040056
LKA/CC/SCC/LFA/HDA
This mode displays the state of Lane
Keeping Assist, Cruise Control, Smart
Cruise Control, Lane Following Assist,
and Highway Driving Assist
For more details, refer to each function
information in chapter 7.
OIG059288L
Driver Attention Warning
This mode displays the state of function
Driver Attention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.
Trip computer mode
OTM040039L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to “Trip
Computer” section in this chapter.
Turn By Turn (TBT) mode
OCN7060149
This mode displays the state of the
navigation.

04
4-39

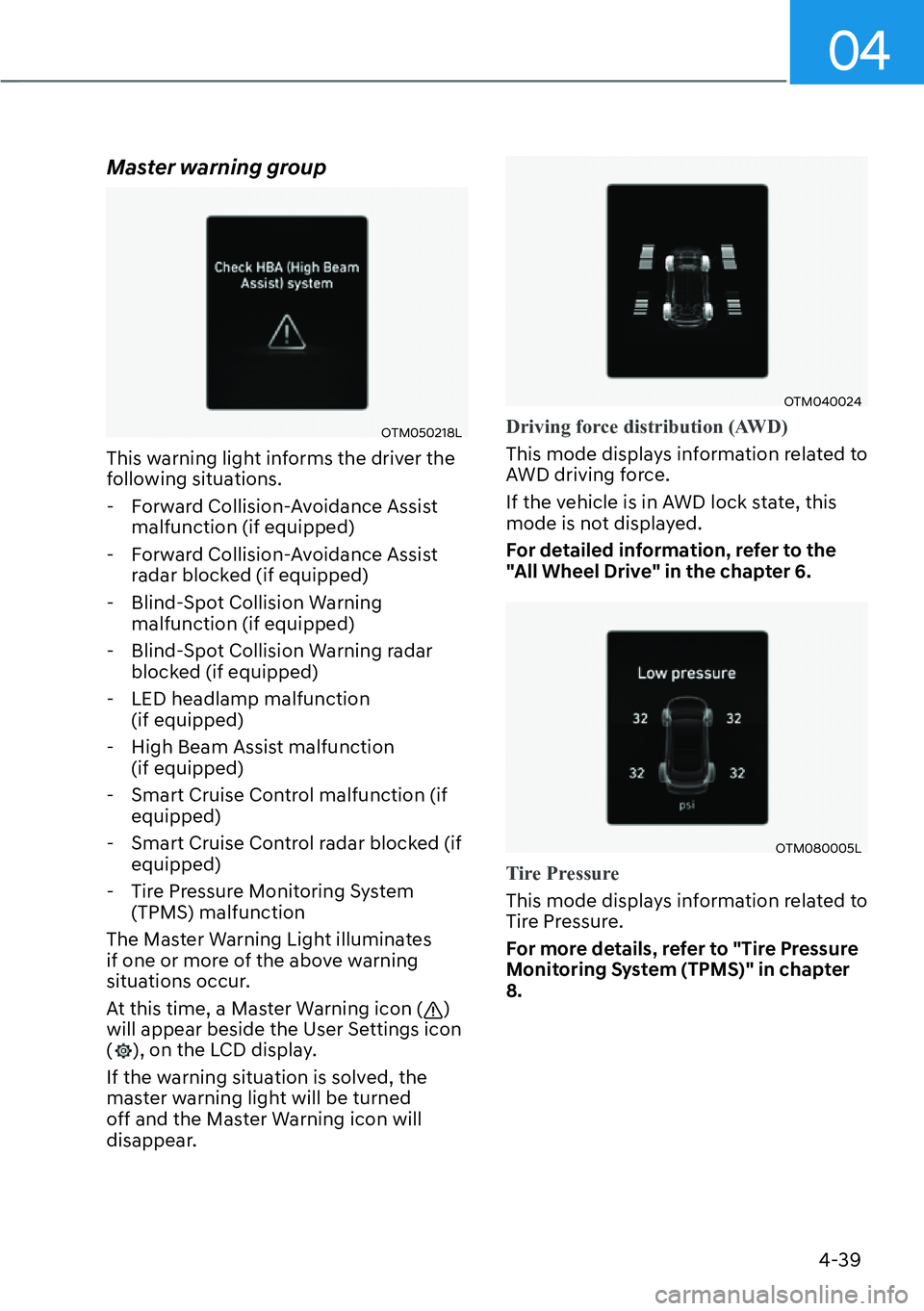

Master warning group
OTM050218L
This warning light informs the driver the
following situations.
- Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon (
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OTM040024
Driving force distribution (AWD)
This mode displays information related to
AWD driving force.
If the vehicle is in AWD lock state, this
mode is not displayed.
For detailed information, refer to the
"All Wheel Drive" in the chapter 6.
OTM080005L
Tire Pressure
This mode displays information related to
Tire Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter 8.

Instrument Cluster
4-40

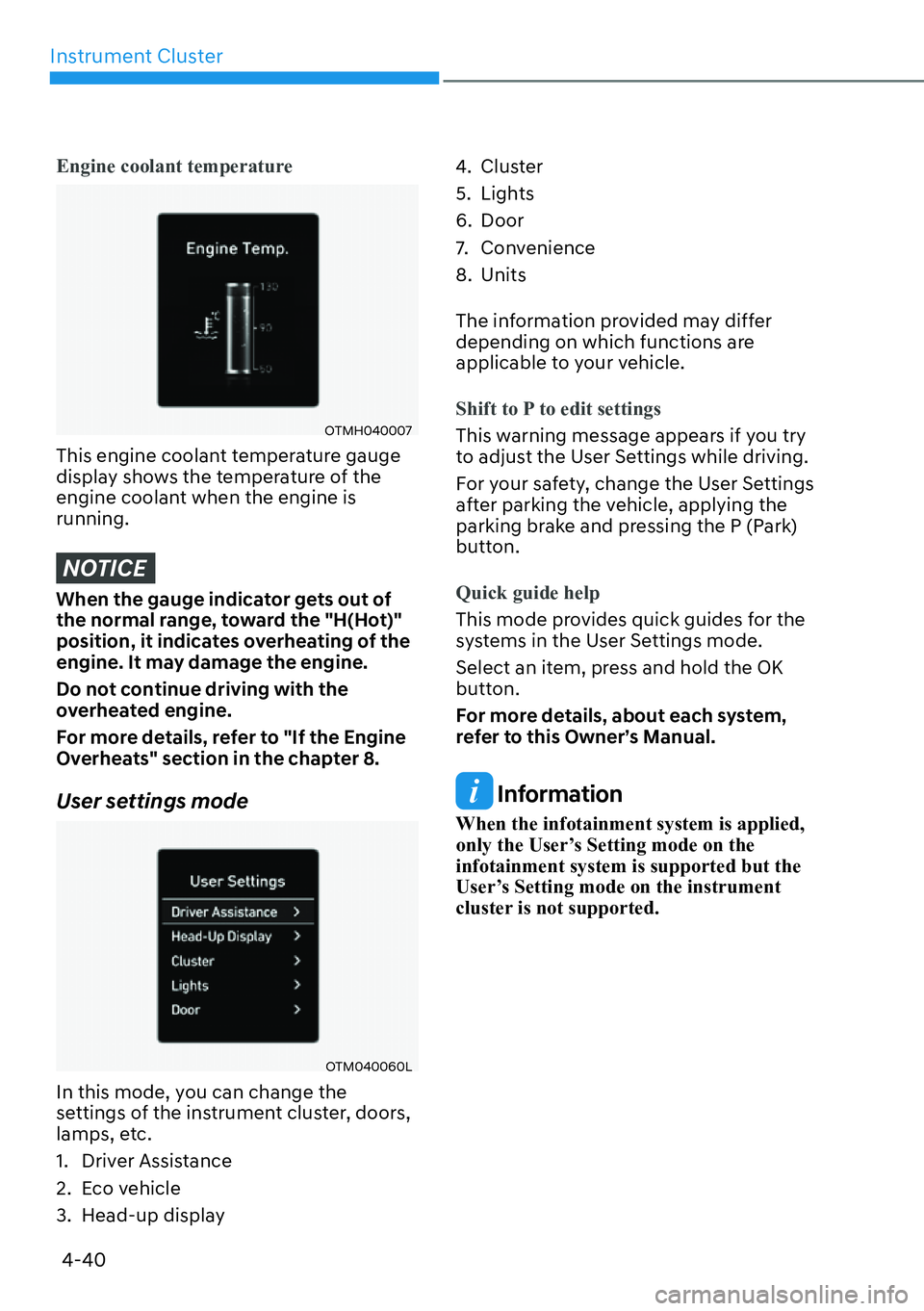

Engine coolant temperature
OTMH040007
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.
User settings mode
OTM040060L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Eco vehicle
3. Head-up display 4. Cluster5. Lights6. Door
7. Convenience8. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings
This warning message appears if you try
to adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

04
4-41

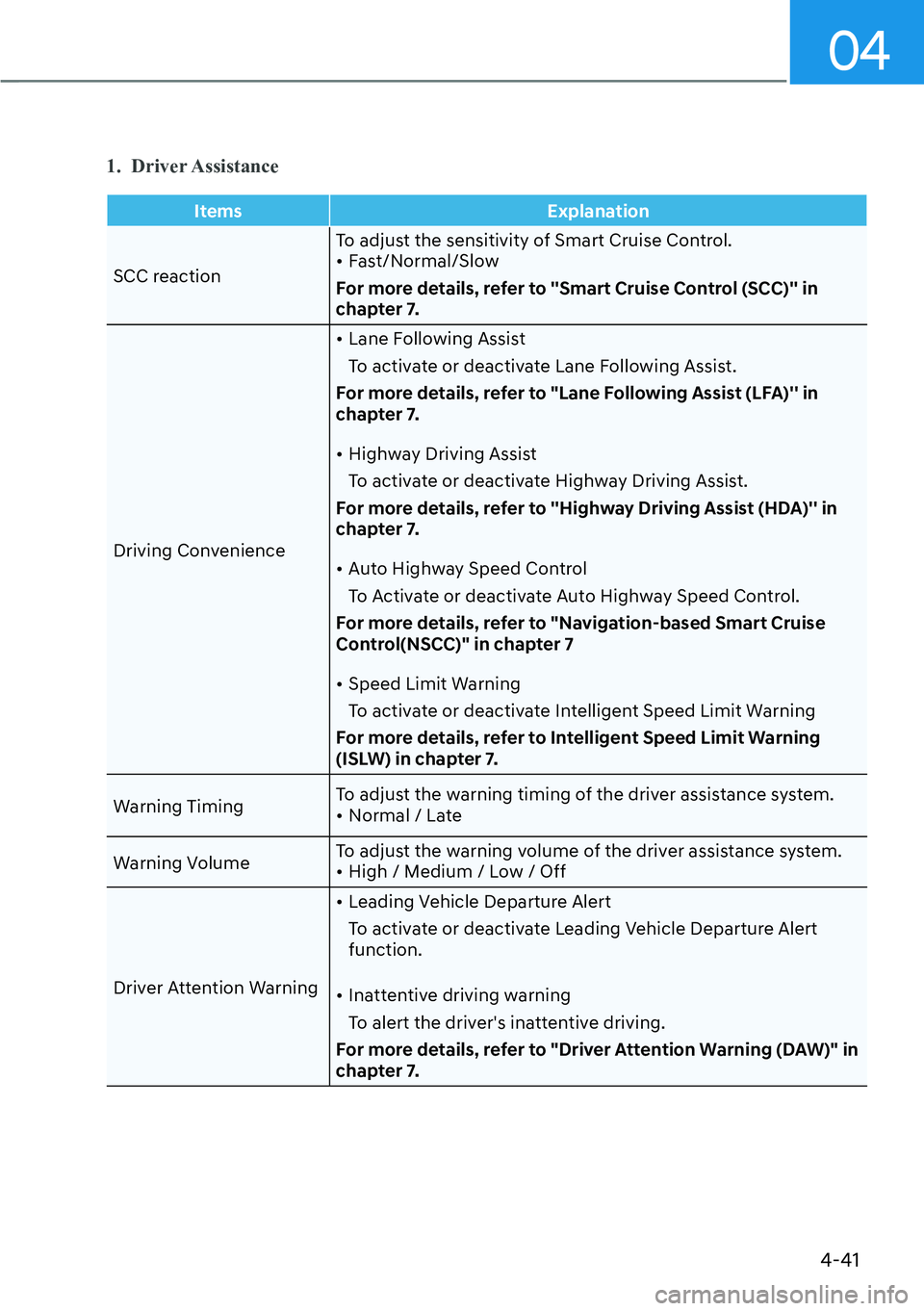

1. Driver Assistance
ItemsExplanation
SCC reactionTo adjust the sensitivity of Smart Cruise Control.
[
Fast/Normal/Slow
For more details, refer to ''Smart Cruise Control (SCC)'' in
chapter 7.
Driving Convenience
[
Lane Following Assist
To activate or deactivate Lane Following Assist.
For more details, refer to "Lane Following Assist (LFA)'' in
chapter 7.
[ Highway Driving Assist
To activate or deactivate Highway Driving Assist.
For more details, refer to ''Highway Driving Assist (HDA)'' in
chapter 7.
[ Auto Highway Speed Control
To Activate or deactivate Auto Highway Speed Control.
For more details, refer to "Navigation-based Smart Cruise
Control(NSCC)" in chapter 7
[ Speed Limit Warning
To activate or deactivate Intelligent Speed Limit Warning
For more details, refer to Intelligent Speed Limit Warning
(ISLW) in chapter 7.
Warning Timing To adjust the warning timing of the driver assistance system.
[
Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.
[
High / Medium / Low / Off
Driver Attention Warning
[
Leading Vehicle Departure Alert
To activate or deactivate Leading Vehicle Departure Alert function.

[ Inattentive driving warning
To alert the driver's inattentive driving.
For more details, refer to "Driver Attention Warning (DAW)" in
chapter 7.

Instrument Cluster
4-42

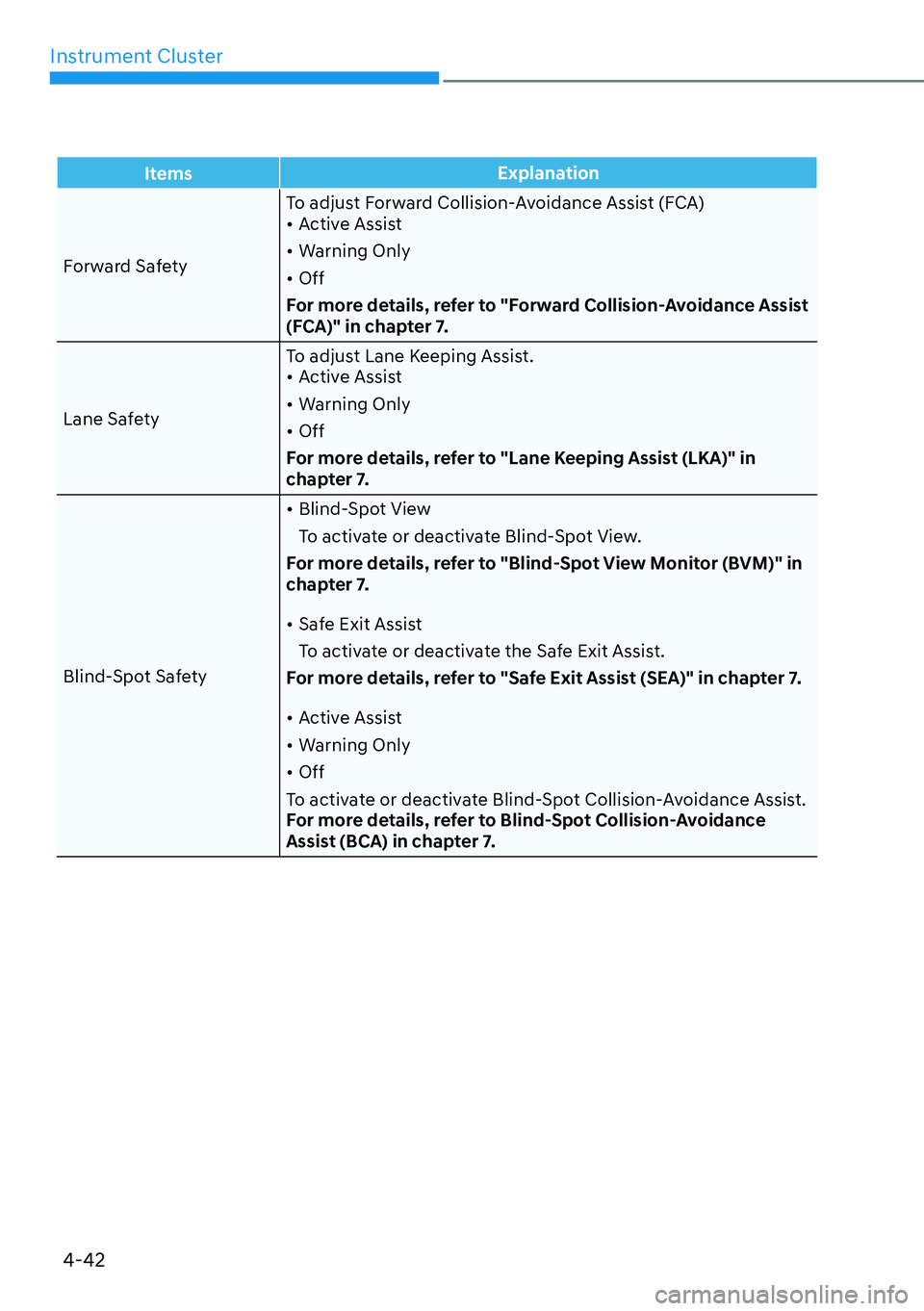

ItemsExplanation
Forward SafetyTo adjust Forward Collision-Avoidance Assist (FCA)
[
Active Assist

[ Warning Only

[ Off
For more details, refer to "Forward Collision-Avoidance Assist
(FCA)" in chapter 7.
Lane Safety To adjust Lane Keeping Assist.
[
Active Assist

[ Warning Only

[ Off
For more details, refer to "Lane Keeping Assist (LKA)" in
chapter 7.
Blind-Spot Safety
[
Blind-Spot View
To activate or deactivate Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.
[ Safe Exit Assist
To activate or deactivate the Safe Exit Assist.
For more details, refer to "Safe Exit Assist (SEA)" in chapter 7.
[ Active Assist

[ Warning Only

[ Off
To activate or deactivate Blind-Spot Collision-Avoidance Assist.
For more details, refer to Blind-Spot Collision-Avoidance
Assist (BCA) in chapter 7.

04
4-43

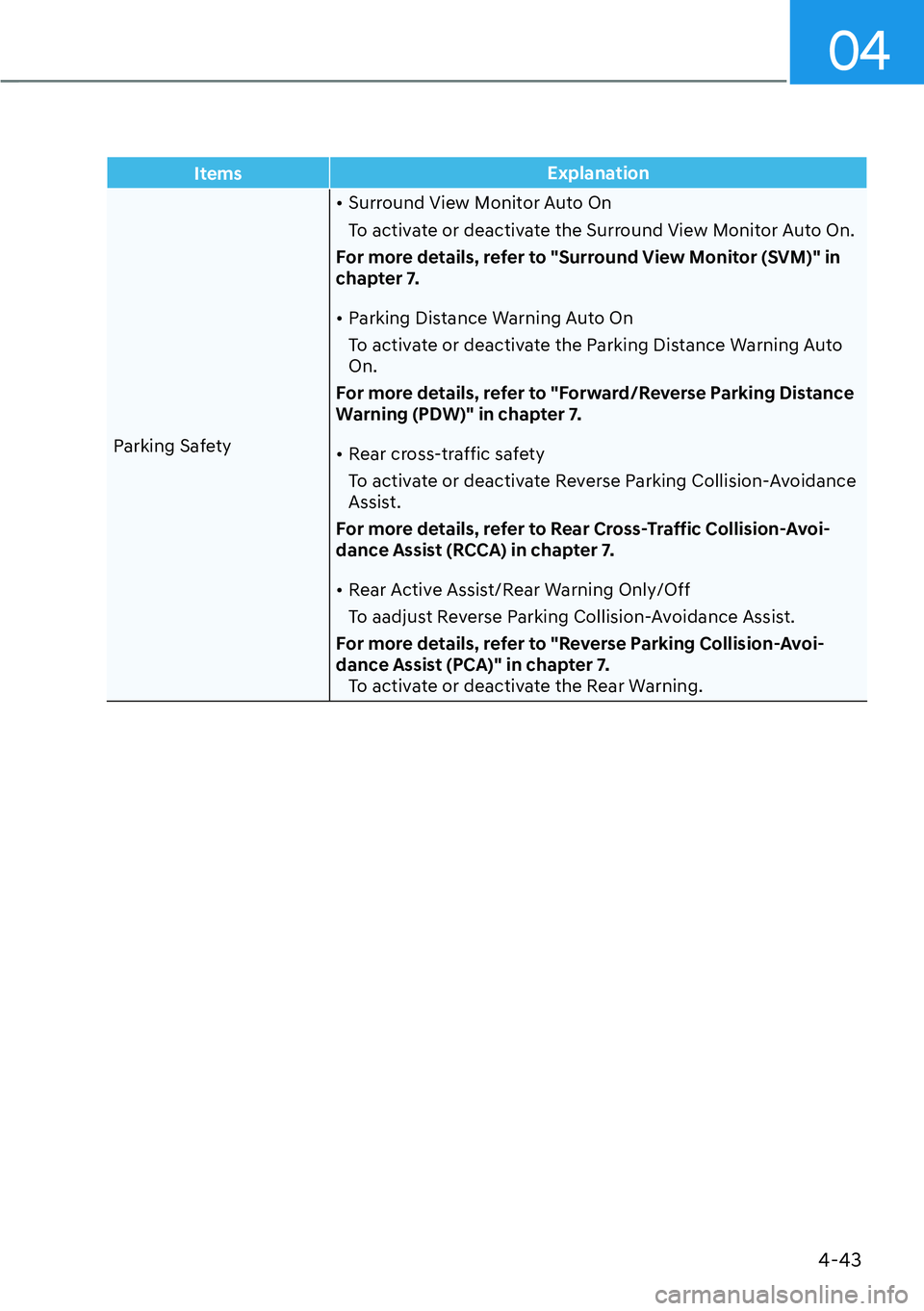

ItemsExplanation
Parking Safety
[
Surround View Monitor Auto On
To activate or deactivate the Surround View Monitor Auto On.
For more details, refer to "Surround View Monitor (SVM)" in
chapter 7.
[ Parking Distance Warning Auto On
To activate or deactivate the Parking Distance Warning Auto On.
For more details, refer to "Forward/Reverse Parking Distance
Warning (PDW)" in chapter 7.
[ Rear cross-traffic safety
To activate or deactivate Reverse Parking Collision-Avoidance
Assist.
For more details, refer to Rear Cross-Traffic Collision-Avoi-
dance Assist (RCCA) in chapter 7.
[ Rear Active Assist/Rear Warning Only/Off
To aadjust Reverse Parking Collision-Avoidance Assist.
For more details, refer to "Reverse Parking Collision-Avoi-
dance Assist (PCA)" in chapter 7. To activate or deactivate the Rear Warning.

Instrument Cluster
4-44

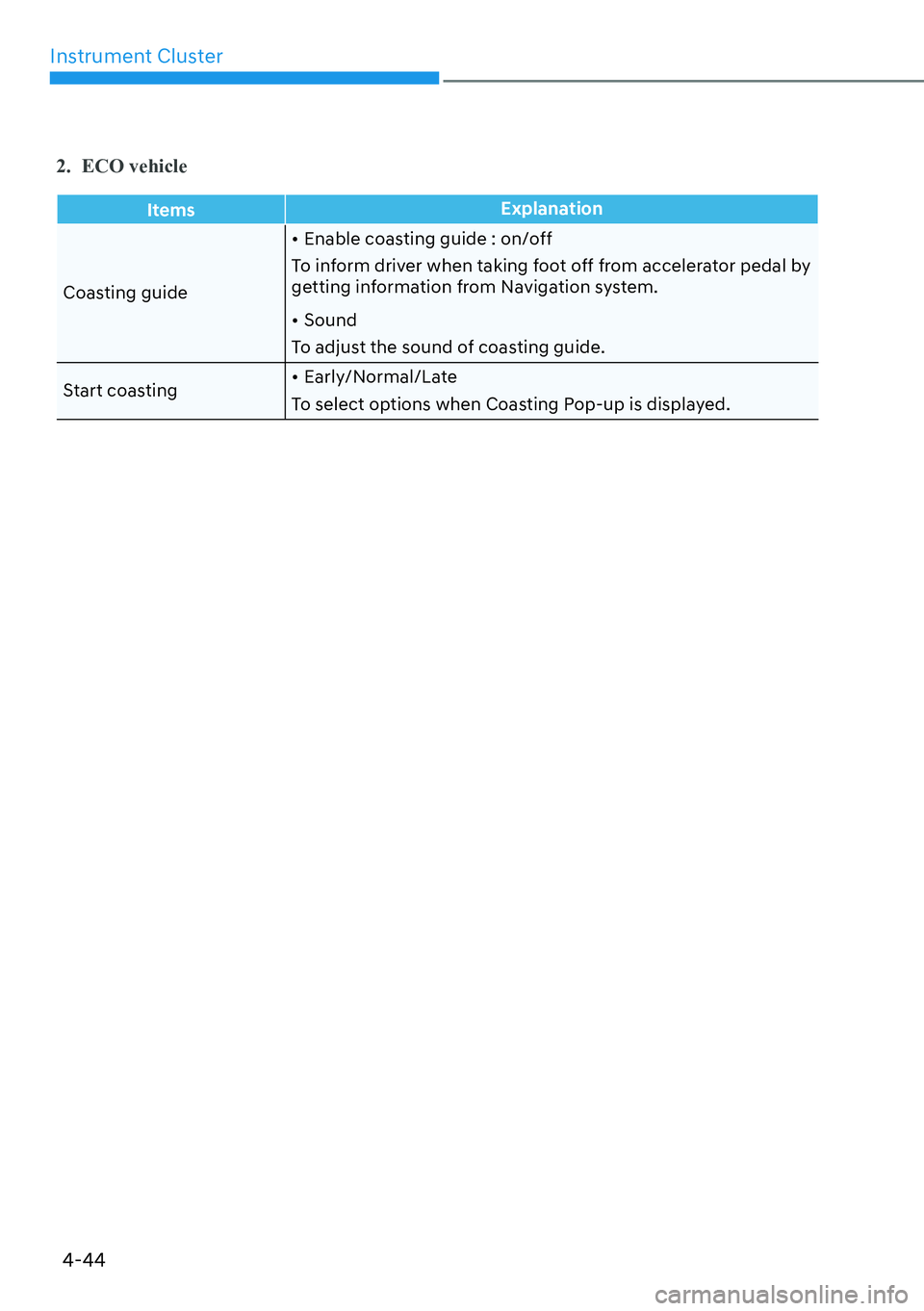

2. ECO vehicle
ItemsExplanation
Coasting guide
[
Enable coasting guide : on/off
To inform driver when taking foot off from accelerator pedal by
getting information from Navigation system.
[ Sound
To adjust the sound of coasting guide.
Start coasting
[
Early/Normal/Late
To select options when Coasting Pop-up is displayed.

04
4-45

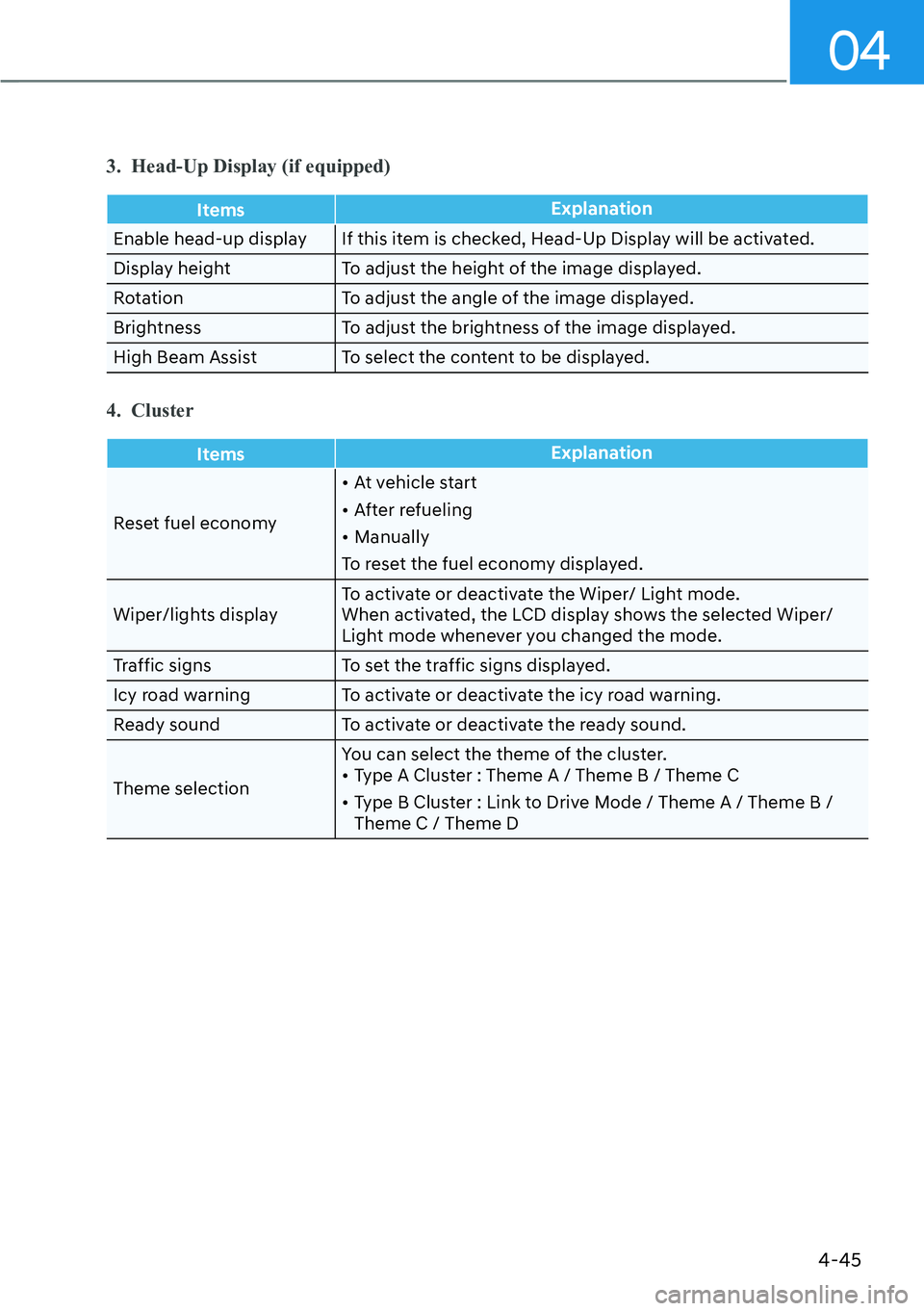

3. Head-Up Display (if equipped)
ItemsExplanation
Enable head-up display If this item is checked, Head-Up Display will be activated.
Display height To adjust the height of the image displayed.
Rotation To adjust the angle of the image displayed.
Brightness To adjust the brightness of the image displayed.
High Beam Assist To select the content to be displayed.
4. Cluster
ItemsExplanation
Reset fuel economy
[
At vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/lights display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/
Light mode whenever you changed the mode.
Traffic signs To set the traffic signs displayed.
Icy road warning To activate or deactivate the icy road warning.
Ready sound To activate or deactivate the ready sound. Theme selection You can select the theme of the cluster.
[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode / Theme A / Theme B / Theme C / Theme D
