HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Convenience Features
5-96
Turning the Auto Defogging System ON or OFF
Climate control system
Press the front windshield defroster
button for 3 seconds when the Engine
Start/Stop button is in the ON position.
When the Auto Defogging System is
turned off, the ADS OFF symbol will blink
3 times and ADS OFF will be displayed on
the climate control information screen.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink 6 times without a signal.
Infotainment system
Auto Defogging System can be turned
RQDQGRIIE\VHOHFWLQJ
S6HWXS
Ÿ
9HKLFOH6HWWLQJV
Ÿ&OLPDWH
Ÿ'HIRJ
'HIURVW2SWLRQV
Ÿ$XWR'HIRJ
TIURPWKH
infotainment system screen.
For detailed information, refer to the
separately supplied infotainment
system manual.
Information

[ When the air conditioning is turned
on by Auto Defogging System, if you
try to turn off the air conditioning, the
indicator will blink 3 times and the air conditioning will not be turned off.

[ To maintain the effectiveness and
efficiency of the Auto Defogging
System, do not select Recirculation mode while the system is operating.

[ When Auto Defogging System is operating, fan speed adjustment,
temperature adjustment, and air intake
control selection are all disabled.
NOTICE
Do not remove the sensor cover located
on the upper end of the windshield glass.
Damage to system parts could occur
and may not be covered by your vehicle
warranty.
Auto Dehumidify (if equipped)
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
to 30 minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Turning Auto Dehumidify ON or OFF
Climate control system
To turn the Auto Dehumidify feature
on or off, select Face level () mode
and press the air intake control ()
button at least five times within three
seconds. When Auto Dehumidify is
turned on, the air intake control button
indicator will blink 6 times. When turned
off, the indicator will blink 3 times.
Infotainment system
Auto Dehumidify can be turned on and
RIIE\VHOHFWLQJ
S6HWXS
Ÿ9HKLFOH6HWWLQJV

Ÿ&OLPDWH
Ÿ$XWRPDWLF9HQWLODWLRQ
Ÿ
Auto Dehumidify’ from the infotainment
system screen.
For detailed information, refer to the
separately supplied infotainment
system manual.

05
5-97

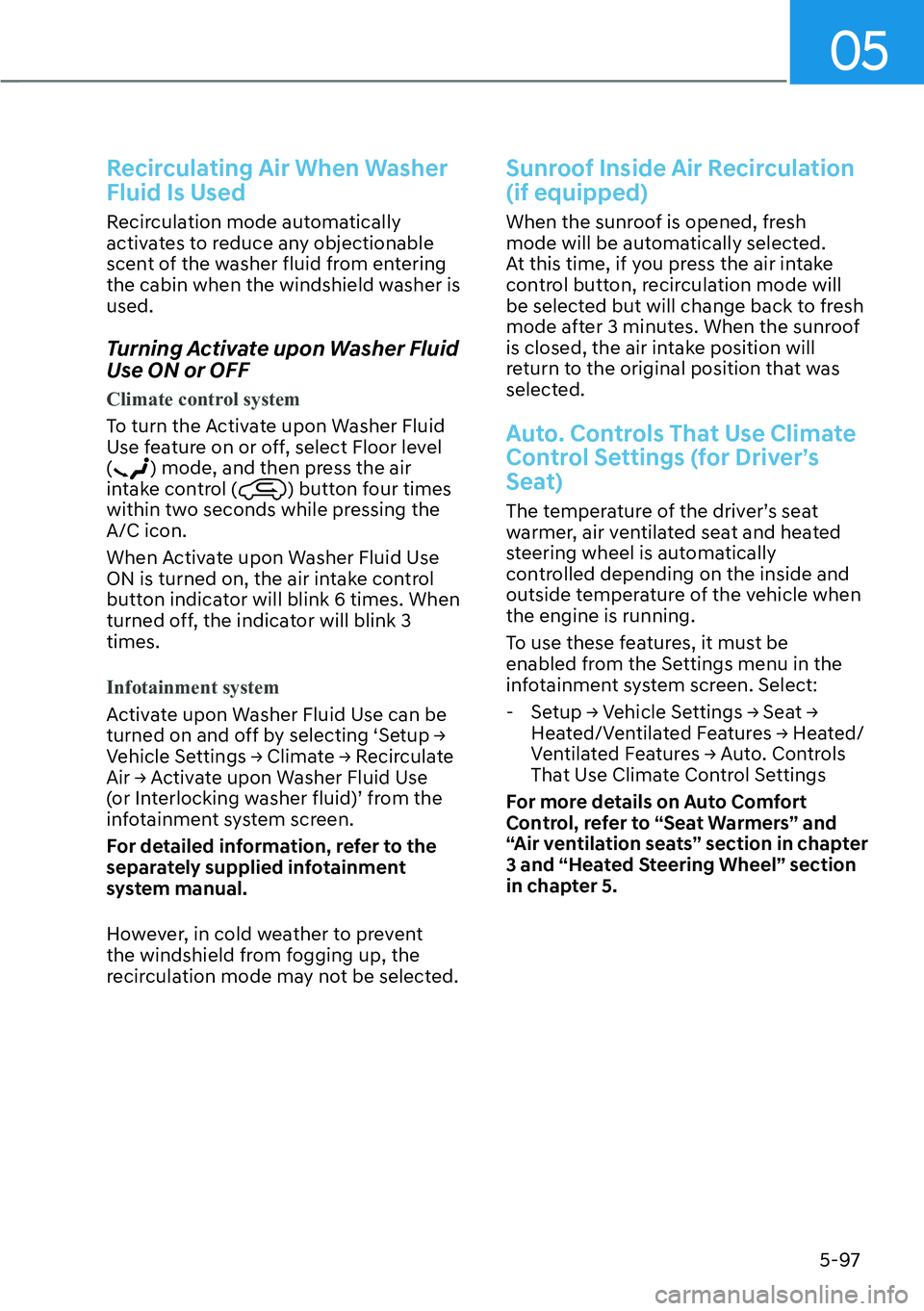

Recirculating Air When Washer
Fluid Is Used
Recirculation mode automatically
activates to reduce any objectionable
scent of the washer fluid from entering
the cabin when the windshield washer is used.
Turning Activate upon Washer Fluid
Use ON or OFF
Climate control system
To turn the Activate upon Washer Fluid
Use feature on or off, select Floor level (
) mode, and then press the air
intake control () button four times
within two seconds while pressing the A/C icon.
When Activate upon Washer Fluid Use
ON is turned on, the air intake control
button indicator will blink 6 times. When
turned off, the indicator will blink 3 times.
Infotainment system
Activate upon Washer Fluid Use can be
WXUQHGRQDQGRIIE\VHOHFWLQJ
S6HWXS
Ÿ
9HKLFOH6HWWLQJV
Ÿ&OLPDWH
Ÿ5HFLUFXODWH
$LU
Ÿ$FWLYDWHXSRQ:DVKHU)OXLG8VH
(or Interlocking washer fluid)’ from the
infotainment system screen.
For detailed information, refer to the
separately supplied infotainment
system manual.
However, in cold weather to prevent
the windshield from fogging up, the
recirculation mode may not be selected.
Sunroof Inside Air Recirculation (if equipped)
When the sunroof is opened, fresh
mode will be automatically selected.
At this time, if you press the air intake
control button, recirculation mode will
be selected but will change back to fresh
mode after 3 minutes. When the sunroof
is closed, the air intake position will
return to the original position that was
selected.
Auto. Controls That Use Climate
Control Settings (for Driver’s
Seat)
The temperature of the driver’s seat
warmer, air ventilated seat and heated
steering wheel is automatically
controlled depending on the inside and
outside temperature of the vehicle when the engine is running.
To use these features, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
- 6HWXS
Ÿ9HKLFOH6HWWLQJV
Ÿ6HDW
Ÿ
+HDWHG9HQWLODWHG)HDWXUHV
Ÿ+HDWHG
9HQWLODWHG)HDWXUHV
Ÿ$XWR&RQWUROV
That Use Climate Control Settings
For more details on Auto Comfort
Control, refer to “Seat Warmers” and
“Air ventilation seats” section in chapter
3 and “Heated Steering Wheel” section
in chapter 5.

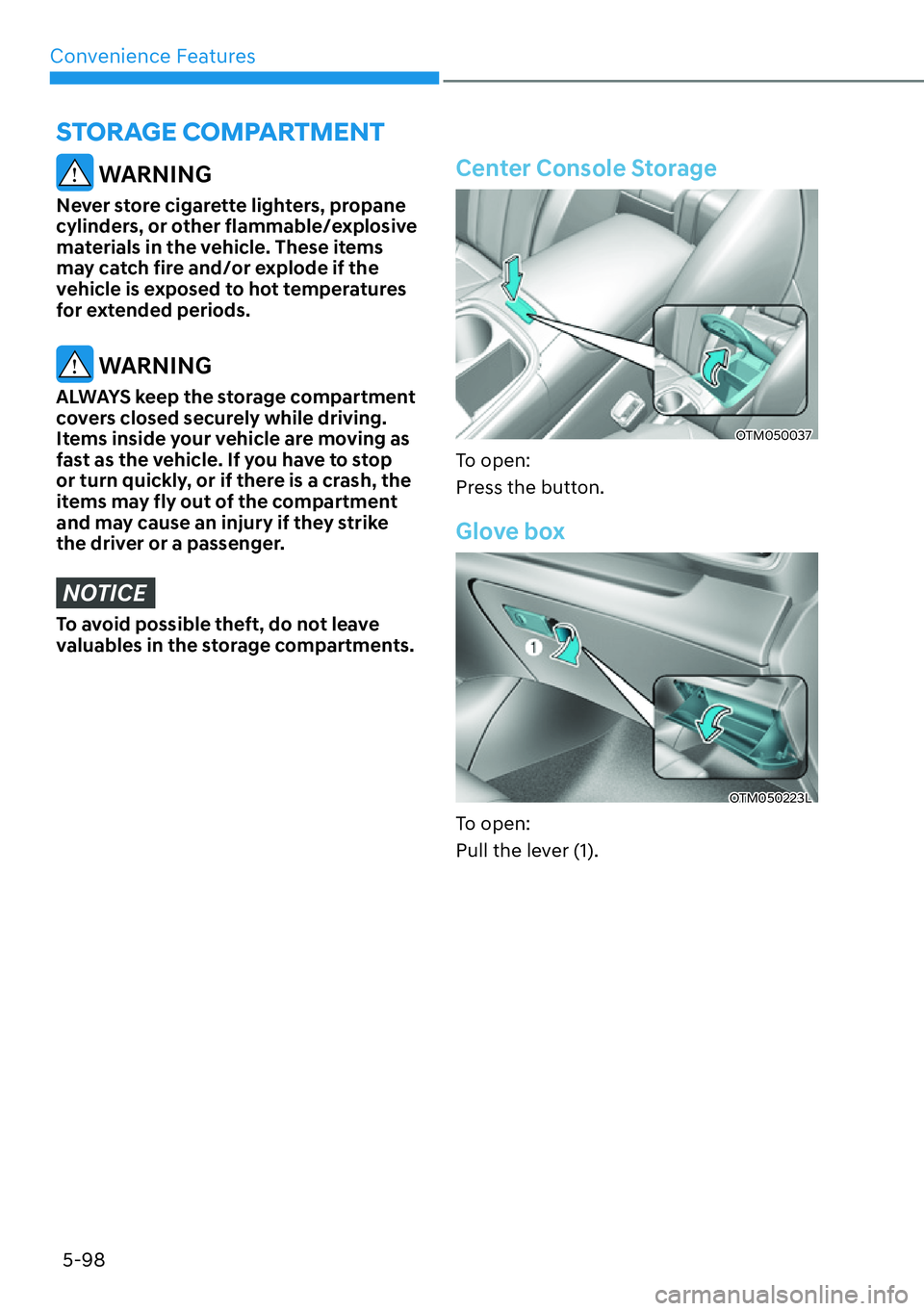

Convenience Features
5-98
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items may fly out of the compartment
and may cause an injury if they strike
the driver or a passenger.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
Center Console Storage
OTM050037
To open:
Press the button.
Glove box
OTM050223L
To open:
Pull the lever (1).
6725$*(&203$570(17

05
5-99

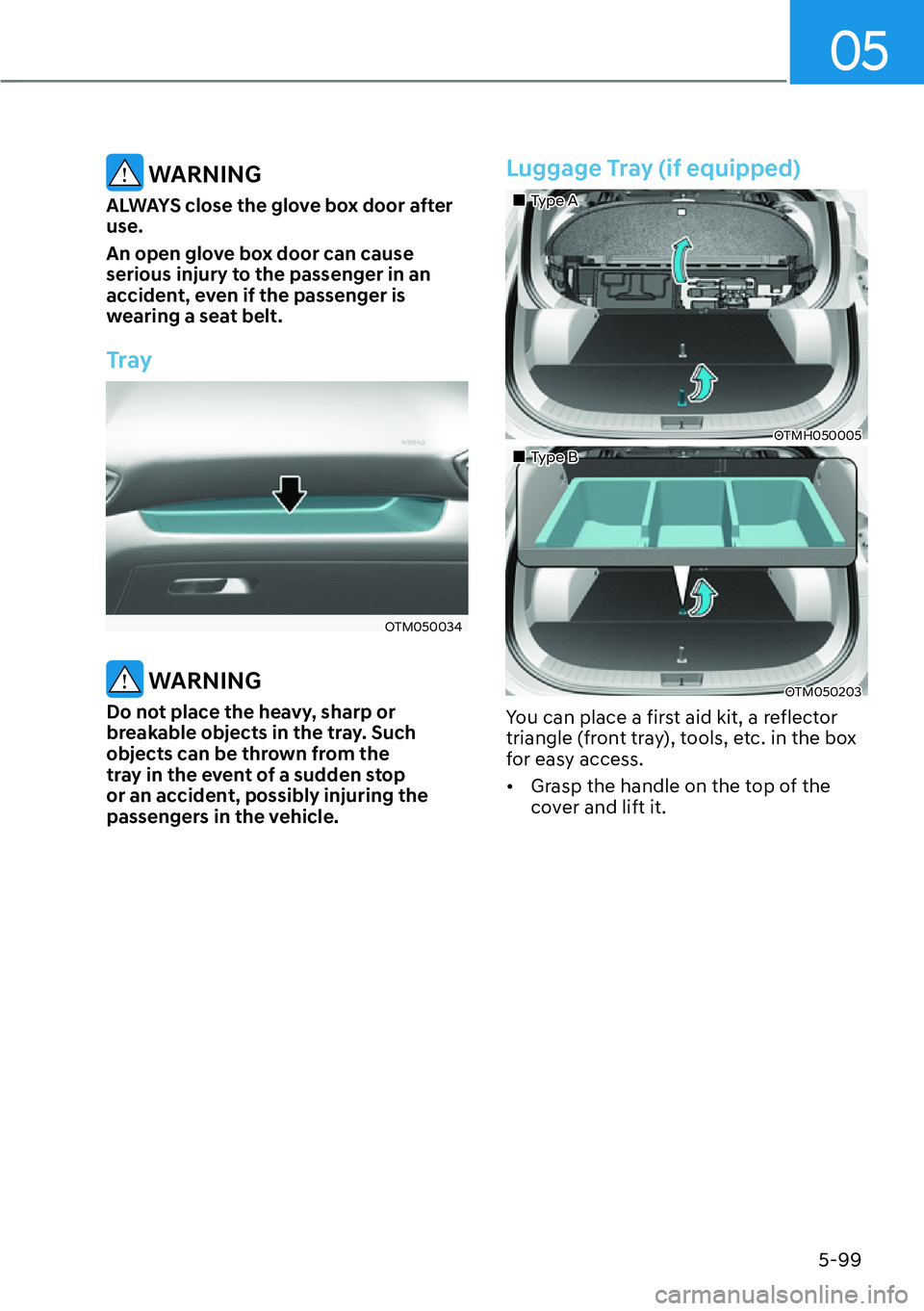

WARNING
ALWAYS close the glove box door after use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
Tray
OTM050034
WARNING
Do not place the heavy, sharp or
breakable objects in the tray. Such
objects can be thrown from the
tray in the event of a sudden stop or an accident, possibly injuring the
passengers in the vehicle.
Luggage Tray (if equipped)
„Type A
OTMH050005
„Type B
OTM050203
You can place a first aid kit, a reflector
triangle (front tray), tools, etc. in the box
for easy access.
[ Grasp the handle on the top of the
cover and lift it.

Convenience Features
5-100

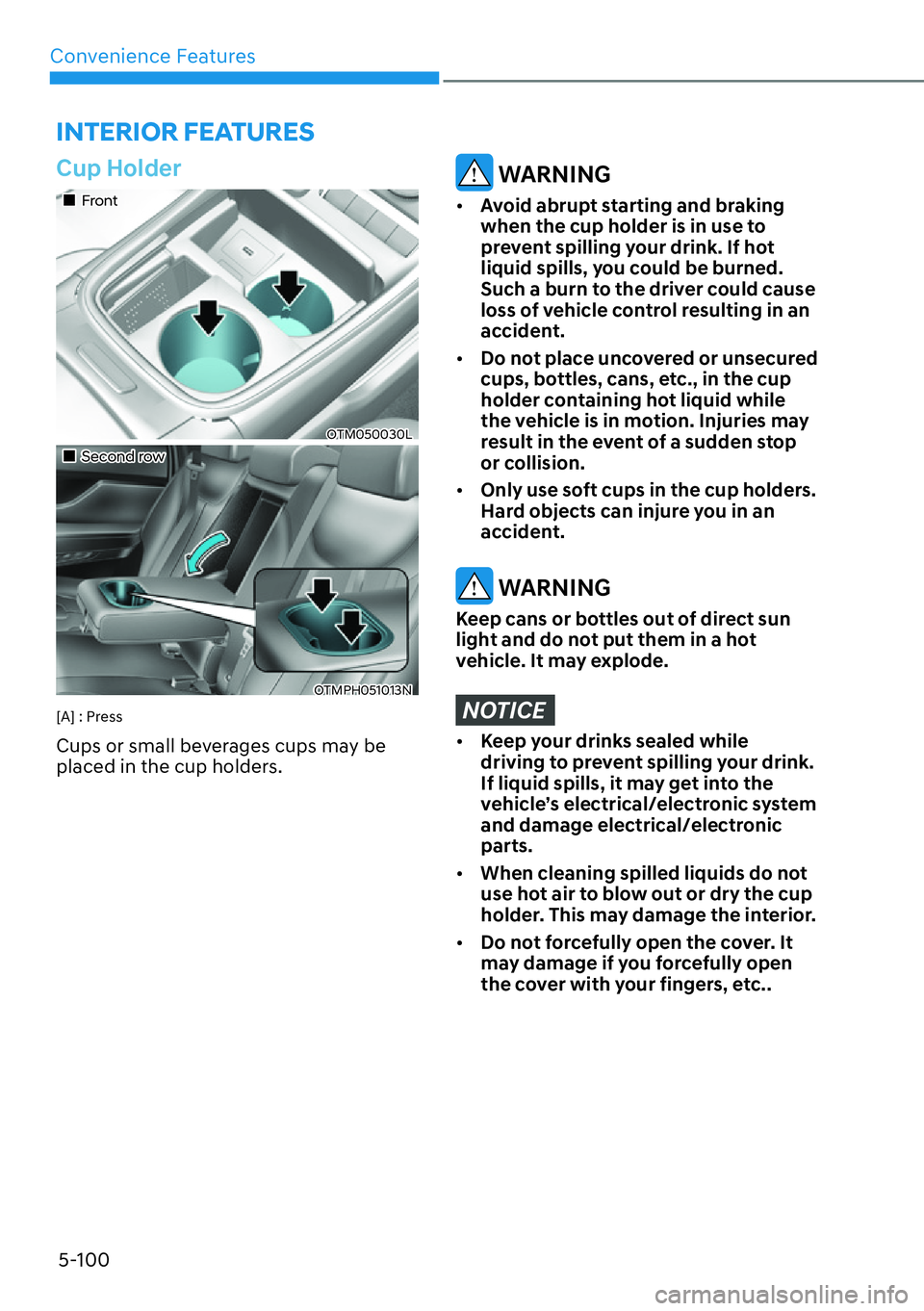

Cup Holder
„Front
OTM050030L
„Second row
OTMPH051013N
[A] : Press
Cups or small beverages cups may be
placed in the cup holders.
WARNING

[ Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an accident.

[ Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop or collision.

[ Only use soft cups in the cup holders.
Hard objects can injure you in an accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE

[ Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic parts.

[ When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.

[ Do not forcefully open the cover. It
may damage if you forcefully open
the cover with your fingers, etc..
INTERIOR FEATURES

05
5-101

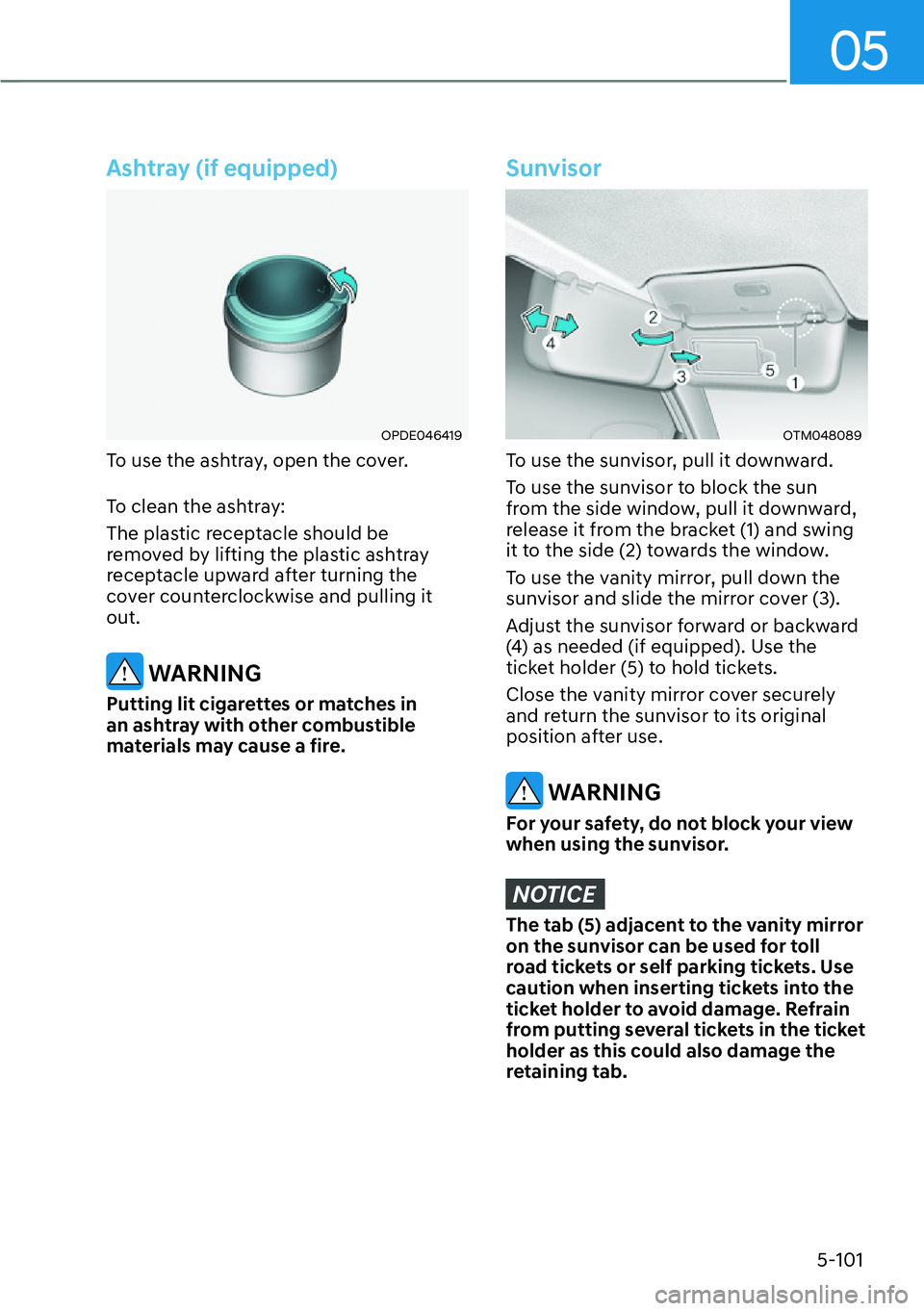

Ashtray (if equipped)
OPDE046419
To use the ashtray, open the cover.
To clean the ashtray:
The plastic receptacle should be
removed by lifting the plastic ashtray
receptacle upward after turning the
cover counterclockwise and pulling it out.
WARNING
Putting lit cigarettes or matches in
an ashtray with other combustible
materials may cause a fire.
Sunvisor
OTM048089
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun
from the side window, pull it downward,
release it from the bracket (1) and swing
it to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the
ticket holder (5) to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
The tab (5) adjacent to the vanity mirror
on the sunvisor can be used for toll
road tickets or self parking tickets. Use
caution when inserting tickets into the
ticket holder to avoid damage. Refrain
from putting several tickets in the ticket holder as this could also damage the
retaining tab.

Convenience Features
5-102

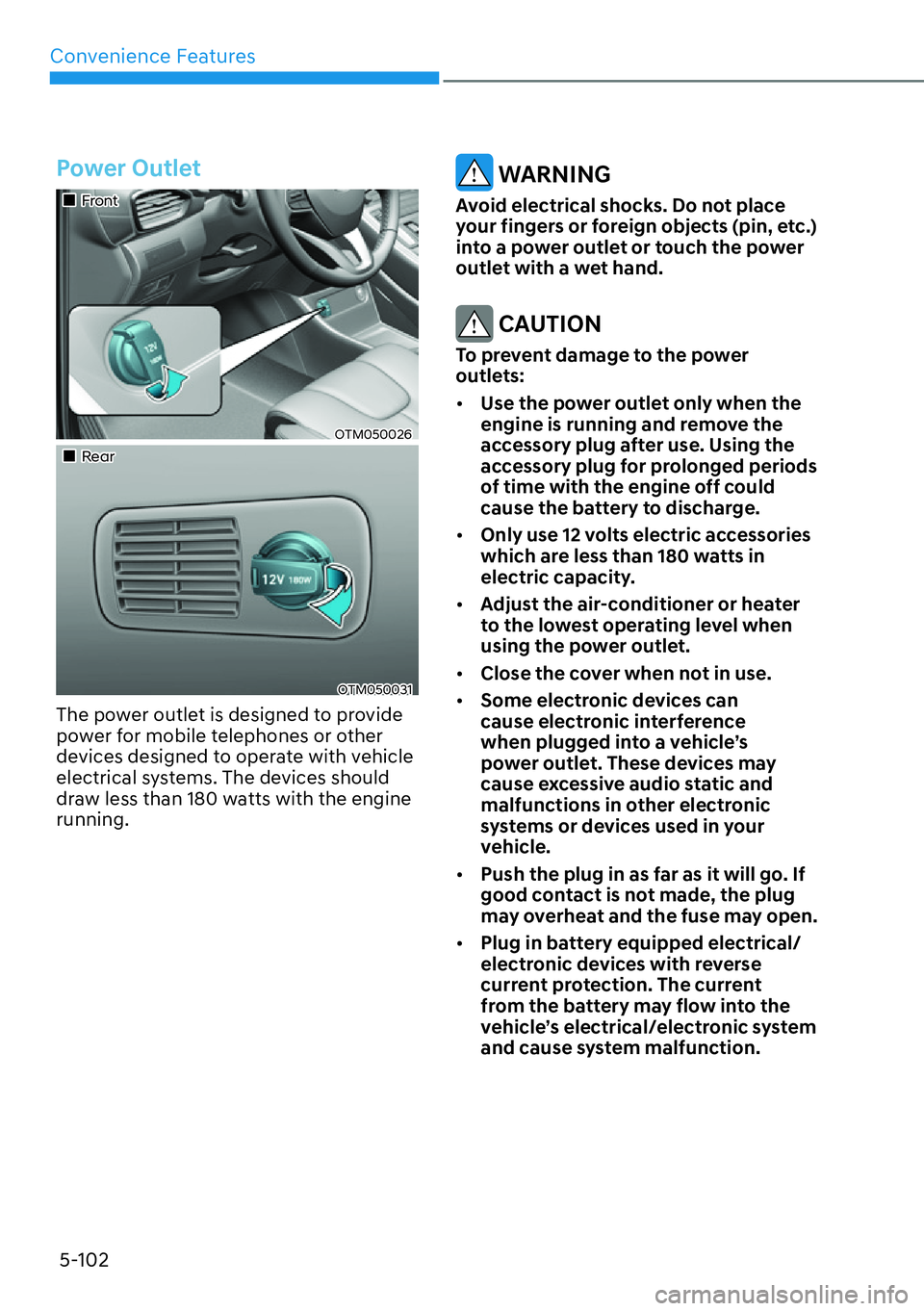

Power Outlet
„Front
OTM050026
„Rear
OTM050031
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 watts with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
CAUTION
To prevent damage to the power
outlets:
[ Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.

05
5-103

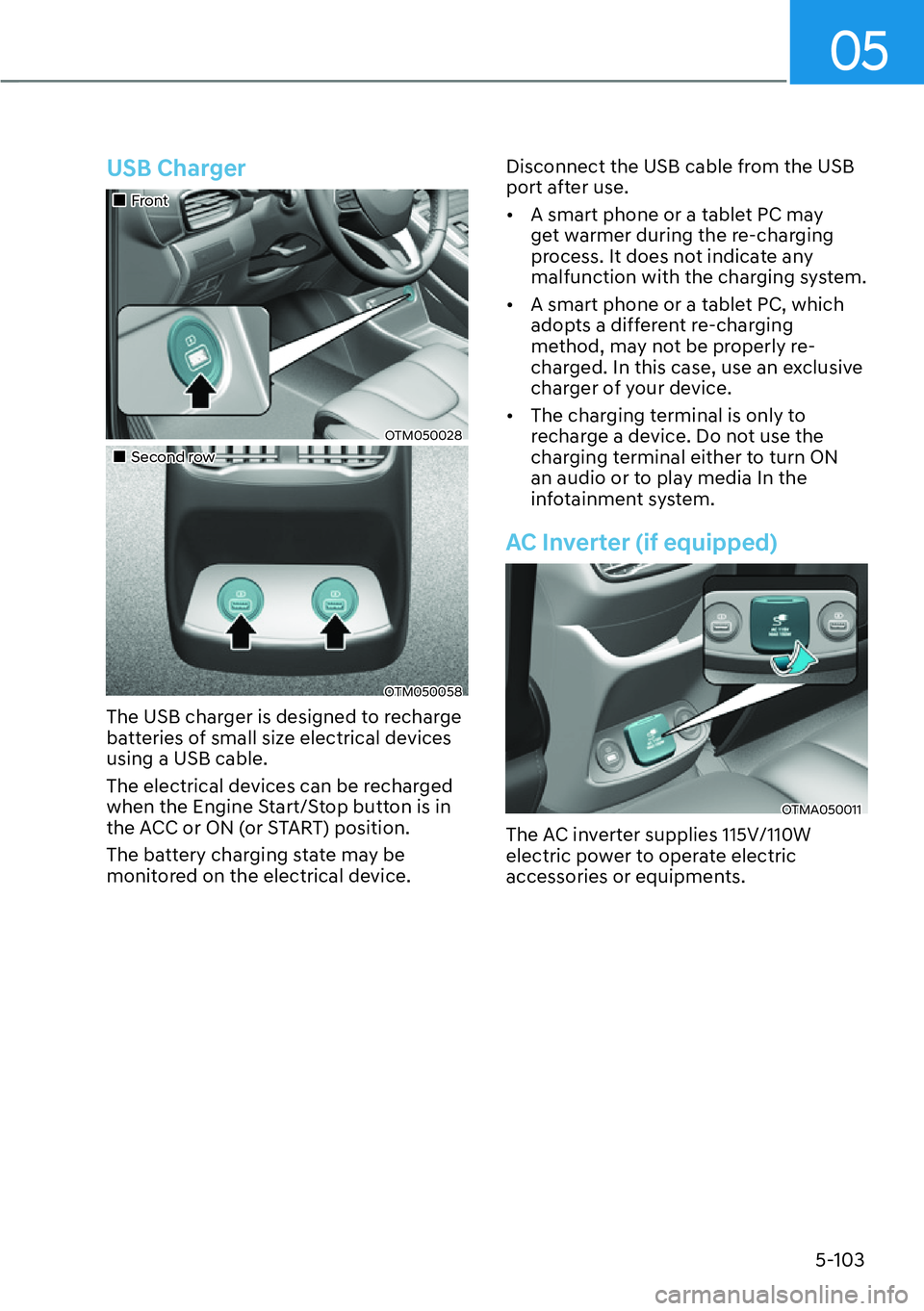

USB Charger
„Front
OTM050028
„Second row
OTM050058
The USB charger is designed to recharge
batteries of small size electrical devices using a USB cable.
The electrical devices can be recharged
when the Engine Start/Stop button is in
the ACC or ON (or START) position.
The battery charging state may be
monitored on the electrical device. Disconnect the USB cable from the USB
port after use.
[
A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
AC Inverter (if equipped)
OTMA050011
The AC inverter supplies 115V/110W
electric power to operate electric
accessories or equipments.

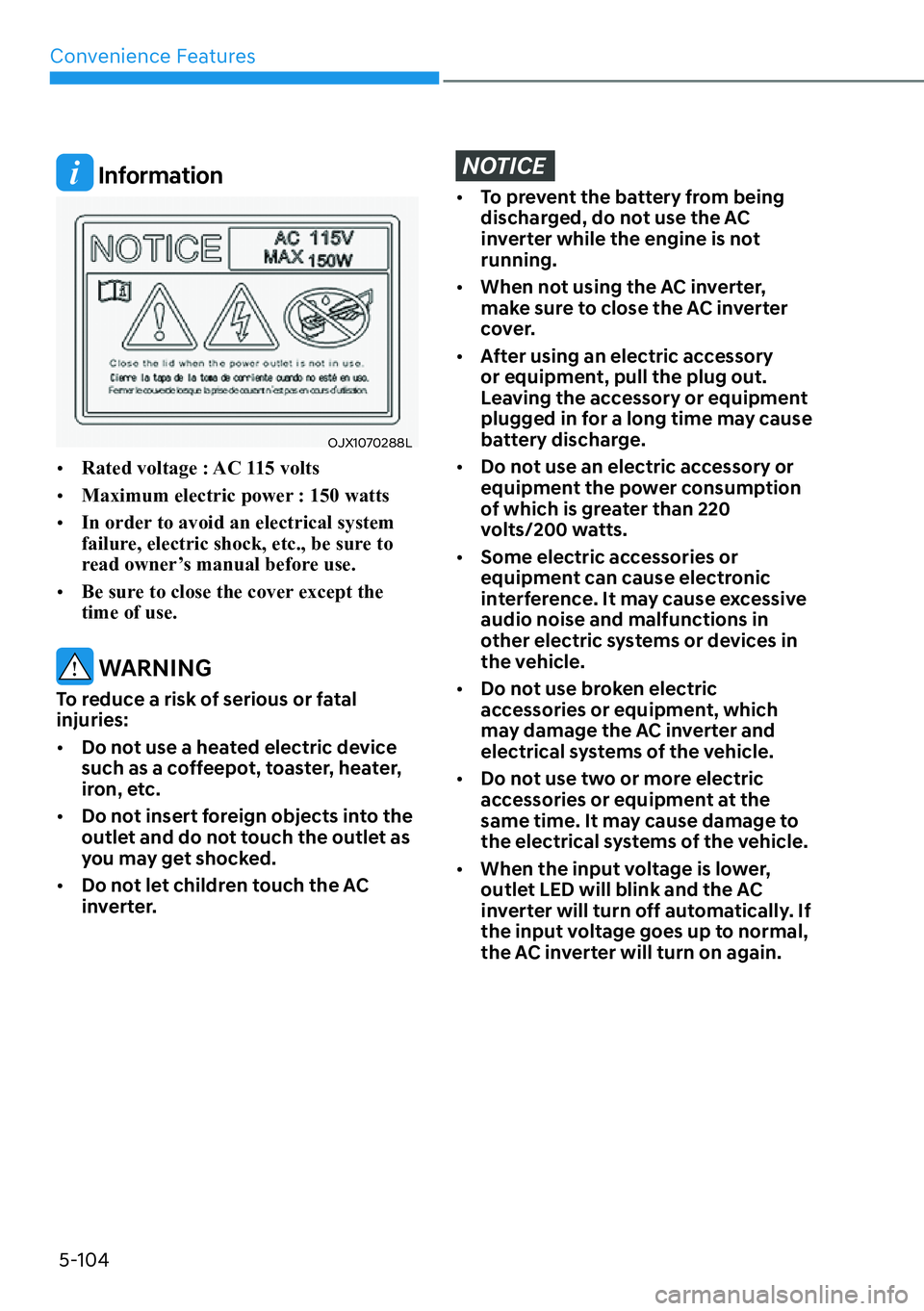

Convenience Features
5-104
Information
OJX1070288L

[ Rated voltage : AC 115 volts

[ Maximum electric power : 150 watts

[ In order to avoid an electrical system
failure, electric shock, etc., be sure to
read owner’s manual before use.

[ Be sure to close the cover except the time of use.
WARNING
To reduce a risk of serious or fatal injuries:
[ Do not use a heated electric device
such as a coffeepot, toaster, heater,
iron, etc.

[ Do not insert foreign objects into the
outlet and do not touch the outlet as
you may get shocked.

[ Do not let children touch the AC
inverter.
NOTICE

[To prevent the battery from being
discharged, do not use the AC
inverter while the engine is not running.

[ When not using the AC inverter,
make sure to close the AC inverter
cover.

[ After using an electric accessory or equipment, pull the plug out.
Leaving the accessory or equipment
plugged in for a long time may cause
battery discharge.

[ Do not use an electric accessory or
equipment the power consumption
of which is greater than 220
volts/200 watts.

[ Some electric accessories or
equipment can cause electronic
interference. It may cause excessive audio noise and malfunctions in
other electric systems or devices in
the vehicle.

[ Do not use broken electric accessories or equipment, which
may damage the AC inverter and
electrical systems of the vehicle.

[ Do not use two or more electric
accessories or equipment at the
same time. It may cause damage to
the electrical systems of the vehicle.

[ When the input voltage is lower,
outlet LED will blink and the AC
inverter will turn off automatically. If
the input voltage goes up to normal,
the AC inverter will turn on again.

05
5-105

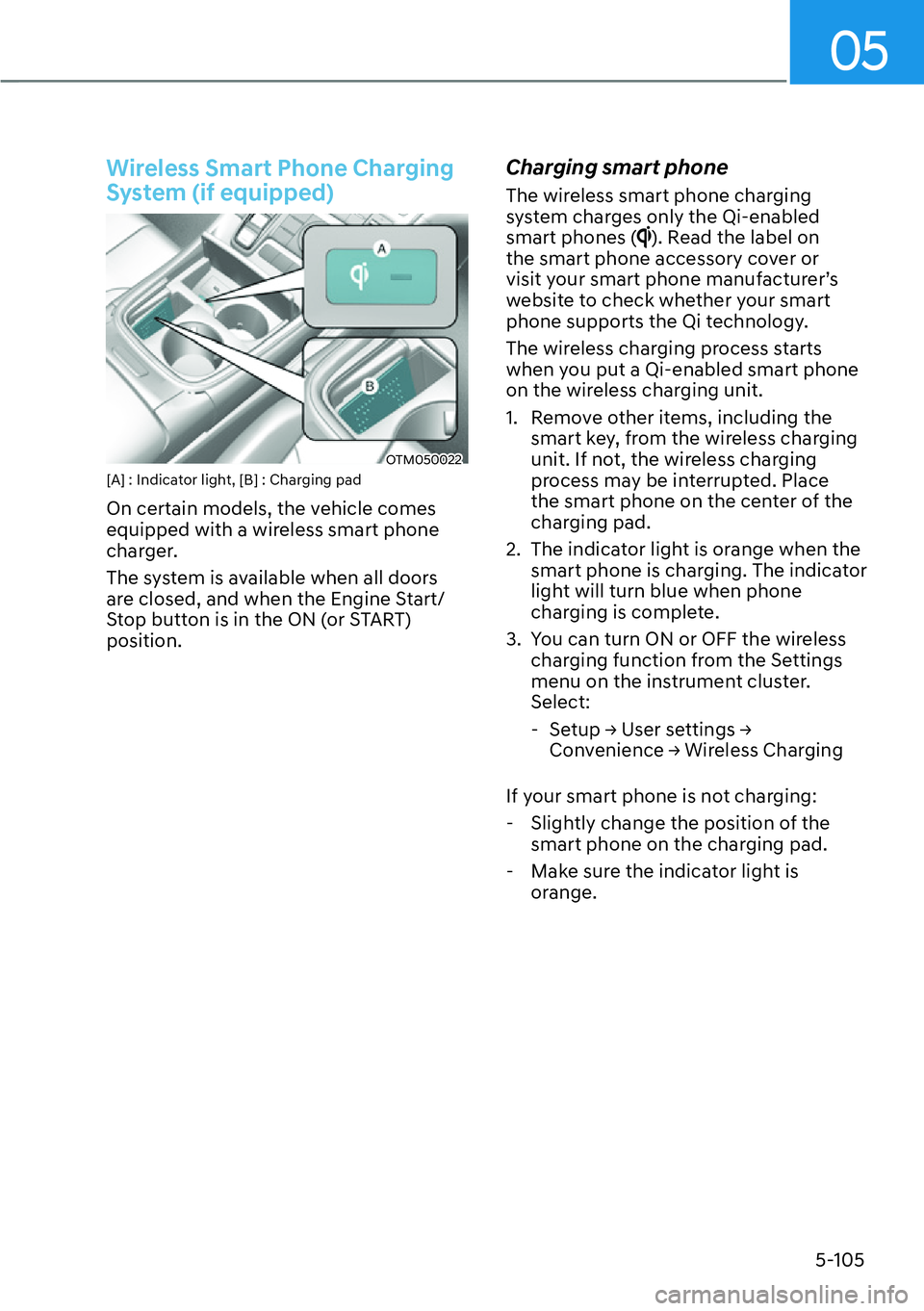

Wireless Smart Phone Charging
System (if equipped)
OTM050022
[A] : Indicator light, [B] : Charging pad
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the Engine Start/
Stop button is in the ON (or START) position. Charging smart phone
The wireless smart phone charging
system charges only the Qi-enabled smart phones (
). Read the label on
the smart phone accessory cover or
visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the smart phone on the center of the
charging pad.
2. The indicator light is orange when the smart phone is charging. The indicator light will turn blue when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings
menu on the instrument cluster. Select:
- 6HWXS
Ÿ8VHUVHWWLQJV
Ÿ
&RQYHQLHQFH
Ÿ:LUHOHVV&KDUJLQJ
If your smart phone is not charging:
- Slightly change the position of the
smart phone on the charging pad.
- Make sure the indicator light is orange.
