HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Convenience Features
5-56

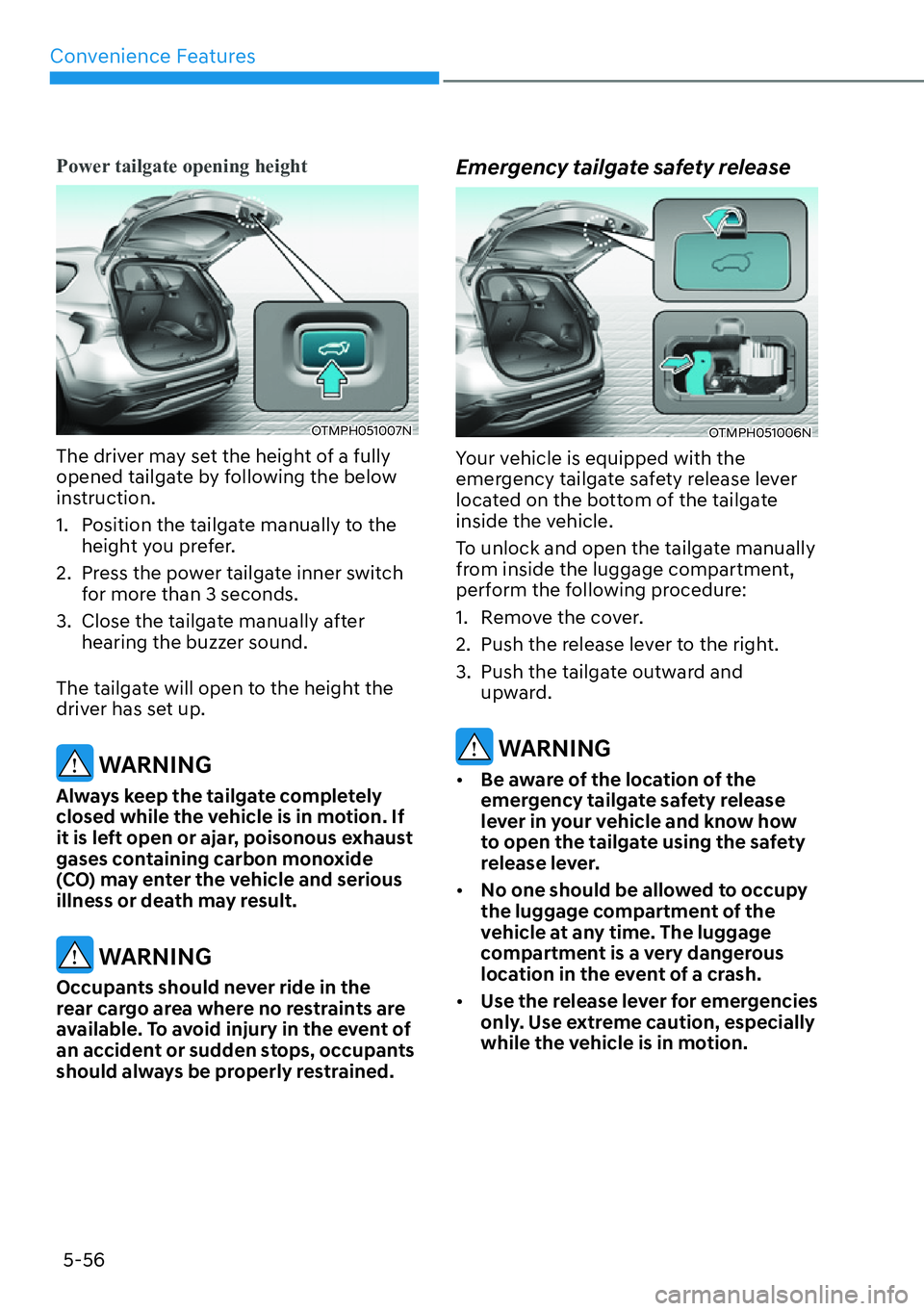

Power tailgate opening height
OTMPH051007N
The driver may set the height of a fully
opened tailgate by following the below
instruction.
1. Position the tailgate manually to the height you prefer.
2. Press the power tailgate inner switch for more than 3 seconds.
3. Close the tailgate manually after hearing the buzzer sound.
The tailgate will open to the height the
driver has set up.
WARNING
Always keep the tailgate completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
WARNING
Occupants should never ride in the
rear cargo area where no restraints are
available. To avoid injury in the event of
an accident or sudden stops, occupants
should always be properly restrained. Emergency tailgate safety release
OTMPH051006N
Your vehicle is equipped with the
emergency tailgate safety release lever
located on the bottom of the tailgate
inside the vehicle.
To unlock and open the tailgate manually
from inside the luggage compartment,
perform the following procedure:
1. Remove the cover.
2. Push the release lever to the right.
3. Push the tailgate outward and upward.
WARNING

[ Be aware of the location of the
emergency tailgate safety release
lever in your vehicle and know how
to open the tailgate using the safety
release lever.

[ No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.

[ Use the release lever for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.

05
5-57

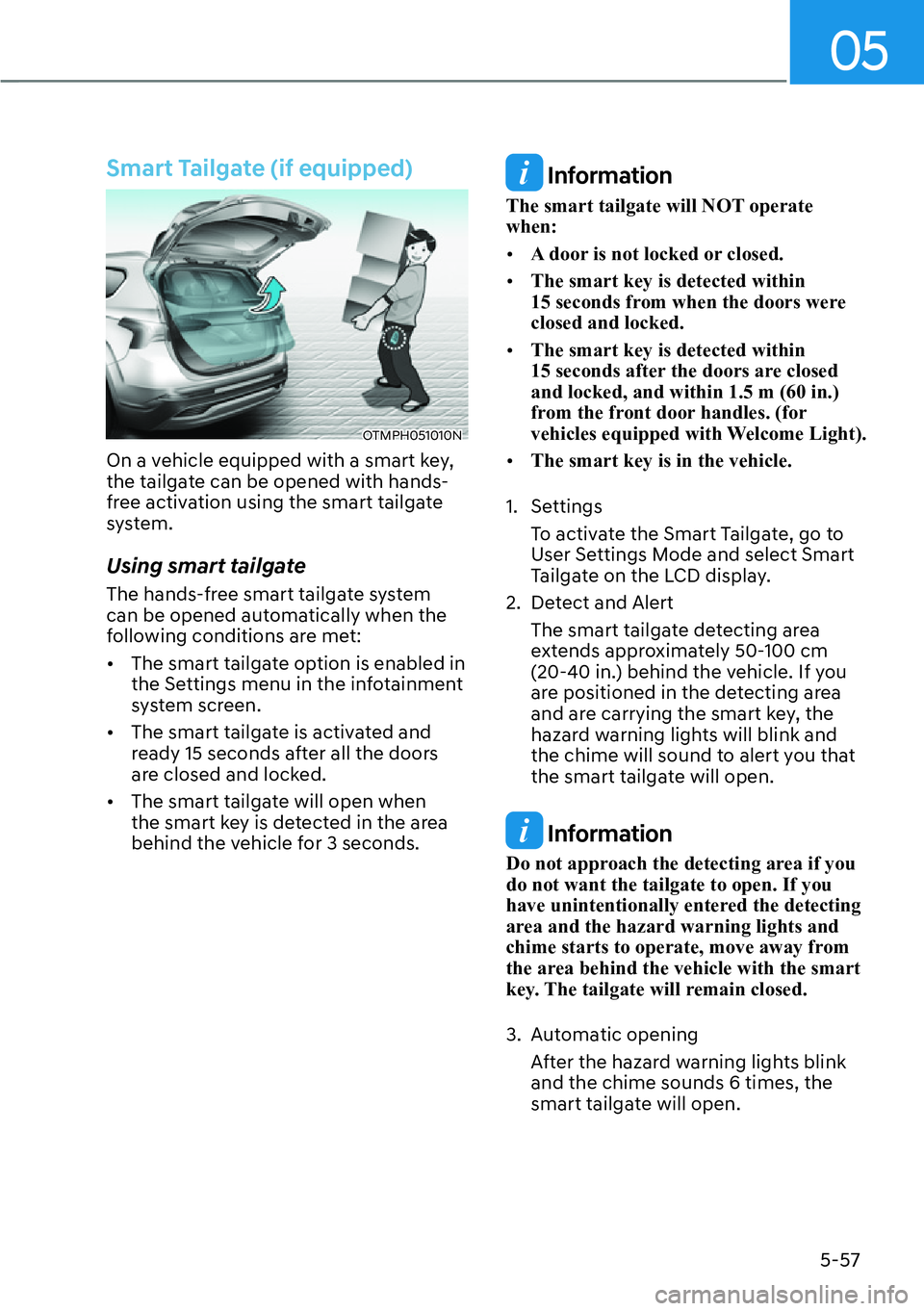

Smart Tailgate (if equipped)
OTMPH051010N
On a vehicle equipped with a smart key,
the tailgate can be opened with hands-
free activation using the smart tailgate
system.
Using smart tailgate
The hands-free smart tailgate system
can be opened automatically when the
following conditions are met:
[ The smart tailgate option is enabled in
the Settings menu in the infotainment
system screen.

[ The smart tailgate is activated and
ready 15 seconds after all the doors
are closed and locked.

[ The smart tailgate will open when
the smart key is detected in the area
behind the vehicle for 3 seconds.
Information
The smart tailgate will NOT operate when:
[ A door is not locked or closed.

[ The smart key is detected within
15 seconds from when the doors were closed and locked.

[ The smart key is detected within
15 seconds after the doors are closed and locked, and within 1.5 m (60 in.)
from the front door handles. (for
vehicles equipped with Welcome Light).

[ The smart key is in the vehicle.
1. Settings To activate the Smart Tailgate, go to
User Settings Mode and select Smart
Tailgate on the LCD display.
2. Detect and Alert The smart tailgate detecting area
extends approximately 50-100 cm
(20-40 in.) behind the vehicle. If you
are positioned in the detecting area
and are carrying the smart key, the
hazard warning lights will blink and
the chime will sound to alert you that
the smart tailgate will open.
Information
Do not approach the detecting area if you do not want the tailgate to open. If you
have unintentionally entered the detecting
area and the hazard warning lights and
chime starts to operate, move away from
the area behind the vehicle with the smart
key. The tailgate will remain closed.
3. Automatic opening After the hazard warning lights blink and the chime sounds 6 times, the
smart tailgate will open.

Convenience Features
5-58

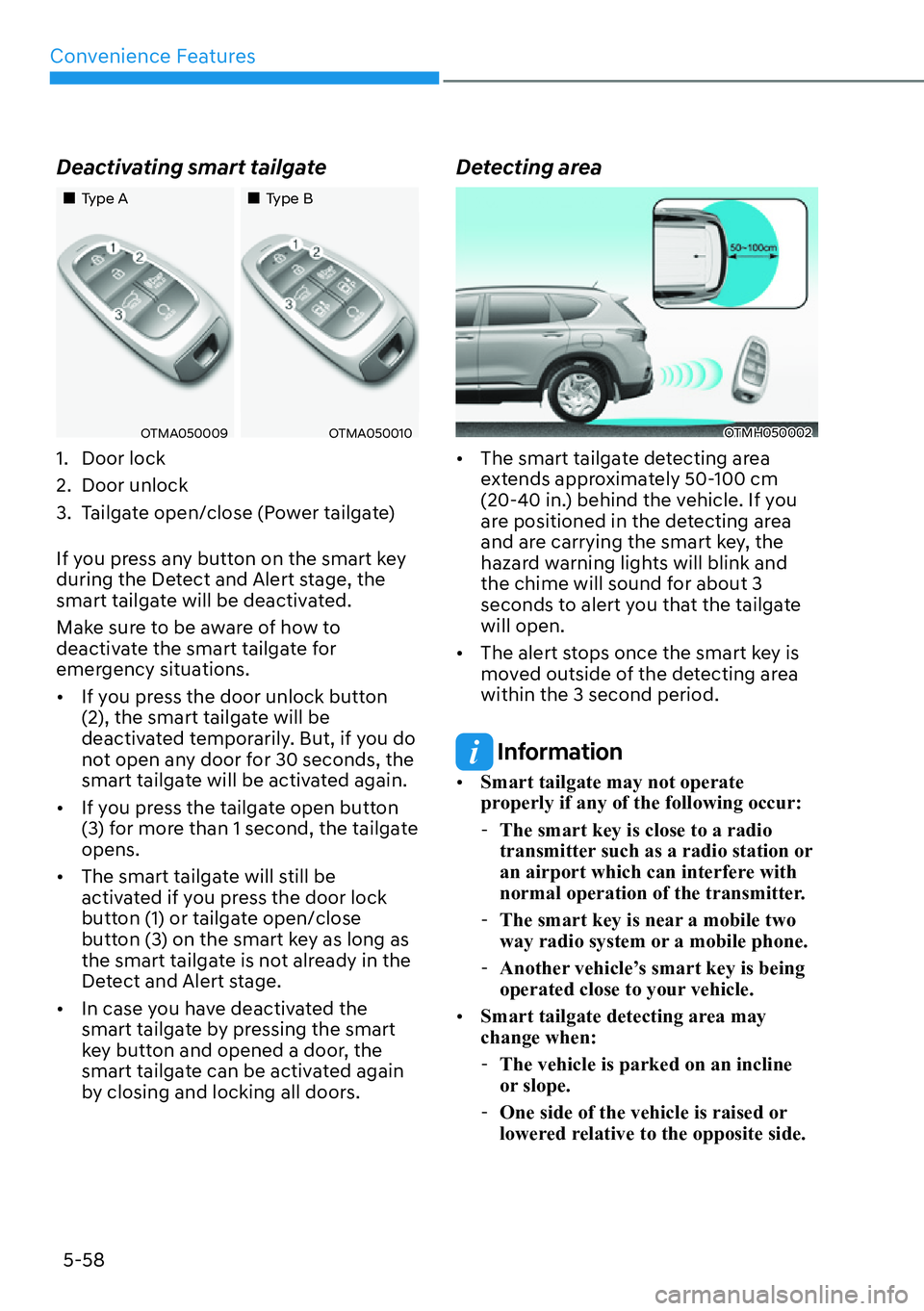

Deactivating smart tailgate
„Type A
„Type B
OTMA050009OTMA050010
1. Door lock
2. Door unlock
3. Tailgate open/close (Power tailgate)
If you press any button on the smart key
during the Detect and Alert stage, the
smart tailgate will be deactivated.
Make sure to be aware of how to
deactivate the smart tailgate for
emergency situations.
[ If you press the door unlock button
(2), the smart tailgate will be
deactivated temporarily. But, if you do
not open any door for 30 seconds, the
smart tailgate will be activated again.

[ If you press the tailgate open button
(3) for more than 1 second, the tailgate opens.

[ The smart tailgate will still be
activated if you press the door lock
button (1) or tailgate open/close
button (3) on the smart key as long as
the smart tailgate is not already in the
Detect and Alert stage.

[ In case you have deactivated the
smart tailgate by pressing the smart
key button and opened a door, the
smart tailgate can be activated again
by closing and locking all doors. Detecting areaOTMH050002

[ The smart tailgate detecting area
extends approximately 50-100 cm
(20-40 in.) behind the vehicle. If you
are positioned in the detecting area
and are carrying the smart key, the
hazard warning lights will blink and
the chime will sound for about 3
seconds to alert you that the tailgate will open.

[ The alert stops once the smart key is
moved outside of the detecting area within the 3 second period.
Information

[ Smart tailgate may not operate
properly if any of the following occur:
- The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
- The smart key is near a mobile two
way radio system or a mobile phone.
- Another vehicle’s smart key is being
operated close to your vehicle.

[ Smart tailgate detecting area may change when:
- The vehicle is parked on an incline
or slope.
- One side of the vehicle is raised or
lowered relative to the opposite side.

05
5-59

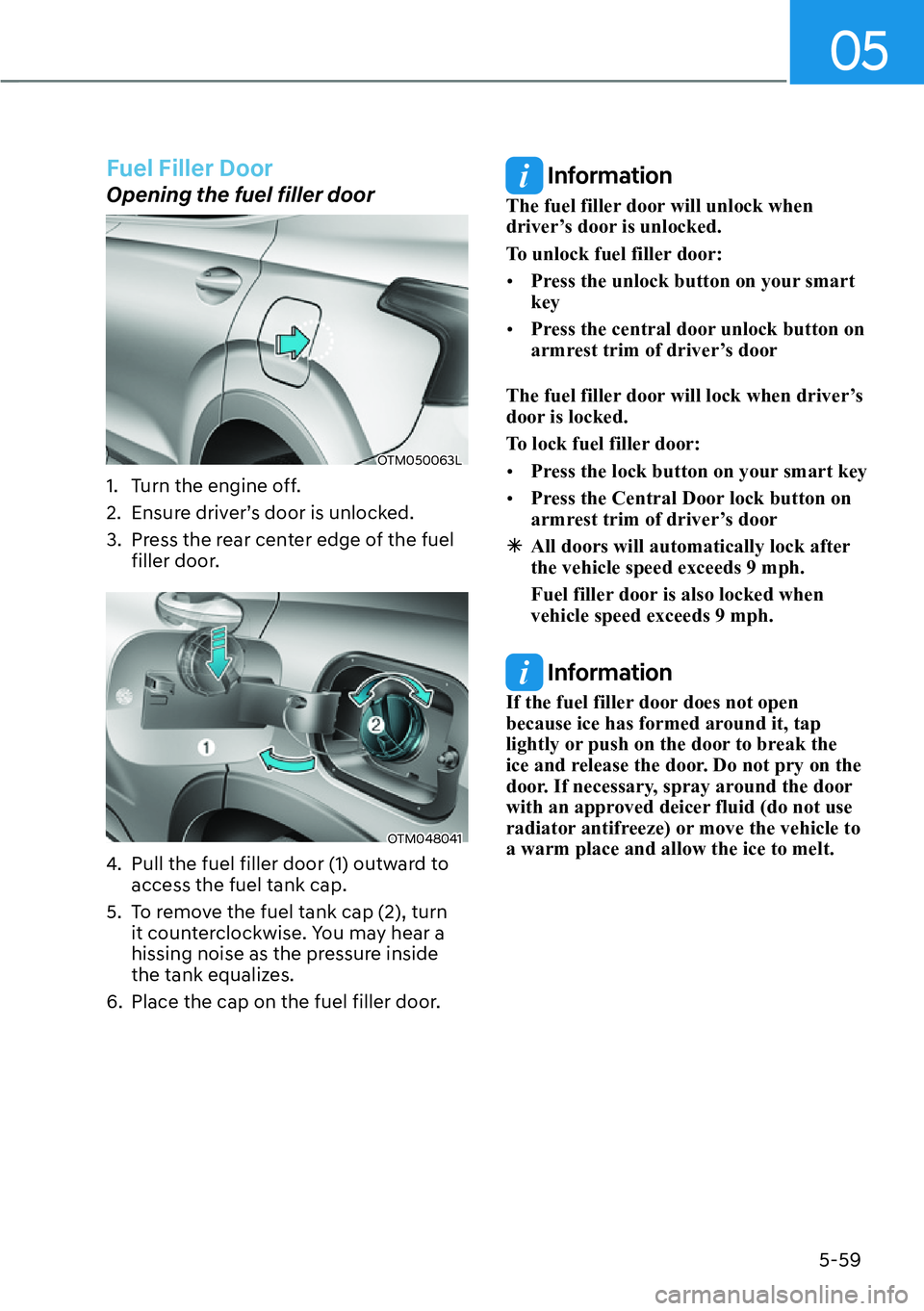

Fuel Filler Door
Opening the fuel filler door
OTM050063L
1. Turn the engine off.
2. Ensure driver’s door is unlocked.
3. Press the rear center edge of the fuel filler door.
OTM048041
4. Pull the fuel filler door (1) outward to access the fuel tank cap.
5. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
6. Place the cap on the fuel filler door.
Information
The fuel filler door will unlock when
driver’s door is unlocked.
To unlock fuel filler door:
[ Press the unlock button on your smart key

[ Press the central door unlock button on
armrest trim of driver’s door
The fuel filler door will lock when driver’s
door is locked.
To lock fuel filler door:
[ Press the lock button on your smart key

[ Press the Central Door lock button on
armrest trim of driver’s door

à All doors will automatically lock after the vehicle speed exceeds 9 mph.
Fuel filler door is also locked when vehicle speed exceeds 9 mph.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to a warm place and allow the ice to melt.

Convenience Features
5-60

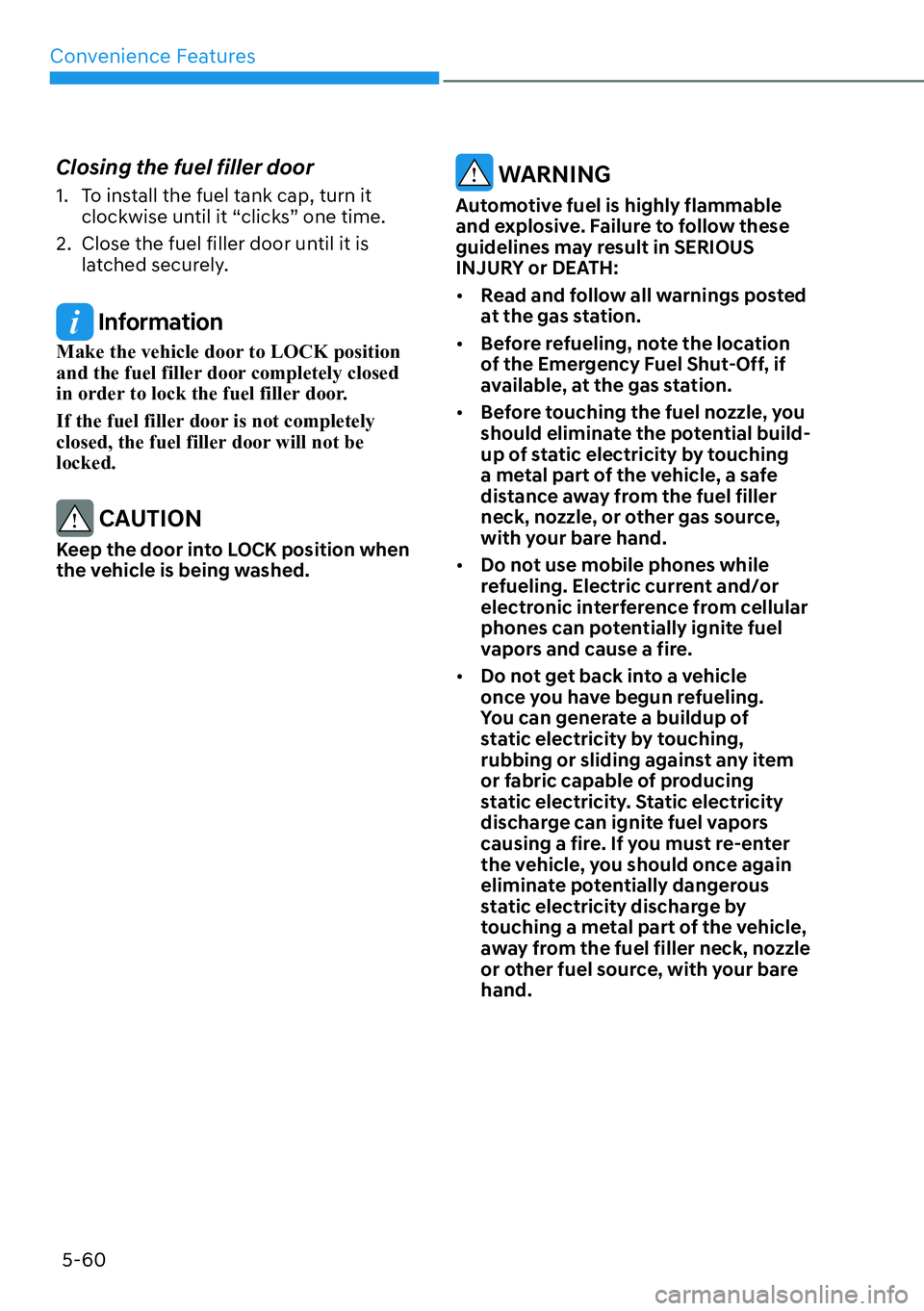

Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
Information
Make the vehicle door to LOCK position
and the fuel filler door completely closed
in order to lock the fuel filler door.
If the fuel filler door is not completely
closed, the fuel filler door will not be locked.
CAUTION
Keep the door into LOCK position when
the vehicle is being washed.

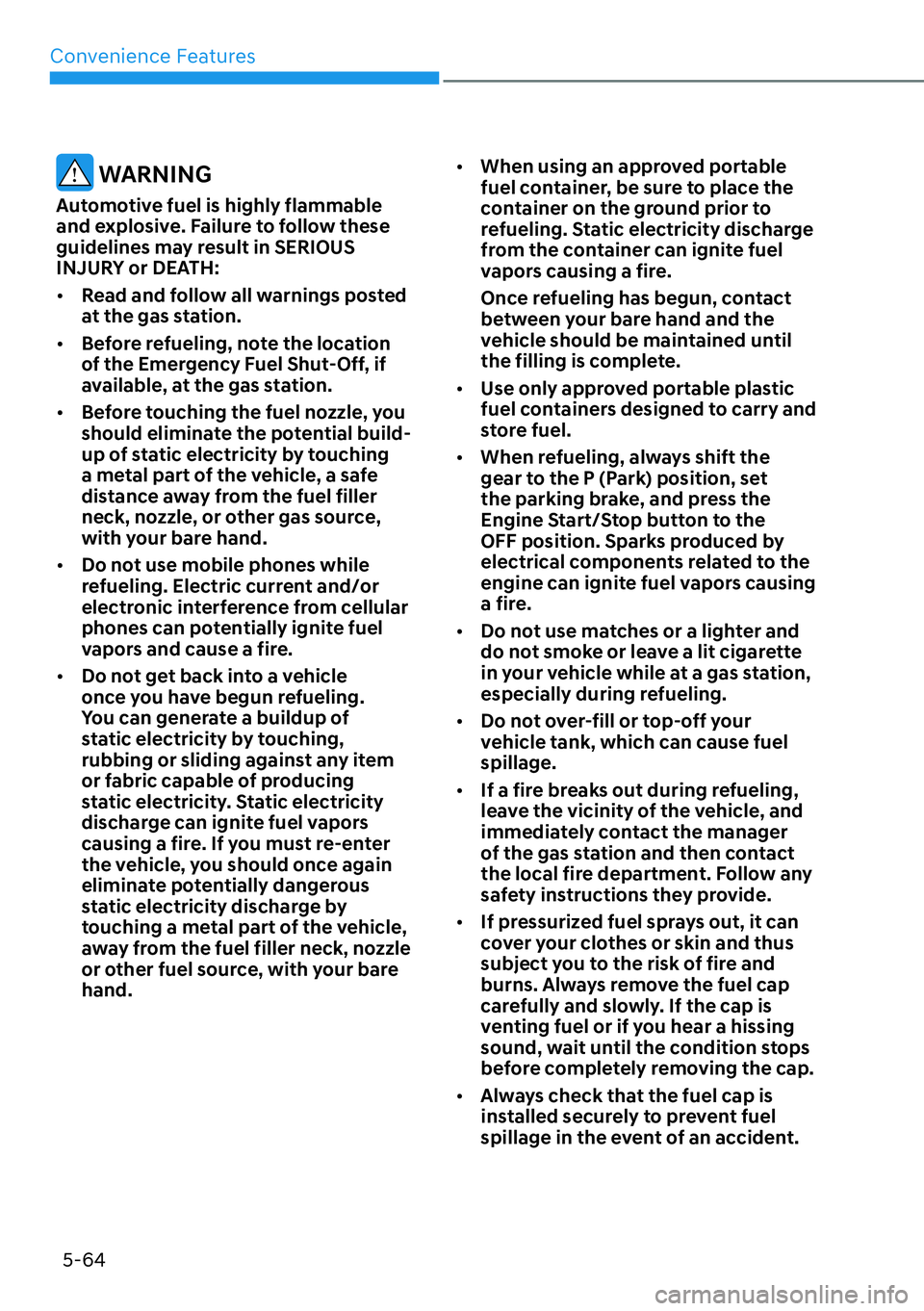

WARNING
Automotive fuel is highly flammable
and explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location
of the Emergency Fuel Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other fuel source, with your bare hand.

05
5-61

[

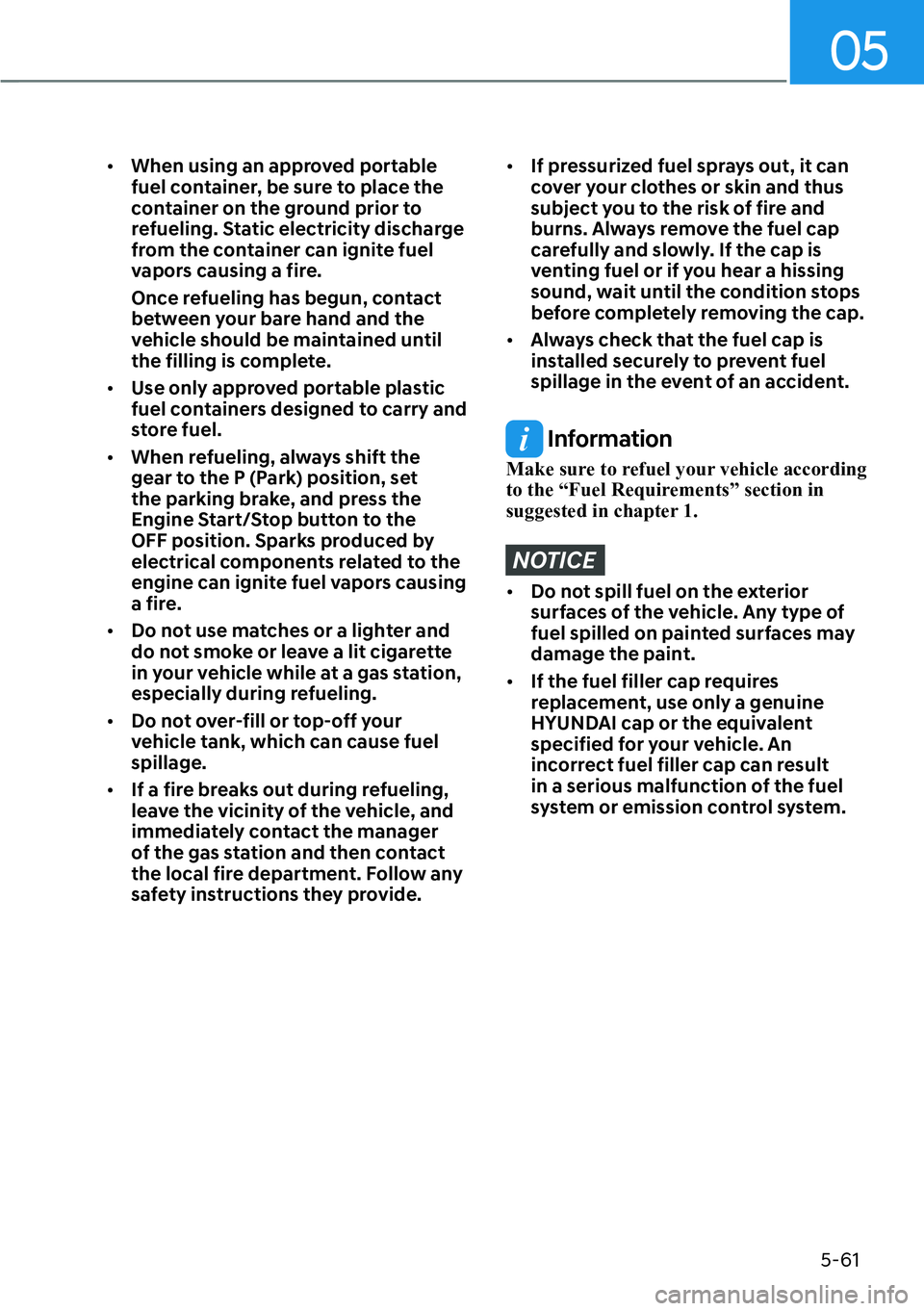

When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store fuel.

[ When refueling, always shift the
gear to the P (Park) position, set
the parking brake, and press the
Engine Start/Stop button to the
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[ Do not over-fill or top-off your
vehicle tank, which can cause fuel spillage.

[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.

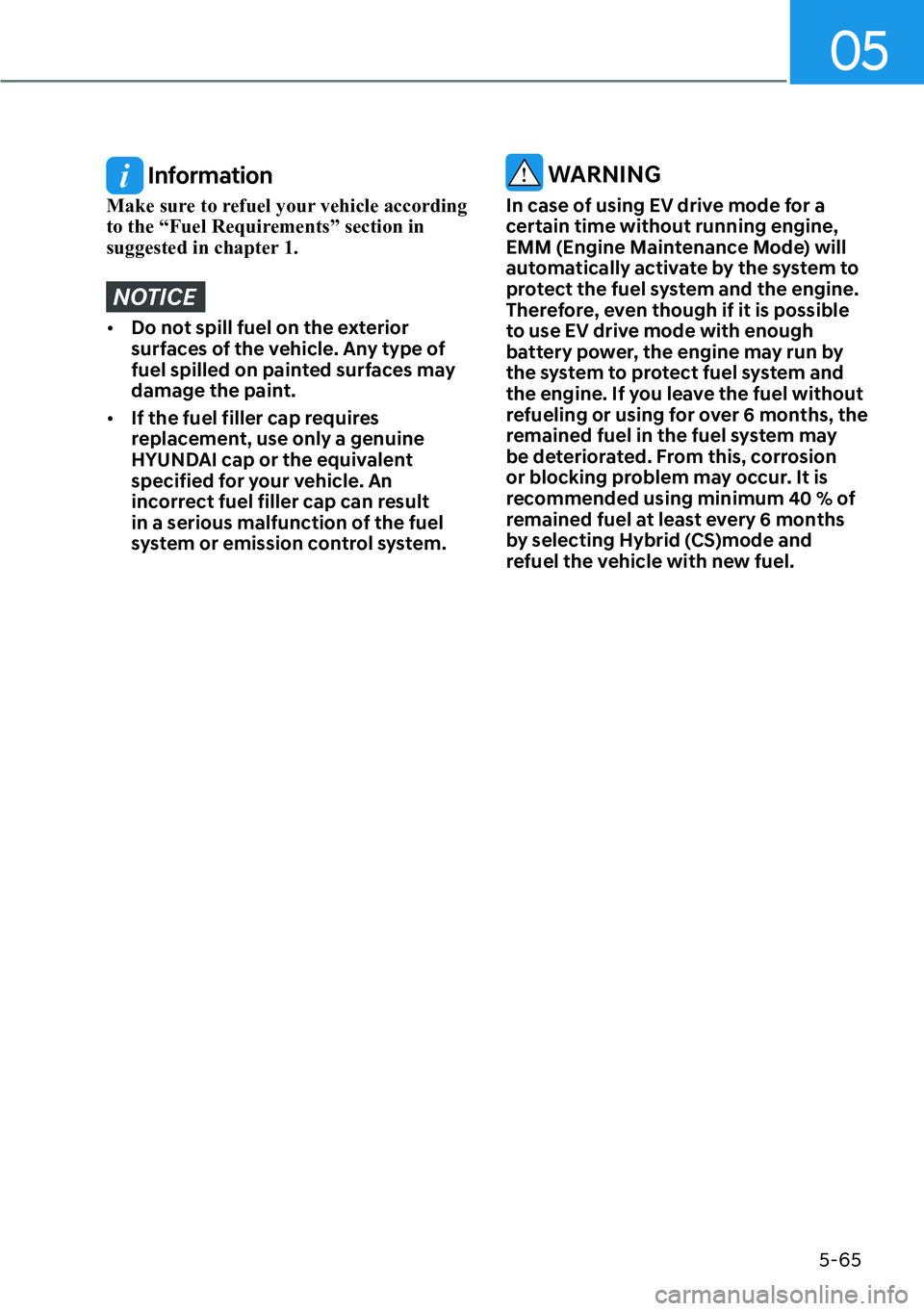

Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.

Convenience Features
5-62

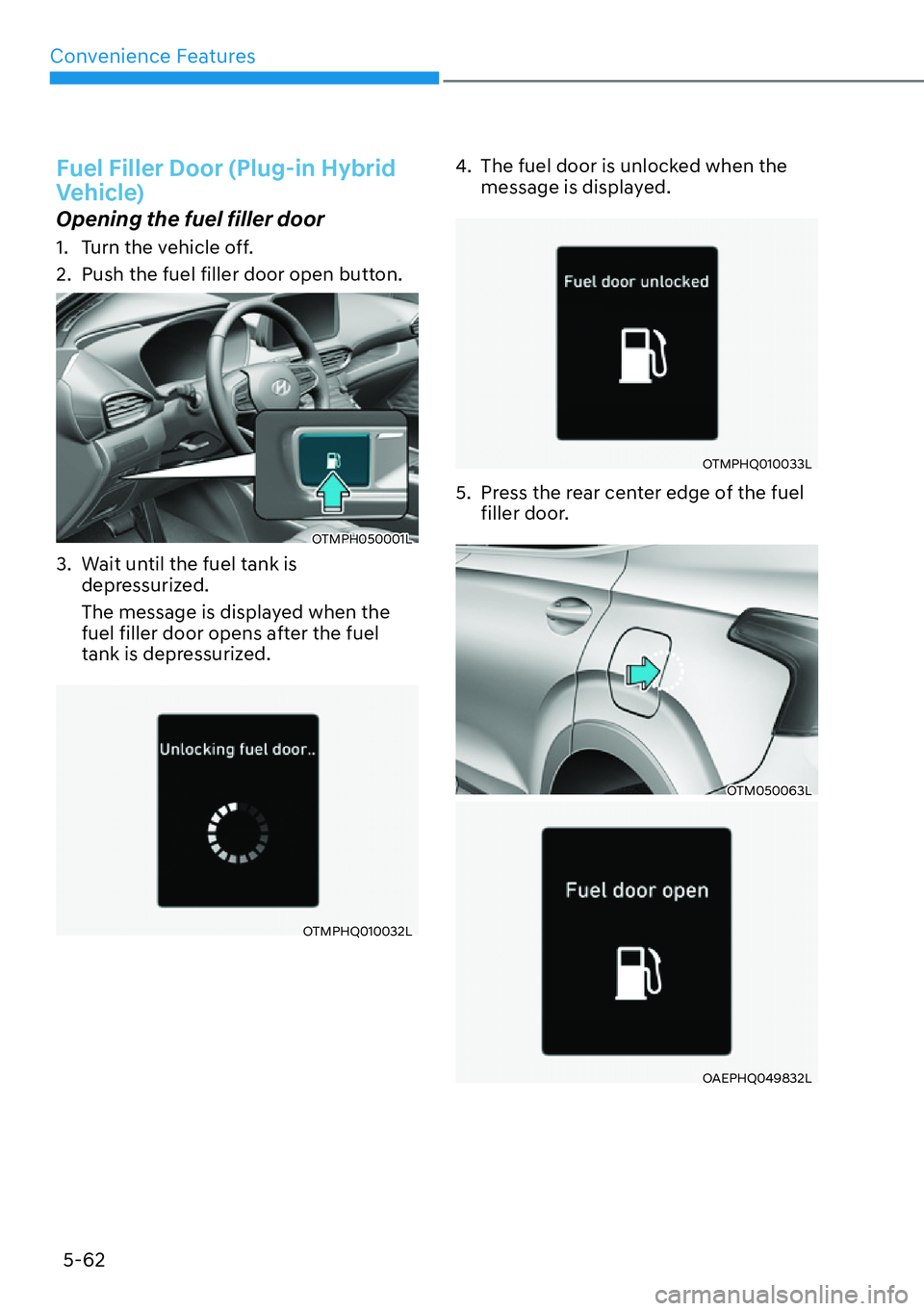

Fuel Filler Door (Plug-in Hybrid
Vehicle)
Opening the fuel filler door
1. Turn the vehicle off.
2. Push the fuel filler door open button.
OTMPH050001L
3. Wait until the fuel tank is depressurized.
The message is displayed when the
fuel filler door opens after the fuel
tank is depressurized.
OTMPHQ010032L 4. The fuel door is unlocked when the
message is displayed.
OTMPHQ010033L
5. Press the rear center edge of the fuel filler door.
OTM050063L
OAEPHQ049832L

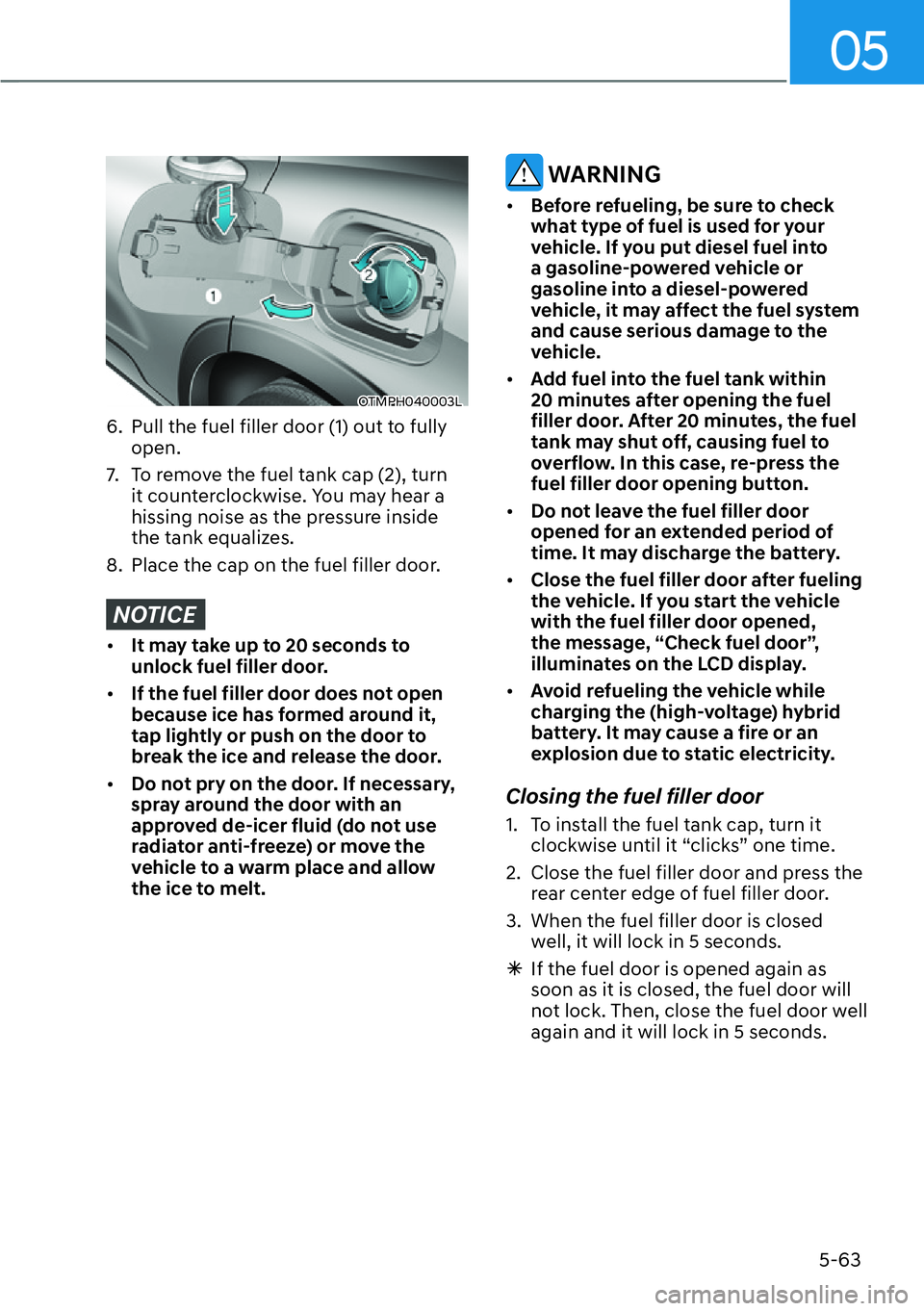

05
5-63
OTMPH040003L
6. Pull the fuel filler door (1) out to fully open.
7. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
8. Place the cap on the fuel filler door.
NOTICE

[ It may take up to 20 seconds to
unlock fuel filler door.

[ If the fuel filler door does not open
because ice has formed around it,
tap lightly or push on the door to
break the ice and release the door.

[ Do not pry on the door. If necessary,
spray around the door with an
approved de-icer fluid (do not use
radiator anti-freeze) or move the
vehicle to a warm place and allow
the ice to melt.
WARNING

[ Before refueling, be sure to check
what type of fuel is used for your
vehicle. If you put diesel fuel into
a gasoline-powered vehicle or
gasoline into a diesel-powered
vehicle, it may affect the fuel system
and cause serious damage to the
vehicle.

[ Add fuel into the fuel tank within
20 minutes after opening the fuel
filler door. After 20 minutes, the fuel
tank may shut off, causing fuel to
overflow. In this case, re-press the
fuel filler door opening button.

[ Do not leave the fuel filler door
opened for an extended period of
time. It may discharge the battery.

[ Close the fuel filler door after fueling
the vehicle. If you start the vehicle with the fuel filler door opened,
the message, “Check fuel door”,
illuminates on the LCD display.

[ Avoid refueling the vehicle while
charging the (high-voltage) hybrid
battery. It may cause a fire or an
explosion due to static electricity.
Closing the fuel filler door
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door and press the rear center edge of fuel filler door.
3. When the fuel filler door is closed well, it will lock in 5 seconds.

à If the fuel door is opened again as soon as it is closed, the fuel door will
not lock. Then, close the fuel door well again and it will lock in 5 seconds.

Convenience Features
5-64
WARNING
Automotive fuel is highly flammable
and explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location
of the Emergency Fuel Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other fuel source, with your bare hand.
[
When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store fuel.

[ When refueling, always shift the
gear to the P (Park) position, set
the parking brake, and press the
Engine Start/Stop button to the
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[ Do not over-fill or top-off your
vehicle tank, which can cause fuel spillage.

[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.

05
5-65
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.
WARNING
In case of using EV drive mode for a certain time without running engine,
EMM (Engine Maintenance Mode) will
automatically activate by the system to
protect the fuel system and the engine.
Therefore, even though if it is possible
to use EV drive mode with enough
battery power, the engine may run by
the system to protect fuel system and
the engine. If you leave the fuel without
refueling or using for over 6 months, the
remained fuel in the fuel system may
be deteriorated. From this, corrosion
or blocking problem may occur. It is
recommended using minimum 40 % of
remained fuel at least every 6 months
by selecting Hybrid (CS)mode and
refuel the vehicle with new fuel.
