Page 351 of 638

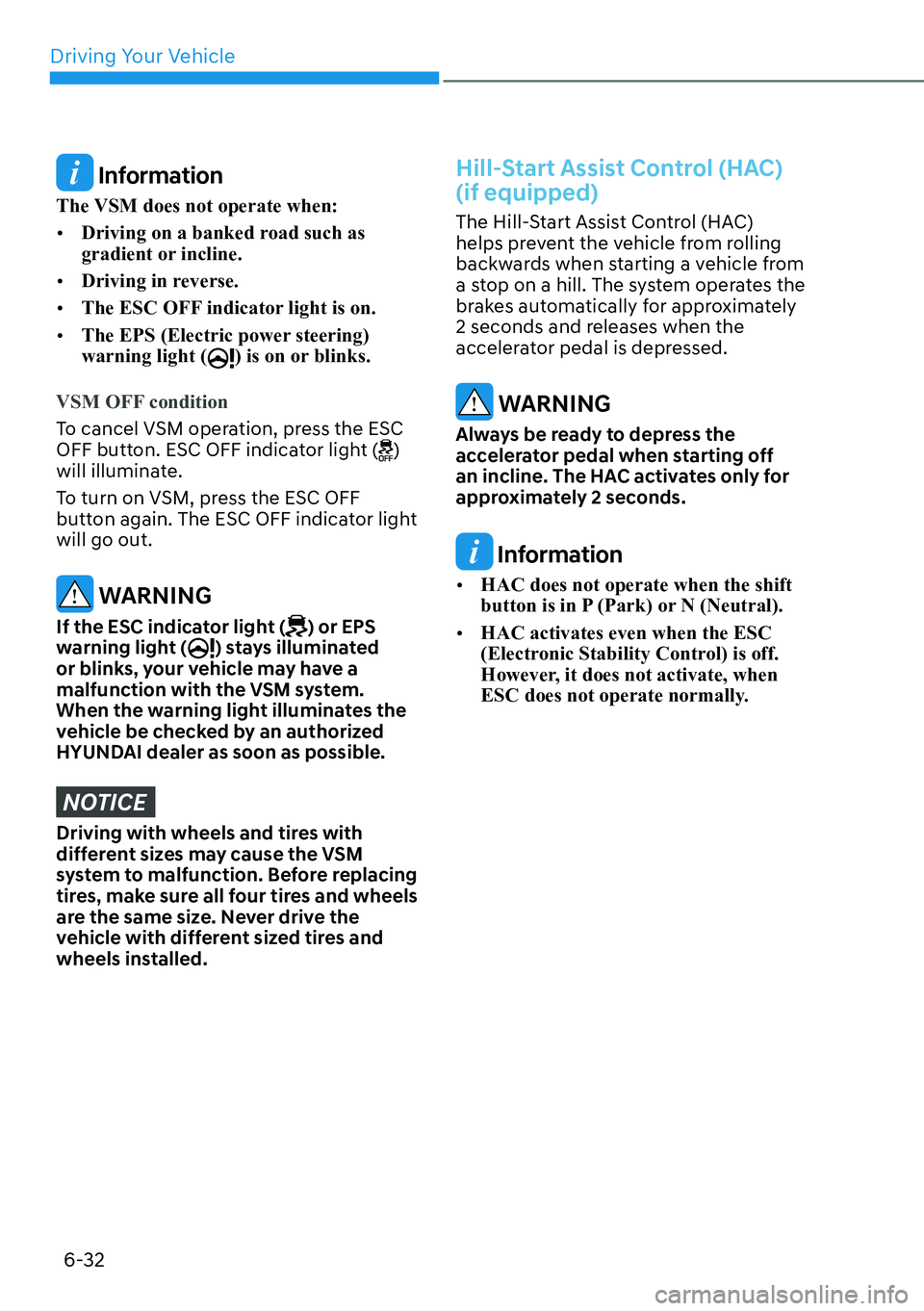

HYUNDAI SANTA FE HYBRID 2022  Owners Manual Driving Your Vehicle
6-32
 Information
The VSM does not operate when: [� Driving on a banked road such as
gradient or incline.
[� Driving in reverse.
[� The ESC OFF indicator light is on.
[�

Page 352 of 638

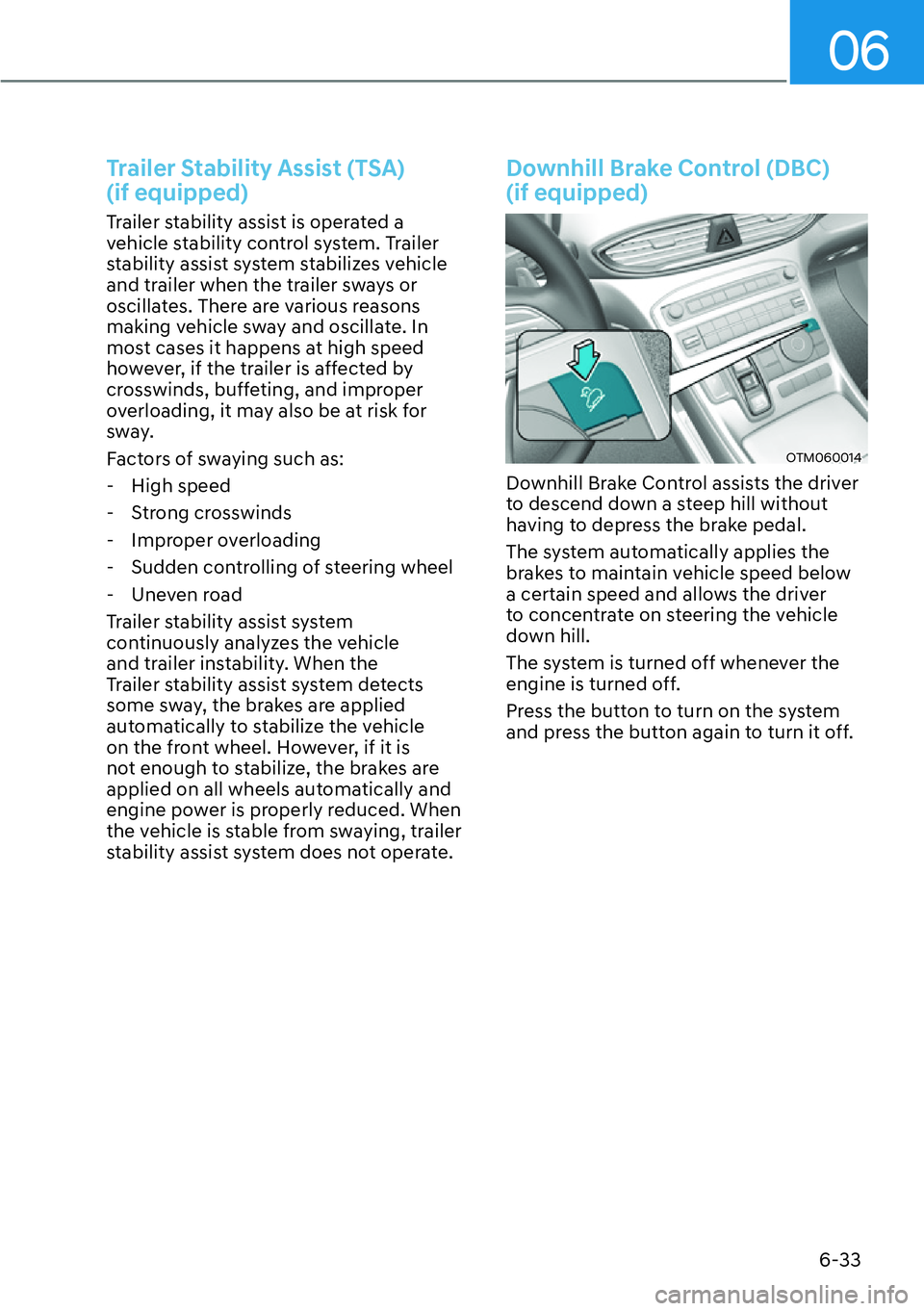

HYUNDAI SANTA FE HYBRID 2022  Owners Manual 06
6-33
Trailer Stability Assist (TSA)   (if equipped)
Trailer stability assist is operated a
vehicle stability control system. Trailer
stability assist system stabilizes vehicle
and trailer when

Page 353 of 638

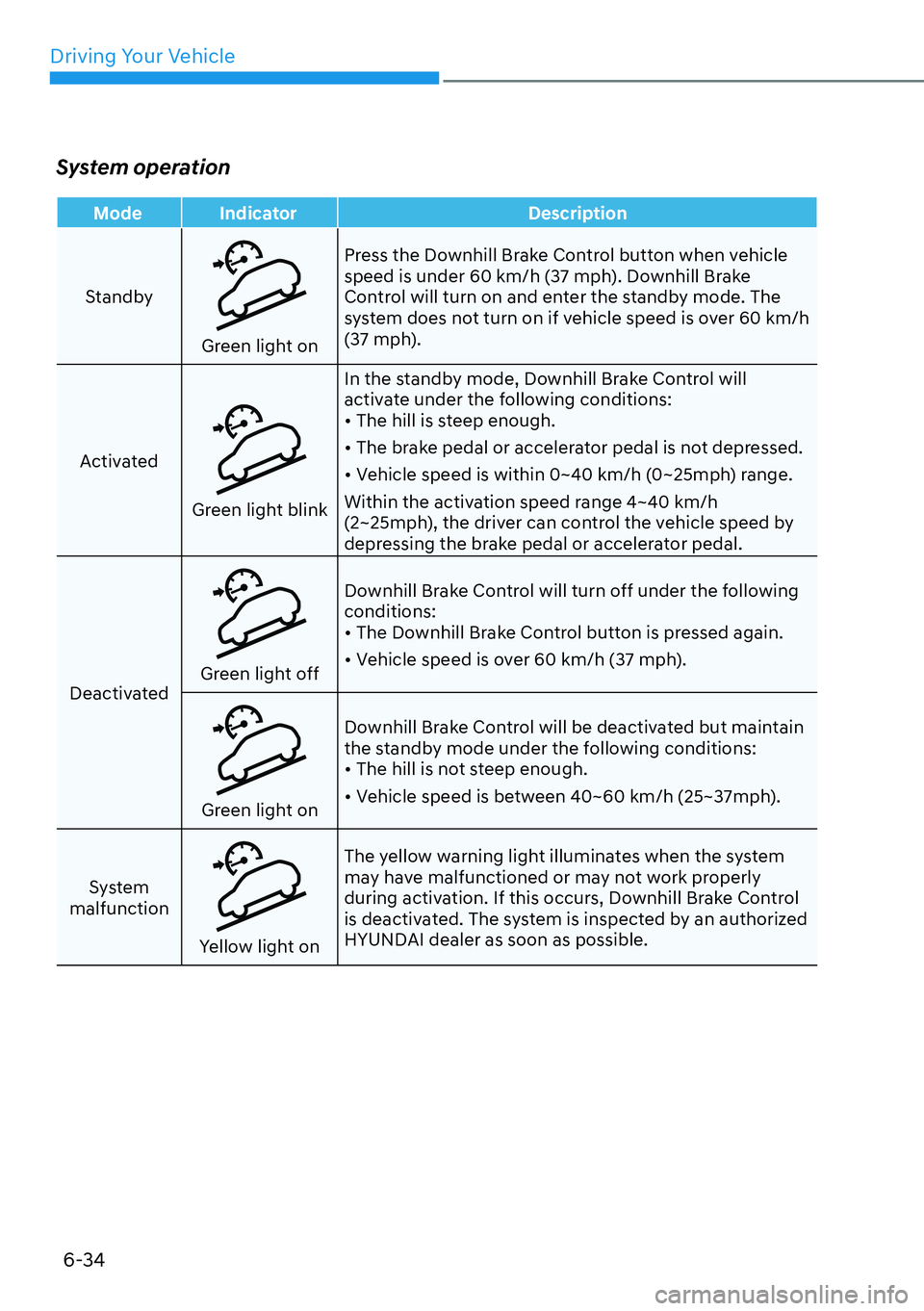

HYUNDAI SANTA FE HYBRID 2022  Owners Manual Driving Your Vehicle
6-34
System operation
Mode Indicator Description
Standby
Green light on
Press the Downhill Brake Control button when vehicle
speed is under 60 km/h (37 mph). Downhill Brake
Con

Page 354 of 638

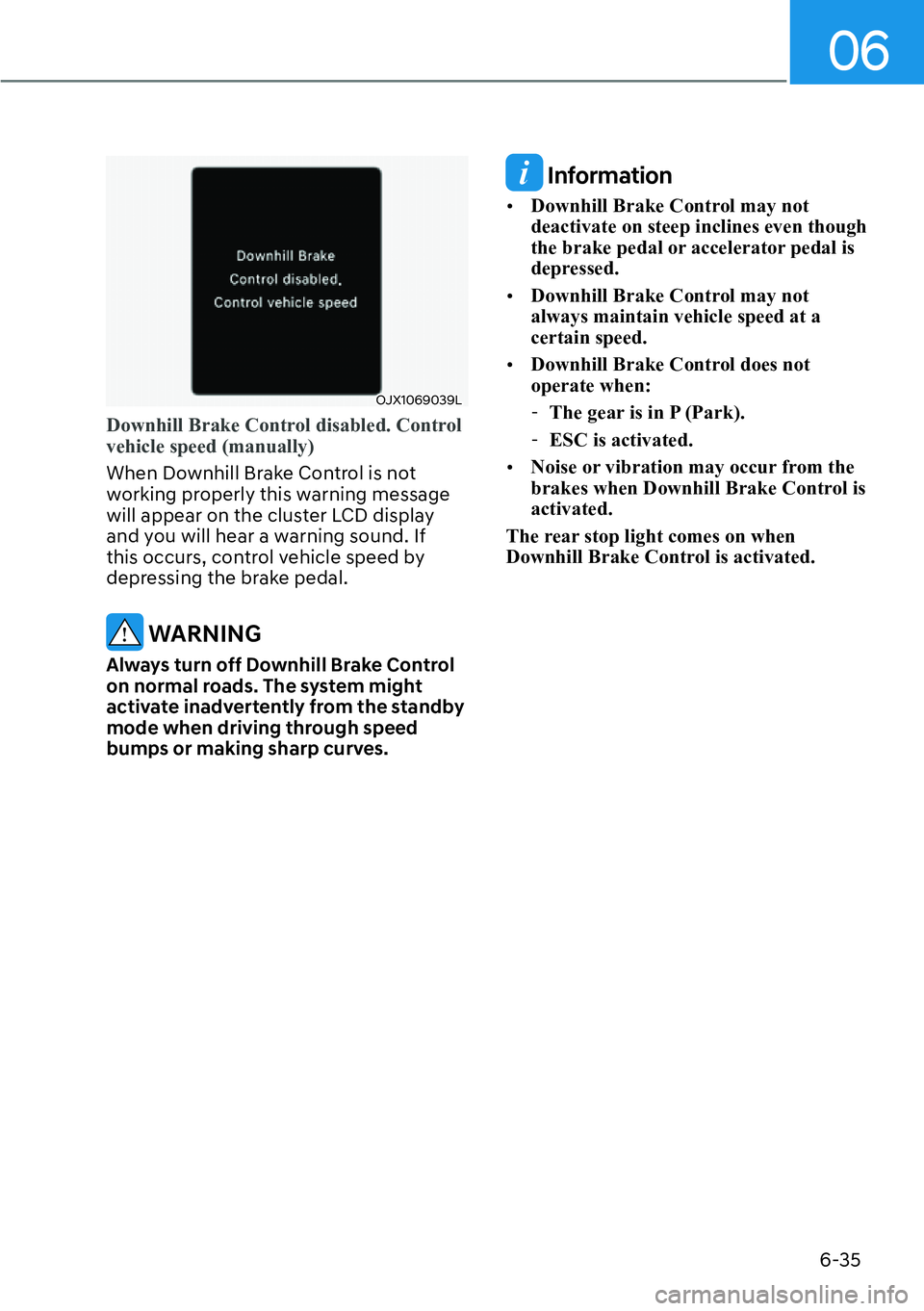

HYUNDAI SANTA FE HYBRID 2022  Owners Manual 06
6-35
OJX1069039L
Downhill Brake Control disabled. Control  vehicle speed (manually)
When Downhill Brake Control is not
working properly this warning message
will appear on the cluster LCD displa

Page 355 of 638

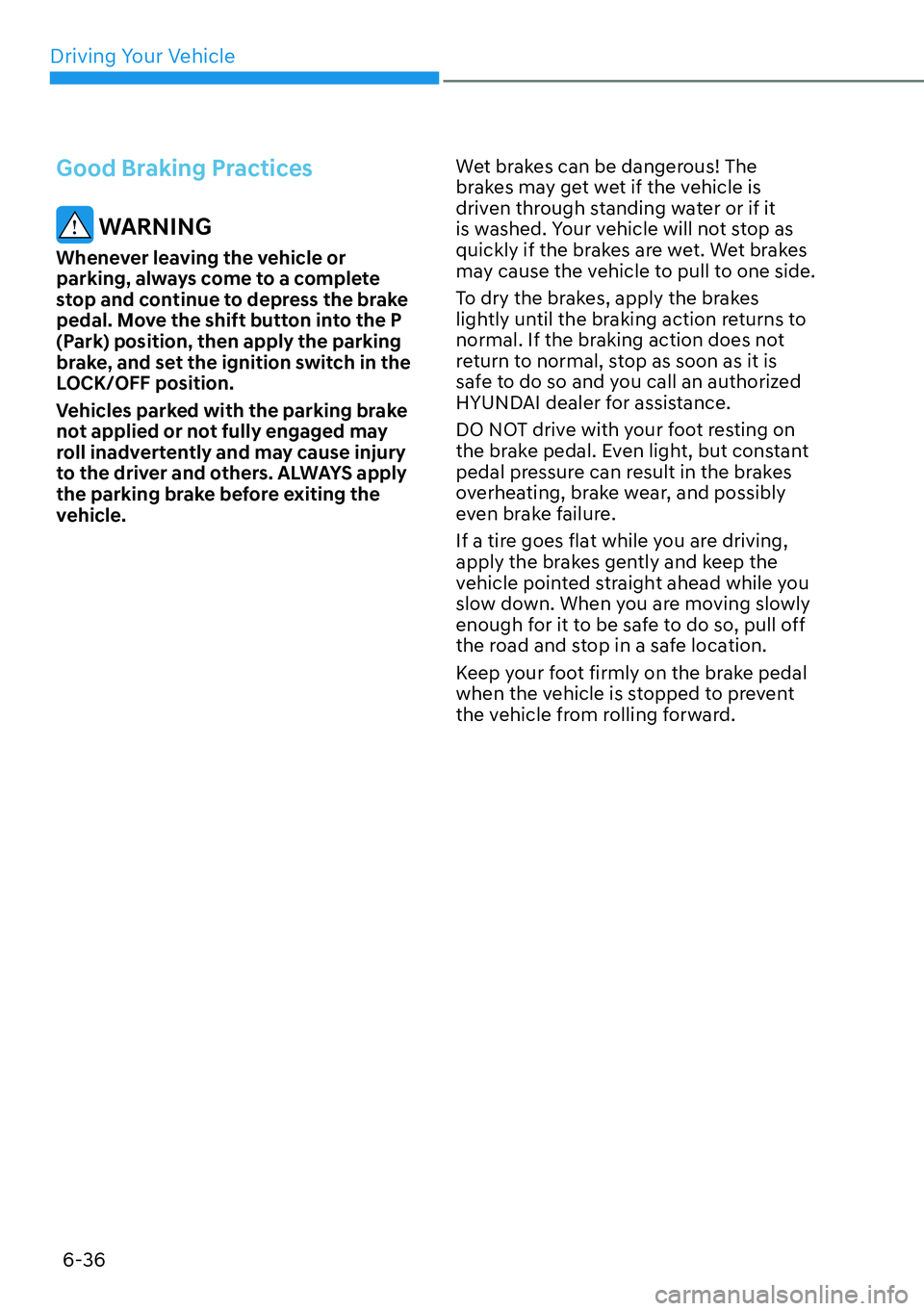

HYUNDAI SANTA FE HYBRID 2022  Owners Manual Driving Your Vehicle
6-36
Good Braking Practices
 WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Move the shift button int

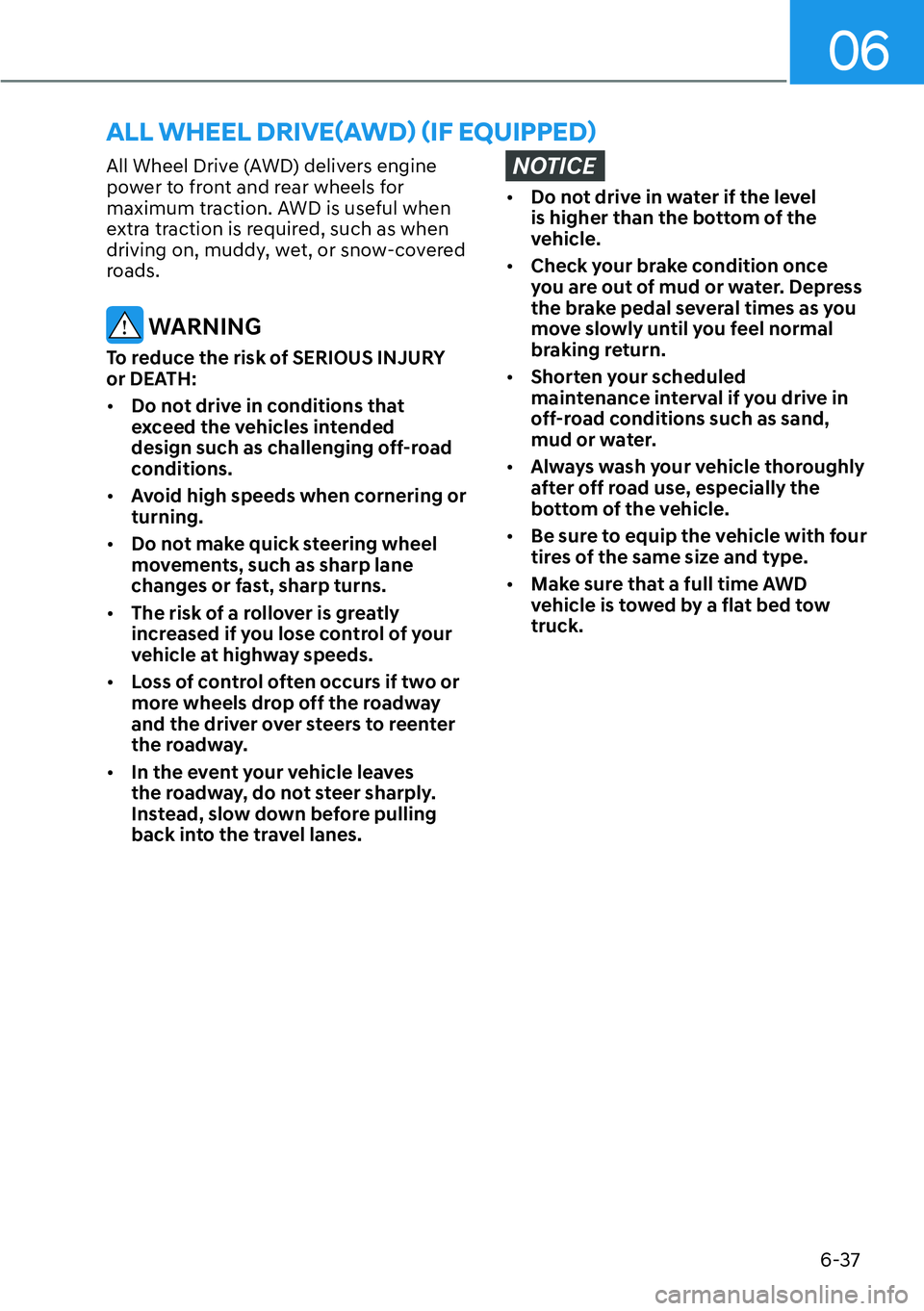

Page 356 of 638

HYUNDAI SANTA FE HYBRID 2022  Owners Manual 06
6-37
All Wheel Drive (AWD) delivers engine
power to front and rear wheels for
maximum traction. AWD is useful when
extra traction is required, such as when
driving on, muddy, wet, or snow-cove

Page 357 of 638

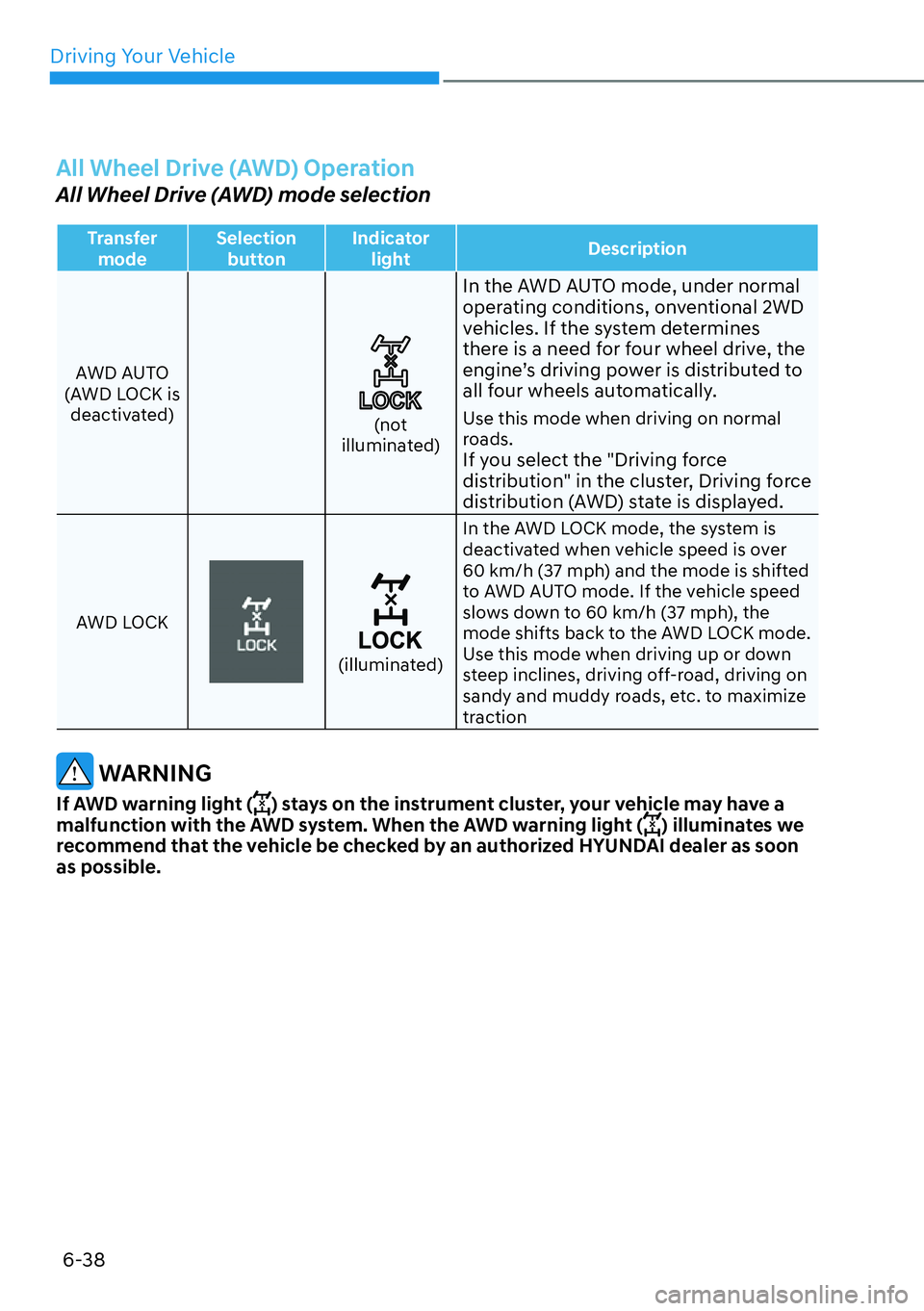

HYUNDAI SANTA FE HYBRID 2022  Owners Manual Driving Your Vehicle
6-38
All Wheel Drive (AWD) Operation
All Wheel Drive (AWD) mode selection
Transfer mode Selection
button Indicator
light Description
AWD AUTO
(AWD LOCK is
deactivated)
(not
il

Page 358 of 638

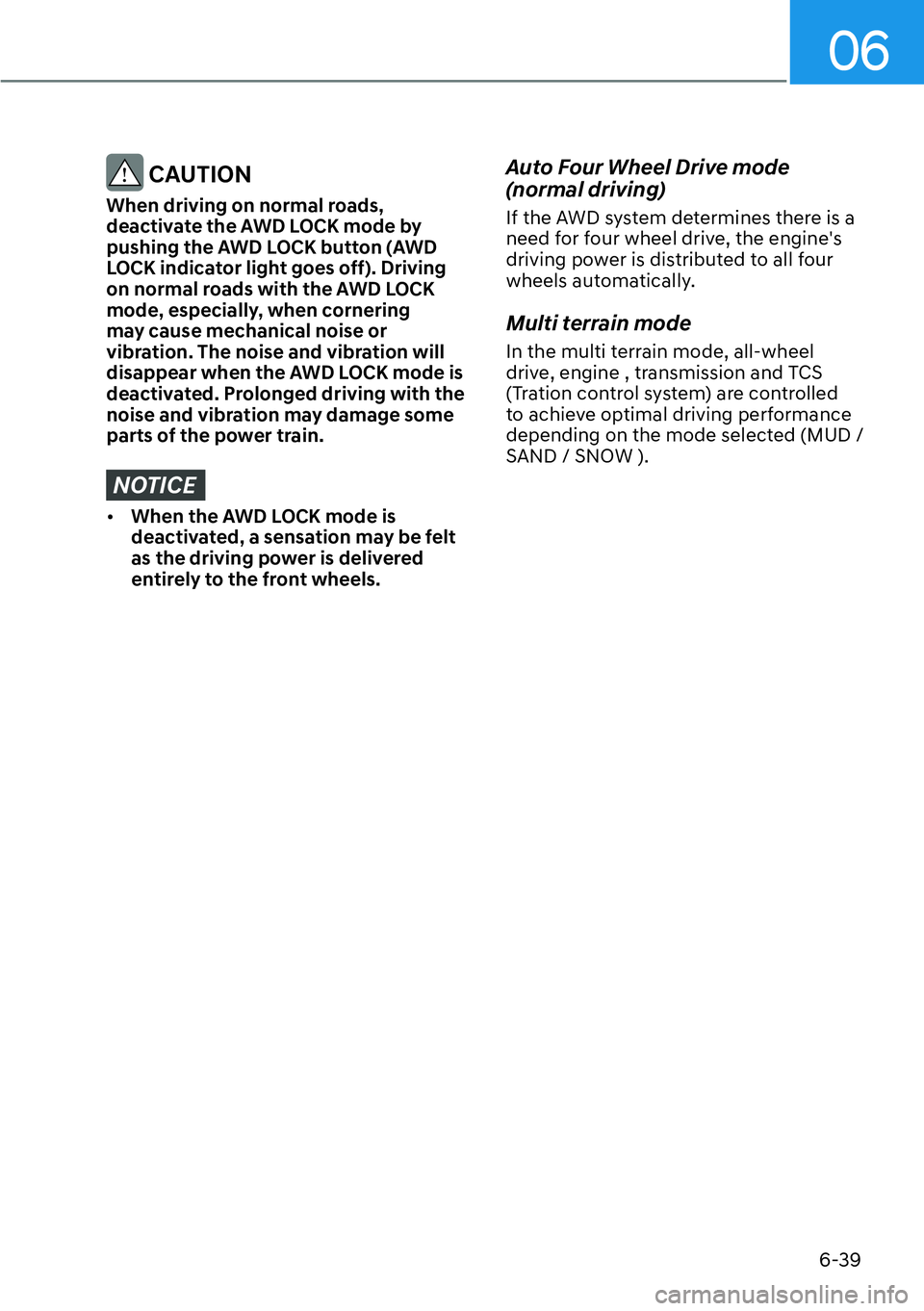

HYUNDAI SANTA FE HYBRID 2022  Owners Manual 06
6-39
 CAUTION
When driving on normal roads,
deactivate the AWD LOCK mode by
pushing the AWD LOCK button (AWD
LOCK indicator light goes off). Driving
on normal roads with the AWD LOCK
mode, es

Page 359 of 638

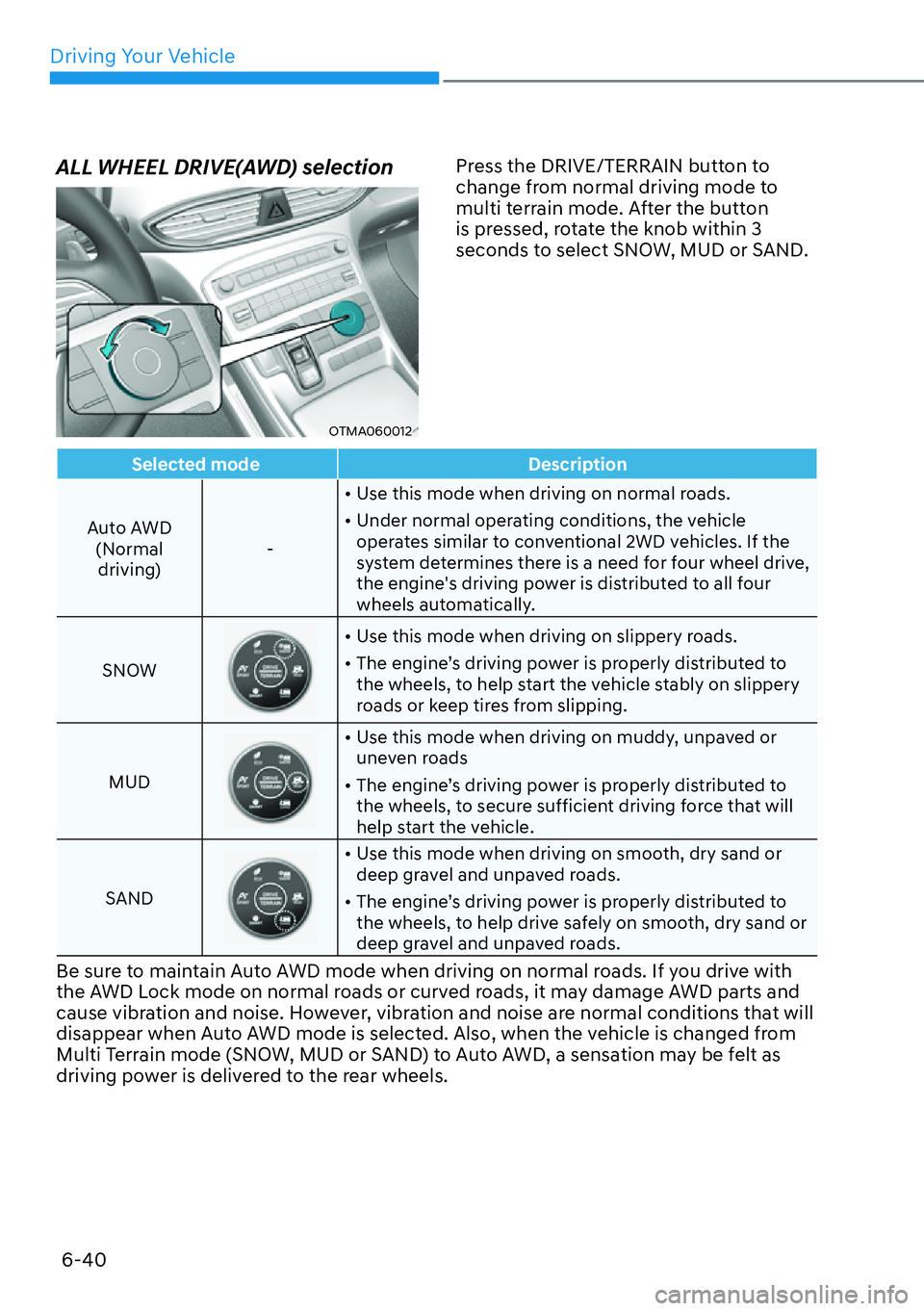

HYUNDAI SANTA FE HYBRID 2022  Owners Manual Driving Your Vehicle
6-40
ALL WHEEL DRIVE(AWD) selection
OTMA060012
Press the DRIVE/TERRAIN button to
change from normal driving mode to
multi terrain mode. After the button
is pressed, rotate the

Page 360 of 638

HYUNDAI SANTA FE HYBRID 2022  Owners Manual 06
6-41
For safe AWD operation
Before driving
[�
Make sure all passengers are wearing
seat belts.
[� Sit upright and closer to the steering
wheel than usual. Adjust the steering
wheel to a pos
