Hyundai Santa Fe Sport 2015 Quick Reference Guide
Manufacturer: HYUNDAI, Model Year: 2015, Model line: Santa Fe Sport, Model: Hyundai Santa Fe Sport 2015Pages: 20, PDF Size: 8.84 MB
Page 11 of 20

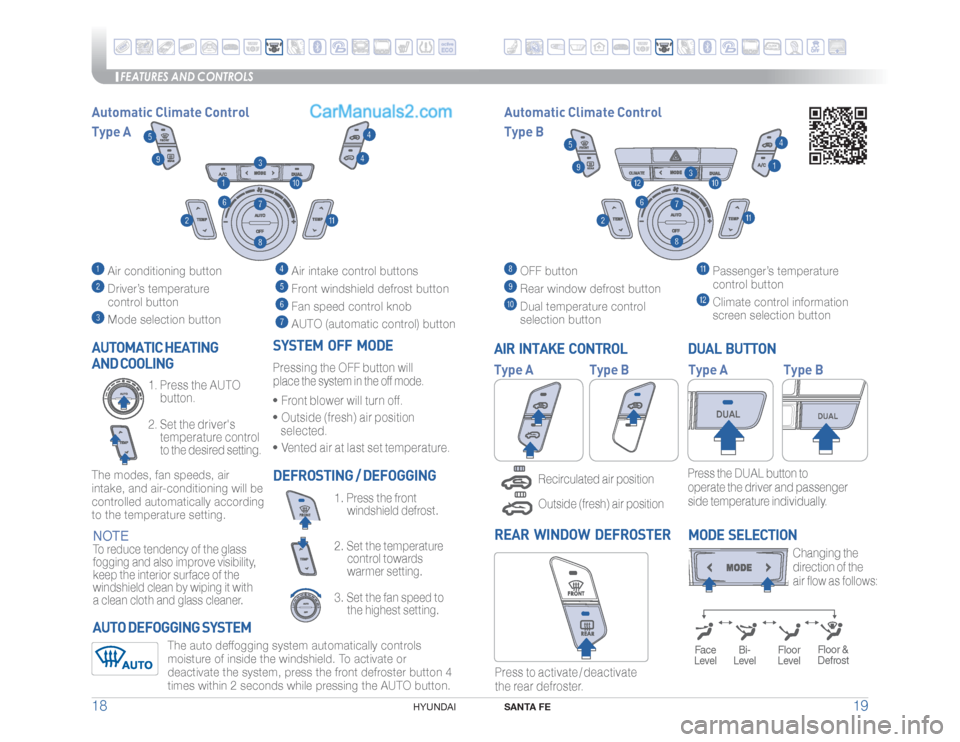

FEATURES AND CONTROLS
SANTA FE
19 18
HYUNDAI
Press the DUAL button to
operate the driver and passenger
side temperature individually.DUAL BUTTON
DEFROSTING / DEFOGGING
3. Set the fan speed to
the highest setting. 2. Set the temperature
control towards
warmer setting.1. Press the front
windshield defrost.
SYSTEM OFF MODEPressing the OFF button will place the system in the off mode. r Front blower will turn off. r Outside (fresh) air position
selected. r Vented air at last set temperature.
Press to activate / deactivate
the rear defroster.REAR WINDOW DEFROSTER AUTOMATIC HEATING
AND COOLING
2. Set the driver's
temperature control
to the desired setting. 1. Press the AUTO
button.
The modes, fan speeds, air
intake, and air-conditioning will be
controlled automatically according
to the temperature setting.
The auto deffogging system automatically controls
moisture of inside the windshield. To activate or
deactivate the system, press the front defroster button 4
times within 2 seconds while pressing the AUTO button.
Changing the
direction of the
air flow as follows:
MODE SELECTION
Floor &
Defrost
Face
Level
Bi-
Level
Floor
Level
Automatic Climate Control
Type AAutomatic Climate Control
Type B
AIR INTAKE CONTROL
AUTO DEFOGGING SYSTEM
Recirculated air positionOutside (fresh) air position
% 6 " -
% 6 " -
Type B Type B Type A Type A
Air conditioning button Driver’s temperature
control button Mode selection button
Air intake control buttons Front windshield defrost button Fan speed control knob AUTO (automatic control) button
OFF button Rear window defrost button
Dual temperature control
selection button
Passenger’s temperature
control button Climate control information
screen selection button
NOTETo reduce tendency of the glass
fogging and also improve visibility,
keep the interior surface of the
windshield clean by wiping it with
a clean cloth and glass cleaner.
Page 12 of 20
FEATURES AND CONTROLS
SANTA FE
21 20
HYUNDAI

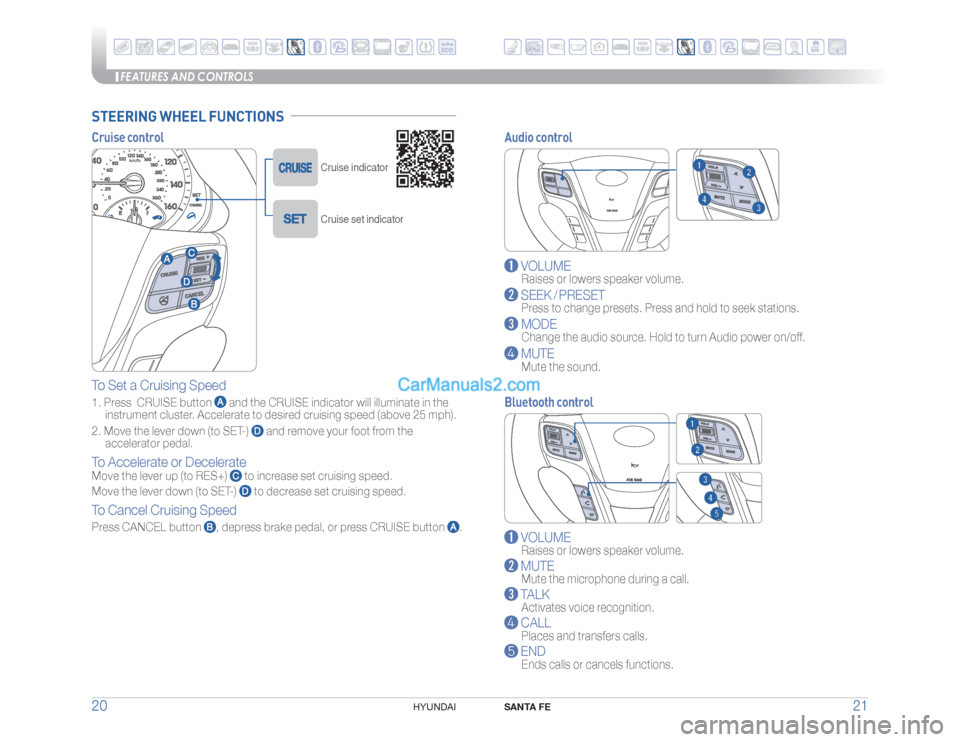

Audio control Cruise control
VOLUME
Raises or lowers speaker volume.
SEEK / PRESET
Press to change presets. Press and hold to seek stations.
MODE
Change the audio source. Hold to turn Audio power on/off.
MUTE
Mute the sound.
Bluetooth control
VOLUME
Raises or lowers speaker volume.
MUTE
Mute the microphone during a call.
TALK
Activates voice recognition.
CALL
Places and transfers calls.
END
Ends calls or cancels functions.
STEERING WHEEL FUNCTIONS
Cruise indicator
Cruise set indicator
To Set a Cruising Speed
1. Press CRUISE button
and the CRUISE indicator will illuminate in the
instrument cluster. Accelerate to desired cruising speed (above 25 mph).
2. Move the lever down (to SET-)
and remove your foot from the
accelerator pedal.
To Accelerate or DecelerateMove the lever up (to RES+)
to increase set cruising speed.
Move the lever down (to SET-) to decrease set cruising speed.
To Cancel Cruising SpeedPress CANCEL button
, depress brake pedal, or press CRUISE button
.
Page 13 of 20
MULTIMEDIA
SANTA FE
23 22
HYUNDAI

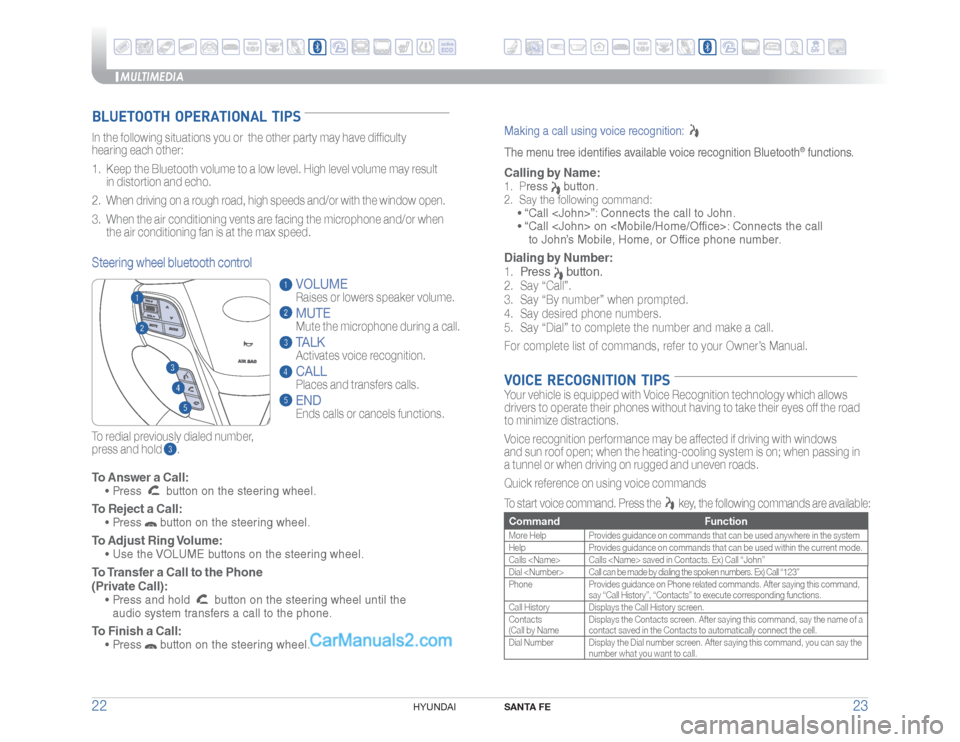

To Answer a Call: r 1 S F T T
button on the steering wheel.
To Reject a Call: r 1 S F T T
button on the steering wheel.
To Adjust Ring Volume: r 6 T F U I F 7 0 - 6 . & C V U U P O T P O U I F T U F F S J O H X I F F M To Transfer a Call to the Phone
(Private Call): r 1 S F T T B O E I P M E
button on the steering wheel until the
audio system transfers a call to the phone.
To Finish a Call: r 1 S F T T
button on the steering wheel.
BLUETOOTH OPERATIONAL TIPSIn the following situations you or the other party may have difficulty
hearing each other:
1. Keep the Bluetooth volume to a low level. High level volume may result
in distortion and echo.
2. When driving on a rough road, high speeds and/or with the window open.
3. When the air conditioning vents are facing the microphone and/or when
the air conditioning fan is at the max speed.
To redial previously dialed number,
press and hold .Steering wheel bluetooth control
VOLUME
Raises or lowers speaker volume.MUTEMute the microphone during a call.TALKActivates voice recognition.CALL
Places and transfers calls.ENDEnds calls or cancels functions.
Making a call using voice recognition: The menu tree identifies available voice recognition Bluetooth
® functions.
Calling by Name:1. P
ress
button.
2. Say the following command:
r i $ B M M + P I O u $ P O O F D U T U I F D B M M U P + P I O
r i $ B M M + P I O P O . P C J M F ) P N F 0 G G J D F $ P O O F D U T U I F D B M M
to John’s Mobile, Home, or Office phone number.
Dialing by Number:1.
Press
button.
2. Say “Call”.
3. Say “By number” when prompted.
4. Say desired phone numbers.
5. Say “Dial” to complete the number and make a call.
For complete list of commands, refer to your Owner’s Manual.VOICE RECOGNITION TIPSYour vehicle is equipped with Voice Recognition technology which allows
drivers to operate their phones without having to take their eyes off the road
to minimize distractions.
Voice recognition performance may be affected if driving with windows
and sun roof open; when the heating-cooling system is on; when passing in
a tunnel or when driving on rugged and uneven roads.
Quick reference on using voice commands
To start voice command. Press the
key, the following commands are available:
Command FunctionMore Help Provides guidance on commands that can be used anywhere in the system
Help Provides guidance on commands that can be used within the current mode.
Calls
Dial
Phone Provides guidance on Phone related commands. After saying this command,
say “Call History”, “Contacts” to execute corresponding functions.
Call History Displays the Call History screen.
Contacts
(Call by NameDisplays the Contacts screen. After saying this command, say the name of a
contact saved in the Contacts to automatically connect the cell.
Dial Number Display the Dial number screen. After saying this command, you can say the
number what you want to call.
Page 14 of 20
MULTIMEDIA
SANTA FE
25 24
HYUNDAI

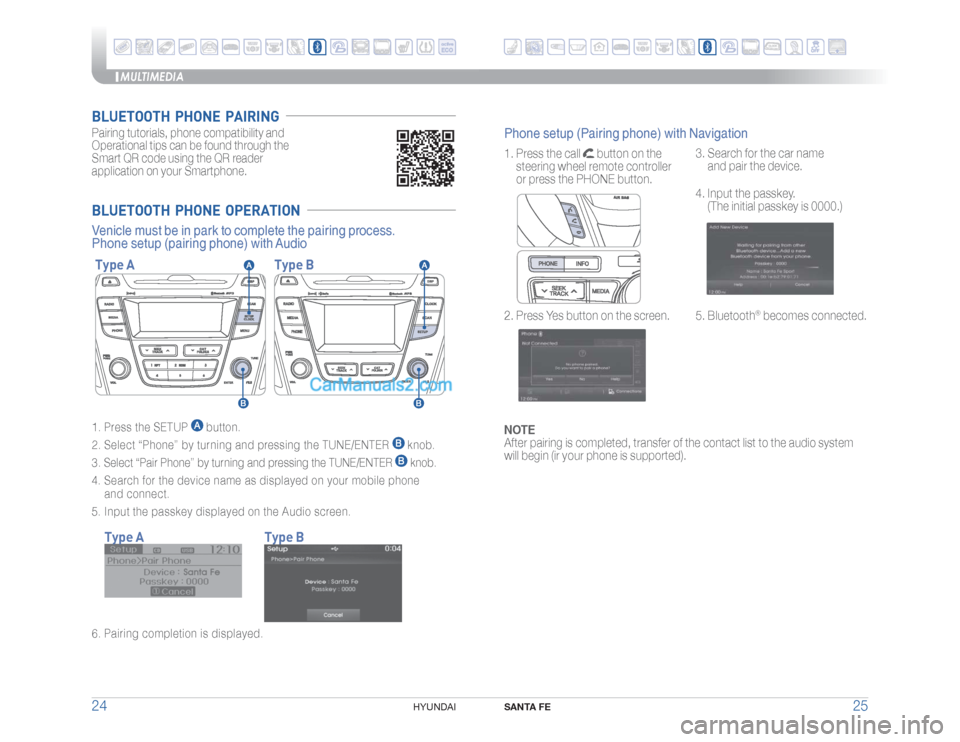

BLUETOOTH PHONE OPERATION1. Press the SETUP
button.
2. Select “Phone” by turning and pressing the TUNE/ENTER
knob.
3. Select “Pair Phone” by turning and pressing the TUNE/ENTER knob.
4. Search for the device name as displayed on your mobile phone
and connect.
5. Input the passkey displayed on the Audio screen.
Venicle must be in park to complete the pairing process.
Phone setup (pairing phone) with AudioType A Type BType A Type B
6. Pairing completion is displayed.Pairing tutorials, phone compatibility and
Operational tips can be found through the
Smart QR code using the QR reader
application on your Smartphone.BLUETOOTH PHONE PAIRING
NOTE
After pairing is completed, transfer of the contact list to the audio system
will begin (ir your phone is supported). 1. Press the call
button on the
steering wheel remote controller
or press the PHONE button.
2. Press Yes button on the screen.4. Input the passkey.
(The initial passkey is 0000.)
5. Bluetooth
® becomes connected. 3. Search for the car name
and pair the device.
Phone setup (Pairing phone) with Navigation
Page 15 of 20
MULTIMEDIA
SANTA FE
27 26
HYUNDAI
Blue Link feature availability is dependent upon your Blue Link subscription package(s).BLUE LINK TELEMATIC SYSTEMPress the
button for access to the voice-response menu of services.
You have two options:
- You can say, “Main Menu” for a listing of main menu choices.
- You can directly select any of the listed menu items by saying its name.
- Press the button for navigation-related services.
- Press the button for SOS Emergency Assistance.
- Refer to your Blue Link User’s Manual for detailed information on system
operation.
- For immediate assistance with subscription services, please call
1-855-2BLUELINK (1-855-225-8354).
- Please register your Blue Link at www.myhyundai.com.
In-Car Voice Response Commands
New Destination
Service Link
Roadside Assistance
Valet Alert
Help
Cancel r 4 0 4 r / B W J H B U J P O r # M V F - J O L
You can download the Blue Link mobile app to your
compatible smart phone from the following sites:
t J 1 I P O F
® — Apple
® App Store
t " O E S P J E
® — Google Play
With this feature, you can lock or unlock your vehicle doors from
virtually anywhere by using the Blue Link mobile phone app, by dialing
the toll-free number, or by using the Blue Link owner’s website.
t 5 P V T F U I J T G F B U V S F
Z P V N V T U I B W F B # M V F - J O L 1 F S T P O B M
Identification Number (PIN). To create or change your PIN,
log on to www.MyHyundai.com.
t # Z # M V F - J O L . P C J M F " Q Q 4 F M F D U % 0 0 3 6 / - 0 $ , P S % 0 0 3
LOCK, as desired.
- Enter your Blue Link PIN.
- The command to lock or unlock your doors will be sent to
your vehicle.
t # Z Q I P O F % J B M U P M M G S F F BLUELINK (1-855-225-8354).
t # Z X F C T J U F - P H P O U P X X X . Z ) Z V O E B J D P N
T F M F D U # M V F - J O L
- Select Remote Services, then Remote Door Unlock/Lock.
- Input your Blue Link PIN. (If you need time to get to your
vehicle, specify a time delay before your vehicle will be
unlocked.)
Blue Link Mobile App
To Activate Remote Door Unlock/LockRemote Door Unlock/Lock
Page 16 of 20
MULTIMEDIA
SANTA FE
29 28
HYUNDAI

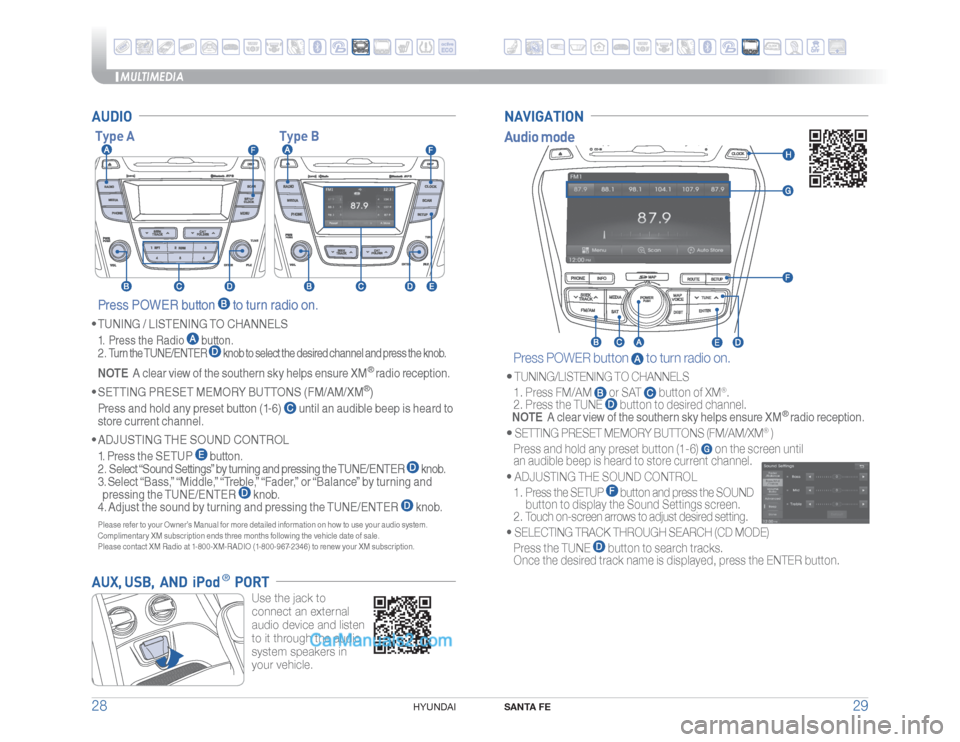

AUDIO Press POWER button
to turn radio on.
r TUNING / LISTENING TO CHANNELS
1. Press the Radio
button.
2 . Turn the TUNE/ENTER
knob to select the desired channel and press the knob.
NOTE A clear view of the southern sky helps ensure XM
® radio reception.
r SETTING PRESET MEMORY BUTTONS (FM/AM/XM
®)
Press and hold any preset button (1-6)
until an audible beep is heard to
store current channel.
r ADJUSTING THE SOUND CONTROL
1. Press the SETUP
button.
4 F M F D U i 4 P V O E 4 F U U J O H T u C Z U V S O J O H B O E Q S F T T J O H U I F 5 6 / & & / 5 & 3
knob.
4 F M F D U i # B T T
u i . J E E M F
u i 5 S F C M F
u i ' B E F S
u P S i # B M B O D F u C Z U V S O J O H B O E
pressing the TUNE/ENTER
knob.
4. Adjust the sound by turning and pressing the TUNE/ENTER
knob.
Please refer to your Owner’s Manual for more detailed information on how to use your audio system.
Complimentary XM subscription ends three months following the vehicle date of sale.
Please contact XM Radio at 1-800-XM-RADIO (1-800-967-2346) to renew your XM subscription.Type A Type B
Audio mode Press POWER button
to turn radio on.
t TUNING/LISTENING TO CHANNELS
1. Press FM/AM
or SAT
button of XM
®.
2. Press the TUNE
button to desired channel.
NOTE A clear view of the southern sky helps ensure XM
® radio reception.
t
SETTING PRESET MEMORY BUTTONS (FM/AM/XM
® )
Press and hold any preset button (1-6)
on the screen until
an audible beep is heard to store current channel.
t
ADJUSTING THE SOUND CONTROL
1. Press the SETUP
button and press the SOUND
button to display the Sound Settings screen.
2. Touch on-screen arrows to adjust desired setting.
t
SELECTING TRACK THROUGH SEARCH (CD MODE)
Press the TUNE
button to search tracks.
Once the desired track name is displayed, press the ENTER button.
NAVIGATION
AUX, USB, AND iPod
® PORT
Use the jack to
connect an external
audio device and listen
to it through the audio
system speakers in
your vehicle.
Page 17 of 20
MULTIMEDIA
SANTA FE
31 30
HYUNDAI

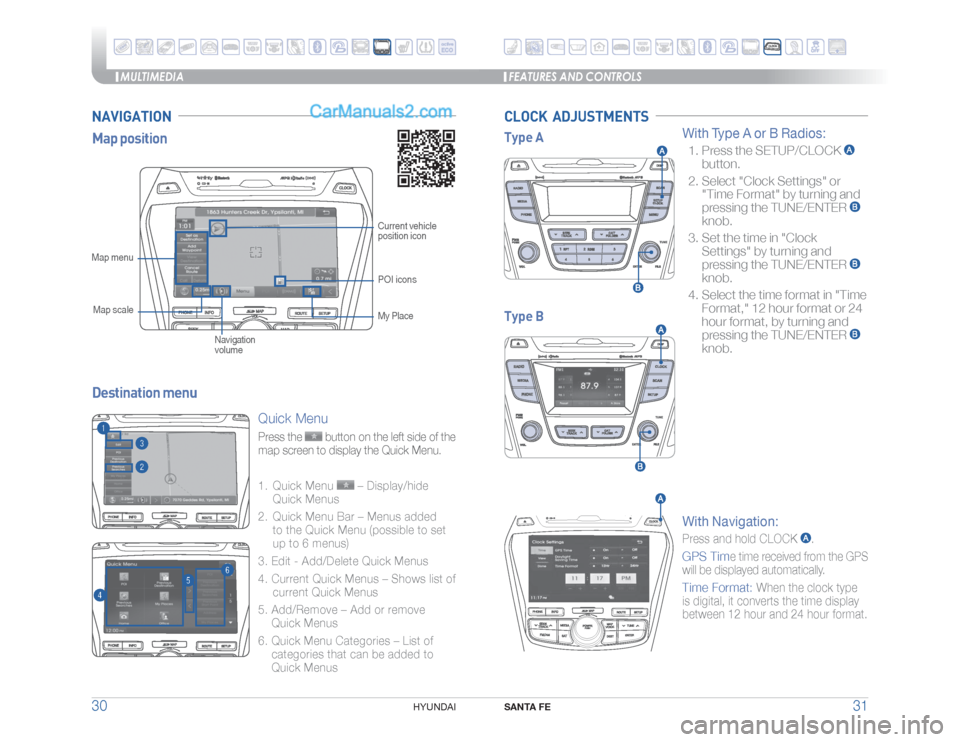

Map scale Map menuMap position
Destination menu
Current vehicle
position icon
POI icons
My Place
Navigation
volume
Quick MenuPress the
button on the left side of the
map screen to display the Quick Menu.
1. Quick Menu
– Display/hide
Quick Menus
2. Quick Menu Bar – Menus added
to the Quick Menu (possible to set
up to 6 menus)
3. Edit - Add/Delete Quick Menus
4. Current Quick Menus – Shows list of
current Quick Menus
5. Add/Remove – Add or remove
Quick Menus
6. Quick Menu Categories – List of
categories that can be added to
Quick Menus
CLOCK ADJUSTMENTS
With Type A or B Radios: 1. Press the SETUP/CLOCK
button.
2. Select "Clock Settings" or
"Time Format" by turning and
pressing the TUNE/ENTER
knob.
3. Set the time in "Clock
Settings" by turning and
pressing the TUNE/ENTER
knob.
4. Select the time format in "Time
Format," 12 hour format or 24
hour format, by turning and
pressing the TUNE/ENTER
knob.
With Navigation:Press and hold CLOCK
.
GPS Tim
e time received from the GPS
will be displayed automatically.
Time Format:
When the clock type
is digital, it converts the time display
between 12 hour and 24 hour format.
Type A
Type B
NAVIGATION
FEATURES AND CONTROLS
Page 18 of 20
FEATURES AND CONTROLS
SANTA FE
33 32
HYUNDAI

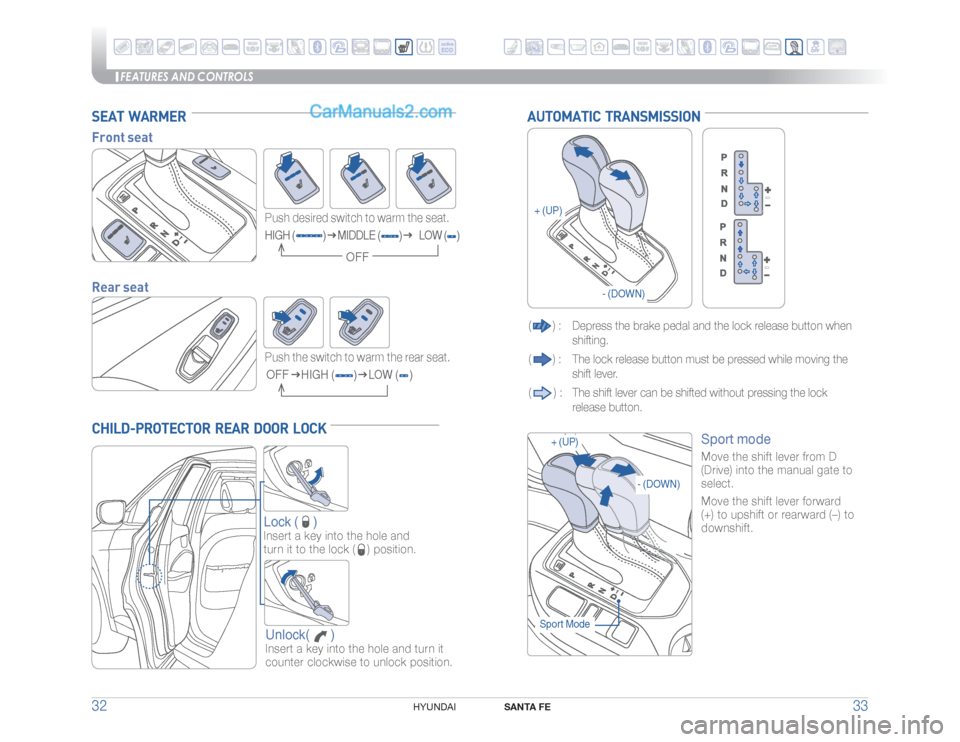

CHILD-PROTECTOR REAR DOOR LOCK
Lock (
)
Insert a key into the hole and
turn it to the lock (
) position.
Unlock( )Insert a key into the hole and turn it
counter clockwise to unlock position.
SEAT WARMERFront seat
Rear seat
Push the switch to warm the rear seat. OFF
HIGH (
)
LOW (
)
Push desired switch to warm the seat.HIGH (
)
MIDDLE (
)
LOW (
)
OFF
AUTOMATIC TRANSMISSION(
) : Depress the brake pedal and the lock release button
when
shifting.
() : The lock release button must be pressed while moving the
shift lever.
() : The shift lever can be shifted without pressing the lock
release button.
Sport mode Move the shift lever from D
(Drive) into the manual gate to
select.
Move the shift lever forward
(+) to upshift or rearward (–) to
downshift.
+ (UP)
+ (UP)
- (DOWN)
- (DOWN)
Sport Mode
Page 19 of 20
FEATURES AND CONTROLS
SANTA FE
35 34
HYUNDAI

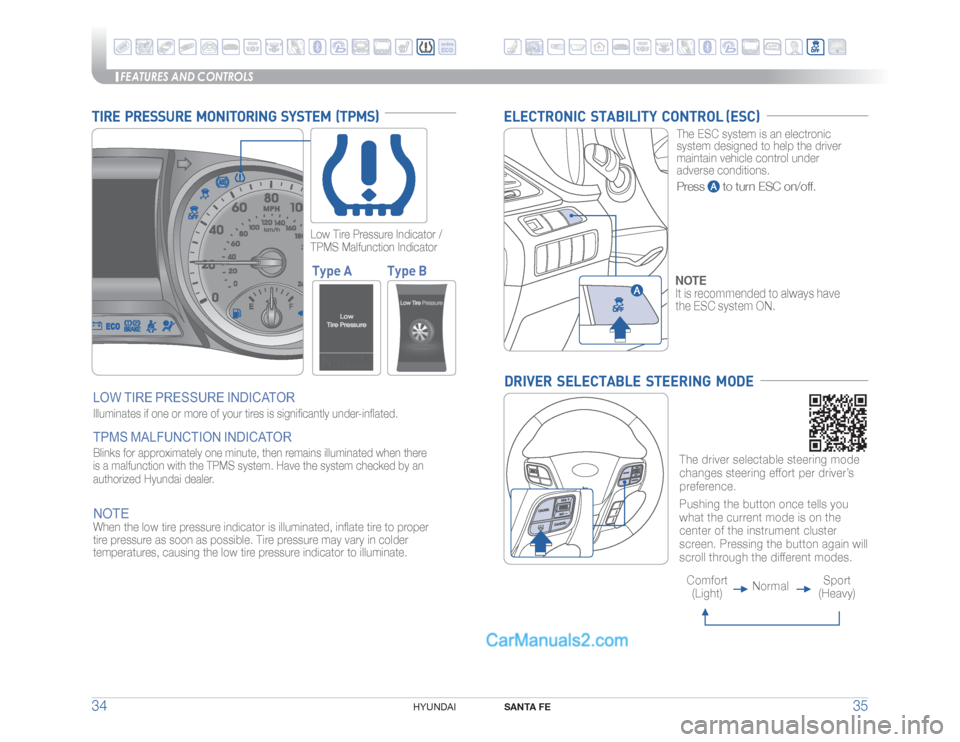

TIRE PRESSURE MONITORING SYSTEM (TPMS)LOW TIRE PRESSURE INDICATOR Illuminates if one or more of your tires is significantly under-inflated. TPMS MALFUNCTION INDICATORBlinks for approximately one minute, then remains illuminated when there
is a malfunction with the TPMS system. Have the system checked by an
authorized Hyundai dealer.NOTEWhen the low tire pressure indicator is illuminated, inflate tire to proper
tire pressure as soon as possible. Tire pressure may vary in colder
temperatures, causing the low tire pressure indicator to illuminate.
Low Tire Pressure Indicator /
TPMS Malfunction IndicatorType A Type B
ELECTRONIC STABILITY CONTROL (ESC)
The ESC system is an electronic
system designed to help the driver
maintain vehicle control under
adverse conditions.Press
to turn ESC on/off.
DRIVER SELECTABLE STEERING MODE
The driver selectable steering mode
changes steering effort per driver’s
preference.
Pushing the button once tells you
what the current mode is on the
center of the instrument cluster
screen. Pressing the button again will
scroll through the different modes.
Comfort
(Light)NormalSport
(Heavy)NOTE
It is recommended to always have
the ESC system ON.
Page 20 of 20
FEATURES AND CONTROLS
36
HYUNDAI

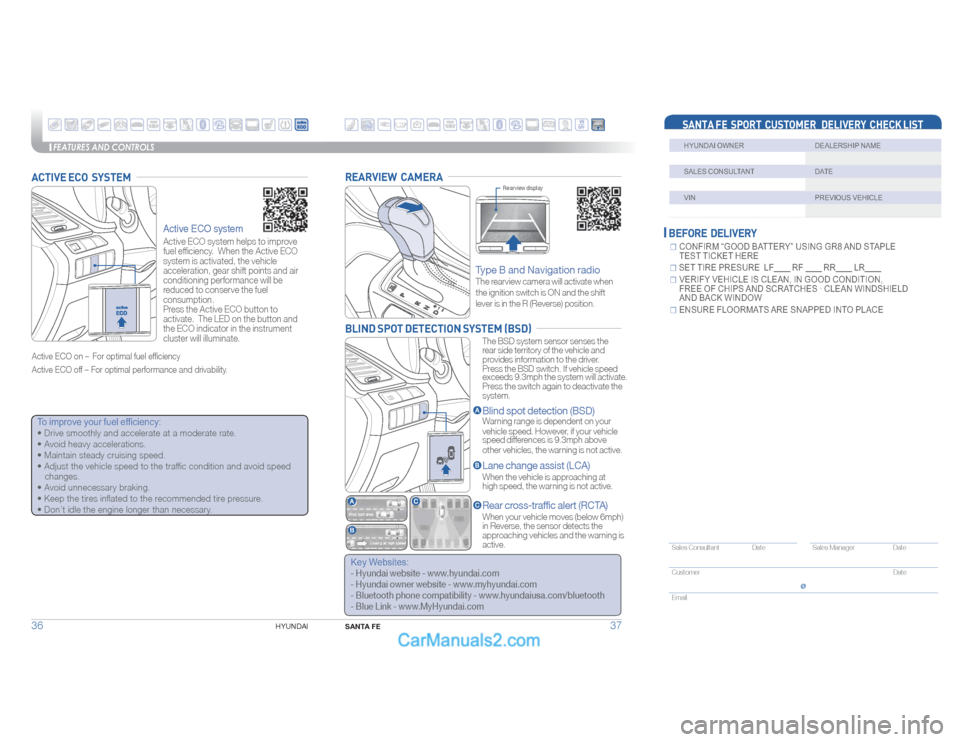

ACTIVE ECO SYSTEM
Active ECO system Active ECO system helps to improve
fuel efficiency. When the Active ECO
system is activated, the vehicle
acceleration, gear shift points and air
conditioning performance will be
reduced to conserve the fuel
consumption.
Press the Active ECO button to
activate. The LED on the button and
the ECO indicator in the instrument
cluster will illuminate.
☐CONFIRM “GOOD BATTERY” USING GR8 AND STAPLE
TEST TICKET HERE☐ SET TIRE PRESURE LF RF RR LR ☐VERIFY VEHICLE IS CLEAN, IN GOOD CONDITION,
FREE OF CHIPS AND SCRATCHES · CLEAN WINDSHIELD
AND BACK WINDOW☐ENSURE FLOORMATS ARE SNAPPED INTO PLACE BEFORE DELIVERY
SANTA FE SPORT CUSTOMER DELIVERY CHECK LISTHYUNDAI OWNER DEALERSHIP NAMESALES CONSULTANT DATEVIN PREVIOUS VEHICLE
Sales Consultant Date Sales Manager Date
Customer Date
Email
@
SANTA FE
37
REARVIEW CAMERABLIND SPOT DETECTION SYSTEM (BSD)
Type B and Navigation radioThe rearview camera will activate when
the ignition switch is ON and the shift
lever is in the R (Reverse) position.
The BSD system sensor senses the
rear side territory of the vehicle and
provides information to the driver.
Press the BSD switch. If vehicle speed
exceeds 9.3mph the system will activate.
Press the switch again to deactivate the
system.Blind spot detection (BSD)Warning range is dependent on your
vehicle speed. However, if your vehicle
speed differences is 9.3mph above
other vehicles, the warning is not active.Lane change assist (LCA)When the vehicle is approaching at
high speed, the warning is not active.Rear cross-traffic alert (RCTA)When your vehicle moves (below 6mph)
in Reverse, the sensor detects the
approaching vehicles and the warning is
active.
Rearview display
Key Websites: - Hyundai website - www.hyundai.com
- Hyundai owner website - www.myhyundai.com
- Bluetooth phone compatibility - www.hyundaiusa.com/bluetooth
- Blue Link - www.MyHyundai.com
To improve your fuel efficiency: t % S J W F T N P P U I M Z B O E B D D F M F S B U F B U B N P E F S B U F S B U F
t " W P J E I F B W Z B D D F M F S B U J P O T
t . B J O U B J O T U F B E Z D S V J T J O H T Q F F E
t " E K V T U U I F W F I J D M F T Q F F E U P U I F U S B G m D D P O E J U J P O B O E B W P J E T Q F F E
changes.
t " W P J E V O O F D F T T B S Z C S B L J O H
t , F F Q U I F U J S F T J O n B U F E U P U I F S F D P N N F O E F E U J S F Q S F T T V S F
t % P O U J E M F U I F F O H J O F M P O H F S U I B O O F D F T T B S Z Active ECO on – For optimal fuel efficiency
Active ECO off – For optimal performance and drivability.
