Hyundai Santa Fe Sport 2016 Quick Reference Guide

Scheduled Maintenance Normal Usage Severe Usage*Engine Oil and Filter (2.0 T-GDI)* Replace1st: 3,000 or 6 mos.
Add'l: 5,000 or 6 mos.Replace 3,000 or 3 mos.
Engine Oil and Filter (2.4 GDI)* Replace 7,500 or 12 mos. Replace 3,750 or 6 mos.
Fuel System Cleaner Additive AddAt every Oil and
Filter ServiceAdd Same As Normal
Tire Rotation Perform 7,500 Perform 7,500
Air Cleaner FilterInspect
Replace7,500
30,000Inspect
ReplaceSame As Normal
More Frequently
Battery Condition Inspect 7,500 Inspect Same As Normal
Vacuum Hose Inspect 7,500 Inspect Same As Normal
Climate Control Air Filter Replace 15,000 Replace More Frequently
Brake Hoses and Lines Inspect 15,000 Inspect Same As Normal
Drive Shafts and Boots Inspect 15,000 Inspect 7,500 or 6 mos.
Exhaust Pipe and Muffler Inspect 15,000 Inspect Same As Normal
Front Brake Disc/Pads, Calipers Inspect 15,000 Inspect More Frequently
Rear Brake Disc/Pads Inspect 15,000 Inspect More Frequently
Steering Gear Box, Linkage & Boots,
Lower/Upper Arm Ball JointInspect 15,000 Inspect More Frequently
Suspension Mounting Bolts Inspect 15,000 Inspect Same As Normal
Propeller Shaft (AWD) Inspect 15,000 Inspect 7,500 or 6 mos.
Brake Fluid Inspect 30,000 Inspect Same As Normal
Fuel Filter Inspect 30,000 Inspect Same As Normal
Fuel Lines, Fuel Hoses, and Connections Inspect 30,000 Inspect Same As Normal
Fuel Tank Air Filter Inspect 30,000 Inspect Same As Normal
Parking Brake Inspect 30,000 Inspect More Frequently
Vapor Hose and Fuel Filler Cap, Fuel Tank Inspect 30,000 Inspect Same As Normal
Transfer Case Oil (AWD) Inspect 37,500 Replace 75,000
Rear Axle Oil (AWD) Inspect 37,500 Replace 75,000
Valve Clearance Inspect 60,000 Inspect Same As Normal
Drive Belts Inspect1st: 60,000 or 72 mos.
Add'l.: 15,000 or 24 mos.Inspect Same As Normal
Coolant Replace1st: 60,000 or 60 mos.
Add'l.: 30,000 or 24 mos.Replace Same As Normal
Spark Plugs (2.0 T-GDI) Replace 45,000 or 36 mos. Replace More Frequently
Spark Plugs (2.4 GDI) Replace 105,000 or 84 mos. Replace More Frequently
Automatic Transaxle Fluid No Check, No Service required Replace 60,000
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*See Owner’s Manual for details.MAINTENANCE
NP150-72014-A
(Rev 05/29/14)
Printing 06/03/14
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s Owner’s Manual.
If you require additional information or are unsure of a specific issue, you should always refer to the vehicle’s Owner’s
Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing; however, specifications
and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide,
and Hyundai reserves the right to change product specifications and equipment at any time without incurring
obligations. Some vehicles are shown with optional equipment. Specifications apply to U.S. vehicles only. Please
contact your Hyundai dealer for current vehicle specifications.
www.hyundai.com
Roadside Assistance:
1-800-243-7766
Consumer Affairs:
1-800-633-5151
XM®Radio:
1-800-967-2346
Blue Link:
1-855-2BLUELINK
(1-855-225-8354)
☐
DRIVER SELECTABLE STEERING MODE– pages 35
- Demonstrate and explain the different
steering modes

☐ BLUETOOTH – pages 22 – 25
- Show phone compatibility website:
www.hyundaiusa.com/bluetooth
- Make a test call using Bluetooth with the customer’s phone
- Demonstrate Voice Recognition (VR)
☐
BLUE LINK – page 26 – 27
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
- Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
☐
TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 34
Explain TPMS function to customer
- When illuminated, one or more tires are
under-inflated.
- Blinks for approximately one minute
then remains illuminated when there
is a malfunction with the TPMS
☐
VEHICLE SETTINGS – pages 12 – 15 and 29 – 30
- Demonstrate vehicle settings in instrument cluster
- Demonstrate navigation use, enter dealer address
- Show radio presets
☐ CLOCK – pages 31
- Demonstrate how to set clock (including daylight savings
setting for Navigation equipped vehicles)WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES

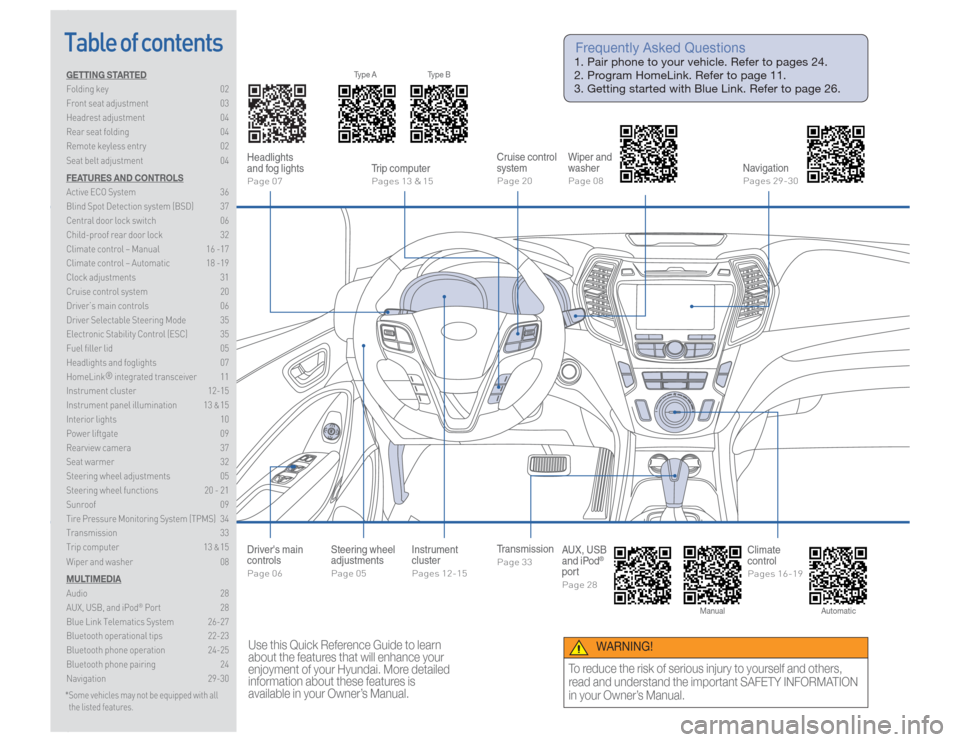

Table of contentsGETTING STARTED
Folding key 02
Front seat adjustment 03
Headrest adjustment 04
Rear seat folding 04
Remote keyless entry 02
Seat belt adjustment 04
FEATURES AND CONTROLS
Active ECO System 36
Blind Spot Detection system (BSD) 37
Central door lock switch 06
Child-proof rear door lock 32
Climate control – Manual 16 -17
Climate control – Automatic 18 -19
Clock adjustments 31
Cruise control system 20
Driver’s main controls 06
Driver Selectable Steering Mode 35
Electronic Stability Control (ESC) 35
Fuel filler lid 05
Headlights and foglights 07
HomeLink®
integrated transceiver 11
Instrument cluster 12-15
Instrument panel illumination 13
& 15
Interior lights 10
Power liftgate 09
Rearview camera 37
Seat warmer 32
Steering wheel adjustments 05
Steering wheel functions 20 - 21
Sunroof 09
Tire Pressure Monitoring System (TPMS) 34
Transmission 33
Trip computer 13 & 15
Wiper and washer 08
MULTIMEDIA
Audio 28
AUX, USB, and iPod
® Port 28
Blue Link Telematics System 26-27
Bluetooth operational tips 22-23
Bluetooth phone operation 24-25
Bluetooth phone pairing 24
Navigation 29-30
Headlights
and fog lightsPage 07
Instrument
clusterPages 12-15
Wiper and
washerPage 08
NavigationPages 29-30
Trip computerPages 13 & 15
Cruise control
systemPage 20
* Some vehicles may not be equipped with all
the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features is
available in your Owner’s Manual.
Frequently Asked Questions 1. Pair phone to your vehicle. Refer to pages 24.
2. Program HomeLink. Refer to page 11.
3. Getting started with Blue Link. Refer to page 26.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
Steering wheel
adjustmentsPage 05
Climate
controlPages 16-19
TransmissionPage 33
AUX, USB
and iPod
®
port
Page 28
Driver's main
controlsPage 06
Type A
Manual Automatic Type B

GETTING STARTED
SANTA FE
03 02
HYUNDAI
REMOTE KEYLESS ENTRYFOLDING KEY
Driver’s door Lock / UnlockSmart key must be within range.Press: Once – Unlock driver door
Twice – Unlock all doors
Third – Lock all doorsUnfolding keyPress button
A to unfold key.
LockLockUnlockUnlockTailgate unlock
(Press and Hold)

Tailgate unlock
(Press and Hold)
Alarm
Alarm Mechanical key
Press and hold the release
A button
and remove the key.
NOTEUser selectable option see Owner’s
Manual for more detail.
A
A
FRONT SEAT ADJUSTMENT (Manual)FRONT SEAT ADJUSTMENT (POWER)
Lumbar support
Lumbar support
(for driver’s seat)
Forward/backward
Forward / backwardSeat cushion height
(for driver’s seat)
Seat cushion height
(for driver’s seat)
Seatback angle
Seatback angleAAA
A
BB
B
CC
C
D
D
A
B
C

GETTING STARTED
SANTA FE
05 04
HYUNDAI
Telescopic
HEADREST ADJUSTMENT
To Raise Headrest:
Pull headrest up.
To Lower Headrest:
Press lock button while pressing
down on headrest.
To Adjust Headrest Forward:
Pull forward to 1 of 3 positions
To Adjust Backward:
Press lock button and push
headrest backwards.
SEAT BELT ADJUSTMENT (Front seat)
Pull up to raise.Press button and
push down to
lower.
FUEL FILLER LIDSTEERING WHEEL ADJUSTMENTS
TiltNOTE
Do not adjust while driving.
1. Pull the lever
A down to release.
2. Set the angle B and distance
C
3. Pull the lever
A up to lock.
A
B
C
REAR SEAT FOLDING
From cargo areaRear center seatback
FEATURES AND CONTROLS
Check the engine oil regularly
between recommended oil changes.

FEATURES AND CONTROLS
SANTA FE
07 06
HYUNDAI
DRIVER'S MAIN CONTROLSCENTRAL DOOR LOCK SWITCH
Outside rearview mirrors Press L (left) or R (right) on the switch.
Then adjust the mirror by using the
directional switch (
).
Power window lock switch Disables the power window switches
on the rear passenger doors only.
Window auto down/upPress past detent to fully
open/close window.
HEADLIGHTS AND FOG LIGHTS
Parking light positionAuto light positionHeadlight position
Headlight delayHeadlights may stay on for 15 seconds after exiting and locking vehicle.
Press remote lock button twice to turn headlights off.
See Owner’s Manual for more detail.
High beam
Fog light
Turn signals and lane change signals
Flashing headlights
All doors will lock
All doors will unlockPULL
PUSH
DRL OFF position

FEATURES AND CONTROLS
SANTA FE
09 08
HYUNDAI
MIST -
Single wipe
OFF -
Off
INT -
Intermittent wipe
LO -
Normal wiper speed
HI -
Fast wiper speed
WIPER AND WASHER
Front windshield wash
with brief wipesIntermittent wipe time
adjustmentFast wiper speed
Slow wiper speedRear wiper/washer control
HI - Fast wiper speed
LO - Normal wiper speed
OFF - OffRear window wash
with brief wipes
PULL
PUSH
SUNROOFSliding the sunroof
To Open
Press switch rearward.To ClosePress switch forward past the
detent to close completely.To TiltPress the switch up.To ClosePush the switch forward or pull
the switch down.
Smart LiftgateRefer to Owner’s Manual for more information on operating Smart Liftgate
feature.Tilting the sunroofNOTE
To operate the sunshade,
press open or close button.
Sunshade
open/close button
POWER LIFTGATE
Options for opening liftgater Press exterior liftgate soft-touch switch. r Press and hold key fob liftgate button. r Press front seat overhead console button.Options for closing liftgater Press button on edge of open liftgate.r Press front seat overhead console button.

FEATURES AND CONTROLS
SANTA FE
11 10
HYUNDAI
HOMELINK WIRELESS CONTROL SYSTEM
Home Link
Standard Programming To train most devices, follow these instructions:
1. For first-time programming, press and hold the two outside buttons,
HomeLink
® Channel 1 and Channel 3 Buttons, until the indicator light
begins to flash (after 20 seconds). Release both buttons. Do not hold
the buttons for longer than 30 seconds.
2. Position the end of your hand-held transmitter 1-3 inches (2-8 cm)
away from the HomeLink
® buttons while keeping the indicator light
in view.
3. Simultaneously press and hold both the HomeLink
® and hand-held
transmitter button. DO NOT release the buttons until step 4 has
been completed.
4. While continuing to hold the buttons the red indicator Status LED
will flash slowly and then rapidly after HomeLink
® successfully trains
to the frequency signal from the hand-held transmitter. Release both
buttons.
For detail instructions, refer to your Owner’s Manual or visit
www.homelink.com.
INTERIOR LIGHTS
Push the lens
to turn the
map lamp on or off.
ON Map lamp and room lamp will turn on.OFF The lights stay off at all times,
even if a door is opened.DOOR Map lamp and room lamp
comes on when a door is opened.
Press the switch to turn the light
on or off.
Map lampRoom lamp

FEATURES AND CONTROLS
SANTA FE
13 12
HYUNDAI

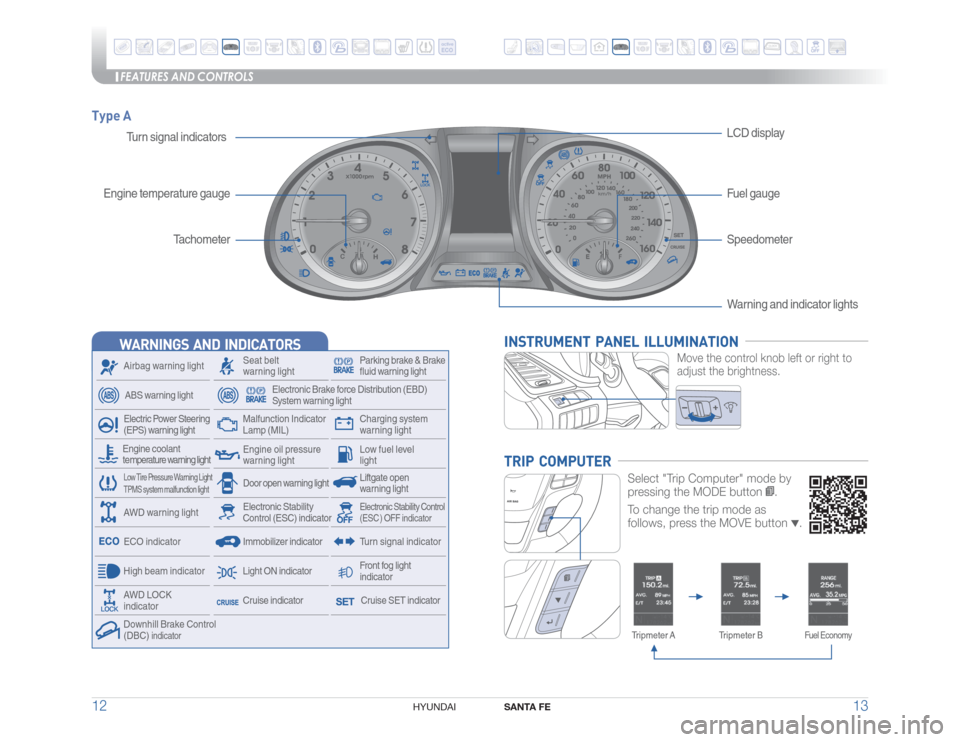

Warning and indicator lights
Tachometer
Speedometer
Turn signal indicatorsLCD display
INSTRUMENT PANEL ILLUMINATION
Move the control knob left or right to
adjust the brightness.
WARNINGS AND INDICATORS
Seat belt
warning light
Charging system
warning light
Airbag warning light
Electronic Brake force Distribution (EBD)
System warning light
Low Tire Pressure Warning Light
TPMS system malfunction lightABS warning light
Front fog light
indicator
Light ON indicator
Liftgate open
warning light
Electric Power Steering
(EPS) warning lightHigh beam indicator
Parking brake & Brake
fluid warning light
Engine oil pressure
warning lightMalfunction Indicator
Lamp (MIL)
Low fuel level
light
Electronic Stability
Control (ESC) indicator
Electronic Stability Control
(ESC ) OFF indicator
Door open warning light
Turn signal indicator
ECO indicatorDownhill Brake Control
(DBC)
indicator
AWD LOCK
indicatorAWD warning lightEngine coolant
temperature warning light
Cruise indicator
Cruise SET indicator
Type AEngine temperature gaugeFuel gauge
TRIP COMPUTER
Select "Trip Computer" mode by
pressing the MODE button
.
To change the trip mode as
follows, press the MOVE button
.
Tripmeter A
Tripmeter B
Fuel Economy
Immobilizer indicator

FEATURES AND CONTROLS
SANTA FE
15 14
HYUNDAI
Warning and indicator lights
Engine temperature gauge
Tachometer Gear indicator
Speedometer Outside temperature guageFuel gauge Odometer / Trip computer
Type B
INSTRUMENT PANEL ILLUMINATION
Move the control knob left or right to
adjust the brightness.
WARNINGS AND INDICATORS
Seat belt
warning light
Charging system
warning light
Airbag warning light
Electronic Brake force Distribution (EBD)
System warning light
ABS warning light
Front fog light indicator
Light ON indicator
Liftgate open
warning light
Electric Power Steering
(EPS) warning lightHigh beam indicator
Parking brake & Brake
fluid warning light
Engine oil pressure
warning lightMalfunction Indicator
Lamp (MIL)
Low fuel level
light
Electronic Stability Control
(ESC )
indicator
Electronic Stability Control
(ESC ) OFF indicator
Door open warning
light
Turn signal indicator
ECO indicator
Immobilizer indicator
Downhill Brake Control
(DBC)
indicator
AWD LOCK indicatorAWD warning lightEngine coolant
temperature warning light
Cruise indicator
Cruise SET indicator
TRIP COMPUTER
Select "Trip Computer" mode by
pressing the MODE button
.
To change the trip mode as
follows, press the MOVE button
.
Tripmeter A
Tripmeter B
Fuel Economy
Low Tire Pressure Warning Light
TPMS system malfunction light

FEATURES AND CONTROLS
SANTA FE
17 16
HYUNDAI
AIR INTAKE CONTROL DEFROSTING / DEFOGGING
2. Set the temperature
control towards
warmer setting.3. Set the fan speed to
the highest setting.1. Press the front
windshield defrost
button.
Press to activate/deactivate the
rear window and side mirrors
defroster.REAR WINDOW AND SIDE
MIRRORS DEFROSTER
Changing the direction of
the air flow as follows:MODE SELECTION
Face levelBi-LevelFloor levelFloor/Defrost LevelDefrost Level

MAX A/C (Max air conditioning) button
A/C (Air conditioning) button
Mode selection buttons
Fan speed control knob
Rear window defrost button Front windshield defrost button Temperature control button Air intake control button
NOTETo reduce tendency of the glass
fogging and also to improve visibility,
keep the interior surface of the
windshield clean by wiping it with
a clean cloth and glass cleaner.
In addition, select air intake control
to the outside (fresh) air position
whenever possible while operating
the vehicle.
Outside (fresh) air positionRecirculated air position
Manual Climate Control
