Hyundai Sonata 2005 Owner's Manual

9

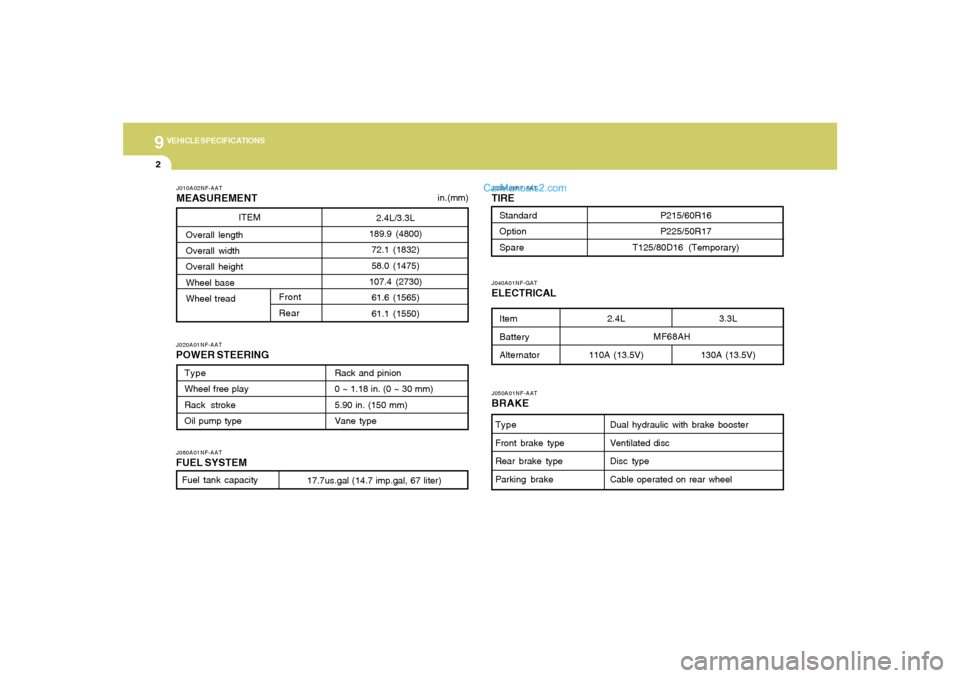

VEHICLE SPECIFICATIONS2
3.3L
130A (13.5V)
J010A02NF-AATMEASUREMENTJ060A01NF-AATFUEL SYSTEMJ020A01NF-AATPOWER STEERING
J030A01NF-AATTIREItem
Battery
AlternatorJ040A01NF-GATELECTRICAL
2.4L
110A (13.5V) in.(mm)
Fuel tank capacity
17.7us.gal (14.7 imp.gal, 67 liter)
ITEM
MF68AH
J050A01NF-AATBRAKE
Dual hydraulic with brake booster
Ventilated disc
Disc type
Cable operated on rear wheel Type
Front brake type
Rear brake type
Parking brake
Type
Wheel free play
Rack stroke
Oil pump typeRack and pinion
0 ~ 1.18 in. (0 ~ 30 mm)
5.90 in. (150 mm)
Vane type
2.4L/3.3L
189.9 (4800)
72.1 (1832)
58.0 (1475)
107.4 (2730)
61.6 (1565)
61.1 (1550) Overall length
Overall width
Overall height
Wheel base
Wheel tread
Front
Rear
Standard
Option
Spare
P215/60R16
P225/50R17
T125/80D16 (Temporary)

9
VEHICLE SPECIFICATIONS
3
3.3L
6-Cyl., V-type DOHC
3.62 x 3.29 (92.0 x 83.8)
203.9 (3,342)
1 - 2 - 3 - 4 - 5 - 6
IFR5G-11
620 ± 100
BTDC 10° ± 5° 0.006 ~ 0.009 in. (0.17 ~ 0.23 mm)
0.01 ~ 0.012 in. (0.27 ~ 0.33 mm)
0.039 ~ 0.043 in. (1.0 - 1.1 mm) 2.4L
4-Cyl., In-line DOHC
3.46 x 3.81 (88 x 97)
143.9(2,359)
1 - 3 - 4 - 2
SK16PR-A11
650 ± 100
BTDC 8° ± 5°

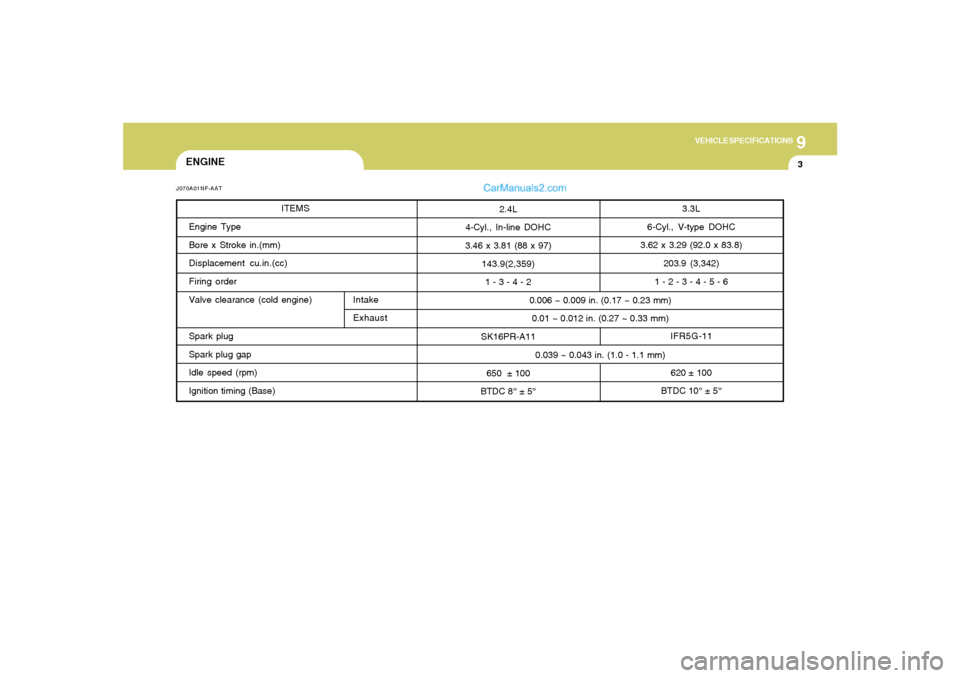

ENGINEJ070A01NF-AAT
ITEMS
Engine Type
Bore x Stroke in.(mm)
Displacement cu.in.(cc)
Firing order
Valve clearance (cold engine)Intake
Exhaust
Spark plug
Spark plug gap
Idle speed (rpm)
Ignition timing (Base)

9
VEHICLE SPECIFICATIONS4
Oil & Grease Standard
API SJ, SL
or ABOVE, SAE 5W-20, SAE 5W-30 (ALL TEMP. RANGE)
ILSAC GF-3 SAE 10W-30 (ABOVE 0°F(-18°C))
or ABOVE
HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)
HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other
brands meeting the SP III specification approved by Hyundai Motor Co..
Ethylene glycol base for aluminum radiator
PSF-3 TYPE FLUID
DOT 3 or DOT 4 Equivalent

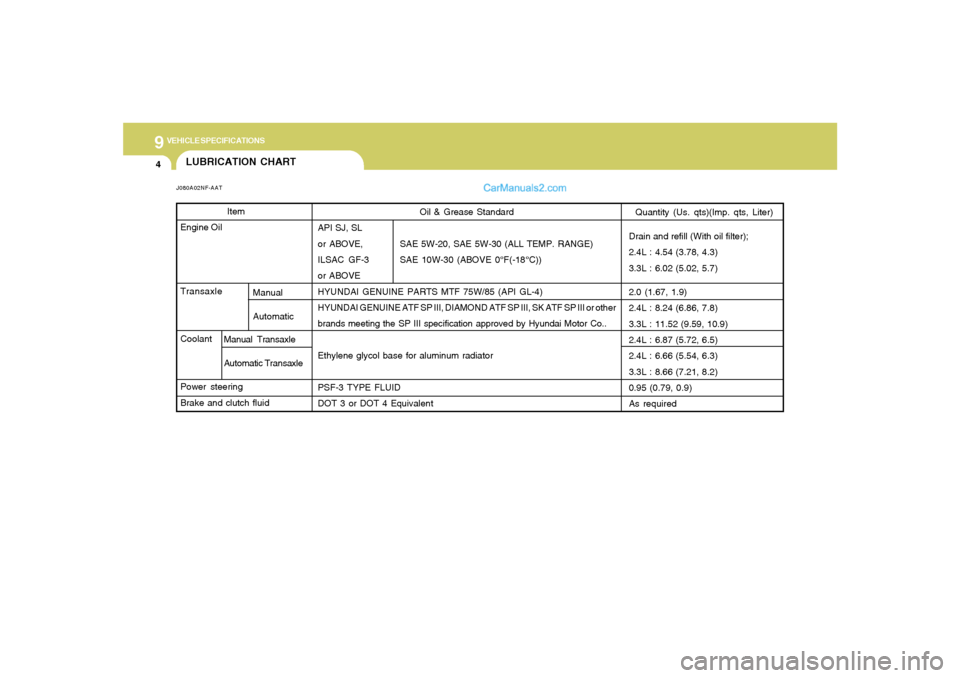

LUBRICATION CHARTJ080A02NF-AAT
Quantity (Us. qts)(Imp. qts, Liter)
Drain and refill (With oil filter);
2.4L : 4.54 (3.78, 4.3)
3.3L : 6.02 (5.02, 5.7)
2.0 (1.67, 1.9)
2.4L : 8.24 (6.86, 7.8)
3.3L : 11.52 (9.59, 10.9)
2.4L : 6.87 (5.72, 6.5)
2.4L : 6.66 (5.54, 6.3)
3.3L : 8.66 (7.21, 8.2)
0.95 (0.79, 0.9)
As required Item
Engine Oil
Transaxle
Coolant
Power steering
Brake and clutch fluid
Manual Transaxle
Automatic Transaxle
Manual
Automatic

10

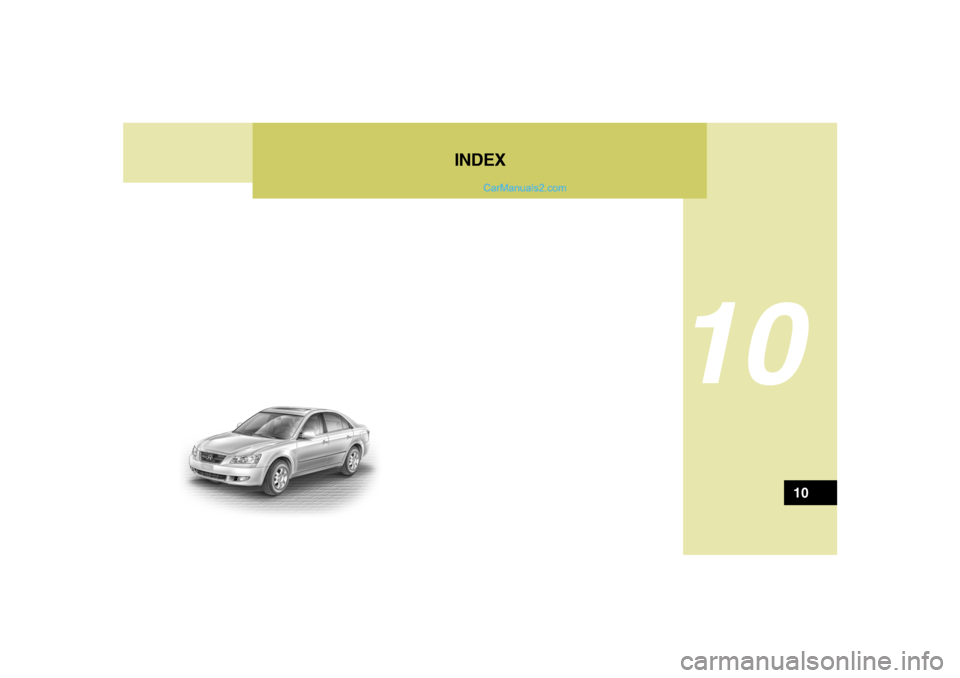

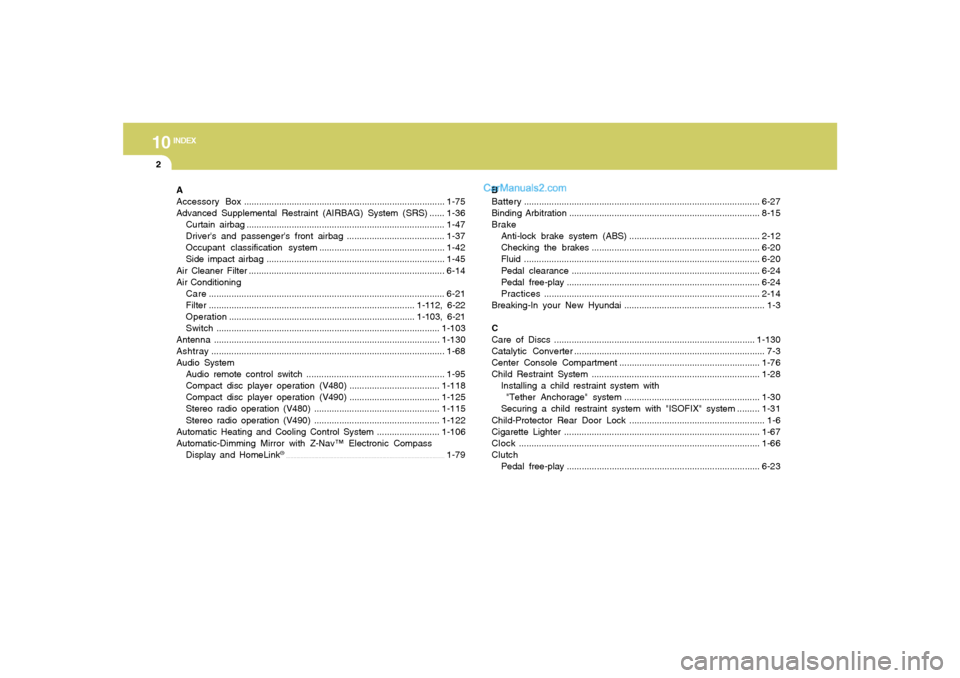

INDEX
10

10
INDEX
2
A
Accessory Box................................................................................1-75
Advanced Supplemental Restraint (AIRBAG) System (SRS) ......1-36
Curtain airbag...............................................................................1-47
Driver's and passenger's front airbag.......................................1-37
Occupant classification system..................................................1-42
Side impact airbag .......................................................................1-45
Air Cleaner Filter ..............................................................................6-14
Air Conditioning
Care..............................................................................................6-21
Filter.................................................................................. 1-112, 6-22
Operation.......................................................................... 1-103, 6-21
Switch.........................................................................................1-103
Antenna..........................................................................................1-130
Ashtray.............................................................................................1-68
Audio System
Audio remote control switch .......................................................1-95
Compact disc player operation (V480)....................................1-118
Compact disc player operation (V490)....................................1-125
Stereo radio operation (V480) ..................................................1-115
Stereo radio operation (V490) ..................................................1-122
Automatic Heating and Cooling Control System.........................1-106
Automatic-Dimming Mirror with Z-Nav™ Electronic Compass
Display and HomeLink
®
...........................................................................................................
1-79B
Battery..............................................................................................6-27
Binding Arbitration............................................................................8-15
Brake
Anti-lock brake system (ABS) ....................................................2-12
Checking the brakes...................................................................6-20
Fluid ..............................................................................................6-20
Pedal clearance...........................................................................6-24
Pedal free-play.............................................................................6-24
Practices......................................................................................2-14
Breaking-In your New Hyundai ........................................................ 1-3
C
Care of Discs ................................................................................1-130
Catalytic Converter............................................................................ 7-3
Center Console Compartment........................................................1-76
Child Restraint System ...................................................................1-28
Installing a child restraint system with
"Tether Anchorage" system ......................................................1-30
Securing a child restraint system with "ISOFIX" system .........1-31
Child-Protector Rear Door Lock ...................................................... 1-6
Cigarette Lighter..............................................................................1-67
Clock................................................................................................1-66
Clutch
Pedal free-play.............................................................................6-23

10
INDEX
3

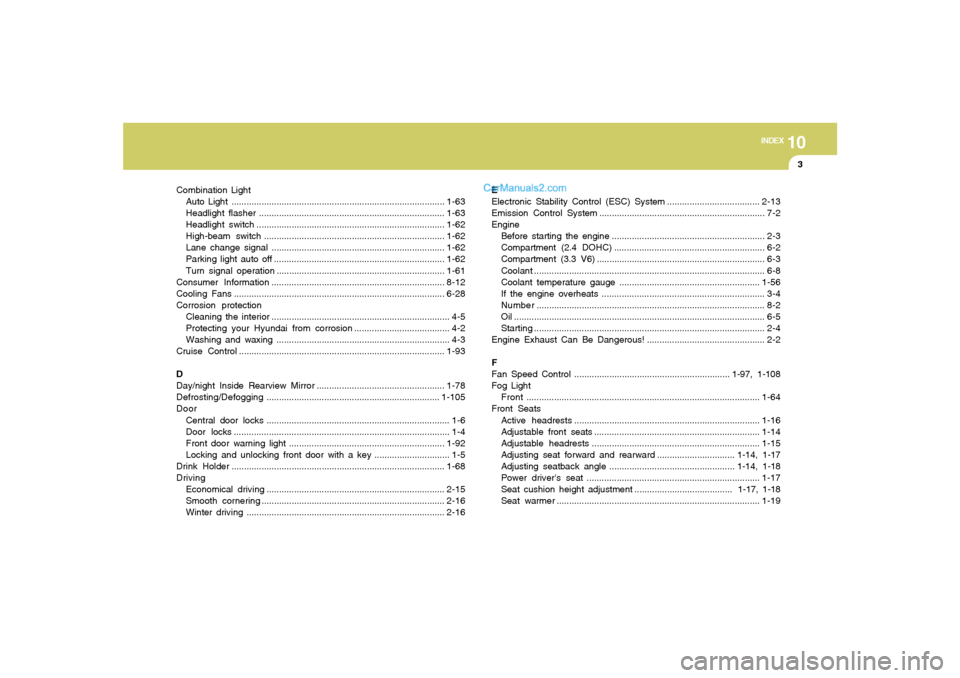

Combination Light
Auto Light .....................................................................................1-63
Headlight flasher..........................................................................1-63
Headlight switch...........................................................................1-62
High-beam switch........................................................................1-62
Lane change signal.....................................................................1-62
Parking light auto off ....................................................................1-62
Turn signal operation...................................................................1-61
Consumer Information .....................................................................8-12
Cooling Fans....................................................................................6-28
Corrosion protection
Cleaning the interior....................................................................... 4-5
Protecting your Hyundai from corrosion ...................................... 4-2
Washing and waxing ..................................................................... 4-3
Cruise Control..................................................................................1-93
D
Day/night Inside Rearview Mirror ...................................................1-78
Defrosting/Defogging.....................................................................1-105
Door
Central door locks......................................................................... 1-6
Door locks ...................................................................................... 1-4
Front door warning light ..............................................................1-92
Locking and unlocking front door with a key.............................. 1-5
Drink Holder.....................................................................................1-68
Driving
Economical driving.......................................................................2-15
Smooth cornering.........................................................................2-16
Winter driving...............................................................................2-16E
Electronic Stability Control (ESC) System.....................................2-13
Emission Control System.................................................................. 7-2
Engine
Before starting the engine ............................................................. 2-3
Compartment (2.4 DOHC) ............................................................ 6-2
Compartment (3.3 V6)................................................................... 6-3
Coolant............................................................................................ 6-8
Coolant temperature gauge ........................................................1-56
If the engine overheats ................................................................. 3-4
Number........................................................................................... 8-2
Oil .................................................................................................... 6-5
Starting............................................................................................ 2-4
Engine Exhaust Can Be Dangerous!............................................... 2-2
F
Fan Speed Control.............................................................. 1-97, 1-108
Fog Light
Front
.............................................................................................1-64
Front Seats
Active headrests ..........................................................................1-16
Adjustable front seats ..................................................................1-14
Adjustable headrests...................................................................1-15
Adjusting seat forward and rearward............................... 1-14, 1-17
Adjusting seatback angle.................................................. 1-14, 1-18
Power driver's seat .....................................................................1-17
Seat cushion height adjustment....................................... 1-17, 1-18
Seat warmer.................................................................................1-19

10
INDEX
4

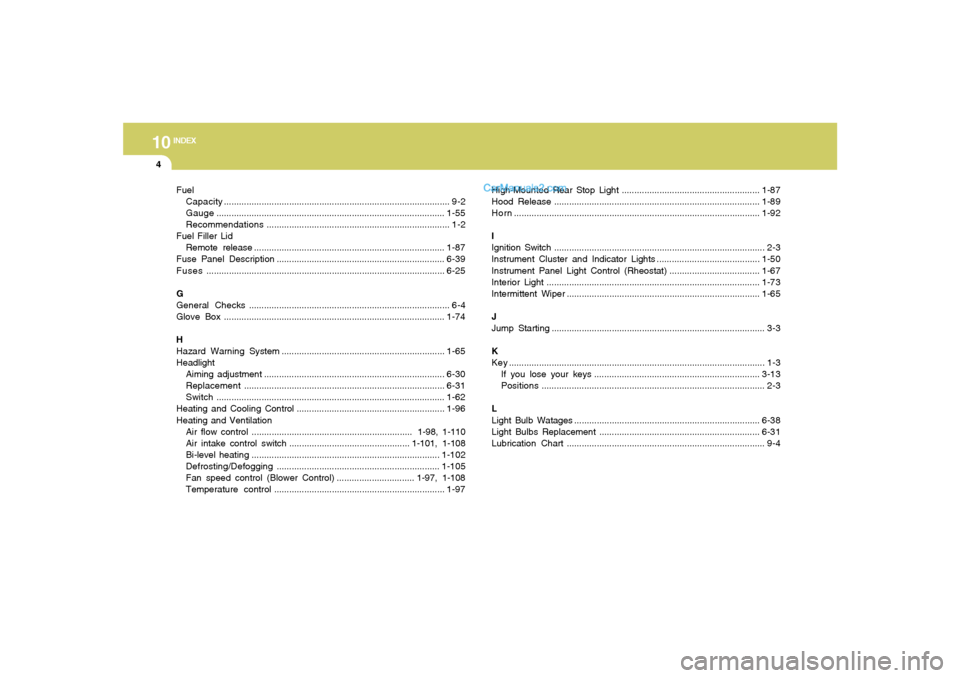

Fuel
Capacity.......................................................................................... 9-2
Gauge...........................................................................................1-55
Recommendations......................................................................... 1-2
Fuel Filler Lid
Remote release............................................................................1-87
Fuse Panel Description...................................................................6-39
Fuses ...............................................................................................6-25
G
General Checks................................................................................ 6-4
Glove Box........................................................................................1-74
H
Hazard Warning System .................................................................1-65
Headlight
Aiming adjustment........................................................................6-30
Replacement................................................................................6-31
Switch...........................................................................................1-62
Heating and Cooling Control ...........................................................1-96
Heating and Ventilation
Air flow control................................................................ 1-98, 1-110
Air intake control switch................................................ 1-101, 1-108
Bi-level heating...........................................................................1-102
Defrosting/Defogging.................................................................1-105
Fan speed control (Blower Control) ............................... 1-97, 1-108
Temperature control....................................................................1-97High-Mounted Rear Stop Light .......................................................1-87
Hood Release..................................................................................1-89
Horn..................................................................................................1-92
I
Ignition Switch.................................................................................... 2-3
Instrument Cluster and Indicator Lights .........................................1-50
Instrument Panel Light Control (Rheostat)....................................1-67
Interior Light.....................................................................................1-73
Intermittent Wiper.............................................................................1-65
J
Jump Starting..................................................................................... 3-3
K
Key ...................................................................................................... 1-3
If you lose your keys ..................................................................3-13
Positions......................................................................................... 2-3
L
Light Bulb Watages..........................................................................6-38
Light Bulbs Replacement................................................................
6-31
Lubrication Chart............................................................................... 9-4

10
INDEX
5

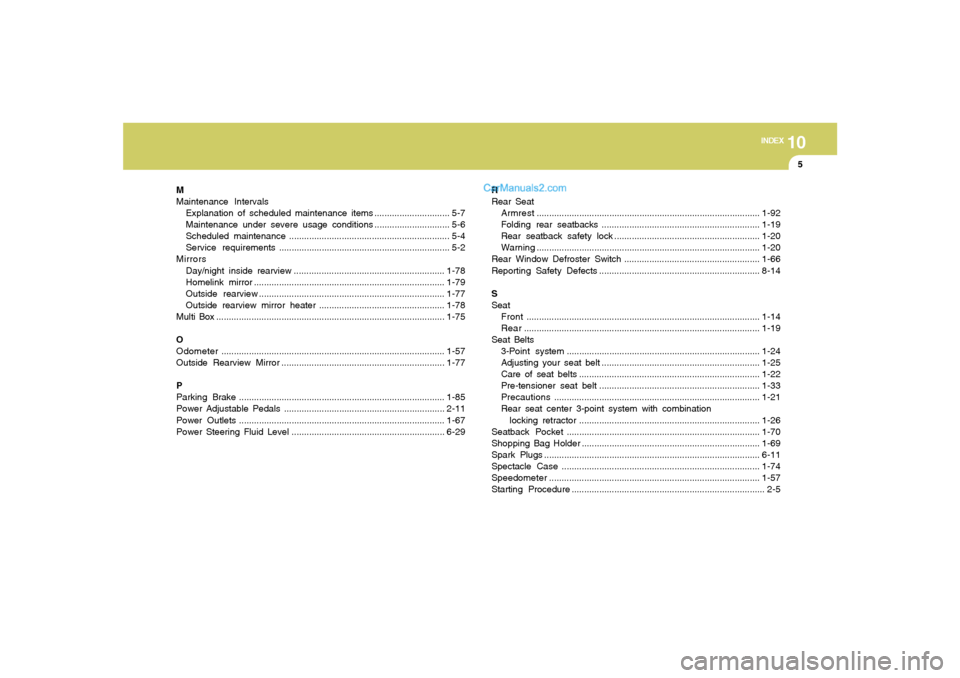

M
Maintenance Intervals
Explanation of scheduled maintenance items .............................. 5-7
Maintenance under severe usage conditions.............................. 5-6
Scheduled maintenance................................................................ 5-4
Service requirements.................................................................... 5-2
Mirrors
Day/night inside rearview ............................................................1-78
Homelink mirror ............................................................................1-79
Outside rearview..........................................................................1-77
Outside rearview mirror heater ..................................................1-78
Multi Box ...........................................................................................1-75
O
Odometer.........................................................................................1-57
Outside Rearview Mirror .................................................................1-77
P
Parking Brake..................................................................................1-85
Power Adjustable Pedals ................................................................2-11
Power Outlets..................................................................................1-67
Power Steering Fluid Level .............................................................6-29R
Rear Seat
Armrest.........................................................................................1-92
Folding rear seatbacks ...............................................................1-19
Rear seatback safety lock ..........................................................1-20
Warning.........................................................................................1-20
Rear Window Defroster Switch ......................................................1-66
Reporting Safety Defects ................................................................8-14
S
Seat
Front.............................................................................................1-14
Rear..............................................................................................1-19
Seat Belts
3-Point system.............................................................................1-24
Adjusting your seat belt ...............................................................1-25
Care of seat belts ........................................................................1-22
Pre-tensioner seat belt ................................................................1-33
Precautions..................................................................................1-21
Rear seat center 3-point system with combination
locking retractor........................................................................1-26
Seatback Pocket.............................................................................1-70
Shopping Bag Holder.......................................................................
1-69
Spark Plugs......................................................................................6-11
Spectacle Case...............................................................................1-74
Speedometer....................................................................................1-57
Starting Procedure............................................................................. 2-5

10
INDEX
6

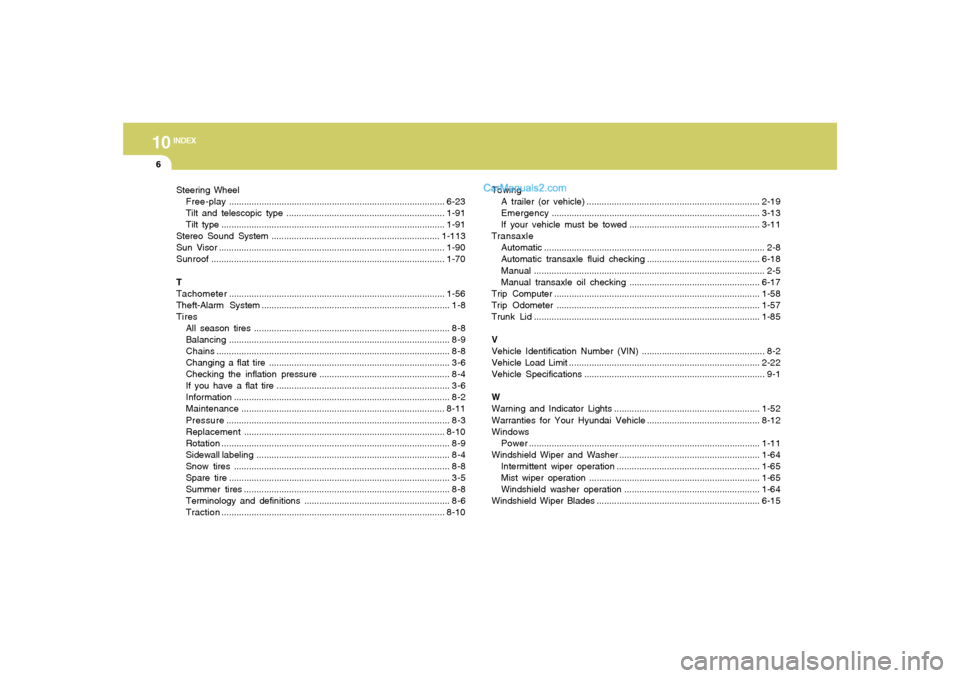

Steering Wheel
Free-play......................................................................................6-23
Tilt and telescopic type ...............................................................1-91
Tilt type .........................................................................................1-91
Stereo Sound System ...................................................................1-113
Sun Visor..........................................................................................1-90
Sunroof.............................................................................................1-70
T
Tachometer......................................................................................1-56
Theft-Alarm System........................................................................... 1-8
Tires
All season tires.............................................................................. 8-8
Balancing........................................................................................ 8-9
Chains............................................................................................. 8-8
Changing a flat tire ........................................................................ 3-6
Checking the inflation pressure.................................................... 8-4
If you have a flat tire ..................................................................... 3-6
Information...................................................................................... 8-2
Maintenance.................................................................................8-11
Pressure......................................................................................... 8-3
Replacement................................................................................8-10
Rotation........................................................................................... 8-9
Sidewall labeling............................................................................. 8-4
Snow tires...................................................................................... 8-8
Spare tire........................................................................................ 3-5
Summer tires .................................................................................. 8-8
Terminology and definitions.......................................................... 8-6
Traction.........................................................................................8-10Towing
A trailer (or vehicle) .....................................................................2-19
Emergency...................................................................................3-13
If your vehicle must be towed....................................................3-11
Transaxle
Automatic........................................................................................ 2-8
Automatic transaxle fluid checking.............................................6-18
Manual............................................................................................ 2-5
Manual transaxle oil checking....................................................6-17
Trip Computer..................................................................................1-58
Trip Odometer.................................................................................1-57
Trunk Lid..........................................................................................1-85
V
Vehicle Identification Number (VIN) ................................................. 8-2
Vehicle Load Limit ............................................................................
2-22
Vehicle Specifications........................................................................ 9-1
W
Warning and Indicator Lights ..........................................................1-52
Warranties for Your Hyundai Vehicle.............................................8-12
Windows
Power............................................................................................1-11
Windshield Wiper and Washer ........................................................1-64
Intermittent wiper operation .........................................................1-65
Mist wiper operation....................................................................1-65
Windshield washer operation......................................................1-64
Windshield Wiper Blades .................................................................6-15

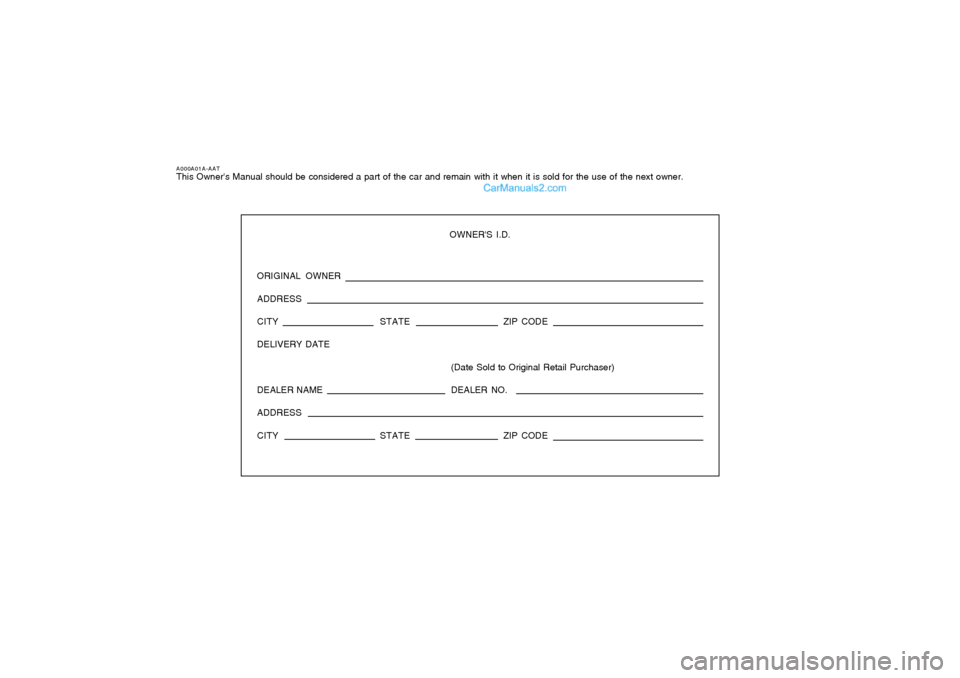

A000A01A-AATThis Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.
OWNER'S I.D.
ORIGINAL OWNER
ADDRESS
CITY STATEZIP CODE
DELIVERY DATE
(Date Sold to Original Retail Purchaser)
DEALER NAME DEALER NO.
ADDRESS
CITY STATEZIP CODE
