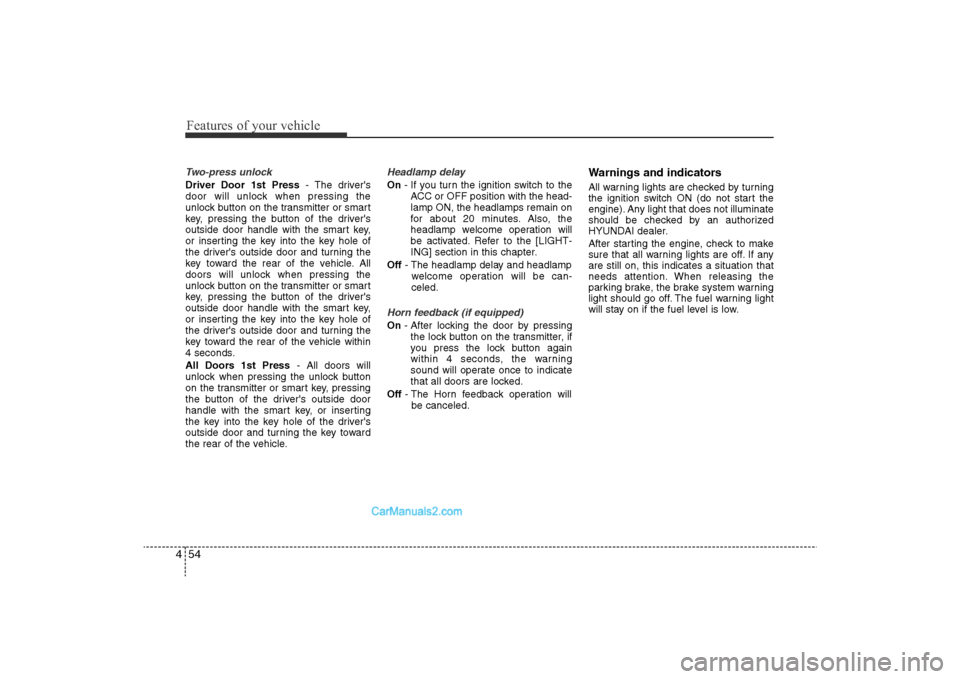

Features of your vehicle54
4Two-press unlockDriver Door 1st Press - The driver's
door will unlock when pressing the
unlock button on the transmitter or smart
key, pressing the button of the driver's
outside door handle with the smart key,
or inserting the key into the key hole of
the driver's outside door and turning the
key toward the rear of the vehicle. All
doors will unlock when pressing the
unlock button on the transmitter or smart
key, pressing the button of the driver's
outside door handle with the smart key,
or inserting the key into the key hole of
the driver's outside door and turning the
key toward the rear of the vehicle within
4 seconds.
All Doors 1st Press - All doors will
unlock when pressing the unlock button
on the transmitter or smart key, pressing
the button of the driver's outside door
handle with the smart key, or inserting
the key into the key hole of the driver's
outside door and turning the key toward
the rear of the vehicle.
Headlamp delayOn - If you turn the ignition switch to the
ACC or OFF position with the head-
lamp ON, the headlamps remain on
for about 20 minutes. Also, the
headlamp welcome operation will
be activated. Refer to the [LIGHT-
ING] section in this chapter.
Off - The headlamp delay and headlamp
welcome operation will be can-
celed.Horn feedback (if equipped)On - After locking the door by pressing
the lock button on the transmitter, if
you press the lock button again
within 4 seconds, the warning
sound will operate once to indicate
that all doors are locked.
Off - The Horn feedback operation will
be canceled.
Warnings and indicatorsAll warning lights are checked by turning
the ignition switch ON (do not start the
engine). Any light that does not illuminate
should be checked by an authorized
HYUNDAI dealer.
After starting the engine, check to make
sure that all warning lights are off. If any
are still on, this indicates a situation that
needs attention. When releasing the
parking brake, the brake system warning
light should go off. The fuel warning light
will stay on if the fuel level is low.

YF HMA 4-103.QXP 12/24/2009 5:13 PM Page 54

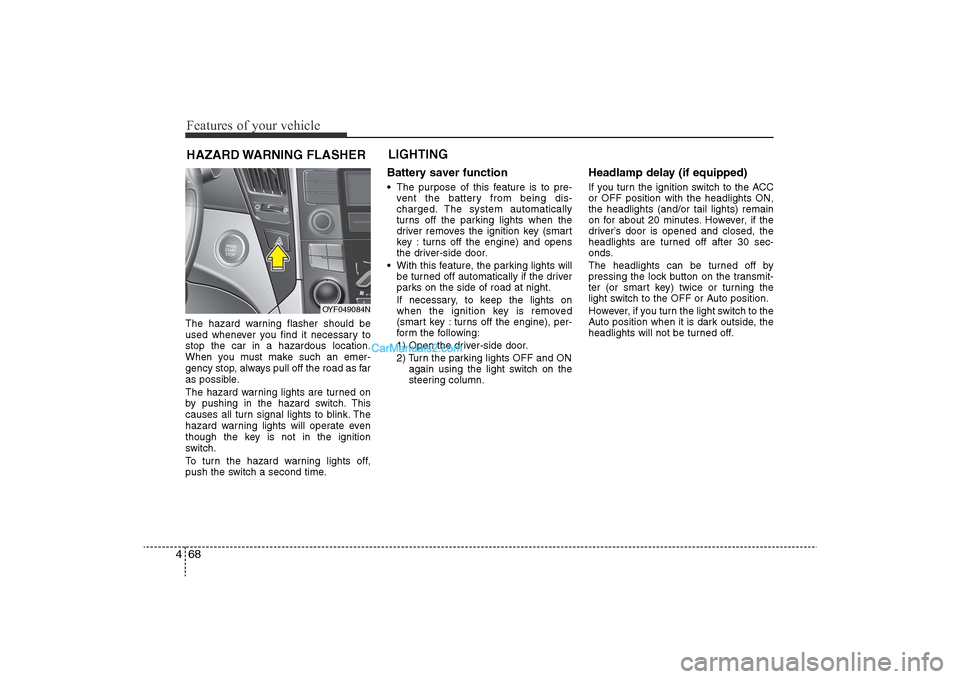

Features of your vehicle68
4The hazard warning flasher should be
used whenever you find it necessary to
stop the car in a hazardous location.
When you must make such an emer-
gency stop, always pull off the road as far
as possible.
The hazard warning lights are turned on
by pushing in the hazard switch. This
causes all turn signal lights to blink. The
hazard warning lights will operate even
though the key is not in the ignition
switch.
To turn the hazard warning lights off,
push the switch a second time.
Battery saver function • The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lights when the
driver removes the ignition key (smart
key : turns off the engine) and opens
the driver-side door.
• With this feature, the parking lights will be turned off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition key is removed
(smart key : turns off the engine), per-
form the following:
1) Open the driver-side door.
2) Turn the parking lights OFF and ON again using the light switch on the
steering column.
Headlamp delay (if equipped)If you turn the ignition switch to the ACC
or OFF position with the headlights ON,
the headlights (and/or tail lights) remain
on for about 20 minutes. However, if the
driver’s door is opened and closed, the
headlights are turned off after 30 sec-
onds.
The headlights can be turned off by
pressing the lock button on the transmit-
ter (or smart key) twice or turning the
light switch to the OFF or Auto position.
However, if you turn the light switch to the
Auto position when it is dark outside, the
headlights will not be turned off.
HAZARD WARNING FLASHER LIGHTING

OYF049084N

YF HMA 4-103.QXP 1/12/2010 5:50 PM Page 68

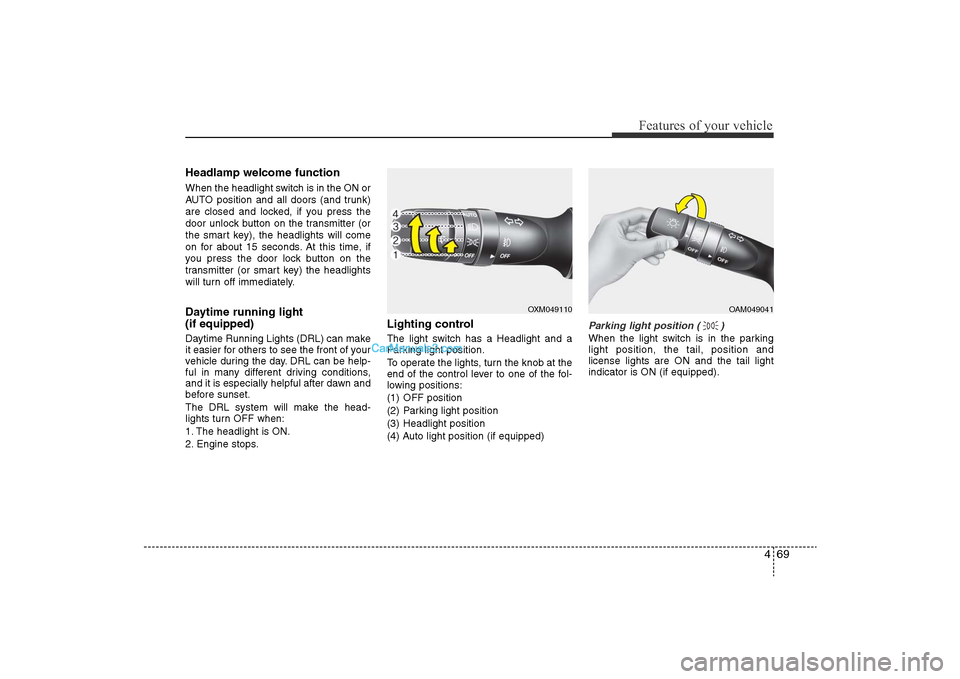

469
Features of your vehicle
Headlamp welcome functionWhen the headlight switch is in the ON or
AUTO position and all doors (and trunk)
are closed and locked, if you press the
door unlock button on the transmitter (or
the smart key), the headlights will come
on for about 15 seconds. At this time, if
you press the door lock button on the
transmitter (or smart key) the headlights
will turn off immediately.Daytime running light
(if equipped)Daytime Running Lights (DRL) can make
it easier for others to see the front of your
vehicle during the day. DRL can be help-
ful in many different driving conditions,
and it is especially helpful after dawn and
before sunset.
The DRL system will make the head-
lights turn OFF when:
1. The headlight is ON.
2. Engine stops.
Lighting controlThe light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at the
end of the control lever to one of the fol-
lowing positions:
(1) OFF position
(2) Parking light position
(3) Headlight position
(4) Auto light position (if equipped)
Parking light position ( )When the light switch is in the parking
light position, the tail, position and
license lights are ON and the tail light
indicator is ON (if equipped).

OXM049110

OAM049041

YF HMA 4-103.QXP 12/24/2009 5:14 PM Page 69

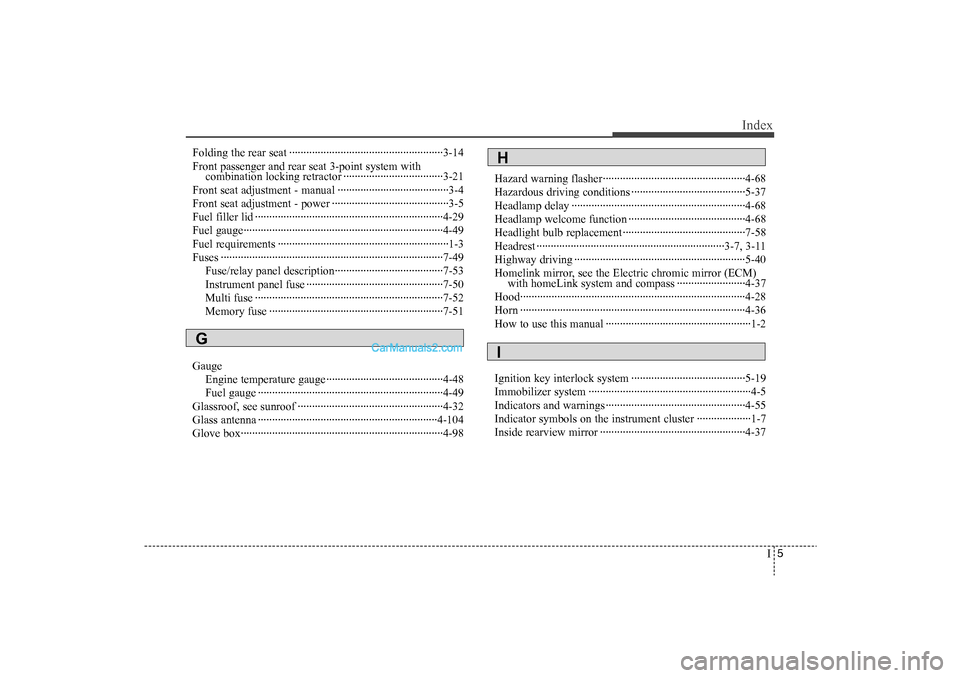

I5
Index
Folding the rear seat ··················\
··················\
··················\
3-14
Front passenger and rear seat 3-point system withcombination locking retractor ··················\
·················3-21\
Front seat adjustment - manual ··················\
··················\
···3-4
Front seat adjustment - power ··················\
··················\
·····3-5
Fuel filler lid ··················\
··················\
··················\
············4-29
Fuel gauge··················\
··················\
··················\
················4-49
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-49
Fuse/relay panel description··················\
··················\
··7-53
Instrument panel fuse ··················\
··················\
············7-50
Multi fuse ··················\
··················\
··················\
············7-52
Memory fuse ··················\
··················\
··················\
·······7-51
Gauge Engine temperature gauge··················\
··················\
·····4-48
Fuel gauge ··················\
··················\
··················\
···········4-49
Glassroof, see sunroof ··················\
··················\
···············4-32
Glass antenna ··················\
··················\
··················\
·········4-104
Glove box··················\
··················\
··················\
·················4-98\
Hazard warning flasher··················\
··················\
··············4-68
Hazardous driving conditions ··················\
··················\
····5-37
Headlamp delay ··················\
··················\
··················\
·······4-68
Headlamp welcome function ··················\
··················\
·····4-68
Headlight bulb replacement ··················\
··················\
·······7-58
Headrest ··················\
··················\
··················\
············3-7, 3-11
Highway driving ··················\
··················\
··················\
······5-40
Homelink mirror, see the Electric chromic mirror (ECM)
with homeLink system and compass ··················\
······4-37
Hood··················\
··················\
··················\
··················\
·······4-28
Horn ··················\
··················\
··················\
··················\
·······4-36
How to use this manual ··················\
··················\
···············1-2
Ignition key interlock system ··················\
··················\
····5-19
Immobilizer system ··················\
··················\
··················\
···4-5
Indicators and warnings ··················\
··················\
·············4-55
Indicator symbols on the instrument cluster ··················\
·1-7
Inside rearview mirror ··················\
··················\
···············4-37G
IH

YF HMA INDEX.QXP 1/13/2010 2:11 PM Page 5

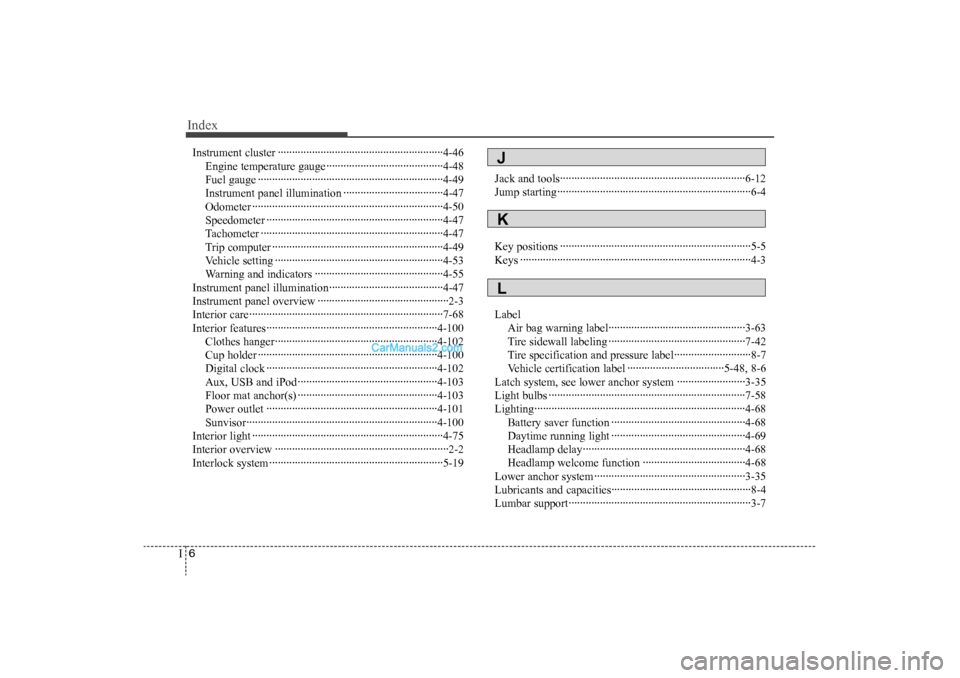

Index6I
Instrument cluster ··················\
··················\
··················\
····4-46Engine temperature gauge··················\
··················\
·····4-48
Fuel gauge ··················\
··················\
··················\
···········4-49
Instrument panel illumination ··················\
·················4-47\
Odometer ··················\
··················\
··················\
·············4-50
Speedometer ··················\
··················\
··················\
········4-47
Tachometer ··················\
··················\
··················\
··········4-47
Trip computer ··················\
··················\
··················\
······4-49
Vehicle setting ··················\
··················\
··················\
·····4-53
Warning and indicators ··················\
··················\
·········4-55
Instrument panel illumination··················\
··················\
····4-47
Instrument panel overview ··················\
··················\
··········2-3
Interior care··················\
··················\
··················\
··············7-68
Interior features··················\
··················\
··················\
······4-100 Clothes hanger··················\
··················\
··················\
···4-102
Cup holder ··················\
··················\
··················\
·········4-100
Digital clock ··················\
··················\
··················\
······4-102
Aux, USB and iPod ··················\
··················\
·············4-103
Floor mat anchor(s) ··················\
··················\
·············4-103
Power outlet ··················\
··················\
··················\
······4-101
Sunvisor··················\
··················\
··················\
·············4-100
Interior light ··················\
··················\
··················\
·············4-75
Interior overview ··················\
··················\
··················\
·······2-2
Interlock system ··················\
··················\
··················\
·······5-19 Jack and tools··················\
··················\
··················\
···········6-12
Jump starting··················\
··················\
··················\
··············6-4
Key positions ··················\
··················\
··················\
·············5-5
Keys ··················\
··················\
··················\
··················\
·········4-3
Label
Air bag warning label··················\
··················\
············3-63
Tire sidewall labeling ··················\
··················\
············7-42
Tire specification and pressure label··················\
·········8-7
Vehicle certification label ··················\
················5-48, 8-\
6
Latch system, see lower anchor system ··················\
······3-35
Light bulbs ··················\
··················\
··················\
···············7-58
Lighting··················\
··················\
··················\
··················\
··4-68 Battery saver function ··················\
··················\
···········4-68
Daytime running light ··················\
··················\
···········4-69
Headlamp delay··················\
··················\
··················\
···4-68
Headlamp welcome function ··················\
··················\
4-68
Lower anchor system ··················\
··················\
·················3-35\
Lubricants and capacities··················\
··················\
·············8-4
Lumbar support··················\
··················\
··················\
··········3-7
JKL

YF HMA INDEX.QXP 1/13/2010 2:11 PM Page 6
