height adjustment Hyundai Sonata 2017 Owner's Manual

2-4
S
SE
E A
A T
TS
S

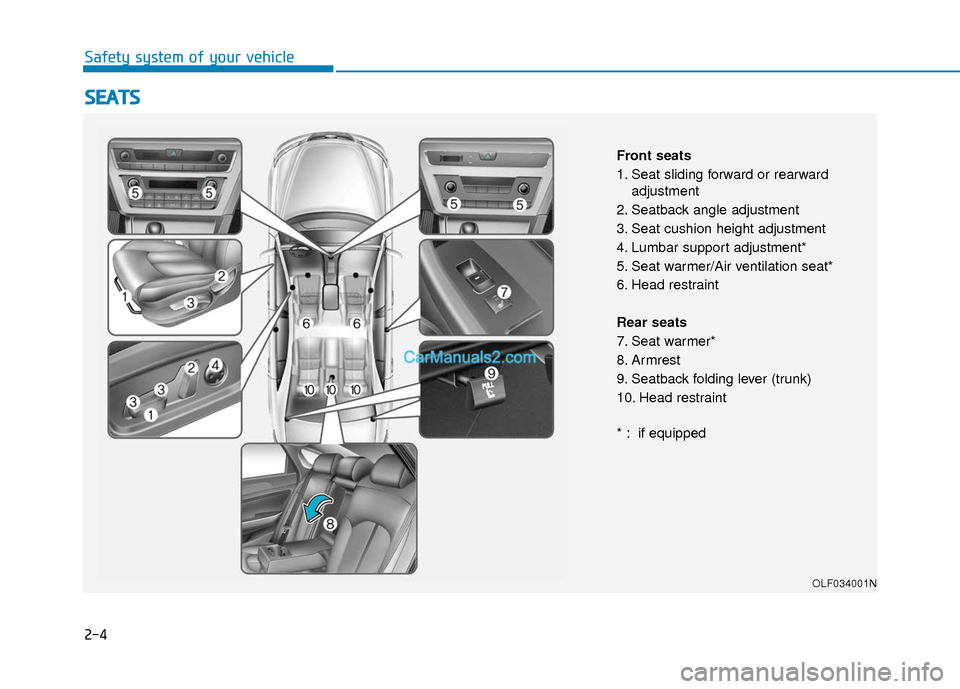

Safety system of your vehicle
OLF034001N
Front seats
1. Seat sliding forward or rearward
adjustment
2. Seatback angle adjustment
3. Seat cushion height adjustment
4. Lumbar support adjustment*
5. Seat warmer/Air ventilation seat*
6. Head restraint
Rear seats
7. Seat warmer*
8. Armrest
9. Seatback folding lever (trunk)
10. Head restraint
* : if equipped

2-8
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
Seat cushion height
To change the height of the seat
cushion:
Push down on the lever severaltimes, to lower the seat cushion.
Pull up on the lever several times, to raise the seat cushion.
Power adjustment
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
Safety system of your vehicle
OLF034004NNEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
WARNING

2-25

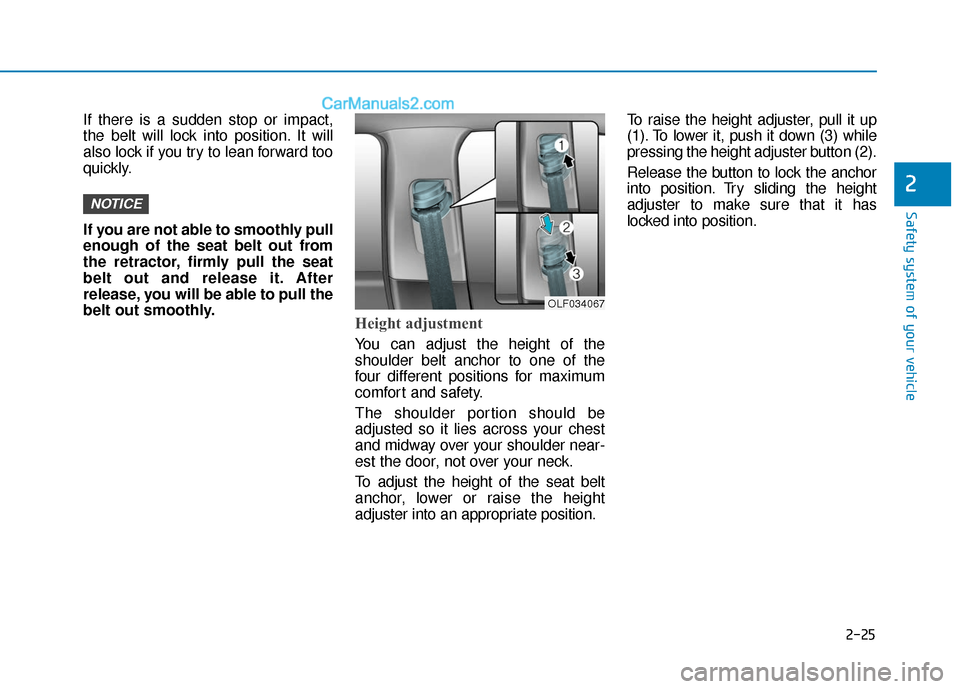

Safety system of your vehicle
2
If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the
four different positions for maximum
comfort and safety.
The shoulder portion should be
adjusted so it lies across your chest
and midway over your shoulder near-
est the door, not over your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has
locked into position.
NOTICE
OLF034067

3-23
Convenient features of your vehicle
3

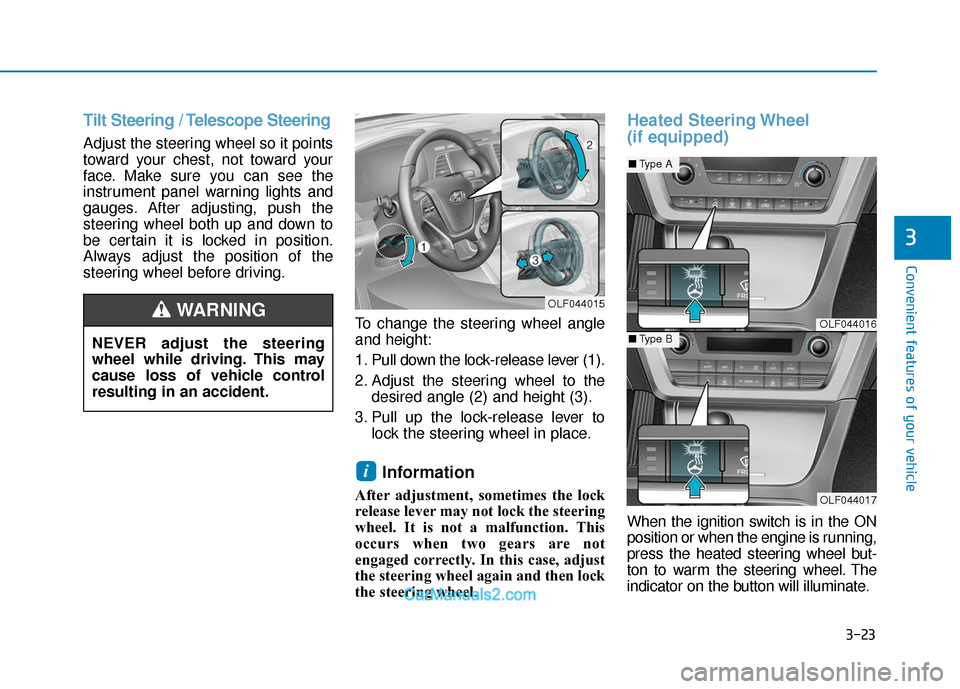

Tilt Steering / Telescope Steering
Adjust the steering wheel so it points
toward your chest, not toward your
face. Make sure you can see the
instrument panel warning lights and
gauges. After adjusting, push the
steering wheel both up and down to
be certain it is locked in position.
Always adjust the position of the
steering wheel before driving.To change the steering wheel angle
and height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to thedesired angle (2) and height (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
After adjustment, sometimes the lock
release lever may not lock the steering
wheel. It is not a malfunction. This
occurs when two gears are not
engaged correctly. In this case, adjust
the steering wheel again and then lock
the steering wheel.
Heated Steering Wheel
(if equipped)
When the ignition switch is in the ON
position or when the engine is running,
press the heated steering wheel but-
ton to warm the steering wheel. The
indicator on the button will illuminate.
i
OLF044015
OLF044016
OLF044017
■Type A
■Type BNEVER adjust the steering
wheel while driving. This may
cause loss of vehicle control
resulting in an accident.
WARNING

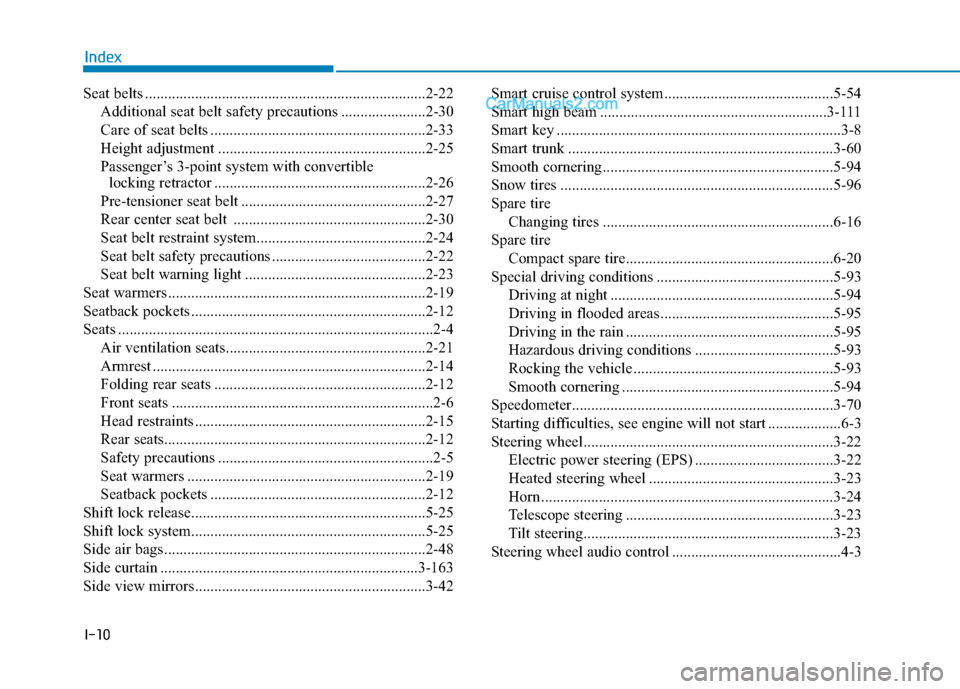

I-10
Seat belts ........................................................................\
.2-22Additional seat belt safety precautions ......................2-30
Care of seat belts ........................................................2-33
Height adjustment ......................................................2-25
Passenger’s 3-point system with convertible locking retractor .......................................................2-26
Pre-tensioner seat belt ................................................2-27
Rear center seat belt ..................................................2-30
Seat belt restraint system............................................2-24
Seat belt safety precautions ........................................2-22
Seat belt warning light ...............................................2-23
Seat warmers ...................................................................2-19
Seatback pockets .............................................................2-12
Seats ........................................................................\
..........2-4 Air ventilation seats....................................................2-21
Armrest .......................................................................2\
-14
Folding rear seats .......................................................2-12
Front seats ....................................................................2-6
Head restraints ............................................................2-15
Rear seats....................................................................2-12\
Safety precautions ........................................................2-5
Seat warmers ..............................................................2-19
Seatback pockets ........................................................2-12
Shift lock release.............................................................5-25
Shift lock system.............................................................5-25
Side air bags....................................................................2-48\
Side curtain ...................................................................3-163\
Side view mirrors............................................................3-42 Smart cruise control system............................................5-54
Smart high beam ...........................................................3-111
Smart key ........................................................................\
..3-8
Smart trunk .....................................................................3-6\
0
Smooth cornering............................................................5-94
Snow tires .......................................................................5\
-96
Spare tire
Changing tires ............................................................6-16
Spare tire Compact spare tire......................................................6-20
Special driving conditions ..............................................5-93 Driving at night ..........................................................5-94
Driving in flooded areas .............................................5-95
Driving in the rain ......................................................5-95
Hazardous driving conditions ....................................5-93
Rocking the vehicle ....................................................5-93
Smooth cornering .......................................................5-94
Speedometer....................................................................3-70\
Starting difficulties, see engine will not start ...................6-3
Steering wheel.................................................................3-22 Electric power steering (EPS) ....................................3-22
Heated steering wheel ................................................3-23
Horn ........................................................................\
....3-24
Telescope steering ......................................................3-23
Tilt steering.................................................................3-23
Steering wheel audio control ............................................4-3
