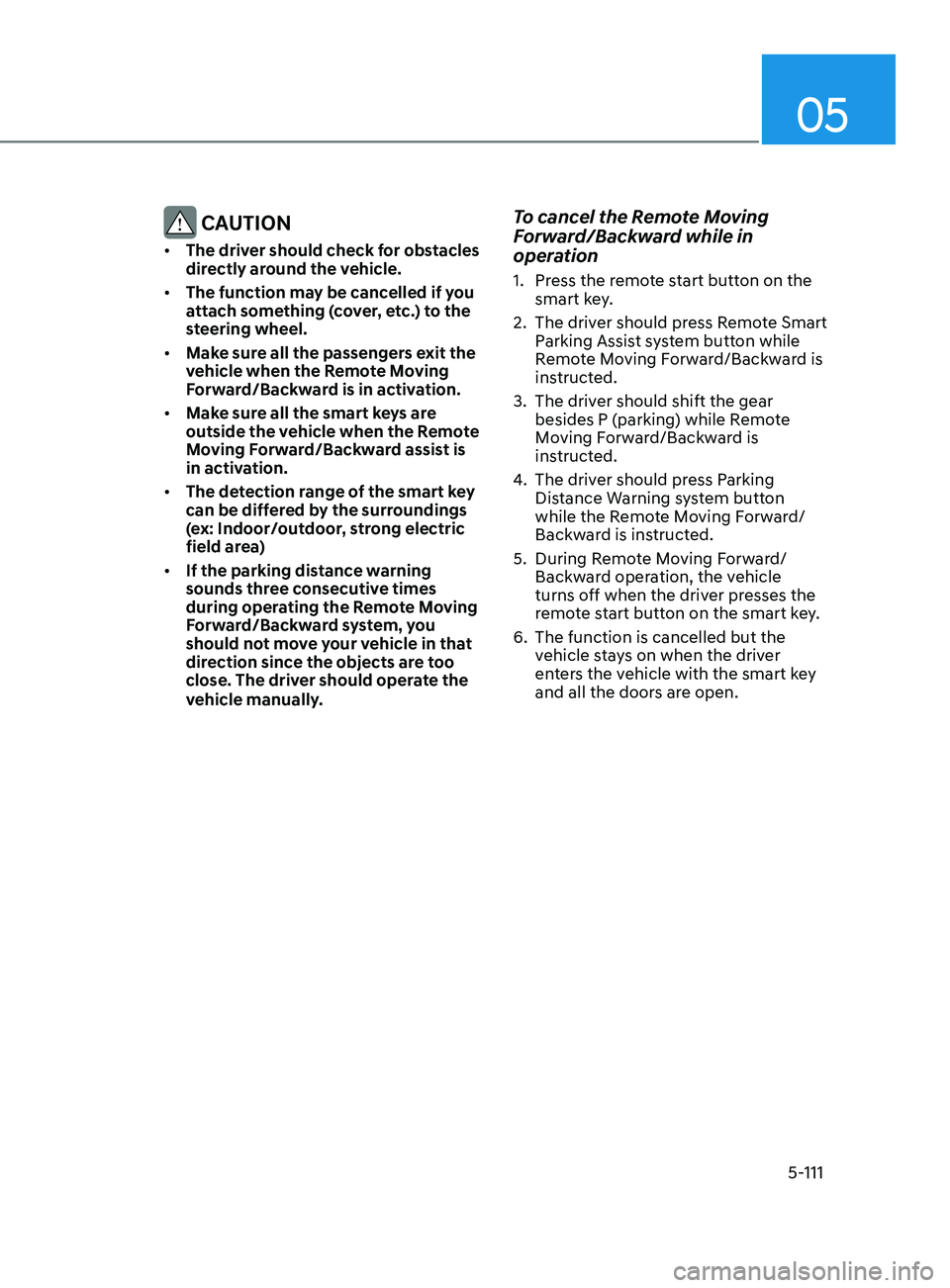

05
5-111
CAUTION
• The driver should check for obstacles
directly around the vehicle.
• The function may be cancelled if you
attach something (cover, etc.) to the
steering wheel.
• Make sure all the passengers exit the
vehicle when the Remote Moving
Forward/Backward is in activation.
• Make sure all the smart keys are
outside the vehicle when the Remote
Moving Forward/Backward assist is
in activation.
• The detection range of the smart key
can be differed by the surroundings
(ex: Indoor/outdoor, strong electric
field area)
• If the parking distance warning
sounds three consecutive times
during operating the Remote Moving
Forward/Backward system, you
should not move your vehicle in that
direction since the objects are too
close. The driver should operate the
vehicle manually.
To cancel the Remote Moving
Forward/Backward while in
operation
1. Press the remote start button on the
smart key.
2.

The driv
er should press Remote Smart
Parking Assist system button while
Remote Moving Forward/Backward is
instructed.
3.

The driv
er should shift the gear
besides P (parking) while Remote
Moving Forward/Backward is
instructed.
4.
The driv

er should press Parking
Distance Warning system button
while the Remote Moving Forward/
Backward is instructed.
5.

During R
emote Moving Forward/
Backward operation, the vehicle
turns off when the driver presses the
remote start button on the smart key.
6.

The function is cancelled but the
v

ehicle stays on when the driver
enters the vehicle with the smart key
and all the doors are open.

Convenient Features
5-112
The Remote Moving Forward/
Backward assist will stop
temporarily when:
7. An obstacle is detected at the direction the vehicle is heading.
8.

The door or trunk is opened.
9.
The mo

ving forward/backward button
on the smart key is released.
10.

Multiple butt
ons on the smart key are
pressed at the same time.
11.

The dis
tance between the smart key
and vehicle is over 13 ft. (4 m).
12.

A butt
on on the other smart key is
pressed during operation.
13.

R
ear Cross-Traffic Collision-Avoidance
Assist system is activated while
reserving.
14.

The v
ehicle moves 23 ft. (7 m) with the
Remote Moving Forward/Backward
while the smart key is pressed.
(Maximum travel distance per move)
à The v

ehicle stops when the Remote
Smart Parking Assist system will stop
temporarily and the function will
resume when the above condition is
cleared.
The Remote Moving Forward/
Backward assist is cancelled while
in operation when:
1. The driver holds the steering wheel while the steering wheel is controlled.
2.

The gear is shift
ed or the Electronic
Parking Brake (EPB) is activated.
3.

The hood opens.
4.
The v

ehicle speed exceeds 3 mph
(5km/h).
5.

The v
ehicle accelerates suddenly.
6.

The v
ehicle slips back while
controlling the vehicle speed.
7.
The wheel is s

tuck and the vehicle is
unable to move.
8.

About 3 minut
es and 50 seconds
have passed after the Remote Moving
Forward/Backward assist starts. 9.
The gr

adient of the road exceeds
the range supported by the Remote
Moving Forward/Backward assist.
10.
The s
teering, shifting gear and drive
assist are difficult.
11.
The suspended s
tatus lasts for over 1
minute.
12.
The driv
er continuously presses and
releases the smart key’s moving
forward/backward button over 10
times.
13.
The T
raction Control System (TCS) is
activated while controlling the vehicle
speed.
14.
The smart k
ey is damaged.
15.
The acceler
ator/brake pedal is
depressed while all the doors are
closed.
16.
The br
ake pedal is depressed while
the driver’s door is open and the smart
key is outside the vehicle.
17. The vehicle travels more than 46 ft. (14
m) after the Remote Moving Forward/
Backward assist is activated.
18.
The the
ft alarm system is activated.
Ã
When the R
emote Moving Forward/
Backward is completed, the gear in
P(Park) and Electronic Parking Brake
(EPB) are engaged automatically and
the vehicle turns off. Ã The fr equent beep sounds are
generated to show the deactivation
status.

05
5-113
Additional Instructions
When the Remote Smart Parking Assist
system is in operation, the system may
be cancelled regardless of the instruction
order.
The appeared messages could be
differed according to the circumstances.
Follow the instructions provided while
driving your vehicle with the Remote
Smart Parking Assist system in activation.
When the function works, please follow
the displayed messages and the driver
should be cautious for safety.

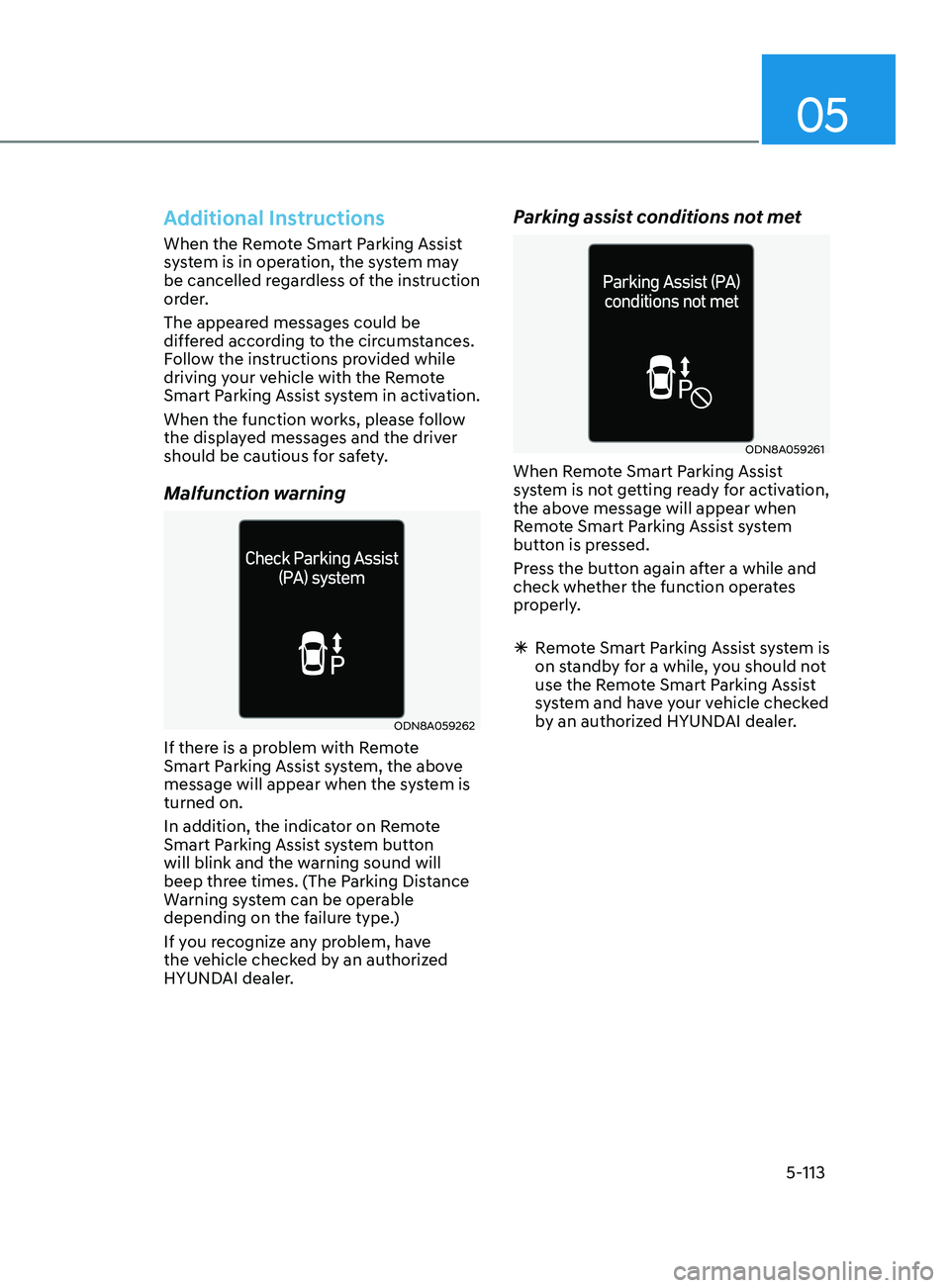

Malfunction warning
ODN8A059262
If there is a problem with Remote
Smart Parking Assist system, the above
message will appear when the system is
turned on.
In addition, the indicator on Remote
Smart Parking Assist system button
will blink and the warning sound will
beep three times. (The Parking Distance
Warning system can be operable
depending on the failure type.)
If you recognize any problem, have
the vehicle checked by an authorized
HYUNDAI dealer.
Parking assist conditions not met
ODN8A059261
When Remote Smart Parking Assist
system is not getting ready for activation,
the above message will appear when
Remote Smart Parking Assist system
button is pressed.
Press the button again after a while and
check whether the function operates
properly.
ÃR

emote Smart Parking Assist system is
on standby for a while, you should not
use the Remote Smart Parking Assist
system and have your vehicle checked
by an authorized HYUNDAI dealer.

Convenient Features
5-114
Display Operation Status
While Remote Smart Parking Assist system is on, Smart key / Hazard lamp
status is displayed
The LED on the smart key and hazard warning light indicate the vehicle status as
follows.
ÃThe s

tatus is displayed when the Remote Moving Forward/Backward function
works.
Vehicle status Hazard lamp Smart key LED
Remote Moving Forward/Backward
function in activation -Green LED blinks
continuously
Remote Moving Forward/Backward
function temporarily stopped/in stand by Blinking
Red LED blinks
continuously
Remote Moving Forward/Backward
function deactivated Off after blinking 3
times Red LED illuminates
for 4 seconds and then light-out
Remote Moving Forward/Backward
function completed Off after one blinkingGreen LED
illuminates for 4
seconds and then light-out

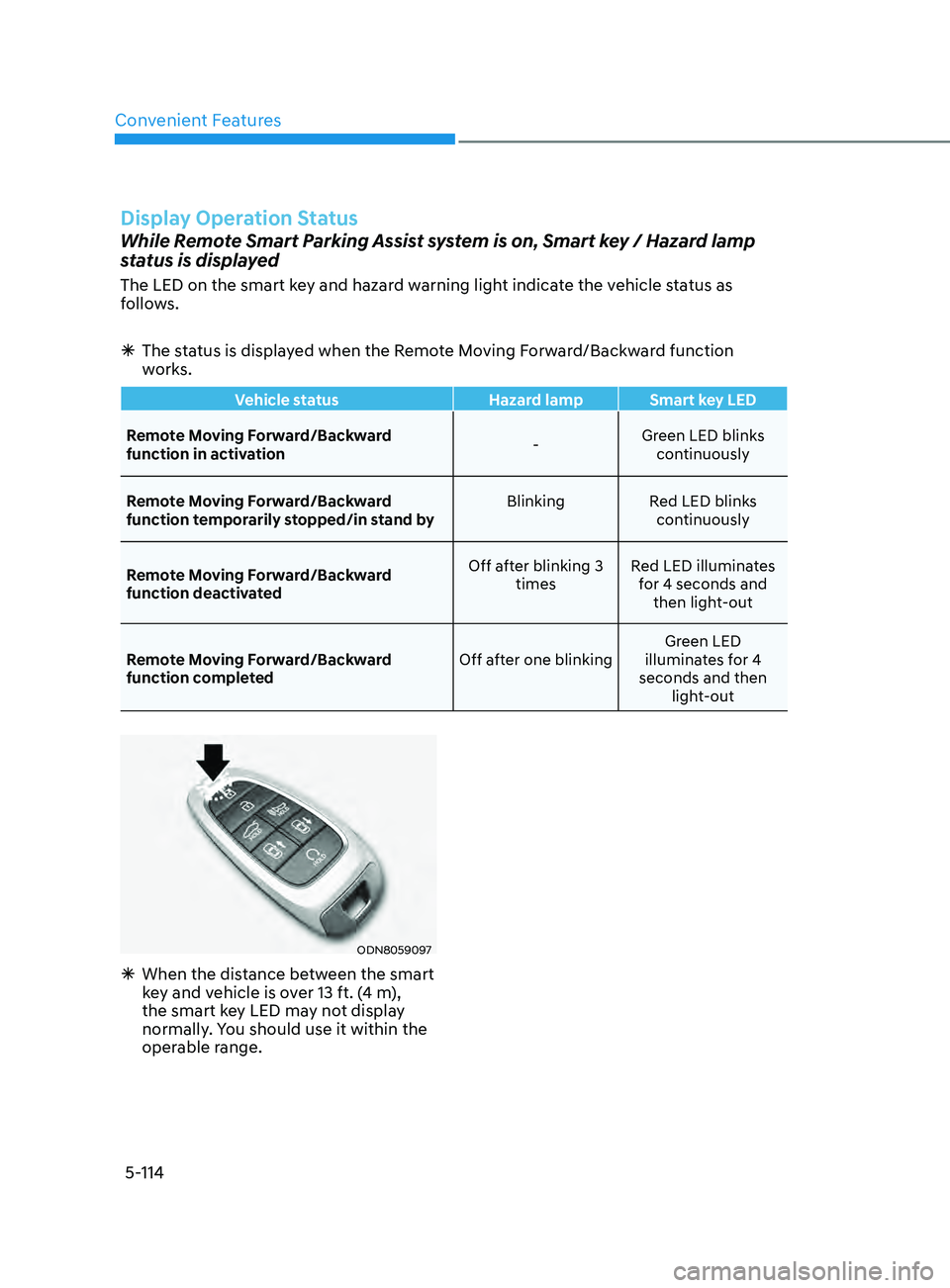

ODN8059097
ÃWhen the dis tance between the smart
key and vehicle is over 13 ft. (4 m),
the smart key LED may not display
normally. You should use it within the
operable range.

05
5-115
Link with other systems
Activation of other systems may
be restricted according to the
circumstances while Remote Smart
Parking Assist system is in activation.
The systems linked to the Remote Smart
Parking Assist system are as follows:
1.
I
dle Stop & Go
(1)


While R
emote Smart Parking
Assist system is operating, ISG is
deactivated.
(2)


If R
emote Smart Parking Assist
system is completed or cancelled,
ISG can be activated.
2.

A
uto Hold
(1)


The activ
ated Auto Hold is
switched to deactivation status
when Remote Smart Parking Assist
system starts.
(2)


The A
uto Hold button will not
respond while Remote Smart
Parking Assist system is in
activation.
(3

)
A
fter Remote Smart Parking
Assist system is completed or
deactivated, the Auto Hold will
return to the status before Remote
Smart Parking Assist system was
activated.
3.

Electr
onic Stability Control (ESC)
(1)


Electr
onic Stability Control (ESC)
system switches from OFF to
activation status (ESC OFF button
turns off) when Remote Smart
Parking Assist system is activated.
(2)


The ESC OFF butt
on will not
respond while Remote Smart
Parking Assist system is in
activation.
(3

)
The ABS/T
CS/ESC system activates
while Remote Smart Parking Assist
system is in activation.
(

4)
A
fter Remote Smart Parking
Assist system is completed or
deactivated, the ESC maintains the
ON status.
How the Remote Moving
Forward/Backward System
Works

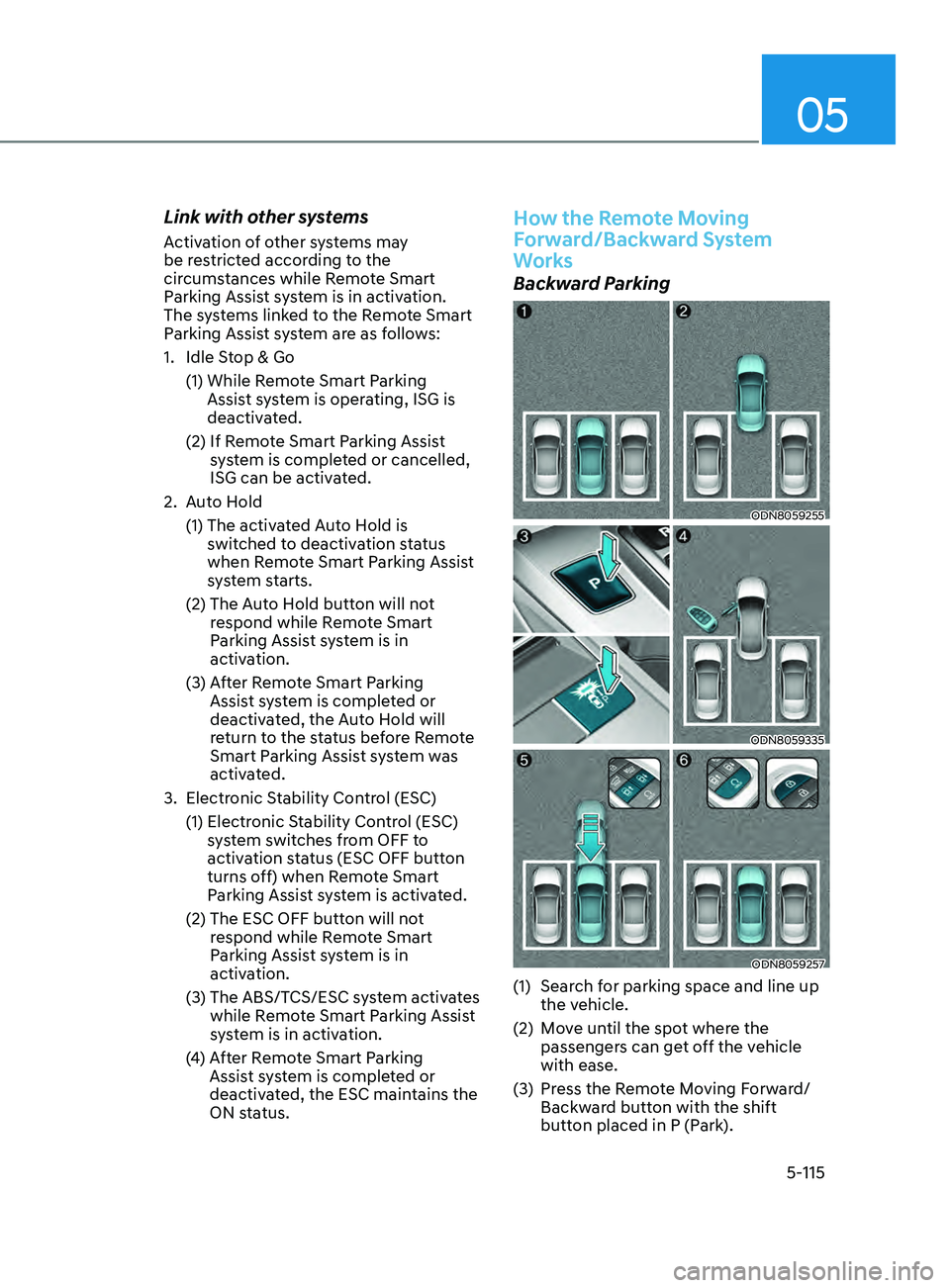

Backward Parking
ODN8059255
ODN8059335
ODN8059257
(1) Search for parking space and line up the vehicle.
(2)

M
ove until the spot where the
passengers can get off the vehicle
with ease.
(3)

Pr
ess the Remote Moving Forward/
Backward button with the shift
button placed in P (Park).

Convenient Features
5-116
(4) Get out of the vehicle with the smart key and close all of the doors.
(5)

While y
ou press and hold the
backward button of the smart key
within the operable distance, the
vehicle stays moving.
(6)

Comple
te the Remote Moving
Forward/Backward with the remote
control button and press the Door
Lock button after parking the vehicle
to the desired position and releasing

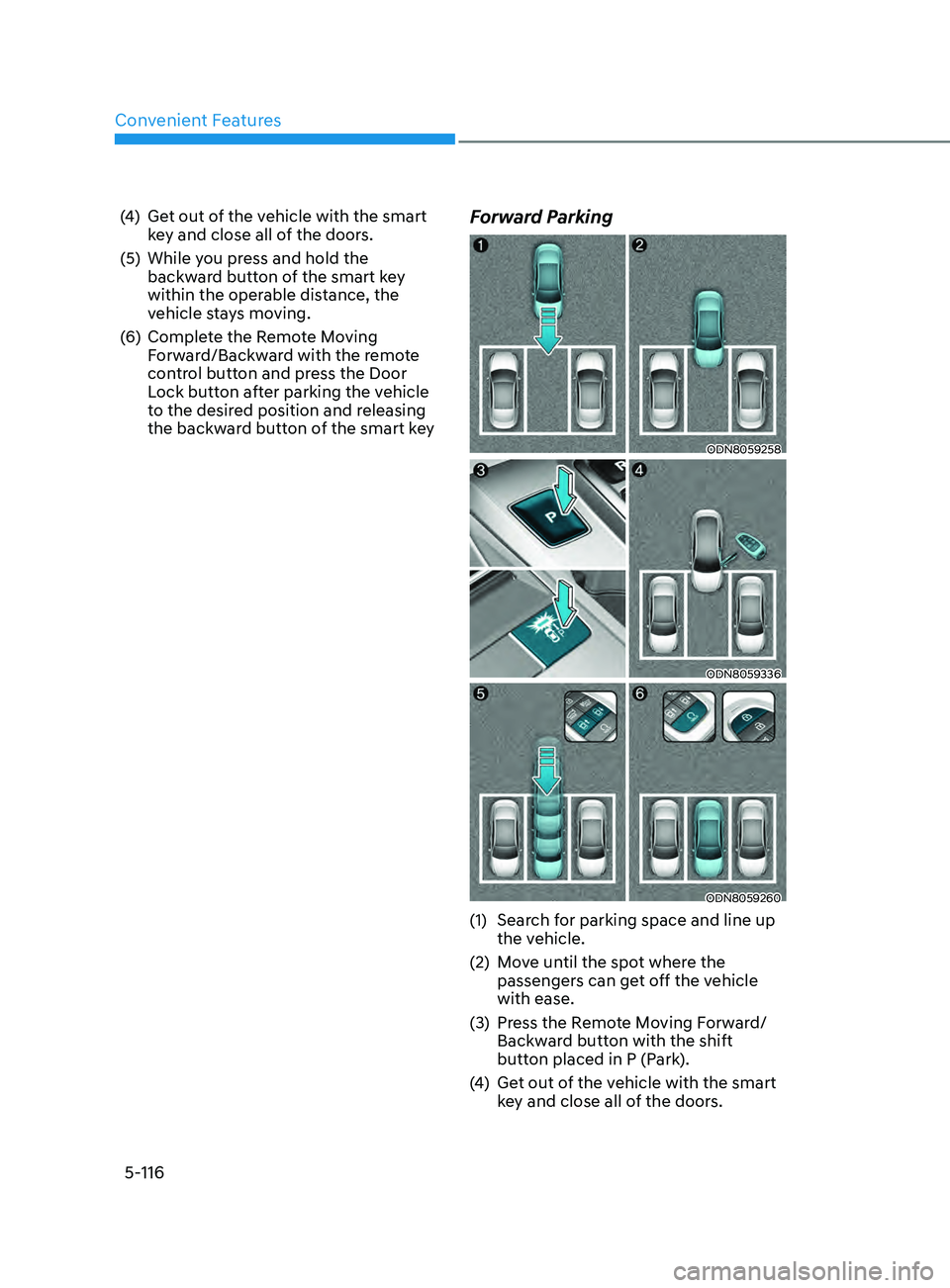

the backward button of the smart keyForward Parking
ODN8059258
ODN8059336
ODN8059260
(1) Search for parking space and line up the vehicle.
(2)

M
ove until the spot where the
passengers can get off the vehicle
with ease.
(3)

Pr
ess the Remote Moving Forward/
Backward button with the shift
button placed in P (Park).
(4)
Ge

t out of the vehicle with the smart
key and close all of the doors.

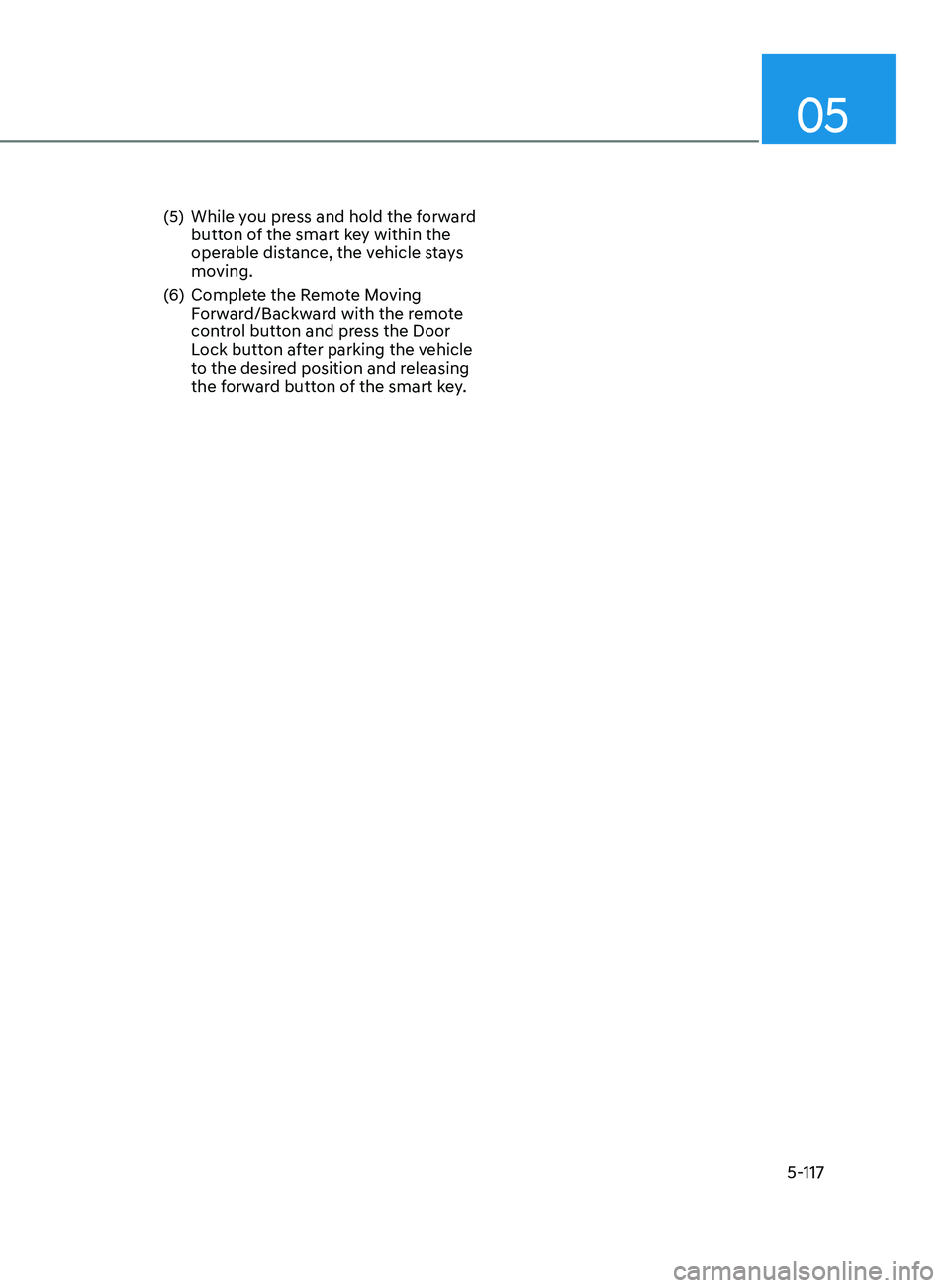

05
5-117
(5) While you press and hold the forward button of the smart key within the
operable distance, the vehicle stays
moving.
(6)

Comple
te the Remote Moving
Forward/Backward with the remote
control button and press the Door
Lock button after parking the vehicle
to the desired position and releasing
the forward button of the smart key.

5-118
Convenient Features
1. Fan speed control knob
2.
T
emperature control knob
3.

M
ode selection buttons
4.
F

ront windshield defroster button 5.
R ear window defroster button
6.

A/C (
Air conditioning) button
7.
Air in

take control button
8.

Max A/C selection butt
on

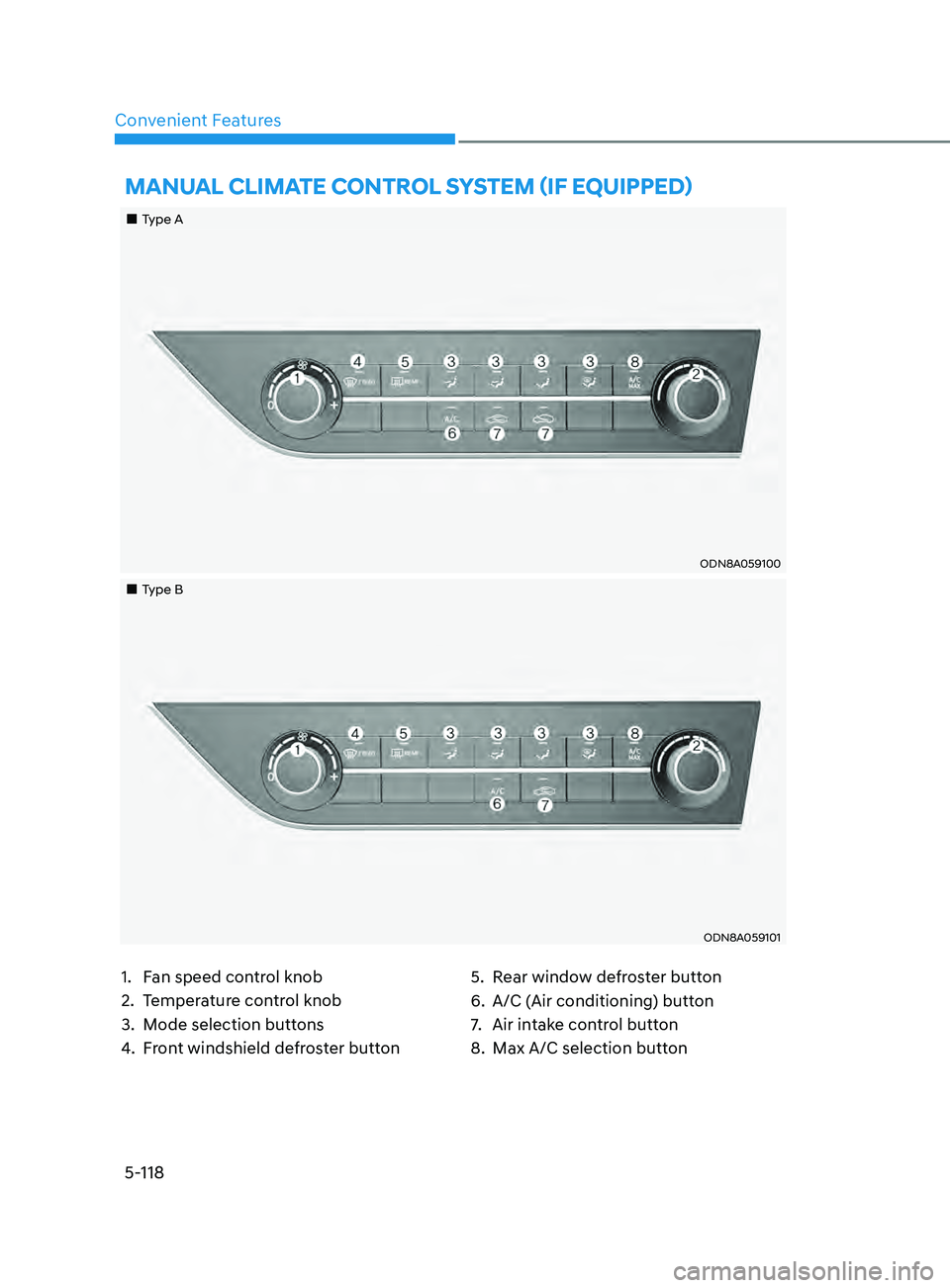

mAnUAl climATe conT rol SyS T em ( if eQU ippe D)
„„Type A
ODN8A059100
„„Type B
ODN8A059101

05
5-119

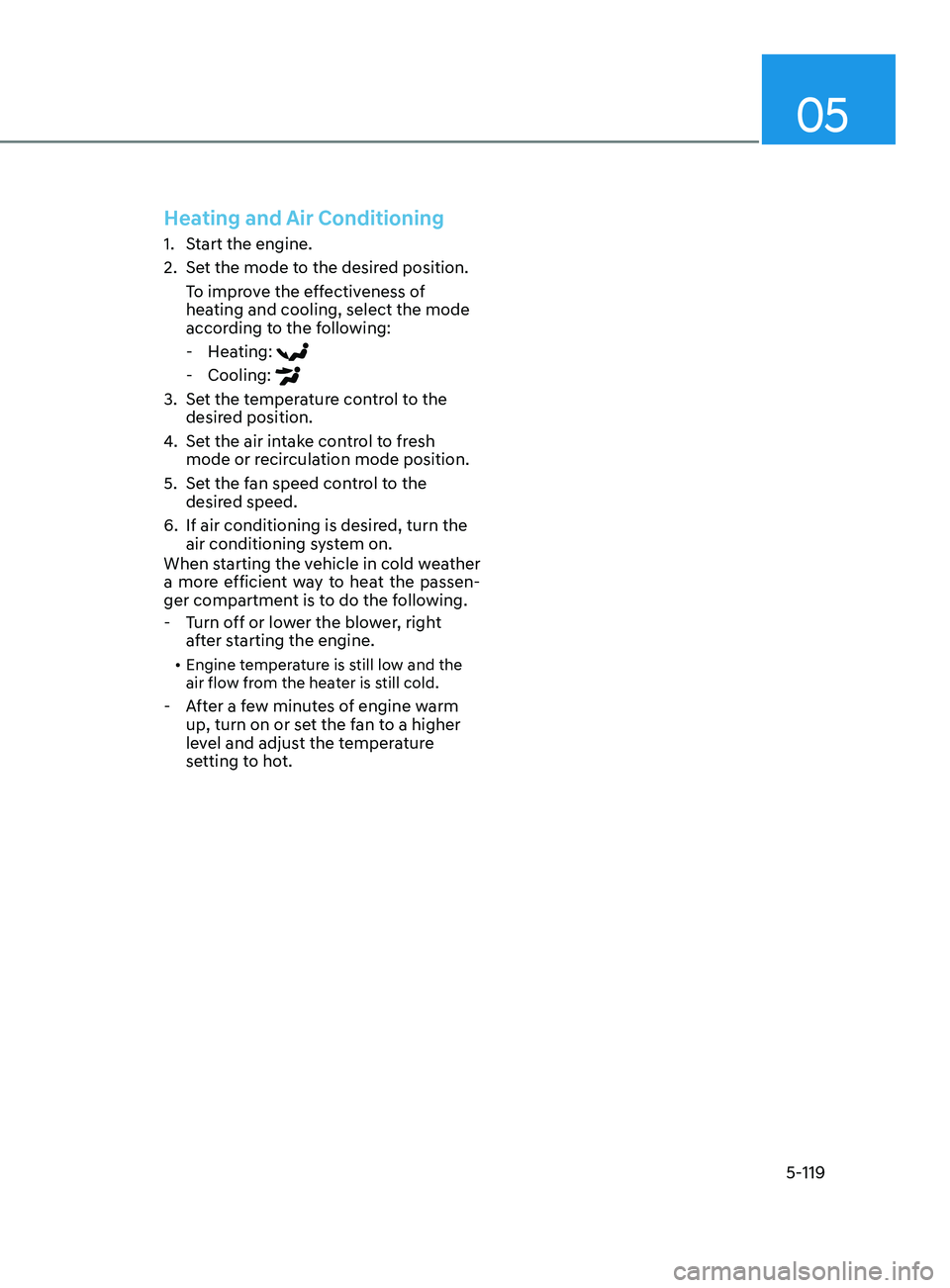

Heating and Air Conditioning
1. Start the engine.
2.
Se
t the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- H

eating:
- Cooling:
3. Set the temperature control to the desired position.
4.
Se

t the air intake control to fresh
mode or recirculation mode position.
5.

Se
t the fan speed control to the
desired speed.
6.

If air conditioning is desir
ed, turn the
air conditioning system on.
When starting the vehicle in cold weather
a more efficient way to heat the passen-
ger compartment is to do the following.
- T

urn off or lower the blower, right
after starting the engine.
• Engine temperature is still low and the
air flow from the heater is still cold.
- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.

Convenient Features
5-120

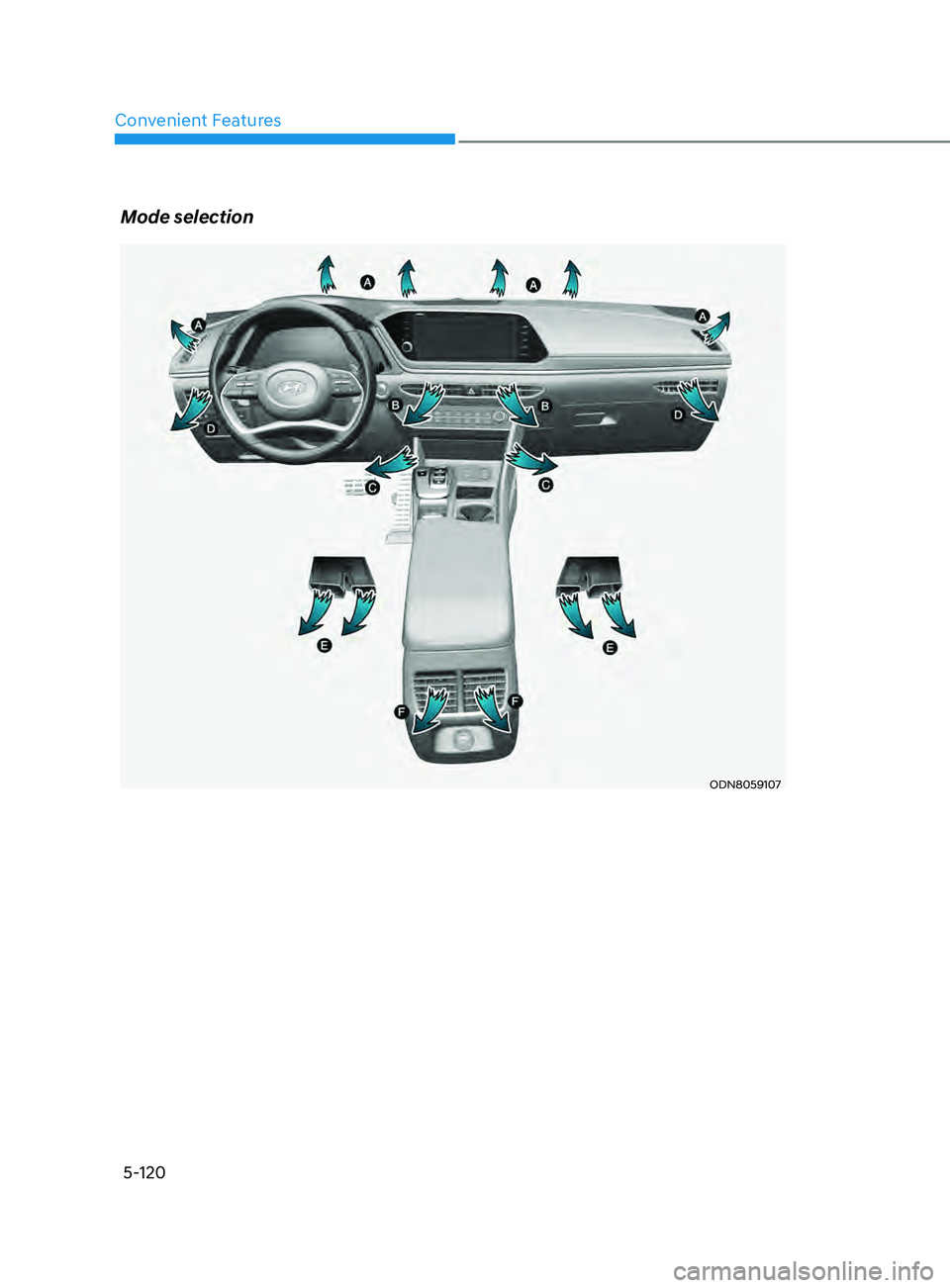

Mode selection
ODN8059107
