Hyundai Sonata

1
FEATURES OF YOUR HYUNDAI
7
!
WARNING:
Be careful not to pull the inside door handle
while driving. If you pull the inside door
handle, the door can be opened and you
may be ejected from the vehicle and can be
injured or killed. o The driver's and front passenger's doors
can be opened by pulling the inside door
handle even if the front portion of the
driver's or front passenger's central door
locking switch has been depressed to
lock the doors.
o If the door is locked/unlocked multiple
times in rapid succession with either the
vehicle key or door lock switch, the sys-
tem may stop operating temporarily in
order to protect the circuit and prevent
damage to system components.
B070F02NF-AATKEYLESS ENTRY SYSTEM
NOTE:This device complies with Part 15 of the
FCC rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion.
CAUTION:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user's authority to
operate the equipment.
Locking doors1. Close all doors.
2. Push the "LOCK ( )" button on the trans-
mitter.
3. At the same time, all doors lock and the turn
signal lights will blink once to indicate that the
system is armed.Unlocking doors1. Push the "UNLOCK ( )" button on the
transmitter.
2. At the same time, the driver's door unlocks
and the turn signal lights will blink twice to
indicate that the system is disarmed.NOTE:If you wish to unlock all the doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.Releasing the trunk lidPush the trunk lid release button ( ) on the
transmitter for longer than 1 second.
!
B040H01NF-AATSpeed Sensing Auto Door Locking
(If Activated)When the speed of the vehicle keeps above the
specific speed for 1 second, it will automatically
lock all doors and for activation of this feature,
contact your authorised Hyundai Dealar.

1FEATURES OF YOUR HYUNDAI8
2) Make sure that the engine hood and trunk lid
are closed and latched.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.NOTE:1) If any door, trunk lid or engine hood
remains open, the system will not be
armed.
2) If this happens, rearm the system as
previously described.NOTE:Do not arm the system until all passengers
have left the car. If the system is armed while
a passenger(s) remains in the car, the alarm
may be activated when the remaining
passenger(s) leaves the car.
THEFT-ALARM SYSTEMB070A01A-AATThis system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages : the first is the
"Armed" stage, the second is the "Alarm" stage
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.B070B01NF-AATArmed Stage
B070B01NF-A
Lock
Unlock
Trunk Unlock
Park the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the ignition
switch.
NOTE:The transmitter will not work if any of fol-
lowing occur:
- The ignition key is in ignition switch.
- You exceed the operating distance limit
(10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be block-
ing the signal.
- The weather is extremely cold.
- The transmitter is close to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
When the transmitter does not work cor-
rectly, open and close the door with the
ignition key. If you have a problem with the
transmitter, contact an authorized Hyundai
Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your manu-
facturer vehicle warranty.

1
FEATURES OF YOUR HYUNDAI
9
B070D01NF-AATDisarmed StageThe system will be disarmed by using the
transmitter or the ignition key.
Only the driver's door is unlocked by depress-
ing once the "UNLOCK ( )" button on the
transmitter. If you wish to unlock all doors, press
the "UNLOCK ( )" button on the transmitter
again within 4 seconds.
Whenever the step above is completed, the turn
signal lights will blink twice to indicate that the
system is disarmed.
If any door, trunk lid or engine hood is not opened
or the ignition key is not inserted in the ignition
switch within 30 seconds, the system will be
rearmed.NOTE:When the system is disarmed while the
"DOOR" button of the interior light is de-
pressed, the interior light will illuminate for
30 seconds.
B070C01NF-AATAlarm StageThe alarm will be activated if any of the following
occurs while the car is parked and the system
is armed.
1) A front or rear door is opened without using
the transmitter or the ignition key.
2) The trunk lid is opened without using the
transmitter or the ignition key.
3) The engine hood is opened.
The alarming horn will sound and the turn signal
lights will blink continuously for 27 seconds
(This will repeat 3 times). To turn off the system,
unlock the door or trunk lid with the transmitter
or the ignition key.
B070C01NF-A
CAUTION:
Avoid trying to start the engine while the
system is armed.
!
B070E01NF-AATPanic Warning1. Push the "PANIC" button on the backside of
the transmitter.
2. At the same time, the alarming horn will
sound and the turn signal lights will blink
continuously for 30 seconds.
3. To turn off the system, push the "PANIC"
button again on the backside of the transmit-
ter.
B070E02NF-A

1FEATURES OF YOUR HYUNDAI10
HNF2005
Battery
2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing up),
then insert it in the transmitter.

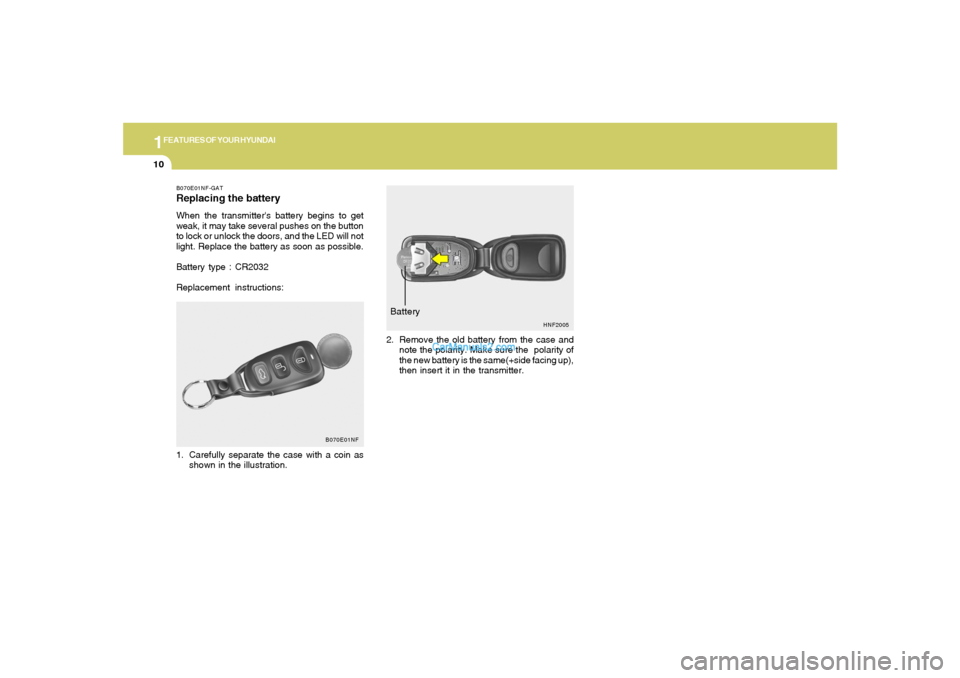

B070E01NF-GATReplacing the batteryWhen the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a coin as
shown in the illustration.
B070E01NF

1
FEATURES OF YOUR HYUNDAI
11

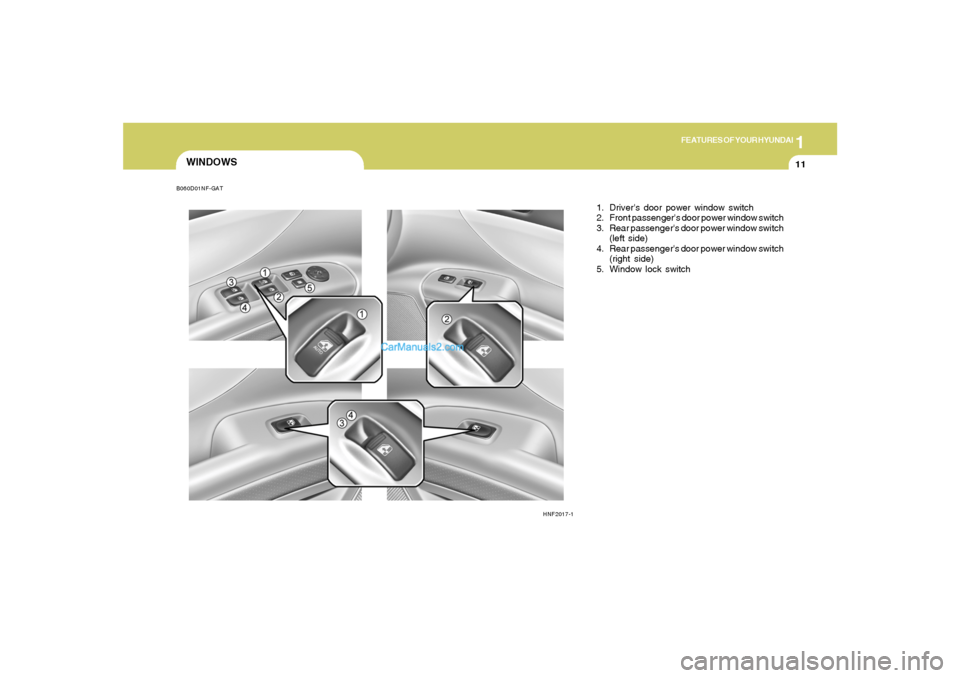

WINDOWS
HNF2017-1
1. Driver's door power window switch
2. Front passenger's door power window switch
3. Rear passenger's door power window switch
(left side)
4. Rear passenger's door power window switch
(right side)
5. Window lock switch
B060D01NF-GAT

1FEATURES OF YOUR HYUNDAI12

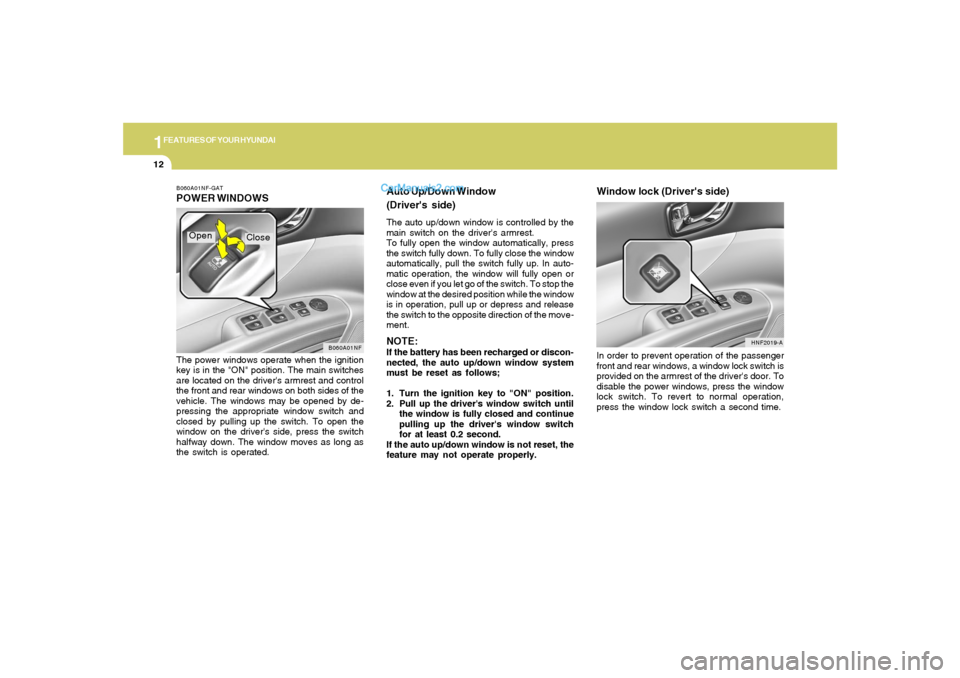

B060A01NF-GATPOWER WINDOWSThe power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de-
pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch
halfway down. The window moves as long as
the switch is operated.
B060A01NF
Window lock (Driver's side)
HNF2019-A
Auto Up/Down Window
(Driver's side)The auto up/down window is controlled by the
main switch on the driver's armrest.
To fully open the window automatically, press
the switch fully down. To fully close the window
automatically, pull the switch fully up. In auto-
matic operation, the window will fully open or
close even if you let go of the switch. To stop the
window at the desired position while the window
is in operation, pull up or depress and release
the switch to the opposite direction of the move-
ment.NOTE:If the battery has been recharged or discon-
nected, the auto up/down window system
must be reset as follows;
1. Turn the ignition key to "ON" position.
2. Pull up the driver's window switch until
the window is fully closed and continue
pulling up the driver's window switch
for at least 0.2 second.
If the auto up/down window is not reset, the
feature may not operate properly. Open
Close
In order to prevent operation of the passenger
front and rear windows, a window lock switch is
provided on the armrest of the driver's door. To
disable the power windows, press the window
lock switch. To revert to normal operation,
press the window lock switch a second time.

1
FEATURES OF YOUR HYUNDAI
13
!
!

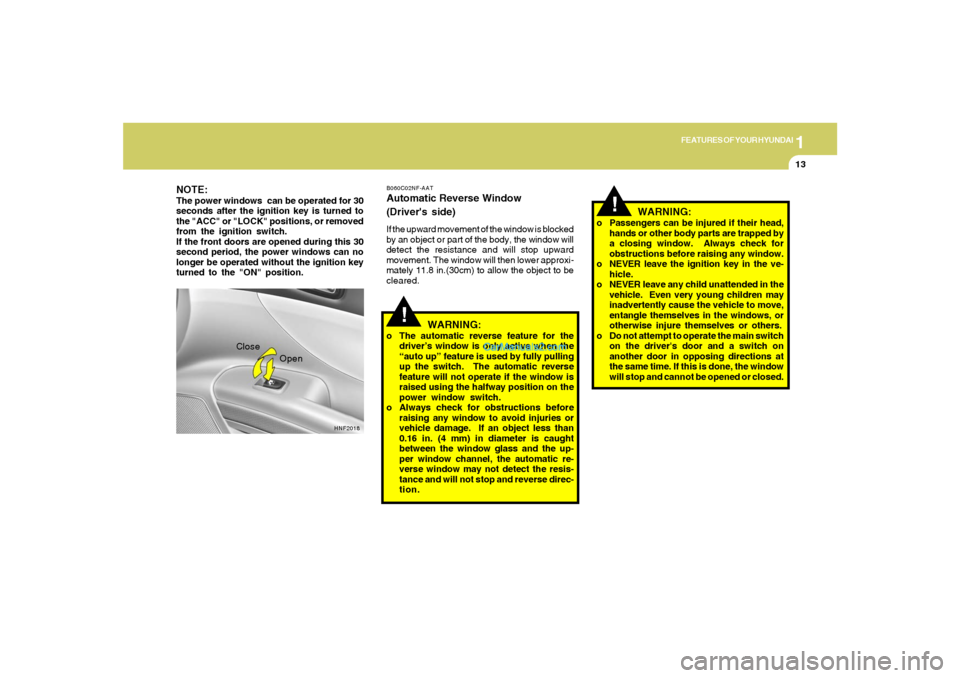

HNF2018
Close
Open
WARNING:
o Passengers can be injured if their head,
hands or other body parts are trapped by
a closing window. Always check for
obstructions before raising any window.
o NEVER leave the ignition key in the ve-
hicle.
o NEVER leave any child unattended in the
vehicle. Even very young children may
inadvertently cause the vehicle to move,
entangle themselves in the windows, or
otherwise injure themselves or others.
o Do not attempt to operate the main switch
on the driver's door and a switch on
another door in opposing directions at
the same time. If this is done, the window
will stop and cannot be opened or closed.
WARNING:
o The automatic reverse feature for the
driver’s window is only active when the
“auto up” feature is used by fully pulling
up the switch. The automatic reverse
feature will not operate if the window is
raised using the halfway position on the
power window switch.
o Always check for obstructions before
raising any window to avoid injuries or
vehicle damage. If an object less than
0.16 in. (4 mm) in diameter is caught
between the window glass and the up-
per window channel, the automatic re-
verse window may not detect the resis-
tance and will not stop and reverse direc-
tion.B060C02NF-AATAutomatic Reverse Window
(Driver's side)If the upward movement of the window is blocked
by an object or part of the body, the window will
detect the resistance and will stop upward
movement. The window will then lower approxi-
mately 11.8 in.(30cm) to allow the object to be
cleared.
NOTE:The power windows can be operated for 30
seconds after the ignition key is turned to
the "ACC" or "LOCK" positions, or removed
from the ignition switch.
If the front doors are opened during this 30
second period, the power windows can no
longer be operated without the ignition key
turned to the "ON" position.

1FEATURES OF YOUR HYUNDAI14
!

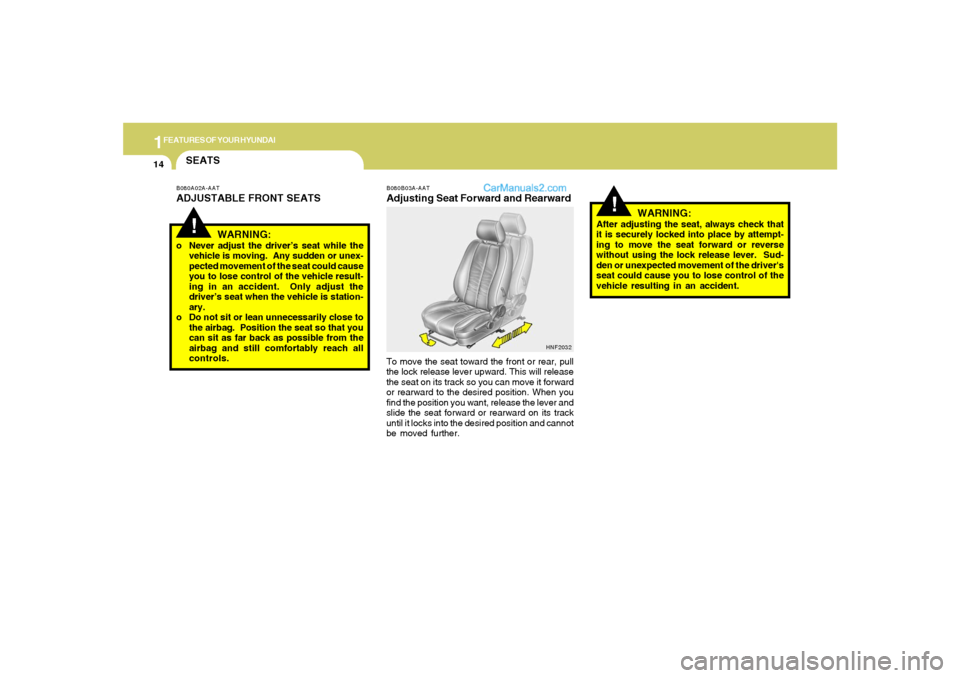

B080B03A-AATAdjusting Seat Forward and RearwardTo move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position. When you
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.
WARNING:
After adjusting the seat, always check that
it is securely locked into place by attempt-
ing to move the seat forward or reverse
without using the lock release lever. Sud-
den or unexpected movement of the driver's
seat could cause you to lose control of the
vehicle resulting in an accident.
SEATSB080A02A-AATADJUSTABLE FRONT SEATS
!
WARNING:
o Never adjust the driver’s seat while the
vehicle is moving. Any sudden or unex-
pected movement of the seat could cause
you to lose control of the vehicle result-
ing in an accident. Only adjust the
driver’s seat when the vehicle is station-
ary.
o Do not sit or lean unnecessarily close to
the airbag. Position the seat so that you
can sit as far back as possible from the
airbag and still comfortably reach all
controls.
HNF2032

1
FEATURES OF YOUR HYUNDAI
15

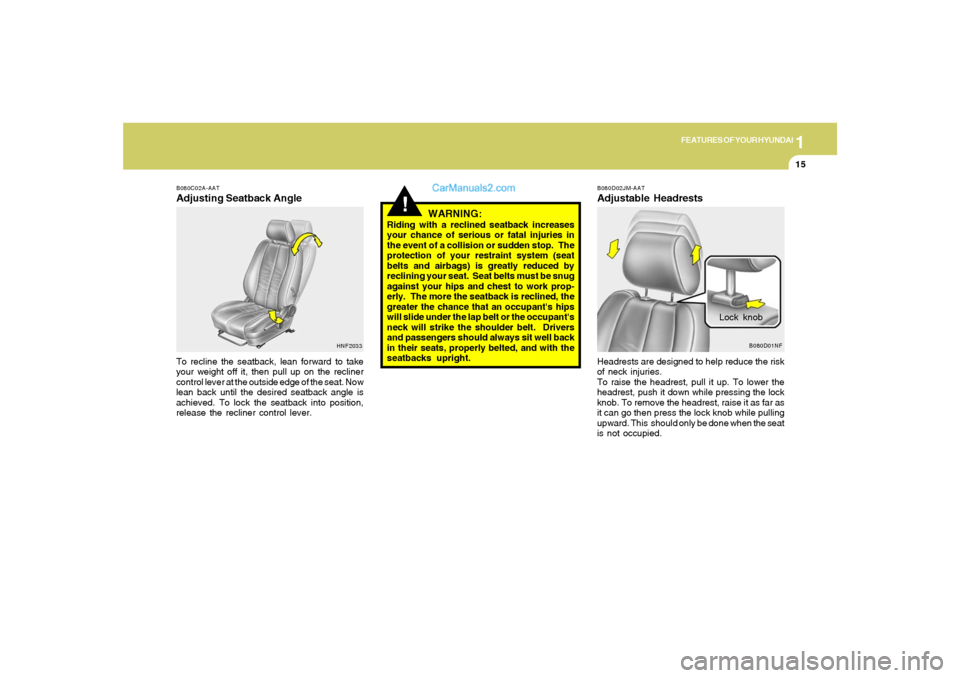

B080C02A-AATAdjusting Seatback AngleTo recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat. Now
lean back until the desired seatback angle is
achieved. To lock the seatback into position,
release the recliner control lever.
HNF2033
!
WARNING:
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop. The
protection of your restraint system (seat
belts and airbags) is greatly reduced by
reclining your seat. Seat belts must be snug
against your hips and chest to work prop-
erly. The more the seatback is reclined, the
greater the chance that an occupant's hips
will slide under the lap belt or the occupant's
neck will strike the shoulder belt. Drivers
and passengers should always sit well back
in their seats, properly belted, and with the
seatbacks upright.
B080D02JM-AATAdjustable HeadrestsHeadrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower the
headrest, push it down while pressing the lock
knob. To remove the headrest, raise it as far as
it can go then press the lock knob while pulling
upward. This should only be done when the seat
is not occupied.
B080D01NF
Lock knob

1FEATURES OF YOUR HYUNDAI16
B083D01NF-AATActive HeadrestsThe active headrest is designed to move for-
ward and upward during a rear impact. This
helps to prevent the driver's and front
passenger's head from moving backward and
thus helps prevent neck injuries.
B081D01LZ-AATTilting Headrest Forward and RearwardThe headrest may be tilted forward to three
different positions by pulling the headrest for-
ward. To adjust the headrest rearward, pull it
fully forward to the farthest position and release
it. Adjust the headrest so that it properly sup-
ports the head and neck.
B081D01NF-A
HNF2041-1
!
WARNING:
o For maximum effectiveness in case of an
accident the headrest should be ad-
justed so the middle of the headrest is at
the same height as the top of the
occupant's eyes. For this reason, the
use of a cushion that holds the body
away from the seatback is not recom-
mended.
o Do not operate the vehicle with the head-
rests removed as injury to the occupants
may occur in the event of an accident.
Headrests may provide protection against
neck injuries when properly adjusted.
o Do not adjust the headrest height while
the vehicle is in motion.
B080D01JM
