brake fluid Hyundai Sonata

Hyundai Sonata https://www.carmanualsonline.info/img/35/16837/w960_16837-0.png Hyundai Sonata

Page 14 of 276

Hyundai Sonata YOUR VEHICLE AT A GLANCEB255A01NF-AATINDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
High Beam Indicator LightDoor Ajar Warning LightSeat Belt Reminder LightTurn Signal Indicator Lights
ABS Service Remind

Page 65 of 276

Hyundai Sonata 1
FEATURES OF YOUR HYUNDAI
51
1. Tachometer
2. Door Ajar Warning Light
3. Seat Belt Warning Light (Drivers side)
4. High Beam Indicator Light
5. Turn Signal Indicator Lights
6. Speedometer
7. Electro

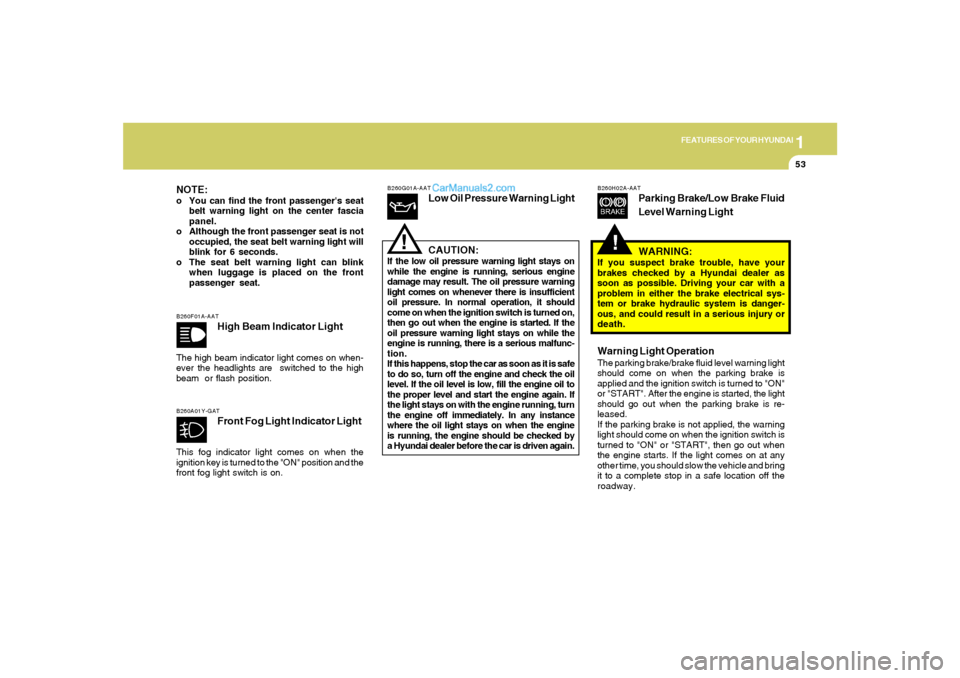

Page 67 of 276

Hyundai Sonata 1
FEATURES OF YOUR HYUNDAI
53
B260F01A-AAT
High Beam Indicator Light
The high beam indicator light comes on when-
ever the headlights are  switched to the high
beam  or flash position.
B260G01A-AAT
Lo

Page 68 of 276

Hyundai Sonata 1FEATURES OF YOUR HYUNDAI54
B260L02HP-GAT
Door Ajar Warning Light and
Chime
The door ajar warning light warns you that a door
is not completely closed and the chime warns
you that the key is in the ig

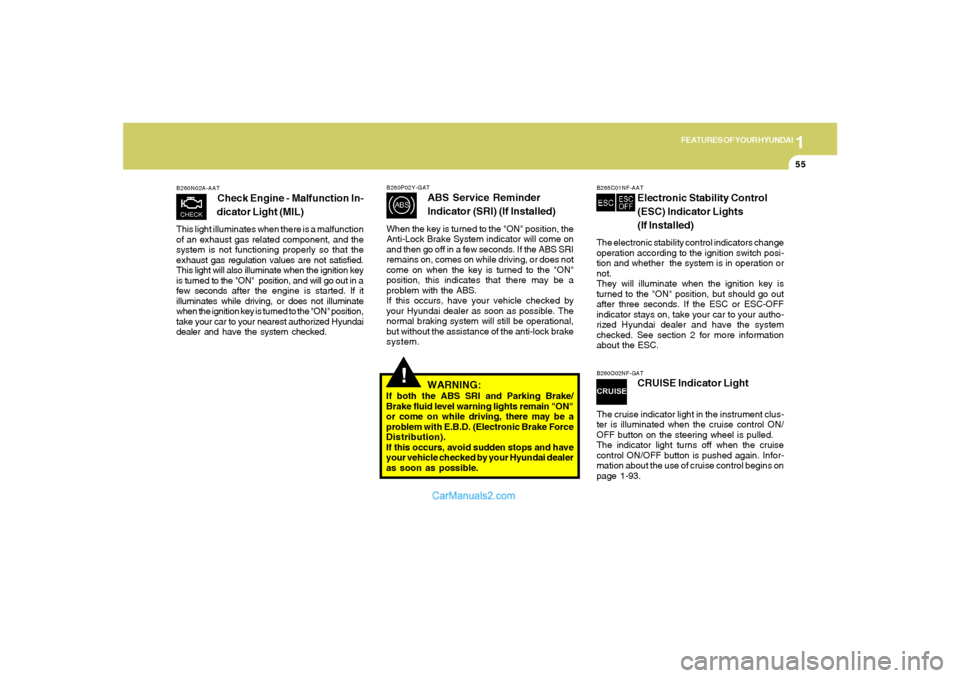

Page 69 of 276

Hyundai Sonata 1
FEATURES OF YOUR HYUNDAI
55
!
B260P02Y-GAT
ABS Service Reminder
Indicator (SRI) (If Installed)
When the key is turned to the "ON" position, the
Anti-Lock Brake System indicator will come on
and then

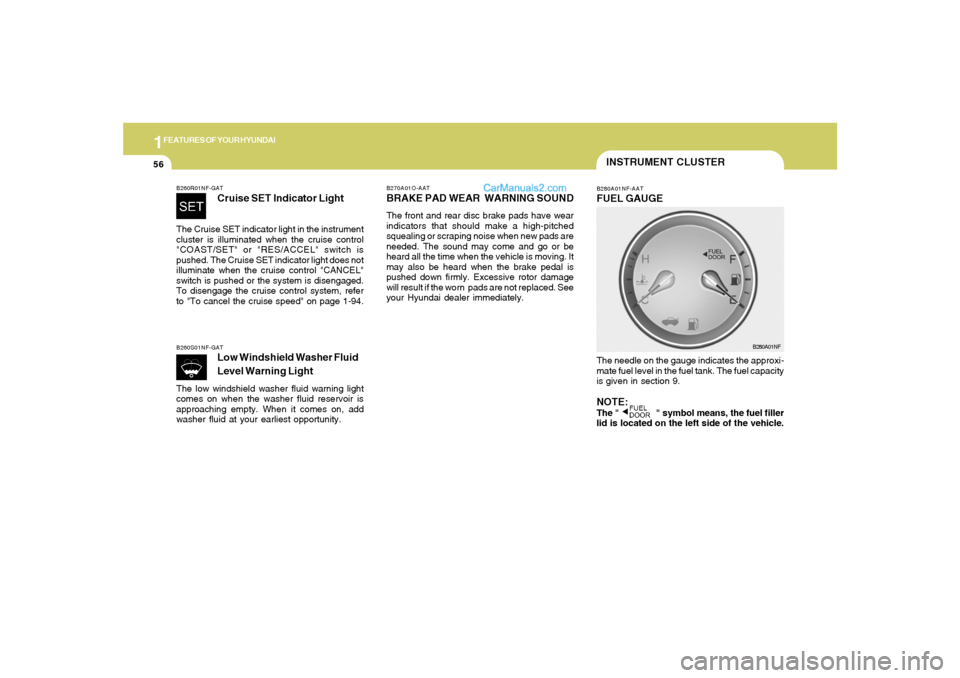

Page 70 of 276

Hyundai Sonata 1FEATURES OF YOUR HYUNDAI56
B270A01O-AATBRAKE PAD WEAR  WARNING SOUNDThe front and rear disc brake pads have wear
indicators that should make a high-pitched
squealing or scraping noise when new pads a

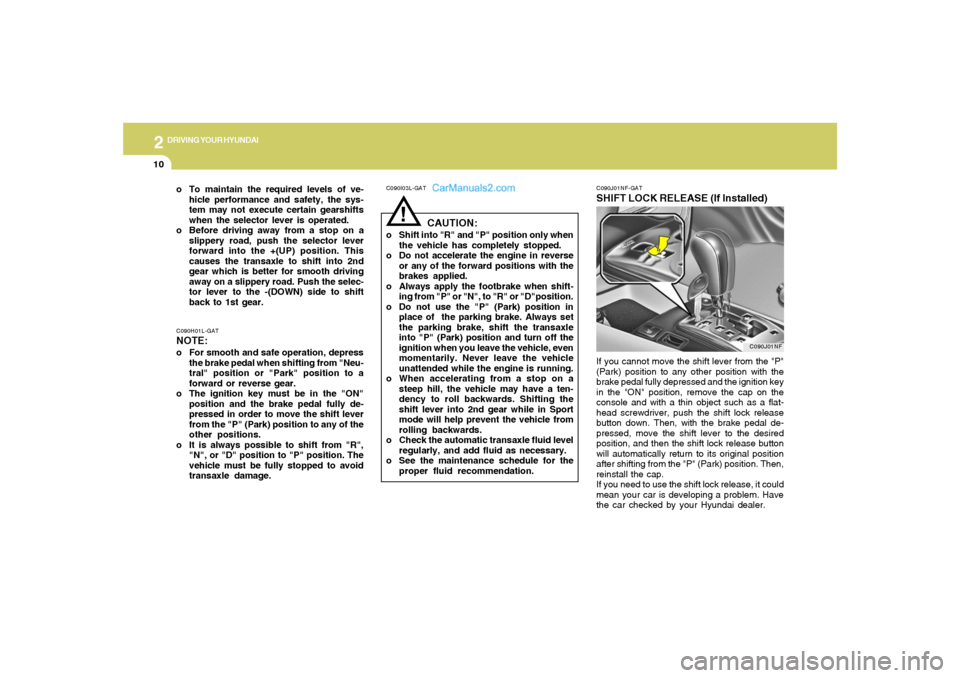

Page 157 of 276

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
10
!
C090I03L-GAT
CAUTION:
o Shift into "R" and "P" position only when
the vehicle has completely stopped.
o Do not accelerate the engine in reverse
or any of the forward positi

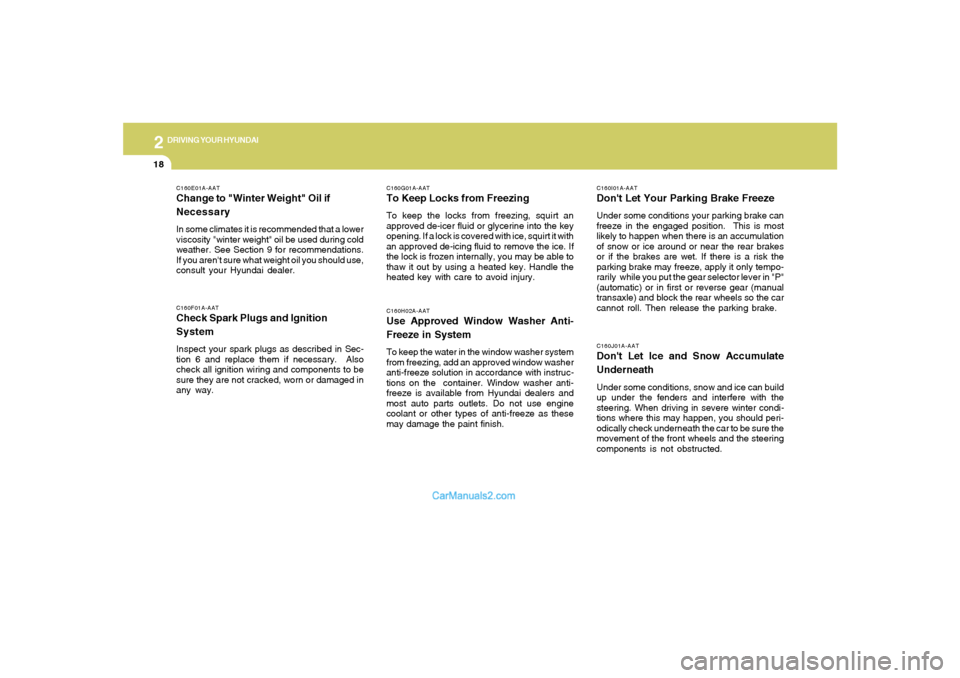

Page 165 of 276

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
18
C160J01A-AATDont Let Ice and Snow Accumulate
UnderneathUnder some conditions, snow and ice can build
up under the fenders and interfere with the
steering. When driving in se

Page 170 of 276

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
23
8. When parking your car and trailer, especially
on a hill, be sure to follow all the normal
precautions. Turn your front wheel into the
curb, set the parking brake firmly, a

Page 179 of 276

Hyundai Sonata 34WHAT TO DO IN AN EMERGENCY
IF THE ENGINE OVERHEATS
!!
!
WARNING:
While the engine is running, keep hair,
hands and clothing away from moving parts
such as the fan and drive belts to prevent
injury.
