HYUNDAI SONATA HYBRID 2014 Owners Manual

Maintenance
56
7
Description Fuse rating
Protected component
CLOCK
10A
BCM, Clock, Front Monitor, Smart Key Module, PDM, Audio, Power Outside Mirror Switch, AMP,
JBL AMP, Overhead Console Lamp, Rear Camera Module, A/V & Navigation Head Unit
SPARE
10A -
A/CON
7.5A E/R Fuse & Relay Box(Blower Relay), A/C Control Module
S/HEATER RR
20A Rear Seat Warmer Switch LH/RH
SUN ROOF
20A Sunroof Motor
POWER OUTLET 1 15A Front Power Outlet #1
MODULE 2
7.5A BCM, Rear Camera Module, Electro Chromic Mirror, Sunroof Motor
WIPER
25A E/R Fuse & Relay Box(Wiper Relay), Front Wiper Motor, Multifunction Switch(Wiper)
MODULE 5
7.5A PDM
DR LOCK
20A Door Lock/Unlock Relay
POWER OUTLET 1 15A Front Power Outlet #2
MODULE 1
7.5A
Instrument Cluster(ON/START Input), Clock, Sport Mode Switch IND., Audio,
Driver/Passenger Seat Warmer Module, BCM
IG 1
20A E/R Fuse & Relay Box (Fuse - ESC 3 10A, ECU 4 10A, B/UP LP 10A, TCU 2 10A)
SPARE
20A -
A/BAG
15A SRS Control Module, Telltale Lamp, Passenger Weight Classification Sensor
START 1
7.5A
W/O Smart Key-Ignition Lock Switch, Burglar Alarm Relay, E/R Fuse & Relay Box (Start 1 Relay)
With Smart Key-PDM
MDPS
10A Yaw Rate Sensor, ESP Off Switch, EPS Control Module
PDM 3
7.5A PDM, Smart Key Module
SPARE
10A -
A/BAG IND.
7.5A Instrument Cluster(IND.)
VACUUM PUMP
20A
Vacuum pump
YF HMA 7.qxp 1/16/2012 6:20 PM Page 56

757
Maintenance

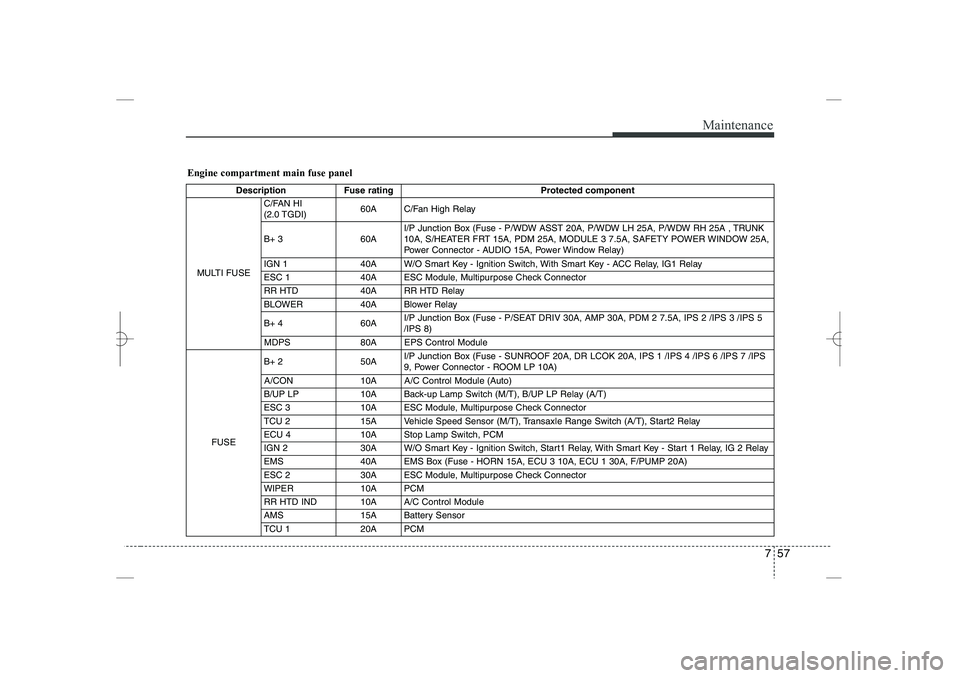

Engine compartment main fuse panel
Description
Fuse rating
Protected component
MULTI FUSE
C/FAN HI
(2.0 TGDI)
60A C/Fan High Relay
B+ 3
60A
I/P Junction Box (Fuse - P/WDW ASST 20A, P/WDW LH 25A, P/WDW RH 25A , TRUNK
10A, S/HEATER FRT 15A, PDM 25A, MODULE 3 7.5A, SAFETY POWER WINDOW 25A,
Power Connector - AUDIO 15A, Power Window Relay)
IGN 1
40A W/O Smart Key - Ignition Switch, With Smart Key - ACC Relay, IG1 Relay
ESC 1
40A ESC Module, Multipurpose Check Connector
RR HTD
40A RR HTD Relay
BLOWER
40A Blower Relay
B+ 4
60A
I/P Junction Box (Fuse - P/SEAT DRIV 30A, AMP 30A, PDM 2 7.5A, IPS 2 /IPS 3 /IPS 5
/IPS 8)
MDPS
80A
EPS Control Module
FUSE
B+ 2 50A
I/P Junction Box (Fuse - SUNROOF 20A, DR LCOK 20A, IPS 1 /IPS 4 /IPS 6 /IPS 7 /IPS
9, Power Connector - ROOM LP 10A)
A/CON
10A
A/C Control Module (Auto)
B/UP LP 10A Back-up Lamp Switch (M/T), B/UP LP Relay (A/T)
ESC 3 10A ESC Module, Multipurpose Check Connector
TCU 2 15A Vehicle Speed Sensor (M/T), Transaxle Range Switch (A/T), Start2 Relay
ECU 4 10A Stop Lamp Switch, PCM
IGN 2 30A W/O Smart Key - Ignition Switch, Start1 Relay, With Smart Key - Start 1 Relay, IG 2 Relay
EMS 40A EMS Box (Fuse - HORN 15A, ECU 3 10A, ECU 1 30A, F/PUMP 20A)
ESC 2 30A ESC Module, Multipurpose Check Connector
WIPER 10A PCM
RR HTD IND 10A A/C Control Module
AMS 15A Battery Sensor
TCU 1 20A PCM
YF HMA 7.qxp 1/16/2012 6:20 PM Page 57

Maintenance
58
7

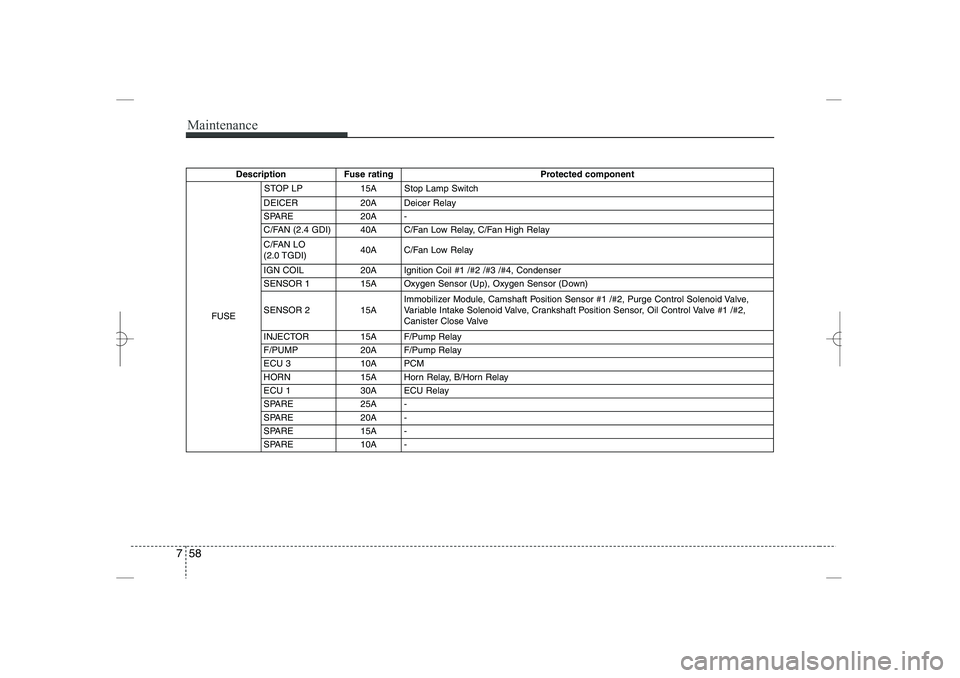

Description
Fuse rating
Protected component
FUSE
STOP LP
15A Stop Lamp Switch
DEICER
20A Deicer Relay
SPARE
20A -
C/FAN (2.4 GDI) 40A C/Fan Low Relay, C/Fan High Relay
C/FAN LO
(2.0 TGDI)
40A C/Fan Low Relay
IGN COIL
20A Ignition Coil #1 /#2 /#3 /#4, Condenser
SENSOR 1
15A Oxygen Sensor (Up), Oxygen Sensor (Down)
SENSOR 2
15A
Immobilizer Module, Camshaft Position Sensor #1 /#2, Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1 /#2,
Canister Close Valve
INJECTOR
15A F/Pump Relay
F/PUMP
20A F/Pump Relay
ECU 3
10A PCM
HORN
15A Horn Relay, B/Horn Relay
ECU 1
30A ECU Relay
SPARE
25A -
SPARE
20A -
SPARE
15A -
SPARE
10A -
YF HMA 7.qxp 1/16/2012 6:20 PM Page 58

759
Maintenance

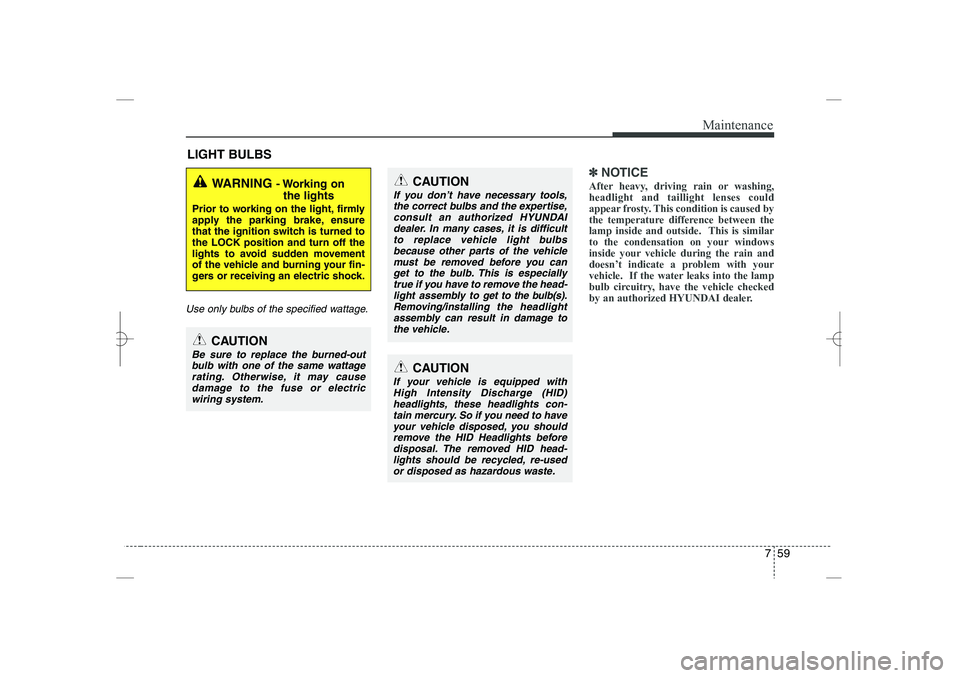

LIGHT BULBS
Use only bulbs of the specified wattage.
✽
✽
NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
WARNING
- Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
CAUTION
If you don’t have necessary tools,
the correct bulbs and the expertise,
consult an authorized HYUNDAI
dealer. In many cases, it is difficult
to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can
get to the bulb. This is especially
true if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installing
the headlight
assembly can result in damage to
the vehicle.
CAUTION
If your vehicle is equipped with
High Intensity Discharge (HID)
headlights, these headlights con-
tain mercury. So if you need to have
your vehicle disposed, you should
remove the HID Headlights before
disposal. The removed HID head-
lights should be recycled, re-used
or disposed as hazardous waste.
YF HMA 7.qxp 1/16/2012 6:20 PM Page 59

Maintenance
60
7

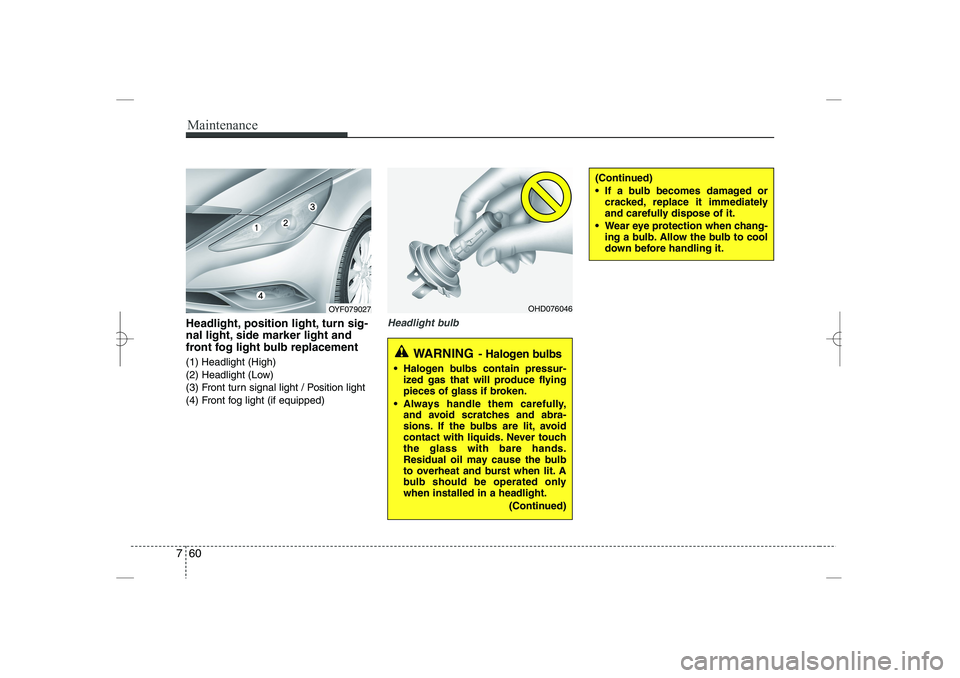

Headlight, position light, turn sig-
nal light, side marker light and
front fog light bulb replacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light / Position light
(4) Front fog light (if equipped)
Headlight bulb
(Continued)
 If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
 Wear eye protection when chang-
ing a bulb. Allow the bulb to cool
down before handling it.
OHD076046
WARNING
-
Halogen bulbs
 Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
 Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touch
the glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated only
when installed in a headlight.
(Continued)
OYF079027
YF HMA 7.qxp 1/16/2012 6:20 PM Page 60

761
Maintenance

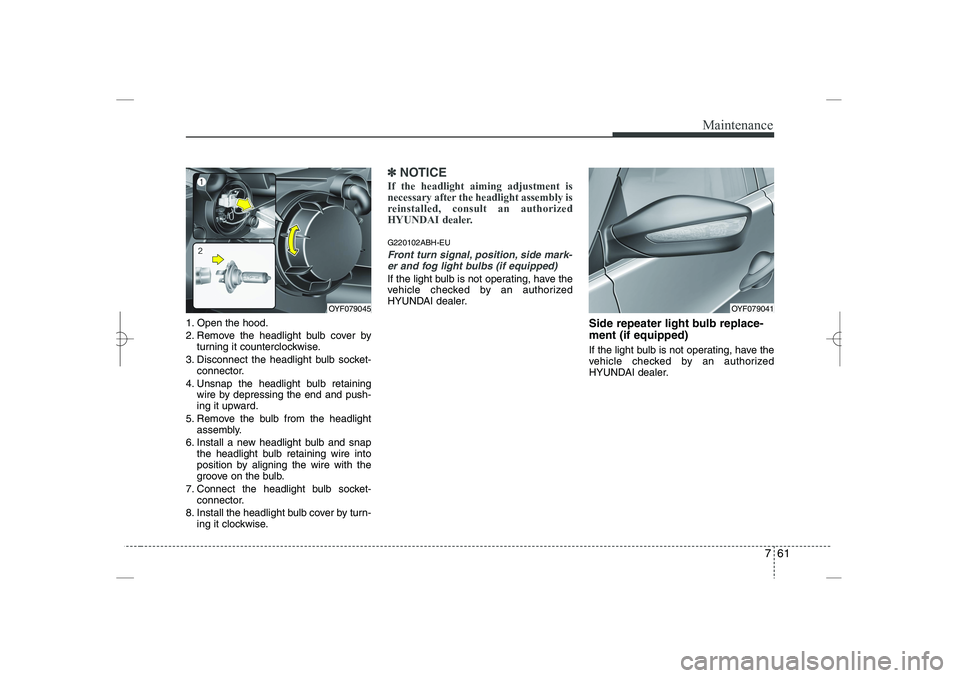

1. Open the hood.
2. Remove the headlight bulb cover by
turning it counterclockwise.
3. Disconnect the headlight bulb socket-
connector.
4. Unsnap the headlight bulb retaining
wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight
assembly.
6. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket-
connector.
8. Install the headlight bulb cover by turn-
ing it clockwise.
✽
✽
NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.
G220102ABH-EU
Front turn signal, position, side mark-
er and fog light bulbs (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
Side repeater light bulb replace-
ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
OYF079041
OYF079045
YF HMA 7.qxp 1/16/2012 6:20 PM Page 61

Maintenance
62
7

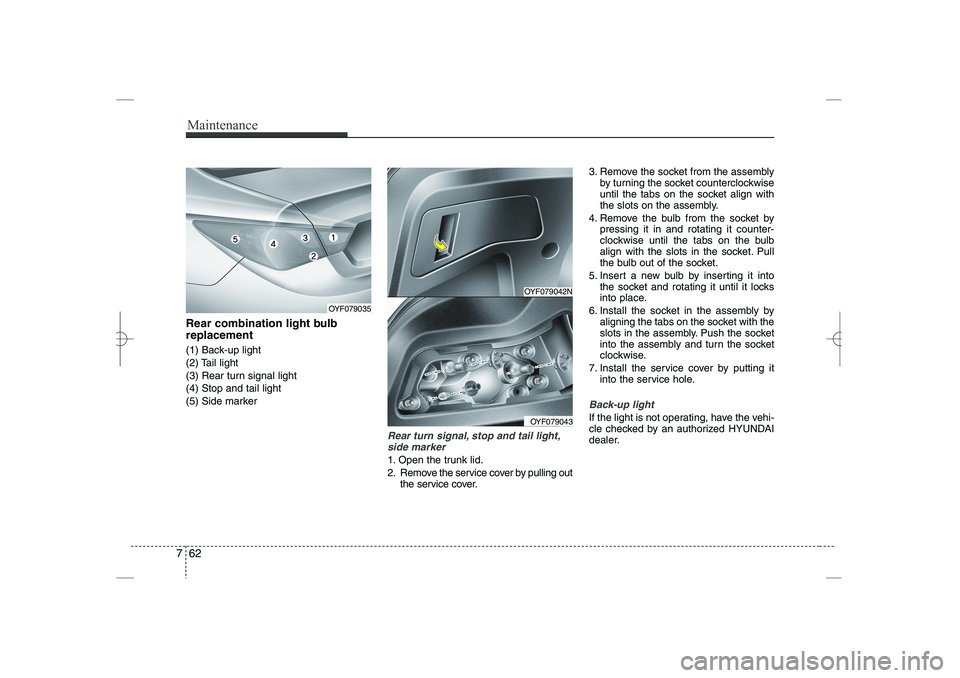

Rear combination light bulb
replacement
(1) Back-up light
(2) Tail light
(3) Rear turn signal light
(4) Stop and tail light
(5) Side marker
Rear turn signal, stop and tail light,
side marker
1. Open the trunk lid.
2. Remove the service cover by pulling out
the service cover.
3. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
4. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it
into the service hole.
Back-up light
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.
OYF079042N
OYF079035
OYF079043
YF HMA 7.qxp 1/16/2012 6:20 PM Page 62

763
Maintenance

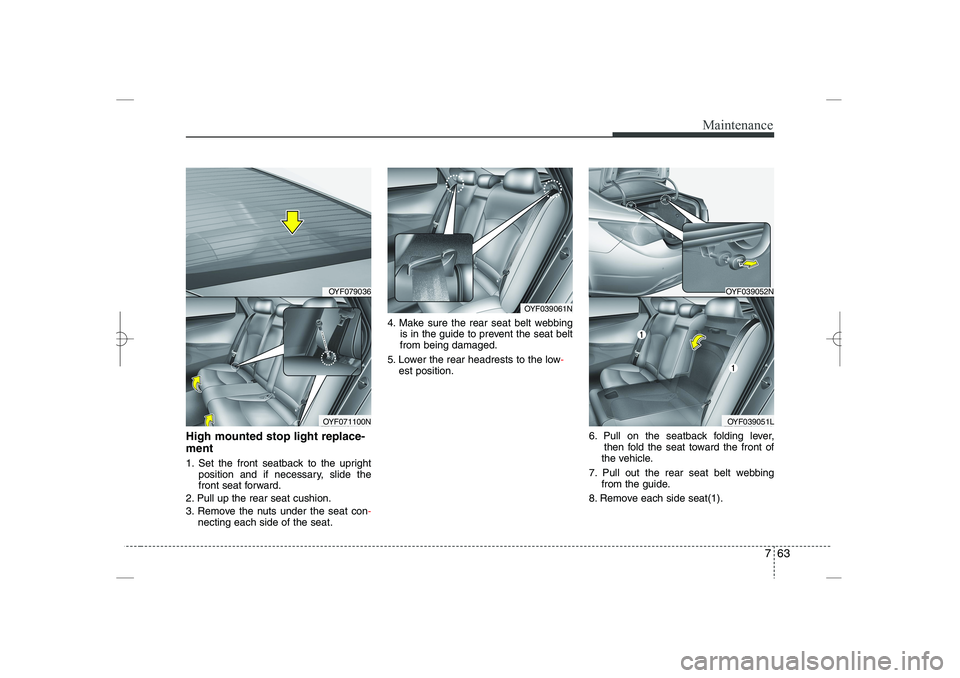

High mounted stop light replace-
ment
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Pull up the rear seat cushion.
3. Remove the nuts under the seat con
-
necting each side of the seat.
4. Make sure the rear seat belt webbing
is in the guide to prevent the seat belt
from being damaged.
5. Lower the rear headrests to the low
-
est position.
6. Pull on the seatback folding lever,
then fold the seat toward the front of
the vehicle.
7. Pull out the rear seat belt webbing
from the guide.
8. Remove each side seat(1).
OYF039061N
OYF079036
OYF071100N
OYF039052N
OYF039051L
YF HMA 7.qxp 1/16/2012 6:20 PM Page 63

Maintenance
64
7

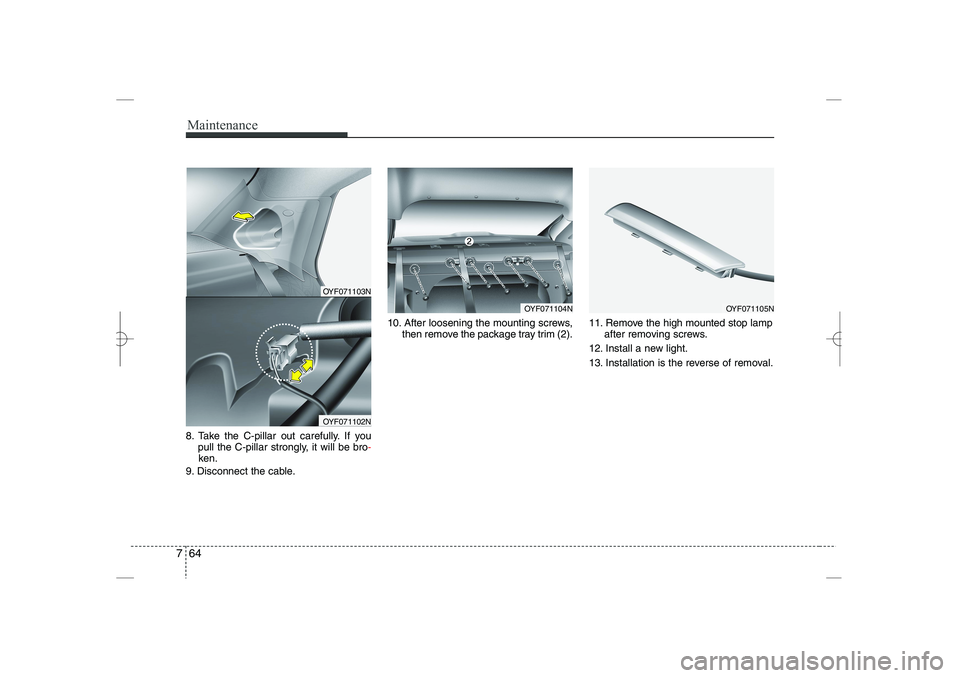

8. Take the C-pillar out carefully. If you
pull the C-pillar strongly, it will be bro
-
ken.
9. Disconnect the cable.
10. After loosening the mounting screws,
then remove the package tray trim (2).
11. Remove the high mounted stop lamp
after removing screws.
12. Install a new light.
13. Installation is the reverse of removal.
OYF071103N
OYF071102N
OYF071104N
OYF071105N
YF HMA 7.qxp 1/16/2012 6:21 PM Page 64

765
Maintenance

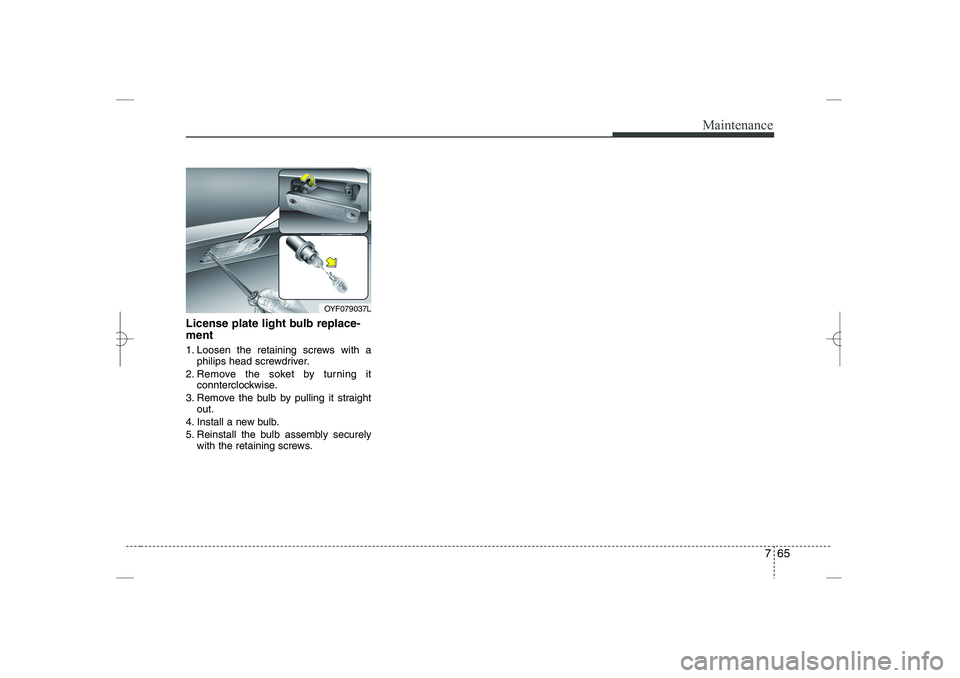

License plate light bulb replace-
ment
1. Loosen the retaining screws with a
philips head screwdriver.
2. Remove the soket by turning it
connterclockwise.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb.
5. Reinstall the bulb assembly securely
with the retaining screws.
OYF079037L
YF HMA 7.qxp 1/16/2012 6:21 PM Page 65
