Starting the System for the First Time I 1-11
01
FeaturesDescription
Navigation
Widget
!Ÿ
Provides a brief view of the navigation map
and the route screen.
!Ÿ
Touch any area on the screen to move to
the navigation screen.
AV Widget
!Ÿ
Shows brief information on the radio media
current playing.
!Ÿ
T
ouch the area to move to the mode for
what you are listening to.
All Menus Shows all of the items in the system menu.
PlacesDirectly moves to the screen where you can
search for your destination.
My Menu
!Ÿ
You can add and save up to eight menu items.
!Ÿ
Add your favorite menu items to have quick
and easy access to them.

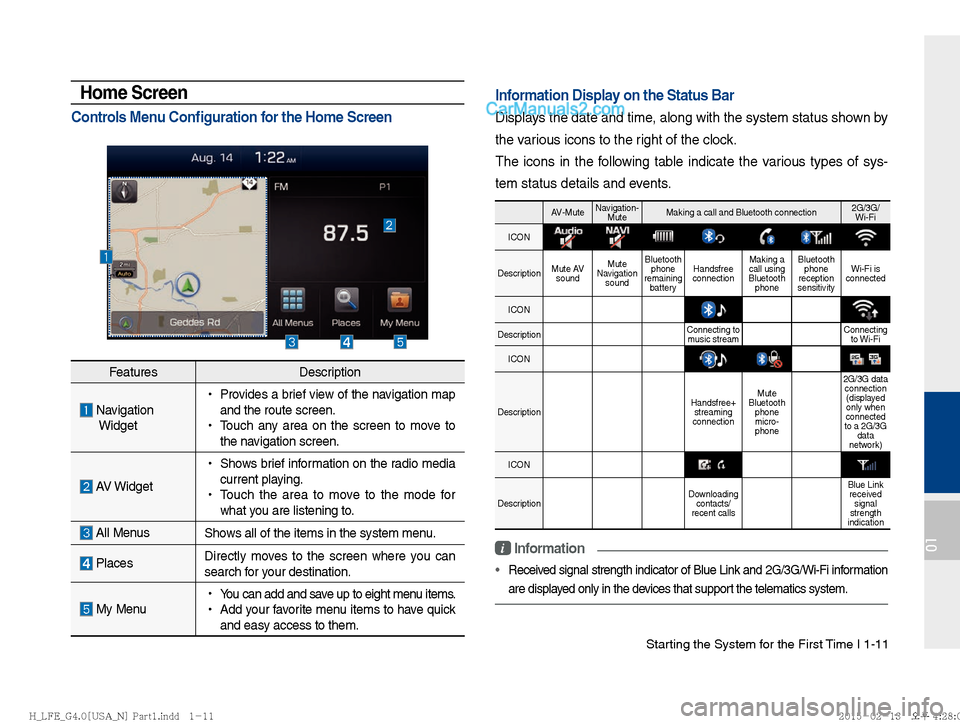

Home Screen
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by
the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
i Information
Received signal strength indicator of Blue Link and 2G/3G/Wi-Fi information
are displa
yed only in the devices that support the telematics system.
AV-Mute Navigation-
Mute Making a call and Bluetooth connection 2G/3G/
Wi-Fi
ICON
Description Mute AV
sound Mute
Navigation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
Bluetooth phone Bluetooth
phone
reception
sensitivity Wi-Fi is
connected
ICON
Description Connecting to
music stream Connecting
to Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth phone micro-
phone 2G/3G data
connection (displayed
only when
connected
to a 2G/3G data
network)
ICON
Description Downloading
contacts/
recent calls Blue Link
received signal
strength
indication
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 22 of 308
1-12 I Basic

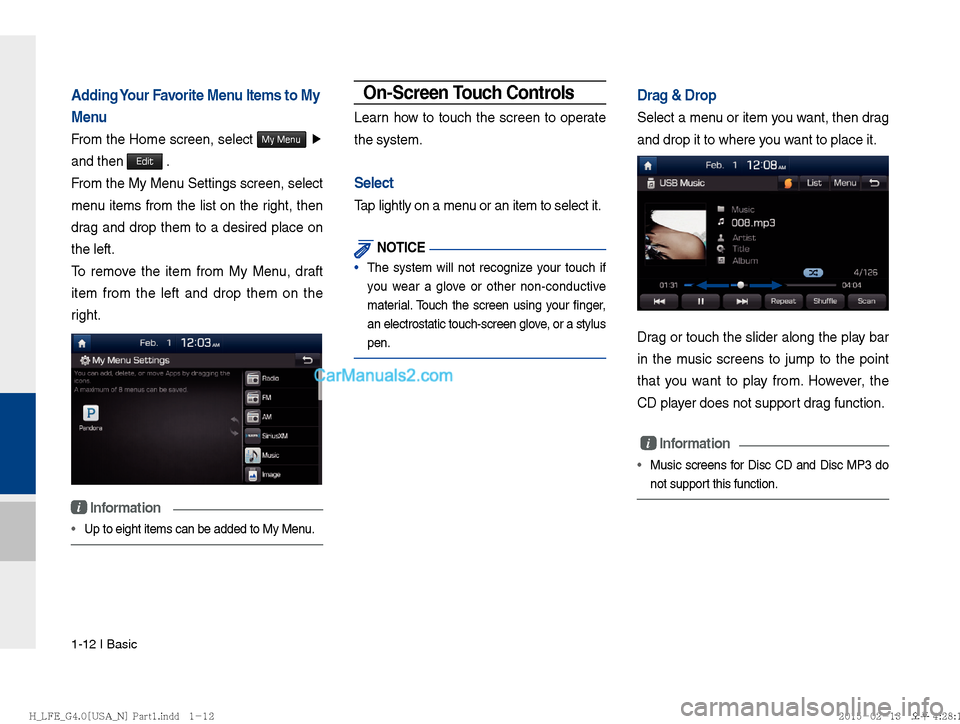

Adding Your Favorite Menu Items to My
Menu
From the Home screen, select My Menu Ü
and then
Edit .
From the My Menu Settings screen, select
menu items from the list on the right, then
drag and drop them to a desired place on
the left.
To remove the item from My Menu, draft
item from the left and drop them on the
right.
i Information
Up to eight items can be added to My Menu.
On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
The system will not recognize your touch if
y
ou wear a glove or other non-conductive
material. Touch the screen using your nger,
an electrostatic touch-screen glove, or a stylus
pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from. However, the
CD player does not support drag function.
i Information
Music screens for Disc CD and Disc MP3 do
not suppor
t this function.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 23 of 308
Starting the System for the First Time I 1-13
01

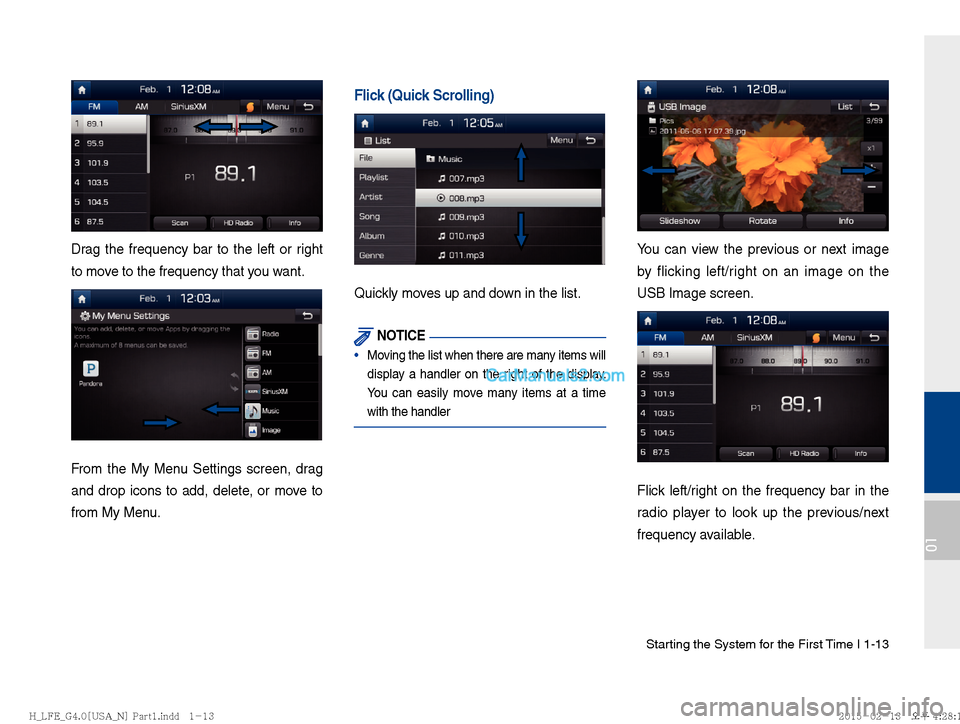

Drag the frequency bar to the left or right
to move to the frequency that you want.
From the My Menu Settings screen, drag
and drop icons to add, delete, or move to
from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE
Moving the list when there are many items will
displa
y a handler on the right of the display.
You can easily move many items at a time
with the handler
You can view the previous or next image
by flicking left/right on an image on the
USB Image screen.
Flick left/right on the frequency bar in the
radio player to look up the previous/next
frequency available.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 24 of 308
1-14 I Basic

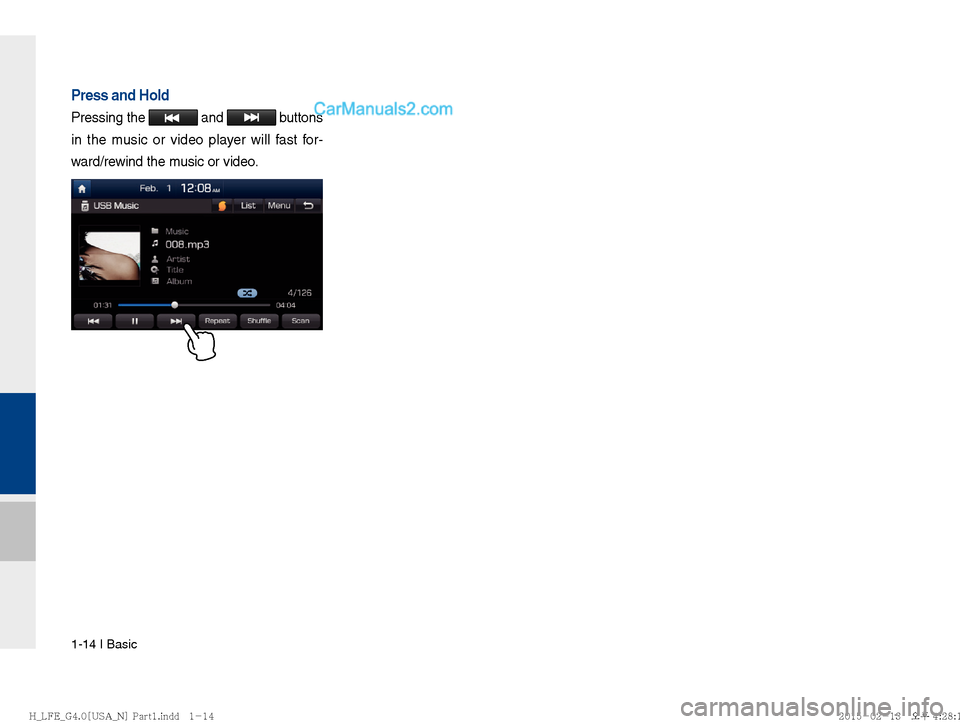

Press and Hold
Pressing the and buttons
in the music or video player will fast for-
ward/rewind the music or video.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 25 of 308

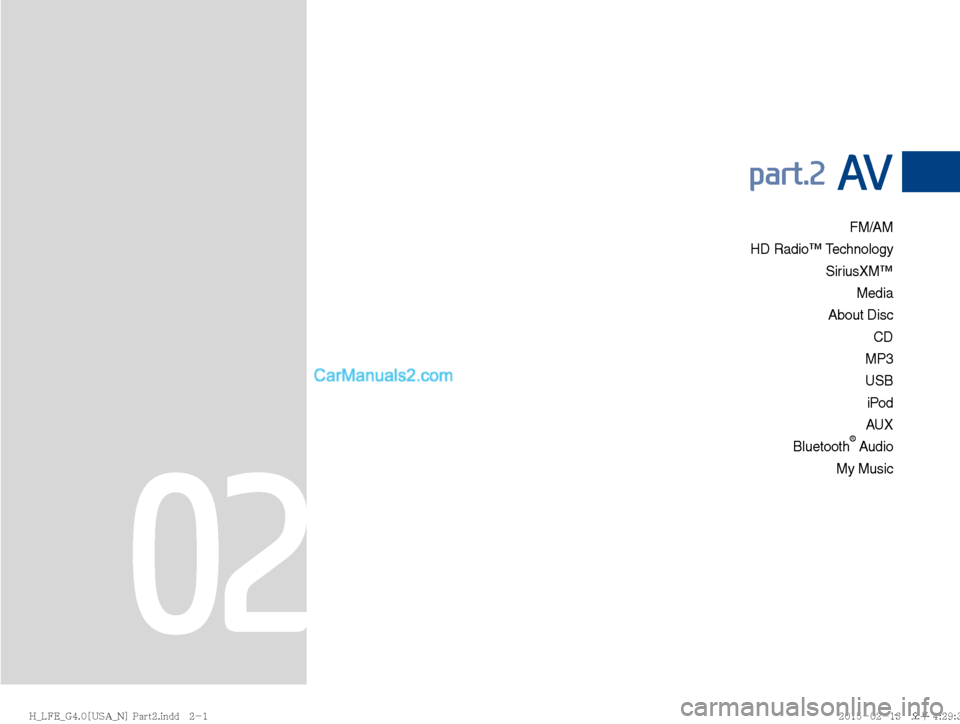

FM/AM
HD Radio™ Technology SiriusXM™ Media
About Disc CD
MP3
USB
iPod AUX
Bluetooth
® Audio
My Music
part.2 AV
02
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 26 of 308
2-2 I AV
FeaturesDescription
Mode Display
!Ÿ
Displays current operating mode
!Ÿ
If select wanted mode tap, it will change to
selected mode in Radio.
Preset
!Ÿ
Shows saved presets for user selection
!Ÿ
After selecting frequency →
press and hold
(over 0.8 seconds) the preset button. A 'beep'
will sound and the frequency is saved to the
selected preset button.
A total of 24 frequencies with 12 preset
frequencies each for FM/AM modes can be
saved.
Frequency Bar
!Ÿ
Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.
!Ÿ
Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for
5 seconds each
HD RadioUsed to set whether to turn HD Radio™ recep-
tion On/Off.
AV
FM/AM

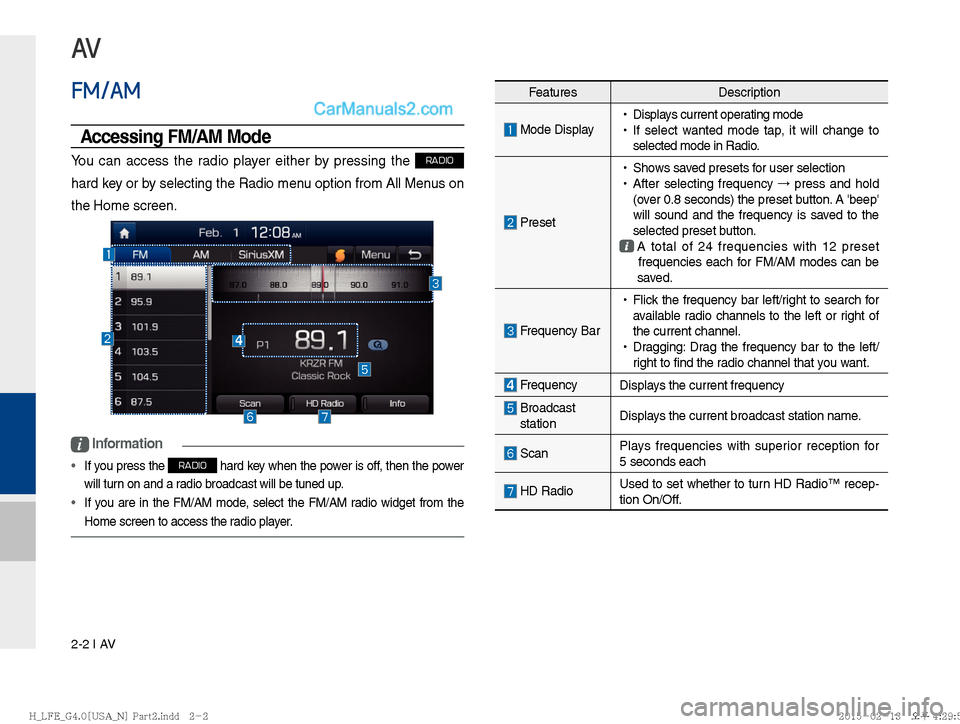

Accessing FM/AM Mode
You can access the radio player either by pressing the RADIO
hard key or by selecting the Radio menu option from All Menus on
the Home screen.
i Information
If you press the RADIO hard key when the power is off, then the power
will turn on and a radio broadcast will be tuned up.
If you are in the FM/AM mode, select the FM/AM radio widget from the
Home screen to access the r
adio player.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 27 of 308
FM/AM I 2-3
02

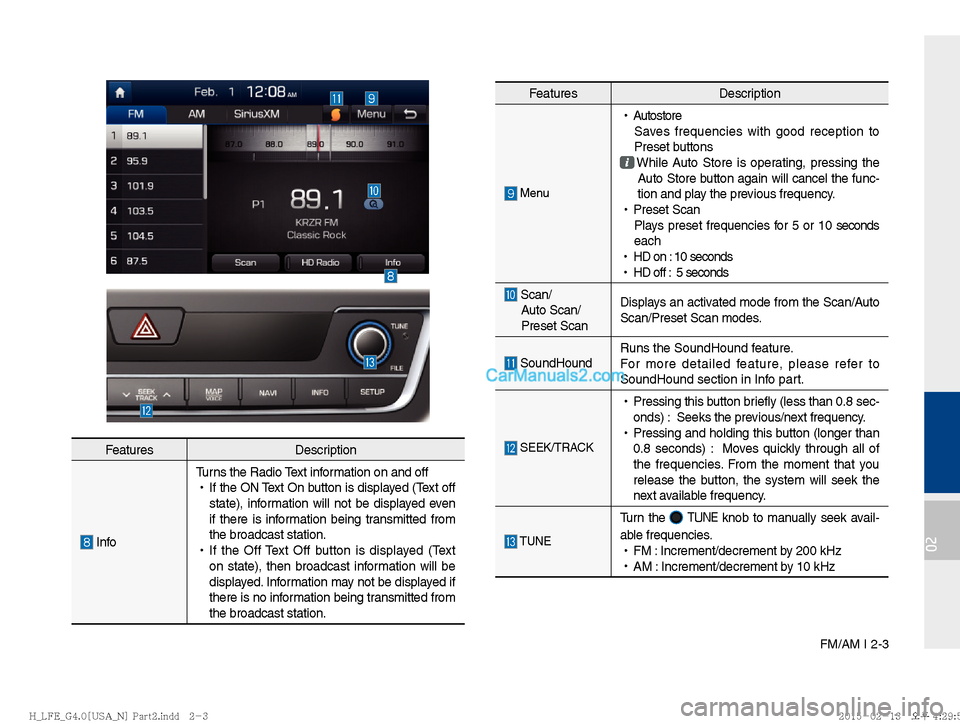

FeaturesDescription
InfoTurns the Radio Text information on and off
!Ÿ
If the ON Text On button is displayed (Text off
state), information will not be displayed even
if there is information being transmitted from
the broadcast station.
!Ÿ
If the Off Text Off button is displayed (Text
on state), then broadcast information will be
displayed. Information may not be displayed if
there is no information being transmitted from
the broadcast station.
Features Description
Menu
!Ÿ
Autostore
Saves frequencies with good reception to
Preset buttons
While Auto Store is operating, pressing the
Auto Store button again will cancel the func-
tion and play the previous frequency.
!Ÿ
Preset Scan
Plays preset frequencies for 5 or 10 seconds
each
!Ÿ
HD on : 10 seconds
!Ÿ
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto
Scan/Preset Scan modes.
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACK
!Ÿ
Pressing this button briefly (less than 0.8 sec-
onds) : Seeks the previous/next frequency.
!Ÿ
Pressing and holding this button (longer than
0.8 seconds) : Moves quickly through all of
the frequencies. From the moment that you
release the button, the system will seek the
next available frequency.
TUNE
Turn the TUNE knob to manually seek avail-
able frequencies.
!Ÿ
FM : Increment/decrement by 200 kHz
!Ÿ
AM : Increment/decrement by 10 kHz
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 28 of 308
2-4 I AV

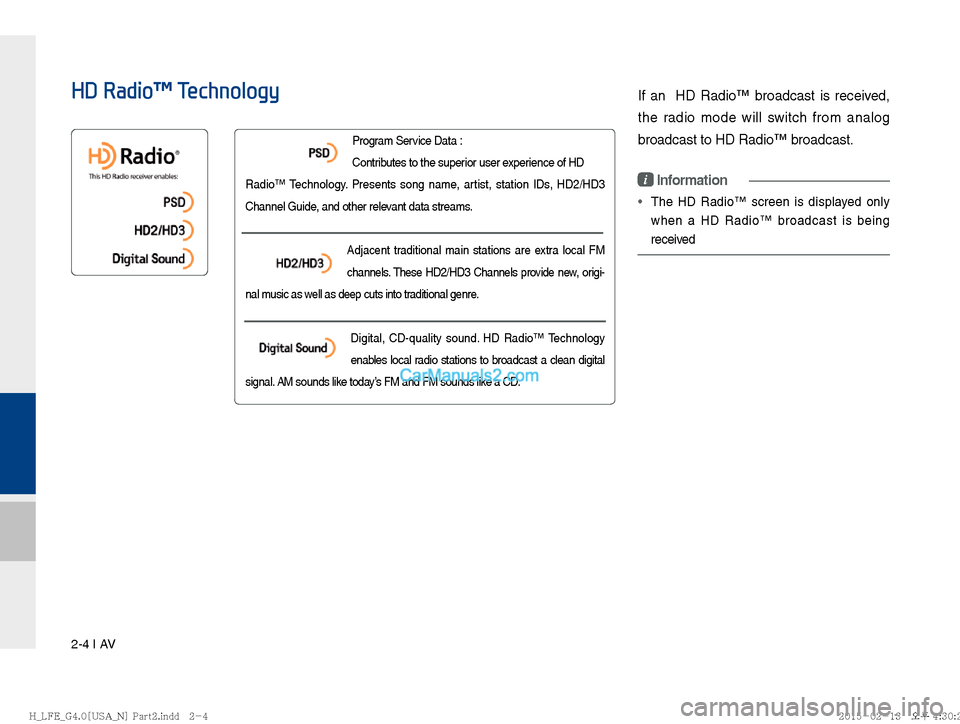

If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
i Information
The HD Radio™ screen is displayed only
when a HD Radio™ broadcast is being
received
Program Service Data :
Contributes to the superior user experience of HD
Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3
Channel Guide, and other relevant data streams.
Adjacent traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, origi-
nal music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 29 of 308
SiriusXM™ I 2-5
02

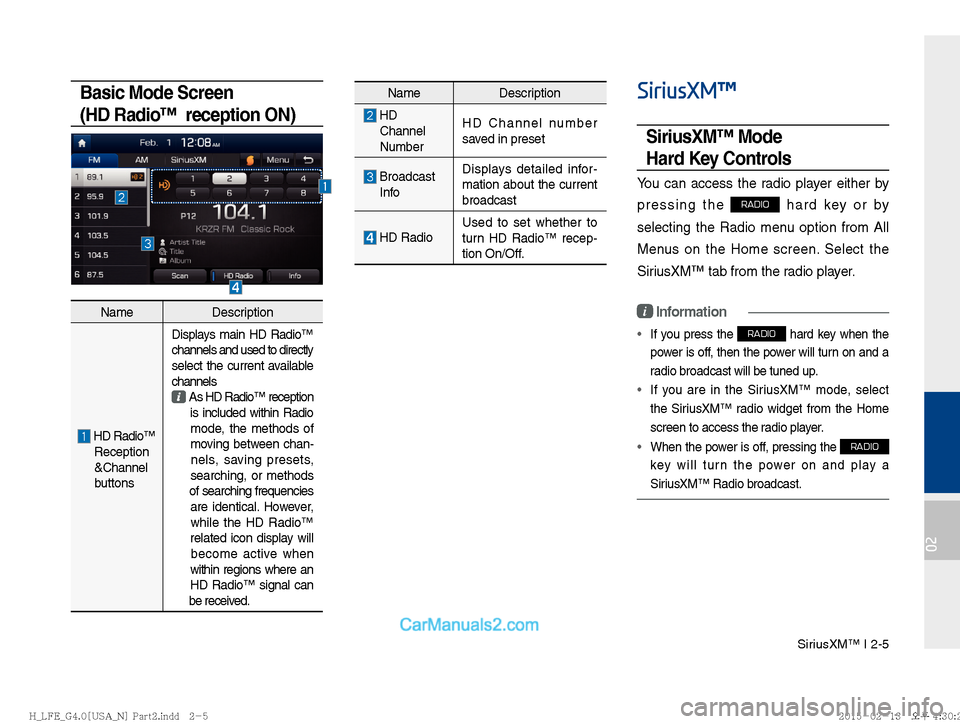

Basic Mode Screen
(HD Radio™ reception ON)SiriusXM™
SiriusXM™ Mode
Hard Key Controls
You can access the radio player either by
pressing the
RADIO hard key or by
selecting the Radio menu option from All
Menus on the Home screen. Select the
SiriusXM™ tab from the radio player.
i Information
If you press the RADIO hard key when the
power is off, then the power will turn on and a
radio broadcast will be tuned up.
If you are in the SiriusXM™ mode, select
the Sir
iusXM™ radio widget from the Home
screen to access the radio player.
When the power is off, pressing the
RADIO
key will turn the power on and play a
SiriusXM™ Radio broadcast.
Name Description
HD Radio™
Reception
&Channel
buttons Displays main HD Radio™
channels and used to directly
select the current available
channels
As HD Radio™ reception
is included within Radio
mode, the methods of
moving between chan-
nels, saving presets,
searching, or methods
of searching frequencies
are identical. However,
while the HD Radio™
related icon display will
become active when
within regions where an
HD Radio™ signal can
be received.
Name Description
HD
Channel
Number HD Channel number
saved in preset
Broadcast
Info Displays detailed infor-
mation about the current
broadcast
HD Radio
Used to set whether to
turn HD Radio™ recep-
tion On/Off.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 30 of 308
2-6 I AV

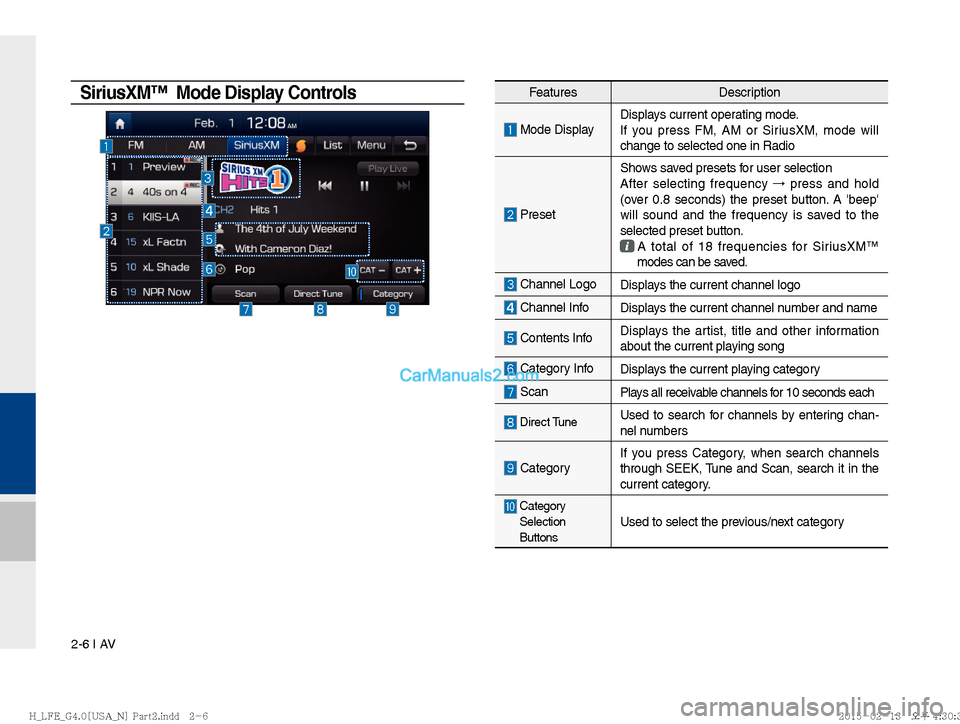

SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays current operating mode.
If you press FM, AM or SiriusXM, mode will
change to selected one in Radio
PresetShows saved presets for user selection
After selecting frequency
→
press and hold
(over 0.8 seconds) the preset button. A 'beep'
will sound and the frequency is saved to the
selected preset button.
A total of 18 frequencies for SiriusXM™
modes can be saved.
Channel Logo Displays the current channel logo
Channel InfoDisplays the current channel number and name
Contents InfoDisplays the artist, title and other information
about the current playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering chan-
nel numbers
CategoryIf you press Category, when search channels
through SEEK, Tune and Scan, search it in the
current category.
Category
Selection
Buttons
Used to select the previous/next category
