Page 61 of 308

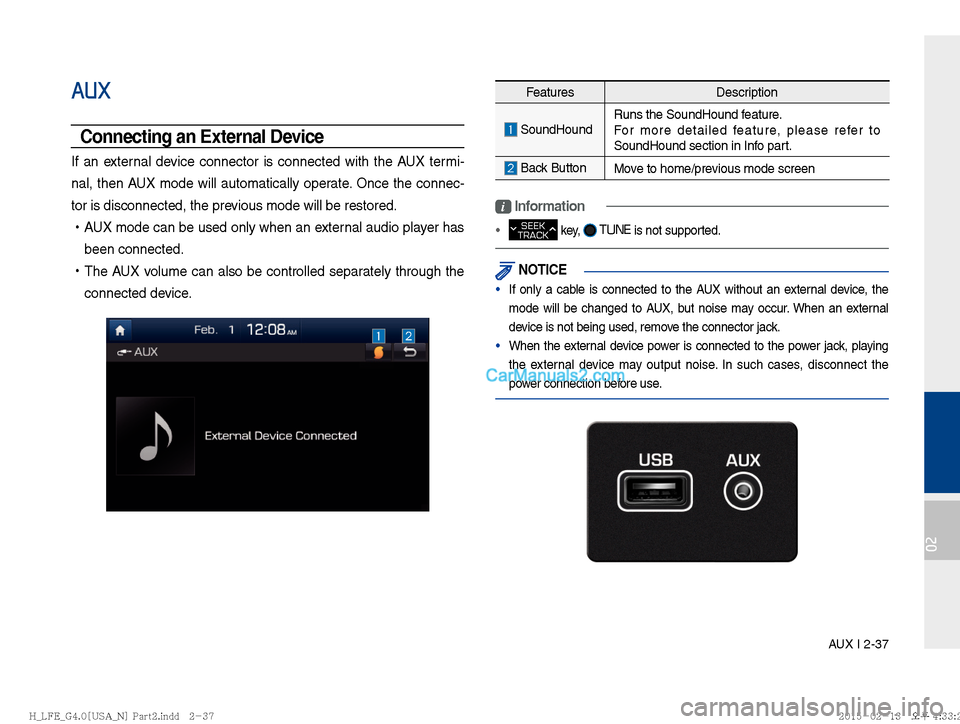

AUX I 2-37
02
AUX
Connecting an External Device
If an external device connector is connected with the AUX termi-
nal, then AUX mode will automatically operate. Once the connec-
tor is disconnected, the previous mode will be restored.
!Ÿ
AUX mode can be used only when an external audio player has
been connected.
!Ÿ
The AUX volume can also be controlled separately through the
connected device.
Features Description
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
Back Button
Move to home/previous mode screen
i Information
SEEK
TRACK key, TUNE
is not supported.
NOTICE
If only a cable is connected to the AUX without an external device, the
mode will be changed to A
UX, but noise may occur. When an external
device is not being used, remove the connector jack.
When the external device power is connected to the power jack, playing
the e
xternal device may output noise. In such cases, disconnect the
power connection before use.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 62 of 308

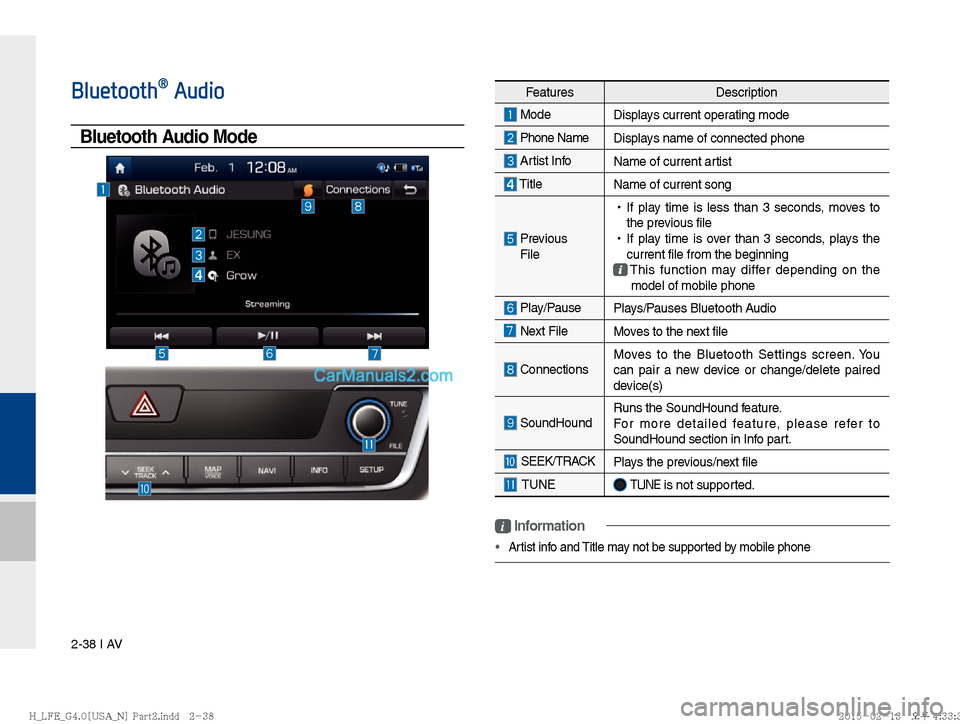

2-38 I AV
FeaturesDescription
Mode
Displays current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to
the previous file
!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
This function may differ depending on the
model of mobile phone
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You
can pair a new device or change/delete paired
device(s)
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACK
Plays the previous/next file
TUNE TUNE is not supported.
Bluetooth® Audio
Bluetooth Audio Mode
i Information
Artist info and Title may not be supported by mobile phone
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 63 of 308

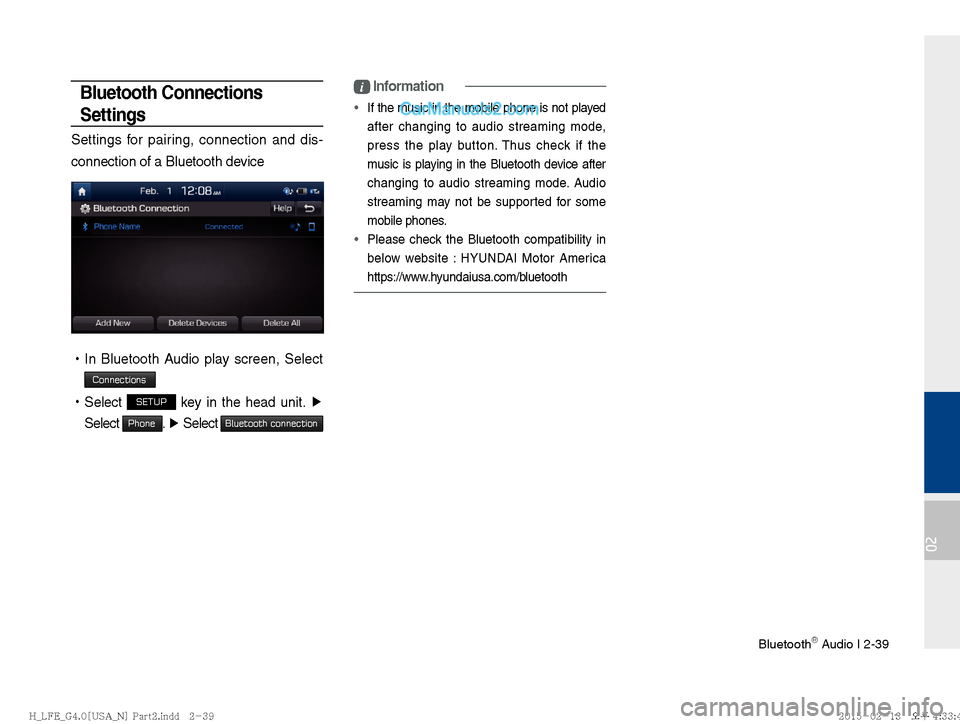

Bluetooth Õ Audio I 2-39
02
Bluetooth Connections
Settings
Settings for pairing, connection and dis-
connection of a Bluetooth device
!Ÿ
In Bluetooth Audio play screen, Select
Connections
!Ÿ
Select SETUP key in the head unit. ▶
Select
Phone. ▶
Select Bluetooth connection
i Information
If the music in the mobile phone is not played
after changing to audio streaming mode
,
press the play button. Thus check if the
music is playing in the Bluetooth device after
changing to audio streaming mode. Audio
streaming may not be supported for some
mobile phones.
Please check the Bluetooth compatibility in
belo
w website : HYUNDAI Motor America
https://www.hyundaiusa.com/bluetooth
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 64 of 308

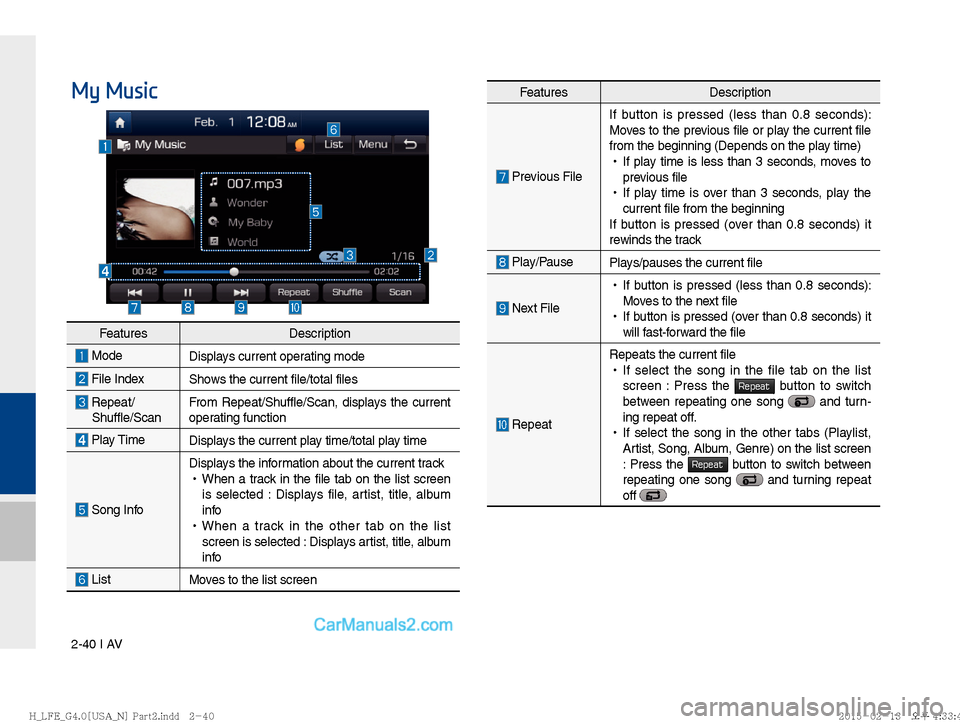

2-40 I AV
My MusicFeaturesDescription
Previous FileIf button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
!Ÿ
If play time is less than 3 seconds, moves to
previous file
!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds):
Moves to the next file
!Ÿ
If button is pressed (over than 0.8 seconds) it
will fast-forward the file
Repeat Repeats the current file
!Ÿ
If select the song in the file tab on the list
screen : Press the
Repeat button to switch
between repeating one song and turn-
ing repeat off.
!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen
: Press the
Repeat button to switch between
repeating one song and turning repeat
off
Features Description
Mode
Displays current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track
!Ÿ
When a track in the file tab on the list screen
is selected : Displays file, artist, title, album
info
!Ÿ
When a track in the other tab on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 65 of 308

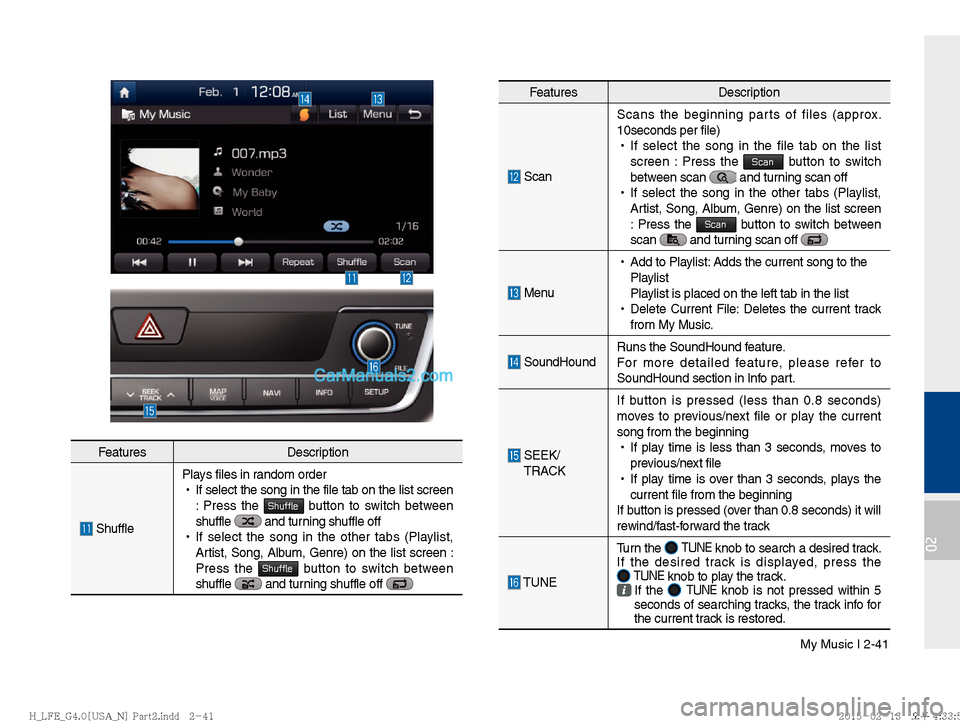

My Music I 2-41
02
FeaturesDescription
Scan Scans the beginning parts of files (approx.
10seconds per file)
!Ÿ
If select the song in the file tab on the list
screen : Press the
Scan button to switch
between scan and turning scan off
!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen
: Press the
Scan button to switch between
scan and turning scan off
Menu
!Ÿ
Add to Playlist: Adds the current song to the
Playlist
Playlist is placed on the left tab in the list
!Ÿ
Delete Current File: Deletes the current track
from My Music.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/
TRACK If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
!Ÿ
If play time is less than 3 seconds, moves to
previous/next file
!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE Turn the
TUNE knob to search a desired track.
If the desired track is displayed, press the
TUNE knob to play the track. If the
TUNE knob is not pressed within 5
seconds of searching tracks, the track info for
the current track is restored.
Features Description
ShufflePlays files in random order
!Ÿ
If select the song in the file tab on the list screen
: Press the
Shuffle button to switch between
shuffle and turning shuffle off
!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen :
Press the
Shuffle button to switch between
shuffle and turning shuffle off
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 66 of 308

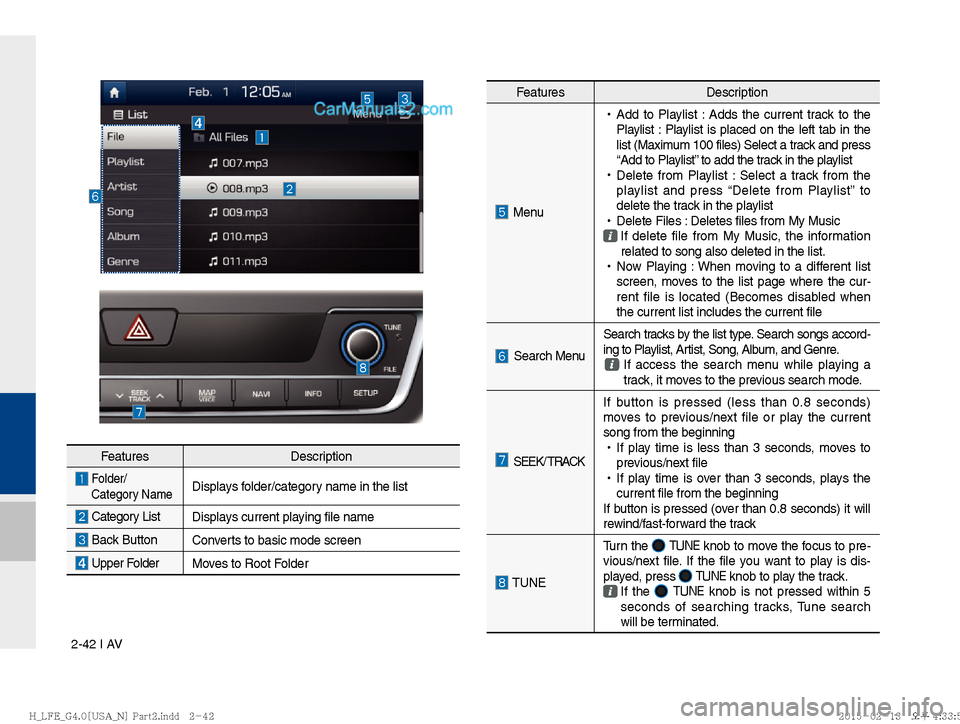

2-42 I AV
FeaturesDescription
Folder/
Category Name Displays folder/category name in the list
Category List Displays current playing file name
Back ButtonConverts to basic mode screen
Upper Folder
Moves to Root Folder
Features Description
Menu
!Ÿ
Add to Playlist : Adds the current track to the
Playlist : Playlist is placed on the left tab in the
list (Maximum 100 files) Select a track and press
“Add to Playlist” to add the track in the playlist
!Ÿ
Delete from Playlist : Select a track from the
playlist and press “Delete from Playlist” to
delete the track in the playlist
!Ÿ
Delete Files : Deletes files from My Music
If delete file from My Music, the information
related to song also deleted in the list.
!Ÿ
Now Playing : When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file
Search Menu Search tracks by the list type. Search songs accord-
ing to Playlist, Artist, Song, Album, and Genre. If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/ TRACK If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
!Ÿ
If play time is less than 3 seconds, moves to
previous/next file
!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE Turn the
TUNE knob to move the focus to pre-
vious/next file. If the file you want to play is dis-
played, press
TUNE knob to play the track. If the
TUNE knob is not pressed within 5
seconds of searching tracks, Tune search
will be terminated.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 67 of 308

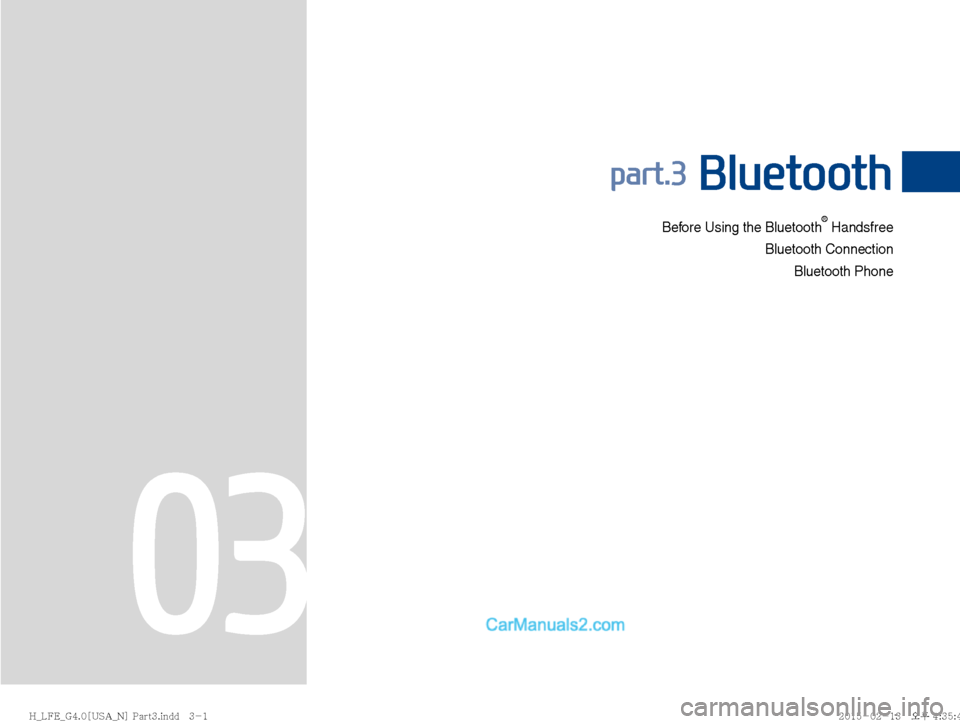

Before Using the Bluetooth® Handsfree
Bluetooth Connection Bluetooth Phone
part.3 Bluetooth
03
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 68 of 308

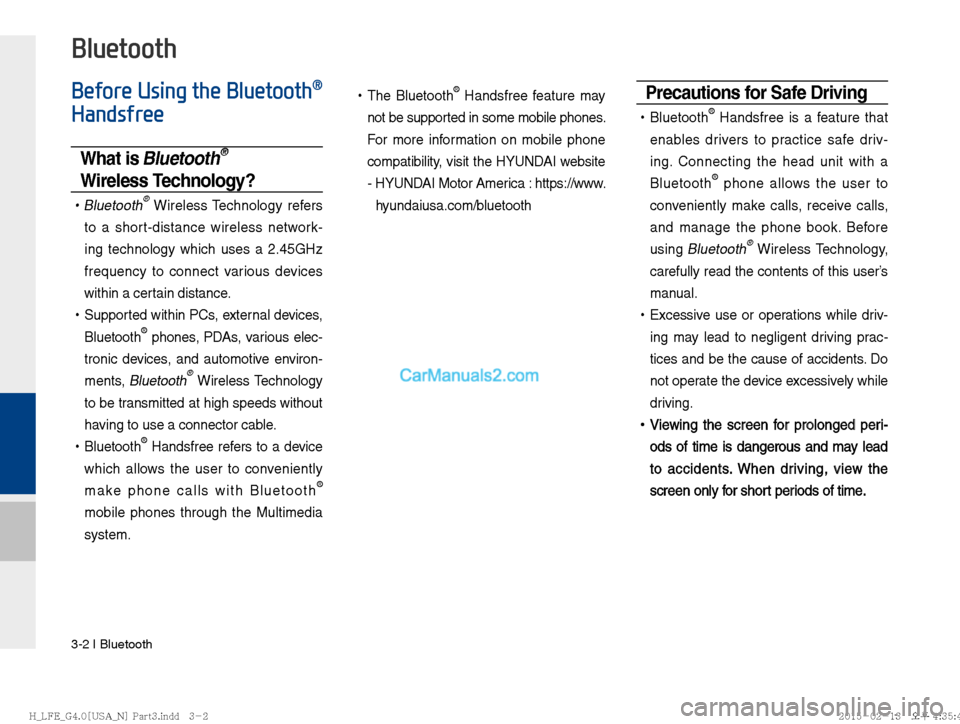

3-2 I Bluetooth
Before Using the Bluetooth®
Handsfree
What is Bluetooth®
Wireless Technology?
!Ÿ
Bluetooth® Wireless Technology refers
to a short-distance wireless network-
ing technology which uses a 2.45GHz
frequency to connect various devices
within a certain distance.
!Ÿ
Supported within PCs, external devices,
Bluetooth
® phones, PDAs, various elec-
tronic devices, and automotive environ-
ments,
Bluetooth® Wireless Technology
to be transmitted at high speeds without
having to use a connector cable.
!Ÿ
Bluetooth
® Handsfree refers to a device
which allows the user to conveniently
make phone calls with Bluetooth
®
mobile phones through the Multimedia
system.
!Ÿ
The Bluetooth
® Handsfree feature may
not be supported in some mobile phones.
For more information on mobile phone
compatibility, visit the HYUNDAI website
- HYUNDAI Motor America : https://www.
hyundaiusa.com/bluetoothPrecautions for Safe Driving
!Ÿ
Bluetooth® Handsfree is a feature that
enables drivers to practice safe driv-
ing. Connecting the head unit with a
Bluetooth
® phone allows the user to
conveniently make calls, receive calls,
and manage the phone book. Before
using
Bluetooth® Wireless Technology,
carefully read the contents of this user’s
manual.
!Ÿ
Excessive use or operations while driv-
ing may lead to negligent driving prac-
tices and be the cause of accidents. Do
not operate the device excessively while
driving.
!Ÿ
Viewing the screen for prolonged peri-Viewing the screen for prolonged peri-
ods of time is dangerous and may lead ods of time is dangerous and may lead
to accidents. When driving, view the to accidents. When driving, view the
screen only for short periods of time.screen only for short periods of time.
Bluetooth
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 69 of 308
Before Using the Bluetooth Õ Handsfree I 3-3
03

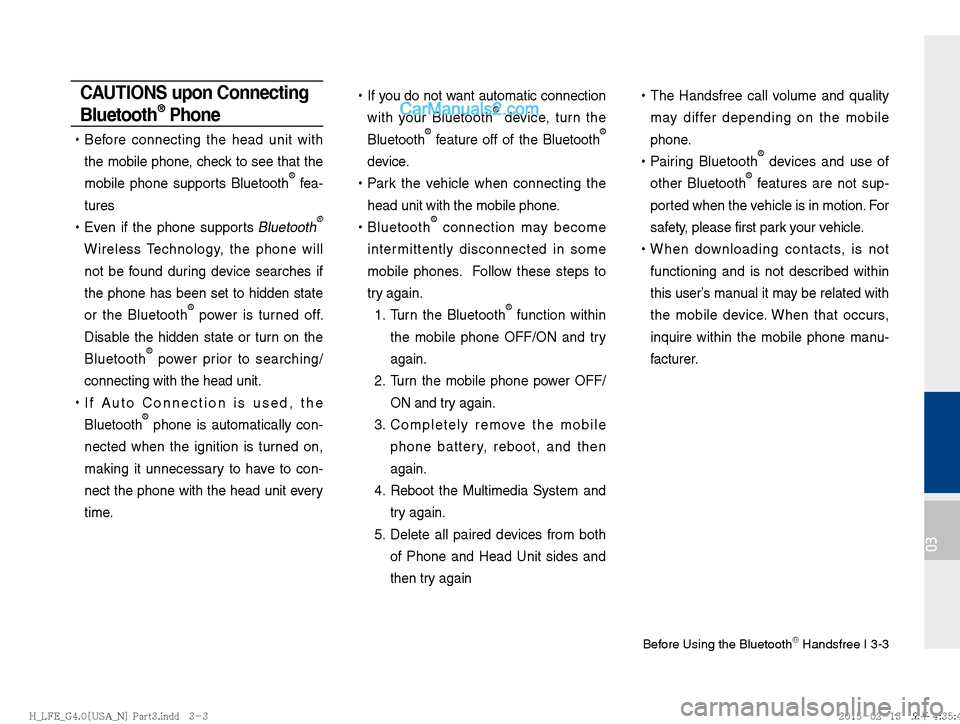

CAUTIONS upon Connecting
Bluetooth® Phone
!Ÿ
Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth
® fea-
tures
!Ÿ
Even if the phone supports
Bluetooth®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth
® power is turned off.
Disable the hidden state or turn on the
Bluetooth
® power prior to searching/
connecting with the head unit.
!Ÿ
If Auto Connection is used, the
Bluetooth
® phone is automatically con-
nected when the ignition is turned on,
making it unnecessary to have to con-
nect the phone with the head unit every
time.
!Ÿ
If you do not want automatic connection
with your Bluetooth
® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
!Ÿ
Park the vehicle when connecting the
head unit with the mobile phone.
!Ÿ
Bluetooth
® connection may become
intermittently disconnected in some
mobile phones. Follow these steps to
try again.
1. Turn the Bluetooth
® function within
the mobile phone OFF/ON and try
again.
2. Turn the mobile phone power OFF/
ON and try again.
3. Completely remove the mobile
phone battery, reboot, and then
again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both
of Phone and Head Unit sides and
then try again
!Ÿ
The Handsfree call volume and quality
may differ depending on the mobile
phone.
!Ÿ
Pairing Bluetooth
® devices and use of
other Bluetooth® features are not sup-
ported when the vehicle is in motion. For
safety, please first park your vehicle.
!Ÿ
When downloading contacts, is not
functioning and is not described within
this user’s manual it may be related with
the mobile device. When that occurs,
inquire within the mobile phone manu-
facturer.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 70 of 308

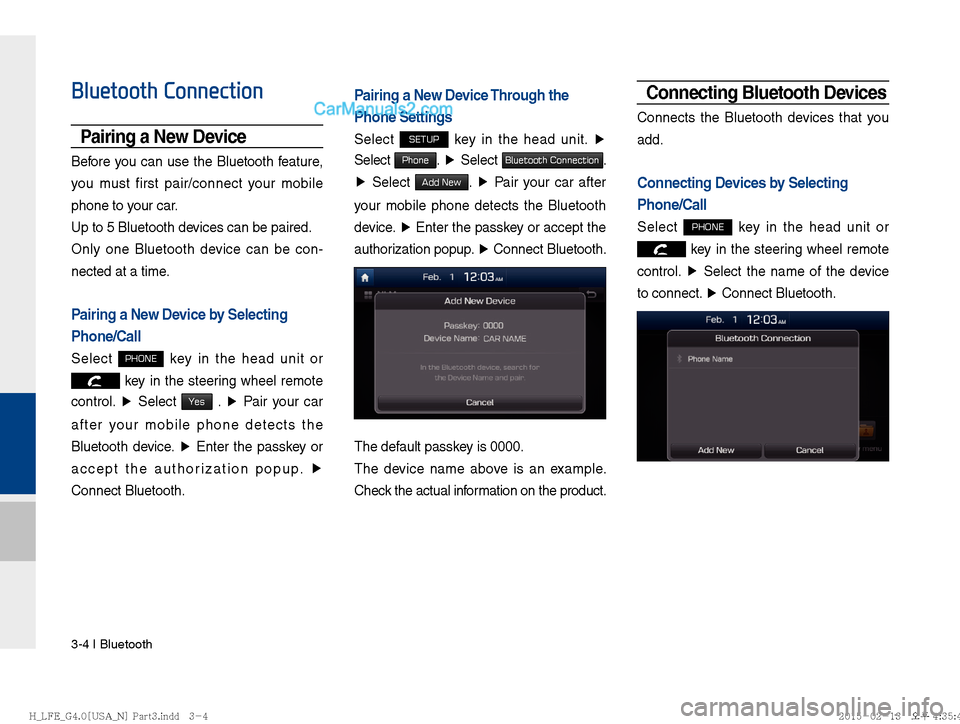

3-4 I Bluetooth
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth feature,
you must first pair/connect your mobile
phone to your car.
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be con-
nected at a time.
Pairing a New Device by Selecting
Phone/Call
Select PHONE key in the head unit or
key in the steering wheel remote
control. ▶
Select
Yes . ▶
Pair your car
after your mobile phone detects the
Bluetooth device. ▶
Enter the passkey or
accept the authorization popup. ▶
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Select SETUP key in the head unit. ▶
Select
Phone. ▶
Select Bluetooth Connection.
▶ Select
Add New. ▶
Pair your car after
your mobile phone detects the Bluetooth
device. ▶
Enter the passkey or accept the
authorization popup. ▶
Connect Bluetooth.
The default passkey is 0000.
The device name above is an example.
Check the actual information on the product.
Connecting Bluetooth Devices
Connects the Bluetooth devices that you
add.
Connecting Devices by Selecting
Phone/Call
Select PHONE key in the head unit or
key in the steering wheel remote
control. ▶
Select the name of the device
to connect. ▶
Connect Bluetooth.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
