technical data Hyundai Sonata Plug-in Hybrid 2016 Owner's Manual

6-21
What to do in an emergency

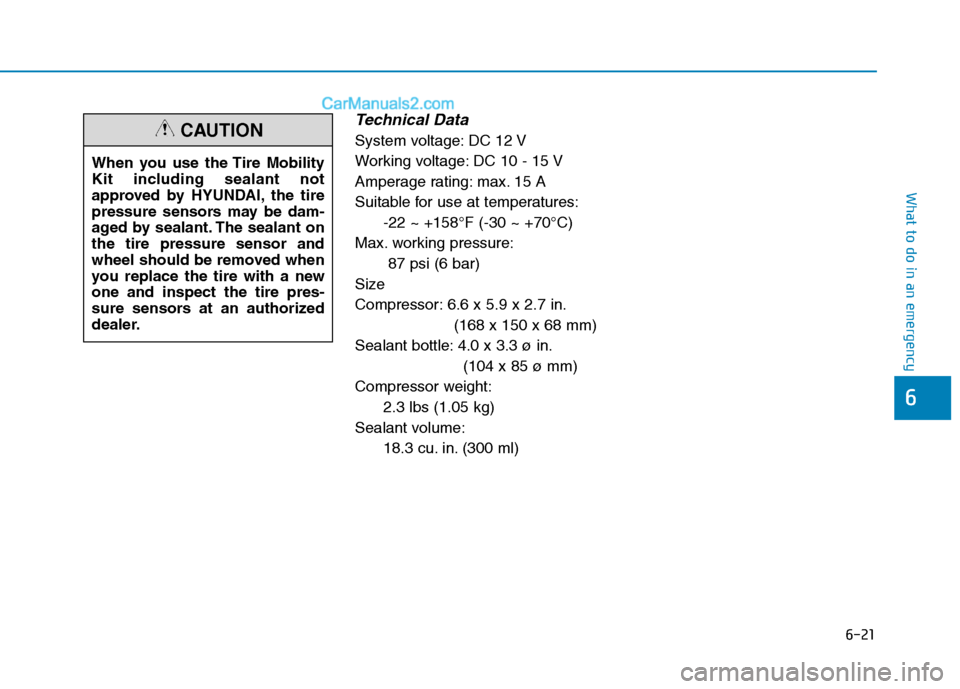

Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-22 ~ +158°F (-30 ~ +70°C)
Max. working pressure:
87 psi (6 bar)
Size
Compressor: 6.6 x 5.9 x 2.7 in.
(168 x 150 x 68 mm)
Sealant bottle: 4.0 x 3.3 ø in.
(104 x 85 ø mm)
Compressor weight:
2.3 lbs (1.05 kg)
Sealant volume:
18.3 cu. in. (300 ml)
6
When you use the Tire Mobility
Kit including sealant not
approved by HYUNDAI, the tire
pressure sensors may be dam-
aged by sealant. The sealant on
the tire pressure sensor and
wheel should be removed when
you replace the tire with a new
one and inspect the tire pres-
sure sensors at an authorized
dealer.
CAUTION
