6-21
What to do in an emergency

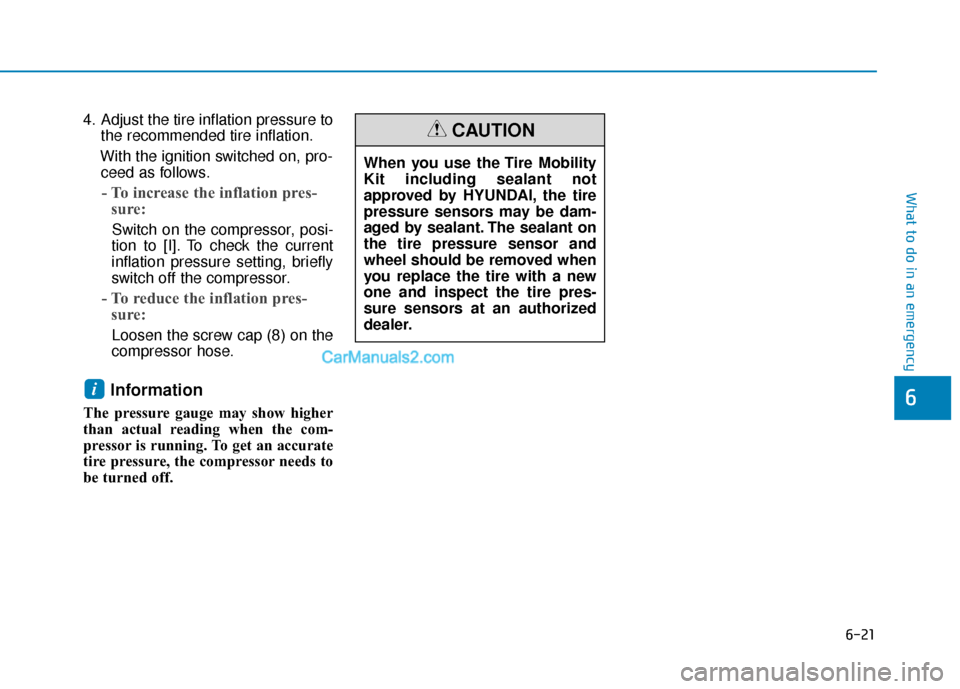

4. Adjust the tire inflation pressure tothe recommended tire inflation.
With the ignition switched on, pro- ceed as follows.
- To increase the inflation pres- sure:
Switch on the compressor, posi-
tion to [I]. To check the current
inflation pressure setting, briefly
switch off the compressor.
- To reduce the inflation pres- sure:
Loosen the screw cap (8) on the
compressor hose.
Information
The pressure gauge may show higher
than actual reading when the com-
pressor is running. To get an accurate
tire pressure, the compressor needs to
be turned off.
i6
When you use the Tire Mobility
Kit including sealant not
approved by HYUNDAI, the tire
pressure sensors may be dam-
aged by sealant. The sealant on
the tire pressure sensor and
wheel should be removed when
you replace the tire with a new
one and inspect the tire pres-
sure sensors at an authorized
dealer.
CAUTION

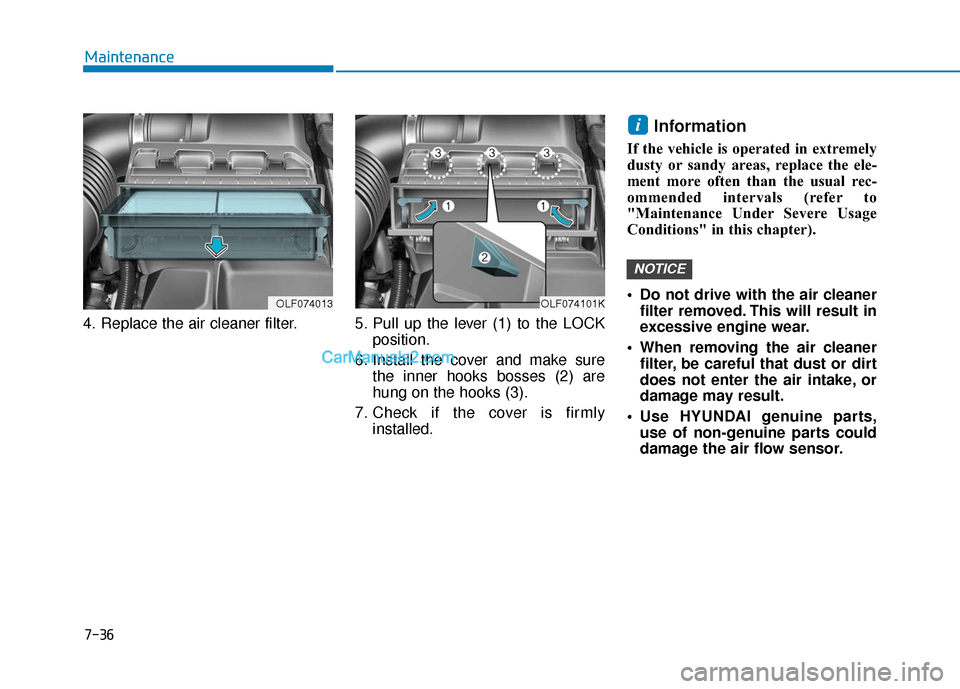

7-36
Maintenance
4. Replace the air cleaner filter. 5. Pull up the lever (1) to the LOCK position.
6. Install the cover and make sure the inner hooks bosses (2) are
hung on the hooks (3).
7. Check if the cover is firmly installed.
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-
ment more often than the usual rec-
ommended intervals (refer to
"Maintenance Under Severe Usage
Conditions" in this chapter).
Do not drive with the air cleanerfilter removed. This will result in
excessive engine wear.
When removing the air cleaner filter, be careful that dust or dirt
does not enter the air intake, or
damage may result.
Use HYUNDAI genuine parts, use of non-genuine parts could
damage the air flow sensor.
NOTICE
i
OLF074013OLF074101K

7-65
7
Maintenance

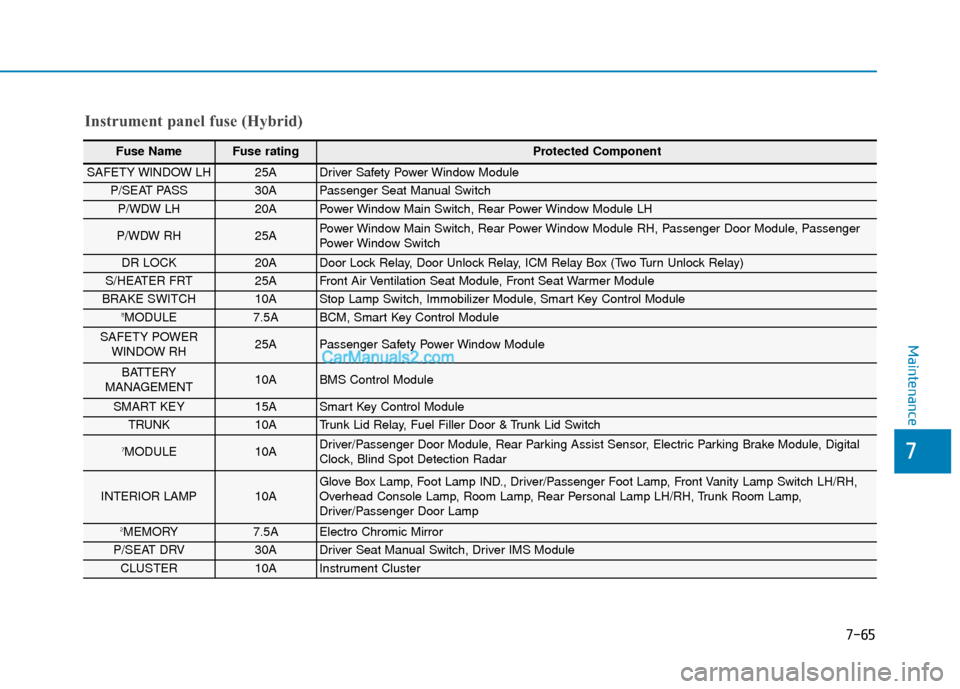

Instrument panel fuse (Hybrid)
Fuse Name Fuse rating Protected Component
SAFETY WINDOW LH25ADriver Safety Power Window Module
P/SEAT PASS30APassenger Seat Manual Switch
P/WDW LH20APower Window Main Switch, Rear Power Window Module LH
P/WDW RH25APower Window Main Switch, Rear Power Window Module RH, Passenger Door Module, Passenger
Power Window Switch
DR LOCK20ADoor Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT25AFront Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH10AStop Lamp Switch, Immobilizer Module, Smart Key Control Module8MODULE7.5ABCM, Smart Key Control Module
SAFETY POWER WINDOW RH25APassenger Safety Power Window Module
BATTERY
MANAGEMENT10ABMS Control Module
SMART KEY15ASmart Key Control Module
TRUNK10ATrunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
7MODULE10ADriver/Passenger Door Module, Rear Parking Assist Sensor, Electric Parking Brake Module, Digital
Clock, Blind Spot Detection Radar
INTERIOR LAMP10AGlove Box Lamp, Foot Lamp IND., Driver/Passenger Foot Lamp, Front Vanity Lamp Switch LH/RH,
Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp,
Driver/Passenger Door Lamp
2MEMORY7.5AElectro Chromic Mirror
P/SEAT DRV30ADriver Seat Manual Switch, Driver IMS Module
CLUSTER10AInstrument Cluster

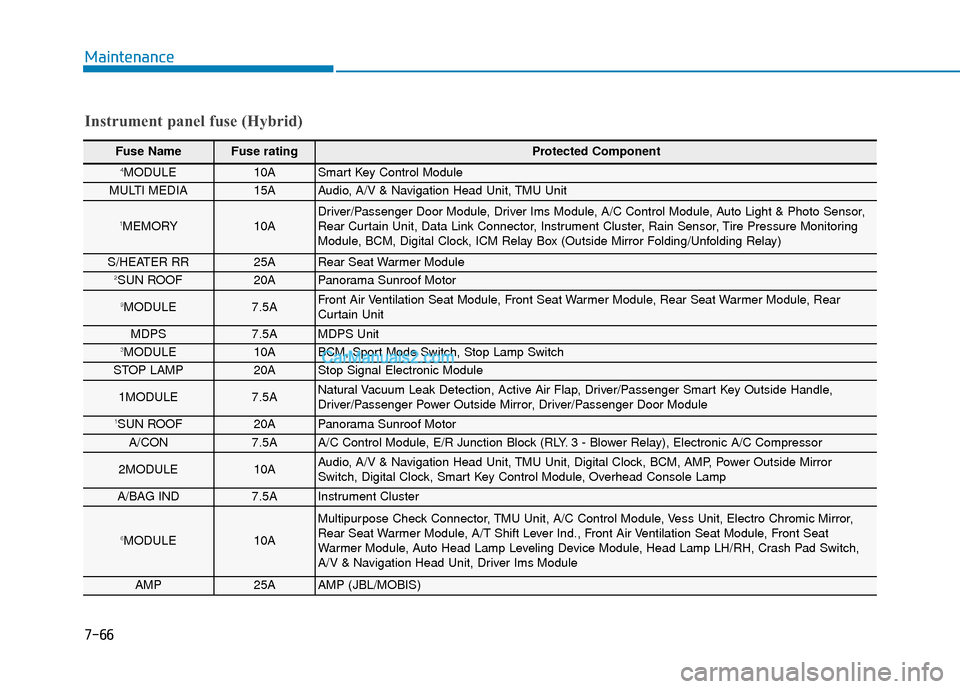

7-66
Maintenance
Fuse Name Fuse rating Protected Component
4MODULE10ASmart Key Control Module
MULTI MEDIA15AAudio, A/V & Navigation Head Unit, TMU Unit
1MEMORY10ADriver/Passenger Door Module, Driver Ims Module, A/C Control Module, Auto Light & Photo Sensor,
Rear Curtain Unit, Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring
Module, BCM, Digital Clock, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
S/HEATER RR25ARear Seat Warmer Module2SUN ROOF20APanorama Sunroof Motor
9MODULE7.5AFront Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Rear
Curtain Unit
MDPS7.5AMDPS Unit3MODULE10ABCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP20AStop Signal Electronic Module
1MODULE7.5ANatural Vacuum Leak Detection, Active Air Flap, Driver/Passenger Smart Key Outside Handle,
Driver/Passenger Power Outside Mirror, Driver/Passenger Door Module
1SUN ROOF20APanorama Sunroof Motor
A/CON7.5AA/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay), Electronic A/C Compressor
2MODULE10AAudio, A/V & Navigation Head Unit, TMU Unit, Digital Clock, BCM, AMP, Power Outside Mirror
Switch, Digital Clock, Smart Key Control Module, Overhead Console Lamp
A/BAG IND7.5AInstrument Cluster
6MODULE10A
Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror,
Rear Seat Warmer Module, A/T Shift Lever Ind., Front Air Ventilation Seat Module, Front Seat
Warmer Module, Auto Head Lamp Leveling Device Module, Head Lamp LH/RH, Crash Pad Switch,
A/V & Navigation Head Unit, Driver Ims Module
AMP25AAMP (JBL/MOBIS)
Instrument panel fuse (Hybrid)

7-67
7
Maintenance

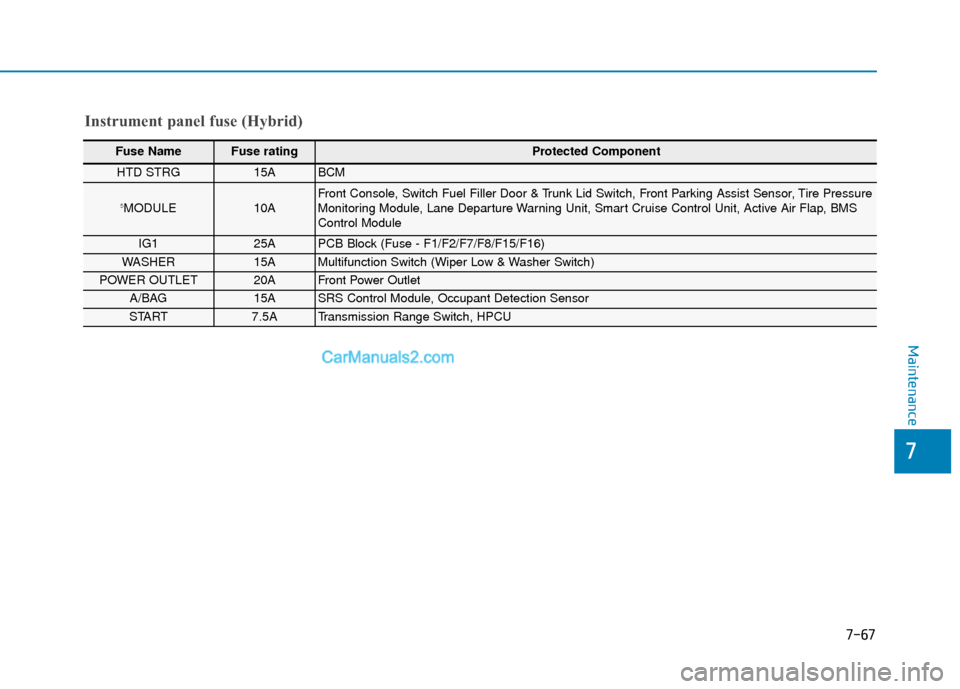

Fuse Name Fuse rating Protected Component
HTD STRG15ABCM
5MODULE10AFront Console, Switch Fuel Filler Door & Trunk Lid Switch, Front Parking Assist Sensor, Tire Pressure
Monitoring Module, Lane Departure Warning Unit, Smart Cruise Control Unit, Active Air Flap, BMS
Control Module
IG125APCB Block (Fuse - F1/F2/F7/F8/F15/F16)
WASHER15AMultifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET20AFront Power Outlet
A/BAG15ASRS Control Module, Occupant Detection Sensor
START7.5ATransmission Range Switch, HPCU
Instrument panel fuse (Hybrid)

7-69
7
Maintenance

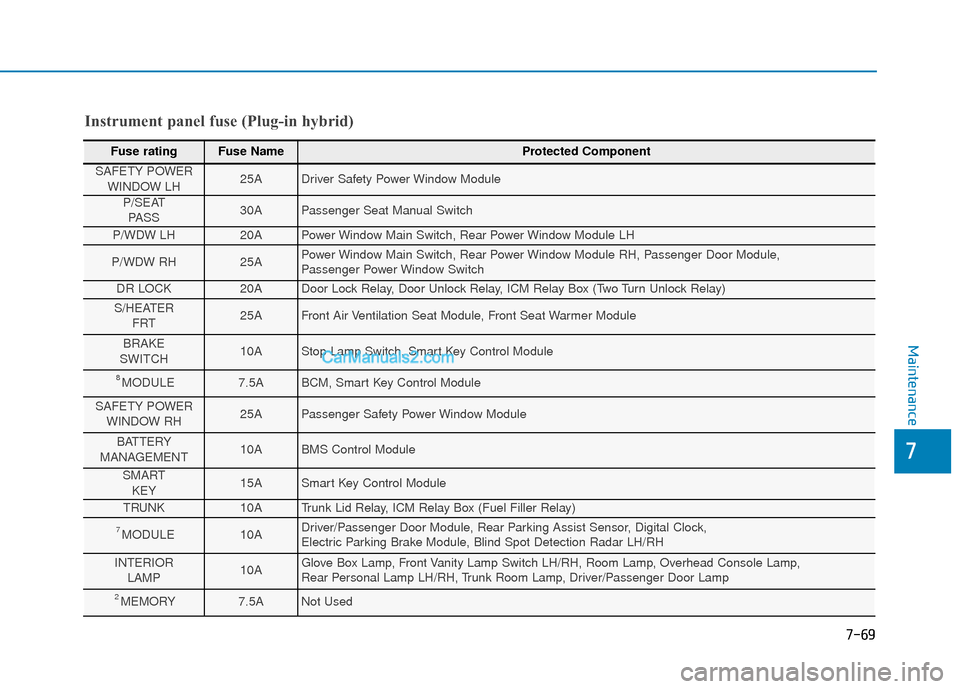

Instrument panel fuse (Plug-in hybrid)
Fuse rating Fuse Name Protected Component
SAFETY POWERWINDOW LH 25A Driver Safety Power Window Module
P/SEAT PASS 30A Passenger Seat Manual Switch
P/WDW LH 20A Power Window Main Switch, Rear Power Window Module LH
P/WDW RH 25A Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module,
Passenger Power Window Switch
DR LOCK 20A Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT 25A Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE
SWITCH 10A Stop Lamp Switch, Smart Key Control Module
8MODULE 7.5A BCM, Smart Key Control Module
SAFETY POWER WINDOW RH 25A Passenger Safety Power Window Module
BATTERY
MANAGEMENT 10A BMS Control Module
SMART KEY 15A Smart Key Control Module
TRUNK 10A Trunk Lid Relay, ICM Relay Box (Fuel Filler Relay)
7MODULE 10A Driver/Passenger Door Module, Rear Parking Assist Sensor, Digital Clock,
Electric Parking Brake Module, Blind Spot Detection Radar LH/RH
INTERIOR LAMP 10A Glove Box Lamp, Front Vanity Lamp Switch LH/RH, Room Lamp, Overhead Console Lamp,
Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Door Lamp
2MEMORY 7.5A Not Used

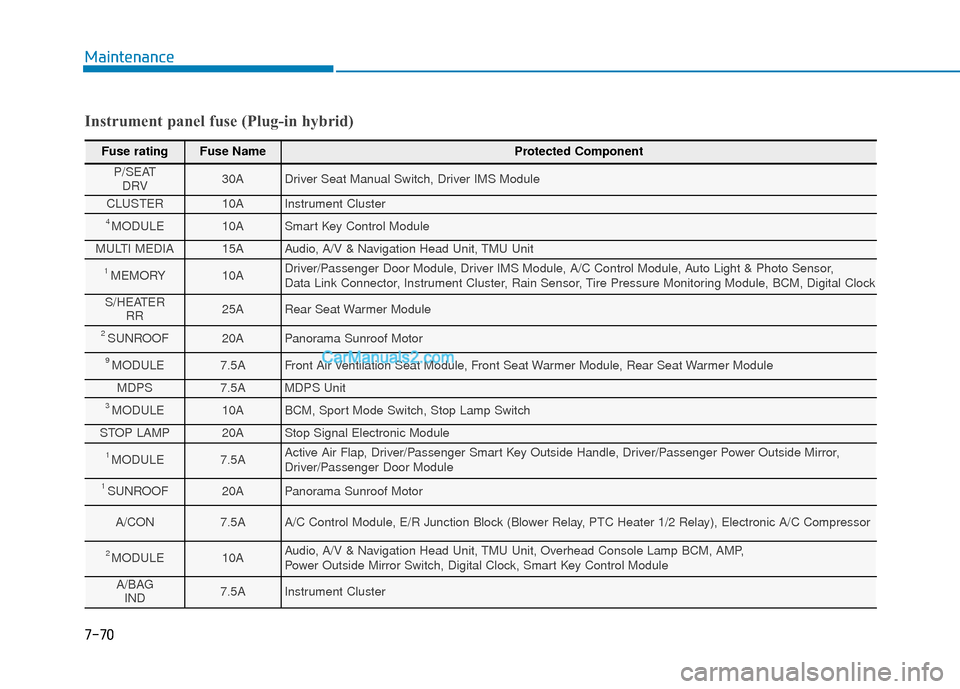

7-70
Maintenance
Fuse rating Fuse Name Protected Component
P/SEAT DRV 30A Driver Seat Manual Switch, Driver IMS Module
CLUSTER 10A Instrument Cluster
4MODULE 10A Smart Key Control Module
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit, TMU Unit
1MEMORY 10A Driver/Passenger Door Module, Driver IMS Module, A/C Control Module, Auto Light & Photo Sensor,
Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring Module, BCM, Digital Clock
S/HEATER RR 25A Rear Seat Warmer Module
2SUNROOF 20A Panorama Sunroof Motor
9MODULE 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module
MDPS 7.5A MDPS Unit
3MODULE 10A BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP 20A Stop Signal Electronic Module
1MODULE 7.5A Active Air Flap, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror,
Driver/Passenger Door Module
1SUNROOF 20A Panorama Sunroof Motor
A/CON 7.5A A/C Control Module, E/R Junction Block (Blower Relay, PTC Heater 1/2 Relay), Electronic A/C Compressor
2MODULE 10A Audio, A/V & Navigation Head Unit, TMU Unit, Overhead Console Lamp BCM, AMP,
Power Outside Mirror Switch, Digital Clock, Smart Key Control Module
A/BAG IND 7.5A Instrument Cluster
Instrument panel fuse (Plug-in hybrid)

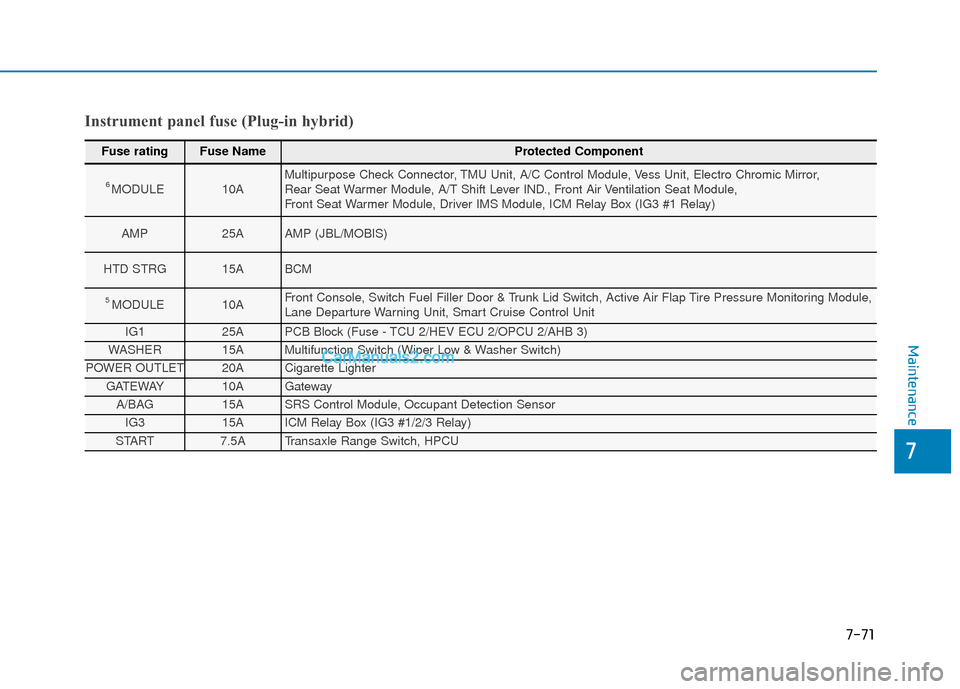

7-71
7
Maintenance
Fuse rating Fuse Name Protected Component
6MODULE10A Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror,
Rear Seat Warmer Module, A/T Shift Lever IND., Front Air Ventilation Seat Module,
Front Seat Warmer Module, Driver IMS Module, ICM Relay Box (IG3 #1 Relay)
AMP 25A AMP (JBL/MOBIS)
HTD STRG 15A BCM
5MODULE 10A Front Console, Switch Fuel Filler Door & Trunk Lid Switch, Active Air Flap Tire Pressure Monitoring Module,
Lane Departure Warning Unit, Smart Cruise Control Unit
IG1 25A PCB Block (Fuse - TCU 2/HEV ECU 2/OPCU 2/AHB 3)
WASHER 15A Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET 20A Cigarette Lighter
GATEWAY 10A Gateway
A/BAG 15A SRS Control Module, Occupant Detection Sensor
IG3 15A ICM Relay Box (IG3 #1/2/3 Relay)
START 7.5A Transaxle Range Switch, HPCU
Instrument panel fuse (Plug-in hybrid)

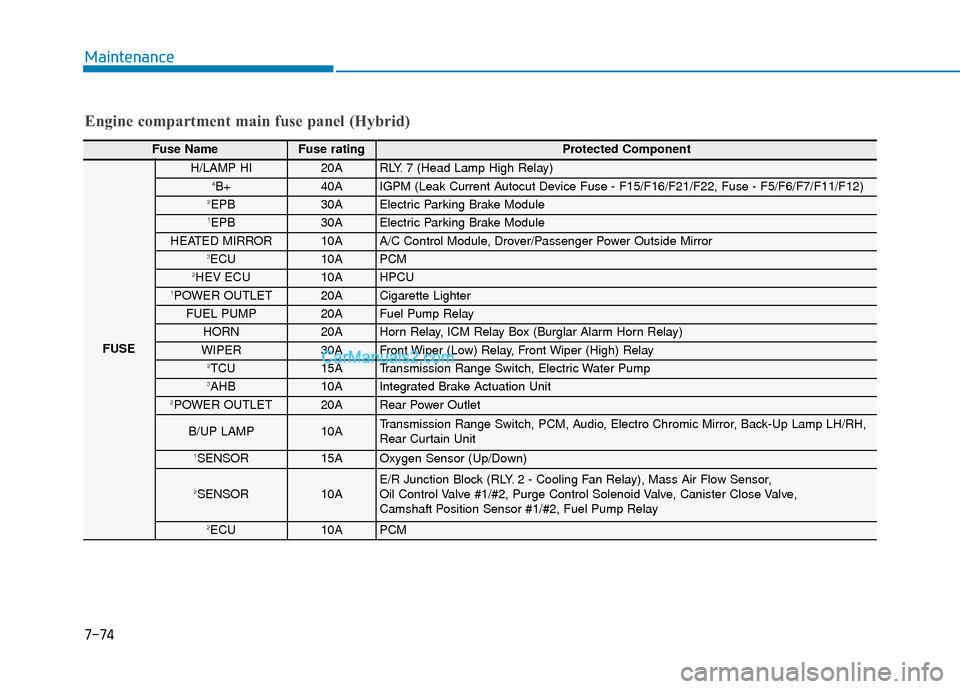

7-74
Maintenance
Fuse Name Fuse rating Protected Component
FUSE
H/LAMP HI20ARLY. 7 (Head Lamp High Relay)4B+40AIGPM (Leak Current Autocut Device Fuse - F15/F16/F21/F22, Fuse - F5/F6/F7/F11/F12)2EPB30AElectric Parking Brake Module1EPB30AElectric Parking Brake Module
HEATED MIRROR10AA/C Control Module, Drover/Passenger Power Outside Mirror3ECU10APCM2HEV ECU10AHPCU1POWER OUTLET20ACigarette Lighter
FUEL PUMP20AFuel Pump Relay
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER30AFront Wiper (Low) Relay, Front Wiper (High) Relay2TCU15ATransmission Range Switch, Electric Water Pump3AHB10AIntegrated Brake Actuation Unit2POWER OUTLET20ARear Power Outlet
B/UP LAMP10ATransmission Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH,
Rear Curtain Unit
1SENSOR15AOxygen Sensor (Up/Down)
2SENSOR10AE/R Junction Block (RLY. 2 - Cooling Fan Relay), Mass Air Flow Sensor,
Oil Control Valve #1/#2, Purge Control Solenoid Valve, Canister Close Valve,
Camshaft Position Sensor #1/#2, Fuel Pump Relay
2ECU10APCM
Engine compartment main fuse panel (Hybrid)

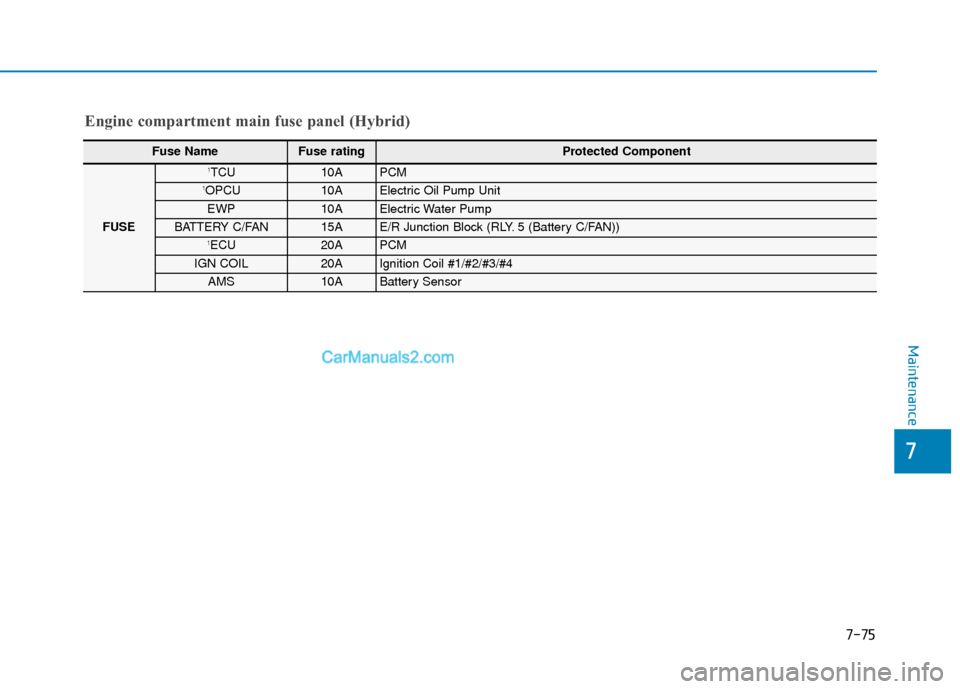

7-75
7
Maintenance
Fuse Name Fuse rating Protected Component
FUSE
1TCU10APCM 1OPCU10AElectric Oil Pump Unit
EWP10AElectric Water Pump
BATTERY C/FAN15AE/R Junction Block (RLY. 5 (Battery C/FAN))1ECU20APCM
IGN COIL20AIgnition Coil #1/#2/#3/#4
AMS10ABattery Sensor
Engine compartment main fuse panel (Hybrid)
