Maintenance
Fuse NameFuse rating Protected Component
FUSE
2 IG3 10A IGPM (Gateway), Instrument Cluster, BMS Control Module (Main/Sub), Battery
Expansion Module Sensor Swtich (Main), Transaxle Range Switch, PCM, HPCU,
Charge Indicator, A/V & Navigation Head Unit
1 IG310A Electric Water Pump (HEV)
OBC 10A OBC Unit
DEICER 20A Deicer Relay 1 OPCU 20A Electric Oil Pump Unit 1 HEV ECU 10A HPCU
H/LAMP HI 20A Head Lamp Hi Relay
4 B+ 40A IGPM (Leak Current Autocut Device Fuse - INTERIOR LAMP/MEMORY 1/MEMORY 2/
MULTI MEDIA, Fuse -BRAKE SWITCH/SMART KEY/S/HEATER FRT/
BATTERY MANAGEMENT/DR LOCK)
2 EPB 30A Electric Parking Brake Module 1 EPB 30A Electric Parking Brake Module 3 IG310A OBC Unit
HEATED
MIRROR 10A A/C Control Module, Drover/Passenger Power Outside Mirror

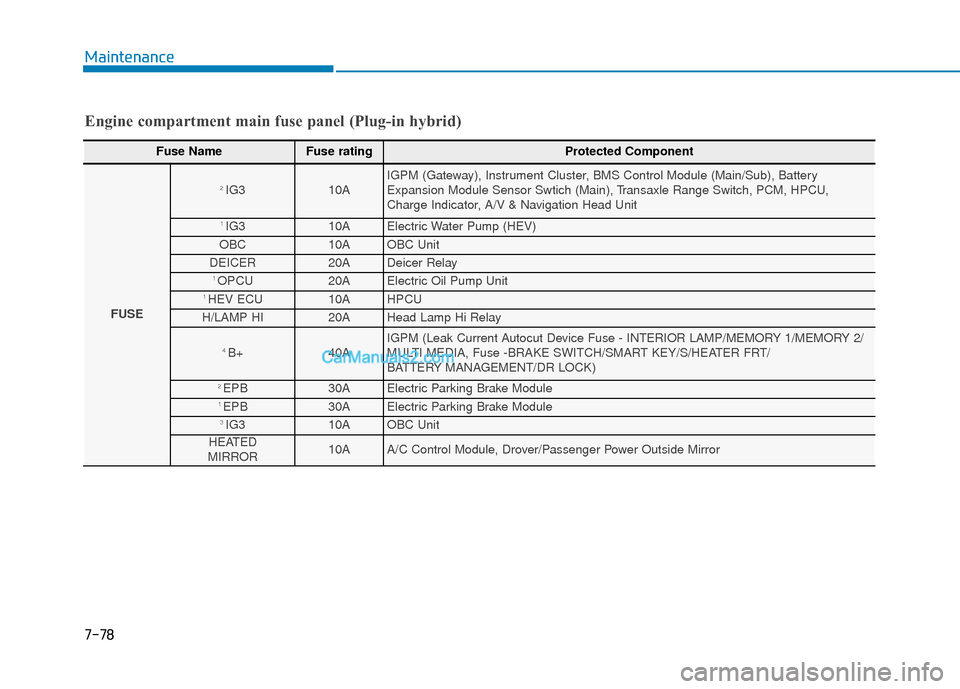

Engine compartment main fuse panel (Plug-in hybrid)
7-78

7-79
7
Maintenance

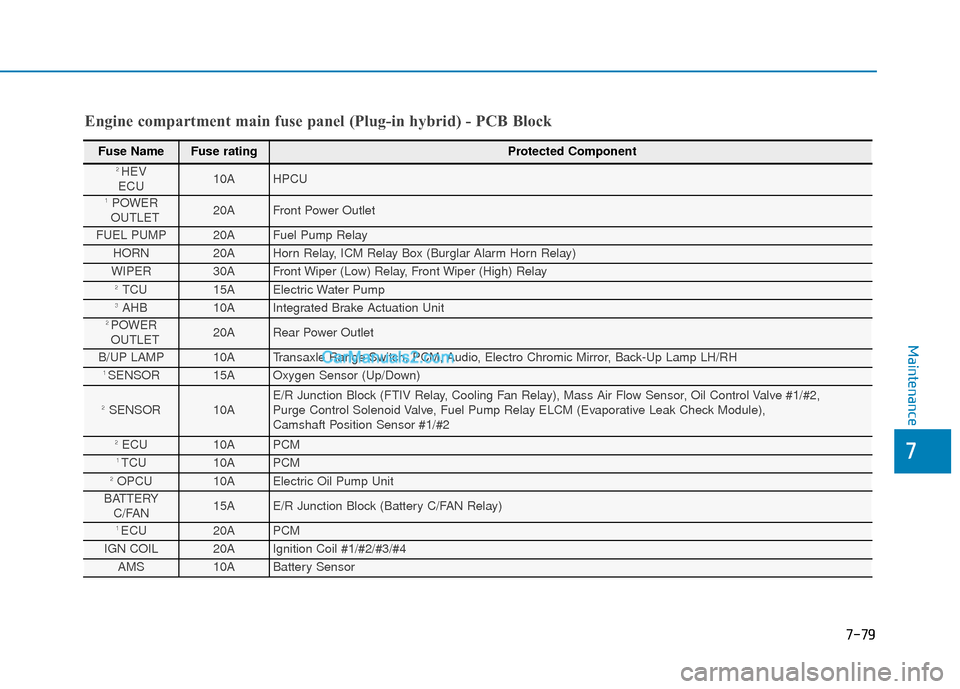

Engine compartment main fuse panel (Plug-in hybrid) - PCB Block
Fuse NameFuse rating Protected Component
2 HEV
ECU10A HPCU
1 POWER
OUTLET20A Front Power Outlet
FUEL PUMP 20A Fuel Pump Relay
HORN 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 30A Front Wiper (Low) Relay, Front Wiper (High) Relay 2 TCU15A Electric Water Pump 3 AHB10A Integrated Brake Actuation Unit 2 POWER
OUTLET20A Rear Power Outlet
B/UP LAMP 10A Transaxle Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH 1 SENSOR 15A Oxygen Sensor (Up/Down)
2 SENSOR10A E/R Junction Block (FTIV Relay, Cooling Fan Relay), Mass Air Flow Sensor, Oil Control Valve #1/#2,
Purge Control Solenoid Valve, Fuel Pump Relay ELCM (Evaporative Leak Check Module),
Camshaft Position Sensor #1/#2
2 ECU10A PCM 1 TCU10A PCM 2 OPCU10A Electric Oil Pump Unit
BATTERY C/FAN 15A E/R Junction Block (Battery C/FAN Relay)
1 ECU20A PCM
IGN COIL 20A Ignition Coil #1/#2/#3/#4
AMS 10A Battery Sensor

I-2
A/V mode ........................................................................\
3-98
Air bag warning labels ....................................................2-70
Air bags ........................................................................\
...2-47Additional safety precautions .....................................2-69
Air bag collision sensors ............................................2-63
Air bag inflation conditions .......................................2-65
Air bag non-inflation conditions ................................2-66
Air bag warning labels ...............................................2-70
Curtain air bags ..........................................................2-51
Do not install a child restraint on the front passenger seat..........................................................2-58
Driver's front air bag ..................................................2-49
How does the air bag system operate? .......................2-53
Occupant Classification System (OCS) .....................2-58
Passenger's front air bag.............................................2-49
Side air bags ...............................................................2-50
SRS Care ....................................................................2-68\
SRS warning light ......................................................2-53
What to expect after an air bag inflates .....................2-57
Where are the air bags? ..............................................2-49
Why didn't my air bag go off in a collision ...............2-63
Air cleaner.......................................................................7\
-35
Air conditioning system (Refrigerant/Compressor) .........8-5
Air ventilation seats ........................................................2-22 Airconditioning system
Automatic climate control system............................3-138
Occupant Classification System (OCS) ...................3-137
Alarm system ..................................................................3-13
Antenna ........................................................................\
.....4-2
Anti-lock brake system (ABS) .......................................5-32
Appearance care..............................................................7-94 Exterior care ...............................................................7-94
Interior care ................................................................7-99
Armrest ........................................................................\
...2-14
Audio/Video/Navigation system (AVN) ...........................4-4
Auto door lock/unlock features ......................................3-12
Auto hold ........................................................................\
5-28
Auto light position ........................................................3-115
Automatic climate control system ................................3-136 Air conditioning .......................................................3-145
Automatic heating and air conditioning ...................3-137
Climate control air filter ...........................................3-148
Manual heating and air conditioning .......................3-138
Automatic transmission ..................................................5-12 Sports mode ................................................................5-15
Automtice transmission shift indicator ...........................3-75
AUX, USB and iPod
®port ...............................................4-2
Index
A
