fold seats Hyundai Sonata Plug-in Hybrid 2017 Owner's Manual

2-4
S
SE
E A
A T
TS
S

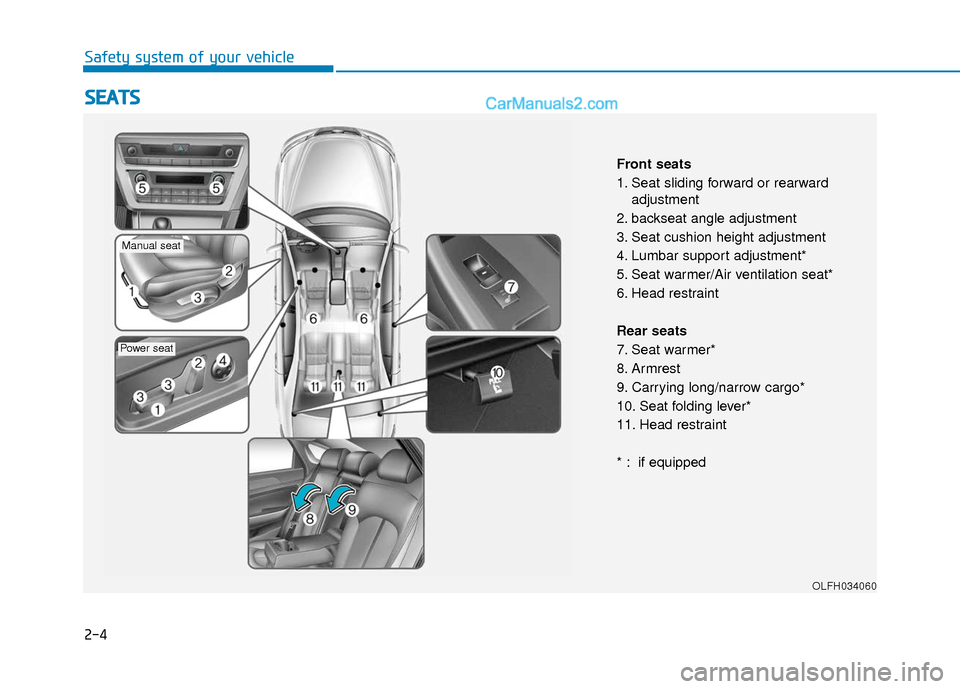

Safety system of your vehicle
OLFH034060
Front seats
1. Seat sliding forward or rearward
adjustment
2. backseat angle adjustment
3. Seat cushion height adjustment
4. Lumbar support adjustment*
5. Seat warmer/Air ventilation seat*
6. Head restraint
Rear seats
7. Seat warmer*
8. Armrest
9. Carrying long/narrow cargo*
10. Seat folding lever*
11. Head restraint
* : if equipped
Power seat
Manual seat

2-12
Safety system of your vehicle
Rear Seats
Folding the rear seat (if equipped)
The rear backseats can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.To fold down the rear backseat:
1. Set the front backseat to theupright position and if necessary,
slide the front seat forward.
2. Lower the rear head restraints to the lowest position.
Never allow passengers to sit
on top of the folded down
backseat while the vehicle is
moving. This is not a proper
seating position and no seat
belts are available for use.
This could result in serious
injury or death in case of an
accident or sudden stop.
Objects carried on the folded
down backseat should not
extend higher than the top of
the front backseats. This
could allow cargo to slide for-
ward and cause injury or dam-
age during sudden stops.
(Continued)
WARNING
(Continued)

Do not put objects in the cen-
ter lower part of rear seats.
This could block the battery
cooling duct causing battery
degradation.
Do not put objects on the left
side of rear seat. This could
block the battery cooling duct
causing battery degradation.OLF034025OLFHQ014006K
■Hybrid
OLP035100
■Plug-in hybrid

2-13
Safety system of your vehicle
3. Pull on the backseat folding lever(1) located in the trunk. 4. Fold the backseat toward the front
of the vehicle.
5. To use the rear seat, lift and pull the backseat rearward. Pull the
backseat firmly until it clicks into
place. Make sure the backseat is
locked in place.
When you return the backseat to its upright position, always be sure
it has locked into position by push-
ing on the top of the backseat.
2
OLF034024OLF034027
When returning the rear back-
seat from a folded to an upright
position, hold the backseat and
return it slowly. Ensure that the
backseat is completely locked
into its upright position by
pushing on the top of the back-
seat. In an accident or sudden
stop, the unlocked backseat-
could allow cargo to move for-
ward with great force and enter
the passenger compartment,
which could result in serious
injury or death.
WARNING
Do not place objects in the rear
seats, since they cannot be
properly secured and may hit
vehicle occupants in a collision
causing serious injury or death.
WARNING

I-5
Engine compartment..................................................1-6, 7-3
Engine compartment panel fuse .....................................7-62
Engine coolant ................................................................7-29
Engine Coolant Temperature gauge................................3-61
Engine number ..................................................................8-9
Engine oil ........................................................................\
7-27
Engine start/stop button ....................................................5-5
Explanation of scheduled maintenance items.................7-24
Exterior care....................................................................7-94\
Exterior overview (front) ..................................................1-2
Exterior overview (rear) ...................................................1-3
Flat tire (with Tire Mobility kit) .....................................6-15
Floor mat anchor(s).......................................................3-161
FluidBrake fluid ..................................................................7-33
Washer fluid ...............................................................7-34
Folding rear seats ............................................................2-12
Folding the side view mirror ..........................................3-36
Foot parking brake ..........................................................5-20
Forward collision warning system (FCWS) ...................5-45
Front lamp .....................................................................3-1\
24
Front seats ........................................................................\
.2-6
Fuel Economy ...............................................................3-107
Fuel filler lid Emergency fuel filler door release .............................3-53 Fuel filler lid (Hybrid) ....................................................3-53
Fuel filler lid (Plug-in hybrid) ........................................3-56
Fuel Gauge ......................................................................3-\
64
Fuel requirements .............................................................F-7
Fuse switch .....................................................................7-6\
2
Fuses ........................................................................\
.......7-60
Instrument panel fuse .................................................7-61
Engine compartment panel fuse .................................7-62
Fuse switch .................................................................7-62
Fuse/relay panel description .......................................7-64
Main fuse ....................................................................7-63\
Multi fuse ...................................................................7-63
Gauges........................................................................\
.....3-62
Glove box......................................................................3-\
154
Glove box lamp.............................................................3-124
I
Index
F
G

I-10
Safety messages ................................................................F-6
Safety precautions for hybrid system ............................H-42
Scheduled maintenance service ........................................7-8
Seat belts ........................................................................\
.2-24Additional seat belt safety precautions ......................2-32
Care of seat belts ........................................................2-35
Height adjustment ......................................................2-26
Pre-tensioner seat belt ................................................2-29
Rear center seat belt ...................................................2-32
Seat belt restraint system............................................2-26
Seat belt safety precautions ........................................2-24
Seat belt warning light ...............................................2-25
Seat warmers ...................................................................2-20
Seats ........................................................................\
..........2-4 Air ventilation seats....................................................2-22
Armrest .......................................................................2\
-14
Backseat pocket ..........................................................2-11
Folding rear seats .......................................................2-12
Front seats ....................................................................2-6
Head restraints ............................................................2-16
Rear seats....................................................................2-12\
Safety precautions ........................................................2-5
Seat warmers ..............................................................2-20 Shift lock system.............................................................5-16
Shift-lock release ............................................................5-16
Side air bags....................................................................2-50\
Side curtain ...................................................................3-162\
Side view mirror .............................................................3-34
Smart cruise control system............................................5-65
Smart high beam ...........................................................3-117
Smart key ........................................................................\
..3-3
Smart trunk .....................................................................3-5\
0
Smooth cornering............................................................5-82
Snow tires .......................................................................5\
-85
Special driving conditions ..............................................5-81
Driving at night ..........................................................5-82
Driving in flooded areas .............................................5-83
Driving in the rain ......................................................5-83
Hazardous driving conditions ....................................5-81
Highway driving.........................................................5-84
Rocking the vehicle ....................................................5-81
Smooth cornering .......................................................5-82
Speedometer....................................................................3-62\
Sports mode ....................................................................5-15\
Starting difficulties, see engine will not start ...................6-3
Index
S
